Installing a Cisco Nexus 7010 Chassis
This chapter describes how to install a new or relocated Cisco Nexus 7010 chassis in a rack or cabinet. For
information about installing other Cisco Nexus 7000 Series chassis or power supplies, see the following
chapters:
This chapter includes the following sections:
•Preparing to Install the Switch, on page 1
•Installing the Bottom-Support Rails on the Rack, on page 4
•Installing the Chassis, on page 7
•Grounding the Cisco Nexus 7010 Chassis, on page 11
•Installing Storage Media in a Supervisor Module, on page 16
•Installing the Front Doors and Frame Assembly, on page 17
•Installing the Air Filter, on page 24
Preparing to Install the Switch
This section includes the following topics:
You must set up one four-post, 19-inch EIA rack or cabinet before you can install the Cisco Nexus 7010
chassis. Make sure that you order the rack or cabinet and have it delivered before installing the chassis.
Note
Required Tools
Before you install the Cisco Nexus 7010 chassis into a rack, make sure that you have the following tools and
equipment:
• Mechanical lift capable of lifting 550 pounds (250 kg)
• Number 1 Phillips screwdriver with torque capability
• 3/16-inch flat-blade screwdriver
• Crimping tool
• Wire stripping tool
Installing a Cisco Nexus 7010 Chassis
1

• Tape measure and level
• Grounding cable
These tools and equipment do not ship with the chassis.
Note
Additional tools and equipment, such as an electrostatic discharge (ESD) wrist strap, that you will also need
to install the Cisco Nexus 7010 chassis, are included in the Cisco Nexus 7010 accessory kit.
When you handle the Cisco Nexus 7010 chassis or its components, you must follow ESD protocol at all times
to prevent ESD damage. This protocol includes but is not limited to wearing an ESD wrist strap that you
connect to the earth ground.
Caution
For a list of tools required to assemble and secure the four-post rack or cabinet, see the documentation that
the manufacturer shipped with the rack or cabinet.
Note
Installing a Four-Post Rack or Cabinet
Before you install the Cisco Nexus 7010 chassis, you must install a standard four-post, 19-inch EIA data
center rack (or a cabinet that contains such a rack) that meets the requirements listed in the Cisco Nexus 7000
Series Site Preparation Guide. To maximize safety, you should do the following for the rack:
• Bolt the rack to the concrete subfloor before moving the Cisco Nexus 7010 chassis onto it.
Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor
before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over. Statement
1048
Warning
• If the rack has bonded construction, connect it to the earth ground to enable you to easily ground the
system components that you install and to ground your ESD wrist strap. This step minimizes the chance
of electrostatic discharge when you handle ungrounded components before you install them.
Be sure that the rack includes AC power receptacles with the amperage required for the power supply units
that you will be installing in the chassis. If you are installing 6-kW power supply units, you must have 20-A
circuits. If you are installing 7.5-kW power supply units, you must have 30-A circuits.
Take care when connecting units to the supply circuit so that wiring is not overloaded. Statement 1018
Warning
For instructions on setting up the rack, see the documentation that the manufacturer shipped with the rack.
Installing a Cisco Nexus 7010 Chassis
2
Installing a Cisco Nexus 7010 Chassis
Installing a Four-Post Rack or Cabinet

Unpacking and Inspecting a New Switch
Before you install a new Cisco Nexus 7010 chassis, you need to unpack and inspect it to be sure that you have
all the items that you ordered and verify that the switch was not damaged during shipment. If anything is
damaged or missing, contact your customer representative immediately.
Do not discard the shipping container when you unpack the Cisco Nexus 7010 system. Flatten the shipping
cartons and store them with the pallet used for the system. If you need to move or ship the system in the future,
you will need these containers. For repacking instructions, see Appendix E, “Repacking the Cisco Nexus 7000
Series Switch for Shipment.”
Tip
To inspect the shipment, follow these steps:
SUMMARY STEPS
1. Compare the shipment to the equipment list provided by your customer service representative and verify
that you have received all of the ordered items. The shipment should include boxes for the following:
2. Check the contents of each box or package for damage.
3. If you notice any discrepancies or damage, send the following information to your customer service
representative by e-mail:
DETAILED STEPS
Step 1 Compare the shipment to the equipment list provided by your customer service representative and verify that you have
received all of the ordered items. The shipment should include boxes for the following:
• System chassis, which includes the following installed components:
• 2 supervisor modules
• 1 to 8 I/O modules
• 3 to 5 fabric modules
• 2 system fan trays
• 2 fabric fan trays
• 2 to 3 power supply units
The power supply units are shipped with the chassis but are boxed separately.
• Cisco Nexus 7010 system accessory kit
To see a list of what is in the accessory kit, see the Cisco Nexus 7010 System Accessory Kit Contents document, which
is included in the kit.
• Mid-chassis doors and frame (optional)
• Air filter (optional)
Step 2 Check the contents of each box or package for damage.
Installing a Cisco Nexus 7010 Chassis
3
Installing a Cisco Nexus 7010 Chassis
Unpacking and Inspecting a New Switch

Step 3 If you notice any discrepancies or damage, send the following information to your customer service representative by
e-mail:
• Invoice number of the shipper (see the packing slip)
• Model and serial number of the missing or damaged unit
• Description of the problem and how it affects the installation
Installing the Bottom-Support Rails on the Rack
The bottom-support rails hold the Cisco Nexus 7010 chassis on the rack or cabinet. To maximize the stability
of the rack, you must attach these rails at the lowest possible rack unit (RU).
The prerequisites, tools, and process for installing the bottom-support rails are included in the following topics:
Prerequisites for Attaching the Bottom-Support Rails
Before you can attach the bottom-support rails, you must fully install the rack or cabinet, and should, for
maximum stability, bolt the rack or cabinet to the concrete subfloor. If anything lighter than the Cisco Nexus
7010 system is already installed in the rack, you should make sure that it is positioned above where you will
be installing the Cisco Nexus 7010 system. Also, you must have the bottom-support rail kit, which ships with
the Cisco Nexus 7010 system accessory kit. The distance between the front and rear mounting brackets on
the rack or cabinet must be between 24 and 32 inches (60.96 and 81.28 cm) to fit the bottom-support rails.
Required Tools and Equipment
You need the following tools and equipment to attach the bottom-support rails:
• Number 1 Phillips-head screwdriver with torque capability.
• Rack-mount kit (shipped with the accessory kit). Table 1: Contents for the Rack-Mount Kit, on page 4
lists the items in the rack-mount kit.
Table 1: Contents for the Rack-Mount Kit
QuantityPart Description
2012-24 x 3/4 in. Phillips screws
20M6 x 19 mm Phillips screws
2Adjustable bottom-support rails
Installing a Cisco Nexus 7010 Chassis
4
Installing a Cisco Nexus 7010 Chassis
Installing the Bottom-Support Rails on the Rack

Attaching the Bottom-Support Rails
To maximize the stability of the rack, you should install the chassis as low as possible on the rack. Install the
heaviest system first at the bottom of the rack. If you install a second system in the same rack, install it
immediately above the lower system if there is enough vertical space.
To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions
to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the
heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the
unit in the rack. Statement 1006
To attach the bottom-support rails to a four-post EIA rack, follow these steps:
Step 1 Position one of the two adjustable bottom-support rails at the lowest possible RU. If you are installing a chassis above
another Cisco Nexus 7010 chassis, position the rail 36.75 inches (93.4 cm) (21 RU) above the bottom-support rails for
the lower chassis as shown in Figure 1: Positioning the Bottom-Support Rails, on page 6. Adjust the length of the rail
so that it stretches from the outer edges of the front and rear vertical mounting rails. You can expand the rail so that its
mounting brackets are spaced between 24 to 32 inches (60.96 to 81.28 cm).
Installing a Cisco Nexus 7010 Chassis
5
Installing a Cisco Nexus 7010 Chassis
Attaching the Bottom-Support Rails

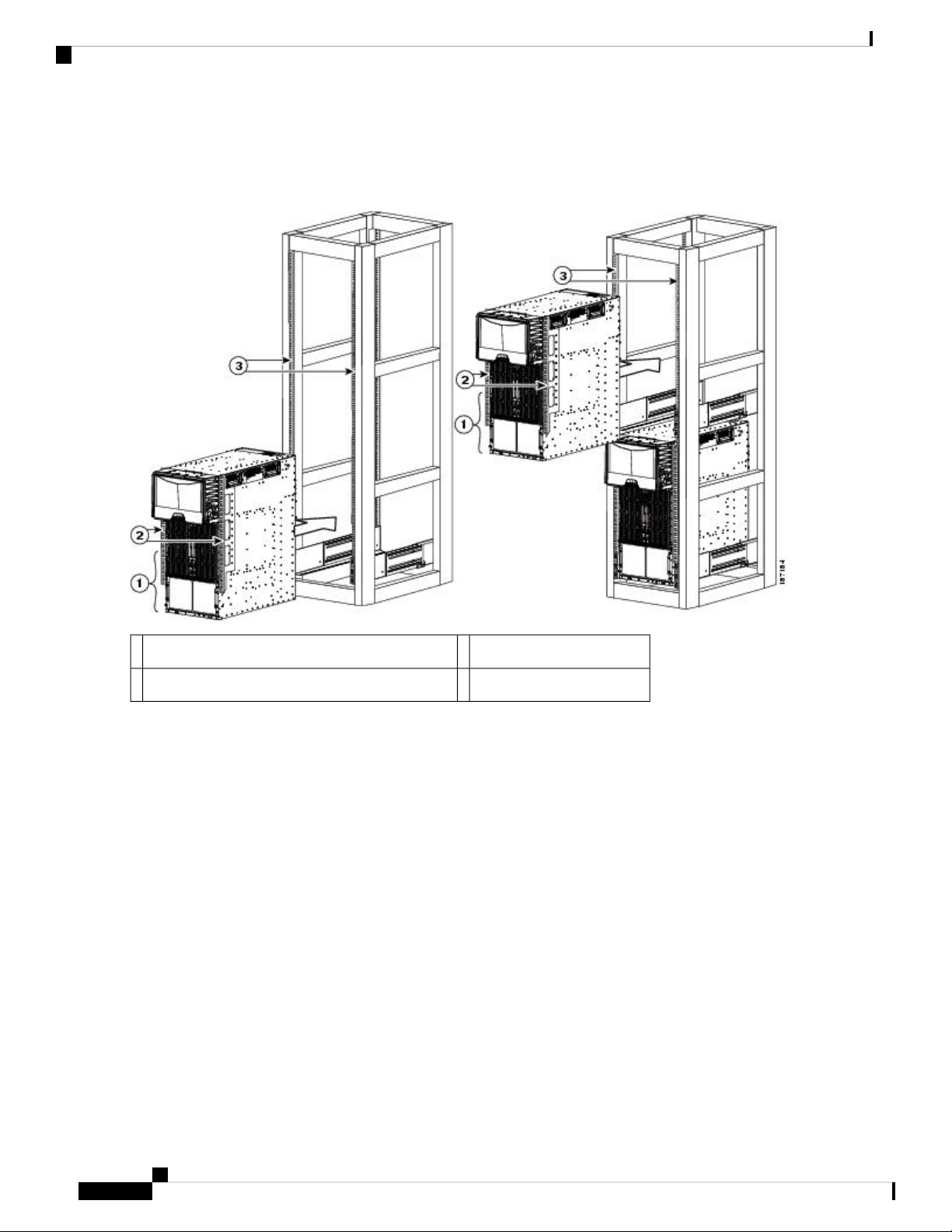

Figure 1: Positioning the Bottom-Support Rails
Allow at least 36.75 inches (93.4 cm)
(21 RU) for each Cisco Nexus 7010
system.
3For the first and heaviest Cisco Nexus 7010 chassis installed in a rack,
position two bottom-support rails at the lowest RU on the rack.
1
For the second Cisco Nexus 7010 chassis installed in a rack, position two
bottom-support rails immediately above the first installed switch.
2
Step 2 Use a Phillips screwdriver to screw in three M6 x 19 mm or 12-24 x 3/4 in. Phillips screws on each end of each rail (using
a total of 12 screws for both brackets) as shown in Figure 2: Attaching a Bottom-Support Rail to a Rack, on page 7.
Three of the screw holes on each end of the bottom-support rail align to the screw holes in the mounting rail.
Use a screw in each of these screw holes.
Note
Installing a Cisco Nexus 7010 Chassis
6
Installing a Cisco Nexus 7010 Chassis
Attaching the Bottom-Support Rails

Figure 2: Attaching a Bottom-Support Rail to a Rack
Adjustable bottom-support rails (2)2Four sets of 3 M6 x 19 mm Phillips screws orfour sets of 3 12-24 x 3/4 in.
Phillips screws
1
Installing the Chassis
This section describes how to install the Cisco Nexus 7010 chassis in a rack or cabinet. These installation
steps include transporting the chassis, elevating the chassis to the rack using a mechanical lift, pushing the
chassis onto the rack, and then securing the chassis to the rack.
This section includes the following topics:
Prerequisites for Installing the Chassis
Before you install the chassis, you must make sure that the following items are available for the installation:
• Data center ground is accessible where you are installing the Cisco Nexus 7010 chassis.
• Four-post, 19-inch EIA rack or cabinet that includes such a rack.
For more information on the rack or cabinet, see the Installing a Four-Post Rack or Cabinet, on page 2.
Installing a Cisco Nexus 7010 Chassis
7
Installing a Cisco Nexus 7010 Chassis
Installing the Chassis

Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor
before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over. Statement
1048
Warning
• Bottom-support rails installed in the rack or cabinet—You must already have two bottom-support rails
attached to the lowest possible rack unit on the chassis.
For more information, see the Installing the Bottom-Support Rails on the Rack, on page 4.
To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions
to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the
heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the
unit in the rack. Statement 1006
• Cisco Nexus 7010 chassis and its components are accounted for and undamaged.
For more information, see the Unpacking and Inspecting a New Switch, on page 3.
Required Tools and Equipment
You need the following tools and equipment to install the Cisco Nexus 7010 chassis:
• Mechanical lift capable of lifting at least 550 pounds (250 kg)
You must use a mechanical lift whenever lifting a device over 120 pounds (55 kg).
Caution
• Number 1 Phillips-head screwdriver with torque capability
• Bottom-support rails kit (shipped with the Cisco Nexus 7010 system accessory kit)
Part of this kit has already been used to install the bottom-support rails. Table 2: Contents for the Rack-Mount
Kit, on page 8 lists the items in the rack-mount kit.
Table 2: Contents for the Rack-Mount Kit
QuantityPart Description
2012-24 x 3/4 in. Phillips screws
20M6 x 19 mm Phillips screws
2Adjustable bottom-support rails
Installing a Cisco Nexus 7010 Chassis
8
Installing a Cisco Nexus 7010 Chassis
Required Tools and Equipment

You should also have at least four persons to push the chassis, which can weigh up to 550 pounds (250 kg),
onto and off the mechanical lift and rack.
Note
Installing the Chassis
To install a Cisco Nexus 7010 chassis in a four-post rack or cabinet, follow these steps:
SUMMARY STEPS
1. Load the chassis onto a mechanical lift as follows:
2. Use the mechanical lift to move and align the rear of the chassis to the front of the four-post rack or
cabinet. Make sure that the bottom of the chassis is elevated to the height of the bottom-support rails or
no more than 1/4 inch (0.635 cm) above the bracket.
3. Use at least four persons to push the chassis onto the installed bottom-support rails as shown in Figure 3:
Moving a Cisco Nexus 7010 Chassis onto a Rack, on page 10.
4. Make sure that the screw holes in the chassis mounting brackets align with the screw holes in the vertical
mounting rails.
5. Use a Phillips screwdriver to screw in four M6 x 19-mm or 12-24 x 3/4-inch screws in each of the two
chassis mounting brackets (use a total of eight screws for two mounting brackets) as shown in Figure 4:
Attaching the Cisco Nexus 7010 Chassis to the Rack, on page 11.
DETAILED STEPS
Step 1 Load the chassis onto a mechanical lift as follows:
a) Position the mechanical lift next to the shipping pallet that holds the chassis.
b) Elevate the lift platform to the level of the bottom of the chassis (or no more than 1/4 inch [0.635 cm] below the
bottom of the chassis).
c) Use at least four persons to slide the chassis fully onto the lift so that the side of the chassis touches or is close to the
vertical rails on the lift. Make sure that the front and rear of the chassis are unobstructed so you can easily push the
chassis into the rack.
To prevent personal injury or damage to the chassis, never attempt to lift or tilt the chassis using the handles
on modules (such as power supplies, fans, or cards); these types of handles are not designed to support the
weight of the unit. Statement 1032
Warning
To lift the chassis, use a mechanical lift, not the handles on the side of the chassis (the handles are not rated
for lifting over 200 pounds [91 kg]). Use the side handles for only repositioning the chassis after it is already
on the mechanical lift or in the rack or cabinet.
Caution
Step 2 Use the mechanical lift to move and align the rear of the chassis to the front of the four-post rack or cabinet. Make sure
that the bottom of the chassis is elevated to the height of the bottom-support rails or no more than 1/4 inch (0.635 cm)
above the bracket.
Step 3 Use at least four persons to push the chassis onto the installed bottom-support rails as shown in Figure 3: Moving a Cisco
Nexus 7010 Chassis onto a Rack, on page 10.
Installing a Cisco Nexus 7010 Chassis
9
Installing a Cisco Nexus 7010 Chassis
Installing the Chassis

Push the lower half of the front side of the chassis so that the back side enters the rack first, and push until the chassis
mounting brackets come in contact with the front vertical mounting rails on the rack.
Figure 3: Moving a Cisco Nexus 7010 Chassis onto a Rack
Rack vertical mounting rails3Push the lower half of the front side of the chassis1
Chassis mounting brackets2
Step 4 Make sure that the screw holes in the chassis mounting brackets align with the screw holes in the vertical mounting rails.
If you need to reposition the chassis to align the screw holes, you can use the handles on the sides of the chassis.
To adjust the placement of the chassis so that the screw holes in the chassis mounting brackets align with the
screw holes in the vertical mounting rails, use the chassis handles shown in Figure 4: Attaching the Cisco Nexus
7010 Chassis to the Rack, on page 11.
Tip
Step 5 Use a Phillips screwdriver to screw in four M6 x 19-mm or 12-24 x 3/4-inch screws in each of the two chassis mounting
brackets (use a total of eight screws for two mounting brackets) as shown in Figure 4: Attaching the Cisco Nexus 7010
Chassis to the Rack, on page 11.
Installing a Cisco Nexus 7010 Chassis
10
Installing a Cisco Nexus 7010 Chassis
Installing the Chassis

Figure 4: Attaching the Cisco Nexus 7010 Chassis to the Rack
Four M6 x 19 mm or 10-24 x 3/4 in. Phillips screws used to attach each
side bracket to a front mounting rail (use a total of eight screws)
2Handles used to adjust the chassis
placement
1
Grounding the Cisco Nexus 7010 Chassis
The Cisco Nexus 7010 system is grounded through the AC power supply cables and one of two grounding
connections on the chassis. The AC power supply cables provide a connection to an earth ground whenever
you connect the AC power to the system. The system ground, also referred to as the network equipment
building system (NEBS) ground, provides additional grounding for EMI shielding requirements and for the
low-voltage supplies (DC-DC converters) on the modules. This grounding system is active even when the
AC power cables are not connected to the system. You establish this ground by connecting one of the two
grounding pads on the chassis to the rack (if it is connected to an earth ground) or directly to the earth ground
for the data center building.
This section includes the following topics:
Prerequisites for Grounding the Chassis
Before you can ground the chassis, you must have a connection to the earth ground for the data center building.
If you installed the Cisco Nexus 7010 chassis into a bonded rack (see the rack manufacturer’s instructions for
more information) that now has a connection to the data center earth ground, you can ground the chassis by
Installing a Cisco Nexus 7010 Chassis
11
Installing a Cisco Nexus 7010 Chassis
Grounding the Cisco Nexus 7010 Chassis

connecting its grounding ports to the rack. Otherwise, you must connect the chassis grounding ports directly
to the data center ground.
Required Tools and Equipment
To connect the system ground, you need the following tools and materials:
• Grounding lug—A two-holed standard barrel lug that supports up to 6 AWG wire. This lug is supplied
with the Cisco Nexus 7010 system accessory kit.
• Grounding screws—Two M4 x 8 mm (metric) pan-head screws. These screws are shipped with the Cisco
Nexus 7010 accessory kit.
• Grounding wire—Not supplied with the Cisco Nexus 7010 system accessory kit. This wire should be
sized to meet local and national installation requirements. Depending on the power supply and system,
a 12 AWG to 6 AWG copper conductor is required for U.S. installations. We recommend that you use
commercially available 6 AWG wire. The length of the grounding wire depends on the proximity of the
switch to proper grounding facilities.
• Number 1 Phillips-head screwdriver with torque capability.
• Crimping tool to crimp the grounding wire to the grounding lug.
• Wire-stripping tool to remove the insulation from the grounding wire.
Connecting the System Ground
After you have moved the chassis into the rack or cabinet, you are ready to connect the system to the data
center earth ground. After you ground the chassis, you can ground your ESD wrist strap by connecting it to
the chassis.
To connect the system ground to the data center earth ground, follow these steps:
Step 1 Use a wire-stripping tool to remove approximately 0.75 inch (19 mm) of the covering from the end of the grounding
wire.
Step 2 Insert the stripped end of the grounding wire into the open end of the grounding lug as shown in Figure 5: Inserting the
Grounding Wire in the Grounding Lug, on page 12.
Figure 5: Inserting the Grounding Wire in the Grounding Lug
Grounding cable with 0.75 in. (19 mm) of insulation stripped from the end2NRTL listed 45-degree grounding lug1
Step 3 Use the crimping tool to crimp the lug to the grounding wire. Verify that the ground wire is securely attached to the
ground lug by attempting to pull the wire out of the crimped lug.
Installing a Cisco Nexus 7010 Chassis
12
Installing a Cisco Nexus 7010 Chassis
Required Tools and Equipment

Step 4 Remove the adhesive label from one of the two system grounding pads, and secure the grounding wire lug to the grounding
pad with two M4 screws. Figure 6: Grounding Pad on the Front of the Cisco Nexus 7010 Chassis, on page 13 shows the
location of the grounding pads on the front side of the chassis. Figure 7: Grounding Pad on the Rear of the Cisco Nexus
7010 Chassis, on page 14 shows the location on the rear of the chassis. Ensure that the grounding lug and the grounding
wire do not interfere with other switch hardware or rack equipment.
Figure 6: Grounding Pad on the Front of the Cisco Nexus 7010 Chassis
Grounding
pad
1
Installing a Cisco Nexus 7010 Chassis
13
Installing a Cisco Nexus 7010 Chassis
Connecting the System Ground

Figure 7: Grounding Pad on the Rear of the Cisco Nexus 7010 Chassis
Grounding
pad
1
Step 5 Prepare the other end of the grounding wire and connect it to an appropriate grounding point in your site to ensure an
adequate earth ground for the switch. If the rack is grounded, connect the grounding wire as explained in the documentation
provided by the vendor for the rack.
Connecting Your ESD Wrist Strap to the Chassis
After you connect the chassis to the data center earth ground, you can ground your ESD wrist strap by plugging
it into any one of three ESD ports shown in Figure 8: ESD Grounding Ports on the Front of the Cisco Nexus
7010 Chassis, on page 15 (front of the chassis) or Figure 9: ESD Grounding Port on the Rear of the Cisco
Nexus 7010 Chassis, on page 16 (rear of the chassis).
Installing a Cisco Nexus 7010 Chassis
14
Installing a Cisco Nexus 7010 Chassis
Connecting Your ESD Wrist Strap to the Chassis

Figure 8: ESD Grounding Ports on the Front of the Cisco Nexus 7010 Chassis
ESD grounding port1
Installing a Cisco Nexus 7010 Chassis
15
Installing a Cisco Nexus 7010 Chassis
Connecting Your ESD Wrist Strap to the Chassis

Figure 9: ESD Grounding Port on the Rear of the Cisco Nexus 7010 Chassis
ESD grounding port1
Installing Storage Media in a Supervisor Module
Each supervisor module on a Cisco Nexus 7000 Series switch is shipped with a CompactFlash card installed
in the LOG FLASH reader (Supervisor 1 modules) or a USB drive installed in the LOG FLASH reader
(Supervisor 2 and Supervisor 2E modules). The EXPANSION FLASH reader (Supervisor 1) or Slot0 port
(Supervisor 2 and 2E) is left empty, but you can optionally install a card in that reader or a USB drive in the
USB port. To allow this storage media to function with the reader or port, you must make sure that it is either
formatted for the reader before installing it or format it after installing it.
The LOG FLASH and EXPANSION FLASH or Slot0 readers require different formats for their storage media.
Note
To replace an installed CompactFlash card, see the “Replacing Storage Media for a Supervisor Module”
section on page 10-61 .
To install storage media in a supervisor module, follow these steps:
Installing a Cisco Nexus 7010 Chassis
16
Installing a Cisco Nexus 7010 Chassis
Installing Storage Media in a Supervisor Module

SUMMARY STEPS
1. Align the storage media to its slot or port on the supervisor module as follows:
2. Wait for the reader or port LED to turn green and for a message to appear on the console as follows:
DETAILED STEPS
Step 1 Align the storage media to its slot or port on the supervisor module as follows:
• For a Supervisor 1 module, align the card with the slot for the CompactFlash reader slot labeled LOG FLASH or
EXPANSION FLASH as shown in Figure 10: Aligning a CompactFlash Card to its Reader, on page 17. The grooves
on the thin side of the card are on the end of the card that goes into the reader first. If the card does not fit easily into
the reader, flip the card so that the bottom edge is on top, and try pushing the card into the reader.
Figure 10: Aligning a CompactFlash Card to its Reader
• For a Supervisor 2 or 2E module, insert the USB drive in the LOG FLASH or SLOT0 port.
Step 2 Wait for the reader or port LED to turn green and for a message to appear on the console as follows:
• If you are installing a card or USB drive into the log flash reader, the message will end with “logflash:online.”
• If you are installing a card or USB drive into the expansion flash reader, the message will end with “slot0:online.”
• If you see an “offline” message or do not see a message, either the card or USB drive is not fully inserted or it is
improperly formatted.
Make sure that the card or USB drive is fully inserted inside the reader. If it is fully inserted, either format the card
(see the Cisco Nexus 7000 Series NX-OS Fundamentals Configuration Guide ) or replace the storage media with
another that is properly formatted for the reader.
Installing the Front Doors and Frame Assembly
After you have finished moving the chassis to its rack, you can install its optional front doors and frame
assemblies.
To install the front doors and frame assemblies, follow these steps:
SUMMARY STEPS
1. Align the bottom frame assembly so that its four screw holes align to screw holes in the bottom of the
chassis, and then screw in four M4 x 6 mm screws to attach the bottom frame to the chassis (see Figure
11: Installing the Bottom Frame, on page 19).
Installing a Cisco Nexus 7010 Chassis
17
Installing a Cisco Nexus 7010 Chassis
Installing the Front Doors and Frame Assembly

2. For each of the two front doors, match the two alignment pins on the door frame to the alignment holes
on the chassis. Position each door frame immediately under the cable management area (see Figure 12:
Installing the Front Doors, on page 20).
3. Tighten three screws for each door frame (see Figure 13: Attaching the Door Frames to the Chassis, on
page 21).
DETAILED STEPS
Step 1 Align the bottom frame assembly so that its four screw holes align to screw holes in the bottom of the chassis, and then
screw in four M4 x 6 mm screws to attach the bottom frame to the chassis (see Figure 11: Installing the Bottom Frame,
on page 19).
Installing a Cisco Nexus 7010 Chassis
18
Installing a Cisco Nexus 7010 Chassis
Installing the Front Doors and Frame Assembly

Figure 11: Installing the Bottom Frame
Four M4 x 6 mm screws2Bottom frame assembly with screw holes aligned to screw holes in chassis1
Step 2 For each of the two front doors, match the two alignment pins on the door frame to the alignment holes on the chassis.
Position each door frame immediately under the cable management area (see Figure 12: Installing the Front Doors, on
page 20).
Installing a Cisco Nexus 7010 Chassis
19
Installing a Cisco Nexus 7010 Chassis
Installing the Front Doors and Frame Assembly

Figure 12: Installing the Front Doors
Place door frame on front edge of chassis and immediately under the cable management
area.
3Front door frames.1
Cable management area.2
Step 3 Tighten three screws for each door frame (see Figure 13: Attaching the Door Frames to the Chassis, on page 21).
Installing a Cisco Nexus 7010 Chassis
20
Installing a Cisco Nexus 7010 Chassis
Installing the Front Doors and Frame Assembly
