6BXE
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6BXE motherboard. It is a PentiumII / III / Celeron
Processor based PC /AT compatible system with AGP / PCI / ISA Bus, and
has been designed to be the fastest PC / AT system. There are some new
features allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel PentiumII / III / CeleronProcessor based PC / AT compatible
main board.
qSlot 1 supports PentiumII / III / Celeronprocessor running at 233-650
MHz.
qIntel 440BX chipset, Supports AGP / SDRAM / Ultra DMA33 IDE /
Keyboard and PS/2 Mouse Power On / ACPI features.
qSupports 4xDIMMs using 3.3V SDRAM DIMM module.
qSupports Intel LDCMNetwork Manageability.
qSupports external Modem Ring-On on COMA & COMB and internal
Modem Ring-On.
qSupports 16MB –1GB SDRAM memory on board.
qSupports CPU Over Voltage Protect.
qSupports ECC or Non-ECC type DRAM module.
q1xAGP slot, 5xPCI Bus slots, 2xISA Bus slots.
qSupports 2 channels Ultra DMA 33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1xFDD port.
qSupports 2xUSB ports, 1xPS/2 Mouse & 1xPS/2 Keyboard.
qLicensed AWARD BIOS, 2M bits FLASH RAM.
q30.5 cm x 19 cm ATX SIZE form factor, 4 layers PCB.

Introduction
1-2
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for
different testing data values gotten by users. (Different Hardware & Software
configuration will result in different benchmark testing results.)
•CPU PentiumII / III processor
•DRAM (128 x 1) MB SDRAM (TOSHIBA TC59S6408FTL-80H)
•CACHE SIZE 512 KB included in CPU
•DISPLAY GA-630 AGP Display Card (16MB SGRAM)
•STORAGE Onboard IDE (Seagate ST34520A)
•O.S. Windows NT™4.0 (SP4)
•DRIVER Display Driver at 1024 x 768 x 256 colors x 75Hz.
TRIONES Bus Master IDE Driver 3.60
PentiumII PentiumIII
Processor 400MHz(100x4) 500MHz(100x5)
Winbench99
CPU mark32 1040 1260
FPU Winmark 2060 2550
Business Disk 4360 4450
Hi-End Disk 10400 10900
Business Graphics 145 166
Hi-End Graphics 368 442
Winstone99
Business 29.8 33
Hi-End 27.6 31.5

6BXE
1-3

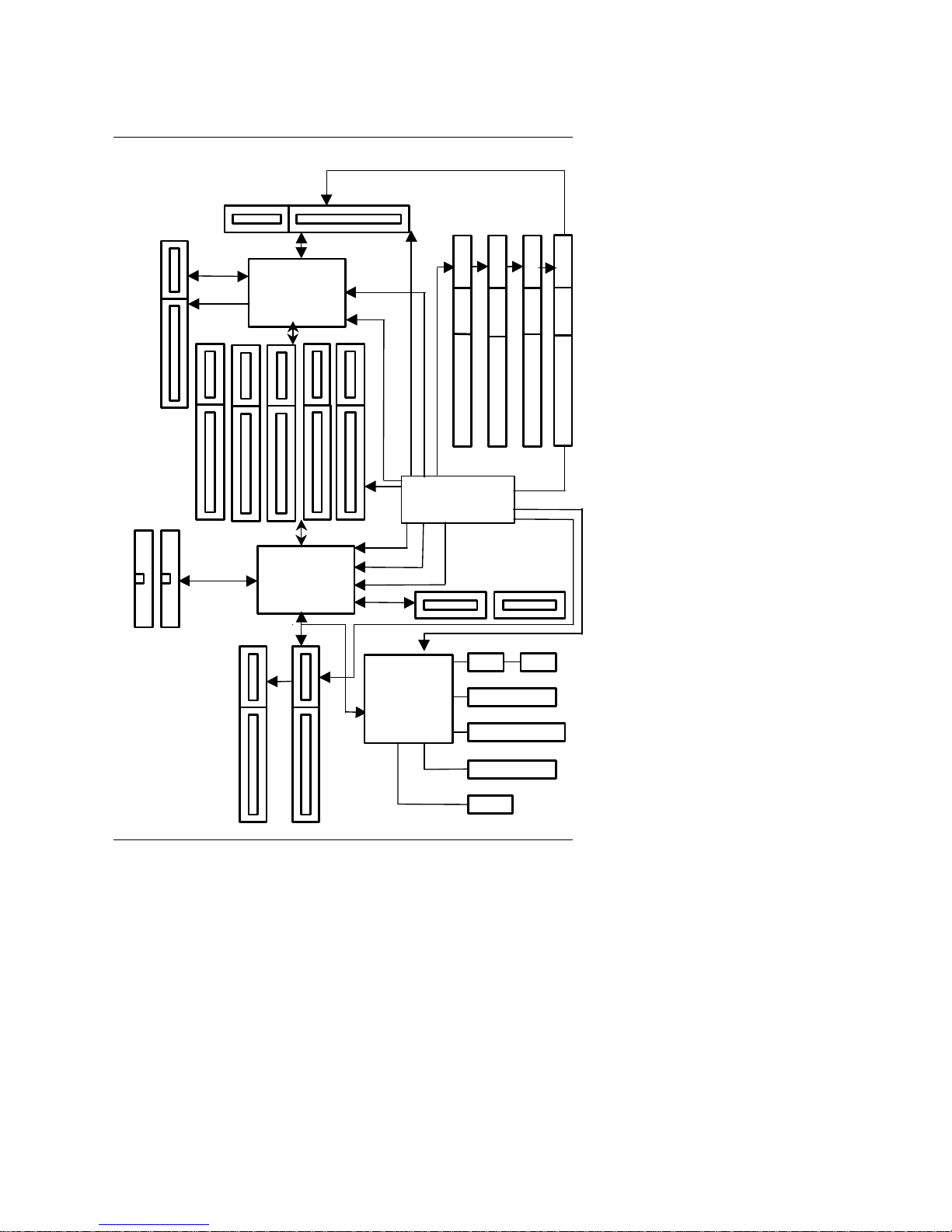

1.4. BLOCK DIAGRAM
24MHz
3.3V SDRAM
DIMM Sockets
14.318MHz
33 MHz
33MHz
Ultra DMA/33
IDE Ports
IDE Bus
PCI Bus
ISA Bus
AGP Bus
LPT Port
Keyboard
Floppy Port
COM Ports
PS/2 Mouse
USB Bus
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
ITE 8671
AGP
Host Bus
INTEL
82443BX
CHIPSET
PIIX4
82371EB
CHIPSET
ICS 9248-55 /
9279-01
SLOT 1
66MHz
66 /
100 MHz
66 /
100 MHz
33 MHz
66 /
100 MHz

Introduction
1-4
1.5. INTRODUCE THE Pentium

II / III Processor
Figure 1: Universal Retention Mechanism & attach Mount
Figure 2:OEM PentiumII Processor

6BXE
1-5

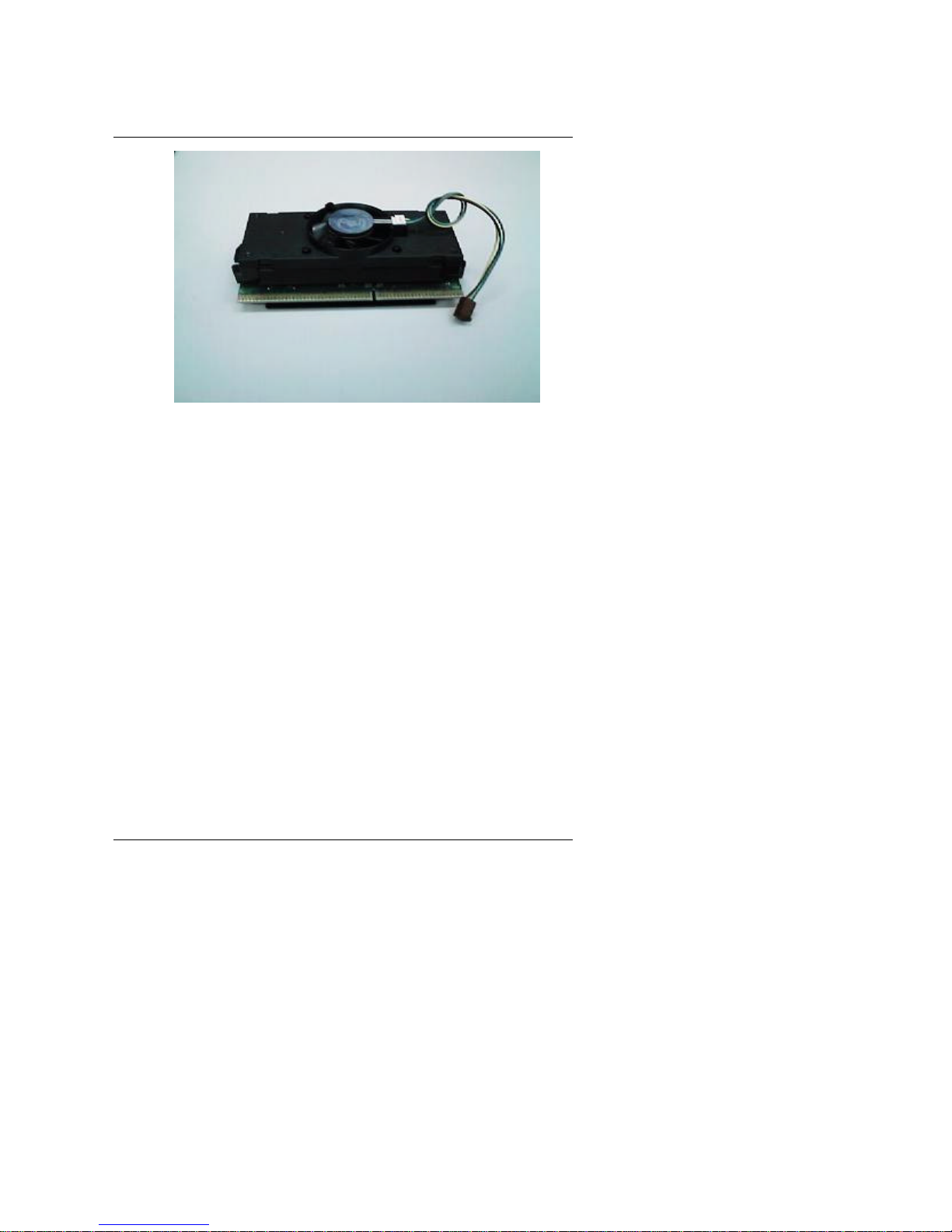

Figure 3: OEM PentiumIII Processor
1.6 What is AGP ?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI
bridge device that supports an AGP port. The main purpose of the AGP port
is to provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs.32-
Bits at 33MHz) or as an AGP port which supports 2x data-rate, a read queue,
and side band addressing. When the 2x-data rate is used the port can
transmit data at 533MB/sec (66.6*2*4). The read-queue can be used to
pipeline reads –removing the effects of the reads-latency. Side band
addressing can be used to transmit the data address on a separate line in
order to speed up the transaction.

Specification
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −PentiumII / III / Celeronprocessor 233 –650
MHz.
−242 pins 66 / 100MHz slot1 on board.
•PROTECTION −Speaker Alarm when detect "CPU FAN Failure" or
“CPU Overheat”.
−Automatically slow down CPU speed when "CPU
Overheat".
−Intel LDCMsupported.
−H/W monitor power status (±5V, ±12V,
VGTL,5VSB, CPU voltage & CMOS battery
voltage).(Optional)
•SPEED −66/100 MHz system speed.
−66 MHz AGP bus speed. (2X mode 133MHz)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•DRAM MEMORY −4 banks 168 pins DIMM module sockets on board.
−Use 16 / 32 / 64 / 128 / 256 MB DIMM module
DRAM.
−16 ~ 1GB SDRAM.
−Supports 3.3V SDRAM.
−Supports ECC or Non-ECC type DRAM.
•CACHE MEMORY −32 KB L1 cache memory included in CPU.
−128KB / 512 KB L2 cache memory included in
CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −5 33MHz Master / Slave PCI-BUS.
−2 8MHz 16 bits ISA BUS.
−1 66MHz / 133MHz AGP bus.
•IDE PORTS −2 Ultra DMA/33 Bus Master IDE channels onboard.

6BXE
2-2
(Using IRQ14,15)
−Support Mode 3,4 IDE & ATAPI CD –ROM.
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 EPP/ECP LPT port.
−Supports 1 1.44 / 2.88 MB Floppy port.
−Supports 2 USB ports.
−Supports PS/2 Mouse & PS/2 Keyboard.
•GREEN FUNCTION −Suspend mode support.
−Green switch & ACPI LED support.
−IDE & Display power down support.
−Monitor all IRQ / DMA / Display / I/O events.
•BIOS −2M bits FLASH RAM.
−Supports Plug & Play, DMI , ACPI Function.
•DIMENSION −ATX Form Factor, 4 layers PCB.
2.2. SOFTWARE
•DRIVER −INTEL Bus Master IDE Driver.
−Suspend to HD utility.
−INTEL LDCM®.
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95,
Windows98, WINDOWS NT™, OS/2, NOVELL
and SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.9 V to 5.2 V. (Max. 20A current at 5V.)

Hardware Installation
3-1
3. HARDWARE INSTALLATION
3.1. UNPACKING
The main board package should contain the following:
•The 6BXE main board.
•Universal Retention Mechanism & Attach Mount
•USER’S MANUAL for main board.
•Cable set for IDE, Floppy devices.
•Diskette or CD for main board Utility.
The main board contains sensitive electric components, which can be easily
damaged by static electricity, so the main board should be left in its original
packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat.
The operator should be wearing an anti static wristband, grounded at the
same point as the anti-static mat.
Inspect the main board carton for obvious damage. Shipping and handling
may cause damage to your board. Be sure there are no shipping and
handling damages on the board before proceeding.
After opening the main board carton, extract the system board and place it
only on a grounded anti-static surface component side up. Again inspect the
board for damage. Press down on all of the socket IC's to make sure that
they are properly seated. Do this only on with the board placed on a firm flat
surface.
M DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED.

6BXE
3-2
3.2. MAINBOARD LAYOUT
PCB Ver : 1.9
SLOT1
Intel
440BX
PIIX4
6BXE
COMBCOMA
JP1
FLOPPY
IDE1
IDE2
JP11
BANK1
BANK3
BANK0
BANK2
SW
JP14
LPT
JP12
BIOS
JP8
J15
J8
BAT1
BZ1
JP9
J17
PCB Ver : 2.0
SLOT1
Intel
440BX
PIIX4
6BXE
COMBCOMA
JP1
FLOPPY
IDE1
IDE2
JP11
BANK1
BANK3
BANK0
BANK2
SW
JP14
LPT
JP12
BIOS
JP8
J15
J8
BAT1
BZ1
JP9
J17
JP19
JP18

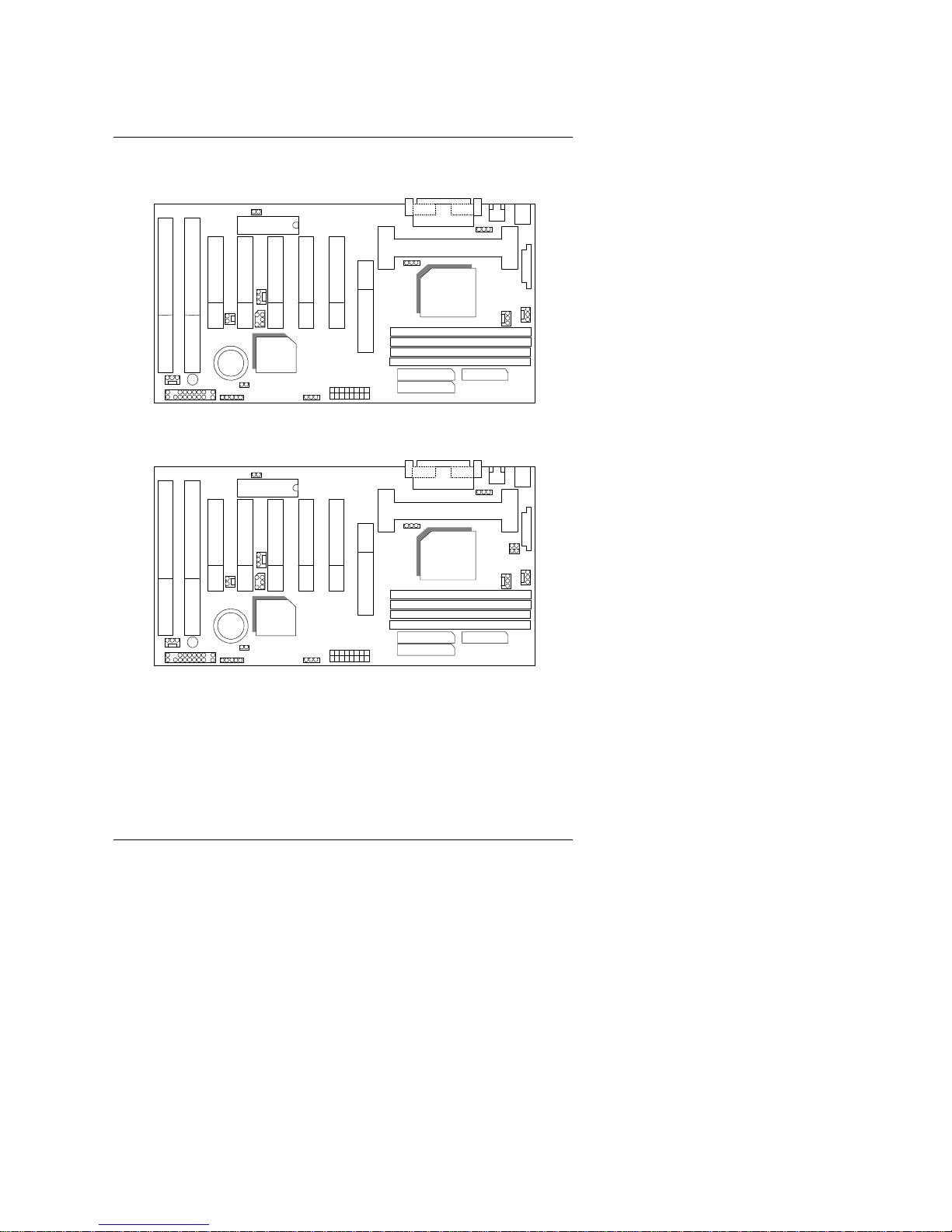

×Figure 3.1Ø

Hardware Installation
3-3
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
tI/O Ports Connector
USB USB port.
IDE 1 For Primary IDE port.
IDE 2 For Secondary IDE port.
PS/2 For PS/2 Keyboard port.
PS/2 For PS/2 Mouse port.
Floppy For Floppy port
COM B For Serial port2 (COM B).
COM A For Serial port1 (COM A).
ATX POWER For ATX Power Connector.
LPT For LPT port.
tSlot 1
For PentiumII / III / CeleronProcessor installed
tJ1 :CPU FAN : CPU Cooling FAN Power Connector
Pin Function
1GND
2+12V
3Signal
tJ16:POWER FAN : POWER FAN Power Connector
Pin Function
1GND.
2+12V
3Signal
tJ17 :PANEL FAN: PANEL FAN Power Connector
Pin Function
1GND.
2+12V
3Signal
tJ15 : System After Ac Back
Open Soft Off
Short Full On

6BXE
3-4
tJP1 : Keyboard Power On Selection
Pin Function
1-2 Enabled Keyboard power on.
2-3 Disabled Keyboard power on.
tJP11 : System Acceleration
Pin Function
1-2 short For 100MHz Turbo and other frequencies
2-3 short For 100MHz Normal
tJP7 :Wake on LAN Connector
Pin Function
1+5VSB
2GND
3Signal
tSB-LINK (For PCI Sound Card Connector)
Pin Function
1Signal
2GND
3NC
4Signal
5GND
6Signal
tJP12 : CASE OPEN (Optional)
Pin Function
1Signal
2GND
tIR: INFRARED Connector (OPTIONAL)
Pin Function
1IR DATA OUTPUT
2GND
3IR DATA INPUT
4NC
5POWER(+)

Hardware Installation
3-5
tJP14 : CLEAR CMOS
Pin Function
1-2 short Clear CMOS
2-3 short Normal
tJP18&JP19(This function is support in PCB version 2.0 and above)
Pin No. Function
Open Normal
Close For Voodoo3 VGA card
JP9 : 2*11PIN Jumper
PW : Soft Power Connector
RE : Reset Switch
P+P − P − : Power LED
PIN 1 : LED anode (+)
PIN 2 : LED cathode (−)
PIN 3 : LED cathode (−)
SPK : External Speaker Connector
PIN 1 : VCC (+)
PIN 2 : VCC
1
1+
−
JP9
PW P+P−P−H+
RE SPK
GN
G−
1
1 1
1H−GN
G+
Open: Normal Operation
Short: Power On/Off
Open: Normal Operation
Short: For Hardware Reset System

6BXE
3-6
PIN 3 : Signal
PIN 4 : Signal
SPK : Internal Speaker Connector (Default)
PIN 1 : VCC (+)
PIN 2-PIN3 : Short
PIN 4 : Data (−)
H+H − : IDE Hard Disk Active LED
PIN 1: LED anode (+)
PIN 2: LED cathode (−)
GN: Green Function Switch
Open : Normal operation
Short : Entering Green Mode
G − G+: Green LED
PIN 1 : LED anode (+)
PIN 2 : LED cathode (−)
3.4. DRAM INSTALLATION
The main board can be installed with 16 / 32 / 64 / 128 / 256 MB 168 pins
DIMM module DRAM, and the DRAM speed must be 67~100 MHz for
SDRAM when system bus speed is set to 66MHz. When system bus speed
is set to 100MHz, 100MHz SDRAM is required. The DRAM memory system
on main board consists of bank 0, 1, 2 & bank 3.
Since 168 pins DIMM module is 64 bits width, therefore 1 piece of DIMM
module may match a 64 bits system. The total memory size is 16 MB ~1GB
SDRAM. The DRAM installation position refer to Figure 3.1, and notice the
Pin 1 of DIMM module must match with the Pin 1 of DIMM socket. Insert the
DRAM DIMM module into the DIMM socket at Vertical angle. If there is a
wrong direction of Pin 1, the DRAM DIMM module could not be inserted into
socket completely.
1
1
1+
−

Hardware Installation
3-7
3.5. CPU SPEED SETUP
The system bus speed can be set to 66 / 100MHz form the DIP SWITCH
(SW). The user can change the DIP SWITCH selection to set up the CPU
speed for different processors.
ON: O OFF: X
CPU Type SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8
PentiumII 233 MHz
(Celeron233MHz) X X OOOX X O
PentiumII 266 MHz
(Celeron266MHz) O O XO O X X O
PentiumII 300 MHz
(Celeron300MHz) XOXO O X X O
PentiumII 333 MHz
(Celeron333MHz) OX X O O X X O
PentiumII 366 MHz
(Celeron366MHz) XXXO O X X O
PentiumII 400 MHz
(Celeron400MHz) OOOXOX5O
PentiumII 433 MHz
(Celeron433MHz) XO O XOX X O
PentiumII 350 MHz X X O O XXXX
PentiumII 400 MHz O O XOXXXX
PentiumIII 450 MHz XOXOXXXX
PentiumIII 500 MHz OX X OXXXX
PentiumIII 550 MHz XXXOXXXX
PentiumIII 600 MHz OOOXXXXX
PentiumIII 650 MHz XO O X5555
M The CPU is a sensitive electric component and it can be easily
damaged by static electricity, so users must keep it away from
metal surface when the CPU is installed onto main board.
3.6. CMOS RTC & ISA CFG CMOS SRAM
There're RTC & CMOS SRAM on board; they have a power supply from
external battery to keep the DATA inviolate & effective. The RTC is a REAL-
TIME CLOCK device, which provides the DATE & TIME to system. The
CMOS SRAM is used for keeping the information of system configuration, so

6BXE
3-8
the system can automatically boot OS every time. Since the lifetime of
internal battery is 5 years, the user can change a new Battery to replace old
one after it cannot work.
MDanger of explosion if battery is incorrectly replaced.
MReplace only with the same or equivalent type recommended by the
manufacturer.
MDispose of used batteries according to the manufacturer’s instructions.
3.7. SPEAKER CONNECTOR INSTALLATION
There is a speaker in AT system for sound purpose. The 4 -Pins connector
SPK is used to connect speaker. Anode connects +, Cathode connects −.
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION
The RESET switch on panel provides users with HARDWARE RESET
function. The system will do a cold start after the RESET switch is pushed
and released by user. The RESET switch is a 2 PIN connector and should be
installed to RE on main board.
3.9. POWER LED CONNECTOR INSTALLATION
System has Power LED lamp on the panel of case. The Power LED will light
on off or flash to indicate which step on the system. The connector should be
connected to PW of main board in correct direction.
3.10. IDE & ATAPI DEVICE INSTALLATION
There are two-Enhanced PCI IDE ports (IDE1, IDE2) on board, which
following ATAPI standard SPEC. Any one IDE port can connected to two
ATAPI devices (IDE Hard Disk, CD-ROM & Tape Driver), so total four ATAPI
devices can exist in a system. The HD is the active LED port for ATAPI
devices.
3.11. PERIPHERAL DEVICE INSTALLATION
After the I/O device installation and jumpers setup, the main board can be
mounted into the case and fixed by screw. To complete the main board
installation, the peripheral device could be installed now. The basic system

Hardware Installation
3-9
needs a display interface card. If the PCI - Bus device is to be installed in the
system, any one of four PCI - Bus slots can be used.
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION
The main board supports PS/2 Mouse (J2). The BIOS will auto detect
whether the PS/2 Mouse is installed or not & assign IRQ12 for PS/2 Mouse
port if it is installed. After installing the peripheral device, the user should
check everything again, and prepare to power-on the system.
