Gigabyte GA-6LX7 User manual

6LX7 / 6LX7A
1
TABLE OF CONTENTS
1. INTRODUCTION
1.1. PREFACE.......................................................................................................1-1
1.2. KEY FEATHERS............................................................................................1-1
1.3. PERFORMANCE LIST ..................................................................................1-3
1.4. BLOCK DIAGRAM.........................................................................................1-4
1.5. INTRODUCE THE INTELCeleronTM Socket 370 Processor.....................1-5
1.6. WHAT IS AGP?..............................................................................................1-6
2. SPECIFICATION
2.1. HARDWARE..................................................................................................2-1
2.2. SOFTWARE...................................................................................................2-2
2.3. ENVIRONMENT.............................................................................................2-2
3. HARDWARE INSTALLATION
3.1. UNPACKING..................................................................................................3-1
3.2. MAINBOARD LAYOUT..................................................................................3-2
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS..........................3-2
3.4. DRAM INSTALLATION..................................................................................3-6
3.5. CPU SPEED SETUP.....................................................................................3-7
3.6. CMOS RTC & ISA CFG CMOS SRAM.........................................................3-8
3.7. SPEAKER CONNECTOR INSTALLATION..................................................3-8
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION.................3-8
3.9. POWER LED CONNECTOR INSTALLATION .............................................3-8
3.10. IDE & ATAPI DEVICE INSTALLATION ......................................................3-8

Table Of Contents
2
3.11. PERIPHERAL DEVICE INSTALLATION....................................................3-9
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION...........................................3-9
4. BIOS CONFIGURATION
4.1. ENTERING SETUP .......................................................................................4-1
4.2. CONTROL KEYS...........................................................................................4-1
4.3. GETTING HELP.............................................................................................4-2
4.3.1. Main Menu .....................................................................................4-2
4.3.2. Status Page Setup Menu / Option Page Setup Menu.......................4-2
4.4. THE MAIN MENU ..........................................................................................4-2
4.5. STANDARD CMOS SETUP MENU..............................................................4-4
4.6. BIOS FEATURES SETUP.............................................................................4-8
4.7. CHIPSET FEATURES SETUP......................................................................4-13
4.8. POWER MANAGEMENT SETUP.................................................................4-17
4.9. PNP/PCI CONFIGURATION........................................................................4-22
4.10. LOAD BIOS DEFAULTS..............................................................................4-24
4.11. LOAD SETUP DEFAULTS..........................................................................4-25
4.12. INTEGRATED PERIPHERALS...................................................................4-26
4.13. USER PASSWORD.....................................................................................4-31
4.14. IDE HDD AUTO DETECTION.....................................................................4-32
4.15. SAVE & EXIT SETUP..................................................................................4-33
4.16. EXIT WITHOUT SAVING ............................................................................4-34
APPENDIX A: Audio Driver Driver Installation
A.1. ESS Solo-1 PCI sound driver installation ...................................................... A-1

6LX7 / 6LX7A
3

6LX7 / 6LX7A
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6LX7/6LX7A motherboard. It is a CeleronTM Socket 370
Processor based PC /AT compatible syst7Aem with AGP / PCI / ISA Bus, and
has been designed to be the fastest PC / AT system. There are some new
features allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel CeleronTM Socket 370 Processor based PC / AT compatible
mainboard.
qSocket 370 Pins ZIF white socket on board.
qBuilt-in PCI ESS SOLO-1 ES1938S audio chip (Optional).
qSupports CeleronTM Socket 370 processor running at 366-566 MHz.
qIntel 440LX chipset, Supports AGP / SDRAM / Ultra DMA/33 IDE /
Keyboard and PS/2 Mouse Power On / ACPI features.
qSupports 3xDIMMs using 3.3V EDO or SDRAM DIMM module.
qSupports external Modem Ring-On on COMA & COMB and internal
Modem Ring-On.
qSupports EDO 16MB ~ 768 MB, SDRAM 16MB~384MB memory on
board.
qSupports Wake-up on LAN .
qSupports ECC or Non-ECC type DRAM module.
q1xAGP slot, 4xPCI Bus slots, 2xISA Bus slots.
qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
qSupports 1x Line in, 1x Line Out, 1x Micro in, 2x CD Line in,1x GAME Port
1 x TEL. (Optional).

Introduction
1-2
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x1.44MB Floppy port.
qSupports USB port & PS/2 Mouse/ Keyboard port.
qLicensed AWARD BIOS, 2M bits FLASH RAM.
q30.5cm x 19 cm ATX SIZE form factor, 4 layers PCB.

6LX7 / 6LX7A
1-3
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for
different testing data values gotten by users. (Different Hardware & Software
configuration will result in different benchmark testing results.)
•CPU IntelCeleronTM 366MHz Socket 370 processor
•DRAM (128x 1) MB SDRAM (LGS 72V66841CT7J)
•CACHE SIZE 128 KB included in CPU
•DISPLAY GA-630 AGP Display Card (16MB SGRAM)
•STORAGE Onboard IDE (Seagate ST34520A 7200RPM)
•O.S. Windows NT™4.0 (SP4)
•DRIVER Display Driver at 1024 x 768 x 64k colors x 75Hz.
TRIONES Bus Master IDE Driver 3.70
IntelCeleronTM (Scoket 370)
Processor 366MHz (66x5.5)
Winbench99
CPU mark32 705
Business Disk 4330
Hi-End Disk 10600
Business Graphics 173
Hi-End Graphics 331
Winstone99Business 26.8
Hi-End 24.3

Introduction
1-4
1.4. BLOCK DIAGRAM
Ultra DMA/33
IDE Ports
MIC
L-IN
L-OUT
SOLO-1
14.318 MHz
Game
Port
24MHz
66MHz
3.3V EDO/SDRAM
DIMM Sockets
14.318MHz
33MHz
33MHz
66MHz
PCI Bus
AGP Bus
LPT Port
Keyboard
Floppy Port
COM Ports
PS/2 Mouse
USB Bus
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
Winbond
83977EF
AGP
SLOT
Host Bus
PAC
82443LX
CHIPSET
PIIX4
82371EB
CHIPSET
66MHz
PGA 370
DRAM Bus
Winbond
W83193R-04
ISA Bus

6LX7 / 6LX7A
1-5
1.5. INTRODUCE THE INTEL
 CeleronTM Socket 370 Processor

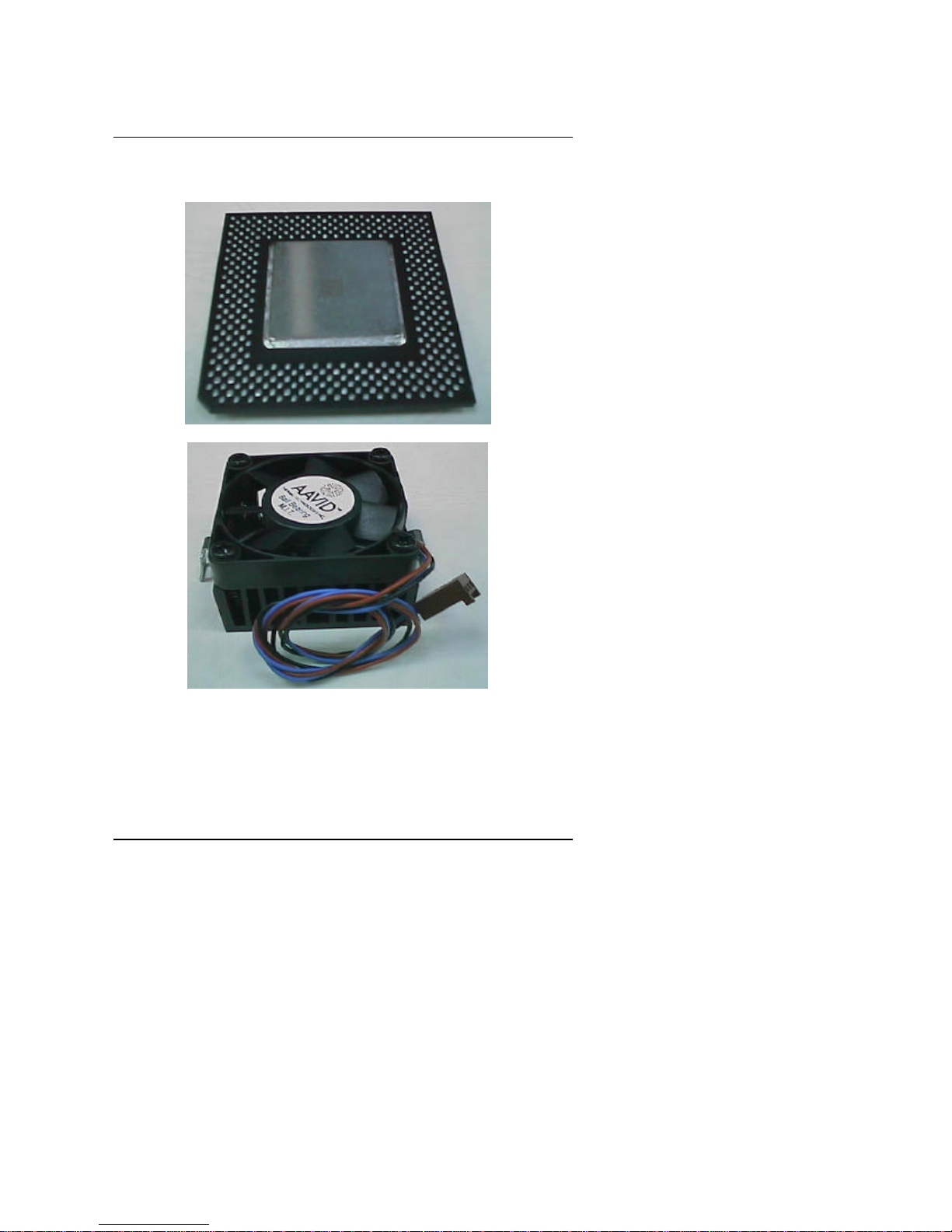

Figure 1: INTELCeleronTM Socket370 Processor
Figure 2:Heatsink / FAN & Heat sink support for CeleronTM Socket370
Processor

Introduction
1-6
Figure 3:Boxed CeleronTM Socket370 Processor
& Heat sink support
1.6 What is AGP ?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI
bridge device that supports an AGP port. The main purpose of the AGP port is
to provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs.32-
Bits at 33MHz) or as an AGP port which supports 2x data-rate, a read queue,
and side band addressing. When the 2x-data rate is used the port can
transmit data at 533MB/sec (66.6*2*4). The read-queue can be used to
pipeline reads –removing the effects of the reads-latency. Side band
addressing can be used to transmit the data address on a separate line in
order to speed up the transaction.

6LX7 / 6LX7A
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −CeleronTM Socket 370 366 –566 MHz.
−370 pins 66MHz socket on board.
•SPEED −66MHz system speed.
−66 MHz AGP bus speed. (2X mode 133MHz)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•DRAM MEMORY −3 banks 168 pins DIMM module sockets on board.
−Use 16 / 32 / 64 / 128 / 256 MB DIMM module
DRAM.
−Supports EDO 16MB ~ 768 MB,
SDRAM 16MB~384MB.
−Supports 3.3V EDO / SDRAM.
−Supports ECC or Non-ECC type DRAM.
•CACHE MEMORY −32 KB L1 cache memory included in CPU.
−128 KB L2 cache memory (included in CPU).
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −4 33MHz Master / Slave PCI-BUS.
−2 8MHz 16 bits ISA BUS.
−1 66MHz / 133MHz AGP bus.
•IDE PORTS −2 Ultra DMA 33 Bus Master IDE channels onboard.
(Using IRQ14,15)
−Support Mode 3,4 IDE & ATAPI CD –ROM.
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 EPP/ECP LPT port.
−Supports 1 1.44 / 2.88 MB Floppy port.
−Supports 2 USB ports.
−Supports PS/2 Mouse & PS/2 Keyboard.

Specification
2-2
•Audio Ports
(Optional)
−1x Line in
−1x Line out
−1x Micro in
−1x Game Port
−2x CD Line in
−1x TEL
•GREEN FUNCTION −Suspend mode support.
−Green switch & Green LED support.
−IDE & Display power down support.
−Monitor all IRQ / DMA / Display / I/O events.
•BIOS −2M bits FLASH RAM.
−Supports Plug & Play, DMI Function.
•DIMENSION −ATX Form Factor, 4 layers PCB.
2.2. SOFTWARE
•DRIVER −Intel Bus Master IDE Driver.(UUCD)
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95,
Windows98, WINDOWS NT™, OS/2, NOVELL
and SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.9 V to 5.2 V. (Max. 20A current at 5V.)

6LX7 / 6LX7A
3-1
3. HARDWARE INSTALLATION
3.1. UNPACKING
The main board package should contain the following:
•The 6LX7/6LX7A main board.
•The Retention Mechanism & Attach Mount
•USER’S MANUAL for main board.
•Cable set for IDE, Floppy devices.
•Diskettes or CDs for mainboard Utility.
The main board contains sensitive electric components, which can be easily
damaged by static electricity, so the main board should be left in its original
packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The
operator should be wearing an anti static wristband, grounded at the same
point as the anti-static mat.
Inspect the main board carton for obvious damage. Shipping and handling
may cause damage to your board. Be sure there are no shipping and handling
damages on the board before proceeding.
After opening the main board carton, extract the system board and place it
only on a grounded anti-static surface component side up. Again inspect the
board for damage. Press down on all of the socket IC's to make sure that they
are properly seated. Do this only on with the board placed on a firm flat
surface.
M DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED.

Hardware Installation
3-2
3.2. MAINBOARD LAYOUT
PII X4
6LX7
82443LX
CPU
ESS
SOLO-1
BIOS
GAME&AUDIO
COM B COM A
LPT USB PS/2
JP6
PWR
FAN
J12
J13
SW1
JP9
DIMM 1
DIMM 2
DIMM 3
AGP
PCI 1
PCI 2
PCI 3
ISA 1
ISA 2
BAT
1POWER 1
FLOPPY
IDE 1
IDE 2
JP2
JP3
JP4
SYSTEM
FAN
JP7
J5
JP1
J4
JP5
BZ1
IR
W83782
TEL Phone
SB-LINK
CPU
FAN
×Figure 3.1Ø
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
tI/O Ports Connector
USB USB port.
IDE 1 For Primary IDE port.
IDE 2 For Secondary IDE port.
PS/2 For PS/2 Keyboard and Mouse port.
Floppy For Floppy port.
COM B For Serial port2 (COM B).
COM A For Serial port1 (COM A).
GAME & Audio For GAME & MIC LINE-IN, LINE-OUT Port(Optional).
Power 1 For ATX Power Connector.
LPT For LPT port.
tSocket 370
For CeleronTM Socket 370 Processor installed
tJ1 : CPU cooling FAN Power Connector
Pin No. Function
1GND.
2+12V.
3Signal.

6LX7 / 6LX7A
3-3
tJP6 : Keyboard Power On Selection
Pin No. Function
1-2 Enable Keyboard power on.
2-3 Disable Keyboard power on.
tJP7 : Wake on LAN Connector
Pin No. Function
1+5VSB.
2GND.
3CTRL-Signal.
tJ4 : Internal Modem Ring On
Pin No. Function
1Signal.
2GND.
tIR: INFRARED Connector
Pin No. Function
1IR DATA OUTPUT.
2GND.
3IR DATA INPUT.
4NC.
5POWER (¡Ï).
tJ2 : Power FAN Connector
Pin No. Function
1GND.
2+12V.
3Signal.

Hardware Installation
3-4
tJ3 : SYSTEM FAN Connector
Pin No. Function
1GND.
2+12V.
3Signal.
tJP1 : CASE Open (Optional)
Pin No. Function
1Signal.
2GND.
tJ5 : Clear CMOS
Pin No. Function
1-2 Short Clear CMOS .
2-3 Short Normal.
tJP9 : Onboard Sound Function Connector (Optional)
Pin No. Function
1-2 Short Enabled Onboard Sound Function.
2-3 Short Disabled Onboard Sound Function.
tJP10 : TEL:The Connector is for Modem with internal Voice connector
Pin No. Function
1Signal
2GND
3GND
4Signal
tSB-LINK : For PCI Audio / Sound Card use only (Optional)
Pin No. Function
1Signal
2GND
3NC
4Signal
5GND
6Signal

6LX7 / 6LX7A
3-5
tJ12 :CD Audio Line-in Connector(Optional)
Pin No Function
1Right
2GND
3GND
4Left
tJ13 :CD Audio Line-in Connector(Optional)
Pin No Function
1GND
2Right
3GND
4Left
JP5 : 2*11PIN Jumper
PW : Soft Power Connector
RE : Reset Switch
Open: Normal Operation
Short: For Hardware Reset System
P+P−P−: Power LED
PIN 1: anode (+)
PIN 2: cathode (−)
PIN 3: cathode (−)
JP5
PW P+P
−
P
−
H+
RE
11
1GNG+
1
G−
H
−
1
On –Off : For POWER ON or Suspend IN / OUT.
On 4 sec : For POWER OFF before VGA Enable or
CMOS setup select “delay 4sec.”For
POWER OFF mode.
SPK

Hardware Installation
3-6
SPK: Speaker Connector
PIN 1: VCC
PIN 2: NC
PIN 3: NC
PIN 4: Data
HD: IDE Hard Disk Active LED
PIN 1: LED anode (+)
PIN 2: LED cathode (−)
GN: Green Switch
Open: Normal operation
Short: Entering Green Mode
GD: Green Function Active LED
PIN 1: LED athode (+)
PIN 2: LED cathode (−)
3.4. DRAM INSTALLATION
The main board can be installed with 16 / 32 / 64 / 128 / 256 MB 168 pins
DIMM module DRAM, and the DRAM speed must be 67~100 MHz for
SDRAM when system bus speed is set to 66MHz. The DRAM memory
system on main board consists of bank 0, 1& bank 2.
Since 168 pins DIMM module is 64 bits width, therefore 1 piece of DIMM
module may match a 64 bits system. The total memory size is 16 MB ~
384MB SDRAM, EDO DRAM size is 16MB ~ 768MB. The DRAM installation
position refer to Figure 3.1, and notice the Pin 1 of DIMM module must match
with the Pin 1 of DIMM socket. Insert the DRAM DIMM module into the DIMM
socket at Vertical angle. If there is a wrong direction of Pin 1, the DRAM
DIMM module could not be inserted into socket completely.
1
1
+
−
1

6LX7 / 6LX7A
3-7
3.5. CPU SPEED SETUP
The system bus speed can be selectable between 66.6MHz. The user can
select the system bus speed (JP2,JP3,JP4) and change the DIP SWITCH
(SW) selection to set up the CPU speed for 366 - 566MHz processor.
M The CPU speed must match with the frequency RATIO. It will cause
system hanging up if the frequency RATIO is higher than CPU's.
DIP SWITCH (SW)
FREQ. RATIO SW1 SW2 SW3 SW4
X 4.5 OFF ON OFF ON
X 5 ON OFF OFF ON
X 5.5 OFF OFF OFF ON
X 6 ON ON ON OFF
X 6.5 OFF ON ON OFF
X 7 ON OFF ON OFF
X 7.5 OFF OFF ON OFF
X 8 ON ON OFF OFF
X 8.5 OFF ON OFF OFF
X 9 ON OFF OFF OFF
X 9.5 OFF OFF OFF OFF
MJP2, JP3, JP4 (Select the system speed¡Ð66.6 / 75 / 83 MHz )
MAIN CLOCK JP2 JP3 JP4
66MHz 2-3 2-3 2-3
75MHz 2-3 1-2 2-3
83MHz 1-2 2-3 1-2
♦Note: It’s strongly recommended that set the system speed according to
your hardware configuration: CPU, SDRAM, Cards, etc.

Hardware Installation
3-8
3.6. CMOS RTC & ISA CFG CMOS SRAM
There're RTC & CMOS SRAM on board; they have a power supply from
external battery to keep the DATA inviolate & effective. The RTC is a REAL-
TIME CLOCK device, which provides the DATE & TIME to system. The
CMOS SRAM is used for keeping the information of system configuration, so
the system can automatically boot OS every time. Since the lifetime of internal
battery is 5 years, the user can change a new Battery to replace old one after
it cannot work.
MDanger of explosion if battery is incorrectly replaced.
MReplace only with the same or equivalent type recommended by the
manufacturer.
MDispose of used batteries according to the manufacturer’s instructions.
3.7. SPEAKER CONNECTOR INSTALLATION
There is a speaker in AT system for sound purpose. The 4 -Pins connector
SPK is used to connect speaker.
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION
The RESET switch on panel provides users with HARDWARE RESET
function. The system will do a cold start after the RESET switch is pushed and
released by user. The RESET switch is a 2 PIN connector and should be
installed to RST on main board.
3.9. POWER LED CONNECTOR INSTALLATION
System has Power LED lamp on the panel of case. The Power LED will light
on off or flash to indicate which step on the system. The connector should be
connected to PWR of main board in correct direction.
3.10. IDE & ATAPI DEVICE INSTALLATION
There are two-Enhanced PCI IDE ports (IDE1, IDE2) on board, which
following ATAPI standard SPEC. Any one IDE port can connected to two
ATAPI devices (IDE Hard Disk, CD-ROM & Tape Driver), so total four ATAPI
devices can exist in a system. The HD is the active LED port for ATAPI
devices.
