Gigabyte H610 Series User manual

Actual software supported may vary by motherboard model and OS verison. The software setup
menus are for reference only.
Unique Features (H610 Series)
BIOS Update Utilities .................................................................................................... 2
1-1 Updating the BIOS with the Q-Flash Utility...............................................................2
1-2 Updating the BIOS with the @BIOS Utility ...............................................................5
1-3 Using Q-Flash Plus...................................................................................................6
APP Center ................................................................................................................... 7
2-1 EasyTune..................................................................................................................9
2-2 Fast Boot ................................................................................................................10
2-3 Ambient LED ..........................................................................................................11
2-4 Smart Backup.........................................................................................................12
2-5 System Information Viewer.....................................................................................14

- 2 -
Because BIOS ashing is potentially risky, please do it with caution. Inadequate BIOS ashing may
result in system malfunction.
1-1 Updating the BIOS with the Q-Flash Utility
A. Before You Begin
1. From GIGABYTE's website, download the latest compressed BIOS update le that matches your motherboard
model.
2. Extract the le and save the new BIOS le (e.g. H610MHD3P.F1) to your USB ash drive, or hard drive. Note:
The USB ash drive or hard drive must use FAT32/16/12 le system.
3. Restart the system. During the POST, press the <End> key to enter Q-Flash. Note: You can access Q-Flash
by either pressing the <End> key during the POST or click the Q-Flash icon (or press the <F8> key) in BIOS
Setup. However, if the BIOS update le is saved to a hard drive in RAID/AHCI mode or a hard drive attached
to an independent SATA controller, use the <End> key during the POST to access Q-Flash.
BIOS Update Utilities
GIGABYTE motherboards provide two unique BIOS update tools, Q-Flash™and @BIOS™. GIGABYTE Q-Flash
and @BIOS are easy-to-use and allow you to update the BIOS without the need to enter MS-DOS mode.
Additionally, this motherboard features the DualBIOS™ design and supports Q-Flash Plus, providing multiple
protection for the safety and stability of your computer.
What is DualBIOS™?
Motherboards that support DualBIOS have two BIOS onboard, a main BIOS and a backup BIOS. Normally, the
system works on the main BIOS. However, if the main BIOS is corrupted or damaged, the backup BIOS will
take over on the next system boot to ensure normal system operation.
What is Q-Flash Plus?
Q-Flash Plus allows you to update the BIOS when your system is off (S5 shutdown state). Save the latest BIOS
on a USB thumb drive and plug it into the dedicated port, and then you can now ash the BIOS automatically
by simply pressing the Q-Flash Plus button.
What is Q-Flash™?
With Q-Flash you can update the system BIOS without having to enter operating systems like MS-DOS or
Window rst. Embedded in the BIOS, the Q-Flash tool frees you from the hassles of going through complicated
BIOS ashing process.
What is @BIOS™?
@BIOS allows you to update the system BIOS while in the Windows environment. @BIOS will download the
latest BIOS le from the nearest @BIOS server site and update the BIOS.

- 3 -

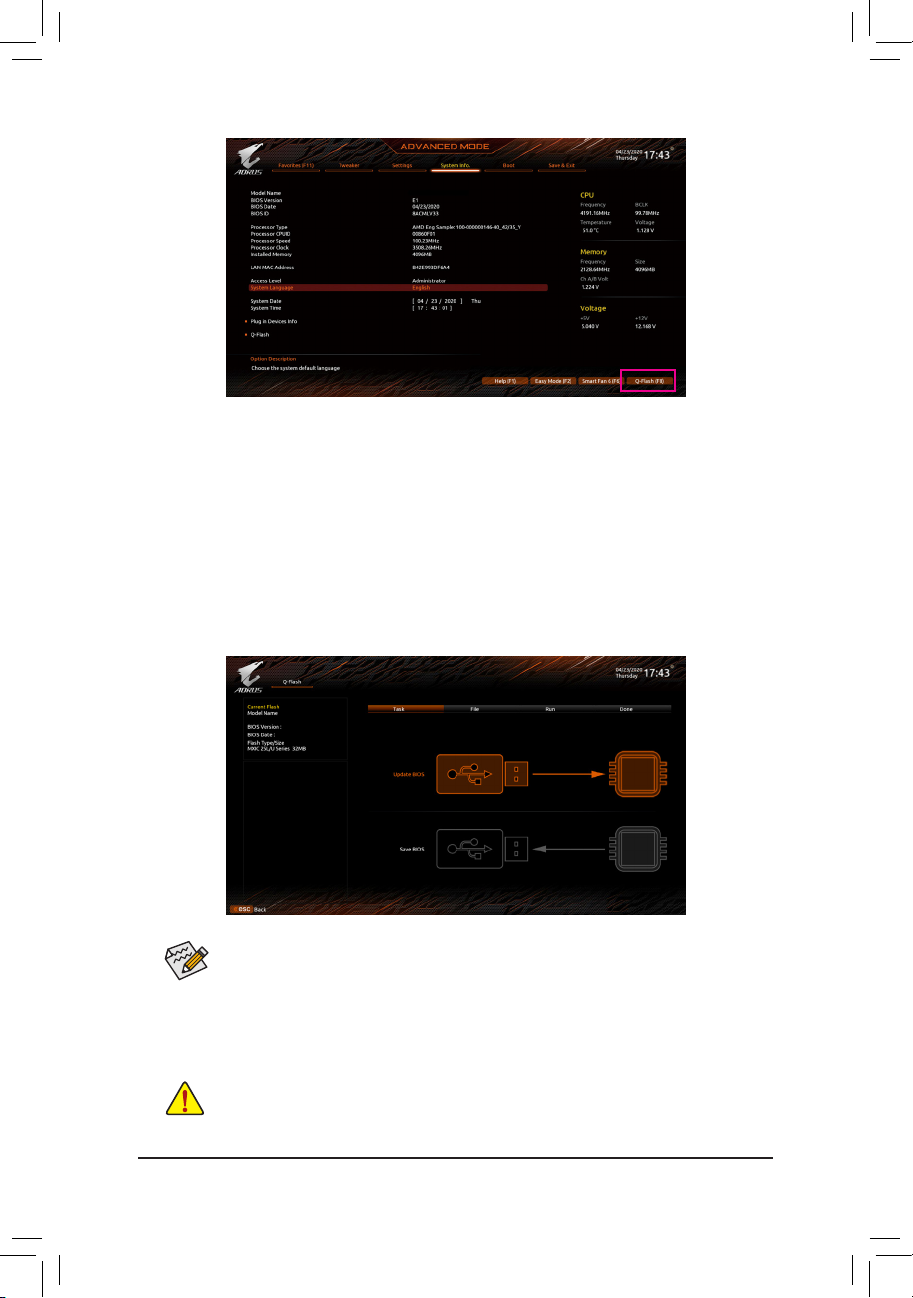

Click Q-Flash (F8) or select the Q-Flash item on the System Info menu to access Q-Flash.
B. Updating the BIOS
In the main menu of Q-Flash, use the keyboard or mouse to select an item to execute. When updating the BIOS,
choose the location where the BIOS le is saved. The following procedure assumes that you have saved the
BIOS le to a USB ash drive.
Step 1:
1. Insert the USB ash drive containing the BIOS le into the computer. In the main screen of Q-Flash, select
Update BIOS.
•The Save BIOS option allows you to save the current BIOS le.
•Q-Flash only supports USB ash drive or hard drives using FAT32/16/12 le system.
•If the BIOS update le is saved to a hard drive in RAID/AHCI mode or a hard drive attached
to an independent SATA controller, use the <End> key during the POST to access Q-Flash.
2. Select the BIOS update le.
Make sure the BIOS update le matches your motherboard model.

- 4 -
Step 2:
The screen will show that the BIOS le is being read from your USB ash drive. Please select Fast or Intact to
begin the BIOS update. The screen will then display the update process.
Step 3:
The system will restart after the update process is complete.
•To ensure the integrity of the BIOS update, the system will shut down and restart
automatically. Then it will begin to ash the BIOS with Q-Flash.
•Do not turn off or restart the system when the system is reading/updating the BIOS.
•Do not remove the USB ash drive or hard drive when the system is updating the BIOS.
Step 4:
During the POST, press <Delete> to enter BIOS Setup. Select Load Optimized Defaults on the Save & Exit
screen and press <Enter> to load BIOS defaults. System will re-detect all peripheral devices after a BIOS update,
so we recommend that you reload BIOS defaults.
Step 5:
Select Save & Exit Setup and press <Enter>. And then select Yes to save settings to CMOS and exit BIOS
Setup. The procedure is complete after the system restarts.
Select Yes to load BIOS defaults

- 5 -
1-2 Updating the BIOS with the @BIOS Utility
A. Before You Begin
1. In Windows, close all applications and TSR
(Terminate and Stay Resident) programs. This
helps prevent unexpected failures when performing
a BIOS update.
2. If the BIOS is being updated via the Internet, ensure
the Internet connection is stable and do NOT
interrupt the Internet connection (for example, avoid
a power loss or switching off the Internet). Failure to
do so may result in a corrupted BIOS or a system
that is unable to start.
3. GIGABYTE product warranty does not cover any
BIOS damage or system failure resulting from an
inadequate BIOS ashing.

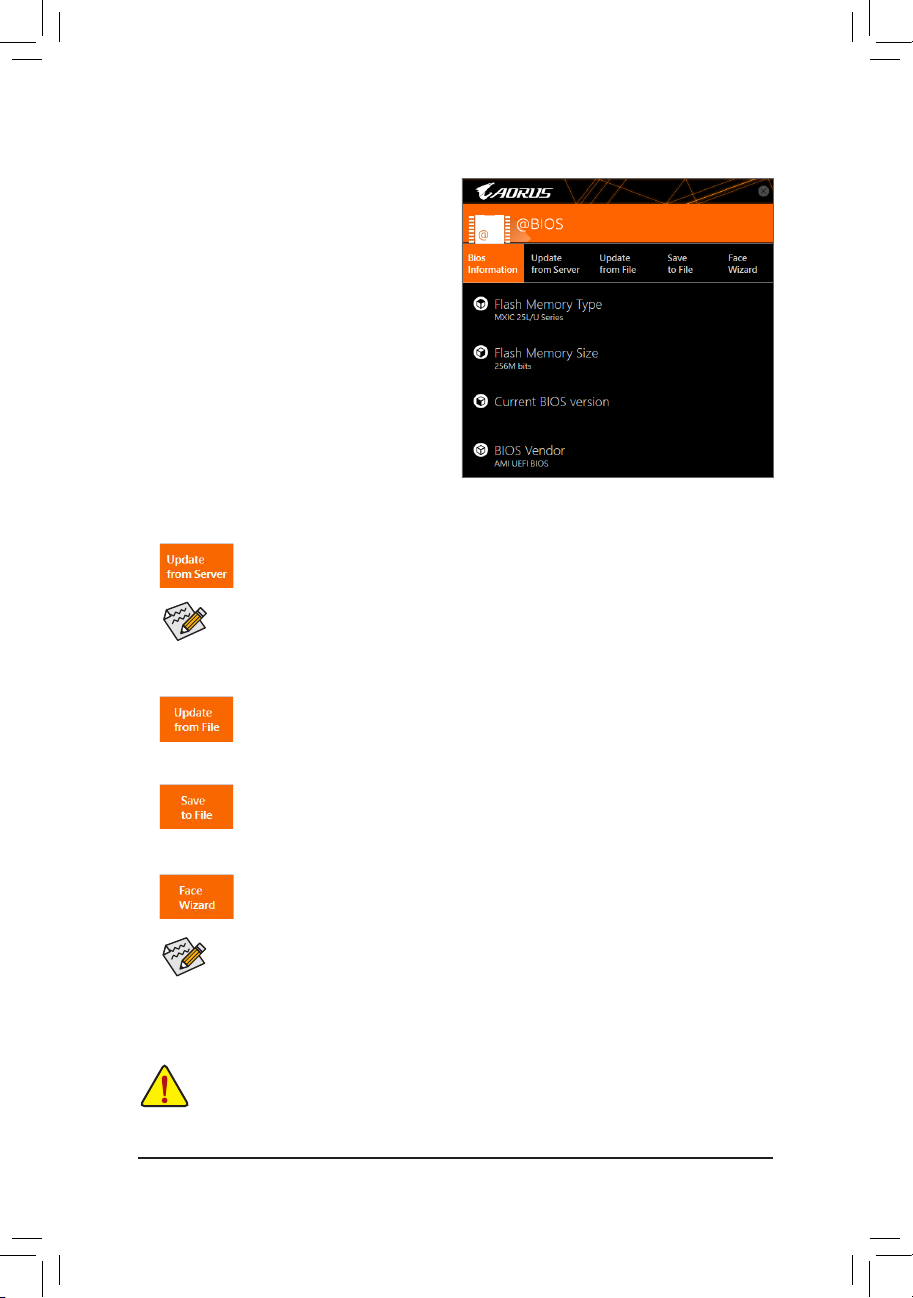

B. Using @BIOS
•Make sure that the BIOS le to be ashed matches your motherboard model. Updating the BIOS
with an incorrect BIOS le could cause your system not to boot.
•Do not turn off the system or remove the power during the BIOS update process, or the BIOS may
corrupt and the system may not boot.
If the BIOS update le for your motherboard is not present on the @BIOS server site, please
manually download the BIOS update le from GIGABYTE's website and follow the instructions in
"Update the BIOS without Using the Internet Update Function" below.
Supported image formats include jpg, bmp, and gif.
C. After Updating the BIOS
Restart your system after updating the BIOS.
1. Update the BIOS Using the Internet Update Function:
Click Update from Server, select the @BIOS server site closest to your location and
then download the BIOS le that matches your motherboard model. Follow the on-screen
instructions to complete.
2. Update the BIOS without Using the Internet Update Function:
Click Update from File, then select the location where you save the BIOS update le obtained
from the Internet or through other source. Follow the on-screen instructions to complete.
3. Save the Current BIOS File:
Click Save to File to save the current BIOS le.
4. Change the Boot-up Logo:
Click Upload new image in Face-Wizard and you will be able to change the boot-up logo
with your own picture, creating a personalized boot-up screen. Click Backup current image
to save the current boot-up logo.

- 6 -
1-3 Using Q-Flash Plus
A. Before You Begin
1. From GIGABYTE's website, download the latest compressed BIOS update le that matches your motherboard
model.
2. Uncompress the downloaded BIOS le, save it to your USB ash drive, and rename it to GIGABYTE.bin.
(Note: The USB ash drive must use the FAT32 le system.)
3. Connect the power cables to the 12V power connector (connect either one if there are two) and main power
connector.
4. Please turn on the power supply before connecting the USB ash drive to the Q-Flash Plus port on the
back panel.
B. Using Q-Flash Plus
Press the Q-Flash Plus button and the system will automatically search and match the BIOS le in the USB
ash drive on the Q-Flash Plus port. The QFLED and the Q-Flash Plus button on the rear panel will ash during
the BIOS matching and ashing process. Wait for 6-8 minutes and the LEDs will stop ashing when the BIOS
ashing is complete.
•If you choose to update the BIOS manually, rst make sure that your system is off (S5 shutdown
state).
•If your motherboard has a BIOS switch and a SB switch, reset them to their default settings.
(Default setting for the BIOS switch: Boot from the main BIOS; default setting for the SB switch:
Dual BIOS)
•On motherboards with DualBIOS™, the DualBIOS™feature will continue to update the backup
BIOS after the main BIOS has been ashed and the system restarts. After completion, the system
will reboot again and boot from the main BIOS.

- 7 -
APP Center
GIGABYTE App Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from
your GIGABYTE motherboard (Note). Using a simple, unied user interface, GIGABYTE App Center allows you
to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the
apps, drivers, and BIOS.
Drivers Installation
After you install the operating system, a dialog box will appear on the bottom-right corner of the desktop asking
if you want to download and install the drivers and GIGABYTE applications via APP Center. Click Install to
proceed with the installation. (In BIOS Setup, make sure Settings\IO Ports\APP Center Download & Install
Conguration\APP Center Download & Install is set to Enabled.)
(Note) Available applications in APP Center may differ by motherboard model. Supported functions of each
application may also vary depending on motherboard specications.
Before the installation, make sure the system is connected to the Internet.
When the End User License Agreement dialog box appears, press <Accept> to install APP Center. On the APP
Center screen, select the drivers and applications you want to install and click Install.

- 8 -

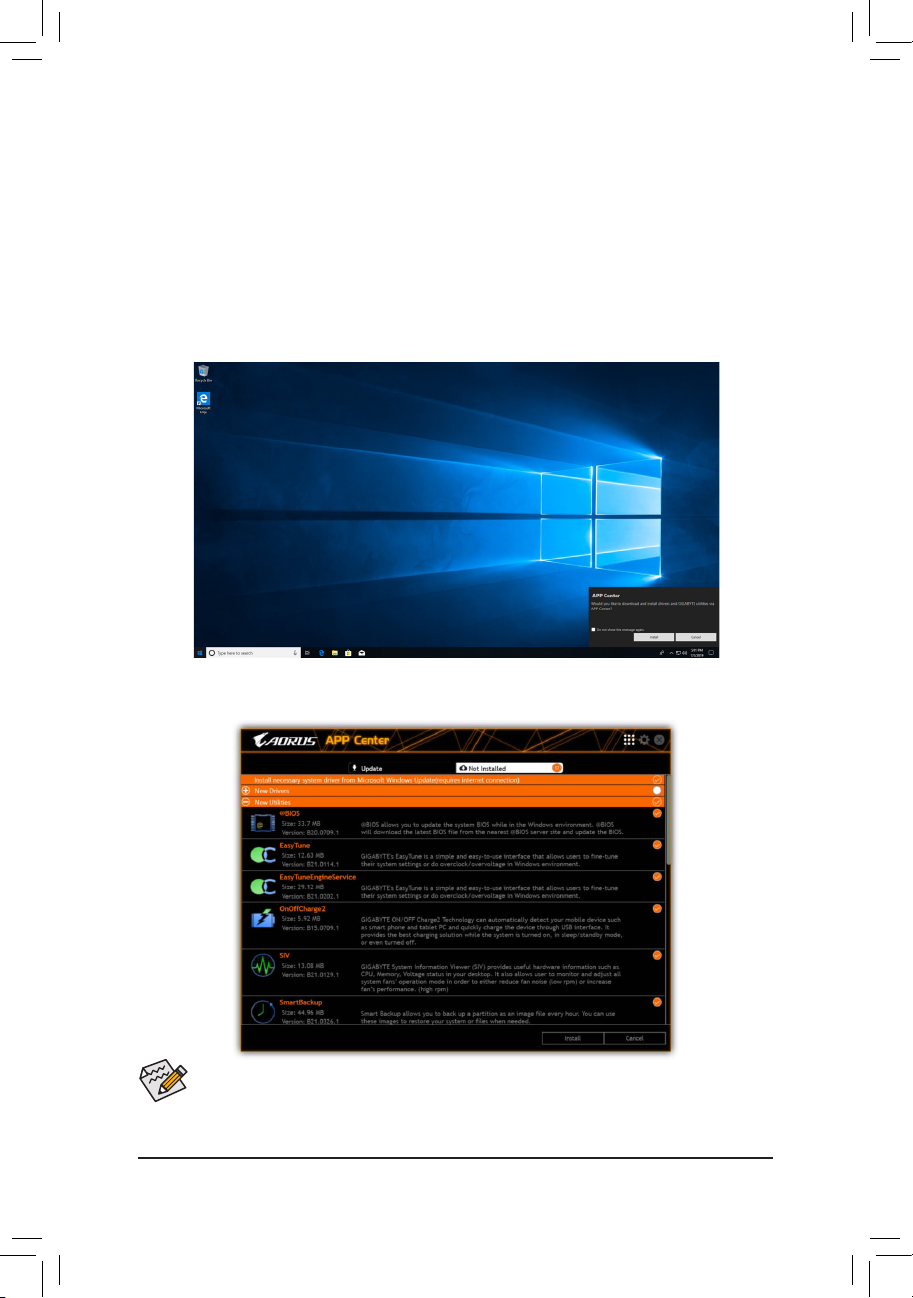

Running the APP Center
In Desktop mode, click the App Center icon in the notication area to launch the App Center utility (Figure 1).
On the main menu, you can select an app to run or click LiveUpdate to update an app online.
If the App Center is closed, you can restart it by clicking Launch App Center on the Start menu (Figure 2).
Figure 2
Figure 1

- 9 -
2-1 EasyTune
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to ne-tune their system settings
or do overclock/overvoltage in Windows environment.
The EasyTune Interface
Tabs Information
Tab Description
The Smart Boost tab provides you with different levels of CPU frequency to choose to
achieve desired system performance. After making changes, be sure to restart your system
for these changes to take effect.
The Advanced CPU OC tab allows you to set CPU base clock, frequency, and voltages,
and integrated graphics frequency. You can save the current settings to a prole. You can
create up to 2 proles.
The Advanced DDR OC tab allows you to set the memory clock.
The Advanced Power tab allows you to adjust voltages.
The HotKey tab allows you to set hotkeys for your proles.
Incorrectly doing overclock/overvoltage may result in damage to the hardware components such
as CPU, chipset, and memory and reduce the useful life of these components. Before you do the
overclock/overvoltage, make sure that you fully know each function of EasyTune, or system instability
or other unexpected results may occur.
Available functions in EasyTune may vary by motherboard model and CPU. Grayed-out area(s)
indicates that the item is not congurable or the function is not supported.

- 10 -
(Note) For more details about this function, refer to Chapter 2, "BIOS Setup."
2-2 Fast Boot
Through the simple GIGABYTE Fast Boot interface, you can enable or change the Fast Boot or Next Boot
After AC Power Loss setting right in the operating system.

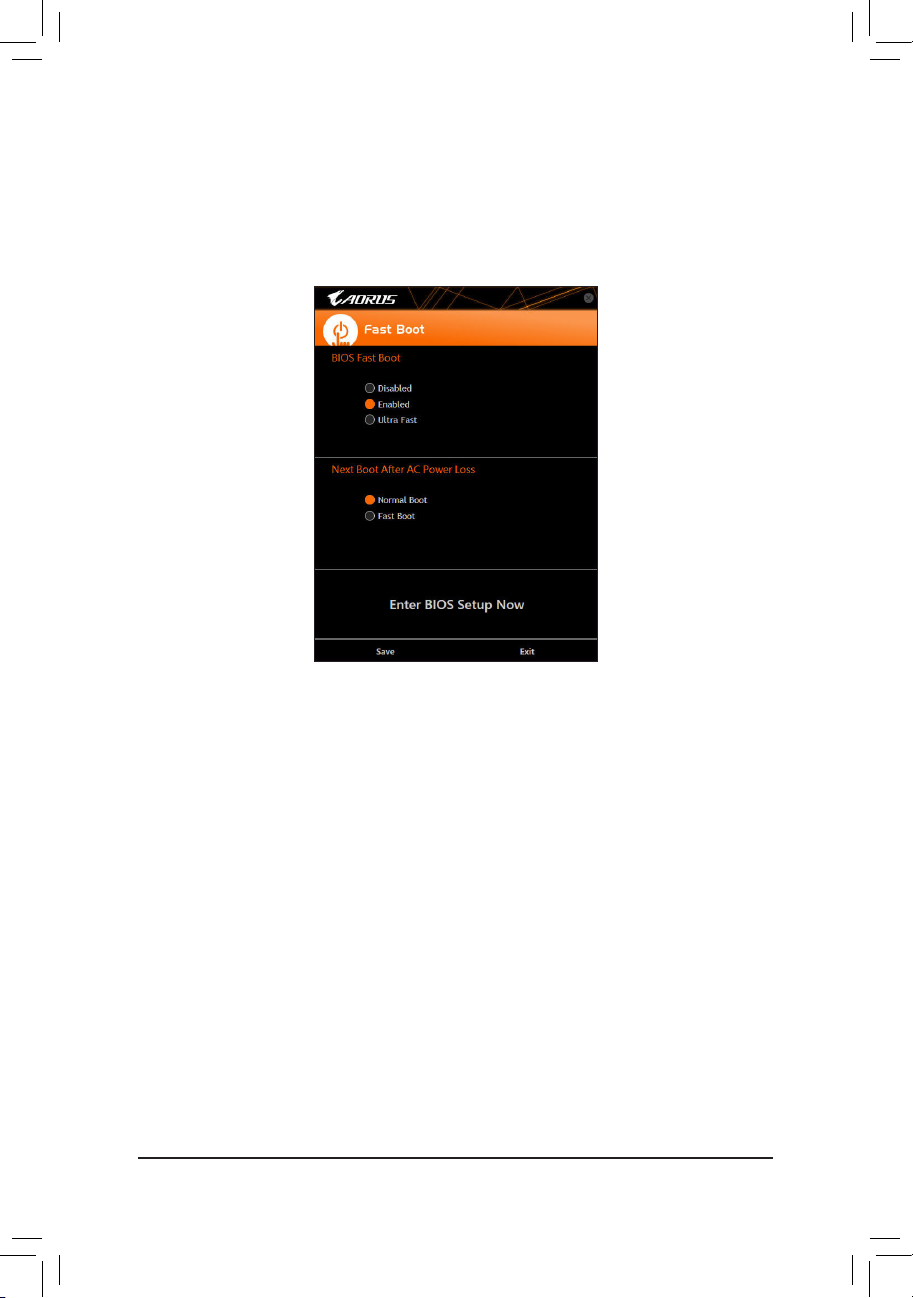

The Fast Boot Interface
Using Fast Boot
•BIOS Fast Boot:
This option is the same as the Fast Boot option (Note) in BIOS Setup. It allows you to enable or disable the
fast boot function to shorten OS boot time.
•Next Boot After AC Power Loss:
This option is the same as the Next Boot After AC Power Loss option (Note) in BIOS Setup. It allows you to
select the system bootup mode upon the return of an AC power loss. (This mode is congurable only when
BIOS Fast Boot is set to Enabled or Ultra Fast.)
After you congure the settings, click Save to save and click Exit. The settings will take effect on next boot. If
you click the Enter BIOS Setup Now button, the system will restart and enter BIOS Setup immediately.

- 11 -
2-3 Ambient LED
This application allows you to enable or specify the lighting mode of the onboard LEDs while in the Windows
environment.
The Ambient LED Interface
Using Ambient LED
•The icon on the top right corner:
Allows you to enable or disable the LED lighting.
•Allows to you to congure the lighting behaviour of all LEDs.
Still Mode All LEDs emit a single color.
Beat Mode All LEDs are synchronized with your music.
Flash Mode All LEDs simultaneously ash on and off.
Pulse Mode All LEDs simultaneously fade in and fade out.
Color Cycle Mode All LEDs simultaneously cycle through a full spectrum of colors.
Double Flash Mode All LEDs ash in an interlaced pattern.
LED Color Theme Select the LED color.

- 12 -

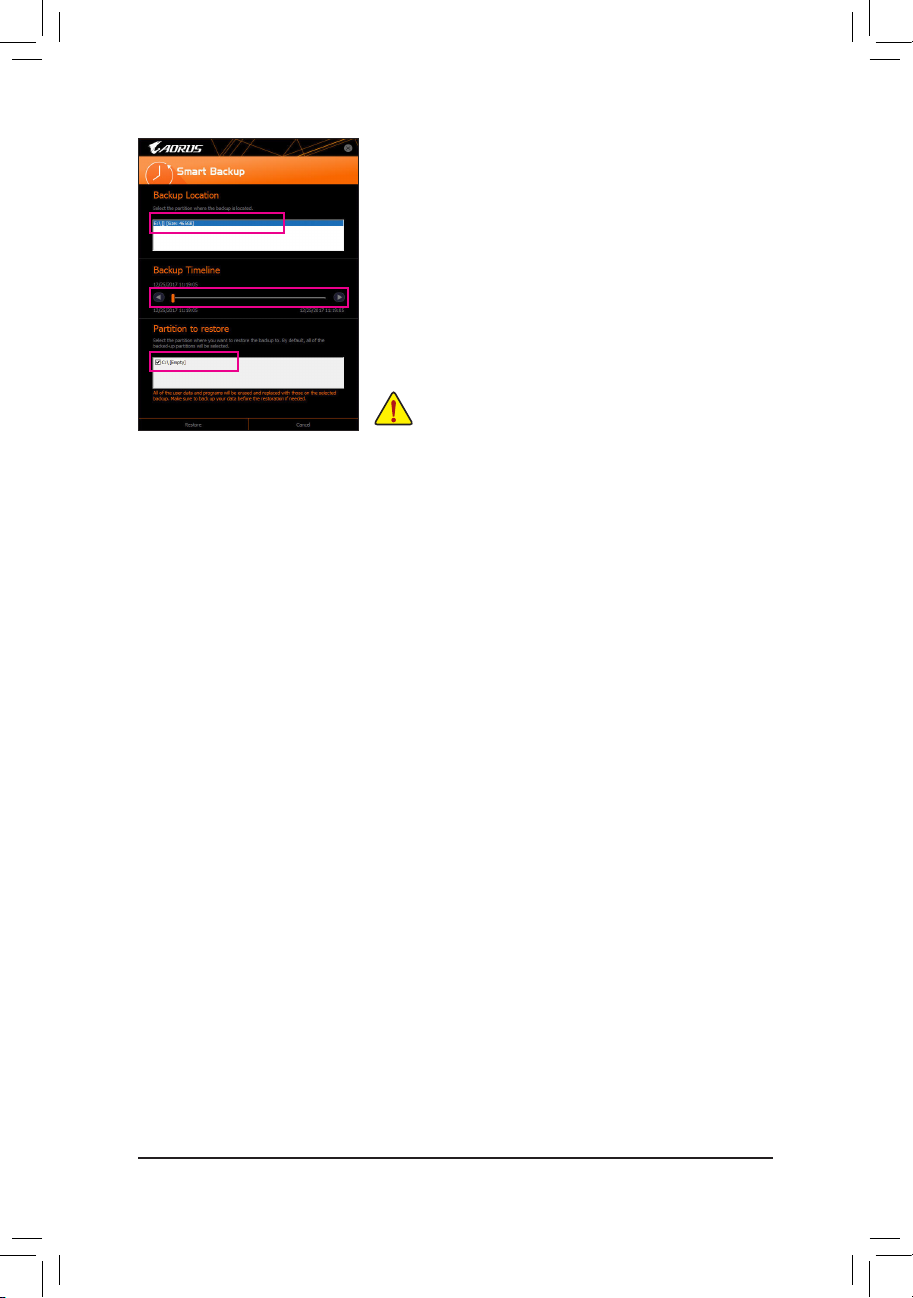

2-4 Smart Backup
Smart Backup allows you to back up a partition as an image le every hour. You can use these images to restore
your system or les when needed.
•Smart Backup only supports NTFS le system.
•You need to select the destination partition in Settings the rst
time you use Smart Backup.
•The Backup Now button will be available only after 10 minutes
you have logged in Windows.
•Select the Always run on next reboot checkbox to automatically
enable Smart Backup after system reboot.
Creating a backup:
Click the Settings button on the main menu. In the Settings dialog
box, select the source partition and destination partition and click OK.
The initial backup will start after 10 minutes and regular backup will be
performed hourly. Note: By default, all partitions on the system drive
are selected as the backup source. The backup destination cannot be
on the same partition as the backup source.
Saving the backup to a network location:
If you want to save the backup to a network location, select Browse
network location. Make sure your computer and the computer where
you want to save the backup are in the same domain. Choose the
network location where you want to store the backup and enter the user
name and password. Follow the on-screen instructions to complete.
Recovering a le:
Click the File Recovery button on the main menu. Use the time slider on
the top of the popped out window to select a previous backup time. The
right pane will display the backed-up partitions in the backup destination
(in the My Backup folder). Browse to the le you want and copy it.
The Smart Backup main menu:
Button Description
Settings Allows you to select the source and destination
partition
Start Allows you to create a rescue drive
Backup Now Allows you to perform the backup immediately
File
Recovery...
Allows you to recover your les from the backup
System
Recovery...
Allows you to recover your system from the
backup image

- 13 -
Recovering your system with Smart Backup:
Steps:
1. Click the System Recovery button on the main menu.
2. Select the location where your backup is saved.
3. Use the time slider to select a time point.
4. Select a partition backup created on the selected time point and
click Restore.
5. Conrm whether to restart your system to proceed with the restore
immediately or later. Once you respond "Yes" the system will restart to
the Windows recovery environment. Follow the onscreen instructions
to restore your system.
All of your les and programs will be deleted and replaced with
those on the selected backup. If needed, be sure to make a
copy of your data before the restore.

- 14 -
2-5 System Information Viewer
GIGABYTE System Information Viewer allows you to monitor and adjust the fan speed in the operating system.
You can also display the hardware monitor information on the desktop to view the system status at any time.
The System Information Viewer Interface
Tabs Information
Tab Description
The System Information tab provides information on the installed CPU, motherboard, and
the BIOS version.
The Smart Fan 6 Auto tab allows you to specify a Smart Fan mode.
The Smart Fan 6 Advanced tab allows you to adjust the smart fan speed. The fans will
run at different speeds according to system temperatures. Using the Smart Fan option you
can adjust the fan's workload according system temperatures or you can x the fan speeds
using the RPM Fixed Mode option. Click the Calibrate button and the fan speed will be
shown in relation to overall fan workload after calibration. The Reset button can revert the
fan settings back to the last saved values. Noise Detection provides detection of the noise
level (measured in decibels) inside the chassis.
The System Alert tab allows you to monitor hardware temperature, voltage and fan speed,
and set temperature/fan speed alarm.
allows you to select what information to be displayed in quick mode (by default, all of the
hardware information are displayed); allows you to enable alert notication, click Apply
after selection.
The Record tab allows you to record changes in system voltages, temperatures, fan speeds,
and noise. Please note, the recording will stop if you exit the Record tab during the recording
process.
•The speed control function requires the use of a fan with fan speed control design.
•To use the noise detection function, you must have a motherboard with a noise detection header.
