USER’SMANUAL
GA-8IEXW
P4Titan 533 Motherboard
Pentium®4ProcessorMotherboard
Rev.1001
12ME-8IEXW-1001

-2
-
English
GA-8IEXWMotherboard
TableofContent
ItemChecklist .................................................................................4
WARNING!.......................................................................................4
Chapter1Introduction......................................................................5
FeaturesSummary................................................................................................5
GA-8IEXWMotherboardLayout.........................................................................7
Chapter2HardwareInstallation Process ...........................................8
Step1:InstalltheCentralProcessingUnit(CPU)...........................................9
Step 1-2:CPUHeatSinkInstallation............................................................... 10
Step2:Installmemorymodules.......................................................................11
Step3:Installexpansioncards.........................................................................13
Step4:Connectribboncables,cabinetwires,andpowersupply.............14
Step 4-1:I/OBack PanelIntroduction ........................................................... 14
Step 4-2:Connectors&JumperSetting Introduction ......................................... 16
Chapter3BIOSSetup ....................................................................24
Q-FlashUtility.......................................................................................................25
Main(Forexample:BIOSVer.:F1)..................................................................26
Advanced...............................................................................................................29
Advanced BIOSFeatures............................................................................ 29
Integrated Peripherals................................................................................ 32
PowerManagementSetup .......................................................................... 35
Pnp/PCIConfiguration................................................................................. 38
Boot ........................................................................................................................39
Server.....................................................................................................................41
Security..................................................................................................................45
Clk/Voltage ............................................................................................................47
Defaults..................................................................................................................48
Exit..........................................................................................................................49

English
-3-
TableofContent
Chapter4TechnicalReference........................................................50
BlockDiagram.....................................................................................................50
Chapter5Appendix........................................................................51

-4
-
English
GA-8IEXWMotherboard
Computermotherboardsand expansion cardscontainverydelicateIntegrated Circuit(IC)chips.To
protectthemagainstdamage fromstaticelectricity,you shouldfollowsomeprecautionswhenever
you workon yourcomputer.
1.Unplugyourcomputerwhenworkingon theinside.
2.Useagroundedwriststrapbeforehandling computercomponents.Ifyoudo nothave
one,touchbothofyourhandstoasafelygrounded objectortoametalobject, suchas
thepowersupplycase.
3.Holdcomponentsbytheedgesand trynottouchthe ICchips,leadsorconnectors,or
othercomponents.
4.Placecomponentson agroundedantistaticpad oronthebagthatcamewiththe
componentswheneverthe componentsareseparatedfromthesystem.
5.EnsurethattheATXpowersupplyisswitchedoffbeforeyou pluginorremovetheATX
powerconnectoron the motherboard.
If the motherboardhasmounting holes,buttheydon’tline up withthe holeson the baseand
thereareno slotstoattachthe spacers,do notbecomealarmed you can still attachthe spacersto
the mounting holes.Justcutthe bottomportion ofthe spacers(the spacermaybe alittlehardto
cutoff, sobe carefulofyourhands).Inthiswayyou can still attachthe motherboardtothe base
withoutworrying aboutshortcircuits.Sometimesyou mayneed tousethe plasticspringstoisolate
the screwfromthe motherboardPCBsurface,becausethe circuitwiremaybe nearbythe hole.Be
careful,don’tletthe screwcontactanyprinted circuitwriteorpartson the PCBthatarenearthe
fixing hole,otherwiseitmaydamage the boardorcauseboardmalfunctioning.
Installingthemotherboardtothechassis…
WARNING!
þThe GA-8IEXWmotherboard
þIDE(ATA100 )cablex1/Floppycablex1
þIDE(ATA133 )cablex2
þCD formotherboarddriver&utility
þGA-8IEXWuser’smanual
þI/OShield
ItemChecklist

-5-
Introduction
Chapter1Introduction
Features Summary
FormFactor—30.6cmx24.4cmATXsizeformfactor,4layersPCB.
Motherboard—GA-8IEXWMotherboard:
CPU—Socket478 forIntel®MicroFC-PGA2Pentium®4processor
—IntelPentium®4533MHz/400MHzFSB
—SupportIntel®Pentium®4(Northwood,0.13 m)processor
—2nd cache depend on CPU
Chipset—Chipset845EHOST/AGP/Controller
—ICH4I/OControllerHub
Memory—3184-pinDDR DIMM sockets
—SupportsPC2100 DDR orPC1600 DDR DIMM
—Supportsup to2GBDRAM(Max)
—Supportsonly2.5VDDR DIMM
—Supports64bitECC type DRAMintegritymode
I/OControl—IT8712 F-A
Slots—1AGPslot4X(1.5Vonly)devicesupport
—5PCIslotsupport33MHz&PCI2.2compliant
On-BoardIDE—2IDEcontrollerson the IntelICH4PCIchipset
providesIDEHDD/CD-ROM(IDE1,IDE2)withPIO,BusMas
ter(UltraDMA33/ATA66/ATA100)operation modes.
—IDE3and IDE4CompatiblewithRAID,UltraATA133/100.
On-BoardPeripherals—1Floppyportsupports2FDD with360K,720K,1.2M,1.44M
and 2.88Mbytes.
—1ParallelportsupportsNormal/EPP/ECPmode
—1Serialport(COM)
—6xUSB 2.0/1.1(2xRear,4xFrontbycable)
—1IrDAconnectorforIR/CIR
—1FrontAudioconnector

-6
-
English
GA-8IEXWMotherboard
HardwareMonitor—CPU/Power/SystemFan Revolution Detect
—CPU/Power/SystemFan Control
—CPUOverheatWarning
—SystemVoltage Detect
On-BoardSound —RealtekALC650 CODEC
On-BoardRAID—OnbardPromisePDC20276
—Supportsdatastriping (RAID0)ormirroring (RAID1)
—SupportsconcurrentdualATA133 IDEcontrolleroperation
—SupportATAPImode forCD ROM,DVDROM..etc.
—SupportsIDEbusmasteroperation
—SupportATA133/RAIDmode switchbyBIOS
—Mirroring supportsautomaticbackground rebuilds
—FeaturesLBA and ExtendedInterrupt13 drivetranslation in
controlleronboardBIOS
On-BoardLAN—Intel82550PM
On-BoardUSB 2.0—BuiltinICH4Chipset
PS/2Connector—PS/2Keyboardinterfaceand PS/2Mouseinterace
BIOS—LicensedAWARD BIOS,4MBitxFWH
—SupportsQ-Flash
AdditionalFeatures—PS/2Keyboardpoweron bypassword
—PS/2Mousepoweron
—ExternalModemwakeup
—STR(Suspend-To-RAM)
—Wakeon LAN(WOL)
—ACRecovery
—Polyfuseforkeyboardover-currentprotection
—SupportsEasyTune 4
Overclocking —OverVoltage (DDR/AGP/CPU)byBIOS
—OverClock (CPU/DDR/AGP)byBIOS

-7-
HardwareInstallationProcess
SOCKET478
GA-8IEXWMotherboardLayout
SOCKET478
Intel845E
ICH4
AC97
BATTERY
FDD
IDE2
IDE1
NB_FAN
ATIRage XL
W986432DH-6
VGA_EN
WOR
USB
LAN
MIC_IN LINE_OUT
LINE_IN
GAME
VGACOM
LPT1
KB_MS
ATX
PDC20276
F_USB2/4
F_USB1/3
IDE3
IDE4
SYS_FAN
PWR_FAN
CI
CLR_CMOS
CPU_FAN
AUX_12V
CD_IN
AUX_IN
PCI 5
PCI 4
PCI 3
PCI 2
PCI 1
AGP Slot
SPDIF
IR
BIOS
DDR1
DDR 2
DDR 3
Model_SW1
CPU
F_PANEL

-8
-
English
GA-8IEXWMotherboard
Tosetup yourcomputer,you mustcompletethe following steps:
Step 1-Install the CentralProcessing Unit(CPU)
Step 2-Install memorymodules
Step 3-Install expansion cards
Step 4-Connectribbon cables,cabinetwires,and powersupply
Step 5-Setup BIOSsoftware
Step 6-Install supporting softwaretools
Chapter2HardwareInstallationProcess
Step4Step4Step2
Step1
Step3
Step4
Step4
Step4

-9-
HardwareInstallationProcess

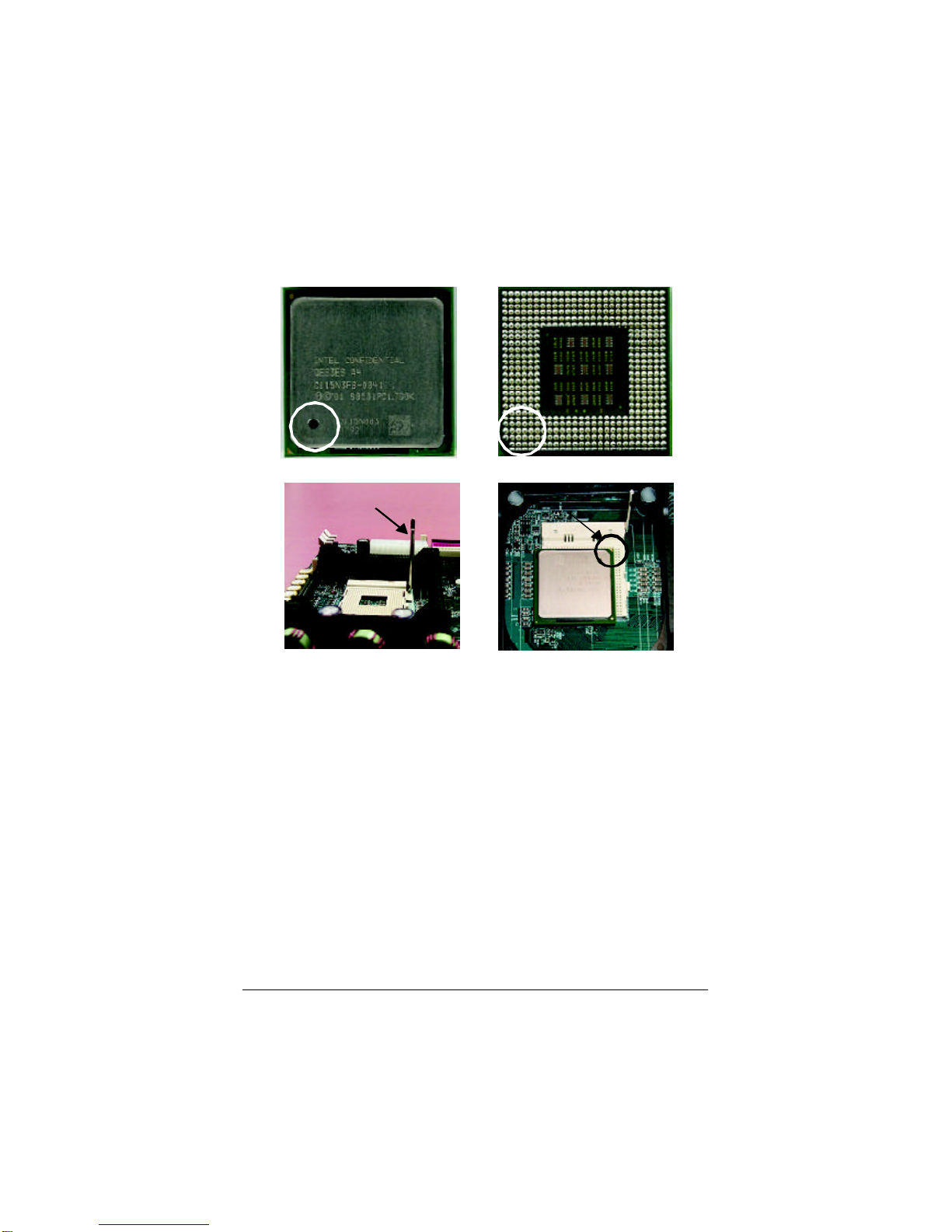

Step1:Install theCentralProcessing Unit(CPU)
Pin1indicatorPin1indicator
CPUTop View CPUBottomView
SocketActuation Lever
1.Pull up the CPUsocketlever
and up to90-degree angle.
Pin1indicator
2.LocatePin1inthe socketand look
fora(golden)cutedge on the CPU
uppercorner.Then insertthe CPU
intothe socket.
3.Press downthe CPUsocket
leverand finishCPUinstallation.
MPlease make suretheCPUtypeissupportedbythemotherboard.
MIfyou do notmatchtheCPUsocketPin1and CPUcutedgewell, itwill cause
improperinstallation.Please changetheinsertorientation.

-10
-
English
GA-8IEXWMotherboard

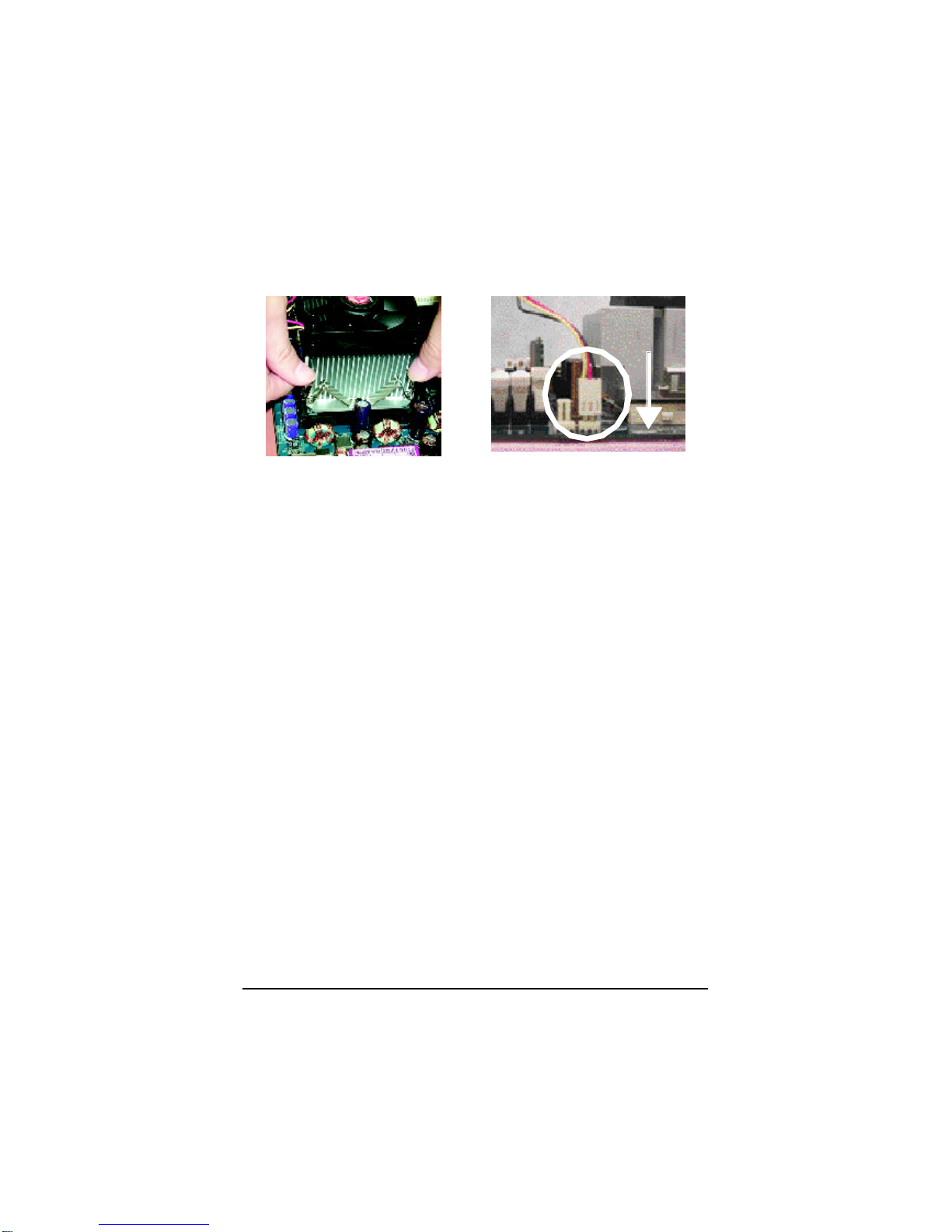

Step1-2:CPUHeatSinkInstallation
1.Hookone end ofthe cooler
brackettothe CPUsocketfirst.
Hookthe otherend ofthe
coolerbrackettothe CPU
socket.
2.MakesuretheCPUfan isplugged
totheCPUfan connector.Install
complete.
MPlease use Intel®approvedcooling fan.
MWerecommend you toapplythethermalpastetoprovidebetterheat
conduction betweentheCPUand heatsink.
MMake suretheCPUfanpowercableispluggedintotheCPUfanconnector,
tocompletes theinstallation.
MPlease refertoCPUheatsinkuser’smanualformoredetail installation
procedure.

-11
-
HardwareInstallationProcess
Step2:Install memorymodules
The motherboardhas3dualinline memorymodule(DIMM)sockets,butitcan onlysupporta
maximumof4banks DDR memory.DDR socket1uses2banks,DDR socket2&3sharethe
remaining 2banks.Pleaserefertothe following tablesforpossiblememoryconfigurationssupported.
The BIOSwill automaticallydetectsmemorytype and size.Toinstall the memorymodule,justpush
itverticallyintothe DIMM Slot.The DIMM modulecan onlyfitinone direction due tothe notch.
Memorysizecan varybetween sockets.
TotalMemorySizewithUnbufferedDDR DIMM
Device used on DIMM 1 DIMM x 64/ x72 2 DIMMs x 64/ x72 3 DIMMs x 64/ x72
64 Mbit (2Mx 8x 4 banks) 128 MBytes 256 MBytes 256 MBytes
64 Mbit (1Mx 16x 4 banks) 32 MBytes 64 MBytes 96 MBytes
128 Mbit(4Mx 8x 4 banks) 256 MBytes 512 MBytes 512 MBytes
128 Mbit(2Mx 16x 4 banks) 64 MBytes 128 MBytes 96 MBytes
256 Mbit(8Mx 8x 4 banks) 512 MBytes 1 GBytes 1 GBytes
256 Mbit(4Mx 16x 4 banks) 128 MBytes 256 MBytes 384 MBytes
512 Mbit(16Mx 8x 4 banks) 1 GBytes 2 GBytes 2 GBytes
512 Mbit(8Mx 16x 4 banks) 256 MBy es 512 MBytes 786 MBytes
Notes:Double-sidedx16 DDR memorydev ices arenotsupportbyIntel845E/Gchipset.
DDR 1 DDR 2 DDR 3
SSS
DS S
DDX
DXD
SDX
S X D
D:DoubleSided DIMM;S:SingleSided DIMM;X:NotUse

-12
-
English
GA-8IEXWMotherboard
DDR Introduction
Established on the existingSDRAMindustryinfrastructure,DDR (DoubleDataRate)memoryisa
high performanceand cost-effectivesolution thatallowseasy adoption formemoryvendors,OEMs
and systemintegrators.
DDR memoryisasensibleevolutionarysolution forthe PCindustrythatbuildson the existing
SDRAMinfrastructure,yetmakesawesomeadvancesinsolvingthe systemperformancebottleneck by
doubling the memorybandwidth.DDR SDRAMwill offerasuperiorsolution and migration pathfrom
existing SDRAMdesignsdue toitsavailability,pricing and overall marketsupport. PC2100 DDR
memory(DDR266)doublesthe dataratethrough reading andwriting atboththe rising andfalling edge of
the clock,achieving databandwidth2XgreaterthanPC133 when running withthe sameDRAMclock
frequency.Withpeakbandwidthof2.1GBpersecond,DDR memoryenablessystemOEMstobuild
high performanceand lowlatency DRAMsubsystemsthataresuitableforservers,workstations,high-
end PC'sand value desktop SMAsystems.Withacorevoltage ofonly2.5Voltscompared to
conventionalSDRAM's3.3volts,DDR memoryisacompelling solution forsmall formfactordesktops
and notebookapplications.
1.The DIMM slothasanotch,sothe
DIMM memorymodulecan onlyfitinone direction.
2. Insertthe DIMM memorymoduleverticallyintothe
DIMM slots.Then pushitdown.
3.Closethe plasticclipatbothedgesoftheDIMM slots
tolock the DIMM module.
MReversetheinstallation processeswhen youwantto
removethe DIMM module.
DDR

-13
-
HardwareInstallationProcess
Step3:Install expansion cards
1.Read the related expansion card’sinstruction documentbeforeinstall the expansion cardinto
the computer.
2.Removeyourserver’schassiscover,necessaryscrewsand slotbracketfromthe computer.
3.Press the expansion cardfirmlyintoexpansion slotinmotherboard.
4.Besurethe metalcontactson the cardareindeed seated inthe slot.
5.Replacethe screwtosecurethe slotbracketofthe expansion card.
6.Replaceyourcomputer’schassiscover.
7.Poweron the computer,ifnecessary,setup BIOSutilityofexpansion cardfromBIOS.
8. Install related driverfromthe operating system.

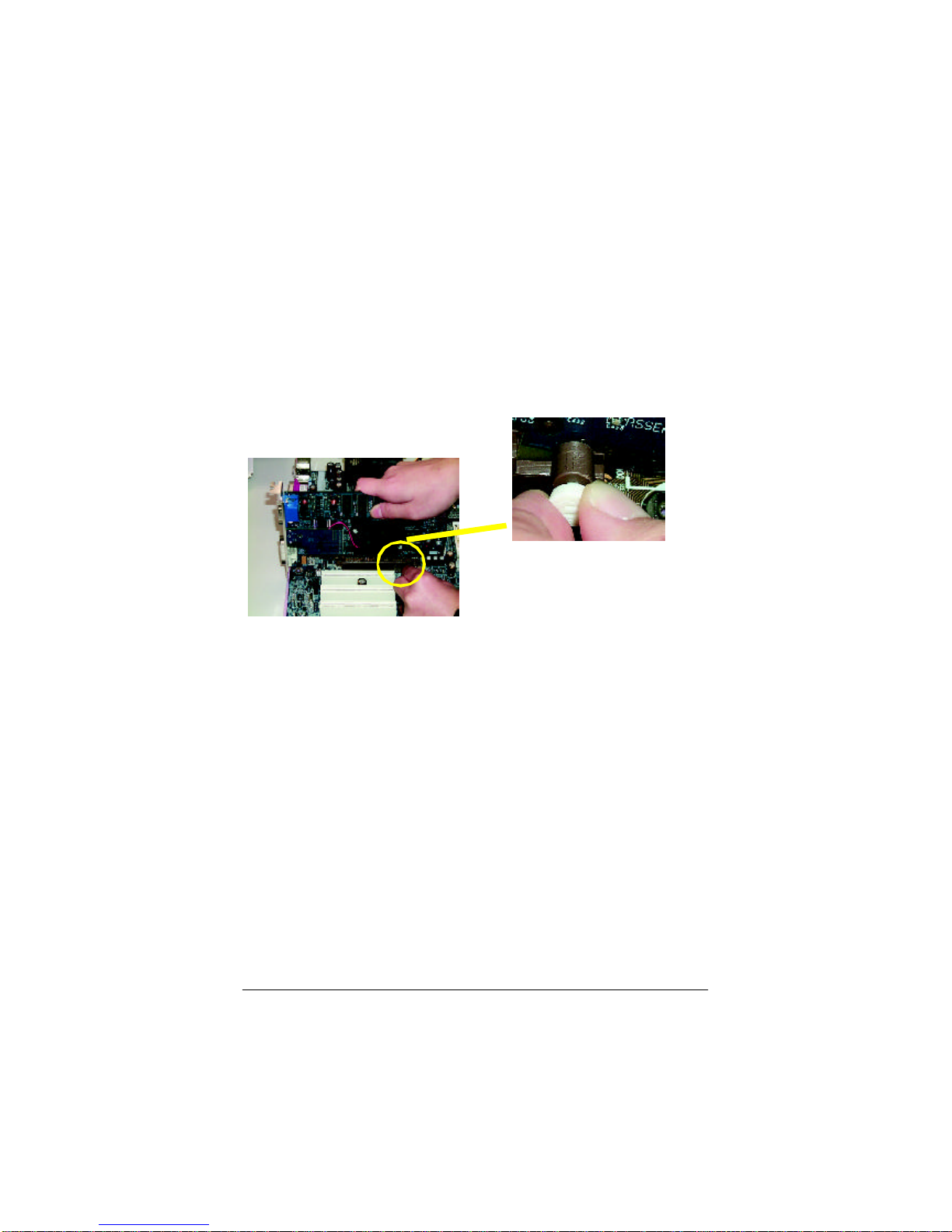

AGPCard
Pleasecarefullypull outthe small white-
drawablebaratthe endofthe AGPslotwhen
you trytoinstall/Uninstall the AGPcard.
Pleasealign the AGPcardtothe onboard
AGPslotand press firmlydowntothe slot.
MakesureyourAGPcardislocked bythe
small white-drawablebar.

-14
-
English
GA-8IEXWMotherboard
Step4:Connectribboncables,cabinetwires,and power
supply
Step4-1:I/OBack PanelIntroduction
u PS/2Keyboardand PS/2MouseConnector
PS/2MouseConnector
(6pinFemale)
PS/2KeyboardConnector
(6pinFemale)
ØThisconnectorsupportsstandardPS/2
keyboardand PS/2mouse.
u v w
x
y
v ParallelPortand SerialPorts(COMA/COMB)
ØThisconnectorsupports1standardCOMport,1
VGAportand 1Parallelport. Devicelikeprinter
can be connected toParallelport;mouseand
modemetccan be connected toSerialand VGA
ports.
ParallelPort
(25 pinFemale)
COMVGA
SerialPorts(9pinMale)

-15
-
HardwareInstallationProcess
wGame/MIDIPorts
Joystick/MIDI(15 pinFemale)
xAudioConnectors
ØThisconnectorsupportsjoystick,MIDIkeyboard
and otherrelateaudiodevices.
ØAfterinstall onboardaudiodriver,you mayconnect
speakertoLine Outjack,microphone toMICInjack.
DevicelikeCD-ROM,walkman etccan be connected
toLine-Injack.
Pleasenote:LineOut1:Line OutorSPDIF(The SPDIF
outputiscapableofproviding digitalaudiotoexternal
speakersorcompressed AC3datatoan externalDolby
digitaldecoder).ToenableSPDIF,simplyinsertSPDIF
connectorintoLine Out1.Line Out1will becomeSPDIF
Outautomatically.
ToenableFourSpeaker(forCreative5880 audioonly),
and Line Inwill becomeLine Out2tosupportsecond
pairofstereo speakers.
Ifyou wantthedetail information for“6/4Chan-
nelAudio&SPDIF“setup,please download8IEX
Series manual(CompleteVersion)fromGigabyte
web.http://www.gigabyte.com.tw.
yUSB/LAN(**)ConnectorØBeforeyou connectyourdevice(s)intoUSB
connector(s),pleasemakesureyourdevice(s)
suchasUSB keyboard,mouse,scanner,zip,
speaker..etc.HaveastandardUSB interface.
AlsomakesureyourOS(Win95 withUSB
supplement, Win98,Windows2000,Windows
ME,WinNTwithSP6)supportsUSB controller.
IfyourOSdoesnotsupportUSB controller,
pleasecontactOSvendorforpossiblepatchor
driverupgrade.Formoreinformation please
contactyourOSordevice(s)vendors.
USB0
USB1
LAN(**)
Line In
(Line Out2)
MICIn
Line Out1

-16
-
English
GA-8IEXWMotherboard
Step4-2:Connectors&JumperSetting Introduction
TVU
W
X
Y
A)CPU_FAN N)Model_SW1
B)BATTERYO)IDE4
C)ATX P)F_USB1/F_USB3
D)IR/CIRQ)F_USB2/F_USB4
E)FDD R)WOL
F)IDE1S)VGA_EN
G)IDE2T)SPDIF
H)PWR_FAN U)AUX_IN
I)SYS_FAN V)CD_IN
J)CIW)SCSI_CON
K)CLR_CMOS X)NB_FAN
L)F_PANELY)AUX_12V
M)IDE3
I
H
BCD
E
F
G
A
J
K
L
O
M
Q
P
R
S
N

-17
-
HardwareInstallationProcess
A)CPU_FAN (CPUFanConnector)
C)ATX(ATXPowerConnector)
ØPleasenote,aproperinstallation ofthe CPU
coolerisessentialtopreventthe CPUfrom
running underabnormalcondition or
damaged byoverheating.The CPUfan
connectorsupportsMax.currentup to600mA.
ØThisconnector(ATX+12V)is
used onlyforCPUCoreVoltage.
Y)AUX_12V(+12VPowerConnector)
ØACpowercordshouldonlybe connected to
yourpowersupplyunitafterATXpower
cableand otherrelated devicesarefirmly
connected tothe mainboard.
I)SYS_FAN (SystemFanConnector)
1+12V/Control
Sense
GND
1
+12V/Control
Sense
GND
1
2
3
4
+12V
GND +12V
GND
PS-ON(SoftOn/Off)
3.3V
3.3V
GND
GND
GND
VCC
VCC
+12V
5VSB(Stand by+5V)
PowerGood
3.3V
GND
GND
GND
GND
VCC
VCC
-12V
1
20
-5V
J)PWR_FAN (PowerFanConnector)
+12V/Control
Sense
GND
1

-18
-
English
GA-8IEXWMotherboard
U)AUX_IN(AUXInConnector)
F,G)IDE1/IDE2Connector(Primary/Secondary]
M,O)IDE3/IDE4Connector
ØImportantNotice:
Pleaseconnectfirstharddisk toIDE1
and connectCDROMtoIDE2.
IDE4
1
1
AUX-R
AUX-L GND
ImportantNotice:
1.Pleaseconnectfirstharddisk toIDE1and connectCDROMtoIDE2.
2.Ifyou wishtouseIDE3and IDE4,pleaseuseitinunitywithBIOS(eitherRAIDor
ATA133).Then,install the correctdrivertohaveproperoperation.Fordetails,pleasereferto
the RAIDmanual.
Ifyou wantthedetail information for“RAID“setup ,please download8IEX Series manual
(CompleteVersion)fromGigabyteweb.http://www.gigabyte.com.tw.
1
IDE3
IDE2
1
1
IDE1

-19
-
HardwareInstallationProcess
R)WOL(Wake on LAN)
1
+5VSBGND
Signal
T)SPDIFØThe SPDIFoutputiscapableofproviding
digitalaudiotoexternalspeakersorcom
pressedAC3datatoan externalDolby
DigitalDecoder.Usethisfeatureonlywhen
yourstereo systemhasdigitaloutput
function.
SPDIF
VCC
SPDIFOut
GND
1
X)NB_FAN
1
ØIfinstalled wrong direction,the ChipFan will
notwork.Sometimeswill damage the Chip
Fan.(Usuallyblack cableisGND)
VCC
GND

-20
-
English
GA-8IEXWMotherboard
P)F_USB1/F_USB3(FrontUSBConnector)
Q)F_USB2/F_USB4(FrontUSBConnector)
V)CD_IN(CDAudioLineInConnector)
ØBecarefulwiththe polarityofthe front
panelUSB connector.Check the pin
assignmentwhileyou connectthe front
panelUSB cable.Pleasecontactyour
nearestdealerforoptionalfrontpanel
USBcable.
ØBecarefulwiththe polarityofthe front
panelUSB connector.Check the pin
assignmentwhileyou connectthe front
panelUSB cable.Pleasecontactyour
nearestdealerforoptionalfrontpanel
USBcable.
1
CD_R
CD_L GND
1Power
GND
NC
USBy+
GND
GND
NC
USBx+
USBy-
USBX-
1Power
GND
NC
USBy+
GND
GND
NC
USBx+
USBy-
USBX-
