Front Panel Header/ 前面板
No. Pin Define
1 HDD LED+
2 Power LED+
3 HDD LED-
4 Power LED-
5 GND
6 Power Buon+
7 Reset Buon
8 Power Buon-
9 GND
10 No Pin
1
109
2
Power Connector/ 电源
2
1No. Pin Define
1 GND
2 19V
Installing CPU/ 安装 CPU Memory Populaon Configuraon/ 安装内存
Rear I/O Connector/ 后面板接口
123 3
5 6 74
No. Desripon
1 DC In power connector
2 GbE Eternet LAN port
3 USB 3.0 ports
4 Display port connector
5 HDMI port
6 Line Out port (Green)
7 Mic In port (Pink)
Off
State Description
Yellow On 1Gbps data rate
Green On 100Mbps data rate
10Mbps data rate
10/100/1000 LAN LED:
Speed LED Link/Acvity
LED
The HDMI connector is HDCP compliant and supports Dolby True HD and DTS HD
Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM audio
output. You can use this port to connect your HDMI-supported monitor. The
maximum supported resoluon is 4096x2160@24Hz or 2560x1600@60Hz, but the
actual resoluons supported are dependent on the monitor being used.
SATA Connector/SATA 接口
1
7No. Pin Define
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
TPM LPC Connector/ 可信平台模块
1
2
13
14
No. Pin Define
1 Clock
2 P_3V3_AUX
3 LPC_RST
4 P3V3
5 LPC_LAD0
6 IRQ_SERIAL
7 LPC_LAD1
8 TPM_DET(Default H)
9 LPC_LAD2
10 No Pin
11 LPC_LAD3
12 GND
13 LPC_FRAME_N
14 GND
2
1
10
9
Front Audio Connector/ 前置音频
No. Pin Define
1 MIC2_L
2 GND
3 MC2_R
4 FP_AUDIO_DET
5 LINE2_R
No. Pin Define
6 MIC2_JD
7 GND
8 No Pin
9 LINE2_L
10 LINE2_JD
LVDS
No. Pin Define
1 +RXO3_C
2 -RXO3_C
3 +RXO2_C
4 -RXO2_C
5 +RXO1_C
6 -RXO1_C
7 +RXO0_C
8 -RXO0_C
9 +RXE3_C
10 -RXE3_C
401 18
No. Pin Define
11 +RXE2_C
12 -RXE2_C
13 +RXE1_C
14 -RXE1_C
15 +RXE0_C
16 -RXE0_C
17 GND
18 LCD_VCC
19 LCD_VCC
20 LCD_VCC
No. Pin Define
21 No Connect
22 VCC3
23 GND
24 -Cable Detect
25 GND
26 +RXECLKO_C
27 -RXECLKO_C
28 GND
29 GND
30 GND
No. Pin Define
31 SMB_CLK_CON
32 SC_BKLT_EN
33 SC_BKLT_CTRL
34 +RXECLKE_C
35 -RXECLKE_C
36 FPD_19V
37 FPD_19V
38 FPD_19V
39 No Connect
40 SMB_DATA_CON
Flat Panel Display Connector
No. Pin Define
1 Backlight enable
2 Backlight control
3 Backlight inverter power
4 Backlight inverter power
5 GND
6 GND
7 Panel brightness increase
8 Panel brightness decrease
NOTE! Cable detect pin 24 must connect to ground.
CPU/System FAN/ 风扇
4
1
4
1
No. Pin Define
1 GND
2 +12V
3 Sense
4 Speed Control
USB 2.0 Header
No. Pin Define
1 Power (5V)
2 Power (5V)
3 USB DX-
4 USB DY-
5 USB DX+
6 USB DY+
7 GND
8 GND
9 No Pin
10 No Connect
No. Pin Define
1 VCC
2 USB-
3 USB+
4 GND
5 No Pin
109
21 1
5
Monitor Power Switch
No. Pin Define
1 High/ow: turn on/off monitor
2 GND
2
1
5
1
Digital MIC In Connector
No. Pin Define
1 VCC
2 DMI Data
Back Light Switch Header
21
No. Pin Define
1 Back light down
2 Back light up
Baery Cable Connector
No. Pin Define
1 RTC reset
2 GND
Speaker Cable Connector
No. Pin Define
1 Speaker Out R-
2 Speaker Out R+
3 Speaker Out L+
4 Speaker Out L-
41
2 1
Jumper Sengs/ 跳线设置
No. Desripon
1 Clear CMOS Jumper
Open: Normal operaon (Default seng)
Close: Clear CMOS data.
2 LVDS Power Select Jumper
1-2 Close: Set to 12V.
2-3 Close: Set to 19V. (Default seng)
3 LVDS Drive Voltage Jumper
1-2 Close: Set to 3V.
2-3 Close: Set to 5V. (Default seng)

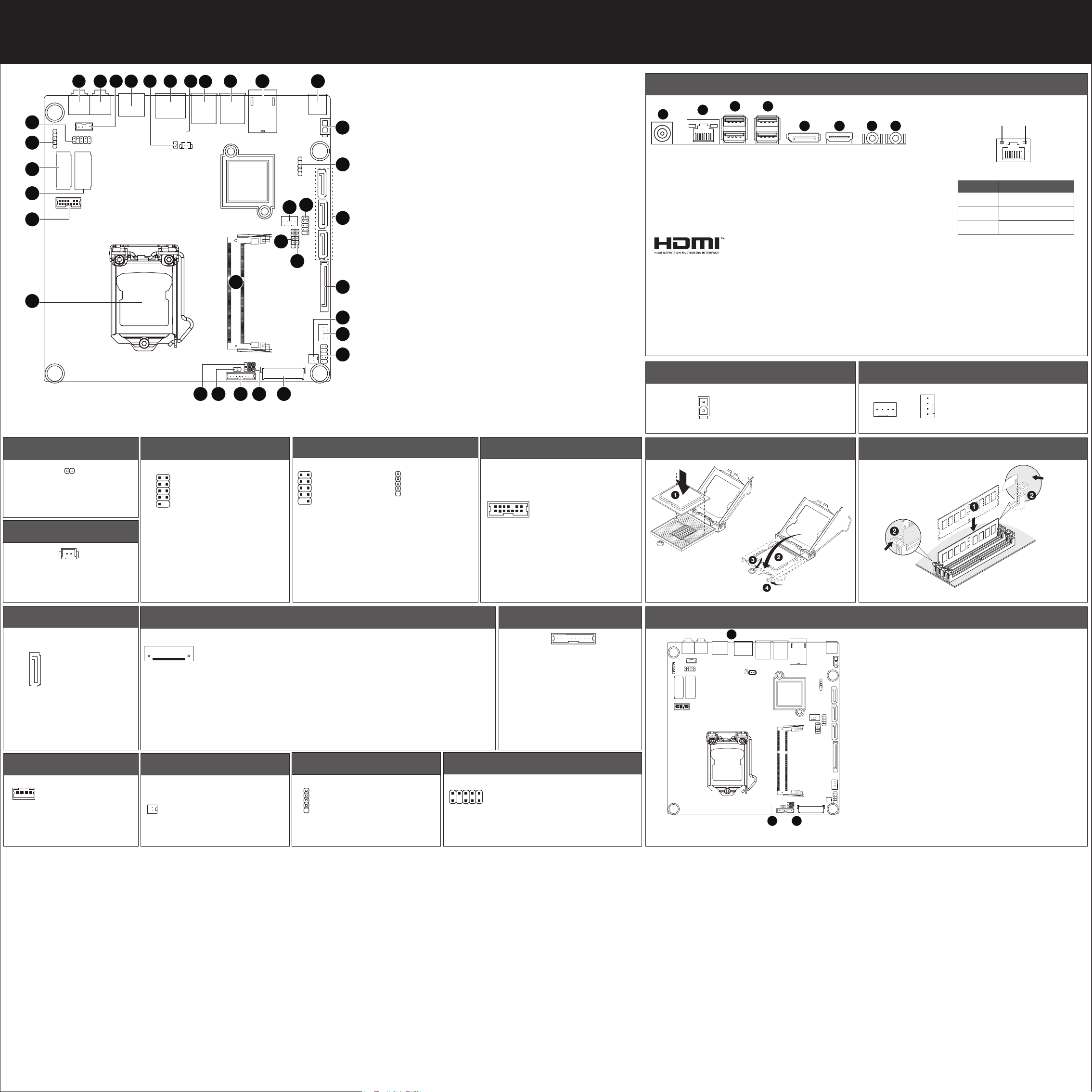

MDH11TI Quick Reference Guide/ 快速测试参考指南
No. Code Descripon
1 MIC_IN Audio Mic In port
2 LINE_OUT Audio Line Out port
3 SPKR Speaker cable connector
4 HDMI HDMI port
5 CLR_CMOS Clear CMOS jumper
6 DP Display port connector
7 BATTERY Baery cable connector
8 USB3_2 USB 3.0 ports
9 USB3_1 USB 3.0 ports
10 LAN GbE LaN port
11 DC_IN DC In power connector
12 ATX_19V 2 pin power connector
13 FUSB2_5 USB 2.0 header
14 SATAIII_2 SATA 6Gb/s connectors
SATAIII_1
SATAIII_0
15 FUSB2_1 USB 2.0 header
16 SYS_FAN System fan connector
17 FUSB2_2 USB 2.0 header
18 FUSB2_4 USB 2.0 headerr
19 SATA_PWR Hard disk power connector
20 MON_SW Monitor power switch header
21 CPU_FAN CPU fan connector
22 SYS_PANEL Front panel header
23 LVDS LVDS connector
24 SO_DIMM1 DDR3L SO-DIMM slot
25 FPD_PWR LVDS power select jumper (12V/19V)
26 FPD Flat Panel Display connector
27 BL_SW Back light brightness switch
28 LCD_VCC LVDS Drive voltage jumper
29 CPU Intel 6th Generaon Core Processor with LGA 1151 socket
30 TPM_LPC TPM module connector
31 M2_E M.2 slot (PCIe Gen2 x1, Support NGFF-2230, E-Key)
32 M2_M M.2 slot (SATA 6Gb/s)
33 DMIC_CON Digital Mic connector
34 FP_AUDIO Front audio header
