Gigabyte GA-F2A88XM-D3HP User manual

GA-F2A88XM-D3HP
User's Manual
Rev. 1001
12ME-F288MHP-1001R
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product are
recyclable and reusable. GIGABYTE works with you to protect the environment.

Motherboard
GA-F2A88XM-D3HP
Nov. 27, 2015
Nov. 27, 2015
Motherboard GA-F2A88XM-D3HP

Copyright
©2015 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE
without prior notice.
No part of this manual may be reproduced, copied, translated, transmitted, or published in any
form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of
documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at: http://www.gigabyte.com
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means
the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard
BIOS, drivers, or when looking for technical information.
Example:

- 4 -
Table of Contents
Box Contents...................................................................................................................6
Optional Items .................................................................................................................6
GA-F2A88XM-D3HP Motherboard Layout ......................................................................7
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions.................................................................................... 9
1-2 ProductSpecications.................................................................................... 10
1-3 Installing the APU and APU Cooler................................................................ 13
1-3-1 Installing the APU ...................................................................................................13
1-3-2 Installing the APU Cooler........................................................................................15
1-4 Installing the Memory..................................................................................... 16
1-4-1 DualChannelMemoryConguration .....................................................................16
1-4-2 Installing a Memory ................................................................................................17
1-5 Installing an Expansion Card ......................................................................... 18
1-6 SetupoftheAMDDualGraphicsConguration............................................. 19
1-7 Back Panel Connectors.................................................................................. 20
1-8 Internal Connectors........................................................................................ 22
Chapter 2 BIOS Setup ..................................................................................................31
2-1 Startup Screen ............................................................................................... 32
2-2 The Main Menu .............................................................................................. 33
2-3 M.I.T. .............................................................................................................. 34
2-4 System Information ........................................................................................ 43
2-5 BIOS Features ............................................................................................... 44
2-6 Peripherals..................................................................................................... 48
2-7 Power Management....................................................................................... 50
2-8 Save & Exit..................................................................................................... 52
Chapter3 ConguringaRAIDSet................................................................................53
3-1 ConguringSATAControllers......................................................................... 53
3-2 InstallingtheSATARAID/AHCIDriverandOperatingSystem....................... 62

- 5 -
Chapter 4 Drivers Installation........................................................................................65
4-1 Drivers & Software ......................................................................................... 65
4-2 Application Software ...................................................................................... 66
4-3 Information ..................................................................................................... 66
Chapter 5 Unique Features...........................................................................................67
5-1 BIOS Update Utilities ..................................................................................... 67
5-1-1 Updating the BIOS with the Q-Flash Utility.............................................................67
5-1-2 Updating the BIOS with the @BIOS Utility .............................................................70
5-2 APP Center .................................................................................................... 71
5-2-1 EasyTune................................................................................................................72
5-2-2 System Information Viewer.....................................................................................73
5-2-3 Smart TimeLock......................................................................................................74
5-2-4 SmartRecovery2...................................................................................................75
5-2-5 USB Blocker ...........................................................................................................77
5-2-6 Game Controller .....................................................................................................78
5-3 Smart Switch.................................................................................................. 79
Chapter 6 Appendix ......................................................................................................81
6-1 ConguringAudioInputandOutput............................................................... 81
6-1-1 Conguring2/4/5.1/7.1-ChannelAudio...................................................................81
6-1-2 ConguringS/PDIFOut..........................................................................................84
6-1-3 ConguringMicrophoneRecording........................................................................85
6-1-4 UsingtheSoundRecorder .....................................................................................87
6-2 Troubleshooting.............................................................................................. 88
6-2-1 Frequently Asked Questions ..................................................................................88
6-2-2 Troubleshooting Procedure ....................................................................................89
RegulatoryStatements.............................................................................................. 91
Contact Us ................................................................................................................ 95

- 6 -
Box Contents
5GA-F2A88XM-D3HP motherboard
5Motherboard driver disk
5User's Manual
5Quick Installation Guide
5Four SATA cables
5I/OShield
Optional Items
2-portUSB2.0bracket(PartNo.12CR1-1UB030-6*R)
eSATAbracket(PartNo.12CF1-3SATPW-4*R)
3.5"FrontPanelwith2USB3.0/2.0ports(PartNo.12CR1-FPX582-2*R)
HDMI-to-DVIadapter(PartNo.12CT2-HDMI01-1*R)
LPTportcable(PartNo.12CF1-1LP001-0*R)
COMportcable(PartNo.12CF1-1CM001-3*R)
* Theboxcontentsabove arefor referenceonly andthe actualitems shalldependontheproductpackageyou
obtain. The box contents are subject to change without notice.

- 7 -
GA-F2A88XM-D3HP Motherboard Layout
KB_MS_USB
CPU_FANSYS_FAN1
Socket FM2+
ATX
F_USB30
AUDIO
DDR3_4
DDR3_2
DDR3_3
DDR3_1
BAT
ATX_12V
AMD A88X
CODEC
CLR_CMOS
M_BIOS
B_BIOS
DVI_VGA
USB_LAN
Realtek®
GbE LAN
PCIEX16
PCIEX4
PCI
SYS_FAN2
iTE®
SuperI/O
GA-F2A88XM-D3HP
R_USB30
F_PANELF_USB1F_USB2F_AUDIO
SPDIF_O
TPMCOM
PCIEX1
LPT
SATA3
SATA3
0 1 2 34 6
5 7
HDMI
TYPEC
USB31
ASMedia®
USB 3.1 Controller

- 8 -

- 9 -
Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damagedasaresultofelectrostaticdischarge(ESD).Priortoinstallation,carefullyreadtheuser's
manual and follow these procedures:
•Prior to installation, make sure the chassis is suitable for the motherboard.
•Priorto installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard, make
sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before unplugging the power supply cable from the motherboard, make sure the power supply
has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface.
•Do not place the computer system in a high-temperature or wet environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product,pleaseconsultacertiedcomputertechnician.
•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation
and/orgroundinginstructions.
Chapter 1 Hardware Installation

- 10 -
Hardware Installation
1-2 ProductSpecications
APU FM2+ Socket:
- AMD A series processors
- AMD Athlon™series processors
(Go to GIGABYTE's website for the latest APU support list.)
Chipset AMD A88X
Memory 4 x DDR3 DIMM sockets supporting up to 64 GB of system memory
*Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than the size of
the physical memory installed.
Dual channel memory architecture
Support for DDR3 2133/1866/1600/1333 MHz memory modules
Support for AMD Memory Prole (AMP)/Extreme Memory Prole (XMP)memory
modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory
modules.)
Onboard
Graphics
Integrated Graphics Processor:
*To use the onboard graphics ports, you must install an AMD APU with integrated
graphics.
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200
- 1 x DVI-D port, supporting a maximum resolution of 2560x1600
*Support for 2560x1600 resolution requires both a monitor and cable that support
Dual Link DVI.
*The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160
*The resolution of 4096x2160 can be supported when using an FM2+ APU; the
maximum resolution supported is 1920x1200 when using an FM2 APU.
*Support for HDMI 1.4a version.
Support for up to 3 displays at the same time
Maximum shared memory of 2 GB
Audio Realtek® ALC887 codec
High Denition Audio
2/4/5.1/7.1-channel
*To congure 7.1-channel audio, you have to use an HD front panel audio module
and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN Realtek®GbE LAN chip (10/100/1000 Mbit)
Expansion Slots 1xPCIExpressx16slot,runningatx16(PCIEX16)
* Foroptimumperformance,ifonlyonePCIExpressgraphicscardistobeinstalled,
be sure to install it in the PCIEX16 slot.
 (ThePCIEX16slotconformstoPCIExpress3.0standard.)
* TosupportPCIExpress3.0,youmustinstallanFM2+APU.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
1 x PCI slot

- 11 -
Hardware Installation
Multi-Graphics
Technology
Support for AMD 2-Way CrossFire™technology
Support for AMD Dual Graphics technology
*Only A series APUs support AMD Dual Graphics.
SupportforAMDEyenitytechnology
Storage Interface Chipset:
- 8 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD
USB ASMedia® USB 3.1 Controller:
- 1 x USB Type-C™port on the back panel, with USB 3.1 support
- 1 x USB 3.1 Type-A port (red)on the back panel
Chipset:
- 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the
internal USB header)
- 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the
internal USB headers)
Internal
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
8 x SATA 6Gb/s connectors
1 x APU fan header
2 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM)header
Back Panel
Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
1 x USB 3.1 Type-A port (red)
1 x USB Type-C™port, with USB 3.1 support
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller iTE®I/O Controller Chip
Hardware
Monitor
System voltage detection
APU/System temperature detection
APU/System fan speed detection
APU overheating warning

- 12 -
Hardware Installation
Hardware
Monitor
APU/System fan fail warning
APU/System fan speed control
*Whether the fan speed control function is supported will depend on the cooler you
install.
BIOS 2 x 64 Mbit ash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
*Available applications in APP Center may vary by motherboard model. Supported
functions of each application may also vary depending on motherboard specications.
- @BIOS
- Cloud Station
- EasyTune
- Smart TimeLock
- Game Controller
- SmartRecovery2
- System Information Viewer
- USB Blocker
Support for Q-Flash
Support for ON/OFF Charge
Support for Smart Switch
Support for Xpress Install
Bundled
Software Norton®Internet Security (OEM version)
Operating
System
SupportforWindows10/8.164-bit
SupportforWindows732-bit/64-bit
* Pleasedownloadthe"WindowsUSBInstallationTool"fromGIGABYTE'swebsite
and install it before installing Windows 7.
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
*GIGABYTE reserves the right to make any changes to the product specications and product-related information without
prior notice.
Please visit GIGABYTE's website
for support lists of CPU, memory
modules and SSDs.
Please visit the Support\Utility List
page on GIGABYTE's website to
download the latest version of apps.

- 13 -
Hardware Installation
1-3 Installing the APU and APU Cooler
1-3-1 Installing the APU
A. Locatethepinone(denotedbyasmalltriangle)oftheAPUsocketandtheAPU.
ReadthefollowingguidelinesbeforeyoubegintoinstalltheAPU:
•Make sure that the motherboard supports the APU.
 (GotoGIGABYTE'swebsiteforthelatestAPUsupportlist.)
•Always turn off the computer and unplug the power cord from the power outlet before installing the
APU to prevent hardware damage.
•Locate the pin one of the APU. The APU cannot be inserted if oriented incorrectly.
•Apply an even and thin layer of thermal grease on the surface of the APU.
•Do not turn on the computer if the APU cooler is not installed, otherwise overheating and damage
of the APU may occur.
•SettheAPUhostfrequencyinaccordancewiththeAPUspecications.Itisnotrecommended
thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheAPU,graphics
card, memory, hard drive, etc.
APU
A Small Triangle
Marking Denotes
APU Pin One
A Small Triangle
Marking Denotes Pin
One of the Socket FM2+ Socket
Please visit GIGABYTE's website for details on hardware installation.

- 14 -
Hardware Installation
B. Follow the steps below to correctly install the APU into the motherboard APU socket.
•Before installing the APU, make sure to turn off the computer and unplug the power cord from the
power outlet to prevent damage to the APU.
•DonotforcetheAPUintotheAPUsocket.TheAPUcannottiniforientedincorrectly.Adjustthe
APU orientation if this occurs.

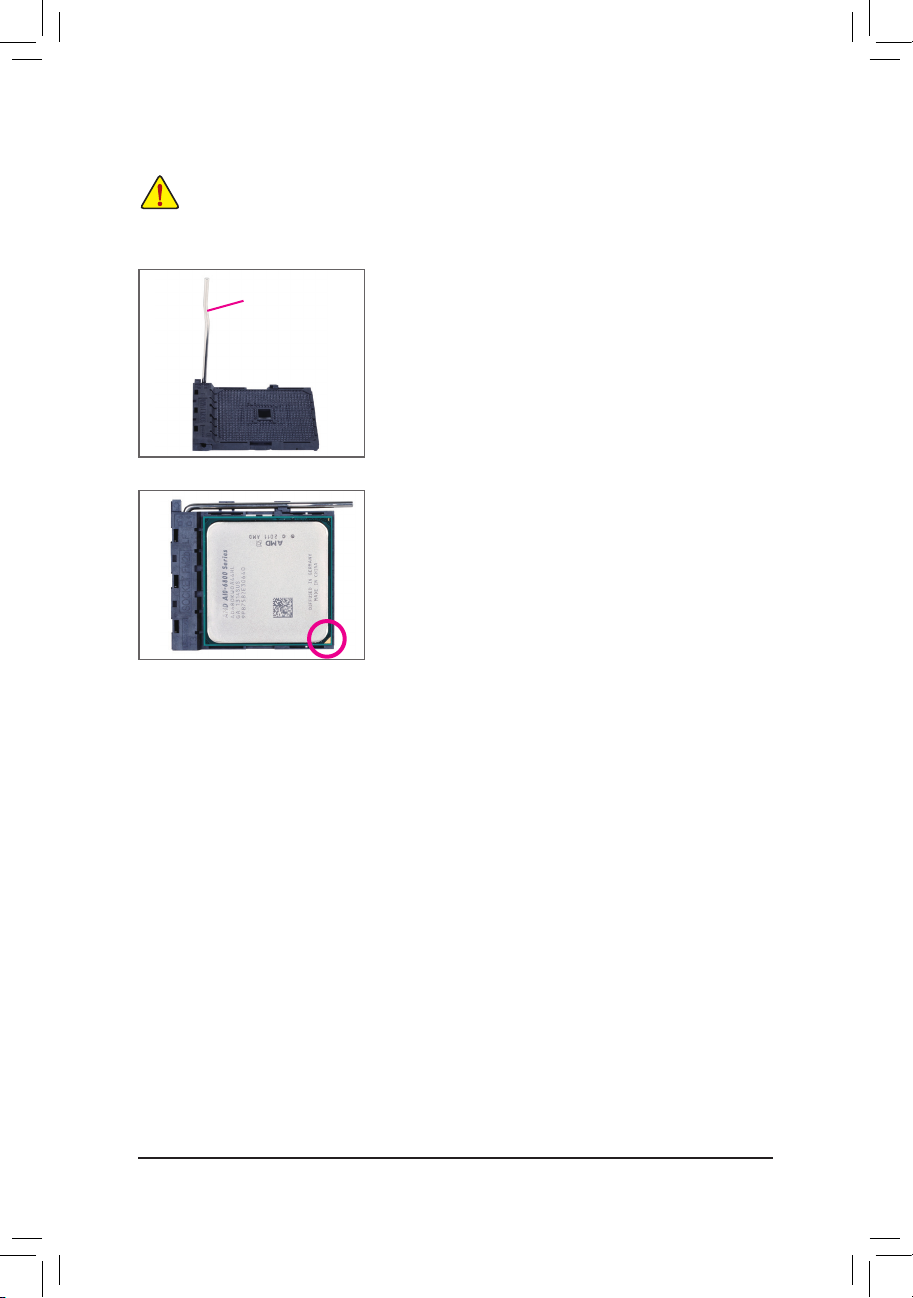

Step 1:
Completely lift up the APU socket locking lever.
Step 2:
AligntheAPUpinone(smalltrianglemarking)withthetrianglemark
on the APU socket and gently insert the APU into the socket. Make
surethattheAPUpinstperfectlyintotheirholes.
OncetheAPUispositionedintoitssocket,placeonengerdownon
the middle of the APU, lowering the locking lever and latching it into
the fully locked position.
APU Socket
Locking Lever

- 15 -
Hardware Installation
1-3-2 Installing the APU Cooler
Follow the steps below to correctly install the APU cooler on the motherboard.
UseextremecarewhenremovingtheAPUcoolerbecausethethermalgrease/tapebetweentheAPU
cooler and APU may adhere to the APU. Inadequately removing theAPU cooler may damage the APU.

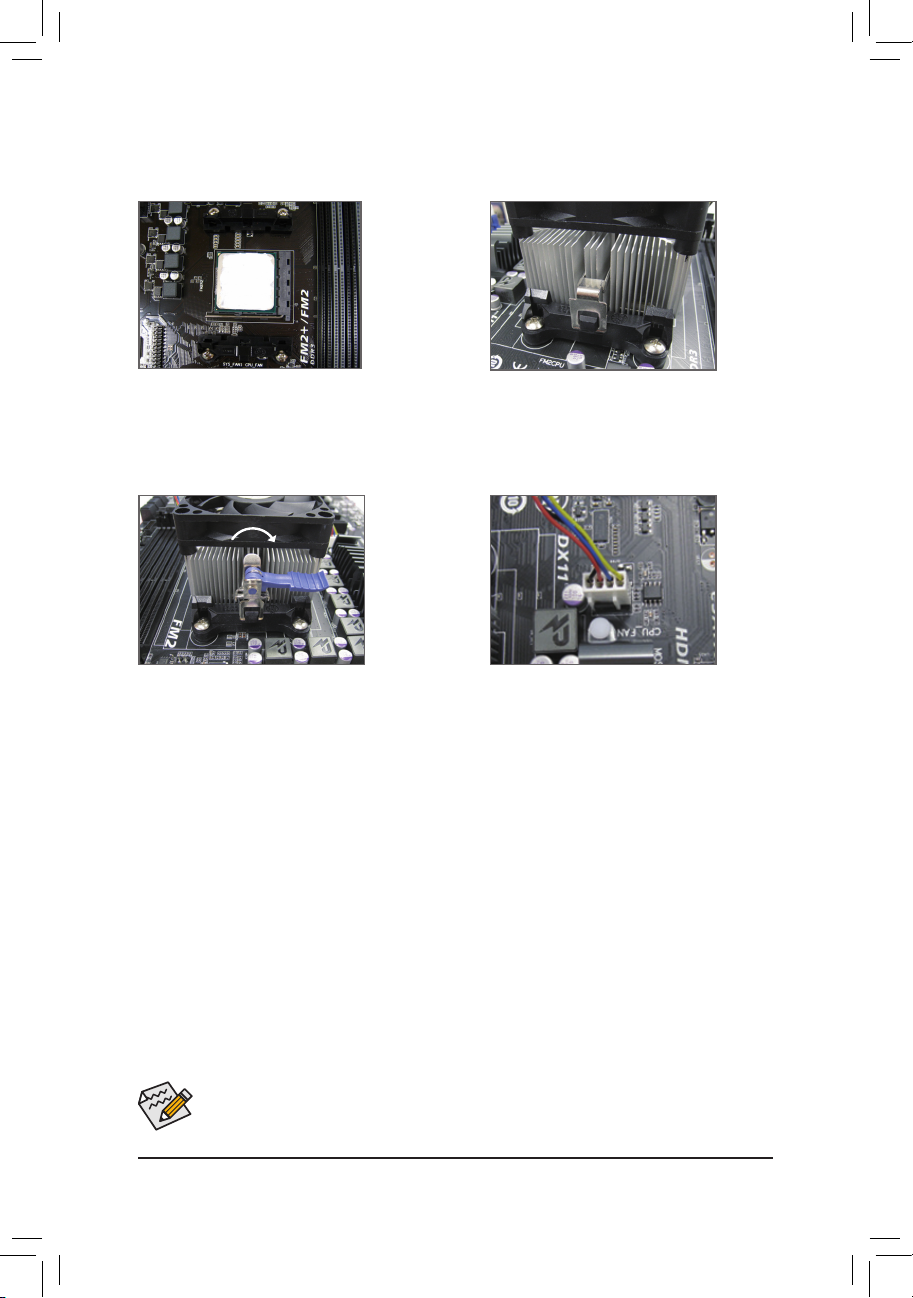

Step 1:
Apply an even and thin layer of thermal grease on
the surface of the installed APU.
Step 2:
Hook the APU cooler clip to the mounting lug on
one side of the retention frame. On the other side,
push straight down on the APU cooler clip to hook
it to the mounting lug on the retention frame.
Step 4:
Finally, attach the power connector of the APU
coolertotheAPUfanheader(CPU_FAN)onthe
motherboard.
Step 3:
Turn the cam handle from the left side to the
rightside (as thepicture above shows)to lock
intoplace.(RefertoyourCPUcoolerinstallation
manualforinstructionsoninstallingthecooler.)

- 16 -
Hardware Installation
1-4 Installing the Memory
Readthefollowingguidelinesbeforeyoubegintoinstallthememory:
•Make sure that the motherboard supports the memory. It is recommended that memory of the same
capacity, brand, speed, and chips be used.
(GotoGIGABYTE'swebsiteforthelatestsupportedmemoryspeedsandmemorymodules.)
•Always turn off the computer and unplug the power cord from the power outlet before installing the
memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one direction.
If you are unable to insert the memory, switch the direction.
DualChannelMemoryCongurationsTable:
(SS=Single-Sided,DS=Double-Sided,"--"=NoMemory)
1-4-1 DualChannelMemoryConguration
Thismotherboard provides fourDDR3 memory socketsand supports DualChannelTechnology.After the
memoryisinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.Enabling
Dual Channel memory mode will double the original memory bandwidth.
ThefourDDR3memorysocketsaredividedintotwochannelsandeachchannelhastwomemorysocketsas
following:
ChannelA:DDR3_2,DDR3_4
ChannelB:DDR3_1,DDR3_3
DDR3_4 DDR3_2 DDR3_3 DDR3_1
Two Modules - - DS/SS - - DS/SS
DS/SS - - DS/SS - -
Four Modules DS/SS DS/SS DS/SS DS/SS
Due to APU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. DualChannelmodecannotbeenabledifonlyoneDDR3memorymoduleisinstalled.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory
ofthesamecapacity,brand,speed,andchipsbeusedandinstalledinthesame colored DDR3
sockets. For optimum performance, when enabling Dual Channel mode with two memory modules,
werecommendthatyouinstallthemintheDDR3_1andDDR3_2sockets.
DDR3_4 DDR3_2 DDR3_3
DDR3_1

- 17 -
Hardware Installation
1-4-2 Installing a Memory
Before installing a memory module, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the memory module. DDR3 and DDR2 DIMMs are
not compatible to each other or DDR DIMMs. Be sure to install DDR3 DIMMs on this motherboard.
Notch
DDR3DIMM
ADDR3memorymodulehasanotch,soitcanonlytinonedirection.Followthestepsbelowtocorrectlyinstall
your memory modules in the memory sockets.

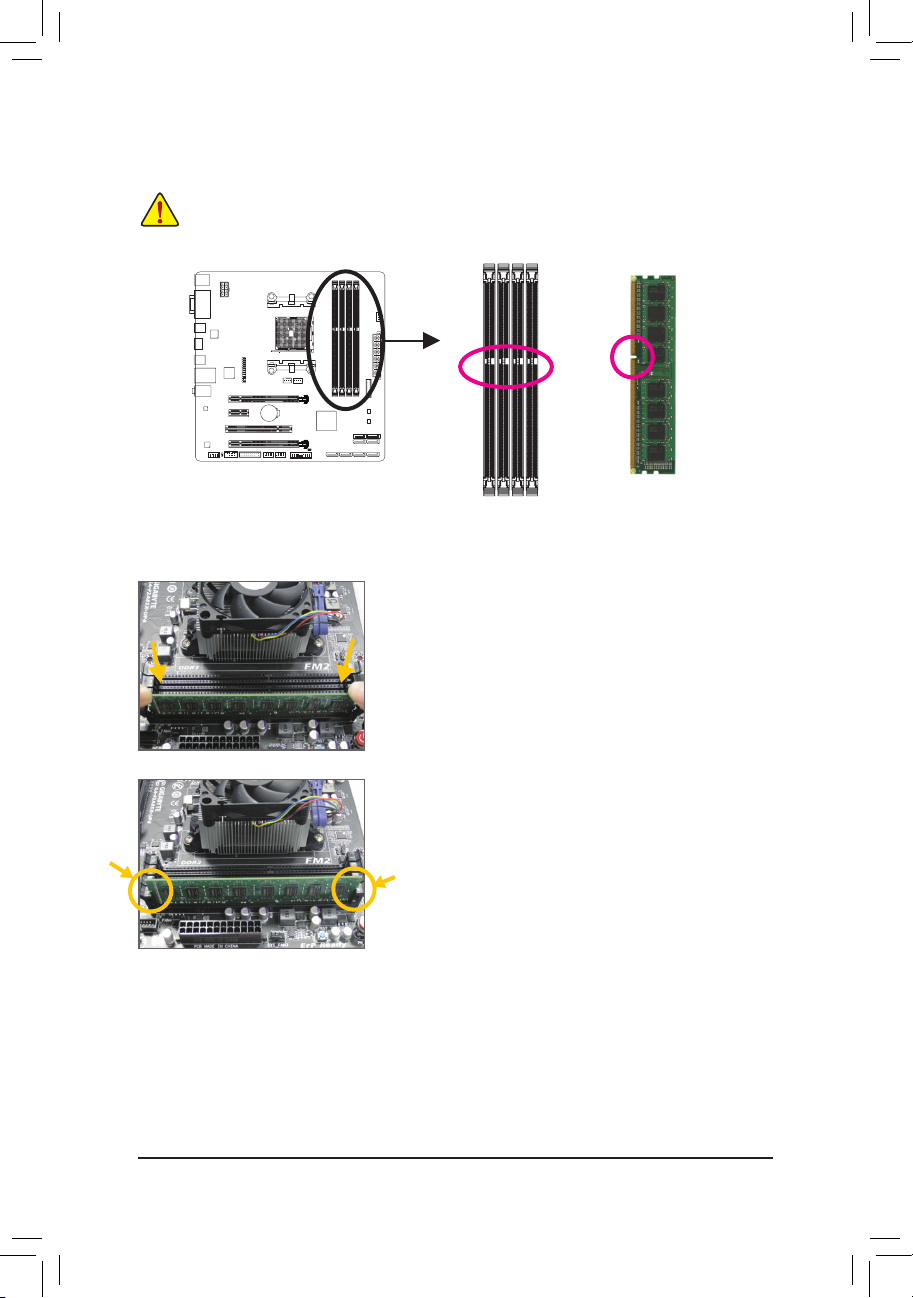

Step 1:
Note the orientation of the memory module. Spread the retaining clips
at both ends of the memory socket. Place the memory module on the
socket.Asindicatedinthepictureontheleft,placeyourngerson
the top edge of the memory, push down on the memory and insert it
vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when the
memory module is securely inserted.

- 18 -
Hardware Installation
1-5 Installing an Expansion Card
Readthefollowingguidelinesbeforeyoubegintoinstallanexpansioncard:
•Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before installing an
expansion card to prevent hardware damage.
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locateanexpansionslotthatsupportsyourcard.Removethemetalslotcoverfromthechassisbackpanel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. Afterinstallingallexpansioncards,replacethechassiscover(s).
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for your
expansioncard(s).
7. Install the driver provided with the expansion card in your operating system.
Example:InstallingandRemovingaPCIExpressGraphicsCard:
PCI Slot
PCI Express x1 Slot
PCI Express x16 Slot
•Installing a Graphics Card:
Gently push down on the top edge of the card until it
is fully inserted into the PCI Express slot. Make sure
the card is securely seated in the slot and does not
rock.
•RemovingtheCard:
Gently push back on the lever on the slot and then lift the card straight out from the
slot.

- 19 -
Hardware Installation
1-6 SetupoftheAMDDualGraphicsConguration
Combining the onboard GPU with a discrete graphics card, AMD's Dual Graphics technology can provide
signicantlyadvanceddisplayperformanceforAMDplatform.Readthefollowinginstructionsonconguringa
Dual Graphics system.
A. System Requirements
-AMD A series processor
-Windows8.1/7operatingsystem
- An AMD Dual Graphics technology-supported motherboard and correct driver
- AgraphicscardthatsupportsAMDDualGraphicstechnology(formoredetails,pleasevisitAMD'sofcial
website)andcorrectdriver
B.InstallingtheGraphicsCardsandConguringBIOSSetup
Step 1:
Observe the steps in "1-5 Installing an Expansion Card" and install an AMD Dual Graphics technology-supported
graphics card on the PCIEX16 slot. Plug the monitor cable into the graphics card and start up your computer.
Step 2:
Enter BIOS Setup to set the following items under the Peripherals\GFX Configuration menu:
-Set Integrated Graphics to Force.
-Set UMA Frame Buffer Size to 512M or above.
SavethesettingsandexitBIOSSetup.Restartyourcomputer.
C.ConguringtheGraphicsCardDriver

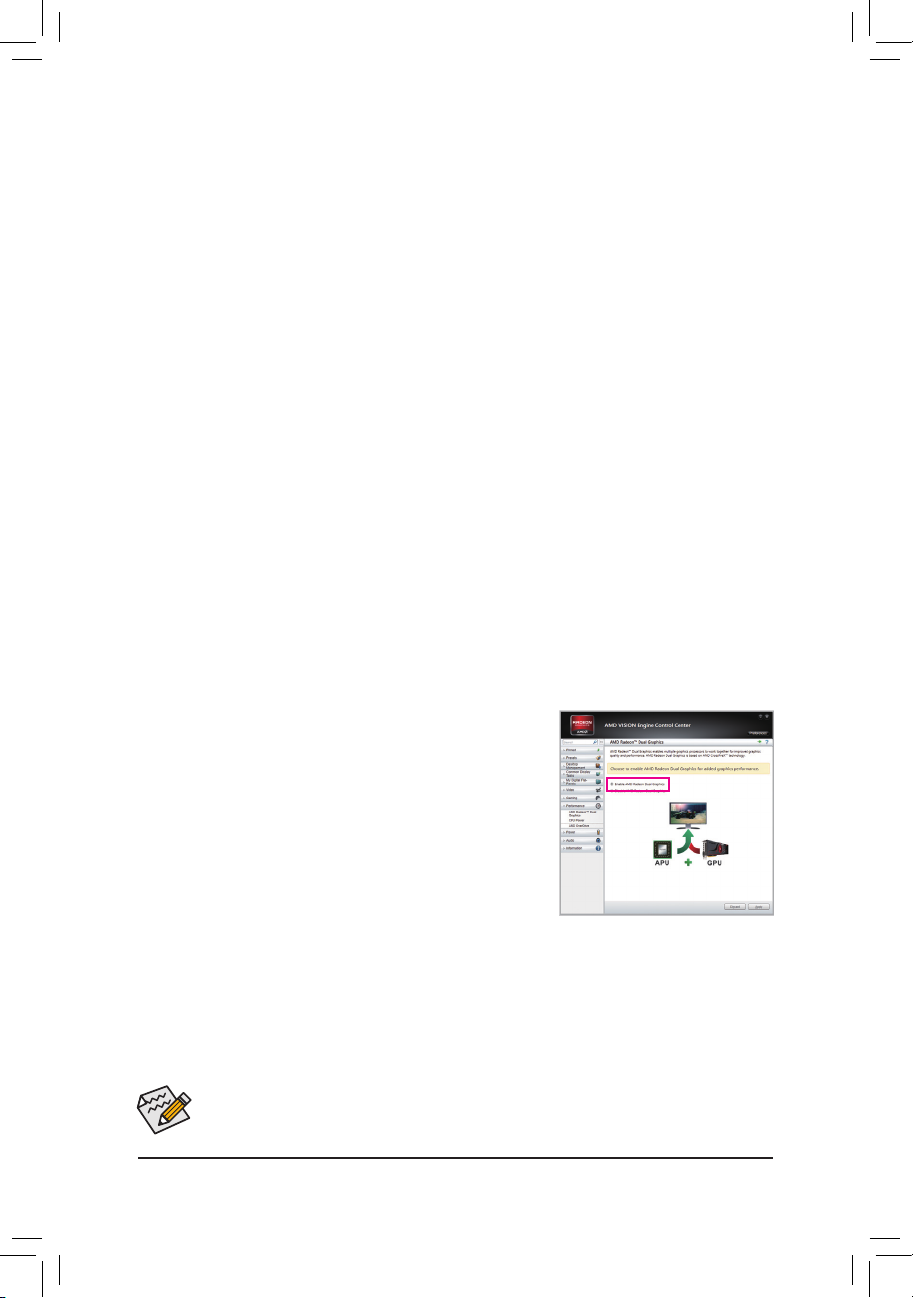

After installing the graphics card driver in the operating system, go to the AMD VISION Engine Control Center.
Browse to Performance\AMD Radeon™Dual Graphics and ensure the
Enable AMD Radeon Dual Graphics check box is selected.
(Note) MakesurethedriversfortheChipset,onboardgraphics,andexternalgraphicscardareproperly
installed.
Procedure and driver screen for enabling the AMD Dual Graphics technology may differ by graphics
cardanddriverversion.Refertothemanualthatcamewithyourgraphicscardformoreinformation.

- 20 -
Hardware Installation
1-7 Back Panel Connectors
USB 2.0/1.1 Port
TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.
PS/2 Keyboard/Mouse Port
UsethisporttoconnectaPS/2mouseorkeyboard.
D-Sub Port
The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200
(theactualresolutionssupporteddependonthemonitorbeingused).Connectamonitorthatsupports
D-Sub connection to this port.
DVI-D Port (Note 1)
TheDVI-DportconformstotheDVI-Dspecicationandsupportsamaximumresolutionof2560x1600.
Connect a monitor that supports DVI-D connection to this port. Please note that the actual resolutions
supported are dependent on the monitor being used and support for 2560x1600 resolution requires both
a monitor and cable that support Dual Link DVI.
USB 3.1 Type A Port (Red)
TheUSB3.1portsupportstheUSB3.1specicationandiscompatibletotheUSB3.0/2.0/1.1specication.
Use this port for USB devices.
USB Type-C™Port
Thereversible USBport supportstheUSB 3.1 specication and is compatible to the USB 3.0/2.0
specication.UsethisportforUSBdevices.
HDMI Port
The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD
MasterAudioformats.Italsosupportsupto192KHz/24bit8-channelLPCMaudio
output. You can use this port to connect your HDMI-supported monitor. The maximum supported resolution
is 4096x2160(Note2), but the actual resolutions supported are dependent on the monitor being used.
(Note1) TheDVI-DportdoesnotsupportD-Subconnection
by adapter.
(Note2) The resolutionof 4096x2160 canbe supported
when using an FM2+APU; the maximum resolution
supported is 1920x1200 when using an FM2 APU.
After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The
itemnamemaydifferdependingonyouroperatingsystem.)
In Windows 8.1, select Start>Control Panel>Hardware and
Sound>Sound>Playback, set AMD High Definition Audio
Device to the default playback device.
