Gigabyte GA-K8NF9-SI User manual

GA-K8NF9-SI
AMD Socket 939 Processor Motherboard
User's Manual
Rev. 1001
12ME-K8NF9SI-1001

Feb. 28, 2005
Motherboard GA-K8NF9-SI
Motherboard
GA-K8NF9-SI
Feb. 28, 2005

Copyright
© 2005 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in the manual are legally registered to their respective companies.
Notice
The written content provided with this product is the property of Gigabyte.
No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any
means without Gigabyte's prior written permission. Specifications and features are subject to
change without prior notice.
Where to Find More Information
Refer to the following sources for additional information and for product and software updates.
1. Websites
Visit the TARGA®website (www.targa-online.com) to download the latest BIOS for this
motherboard. Use ONLY the TARGA®OEM BIOS when updating the motherboard BIOS.
Other BIOS updates may corrupt the BIOS ROM.
The GIGABYTE websites worldwide provide updated information on GIGABYTE hardware
and software products.
2. Optional documentation
Your product package may include optional documentation, such as warranty flyers, that may
have been added by your dealer. These documents are no part of the standard package.
The information described in this user's manual is for reference only.

- 4 -
Table of Contents
GA-K8NF9-SIMotherboardLayout ............................................................................... 5
BlockDiagram................................................................................................................ 6
Chapter 1 HardwareInstallation .................................................................................... 7
1-1 ConsiderationsPriortoInstallation .................................................................... 7
1-2 FeatureSummary ............................................................................................ 8
1-3 Installationofthe CPU andFanHeatSink..................................................... 10
1-3-1 Installation of the CPU ......................................................................................... 10
1-3-2 Installation of the Fan Heat Sink .........................................................................11
1-4 InstallationofMemory .................................................................................... 12
1-5 InstallationofExpansionCards ...................................................................... 14
1-6 I/OBackPanelIntroduction ........................................................................... 15
1-7 ConnectorsIntroduction .................................................................................. 16
Chapter 2 BIOSSetup................................................................................................ 25
The Main Menu (For example: BIOS Ver. : F5) ....................................................... 26
2-1 StandardCMOSFeatures ............................................................................. 28
2-2 Advanced BIOS Features.............................................................................. 30
2-3 IntegratedPeripherals ..................................................................................... 32
2-4 PowerManagementSetup ............................................................................. 36
2-5 PnP/PCI Configurations................................................................................. 38
2-6 PCHealthStatus ........................................................................................... 39
2-7 MB IntelligentTweaker(M.I.T.)....................................................................... 40
2-8 LoadSetupDefaults ....................................................................................... 41
2-9 Set Supervisor/User Password..................................................................... 41
2-10 Save & Exit Setup......................................................................................... 42
2-11 ExitWithoutSaving ....................................................................................... 42

- 5 -

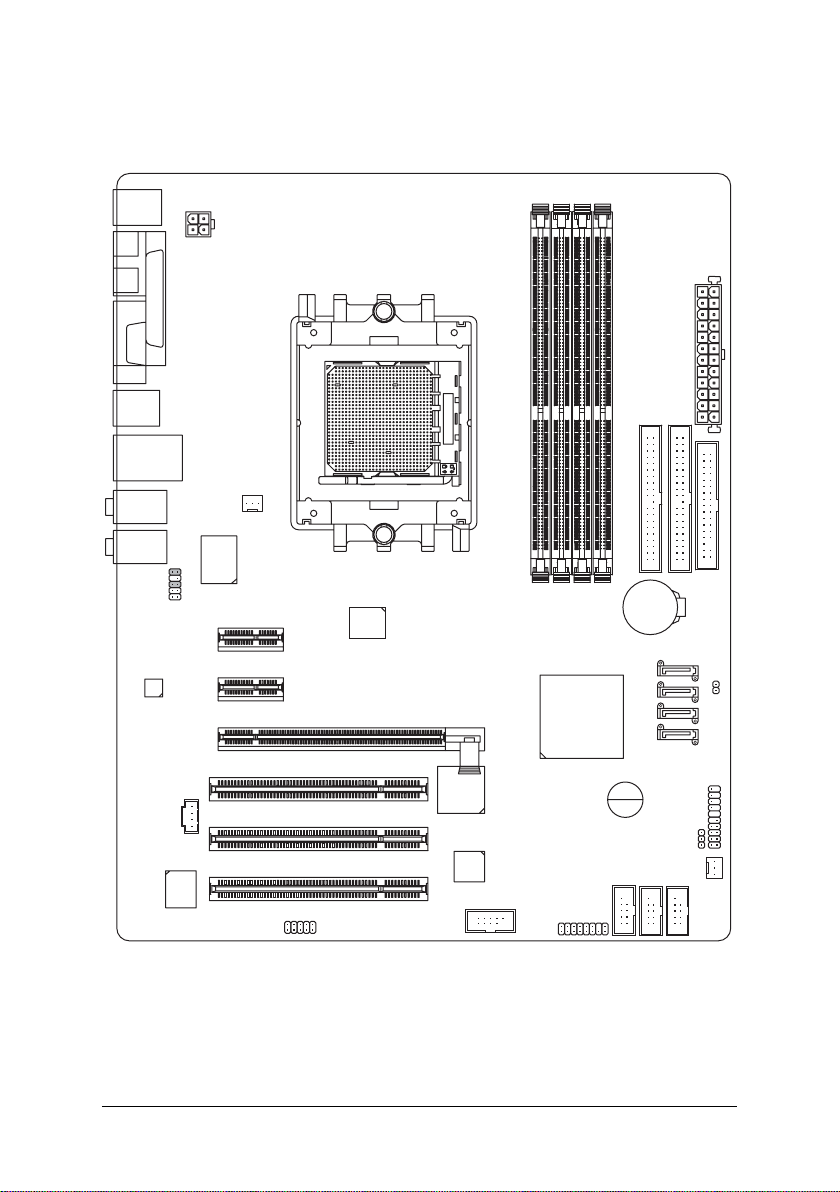

GA-K8NF9-SI Motherboard Layout
ATX_12V
CPU_FAN
CODEC
IR_CIR
IT8712
nVIDIA®
nForceTM 4
BIOS
PCIE_1
PCIE_2
DDR1
F_USB2 F_USB1
DDR2 DDR3
BATTERY
ATX
IDE2
FDD
CLR_CMOS
SYS_FAN
GA-K8NF9-SI
KB_MS
Socket 939
AUDIO1
USB
USB
LAN
F_AUDIO
CD_IN F_PANEL
PWR_LED
DDR4
IDE1
PCI1
PCI2
PCI3
PCIE_16
SPDIF_O
COMA LPT
SPDIF_I
AUDIO2
TSB82AA2
TSB81BA3
F_USB3
F2_1394
F1_1394
S_ATA2_SB
S_ATA3_SB
S_ATA0_SB
S_ATA1_SB
Marvell
1111
BUZZER

- 6 -

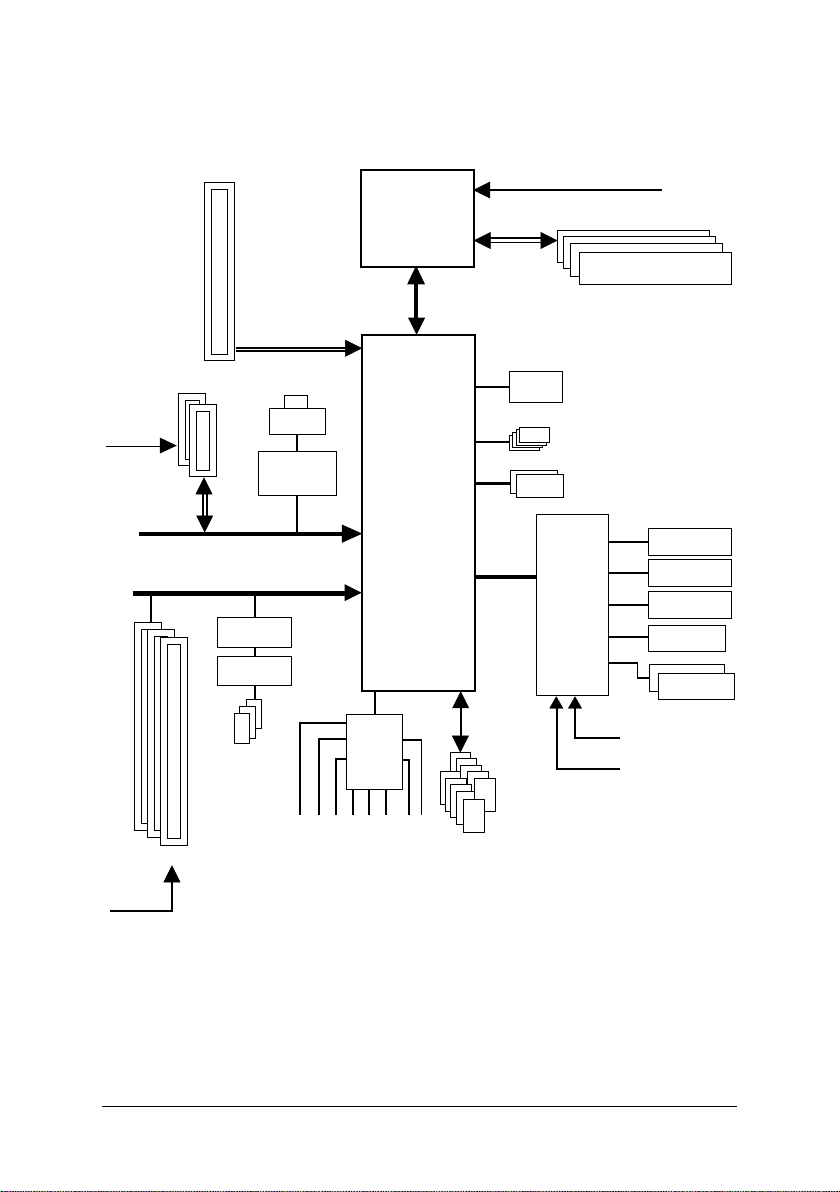

Block Diagram
Line-Out
MIC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Center/Subwoofer Speaker Out
Surround Speaker Out
AMD K8
Socket 939
CPU
CPUCLK+/-(200MHz)
Hyper Transport Bus
nVIDIA®
nForce4
DDR 400/333/266/200MHz DIMM
24MHz
33MHz
IT8712
4 Serial ATA
ATA33/66/100/133
IDE Channels
PCICLK
(33MHz)
3PCI
PCI Bus
10 USB
Ports
Dual Channel Memory
Floppy
PS/2 KB/Mouse
LPT Port
PCI-ECLK
(100MHz)
LPC BUS
COM Port
IR_CIR
CODEC
3 IEEE1394b
TSB82AA2
TSB81BA3
2 PCI Express x 1
Ports RJ45
PCI Express x 1 Bus
Marvell
1111
BIOS
PCI Express x 16

Hardware Installation- 7 -
English
1-1 Considerations Prior to Installation
Preparing Your Computer
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please
follow the instructions below:
1. Please turn off the computer and unplug its power cord.
2. When handling the motherboard, avoid touching any metal leads or connectors.
3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components
(CPU, RAM).
4. Prior to installing the electronic components, please have these items on top of an antistatic
pad or within a electrostatic shielding container.
5. Pleaseverifythatthepowersupplyisswitchedoffbeforeunpluggingthepowersupplyconnector
fromthemotherboard.
Installation Notices
1. Prior to installation, please do not remove the stickers on the motherboard. These stickers
are required for warranty validation.
2. Prior to the installation of the motherboard or any hardware, please first carefully read the
information in the provided manual.
3. Before using the product, please verify that all cables and power connectors are connected.
4. To prevent damage to the motherboard, please do not allow screws to come in contact with
the motherboard circuit or its components.
5. Pleasemakesuretherearenoleftoverscrewsormetalcomponentsplacedonthemotherboard
or within the computer casing.
6. Please do not place the computer system on an uneven surface.
7. Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
8. If you are uncertain about any installation steps or have a problem related to the use of the
product,please consult a certified computer technician.
Instances of Non-Warranty
1. Damageduetonaturaldisaster,accidentorhumancause.
2. Damageasaresultofviolatingtheconditionsrecommendedintheusermanual.
3. Damageduetoimproperinstallation.
4. Damageduetouseofuncertifiedcomponents.
5. Damageduetouseexceedingthepermittedparameters.
6. ProductdeterminedtobeanunofficialGigabyteproduct.
Chapter 1Hardware Installation

GA-K8NF9-SI Motherboard - 8 -
English
CPU Socket 939 for AMD AthlonTM 64 / 64FX processor (K8)
2000MHz system bus
Supports core frequencies in excess of 3000+ and faster
Chipset nVIDIA®nForce4 Chipset
Memory 4 DDR DIMM memory slots (supports up to 4GB memory)(Note 1)
Supports dual channel DDR 400/333/266/200 DIMM
Slots 1 PCI Express x 16 slot
2 PCI Express x 1 slots
3 PCI slots
IDE Connections 2 IDE connection (UDMA 33/ATA 66/ATA 100/ATA 133), allows connection
of 4 IDE devices
FDD Connections 1 FDD connection, allows connection of 2 FDD devices
Onboard SATA 4 Serial ATA ports from nVIDIA®nForce4 controller (S_ATA0_SB,
S_ATA1_SB, S_ATA2_SB, S_ATA3_SB)
Peripherals 1 parallel port supporting Normal/EPP/ECP mode
1 serial port (COMA)
10 USB 2.0/1.1 ports
3 IEEE1394b ports (requires cable)
1 front audio connector
1 IR/CIR connector
1 PS/2 keyboard port
1 PS/2 mouse port
Onboard LAN Onboard Marvell 1111 chip (10/100/1000 Mbit)
1 RJ 45 port
Onboard Audio ALC850 CODEC
Supports Jack Sensing function
Supports 2 / 4 / 6 / 8 channel audio
Supports Line In ; Line Out (Front Speaker Out) ; MIC ; Surround Speaker
Out (Rear Speaker Out) ; Center/Subwoofer Speaker Out ; Side Speaker
Out connection
SPDIF In/Out connection
CD In connection
1-2 Feature Summary
(Note 1) Due to standard PC architecture, a certain amount of memory is reserved for system usage
and therefore the actual memory size is less than the stated amount.
For example, 4 GB of memory size will instead be shown as 3.xxGB memory during system
startup.

Hardware Installation- 9 -
English
I/O Control IT8712F
Hardware Monitor System voltage detection
CPU temperature detection
CPU / System fan speed detection
CPU warning temperature
CPU fan failure warning
CPU smart fan control
Onboard SATA RAID Onboard nForce4 chipset (S_ATA0_SB, S_ATA1_SB, S_ATA2_SB, S_ATA3_SB)
- supports data striping (RAID 0) or mirroring (RAID 1) or
striping + mirroring (RAID 0+1) function
- supports data transfer rate of up to 150 MB/s
- supports hot plugging function
- supports a maximum of 4 SATA connections
BIOS Use of licensed AWARD BIOS
Supports Q-Flash
Form Factor ATX form factor; 30.5cm x 24.4cm

GA-K8NF9-SI Motherboard - 10 -
English
1-3 Installation of the CPU and Fan Heat Sink
Before installing the CPU, please comply with the following conditions:
1. Please make sure that the motherboard supports the CPU.
2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong
direction, the CPU will not insert properly. If this occurs, please change the insert direction
of the CPU.
3. Please add an even layer of heat sink paste between the CPU and heatsink.
4. Please make sure the heatsink is installed on the CPU prior to system use, otherwise
overheating and permanent damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the processor specifications. It is not
recommended that the system bus frequency be set beyond hardware specifications since it
does not meet the required standards for the peripherals. If you wish to set the frequency
beyond the proper specifications, please do so according to your hardware specifications
including the CPU, graphics card, memory, hard drive, etc.
1-3-1 Installation of the CPU
Check the processor pins to see that none are bent. Move the socket lever to the unlocked position as shown
in Figure 1.(90oto the plane of the motherboard) prior to inserting the processor. The pin 1 location is
designated on the processor by a copper triangle that matches up to a triangle on the socket as shown in
Figure 2.Align the processor to the socket and gently lower it into place. Do not force the processor into the
socket.
Fig.1
Position lever at a 90 degree angle.
Socket lever
Fig.2
A gold-colored triangle is marked one edge of the CPU. Please align this
edge with the socket edge closest to the CPU lever. Gently place the CPU
into position making sure that the CPU pins fit perfectly into their holes.
Once the CPU is positioned into it socket, place one finger down on the
middle of the CPU and gently press the metal lever back into its original
position.
Please use extra care when installing the CPU. The CPU will not fit if positioned incorrectly.
Rather than applying force, please change the positioning of the CPU.

Hardware Installation- 11 -
English
1-3-2 Installation of the Fan Heat Sink
The heat sink may adhere to the CPU as a result of hardening of the heat sink paste. To prevent
such an occurrence, it is suggested that either thermal tape rather than heat sink paste be used for
heat dissipation or using extreme care when removing the heat sink.

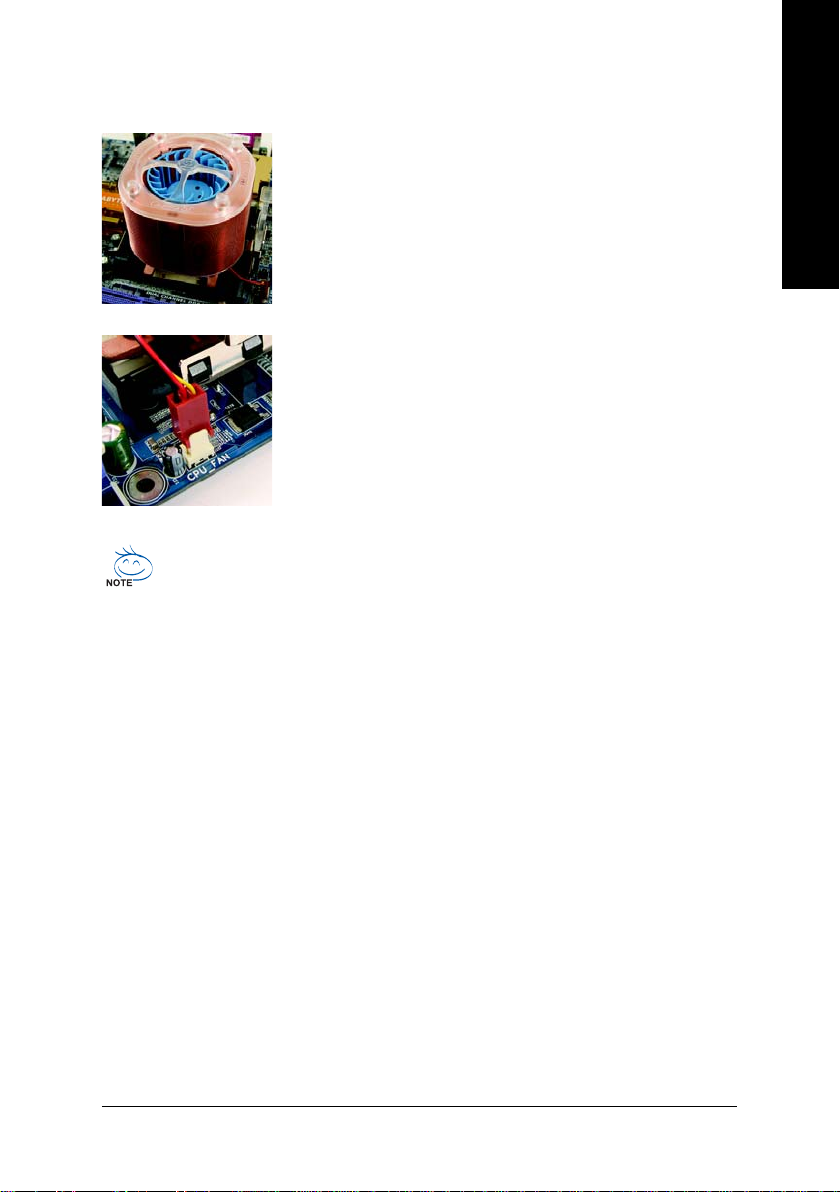

Fig.1
Before installing the heat sink, please first add an even layer of heat sink
pasteon the surface ofthe CPU. Install allthe heat sink components(Please
refer to the heat sink manual for detailed installation instructions).
Fig.2
Please connect the heat sink power connector to the CPU_FAN connector
located on the motherboard so that the heat sink can properly function to
prevent CPU overheating.

GA-K8NF9-SI Motherboard - 12 -
English
Before installing the memory modules, please comply with the following conditions:
1. Please make sure that the memory used is supported by the motherboard. It is
recommended that memory of similar capacity, specifications and brand be used.
2. Before installing or removing memory modules, please make sure that the computer power
is switched off to prevent hardware damage.
3. Memory modules have a foolproof insertion design. Amemory module can be installed in
only one direction. If you are unable to insert the module, please switch the direction.
1-4 Installation of Memory
The motherboard supports DDR memory modules, whereby BIOS will automatically detect memory
capacityand specifications. Memory modules aredesigned so that theycan be inserted only in one direction.
The memory capacity used can differ with each slot.
Notch
DDR
Fig.1
The DIMM socket has a notch, so the DIMM memory module can only
fit in one direction. Insert the DIMM memory module vertically into the
DIMM socket. Then push it down.
Fig.2
Close the plastic clip at both edges of the DIMM sockets to lock the
DIMM module.
Reverse the installation steps when you wish to remove the DIMM
module.

Hardware Installation- 13 -
English
Dual Channel Memory Configuration
The GA-K8NF9-SI supports the Dual Channel Technology. When the Dual Channel Technology is
activated, the bandwidth of memory bus will be double the original one.
Due to CPU limitation, if you want to operate the Dual Channel Technology, please follow the guidelines
below for Dual Channel memory configuration.
1. Dual Channel mode will not be enabled if only one DDR memory module is installed.
2. To enable Dual Channel mode with 2 memory modules (it is recommended to use memory
modules of identical brand, size, chips, and speed), you must install them into DIMM sockets
of the same color.
3. To enable Dual Channel mode with 4 memory modules, it is recommended to use memory
modules of identical brand, size, chips, and speed.
The following is a Dual Channel Memory configuration table: (DS: Double Side, SS: Single Side)
2memorymodules
4memorymodules
DDR1 DDR2 DDR3 DDR4
DS/SS DS/SS X X
X X DS/SS DS/SS
DS/SS DS/SS DS/SS DS/SS
1memorymodule
2memorymodules
3memorymodules
DDR1 DDR2 DDR3 DDR4
X DS/SS X X
X X X DS/SS
X DS/SS DS/SS X
DS/SS X X DS/SS
X DS/SS X DS/SS
DS/SS DS/SS DS/SS X
X DS/SS DS/SS DS/SS
DS/SS X DS/SS DS/SS
DS/SS DS/SS X DS/SS
All of the memory configurations below will cause system unable to boot.
(DS: Double Side, SS: Single Side)
If two memory modules are to be used to achieve Dual Channel mode, we recommend
installing them in DDR1 and DDR2 DIMM sockets.

GA-K8NF9-SI Motherboard - 14 -
English
1-5 Installation of Expansion Cards
You can install your expansion card by following the steps outlined below:
1. Read the related expansion card's instruction document before install the expansion card into the
computer.
2. Remove your computer's chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer's chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.

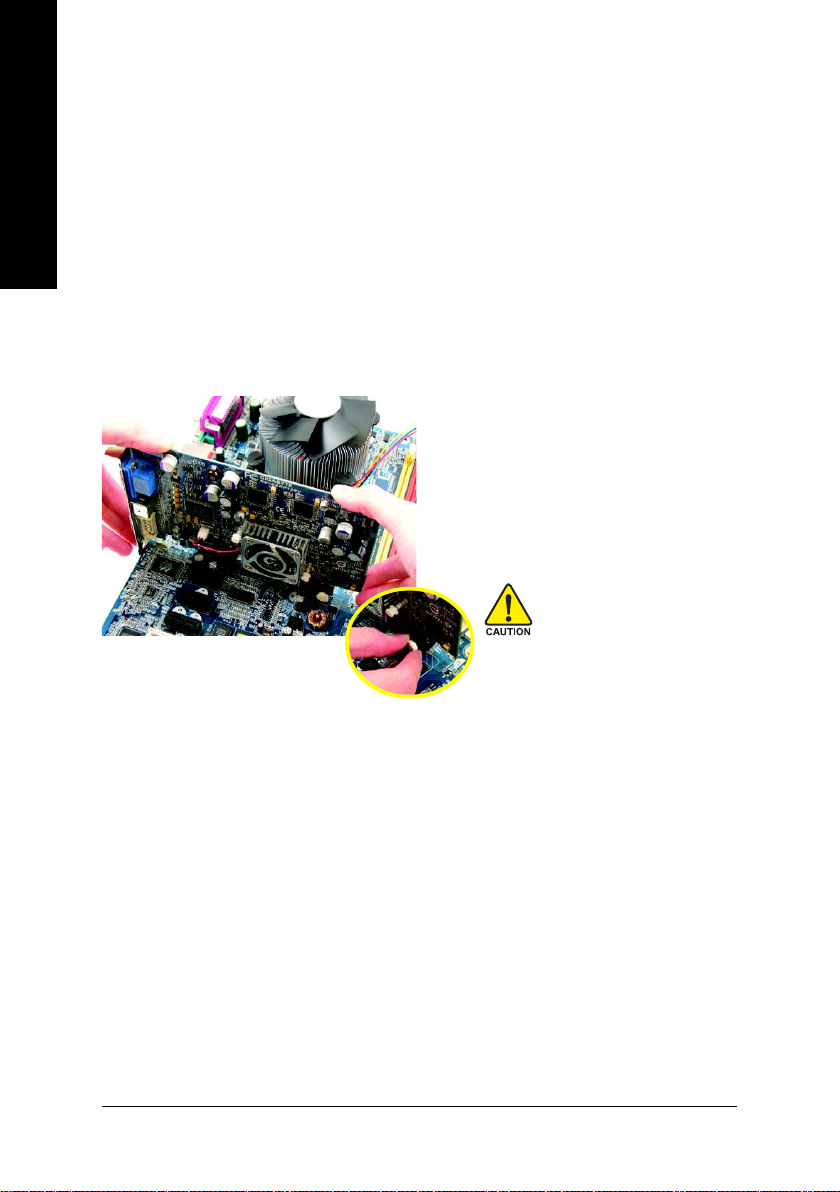

Installing a PCI Express x 16 expansion card:
Please carefully pull out the small white-
drawable bar at the end of the PCI Express
x 16 slot when you try to install/uninstall the
VGAcard. Please align theVGA card tothe
onboard PCI Express x 16 slot and press
firmlydownonthe slot.Makesureyour VGA
card is locked by the small white-drawable
bar.

Hardware Installation- 15 -
English

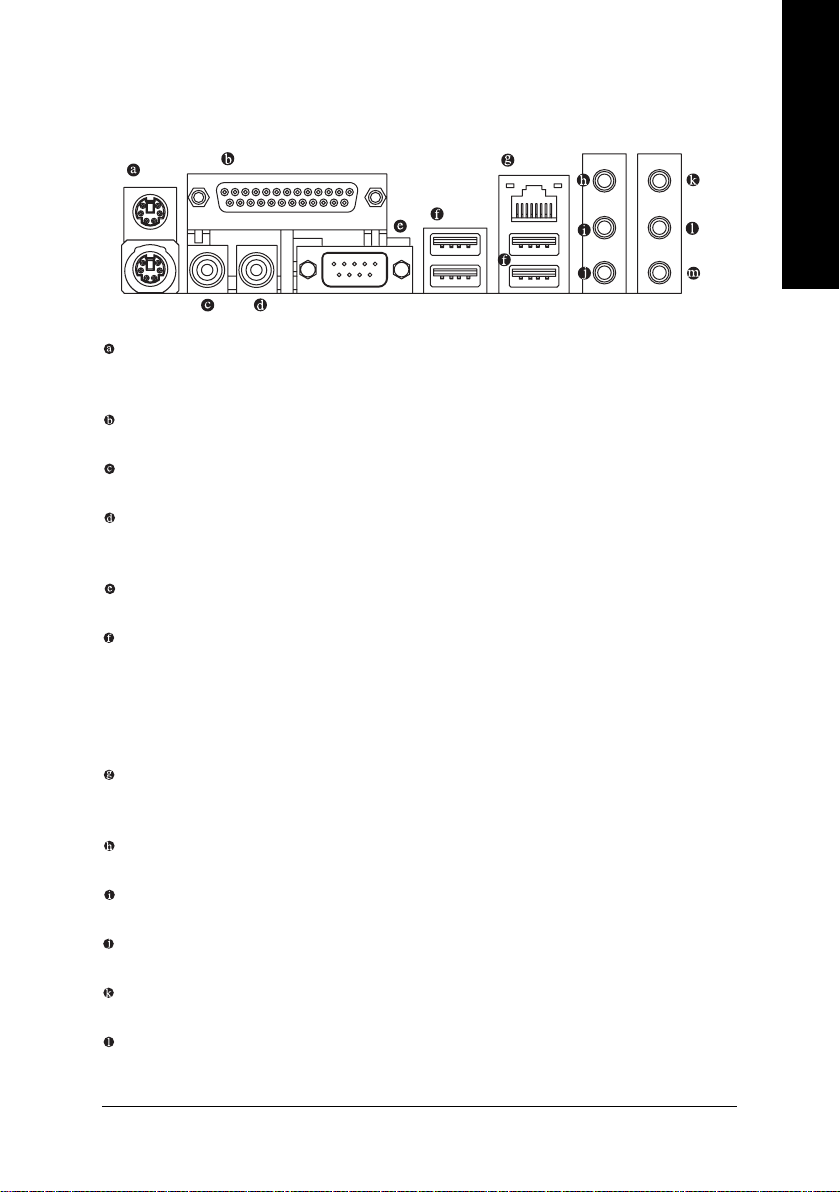

1-6 I/O Back Panel Introduction
PS/2 Keyboard and PS/2 Mouse Connector
To installa PS/2 port keyboardand mouse, plugthe mouse tothe upper port(green) and the keyboardto the
lower port (purple).
Parallel Port
The parallel port allows connection of a printer, scanner and other peripheral devices.
SPDIF_I (SPDIF In)
Use SPDIF In feature only when your device has digital output function.
SPDIF_O (SPDIF Out)
The SPDIF output is capable of providing digital audio to external speakers or compressed AC3
data to an external Dolby Digital Decoder.
COMA (Serial Port)
Connects to serial-based mouse or data processing devices.
USB port
Before you connect your device(s) into USB connector(s), please make sure your device(s) such
as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also make
sure your OS supports USB controller. If your OS does not support USB controller, please contact
OS vendor for possible patch or driver upgrade. For more information please contact your OS or
device(s) vendors.
LAN Port
The provided Internet connection is Gigabit Ethernet, providing data transfer speeds of 10/100/
1000Mbps.
Line In
Devices like CD-ROM, walkman etc. can be connected to Line In jack.
Line Out (Front Speaker Out)
Connect the stereo speakers, earphone or front surround speakers to this connector.
MIC In
Microphone can be connected to MIC In jack.
Center/Subwoofer Speaker Out
Connect the Center/Subwoofer speakers to this connector.
Rear Speaker Out
Connect the rear surround speakers to this connector.

GA-K8NF9-SI Motherboard - 16 -
English
1-7 Connectors Introduction
1) ATX_12V
2) ATX (Power Connector)
3) CPU_FAN
4) SYS_FAN
5) FDD
6) IDE1 / IDE2
7) S_ATA0/1/2/3_SB
8) PWR_LED
9) F_PANEL
10) F_AUDIO
11) CD_IN
12) F_USB1 / F_USB2 / F_USB3
13) F1_1394 / F2_1394
14) IR_CIR
15) CLR_CMOS
16) BATTERY
13
9
12
5
2
16
10
11
15
6
7
8
14
4
13
You can use audio software to configure 2-/4-/6-/8-channel audio functioning.
Side Speaker Out
Connect the side surround speakers to this connector.

Hardware Installation- 17 -
English

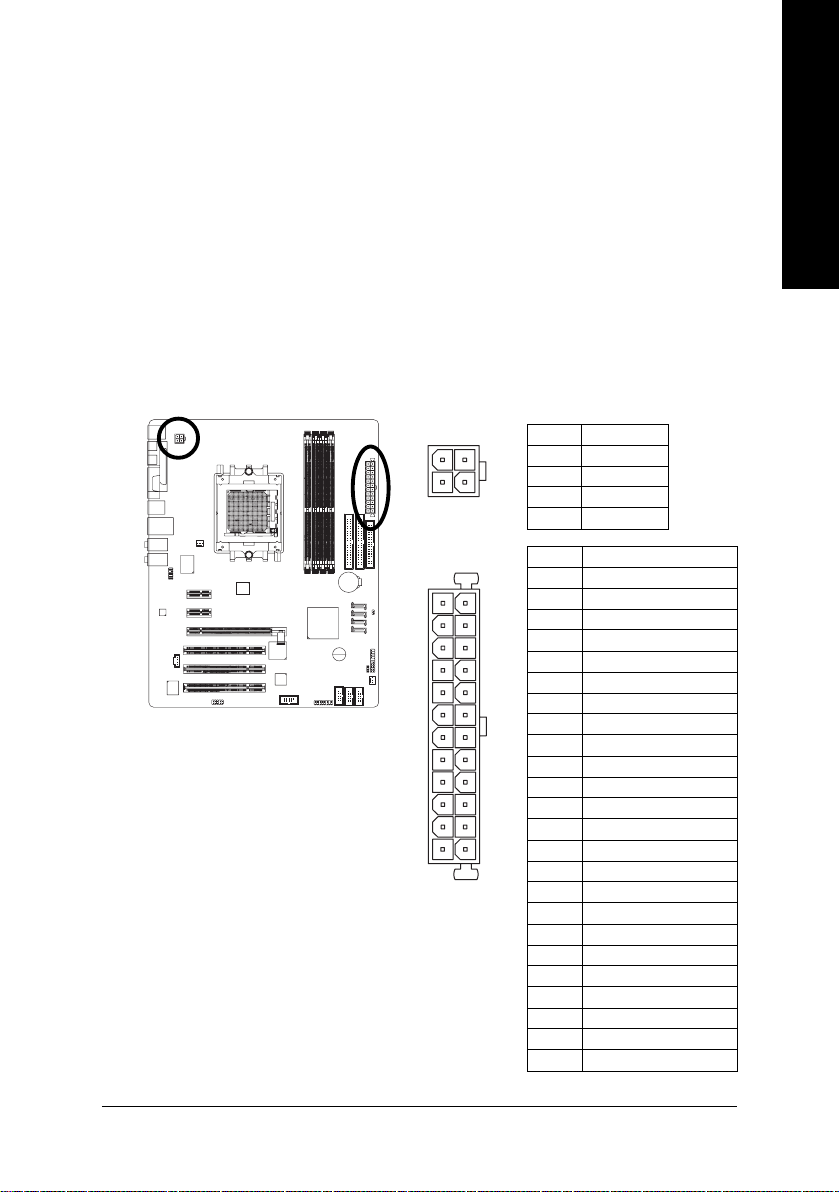

1/2) ATX_12V/ATX (Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the
components on the motherboard. Before connecting the power connector, please make sure that all
components and devices are properly installed. Align the power connector with its proper location on
the motherboard and connect tightly.
TheATX_12V power connector mainly supplies power to the CPU. If theATX_12V power connector
is not connected, the system will not start.
Caution!
Please use a power supply that is able to handle the system voltage requirements. It is
recommended that a power supply that can withstand high power consumption be used (300W or
greater). If a power supply is used that does not provide the required power, the result can lead to an
unstable system or a system that is unable to start.
If you use a 24-pin ATX power supply, please remove the small cover on the power connector
on the motherboard before plugging in the power cord; otherwise, please do not remove it.
PinNo. Definition
1 GND
2 GND
3 +12V
4 +12V
PinNo. Definition
1 3.3V
2 3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 PowerGood
9 5V SB(stand by +5V)
10 +12V
11 +12V
12 3.3V(Onlyfor 24pinsATX)
13 3.3V
14 -12V
15 GND
16 PS_ON(softOn/Off)
17 GND
18 GND
19 GND
20 -5V
21 +5V
22 +5V
23 +5V
24 GND
113
2412
1
2
3
4

GA-K8NF9-SI Motherboard - 18 -
English
3/4) CPU_FAN / SYS_FAN (Cooler Fan Power Connector)
The cooler fan power connector supplies a +12V power voltage via a 3-pin power connector and
possesses a foolproof connection design.
Most coolers are designed with color-coded power connector wires. A red power connector wire
indicates a positive connection and requires a +12V power voltage. The black connector wire is the
ground wire (GND).
Please remember to connect the power to the cooler to prevent system overheating and failure.
Caution!
Please remember to connect the power to the CPU fan to prevent CPU overheating and failure.
PinNo. Definition
1 GND
2 +12V
3 Sense
SYS_FAN
1
CPU_FAN
1
5) FDD (FDD Connector)
The FDD connector is used to connect the FDD cable while the other end of the cable connects to the
FDD drive. The types of FDD drives supported are: 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB.
Please connect the red power connector wire to the pin1 position.
2
34
1
33

Hardware Installation- 19 -
English
6) IDE1 / IDE2 (IDE Connector)
An IDE device connects to the computer via an IDE connector. One IDE connector can connect to one
IDE cable, and the single IDE cable can then connect to two IDE devices (hard drive or optical drive). If
you wish to connect two IDE devices, please set the jumper on one IDE device as Master and the other
as Slave (for information on settings, please refer to the instructions located on the IDE device).
2
40
1
39
IDE2 IDE1
7) S_ATA0/1/2/3_SB (SerialATA Connectors, Controlled by nForce4)
SerialATA can provide 150MB/s transfer rate. Please refer to the BIOS setting for the SerialATA and
install the proper driver in order to work properly.
PinNo. Definition
1 GND
2 TXP
3 TXN
4 GND
5RXN
6 RXP
7 GND
71

GA-K8NF9-SI Motherboard - 20 -
English
8) PWR_LED
PWR_LED is connect with the system power indicator to indicate whether the system is on/off. It will
blink when the system enters suspend mode.
PinNo. Definition
1 MPD+
2 MPD-
3 MPD-
1
9) F_PANEL (Front Panel Jumper)
Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis
front panel to the F_PANEL connector according to the pin assignment below.
SPEAK(SpeakerConnector) Pin1:VCC(+)
(Amber) Pin2- Pin 3: NC
Pin4:Data(-)
PW(Power Switch) Open:NormalOperation
(Red) Close:Power On/Off
MSG(MessageLED/Power/SleepLED) Pin1:LEDanode(+)
(Yellow) Pin2:LEDcathode(-)
RES(ResetSwitch) Open:NormalOperation
(Green) Close:ResetHardwareSystem
HD(IDEHardDisk ActiveLED) Pin1:LEDanode(+)
(Blue) Pin2:LEDcathode(-)
NC(Purple) NC
12
19
20
HD-
HD+
RES+
RES-
NC
SPEAK-
MSG-
MSG+
PW-
PW+
SPEAK+
Message LED/
Power/
Sleep LED
Power Switch
Speaker Connector
IDE Hard Disk
Active LED
Reset Switch
