GA-K8VNXP
User's Manual
AMD Socket 754 Processor Motherboard
Rev. 1002
12ME-K8VNXP-1002
Copyright
© 2005 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any form
without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Please do not remove any labels on motherboard, this may void the warranty of this motherboard.
Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.
The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a
commitment to update the information contained herein.

Mother Board
GA-K8VNXP
August 29, 2003

Motherboard
August 29, 2003
GA-K8VNXP

- 4 -
GA-K8VNXP Motherboard
English
When you installing AGP card, please make sure the following notice is fully understood and
practiced. If your AGP card has "AGP 4X/8X (1.5V) notch" (show below), please make sure
your AGP card is AGP 4X/8X.
Caution: AGP 2X card is not supported by VIA K8T800. You might experience
system unable to boot up normally. Please insert an AGP 4X/8X card.
AGP 4X/8X notch
Read Me First!

Read Me First!
English
- 5 -
Prepare your computer...
Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some precautions whenever you
work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do not have one,
touch both of your hands to a safely grounded object or to a metal object, such as the power
supply case.
3. Hold components by the edges and try not touch the IC chips, leads or connectors, or other
components.
4. Place components on a grounded antistatic pad or on the bag that came with the components
whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX power
connector on the motherboard.
Installing the motherboard to the chassis...
If the motherboard has mounting holes, but they don't line up with the holes on the base and there
are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the
mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so
be careful of your hands). In this way you can still attach the motherboard to the base without worrying
about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the
motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the
screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it
may damage the board or cause board malfunctioning.

- 6 -
GA-K8VNXP Motherboard
English
Table of Content
Read Me First! ........................................................................................ 4
Chapter 1 Introduction ............................................................................ 8
Item Checklist .............................................................................................. 8
Features Summary ...................................................................................... 8
GA-K8VNXP Motherboard Layout ............................................................. 11
Block Diagram ........................................................................................... 12
Chapter 2 Hardware Installation Process ............................................. 15
Step 1: Install the Central Processing Unit (CPU)..................................... 16
Step 2: Install Memory Modules ................................................................ 18
Step 3: Install expansion cards ................................................................. 20
Step 3-1: AGP Card Installation ..................................................................................... 20
Step 3-2: K8 DPS (Dual Power System) Installation .................................................. 21
Step 4: Connect ribbon cables, cabinet wires and power supply ............ 22
Step 4-1: I/O Back Panel Introduction ........................................................................... 22
Step 4-2: Connectors Introduction ................................................................................. 24
Chapter 3 BIOS Setup ......................................................................... 39
The Main Menu (For example: BIOS Ver. : F1a) ...................................... 40
Standard CMOS Features......................................................................... 42
Advanced BIOS Features .......................................................................... 45
Integrated Peripherals .............................................................................. 47
Power Management Setup ....................................................................... 52
PnP/PCI Configurations ............................................................................. 55

Table of Content
English
- 7 -
PC Health Status........................................................................................ 56
Frequency/Voltage Control ........................................................................ 57
Load Fail-Safe Defaults ............................................................................. 59
Load Optimized Defaults ........................................................................... 60
Set Supervisor/User Password .................................................................. 61
Save & Exit Setup ....................................................................................... 62
Exit Without Saving ................................................................................... 63
Chapter 4 Technical Reference ........................................................... 65
@BIOS™Introduction................................................................................. 65
EasyTune™4 Introduction ......................................................................... 66
K8DPS (Dual Power System) Introduction................................................ 67
Flash BIOS Method Introduction............................................................... 68
2-/4-/6-Channel Audio Function Introduction ............................................ 78
Jack-Sensing Introduction......................................................................... 84
UAJ Introduction ........................................................................................ 86
Xpress Recovery Introduction ................................................................... 88
Chapter 5 Appendix ............................................................................. 93

- 8 -
GA-K8VNXP Motherboard
English
Form Factor y30.5cm x 24.4cm ATX size form factor, 4 layers PCB
CPU ySocket 754 for AMD Althlon™64 processor (K8)
128K L1& 256K / 512K / 1M L2 cache on die
y800MHz FSB
ySupport core frequencies in excess of 1.6 GHz(2800+) and faster
Chipset yVIA K8T800 H.T. Bus/AGP/VLINK Controller
yVIA VT8237R Integrated Peripheral Controller (PSIPC)
Memory y3 184-pin DDR DIMM sockets
ySupports DDR400/333/266/200 DIMM
ySupports 128MB/256MB/512MB/1GB unbuffered DRAM
ySupports up to 3GB DRAM (Max)
ySupports only 2.5V DDR DIMM
I/O Control yIT8705
Slots y1 AGP slot supports 8X/4X mode,
AGP3.0 8X interface at 533MHz
y5 PCI slots support 33MHz & PCI 2.2 compliant
On-Board IDE y2 IDE controllers provide IDE HDD/CD-ROM (IDE1, IDE2) with
PIO, Bus Master(DMA33/ATA66/ATA100/ATA133) operation modes
yIDE3 and IDE4 compatible with RAID, Ultra ATA133/100, IDE
Built-in GigaRAID IT8212F
to be continued...
Chapter 1 Introduction
Features Summary
The GA-K8VNXP motherboard
CD for motherboard driver & utility
GA-K8VNXP user's manual
Quick PC Installation Guide
GigaRAID manual
GC-SATA Card (optional)
(Manual; SATA cable x 1; Power cable x 1)
IDE cable x 3 / Floppy cable x 1
Serial ATA cable x 2
Serial ATA power cable x 1
USB + IEEE1394 Cable x 1
Audio Combo Kit x 1
(SURROUND-Kit + SPDIF Out Kit)
I/O Shield
K8DPS x 1
Motherboard Settings Label
Item Checklist

Introduction
English
- 9 -
Serial ATA y2 Serial ATA connectors (Note)
yBuilt-in VIA VT8237R
On-Board Peripherals y1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and
2.88M bytes
y1 Parallel port supports Normal/EPP/ECP mode
y2 Serial ports (COMA & COMB)
y8 x USB 2.0/1.1 ports (4 by cable)
y3 x IEEE1394 ports by cable
y1 IrDA connector for IR
y1 Front Audio connector
Hardware Monitor yCPU/System fan revolution detect
yCPU temperature detect
ySystem voltage detect
yCPU/System fan fail warning
yCPU Smart fan control
yThermal shutdown function
On-Board LAN yBuilt-in RTL8110S (10/100/1000 Mbit)(LAN1)
yBuilt-in RTL8201BL (10/100 Mbit)(LAN2)
y2 RJ45 ports
On-Board Sound yALC658 CODEC (UAJ)
ySupports Jack Sensing function
yLine Out / 2 front speaker
yLine In / 2 rear speaker (by s/w switch)
yMic In / center & subwoofer (by s/w switch)
ySPDIF In / Out
yCD In / AUX In / Game port
On-Board SATA RAID yBuilt-in VIA VT8237R
ySupports disk striping (RAID 0) or disk mirroring (RAID 1)
ySupports UDMA up to 150 MB/sec
yUp to 2 SATA devices
to be continued...
(Note) It is recommended to use SATA (1.5Gb/s) hard disks.

- 10 -
GA-K8VNXP Motherboard
English
On-Board IDE RAID yOnboard GigaRAID IT8212F chipset
ySupports data striping (RAID 0) or mirroring (RAID 1) or
striping+mirroring (RAID 0 + RAID 1)
ySupports JBOD function
ySupports concurrent dualATA133 IDE controller operation
ySupport ATAPI mode for HDD
ySupports IDE bus master operation
ySupport ATA133/RAID mode switch by BIOS
yDisplays status and error checking messages during boot-up
yMirroring supports automatic background rebuilds
yFeatures LBA and Extended Interrupt 13 drive translation in
controller onboard BIOS
On-Board IEEE1394 yBuilt-in Ti1394B
PS/2 Connector yPS/2 Keyboard interface and PS/2 Mouse interface
BIOS yLicensed AWARD BIOS
ySupports Dual BIOS
ySupports Face Wizard
ySupports Q-Flash
Additional Features ySupports CPU Dual Power System (DPS)
yPS/2 Keyboard password power on
yPS/2 Mouse power on
ySTR(Suspend-To-RAM)
yAC Recovery
yUSB KB/Mouse wake up from S3
yPoly fuse for keyboard over-current protection
ySupports Thermal Shutdown function
ySupports @BIOS
ySupports EasyTune 4
Overclocking yOver Voltage (CPU/DDR/AGP) by BIOS
yOver Clock (CPU/DDR/AGP/PCI) by BIOS
Please set the CPU host frequency in accordance with your processor's specifications.
We don't recommend you to set the system bus frequency over the CPU's specification because
these specific bus frequencies are not the standard specifications for CPU, chipset and most of the
peripherals. Whether your system can run under these specific bus frequencies properly will
depend on your hardware configurations, including CPU, Chipsets, SDRAM, Cards…etc.

Introduction
English
- 11 -
F_USB2F_USB1
F2_1394
F1_1394SPDIF_IOF_AUDIO
GA-K8VNXP
KB_MS
COMA
LPT
USB
LAN1
ATX_12V
SOCKET 754
CPU_FAN
IDE1
IDE2
DDR2
COMB
PWR_LED
BATTERY
PCI1
PCI2
PCI3
MAIN
BIOS
CODEC
PWR_FAN
VIA
VT8237
DDR3
PCI4
PCI5
GAME
AUX_IN
IR
IDE3
GigaRAID
IT8212
BACKUP
BIOS
SATA1
RAM_LED
ATX
SYS_FAN
VRM_CONN1
NB_FAN
IDE4
DDR1
SUR_CEN
AUDIO
F_PANEL

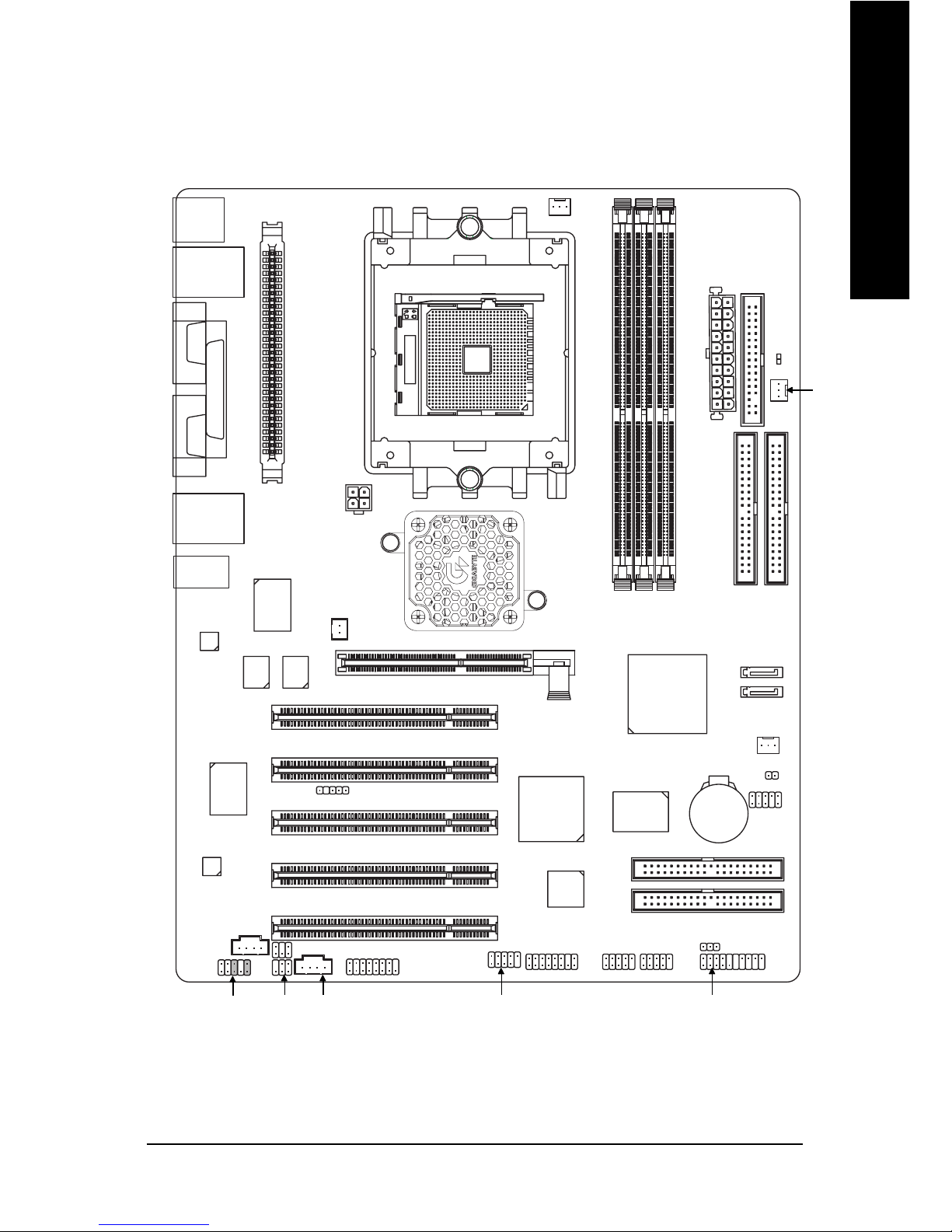

GA-K8VNXP Motherboard Layout
INFO_LINK
AGP
VIA K8T800
USB
LAN2
FDD
IT8705
Ti1394B
SATA0
CD_IN
TSB81BA3
RTL8201BL
RTL8110S CLR_PWD

- 12 -
GA-K8VNXP Motherboard
English
Block Diagram
VIA K8T800
CPUCLK+/- (200MHz)
H.T. Bus 800MHz
33 MHz
14.318 MHz
AGP
4X/8X
AGPCLK
(66MHz)
5 PCI
PCICLK
(33MHz)
RJ45
AC97 Link
RTL8110S
MIC
LINE-IN
LINE-OUT
6 Channel
CODEC
IDE3
2 Serial ATA
IDE4
400/333/266/200MHz
DDR RAM
VIA VT8237
RJ45
RTL8201
LPC BUS
8 USB
Ports
IT8705
24 MHz
33 MHz
Game Port
Floppy
LPT Port
PS/2 KB/Mouse
2 COM Ports
BIOS
3 IEEE1394
Ti1394B
IR
GigaRAID
IT8212
ATA33/66/100/133
IDE Channels
LAN1
LAN2
AMD
AlthlonTM 64
processor (K8)

Introduction
English
- 13 -

- 14 -
GA-K8VNXP Motherboard
English

Hardware Installation Process
English
- 15 -
To set up your computer, you must complete the following steps:
Step 1 - Install the Central Processing Unit (CPU)
Step 2 - Install memory modules
Step 3 - Install expansion cards
Step 4 - Connect ribbon cables, cabinet wires, and power supply
Chapter 2 Hardware Installation Process
Step 2Step 3
Step 3
Step 4
Step 1
Step 4
Congratulations! You have accomplished the hardware installation!
Turn on the power supply or connect the power cable to the power outlet. Continue with the
BIOS/software installation.

- 16 -
GA-K8VNXP Motherboard
English
Step 1: Install the Central Processing Unit (CPU)
Socket
Actuation Lever
The installation of the processor and cooling fan is performed in four main steps:
Step 1-1. Processor insertion
Step 1-2. Applying thermal grease
Step 1-3. Cooling fan attachment
Step 1-4. Connecting processor fan power
Before installing the processor and cooling fan, adhere to the following warning:
1. The processor will overheat without the heatsink and/or fan, resulting in permanent irrepa-
rable damage.
2. Never force the processor into the socket.
3. Apply thermal grease between the processor and cooling fan.
4. Please make sure the CPU type is supported by the motherboard.
5. If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause improper
installation. Please change the insert orientation. Please use AMD approved cooling fan.
Step1-1. First, check the processor pins to see that none are bent. Move the socket lever to the
unlocked position as shown in Figure 1 & Figure 2.(90oto the plane of the motherboard) prior
to inserting the processor. The A1 pin location is designated on the processor by a copper
triangle that matches up to a triangle on the socket as shown in Figure 3. Align the processor
to the socket and gently lower it into place. Do not force the processor into the socket.
Figure 1. Angling the rod to 65-degree maybe feel a
kind of tight , and then continue pull the rod to 90-
degree when a noise "cough" made.
Figure 2. Pull the rod to the 90-degree directly.
Angling the
rod to 650
Figure 3. A1 pin location on the Socket and
Processor.Move the socket lever to the locked posi-
tion while holding pressure on the center of the
processor.

Hardware Installation Process
English
- 17 -
Step1-2. When the processor is installed in the socket, apply thermal grease to the processor(as shown
in Figure 4) prior to installing the heatsink. AMD recommends using a high thermal conductiv-
ity grease (such as Shin-Etsu types G751 or G749, or an equivalent product) for the thermal
interface material rather than a phase change material. Phase change materials develop strong
adhesive forces between the heatsink and processor.
Removing the heatsink under such conditions can cause the processor to be
removed from the socket without moving the socket lever to the unlocked position
and then damage the processor pins or socket contacts.
** We recommend you to apply the thermal tape to provide better heat conduction between
your CPU and heatsink. (The CPU cooling fan might stick to the CPU due to the hardening of
the thermal paste. During this condition if you try to remove the cooling fan, you might pull the
processor out of the CPU socket alone with the cooling fan, and might damage the processor.
To avoid this from happening, we suggest you to either use thermal tape instead of thermal
paste, orremove the cooling fan with extreme caution.)
Figure 4. Application of Thermal Grease to the processor.
Step 1-4. Connect the fan power wires to the header on the motherboard as shown in Figure 7.
Figure 7. Connecting the Fan Power Wires
Step 1-3.Once the thermal grease has been applied to the processor, the heatsink can be attached to
the processor. Align the heatsink assembly with the support frame mating with the backer plate
standoffs as shown in Figure 5&6.
Figure 5&6. Alignment of Heatsink
Assembly with Standoffs

- 18 -
GA-K8VNXP Motherboard
English
Before installing the memory modules, adhere to the following warning:
1. When DIMM LED is ON, do not install / remove DIMM from socket.
2. Please note that the DIMM module can only fit in one direction due to
the one notch. Wrong orientation will cause improper installation.
Please change the insert orientation.
Step 2: Install Memory Modules
The motherboard has 3 dual inline memory module (DIMM) sockets. The BIOS will automatically
detects memory type and size. To install the memory module, just push it vertically into the DIMM
socket. The DIMM module can only fit in one direction due to the notch. Memory size can vary
between sockets.
DDR
Notch
Total Memory Size Per Chip Select
Device Used on DIMMs Size Per CS Comments
64 Mbit (2Mx8-bitsx4 banks) 64 Mbyte
64 Mbit (1Mx16-bitsx4 banks) 32 Mbyte
128 Mbit(4Mx8-bitsx4 banks) 128 Mbyte
128 Mbit(2Mx16-bitsx4 banks) 64 Mbyte
256 Mbit(8Mx8-bitsx4 banks) 256 Mbyte
256 Mbit(4Mx16x4 banks) 128 Mbyte
512 Mbit(16Mx8-bitsx4 banks) 512 Mbyte
512 Mbit(8Mx16-bitsx4 banks) 256 Mbyte
1 Gbit(32Mx8-bitsx4 banks) 1 Gbyte
1 Gbit(16Mx16-bitsx4 banks) 512 Mbyte

Hardware Installation Process
English
- 19 -
DDR Introduction
Established on the existing SDRAM infrastructure, DDR (Double Data Rate) memory is a high
performance and cost-effective solution that allows easy adoption for memory vendors, OEMs, and
system integrators.
DDR memory is a great evolutionary solution for the PC industry that builds on the existing
SDRAM architecture, yet make the awesome advances in solving the system performance bottleneck
by doubling the memory bandwidth. Nowadays, with the highest bandwidth of 3.2GB/s of DDR400
memory and complete line of DDR400/333/266/200 memory solutions, DDR memory is the best
choice for building high performance and low latency DRAM subsystem that are suitable for servers,
workstations, and full range of desktop PCs.
1. The DIMM socket has a notch, so the DIMM memory
module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM
socket. Then push it down.
3. Close the plastic clip at both edges of the DIMM sockets
to lock the DIMM module.
Reverse the installation steps when you wish to remove
the DIMM module.

- 20 -
GA-K8VNXP Motherboard
English
Step 3-1: AGP Card Installation
Step 3: Install expansion cards
1. Read the related expansion card's instruction document before install the expansion card into the
computer.
2. Remove your computer's chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer's chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
AGP Card
Please carefully pull out the small white-drawable bar at the end of the AGP slot when you try to install
/ uninstall the AGP card. Please align the AGP card to the onboard AGP slot and press firmly down on
the slot. Make sure your AGP card is locked by the small white-drawable bar.
