Gigabyte GA-P75-D3 User manual

GA-P75-D3
User's Manual
Rev. 1002
12ME-P75D3-1002R

Motherboard
GA-P75-D3
Feb. 17, 2012
Feb. 17, 2012
Motherboard
GA-P75-D3

Copyright
© 2012 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmit-
ted, orpublished in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of
documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:
1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before
updating motherboard BIOS, drivers, or when looking for technical information.
Example:

- 4 -
Table of Contents
Box Contents...................................................................................................................6
Optional Items .................................................................................................................6
GA-P75-D3 Motherboard Layout ....................................................................................7
GA-P75-D3 Motherboard Block Diagram .......................................................................8
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions ................................................................................... 9
1-2 Product Specications................................................................................... 10
1-3 Installing the CPU and CPU Cooler............................................................... 13
1-3-1 Installing the CPU ..................................................................................................13

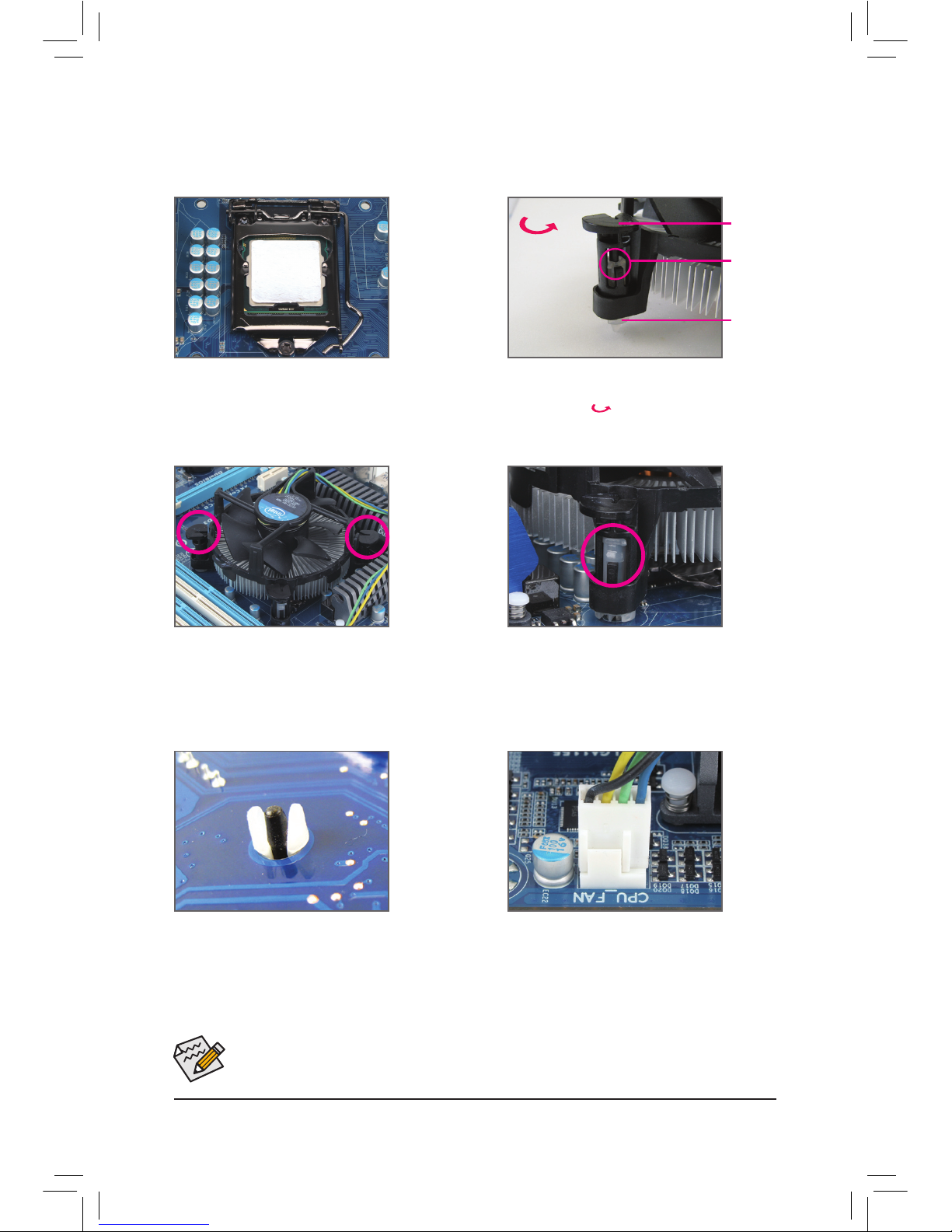

1-3-2 Installing the CPU Cooler ......................................................................................15
1-4 Installing the Memory .................................................................................... 16
1-4-1 Dual Channel Memory Conguration ........................................................................16

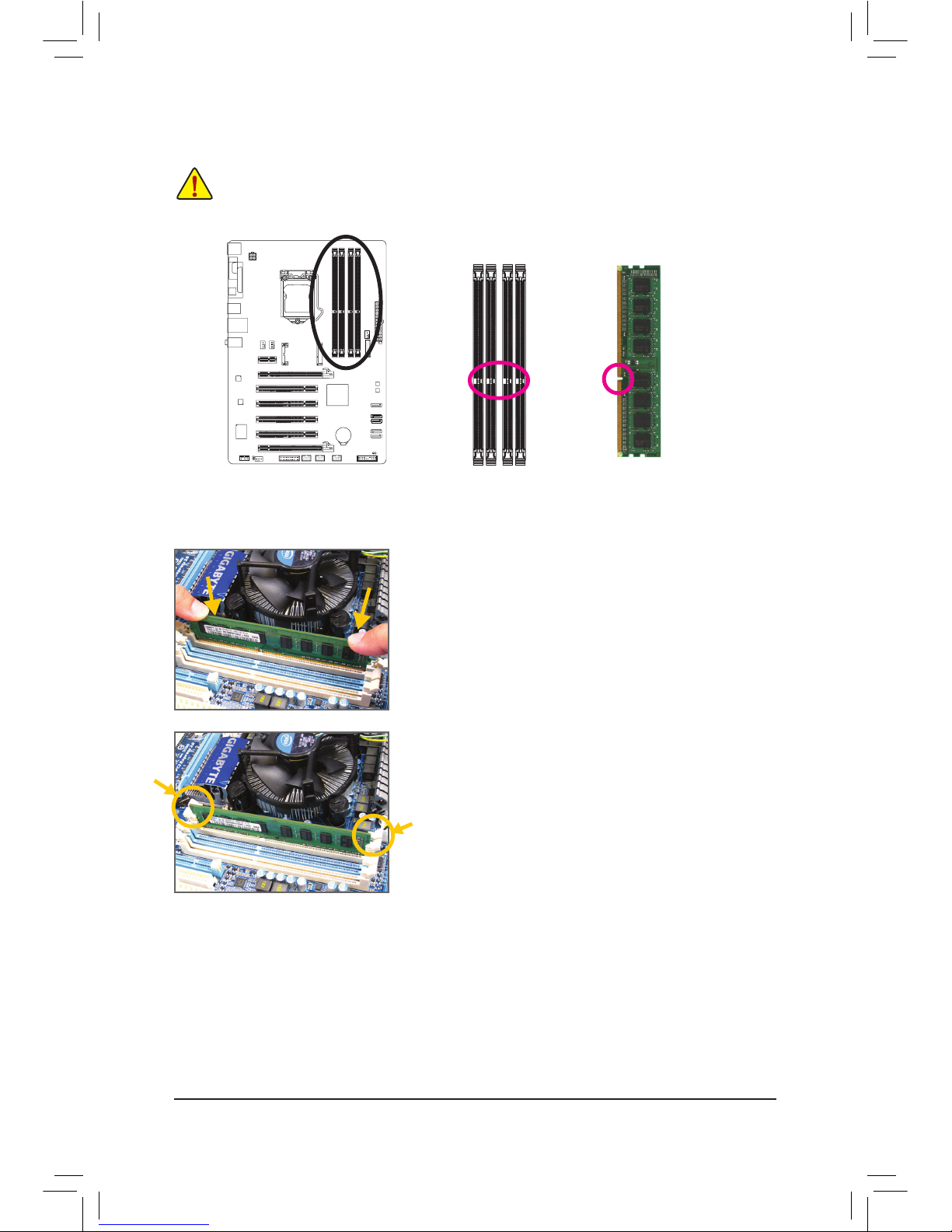

1-4-2 Installing a Memory................................................................................................17

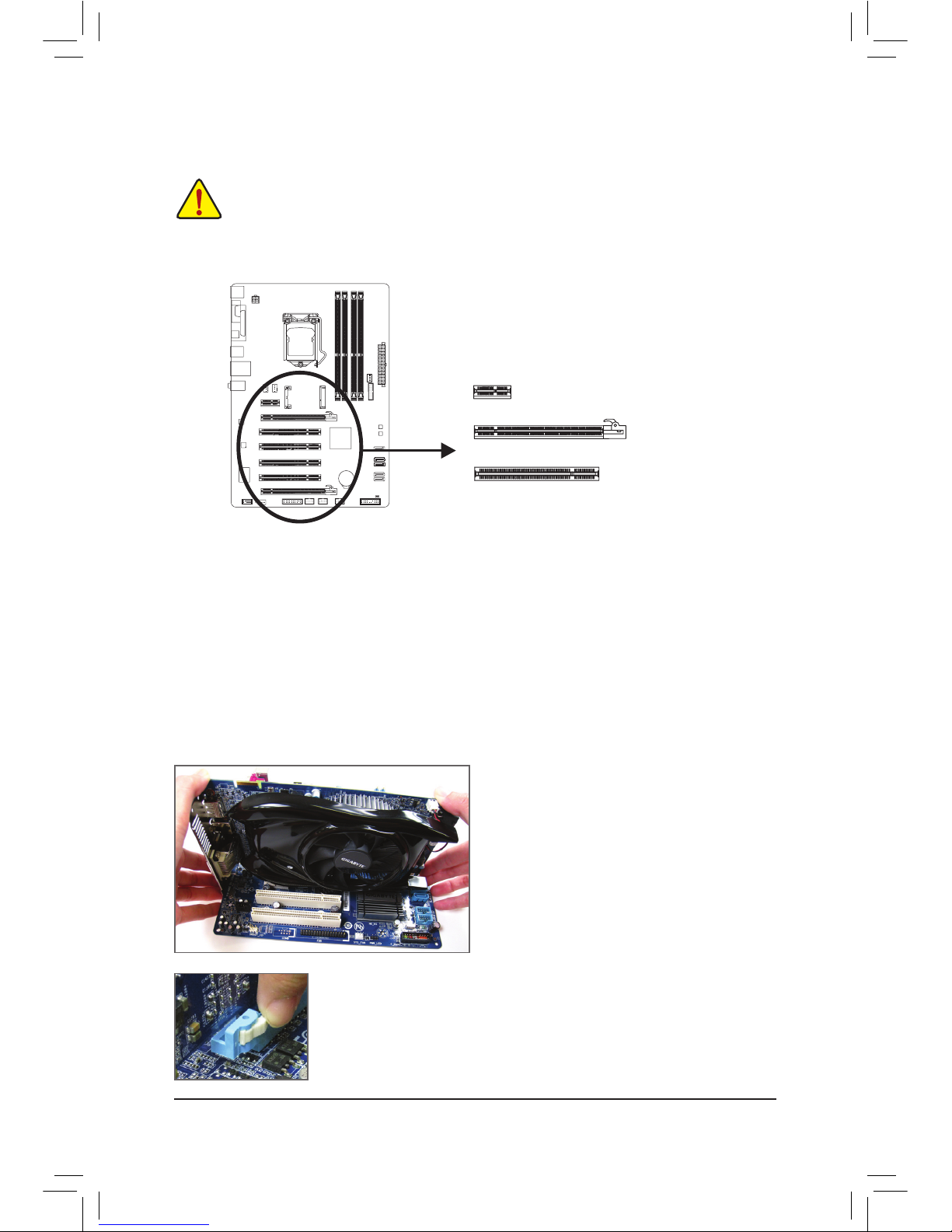

1-5 Installing an Expansion Card......................................................................... 18
1-6 Back Panel Connectors ................................................................................. 19

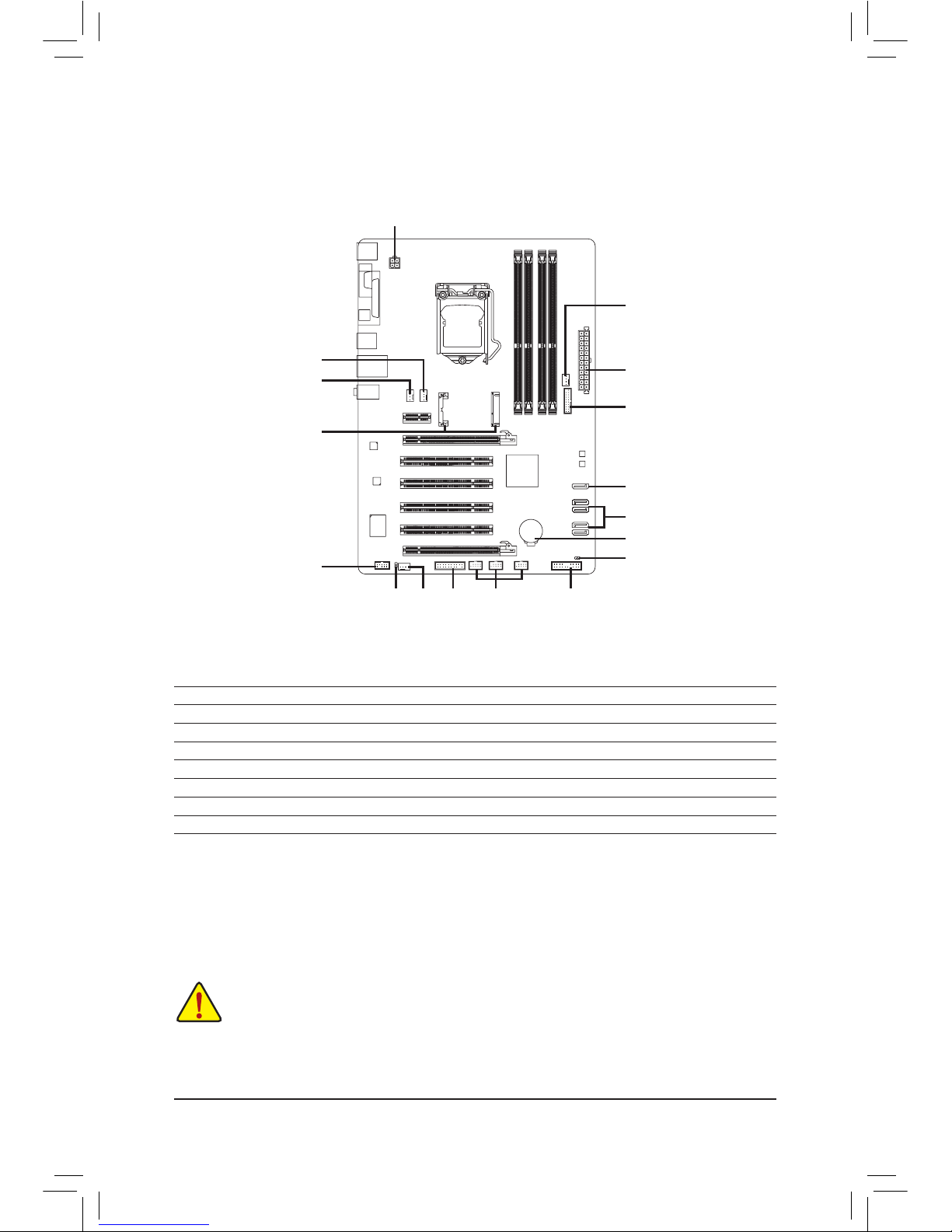

1-7 Internal Connectors ....................................................................................... 20
Chapter 2 BIOS Setup..................................................................................................29
2-1 Startup Screen............................................................................................... 30
2-2 The Main Menu.............................................................................................. 31
2-3 M.I.T. .............................................................................................................. 33
2-4 System ........................................................................................................... 42
2-5 BIOS Features ............................................................................................... 43
2-6 Peripherals..................................................................................................... 45
2-7 Power Management....................................................................................... 49
2-8 Save & Exit .................................................................................................... 51

- 5 -
Chapter 3 Drivers Installation .......................................................................................53
3-1 Installing Chipset Drivers............................................................................... 53
3-2 Application Software...................................................................................... 54
3-3 Technical Manuals ......................................................................................... 54
3-4 Contact........................................................................................................... 55
3-5 System ........................................................................................................... 55
3-6 Download Center........................................................................................... 56
3-7 New Program................................................................................................. 56
Chapter 4 Unique Features...........................................................................................57
4-1 Xpress Recovery2.......................................................................................... 57
4-2 BIOS Update Utilities..................................................................................... 60
4-2-1 Updating the BIOS with the Q-Flash Utility.......................................................... 60
4-2-2 Updating the BIOS with the @BIOS Utility........................................................... 63
4-3 Q-Share ......................................................................................................... 64
4-4 Auto Green..................................................................................................... 65
4-5 Intel Rapid Start Technology ......................................................................... 66
4-6 Intel Smart Connect Technology ................................................................... 68
4-7 Intel SBA (Small Business Advantage) ......................................................... 70
Chapter 5 Appendix......................................................................................................71
5-1 Conguring Audio Input and Output .............................................................. 71
5-1-1 Conguring 2/4/5.1/7.1-Channel Audio..................................................................71
5-1-2 Conguring S/PDIF Out.........................................................................................74
5-1-3 Conguring Microphone Recording.......................................................................75
5-1-4 Using the Sound Recorder ....................................................................................77
5-2 Troubleshooting ............................................................................................. 78
5-2-1 Frequently Asked Questions .................................................................................78
5-2-2 Troubleshooting Procedure ...................................................................................79
5-2-3 Regulatory Statements ..........................................................................................81

- 6 -
Box Contents
GA-P75-D3 motherboard
5
Motherboard driver disk
5
User's Manual
5
Quick Installation Guide
5
Two SATA 6Gb/s cables
5
I/O Shield
5
Optional Items
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)

2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)

3.5" Front Panel with 2 USB 3.0/2.0 ports (Part No. 12CR1-FPX582-0*R)

The box contents above are for reference only and the actual items shall depend on the product package you
obtain. The box contents are subject to change without notice.

- 7 -

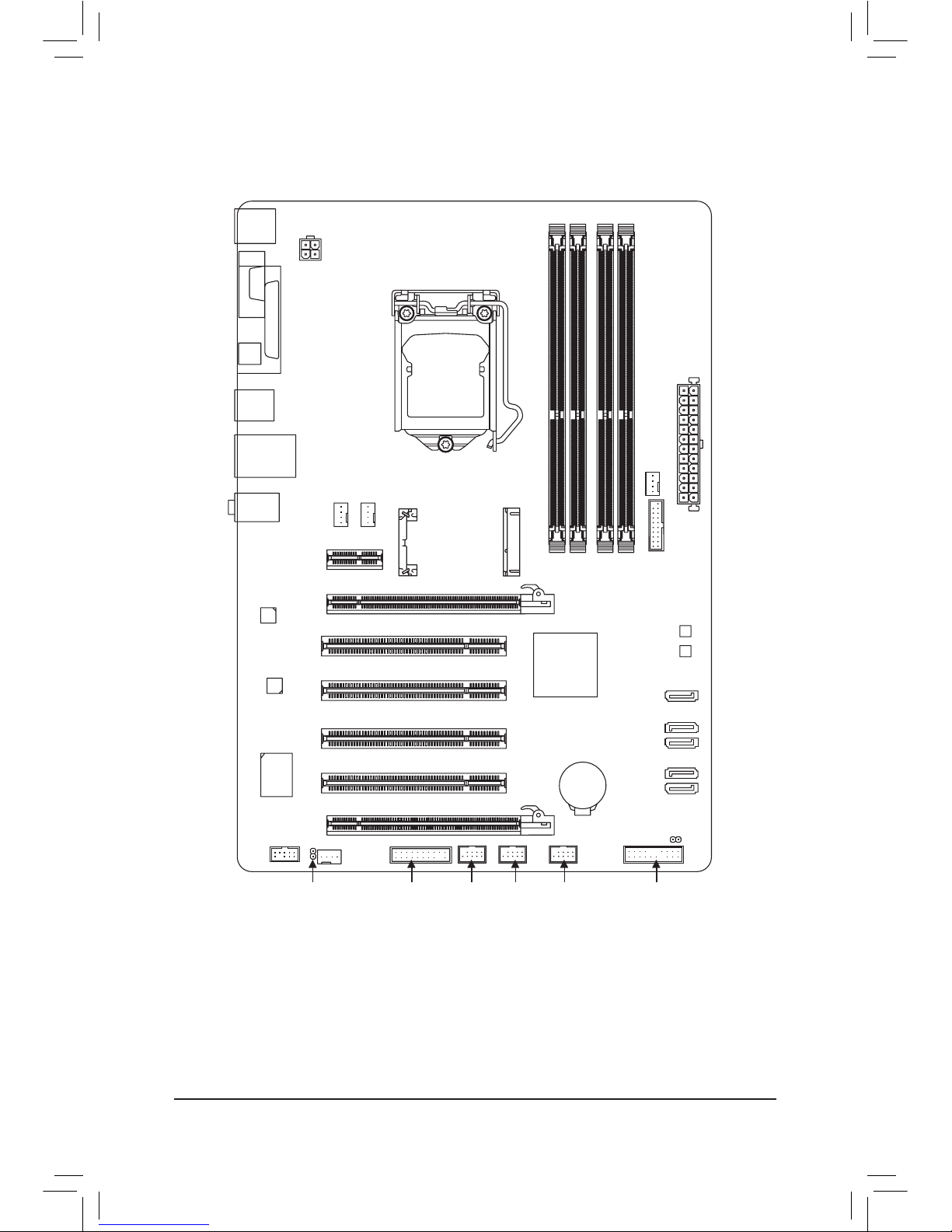

GA-P75-D3 Motherboard Layout
KB_MS
CPU_FAN
ATX_12V
ATX
F_AUDIO
AUDIO
M_BIOS
DDR3_2 DDR3_4 DDR3_3 DDR3_1
BAT
F_PANEL
Intel®B75
CLR_CMOS
B_BIOS
PCIEX1
PCIEX16
SPDIF_O F_USB2
LGA1155
GA-P75-D3
R_USB30
COMA
USB_LAN
PCI4
F_USB30
iTE Super I/O
TPM F_USB1F_USB3
COAXIAL
Realtek
GbE LAN
PCIEX4
SYS_FAN1
SATA2
SATA3
mSATA
CODEC
LPT
SYS_FAN3
SYS_FAN2
0
1
2
3
4
PCI3
PCI2
PCI1

- 8 -

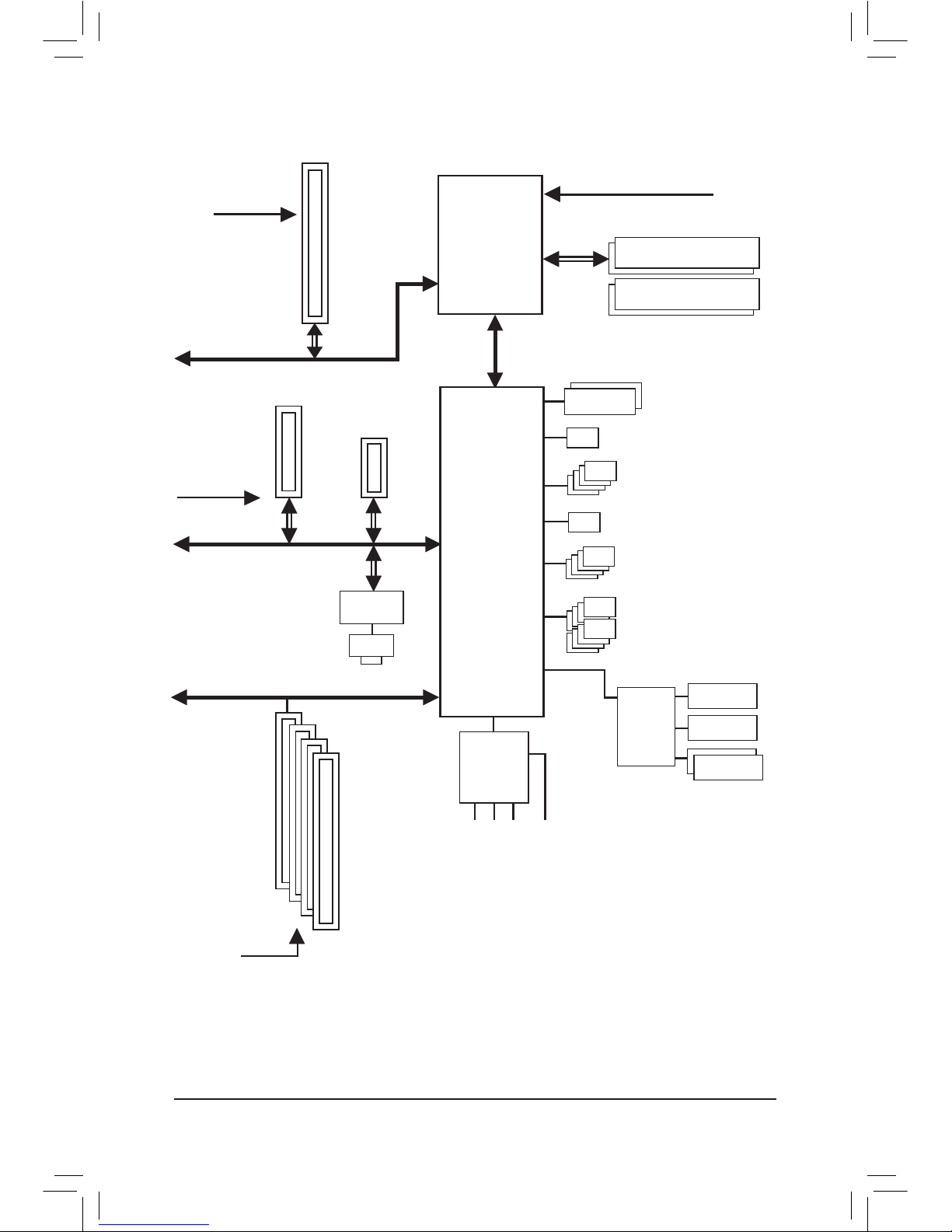

GA-P75-D3 Motherboard Block Diagram
LGA1155
CPU
CPU CLK+/- (100 MHz)
1 SATA 6Gb/s
Dual BIOS
8 USB 2.0/1.1
DDR3 1600(Note 1)/1333/1066 MHz
Dual Channel Memory
LPC Bus
PCI Express Bus
PCIe CLK
(100 MHz)
1 PCI Express x1
x1
x4
DMI 2.0
4 SATA 3Gb/s
PCI Express Bus
x1
LAN
RJ45
Realtek
GbE LAN
PCIe CLK
(100 MHz)
x16
1 PCI Express x16
1 PCI Express x4
4 PCI
PCI Bus
PCI CLK
(33 MHz)
S/PDIF Out
4 USB 3.0(Note 2)/2.0
1 mSATA
PS/2 KB/Mouse
COM
Line Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
Line In (Rear Speaker Out)
CODEC
Intel®B75
(Note 1) To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.
(Note 2) In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
LPT
iTE
Super I/O

- 9 - Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
Prior to installation, make sure the chassis is suitable for the motherboard.•
Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty•
sticker provided by your dealer. These stickers are required for warranty validation.
Always remove the AC power by unplugging the power cord from the power outlet before•
installing or removing the motherboard or other hardware components.
When connecting hardware components to the internal connectors on the motherboard, make•
sure they are connected tightly and securely.
When handling the motherboard, avoid touching any metal leads or connectors.•
It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-•
ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep
your hands dry and first touch a metal object to eliminate static electricity.
Prior to installing the motherboard, please have it on top of an antistatic pad or within an•
electrostatic shielding container.
Before unplugging the power supply cable from the motherboard, make sure the power supply•
has been turned off.
Before turning on the power, make sure the power supply voltage has been set according to•
the local voltage standard.
Before using the product, please verify that all cables and power connectors of your hardware•
components are connected.
To prevent damage to the motherboard, do not allow screws to come in contact with the•
motherboard circuit or its components.
Make sure there are no leftover screws or metal components placed on the motherboard or•
within the computer casing.
Do not place the computer system on an uneven surface.•
Do not place the computer system in a high-temperature environment.•
Turning on the computer power during the installation process can lead to damage to system•
components as well as physical harm to the user.
If you are uncertain about any installation steps or have a problem related to the use of the•
product, please consult a certified computer technician.
Chapter 1 Hardware Installation

- 10 -Hardware Installation
1-2 Product Specifications
CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/
Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors
in the LGA1155 package
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset Intel®B75 Express Chipset
Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 1600/1333/1066 MHz memory modules
* To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.
(Go to GIGABYTE's website for the latest supported memory speeds and memory
modules.)
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module
and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN 1 x Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(PCIEX16 slot conforms to PCI Express 3.0 standard.)
* For optimum performance, if only one PCI Express graphics card is to be installed,
be sure to install it in the PCIEX16 slot.
* The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel
32nm (Sandy Bridge) CPU is installed.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(PCIEX4/PCIEX1 slots conform to PCI Express 2.0 standard.)
4 x PCI slots
Multi-Graphics
Technology
Support for AMD CrossFireX™technology
* The PCIEX16 slot operates at up to x4 mode when AMD CrossFireX™is enabled.
Storage Interface Chipset:
- 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s
device
- 4 x SATA 3Gb/s connectors (SATA2 1~4) supporting up to 4 SATA 3Gb/s
devices
- 1 x mSATA connector

- 11 - Hardware Installation
USB Chipset:
- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through
the internal USB headers)
* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
- Up to 8 USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through
the internal USB headers)
Internal
Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x SATA 6Gb/s connector
4 x SATA 3Gb/s connectors
1 x mSATA connector
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header
Back Panel
Connectors
1 x PS/2 Keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x serial port
1 x coaxial S/PDIF Out connector
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller iTE I/O Controller Chip
Hardware
Monitor
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the
CPU/system cooler you install.

- 12 -Hardware Installation
BIOS 2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for Xpress Recovery2
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share
Bundled
Software
Norton Internet Security (OEM version)
Intel®Rapid Start Technology
Intel®Smart Connect Technology
Intel®Small Business Advantage
Operating
System Support for Microsoft®Windows 7/XP
Form Factor ATX Form Factor; 30.5cm x 21.5cm
* GIGABYTE reserves the right to make any changes to the product specifications and product-related information without
prior notice.

- 13 - Hardware Installation
1-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
Make sure that the motherboard supports the CPU.•
(Go to GIGABYTE's website for the latest CPU support list.)
Always turn off the computer and unplug the power cord from the power outlet before installing•
the CPU to prevent hardware damage.
Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may•
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
Apply an even and thin layer of thermal grease on the surface of the CPU.•
Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and dam-•
age of the CPU may occur.
Set the CPU host frequency in accordance with the CPU specifications. It is not recommended•
that the system bus frequency be set beyond hardware specifications since it does not meet the
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specifications, please do so according to your hardware specifications including the CPU, graph-
ics card, memory, hard drive, etc.
1-3-1 Installing the CPU
A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Notch
Alignment Key
Alignment Key
Notch
LGA1155 CPU
LGA1155 CPU Socket
Pin One Corner of the CPU Socket
Triangle Pin One Marking on the CPU

- 14 -Hardware Installation
B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.
Before installing the CPU, make sure to turn off the computer and unplug the power cord from
the power outlet to prevent damage to the CPU.
Step 1:
Gently press the CPU socket lever handle down
and away from the socket with your finger. Then
completely lift the CPU socket lever and the metal
load plate will be lifted as well.
Step 3:
Hold the CPU with your thumb and index fingers.
Align the CPU pin one marking (triangle) with the
pin one corner of the CPU socket (or you may
align the CPU notches with the socket alignment
keys) and gently insert the CPU into position.
Step 5:
Push the CPU socket lever back into its locked
position.
Step 4:
Once the CPU is properly inserted, use one hand
to hold the socket lever and use the other to lightly
replace the load plate. When replacing the load
plate, make sure the front end of the load plate is
under the shoulder screw.
NOTE:
Hold the CPU socket lever by the handle, not the
lever base portion.
Step 2:
Remove the CPU socket cover as shown. Hold
your index finger down on the rear grip of the
socket cover and use your thumb to lift up the
front edge (next to the "REMOVE" mark) and
then remove the cover. (DO NOT touch socket
contacts. To protect the CPU socket, always
replace the protective socket cover when the
CPU is not installed.)

- 15 - Hardware Installation
1-3-2 Installing the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the motherboard. (The following procedure uses
Intel®boxed cooler as the example cooler.)
Use extreme care when removing the CPU cooler because the thermal grease/tape between the
CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler may damage
the CPU.
Step 1:
Apply an even and thin layer of thermal grease
on the surface of the installed CPU.
Step 2:
Before installing the cooler, note the direction of
the arrow sign on the male push pin. (Turn-
ing the push pin along the direction of arrow is to
remove the cooler, on the contrary, is to install.)
Step 3:
Place the cooler atop the CPU, aligning the four
push pins through the pin holes on the mother-
board. Push down on the push pins diagonally.
Step 4:
You should hear a "click" when pushing down
each push pin. Check that the Male and Female
push pins are joined closely.
(Refer to your CPU cooler installation manual for
instructions on installing the cooler.)
Step 5:
After the installation, check the back of the moth-
erboard. If the push pin is inserted as the picture
above shows, the installation is complete.
Step 6:
Finally, attach the power connector of the CPU
cooler to the CPU fan header (CPU_FAN) on the
motherboard.
Male
Push Pin
Female
Push Pin
The Top
of Female
Push Pin
Direction of
the Arrow Sign
on the Male
Push Pin

- 16 -Hardware Installation
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
Make sure that the motherboard supports the memory. It is recommended that memory of the•
same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Always turn off the computer and unplug the power cord from the power outlet before installing•
the memory to prevent hardware damage.
Memory modules have a foolproof design. A memory module can be installed in only one direc-•
tion. If you are unable to insert the memory, switch the direction.
DDR3_1 DDR3_2 DDR3_3 DDR3_4
1-4-1 Dual Channel Memory Configuration
This motherboard provides four DDR3 memory sockets and supports Dual Channel Technology. After the
memory is installed, the BIOS will automatically detect the specifications and capacity of the memory. Enabling
Dual Channel memory mode will double the original memory bandwidth.
The four DDR3 memory sockets are divided into two channels and each channel has two memory sockets
as following:
Channel A: DDR3_2, DDR3_4
Channel B: DDR3_1, DDR3_3
Dual Channel Memory Configurations Table

DDR3_4 DDR3_2 DDR3_3 DDR3_1
Two Modules - - DS/SS - - DS/SS
DS/SS - - DS/SS - -
Four Modules DS/SS DS/SS DS/SS DS/SS
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that
memory of the same capacity, brand, speed, and chips be used and installed in the same colored
DDR3 sockets. For optimum performance, when enabling Dual Channel mode with two memory
modules, we recommend that you install them in the DDR3_1 and DDR3_2 sockets.

- 17 - Hardware Installation
1-4-2 Installing a Memory
Before installing a memory module, make sure to turn off the computer and unplug the power cord
from the power outlet to prevent damage to the memory module. DDR3 and DDR2 DIMMs are not
compatible to each other or DDR DIMMs. Be sure to install DDR3 DIMMs on this motherboard.
Notch
DDR3 DIMM
A DDR3 memory module has a notch, so it can only fit in one direction. Follow the steps below to correctly
install your memory modules in the memory sockets.
Step 1:
Note the orientation of the memory module. Spread the retaining clips
at both ends of the memory socket. Place the memory module on the
socket. As indicated in the picture on the left, place your fingers on
the top edge of the memory, push down on the memory and insert
it vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when the
memory module is securely inserted.

- 18 -Hardware Installation
1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
Make sure the motherboard supports the expansion card. Carefully read the manual that came•
with your expansion card.
Always turn off the computer and unplug the power cord from the power outlet before installing•
an expansion card to prevent hardware damage.
Follow the steps below to correctly install your expansion card in the expansion slot.
Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back1.
panel.
Align the card with the slot, and press down on the card until it is fully seated in the slot.2.
Make sure the metal contacts on the card are completely inserted into the slot.3.
Secure the card’s metal bracket to the chassis back panel with a screw.4.
After installing all expansion cards, replace the chassis cover(s).5.
Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for your6.
expansion card(s).
Install the driver provided with the expansion card in your operating system.7.
Example: Installing and Removing a PCI Express Graphics Card:
Installing a Graphics Card:•
Gently push down on the top edge of the card until
it is fully inserted into the PCI Express slot. Make
sure the card is securely seated in the slot and does
not rock.
Removing the Card:•
Press the latch at the end of the PCI Express slot to release the card and then
pull the card straight up from the slot.
PCI Express x1 Slot
PCI Express x16 Slot
PCI Slot

- 19 - Hardware Installation
1-6 Back Panel Connectors
When removing the cable connected to a back panel connector, first remove the cable from your•
device and then remove it from the motherboard.
When removing the cable, pull it straight out from the connector. Do not rock it side to side to•
prevent an electrical short inside the cable connector.
PS/2 Keyboard and PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2
keyboard.
Parallel Port
Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also
called a printer port.
Serial Port
Use the serial port to connect devices such as a mouse, modem or other peripherals.
Coaxial S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital coaxial audio.
Before using this feature, ensure that your audio system provides a coaxial digital audio in connector.
USB 3.0/2.0 Port
The USB 3.0 port supports the USB 3.0 specification and is compatible to the USB 2.0/1.1 specification.
Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Activity LED
Connection/
Speed LED
LAN Port
Activity LED:Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
USB 2.0/1.1 Port
The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB
keyboard/mouse, USB printer, USB flash drive and etc.
Line In Jack (Blue)
The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out Jack (Green)
The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be
used to connect front speakers in a 4/5.1/7.1-channel audio configuration.
Mic In Jack (Pink)
The default Mic in jack. Microphones must be connected to this jack.
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-
channel audio feature through the audio driver. Refer to the instructions on setting up a 2/4/5.1/7.1-
channel audio configuration in Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."

- 20 -Hardware Installation
1-7 Internal Connectors
Read the following guidelines before connecting external devices:
First make sure your devices are compliant with the connectors you wish to connect.•
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power•
cord from the power outlet to prevent damage to the devices.
After installing the device and before turning on the computer, make sure the device cable has•
been securely attached to the connector on the motherboard.
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3
5) SATA3 0
6) SATA2 1/2/3/4
7) mSATA
8) F_PANEL
9) F_AUDIO
10) SPDIF_O
11) F_USB1/F_USB2/F_USB3
12) F_USB30
13) TPM
14) BAT
15) CLR_CMOS
2
4
4
6
1110
12
1
14
8
9
13
5
7
3
15
4
