GIGAMEDIA GGM IPAP1120 User manual

PUBLIC ADDRESS
GGM IPAP1120
GGM IPAP1240
GGM IPAP1350
GGM IPAP1500
USER
MANUAL
www.gigamedia.net
  

Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.

www.gigamedia.netGIGAMEDIA User manual (GGM IPAPxxx) 2
1. SAFETY PRECAUTIONS ........................................................................ 3
2. APPLICATION ....................................................................................... 5
3. FEATURES ............................................................................................ 5
4. NOMENCLATURE AND FUNCTIONS ..................................................... 6
4.1. FRONT PANEL .................................................................................................... 6
4.2. REAR PANEL ...................................................................................................... 7
5. OPERATION .......................................................................................... 8

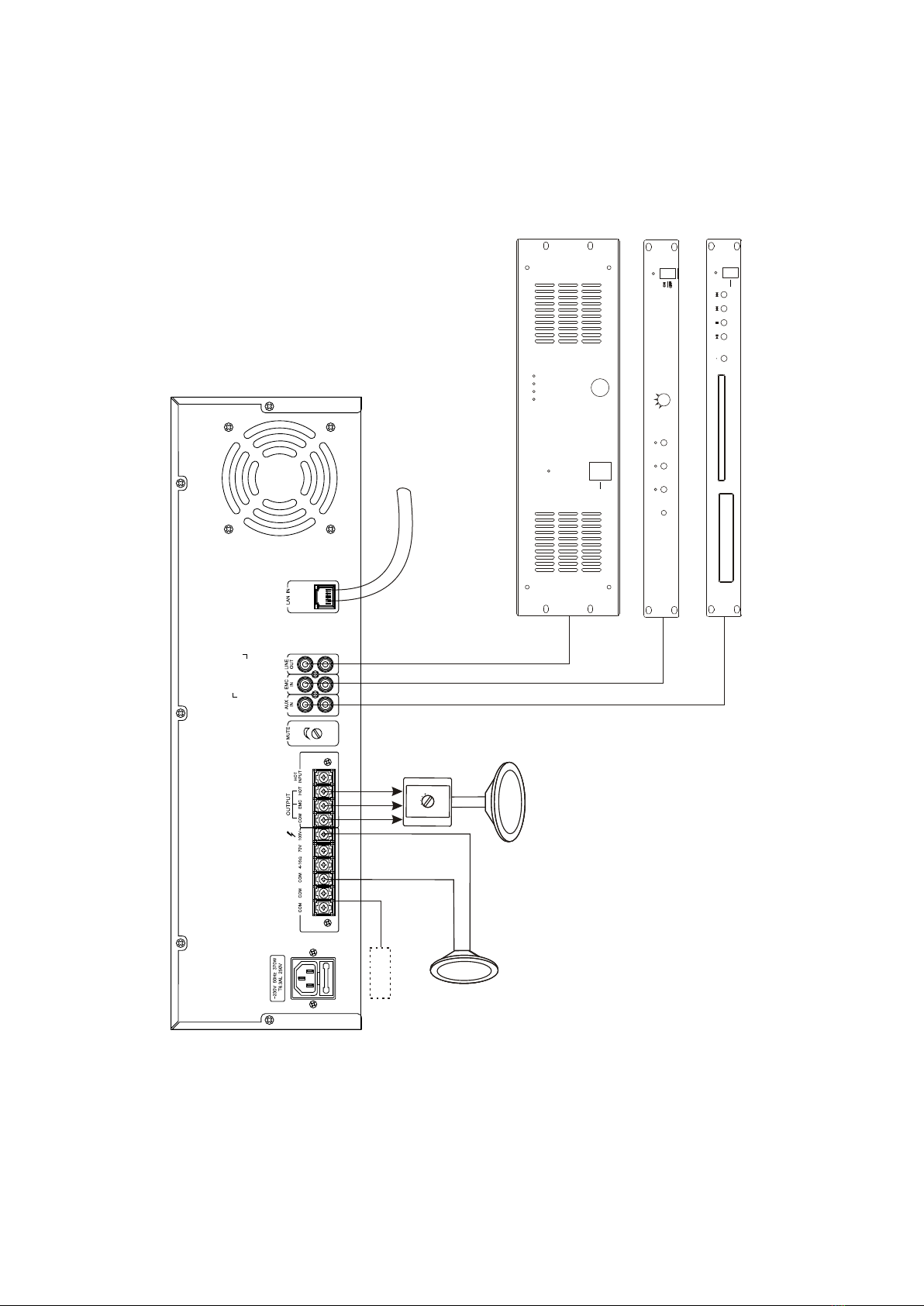

6. WIRING DIAGRAM ................................................................................ 9
7. SPECIFICATIONS ................................................................................ 11
Battery directive
This product contains batteries. The logo indicates that they should not be thrown in the trash or landfill. Batteries may contain
substances that may be hazardous to human health and the environment and heavy metals that have the following designations:
Cd = Cadmium, Hg = Mercury, Pb = Lead. To facilitate the treatment and recycling of used batteries, you can return them to your
dealer, deposit them in a collection bin provided for this purpose or return them to your municipal waste which is obliged to
recover them.
WEEE regulation
This product is covered by the WEEE II Directive (Directive 2012/19 / EU). It should not be thrown in the trash or dumped. Substances
in the product may be hazardous to human health or the environment. Disposal may be done by returning the product to your dealer
or leaving it a collection point provided for this purpose.
This product bears the CE mark which certifies its conformity with the directives LVD 2014/35/EU ; EMC 2014/30/EU and RoHS
2011/65/EU.
Compliance has been assessed in accordance with applicable standards in effect.

www.gigamedia.net GIGAMEDIA User manual (GGM IPAPxxx)
3
1. SAFETY PRECAUTIONS
• Be sure to read the instructions in this section carefully before use.
• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
• We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and un-
derstand the safety symbols and messages so you are thoroughly aware of the potential safety.
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
WARNING
WARNING
CAUTION
When Installing the Unit
• Do not expose the unit to rain or an environment
where it may be splashed by water or other liquids,
as doing so may result in fire or electric shock.
• Use the unit only with the voltage specified on the
unit. Using a voltage higher than that which is speci-
fied may result in fire or electric shock.
• Do not cut, kink, otherwise damage nor modify the
power supply cord. In addition, avoid using the power
cord in close proximity to heaters, and never place
heavy objects -- including the unit itself -- on the
power cord, as doing so may result in fire or electric
shock.
• Be sure to replace the unit’s terminal cover after
connection completion. Because high voltage is ap-
plied to the speaker terminals, never touch these
terminals to avoid electric shock.
• Be sure to ground to the safety ground (earth) ter-
minal to avoid electric shock. Never ground to a gas
pipe as a catastrophic disaster may result.
• Avoid installing or mounting the unit in unstable lo-
cations, such as on a rickety table or a slanted sur-
face. Doing so may result in the unit falling down,
causing personal injury and/or property damage.
When the Unit is in Use
• Should the following irregularity be found during
use, immediately switch off the power, disconnect
the power supply plug from the AC outlet and contact
your nearest dealer. Make no further attempt to ope-
rate the unit in this condition as this may cause fire
or electric shock.
- If you detect smoke or a strange smell coming from
the unit.
- If water or any metallic object gets into the unit
- If the unit falls, or the unit case breaks
- If the power supply cord is damaged (exposure of
the core, disconnection, etc.)
- If it is malfunctioning (no tone sounds.)
• To prevent a fire or electric shock, never open nor
remove the unit case as there are high voltage com-
ponents inside the unit. Refer all servicing to your
nearest dealer.
• Do not place cups, bowls, or other containers of li-
quid or metallic objects on top of the unit. If they ac-
cidentally spill into the unit, this may cause a fire or
electric shock.
• Do not insert nor drop metallic objects or flammable
materials in the ventilation slots of the unit’s cover,
as this may result in fire or electric shock.

www.gigamedia.netGIGAMEDIA User manual (GGM IPAPxxx) 4
CAUTION
An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in the
electrical installation of the building.
When Installing the Unit
• Never plug in nor remove the power supply plug with
wet hands, as doing so may cause electric shock.
• When unplugging the power supply cord, be sure to
grasp the power supply plug; never pull on the cord
itself. Operating the unit with a damaged power sup-
ply cord may cause a fire or electric shock.
• When moving the unit, be sure to remove its power
supply cord from the wall outlet. Moving the unit with
the power cord connected to the outlet may cause
damage to the power cord, resulting in fire or elec-
tric shock. When removing the power cord, be sure
to hold its plug to pull.
• Do not block the ventilation slots in the unit’s cover.
Doing so may cause heat to build up inside the unit
and result in fire.
• Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or
steam as doing otherwise may result in fire or elec-
tric shock.
When the Unit is in Use
• Do not place heavy objects on the unit as this may
cause it to fall or break which may result in personal
injury and/or property damage. In addition, the object
itself may fall off and cause injury and/or damage.
• Make sure that the volume control is set to mi-
nimum position before power is switched on.
Loud noise produced at high volume when power is
switched on can impair hearing.
• Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction, which in turn can cause heat to ge-
nerate and result in a fire.
• Contact your dealer as to the cleaning. If dust is al-
lowed to accumulate in the unit over a long period of
time, a fire or damage to the unit may result.
• If dust accumulates on the power supply plug or in
the wall AC outlet, a fire may result. Clean it perio-
dically. In addition, insert the plug in the wall outlet
securely.
• Switch off the power, and unplug the power supply
plug from the AC outlet for safety purposes when
cleaning or leaving the unit unused for 10 days or
more. Doing otherwise may cause a fire or electric
shock.

www.gigamedia.net GIGAMEDIA User manual (GGM IPAPxxx)
5
2. APPLICATION
Widely installed in weak-current rooms or branch control room for public address, build-in amplifier,
widely used for hall, corridor and outdoor public address.
3. FEATURES
01. Standard 19 inch rack design, black aluminum panel, human-based handle, exquisite and high-
class design.
02. 3.4 inch industrial-grade LCD screen, super anti-jamming performance, avoid instability infrared
operation, clearly show most lattice pattern, and the machine working status.
03. Adopt embedded computer technology and DSP audio processing technology; high-speed chip cut
the start-up time less than 1 second.
04. Built-in one channel network hardware audio decoding module that supports TCP / IP, UDP, IGMP
(IP multi-Cast protocol), could transmit 16 bits stereo CD audio signal.
05. Built-in Hi-Fi analog amplifier, 60W / 120W / 240W / 350W /500W, 4-16 output and and constant
voltage 70V, 100V output.
06. One AUX and one MIC input, with independent volume control, treble and bass control, support
paging without network.
07. One EMC input, fire emergency audio signal input with the highest priority.
08. Two AUX outputs, connect with external amplifier, standard interfaces RCA port, Wiring connection
is very convenient.
09. One three-wire volume with relay output, without forced cutting power supply, compatible with four-
wire fire cutting, need to connect with 24V power supply.
10. Built-in intelligent power management, automatically cut off the amplifier power when no signal
input, power amplifier, automatically turn on when there is audio signal input, preset the program
to get this function.
11. Built three priority setting:
1) EMC is the highest priority.
2) Network alarm signal priority MIC, AUX and network background music signal.
3) MIC priority AUX and network background music signal.
4) AUX and background music same level, without any priority.
12. Support silent intensity preset reduction, support for background accompaniment preset function;
Support status lights display, including level indicator, protection indicator, standby light, etc.
Machine standby power less than 3W, meet the national environmental energy certification standards.
13. Support DHCP, compatible routers, switches, bridges gateways, modem, internet, 2G, 3G, 4G, mul-
ticast, unicast and other arbitrary network structure.
14. Digital products, easy expansion, no geographical restriction, no additional management equip-
ment, without cables construction, easy installation.

www.gigamedia.netGIGAMEDIA User manual (GGM IPAPxxx) 6
4. NOMENCLATURE AND FUNCTIONS

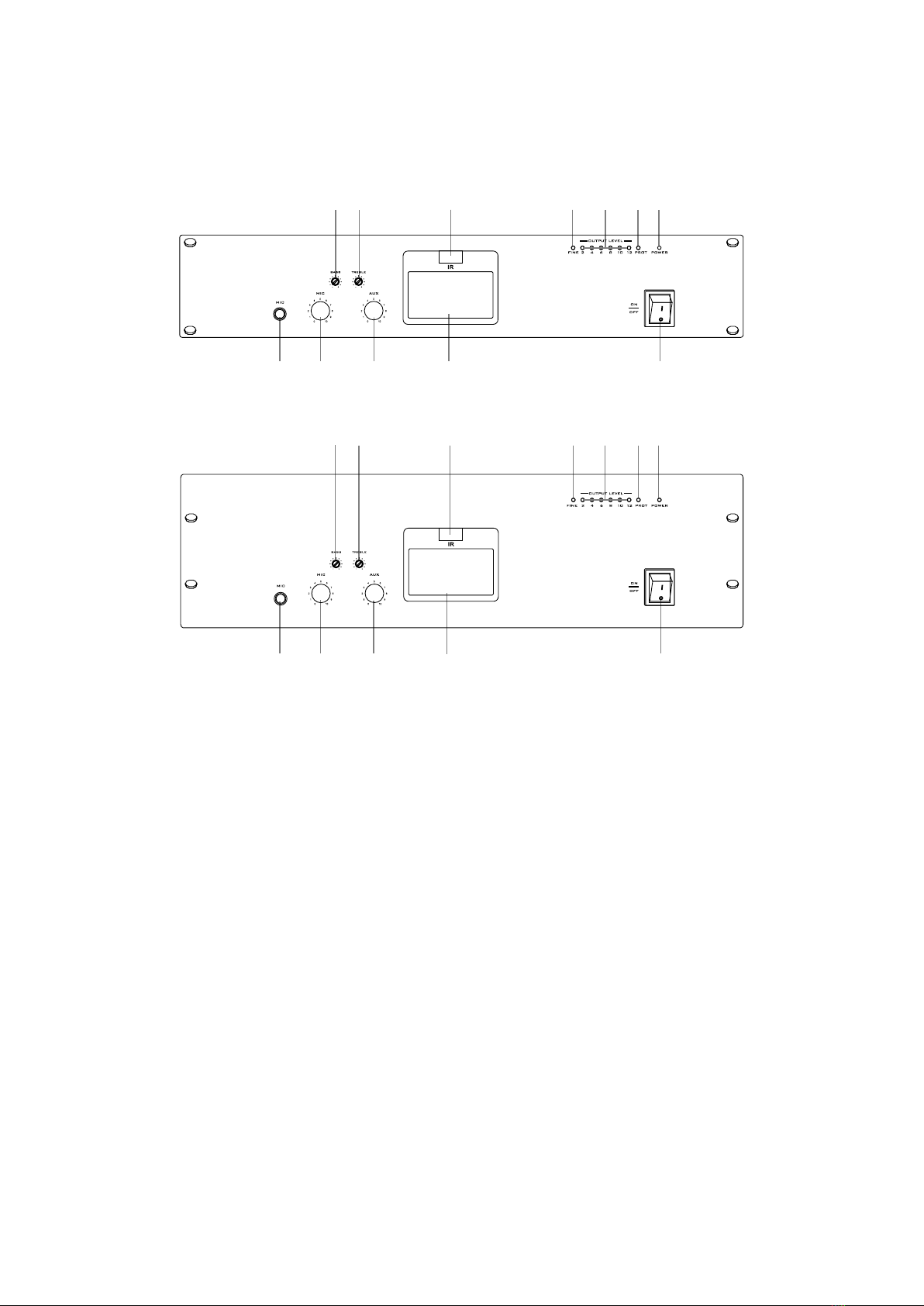

4.1. FRONT PANEL
01. Local MIC input adopting 6.35mm MIC input interface.
02. Volume control of MIC input.
03. Volume control of AUX input.
04. Working status display screen mainly used for showing the different status in different quests.
05. Power switch ON to switch on the equipment, OFF to shut down the equipment.
06. Power LED the LED lights on when switches on the equipment, it lights off when shuts down the
equipment.
07. PROT Protection indicator.
08. OUTPUT LEVEL Level indicator.
09. FINE Status indicator.
10. IR Infrared receiving window.
11. TREBLE adjust the response of treble. Increase treble output by knob clockwise rotation and
decrease it by knob anticlockwise rotation.
12. BASS adjust the response of bass. Increase bass output by knob clockwise rotation and decrease
it by knob anticlockwise rotation.
12 3 4 5
6
7
89
10
1112
12 3 4 5
6
7
89
10
1112

www.gigamedia.net GIGAMEDIA User manual (GGM IPAPxxx)
7

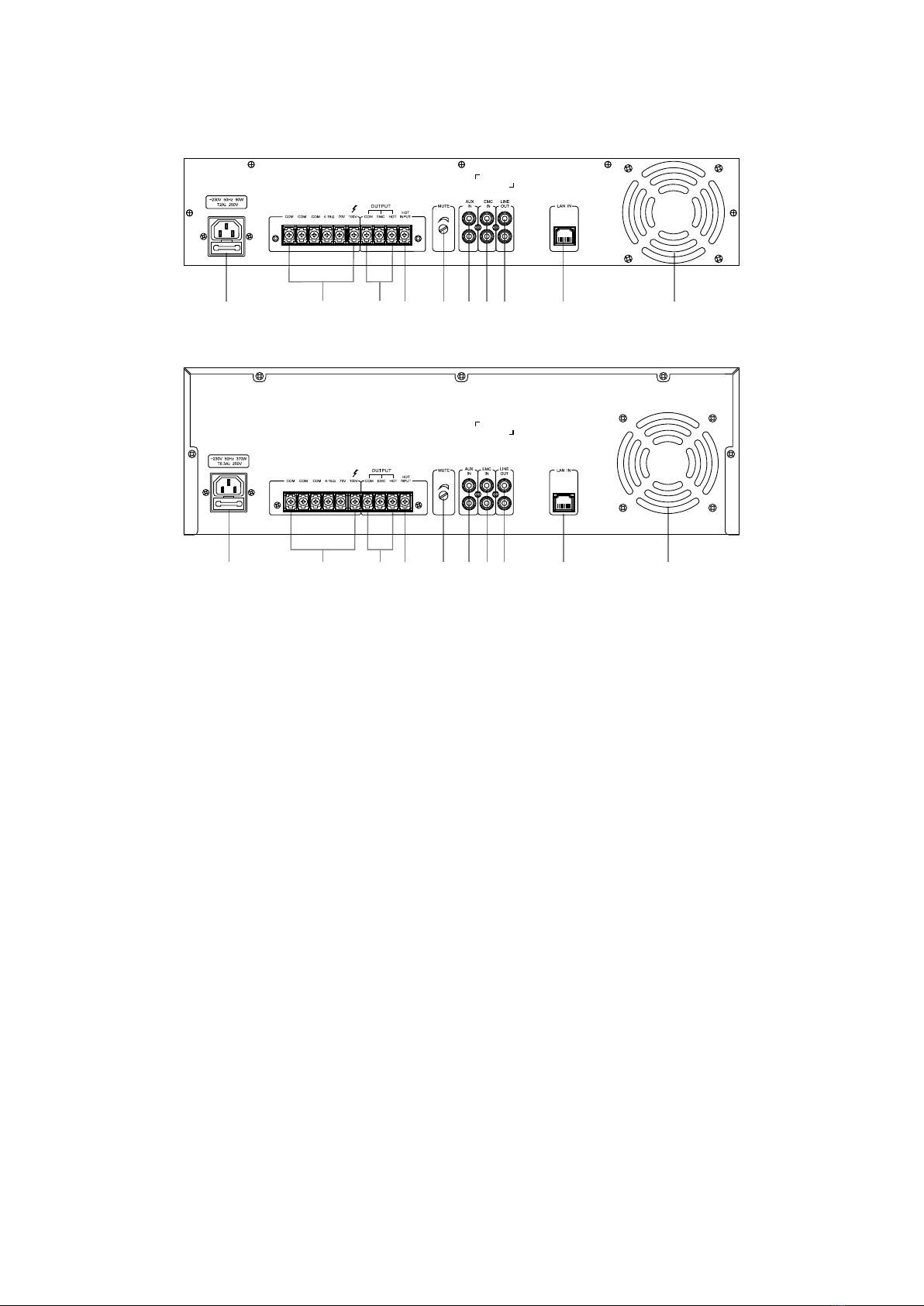

4.2. REAR PANEL
01. AC power input.
02. The ports for speakers connection. COM stands for common port, connectable with negative
pole, ground wire, etc. 4~16 port is connectable with 4~16 constant-resistance speakers. 70V
port is connectable with 70V constant-voltage speakers. 100V port is connectable with 100V
constant-voltage speakers.
03. Signal output port of volume control.
04. Signal input port of volume control.
05. Mute potentiometer, turn the knob to the rightmost, the mute level is the maximum; and turn the
knob to the leftmost, the mute level is the minimum.
06. Aux audio source input.
07. EMC input port.
08. Line output port.
09. RJ45 network interface, connecting with the internet of PC host/ Ethernet/switch.
10. Cooling fan.
1 2 345 6 78 10
9
12 3 4 567810
9

www.gigamedia.netGIGAMEDIA User manual (GGM IPAPxxx) 8
5. OPERATION
Use a network cable to connect the port LAN IN of your equipment to a computer or network equip-
ment. Open the software “IP network broadcast system” and make sure that the service has started.

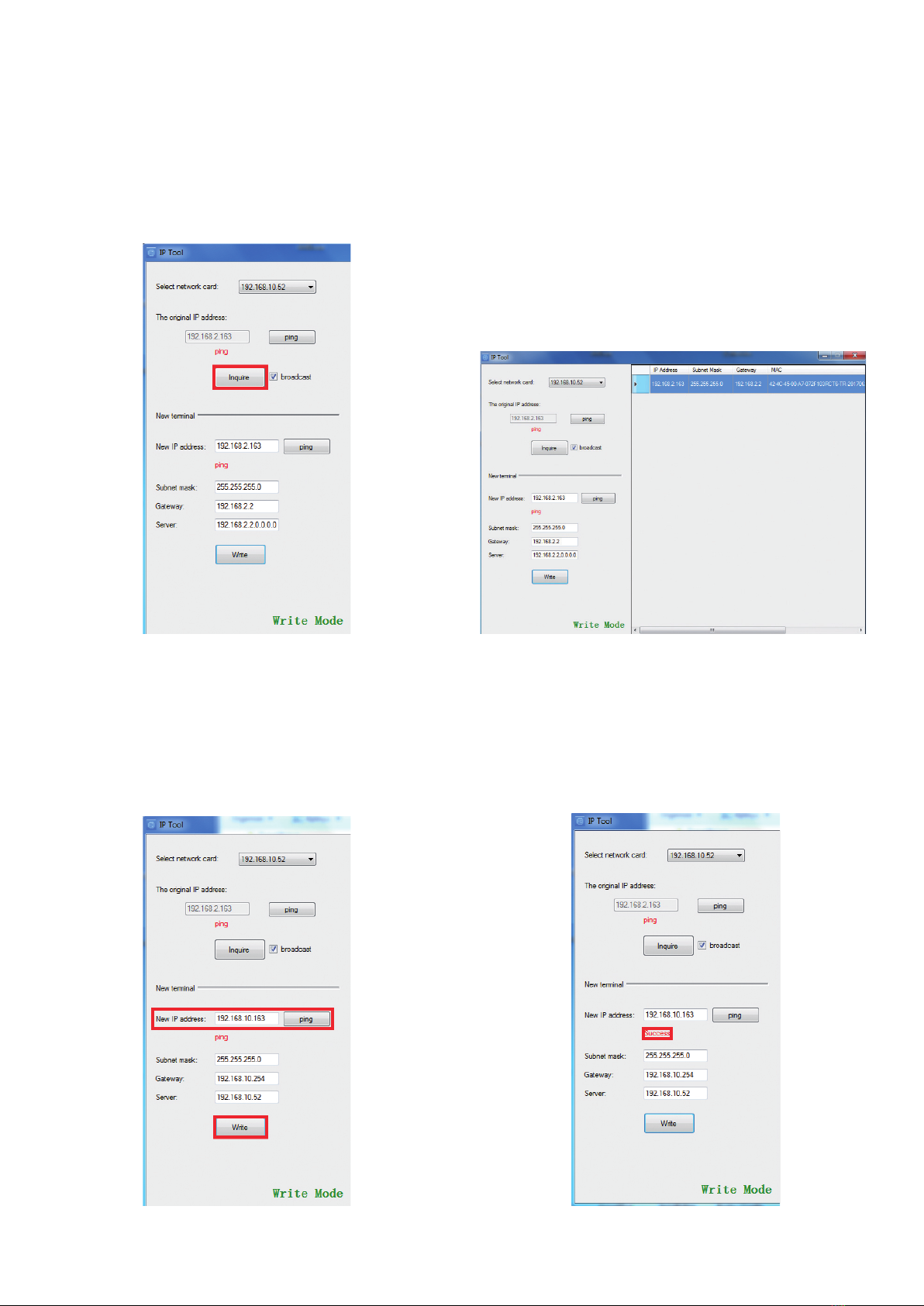

The next step is to open the software “iptool”. The window will open, you will have to press the button
“Inquire” (Figure 1) to display the equipments found by “iptool” (Figure 2).
You will now have to change the IP address of your equipment to match the IP addresses of your
network.
You need to fill every field below “New terminal” (Figure 3). Once all the fields are filled, press the
button “Write” to apply the configuration and check with the button “Ping” to see if it is reachable
(Figure 4). When all your equipments are configured, you can close the software “iptool”.
FIGURE 1 FIGURE 2
FIGURE 3 FIGURE 4

www.gigamedia.net GIGAMEDIA User manual (GGM IPAPxxx)
9
6. SYSTEM WIRING DIAGRAM
VOLUME
OFF
OP EN
CL O S E PLAYSTOP N E XT
PRE VIO U S
ON
OF F
PO WER
VOL
PL A Y
MS G
MI C
in
P L AY
S IR E N
RE C i n
ON
OF F
S TAN D B Y
PL AYAL A R M M O D E RE C OR D
S T O PS TART
ON
OF F
POWE R
CL IP
TEM P
VOLU M E
PR OT
5
0
1
2
3
4 6
7
8
9
10
S IG N A L
speaker
speaker
Three-wire tone control
CD/MP3 player
Alarming signal generator
Power amplifier
Ethernet/switch

www.gigamedia.netGIGAMEDIA User manual (GGM IPAPxxx) 10
VOLUME
OFF
DC power
OP EN
CL O S E PLA Y STO P N EX TPR EVIO U S
ON
OF F
PO WER
VOL
PL AY MS G
MI C in
P L A Y
S IR E N
REC i n
ON
OF F
S TAN D B Y
PL AYAL A R M M O D E REC OR D
S T O PS TART
ON
OF F
POWE R
CL IP
TEM P
VOL UM E
PR OT
5
0
1
2
3
4 6
7
8
9
10
S IG N A L
Speaker
Speaker
Three-wire
tone control
Ethernet/switch
CD/MP3 player
Alarming signal generator
Power amplifier

www.gigamedia.net GIGAMEDIA User manual (GGM IPAPxxx)
11
7. SPECIFICATIONS
Model GGM IPAP1120 GGM IPAP1240 GGM IPAP1350 GGM IPAP1500
Network interface RJ45
Transmission speed 100Mbps
Supportive protocol TCP/IP, UDP, IGMP (Multicast)
Audio format MP3/ MP2
Audio mode 16 bit CD quality
Sampling rate 8k ~ 48kHz
Bit rate 8k ~ 512 kbps
EMC input sensitivity 775mV (unbalance)
AUX input sensitivity 350mV (unbalance)
MIC input sensitivity 5mV (unbalance)
AUX output amplitude 1000mV, 2 RCA output
AUX output impedance 470Ω
Treble adjustment range ±10.5dB
Bass adjustment range ±10.5dB
Rated power 120W 240W 350W 500W
Power consumption 180W 370W 540W 750W
Standby power consumption < 3W
Frequency response 80Hz ~ 16kHz (-3dB, 0dB)
THD THD ≤ 1%
SNR ≥ 65dB
Speaker output 70V, 100V & 4-16 Ω
Protection DC output, High temp, overload and short-circuit
Operation temperature 5°C ~ 40°C
Operation humidity 20% ~ 80% relative humidity without moisture condensation
Power supply AC ~ 230V / 50Hz
Size 484 x 303 x 88 mm 484 x 359 x 132 mm 484 x 359 x 132 mm 484 x 359 x 132 mm
Net weight 9.7kg 13.7kg 15.5kg 18kg
