Gilis Bebe Stars BOOSTER PLUS ISOFIX User manual

STANDARDS ECE R44/04
BOOSTER PLUS ISOFIX
group 3 22-36KG

IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY
BEFORE USE AND KEEP FOR FUTURE REFERENCE.
If these instrucons are not followed, the safety
of a child may be severely endangered.
1.NOTICE
CHILD SAFETY SEAT WITH ISOFIT (Group 3)
This child restraint is classified for (“semi-universal)” use and is suitable
for fixing into the seat posions of the following cars:
INSTRUCTION
Seat posions in other cars may also be suitable to accept this child restraint.
Please refer to the informaon documents or the retailer's website for the
suitable car model list. If in doubt, consult either the child restraint manufacturer
or the retailer any me.

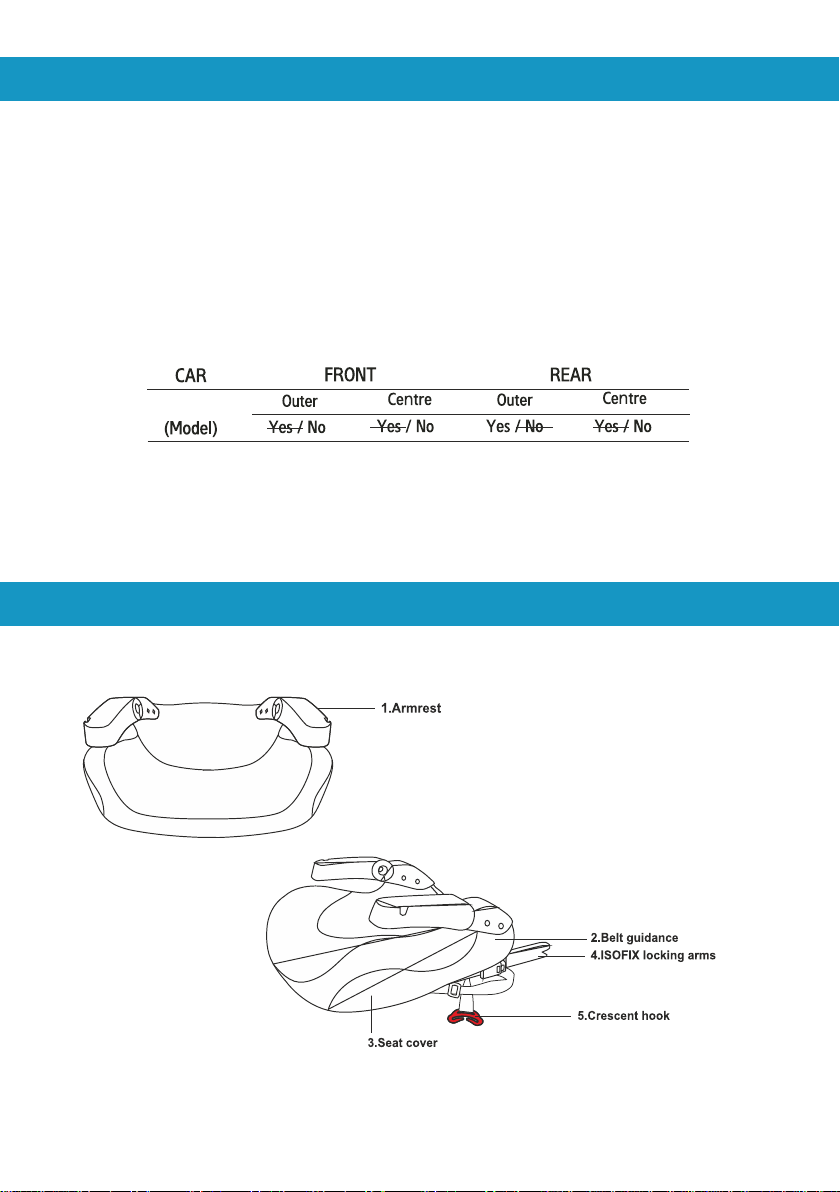

Know my car seat

IMPORTANT ! Please carefully read and make sure you understand all instru-
cons in this manual and in the vehicle owner's manual related to child safety
seats. Install and use the child safety seat as described in the instrucon manual.
Failure to do this could result in serious injury or death of your child. Keep the
instrucons together with the child restraint for future reference.
IMPORTANT ! Because of potenal medical issues inherent to low birth weight
and premature infants, always have a trained professional doctor or hospital
staff member assess the suitability of the child restraint prior to leaving the
hospital or using the child restraint.
DO NOT modify or aempt to modify the child safety seat in any way.
DO NOT take apart or aempt to take apart this child safety seat except as
instructed in this manual.
DO NOT use a child safety seat with damaged or missing parts.
DO NOT use damaged or frayed harness straps or vehicle belt.
NEVER use this child safety seat without the car seat cover.
DO NOT replace the child seat cover or harness with any other than the ones we
recommend as these parts are integral to the child safety seat's performance.
NEVER use this child restraint with any other base except ones that the
manufacturer permits.
DO NOT use a child safety seat that has been in a crash. A crash can cause
damage to the child safety seat that you cannot see.
NO NOT use a second-hand child seat or child seat whose history you do not
know.
ALWAYS check the ghtness of the restraint and the harness before each use.
ALWAYS make sure no vehicle belts or harness straps are twisted before each
use.
NEVER leave the child in the seat when the harness straps are loose or undone.
NEVER leave your child unaended even for a short me.
DO NOT leave your child in this restraint for an extended period of me.
Instruction
ENEN

DO NOT use on vehicle seats that face the sides or rear of the vehicle.
Use the child safety seat only on forward-facing vehicle seats. According
to accident stascs, children are safer when properly restrained in rear
seats than in front seats.
DO NOT use in any configuraon not shown in the instrucons.
NEVER use this child safety seat with 2-point vehicle belts.
DO NOT use alternave roungs not shown in these instrucons.
MAKE sure that the child safety seat does not become trapped by a folding or
moveable passenger seat or in the door of your car.
MAKE sure all folding passenger seats are properly latched.
ALL occupants of the vehicle should be correctly restrained. Unrestrained
passengers may be thrown against other passengers and cause serious injury or
death in a crash.
DO NOT allow children to play with or adjust the child safety seat.
NEVER take a child out of the child safety seat when the vehicle is moving.
HOT! Cover the child safety seat when le in direct sunlight. Parts of a child
safety seat may become too hot for the child's skin. Always check surfaces
before placing a child in the seat. Seat cover may fade in direct sunlight.
MAKE SURE the lap strap of the harness is worn low down, so that the
infant pelvis is firmly engaged.
When the front seat with opened airbag,
cannot install in this place
Only with 3-point seat belt and ISOFIX
attachments can install in this place.
Instruction
ENENEN

4. APPROVAL
Child Safety Seat
Tested and certified according to ECE*R 44/04
Group Body weight 22-36kg
951 Booster Plus Isofix
22 to 36kg
The child safety seat has been designed, tested and certified
according to the requirements of the European Standard for
Child Safety Equipment (ECE R 44/04). The test mark E (in a circle)
and the certification number are located on the orange certification
sticker (sticker on the child safety seat).
-This certification will be invalidated if you make any modifications
to the child safety seat.
-The 951 Booster Plus Isofix child safety seat must only be used to secure
your child in the vehicle. It must never be used as a seat or toy in the home.
Risk of injury due to unauthorized modifications!
Unauthorized technical modifications may reduce or entirely void
the seat's protective properties.
-Do not make any technical modifications to the child seat.
-Use the child seat only as described in these user instructions.
The 951 Booster Plus Isofix offers a variety of mounting options, the following
table indicated the types of installation for the respective groups:
22-36kg 3-point belt
+ ISOFIX
3-point belt
Vehicle belt 6.1
Instruction
ENEN

Instruction
5. SAFETY SEAT USE METHOD
5.1 Removing the fabric cover
Take off the cover from the booster base directly.
Adjust the armrest
1. Raise the armrest at 90 degree angle
2. Place the baby in the seat
3. Put the armrest flat
ENENEN
1
2
3
6. Installation
6.1 Booster Plus Isofix Group 2,3 (22-36 kg)
Installed in the forward facing position with ISOFIX and vehicle seat belt
1. Use the child safety seat only on forward facing vehicle seats. According to
accident statistics, children are safer when properly restrained in rear seats than
in front seats.
2. NEVER use this child safety seat with 2-point vehicle belts

3. Installed in Car with ISOFIX
Grasp the child seat with both hands and slide the two locking arms firmly into the insert
guides until the locking arms engage with a clicking noise on both sides, the green safety
button must now be visible on both sides. Try your best to push the booster, and it will be
tighter.
Instruction
ENEN
4 Pull out the vehicle seat belt and guide it in front of your child to the vehicle
seat buckle, place the vehicle belt under the armrest and into the light red belt
guides with a clicking noise.
Adjust the height of the belt through plastic buckle so that the height of the
crescent is suitable for children's shoulder height. Use the shoulder strap of
your car seat belt like the red crescent hook.
NOTE: It should be fully stuck) to ensure that the seat belt is not twisted.

5. Check the length of the vehicle belt.
The vehicle belt must be through the child's shoulder and hip. (Red part)
Instruction
ENENEN

For the safety of your child, before every journey in the car check that:
- The child safety seat is securely fastened.
- The lap belt section runs through the light red belt guides on both sides of the
seat cushion.
- The diagonal seatbelt section also runs through the red instruction guide.
- The diagonal seatbelt section runs diagonally backward.
CAUTION! If your child attempts to open the safety buttons, make sure you stop
at the earliest opportunity. Check that the child safety seat is correctly attached
and make sure that your child is properly secured. Teach your child about dangers
involved.
Instruction
Warranty
The warranty period starts from the date of purchase and is valid for a period of
24 months. The warranty is only applicable to material and producon defects.
The date of purchase can only be proven with the original sales receipt. This
warranty is only applicable to the original owner and is not transferable. The
warranty is only applicable to products that have not been adapted by the user.
In the case of any defects, the owner is required to return the product to the
retailer. The manufacturer is not liable for any damages other than those to
products supplied or manufactured by BEBESTARS.
ENEN

Care and Maintenance
Periodically inspect your child seat for worn or damaged parts. If damaged parts
are found, replace the child seat. Keep the child seat clean. Do no lubricate any
parts of the child seat.
To prolong the life of your nursery product, keep it clean and do not leave it in
direct sunlight for extended period of me. Removable fabric covers and trims
may be cleaned using warm water with a household soap or a mild detergent.
Allow it to dry fully, preferably away from direct sunlight.
Storage
Store in a safe. dry place and away from heat and direct sunlight.
Avoid placing heavy objects on top of the seat
Main technical parameters
Length: 440mm
Width: 450mm
Height: 200mm
