USER MANUAL
用戶手冊
PC900BTNL

2

3
Dear Customer
Thank you for buying our range hood. Please read the user manual
carefully and store in a handy place for later reference.
This hood is designed for install on walls.
Read the following carefully to avoid damage or injury.
SAFETY AND WARNINGS
●Where applicable, this appliance is supplied with fixings. Please
ensure you use the correct fixings suitable for the substrate where
the appliance will be installed and that they are able to support
the weight of the appliance.
●Before connecting the hood, check that the supplied voltage and
frequency match with that indicated on the appliance rating plate.
If in doubt, ask for advice instore or from a qualified installer..
●If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a safety hazard.
●Use only the same size of fittings and mounting screws as
recommended in this instruction manual. Failure to follow these
instructions may result in electrical hazards.
●Means for full disconnection must be incorporated in the fixed
wiring in accordance with the local wiring installation rules for
your country. An all-pole disconnection switch having a contact
separation of at least 3mm in all poles should be connected
during installation.
●When the cooker hood is located above an appliance, the
minimum distance between the supporting surface for the cooking
vessels on the hob and the lowest part of the hood shall be at
least 660mm.
●Consult local regulations regarding extraction outlets and ensure
these are complied with. Do not connect the hood to a ventilation
EN

4
or hot air duct containing combustion fumes from burning gas or
other fuels. Confirm that room ventilation is appropriate with the
local authorities.
●The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other fuels
●The hood may stop working during an electrostatic discharge
(e.g. lightning). This involves no risk of damage. Switch off the
electricity supply to the hood and reconnect after one minute.
●This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
●This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
●Children should be supervised to ensure that they do not play
with the appliance.
●Do not install the appliance outdoors in a damp place or in an
area which may be prone to water leaks such as under or near a
sink unit. In the event of a water leak affecting the appliance, do
not use and contact customer services to arrange for inspection.
Do not use flammable sprays in close vicinity to the appliance.●
●Please dispose of the packing material carefully. There is a
fire risk if cleaning is not carried out in accordance with the
instructions. Refer to the Care and Maintenance sections carefully
for details on how to clean and replace the aluminium and carbon
filters (if fitted).
●Refer to the Care and Maintenance section for details on the type
of lamps that can be used and how to replace them.
●Do not use a steam cleaner for care and maintenance.
●The appliance is not intended to be operated by means of an

5
external timer or separate remote control system.
●There shall be adequate ventilation of the room when the hood is
used at the same time as appliances burning gas or other fuels.
Ensure that the negative pressure of the installation site does not
exceed 4 Pa (0.04 mbar) to ensure combustion fumes are not
drawn back into the room.
●Do not use the hood if it shows signs of damage or imperfection.
Contact customer services for assistance.
Switch off the appliance at the mains supply before carrying out●
any maintenance work or cleaning.
●CAUTION: Accessible parts may become hot when used with
cooking appliances.
●Do not flambe under the hood. To avoid the risk of fire, clean
or replace the grease filter regularly and closely monitor pans
containing hot oil.
●The manufacturer declines all liability for personal or material
damage as a result of misuse or incorrect installation of this
appliance.
●The appliance is for domestic use only as an extractor hood.
INSTALLATION INSTRUCTIONS
All installation must be carried out by a competent person or
qualified electrician. Before connecting the mains supply ensure that
the mains voltage corresponds to the voltage on the rating plate.
The appliance must be connected directly to the mains using an
omnipolar circuit breaker with a minimum opening of 3mm between
the contacts.
The installer must ensure that the correct electrical connection has
been made and that it complies with the wiring diagram.
Regularly check the power plug and power cord for damage. If the
supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
WARNING: This is a Class II appliance and MUST NOT be
earthed.

6

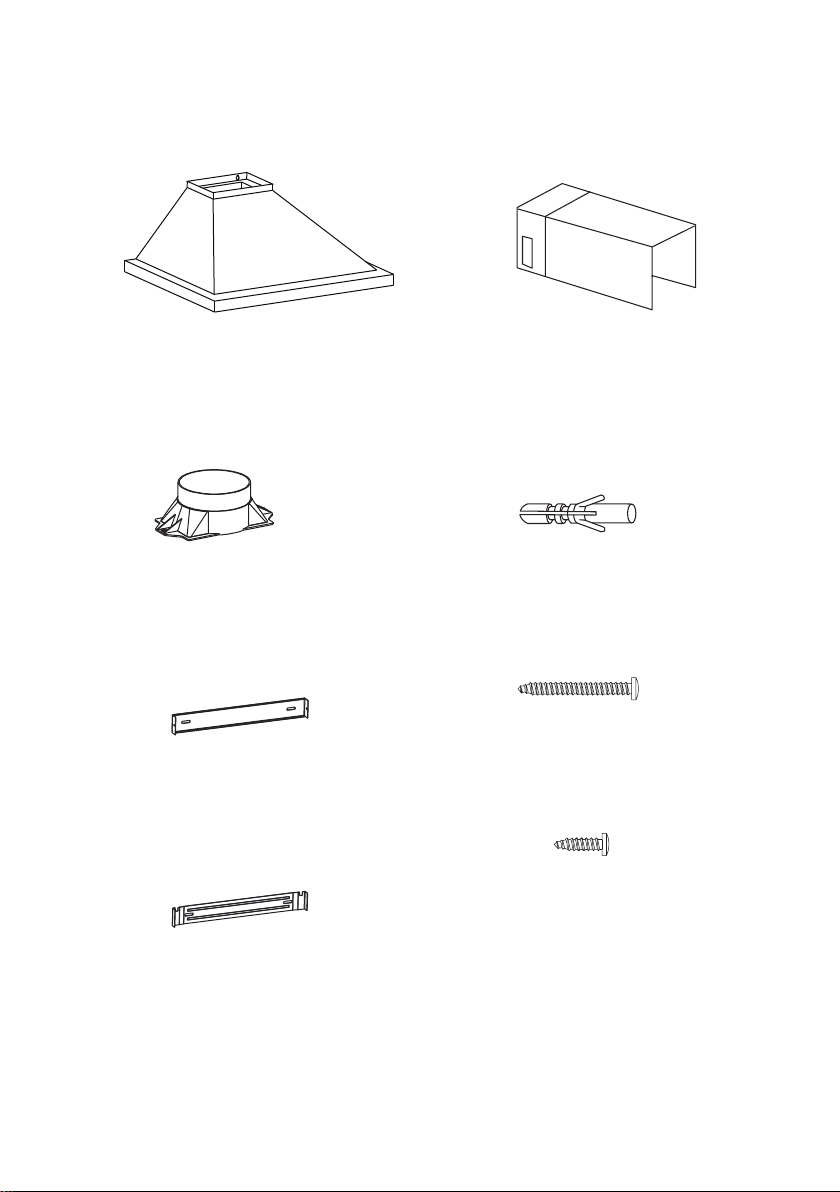

Contents of packaging
Rangehood
(1)
Ø120mm
Ducting adapter
(1)
Chimney (Upper+lower)
(1)
Upper chimney bracket
(1)
Chimney bracket
(1)
Ø6 x 30mm
Expansion plug
(8)
ST3.9 x 32mm
Screws
(8)
ST3.9 x 13mm
Screws
(4)

7
INSTALLATION

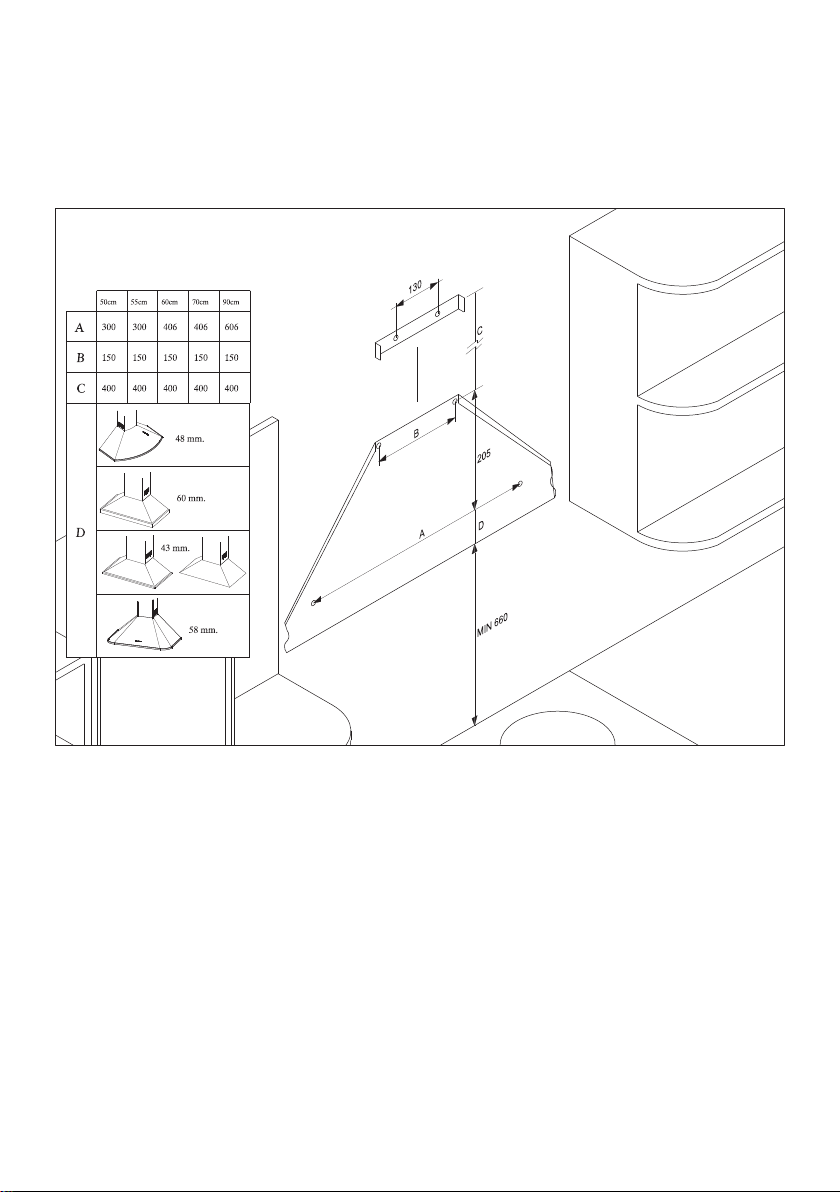

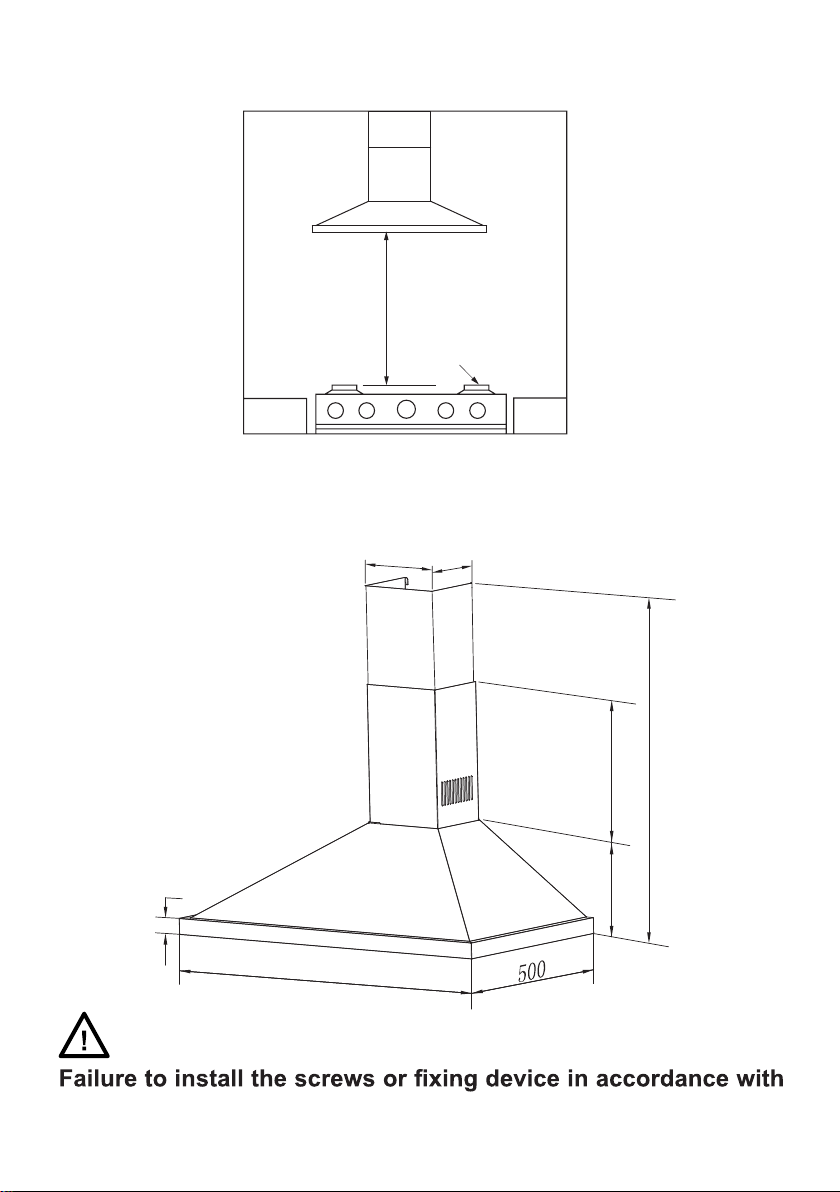

Positioning
660mm
top of cooking
surface
Fixing dimensions
WARNING!
these instructions may result in electrical hazards.
222
167
23
600/700/900
235
450
Min. 725 \ Max. 1025

8

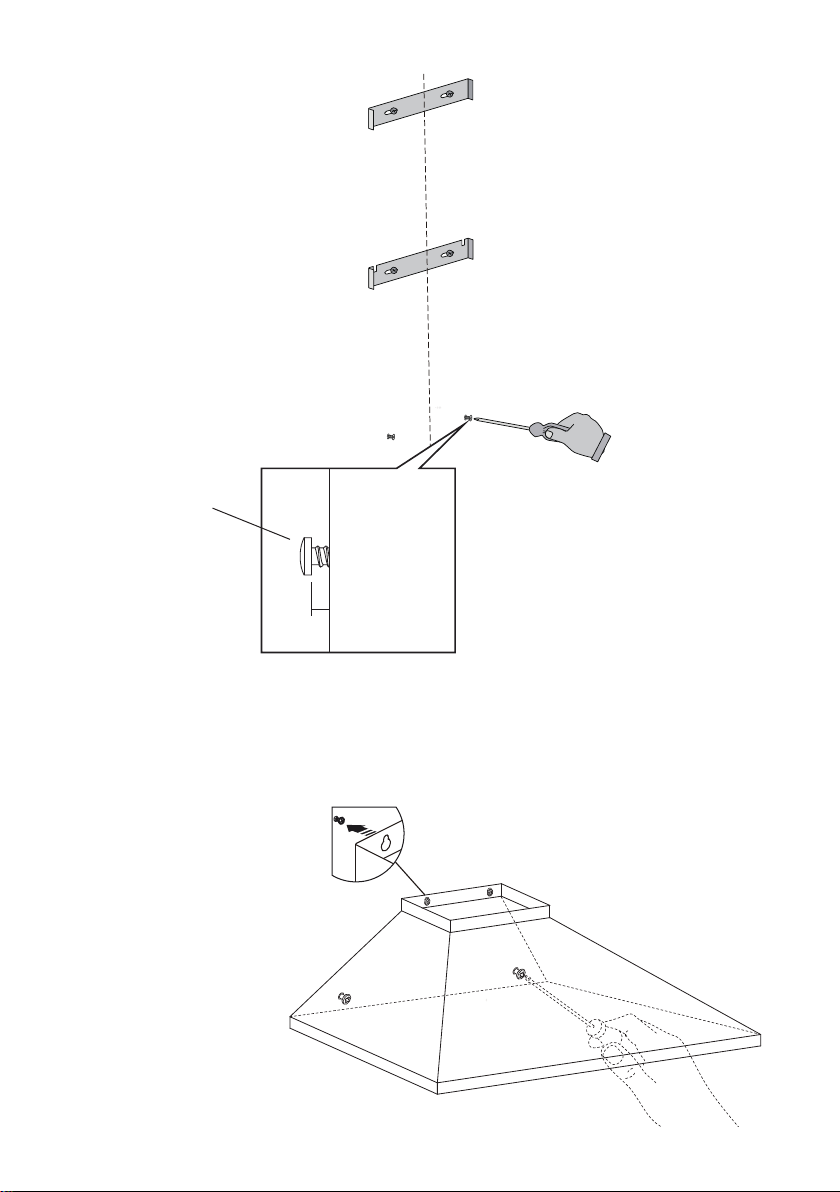

●Mark the location for flue cover wall mounting brackets, rangehood
mounting points and anti-tilt fixing points above the rangehood
using the base as the reference point (Fig. 1).
Drilling holes
Fig.1
●Attach the upper hood mounting screws in the locations shown
in Fig.2. Use the ST3.9 x 32 screws and expansion plugs if
attaching to masonry.
Attach chimney brackets and hood mounting screws

9
●Remove the aluminium filters from the rangehood body and hang
it on the ST3.9 x 32mm screws then secure at the anti-tilt locations
as indicated in Fig. 3.
Attached hood on wall
2mm
Fig.2
Fig.3
Screws
ST3.9 x 32mm

10
●Connect Ø120mm ducting adapter to the blower outlet and use
ST3.9 x 13mm screws to fix it to the range hood (Fig. 4).
Connect ducting adapter
Fig.4
●If need exhaust air to the outside.
Connect Ø125 mm flexible duct to
the adapter and fix it (Fig. 5).
Fixing flexible duct
Fig.5
Screws ST3.9 x 13mm
Ø120mm
Ducting adapter

11

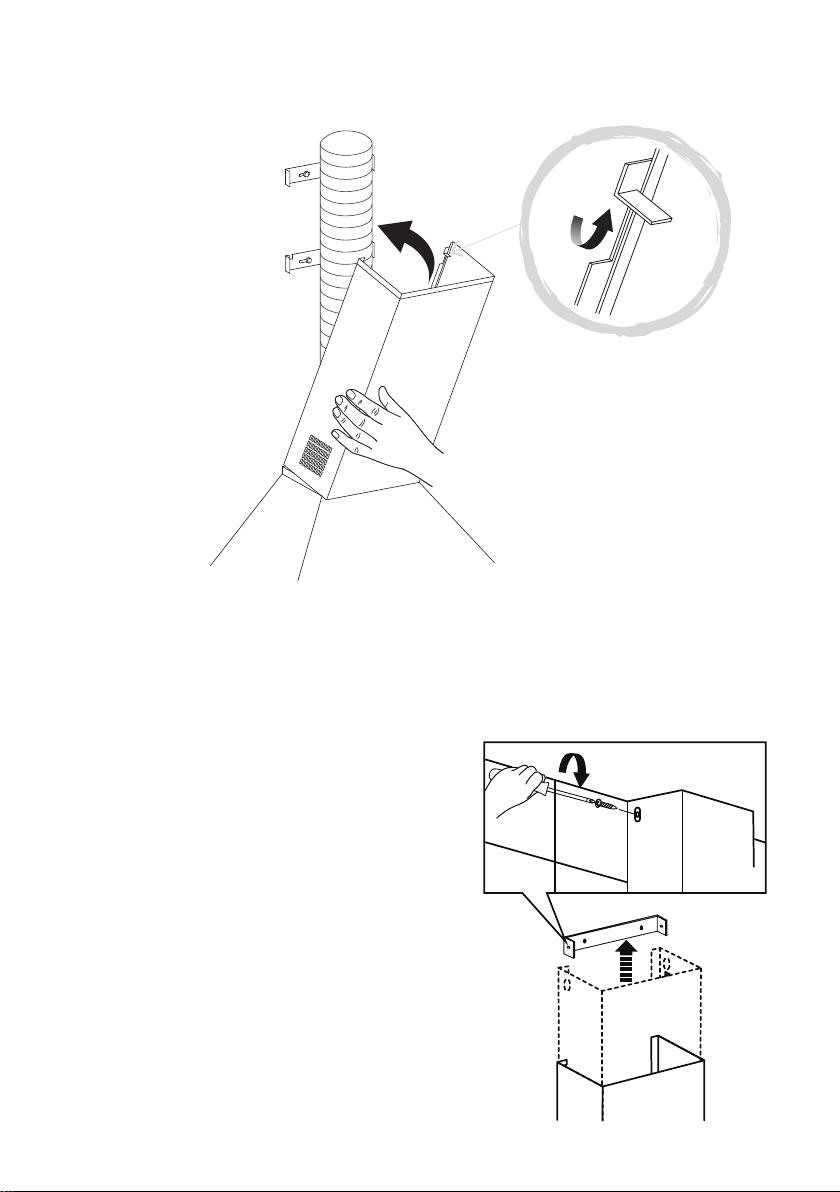

Attach the chimney
●Fix the chimney to the top bracket
using the ST3.9 x 13mm screws. Connect top of
the ducting tube to vent kit as per
manufacturers instructions (Fig. 7).
Connect ducting adapter
Fig.6
Fig.7
●Install back the aluminium filters to
rangehood, and for Stainless Steel
appliance, remove the protection
film from rangehood and chimney.

12
OPERATING INSTRUCTIONS

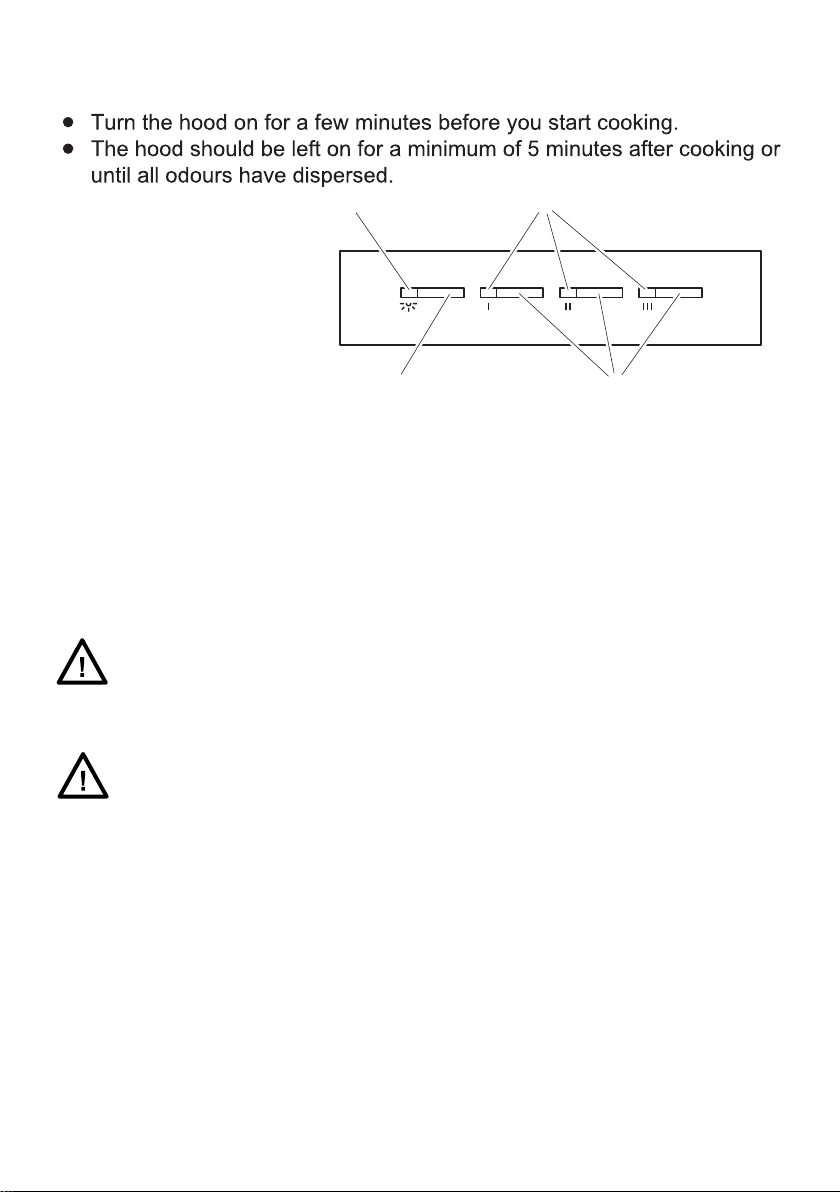

Control panel features
CLEANING AND MAINTENANCE
Warning: always switch off the electricity supply before
carrying out maintenance work on the hood. In the event of a
fault, contact an official distributor or Customer Service.
Exterior Cleaning : Use non-corrosive, liquid detergent and avoid the
use of abrasive cleaning products.
1 – Light switch.
2 – Lighting control lamp.
3 – 3 position switch controls the motor (1st, 2nd, and 3rd speed).
4 – Motor control lamps.
TIMER：To operate the canopy timer, having selected the speed, press
the button for 2 seconds until the luminous LED blinks. The timer will then
work for 15 minutes.
At the end of this time the motor will stop and the light will go out. If it is still
on, and you wish to cancel the timer, press the timer button once and the
motor will stop.

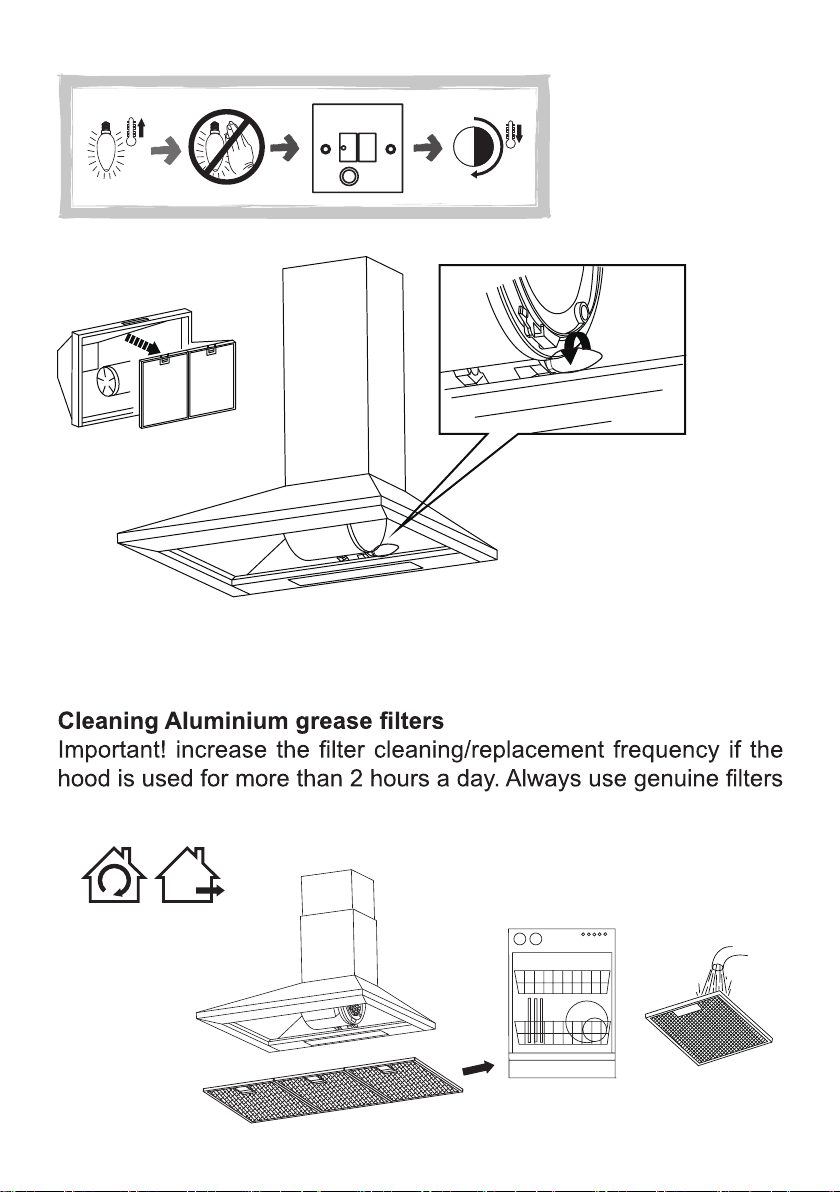

Replacing the lamp
Ensure that the rangehood is unplugged, then slide out the
retractable hood and remove the filters. Turn the lamp anti-clockwise
to remove then replace the lamp by turning it clockwise.
2 4
1 3
Warning:the lighting should notbeused as permanent
light source butonly for cooking.
Note that lamps become hot when in use. Allow the lamps to
cool down for a few minutes before changing them.

13
from the manufacturer.
≤ 65ºC
1 MONTH
OFF FUSE
10’

14

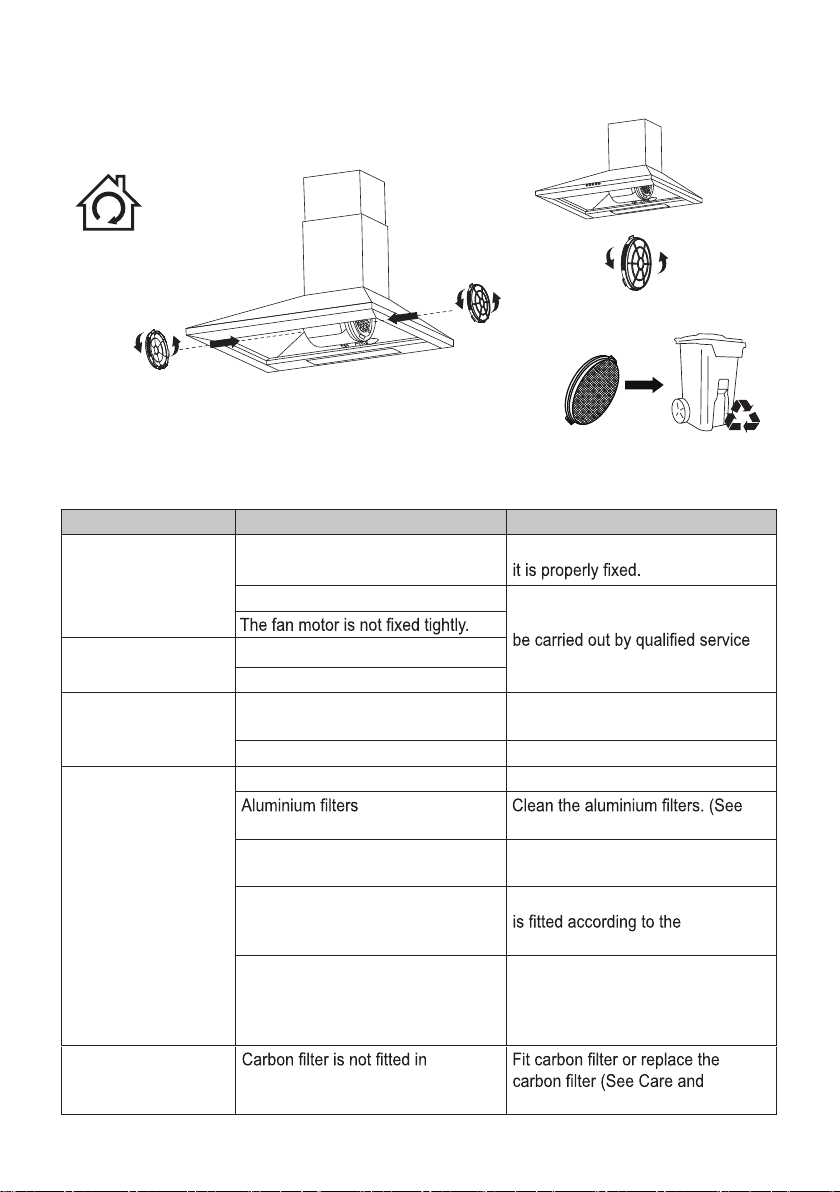

Replace Activated charcoal every 3 months
3 MONTHS
Troubleshooting
Problem Possible cause Solution
Excessive vibration. The appliance is not installed
properly on the brackets.
Take down the appliance and check
The fan blade is damaged.
Switch off the appliance. Repair to
personnel only.
The light is on, but the
fan does not work.
The fan blade is jammed.
The motor is damaged.
Both the light and
motor do not work.
Light bulb blown. Replace with a bulb of the
correct rating.
Power connection loose. Check power supply.
Suction
performance reduced.
Speed may be too low. Select a higher speed.
are dirty. Care and maintenance section).
Top vent might be
obstructed.
Clear any obstruction.
Optional vent kit might be twisted. Ensure that the vent kit
manufacturer’s instructions.
The installation may not comply with
the manufacturers instructions.
The vent hose should be correct
diameter throughout with no
reductions or restriction.(See
installation section).
Works normally but
cooking smells linger. recirculation mode or is full
of grease. maintenance section).
Replacing Activated charcoal filters

15
Recycling & disposal
The symbol on the product or on its packaging indicates
that this product may not be treated as household waste.
Instead it shall be handed over tothe applicable collection
point for the recycling of electrical and electronic
equipment.
By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused
by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service
or the shop where you purchased the product.

16

17
中文
親愛的顧客
感謝閣下購買了飛歌牌抽油煙機。 請仔細閱讀本用戶手冊並妥為保
存，以供日後參閱。
此抽油煙機只適合安裝於牆壁上。
請小心閱讀下列事項以避免損壞或受傷。
安全及注意事項
本機附有原裝材料以供安裝使用。 在任何情況下，必須依照安裝指
示，使用正確的配件安裝，並確保安裝的牆壁或支架有足夠的承托
力。
●
●
●
●
●
●請參考閣下當地有關於油煙排放標準的規定。請勿將抽油煙機與其
他排煙管道、通風管道或熱風管道連接。請向當地權威機構確認室
內通風條件是否適合安裝。
●請勿將排出的油煙接合到氣體或任何煮食爐的排氣管道中。
使用前先校對抽油煙機銘牌的額定電壓與功率相符，選用與插頭相
適配的插座 如適用 。如果有任何疑問，請與合資格的技術人員
查詢。
如果電源線損壞，必須由生產商，其服務代理或專業人士替
換，以避免危險。
安裝時，必須使用與說明書上建議的螺絲及其他固定配件尺碼
相同。如果不按照指示安裝，有機會引致觸電危險。
必須依據本地佈線安裝規則，將完全斷開的方法納入固定佈線。在
安裝過程中，應連接全極斷路開關，而所有極之間的接觸距離至少
為3毫米。
假如本抽油煙機是安裝在煮食爐具上方，請注意抽油煙機的底部
與爐具之間的最少距離必須為660毫米。
抽油煙機可能會在靜電放電時停止運作( 如閃電時) 。這不會造成
抽油煙機的損壞。此時，請把電源關掉，等一分鐘後再重新開啟。

18
切勿使用蒸氣工具清潔本抽油煙機。
本抽油煙機並非配合外置計時器或外置遙控器使用。
請確保當抽油煙機與其他燃氣設備同時在運作時，室內必須有足
夠空氣流通。確保室內家用電器的最大排氣負壓率不超過
，以防止燃燒氣體被回抽到室內。
若發現抽油煙機出現損壞或瑕疵，請勿使用。 應聯絡客戶服務
部，讓合資格技術人員檢查。
在清潔及保養抽油煙機前，請先關上供電電源。
注意事項: 在使用燃氣爐具時，抽油煙機附近的零部件可能會受
熱。
為避免火災危險，請勿在抽油煙機下方直接燒烤食物。 應定期清
洗或更換金屬過濾網。如鍋內正在烹煮熱油，必須緊密關注。
在有人從旁指導，保證其安全使用抽油煙機及明白相關危險的情
況下， 歲或以上的兒童、障礙人士 包括生理、感官、心理
或缺乏知識經驗者均可使用本抽油煙機。 應注意切勿讓兒童玩弄
本抽油煙機。 在沒有人監督下切勿讓兒童進行清潔或日常保養本
抽油煙機。
請勿讓不合適的人士，如障礙人士 包括生理、感官、心理 ，
兒童或缺乏知識經驗者使用。除非有人從旁指導，保證其安全
使用抽油煙機。
應注意照顧兒童，防止兒童玩弄本抽油煙機。
請勿將本抽油機安裝在戶外潮濕的地方或任何接近有洩漏水源的
地方，例如安裝在水槽下方或是附近。如果抽油煙機受到漏水所
影響，立即停止使用。 並即時聯絡客戶服務部安排合資格技術人
員檢驗。
切勿在抽油煙機附近噴灑易燃的物體。
請小心棄掉所有包裝物料，勿讓兒童把玩，免生意外。 請依照
使用手冊定期清潔抽油煙機，以免發生火災危險。請仔細參
閱"日常清潔及保養" 章節關於如何清潔及替換金屬隔油網和炭
濾網 如有安裝 。
請參閲"日常清潔及保養"章節關於照明燈的種類及更換方法。
任何因為不適當或不正確使用本抽油煙機而導致的個人或物料的
損害，生產商將不會承擔責任的。
本抽油煙機是只作一般家庭使用。

19

20
Ø120毫米
(1)
(1)
(1)
(8)
(8)
(4)
Ø6 x 30毫米
ST3.9 x 32毫米
ST3.9 x 13毫米
