glamour TS36 Owner's manual

Read and understand this entire
owner’s manual, including all
safety information, BEFORE
plugging in or using this
product. Failure to do so could
result in re, electric shock, or
serious personal injury.
Keep this owner’s
manual for future
reference. If you sell or
give this product away,
make sure this manual
accompanies this
product.
36” / 42” / 50” / 60” / 72” / 95” Recessed Electric Fireplace
AC110-120V; 60Hz; 1500 Watts
TS36
TS42
TS50
TS60
TS72
TS95
IMPORTANT INSTRUCTIONS
& OPERATING MANUAL
THREE
SIDES
ELECTRIC
FIREPLACE
WARNING
!CAUTION !

2
TS SERIEGLAMOUR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
BOTTOM BOARD
WIRE INCOMING LINE
WIRE
LED BRACKET
LED LOG LIGHT BAR
SHADING BOARD
LED LIGHT BAR
LOG TRAY
HEATER KITS
AIR PASSAGE
LEFT SIDE PANEL
AIR PASSAGE PANEL
FRONT TEMPERED GLASS
FRONT GLASS STOPPER
PS BOARD
SIDE GLASS
BARRIER BAR
FLAME BOARD
SIDE GLASS
LEFT AND RIGHT
BLOCKING STRIPS
RIGHT SIDE PANEL
HANDLE
FLAME MOTOR
FLAME MOTOR BRACKET
BACK COVER
FLAME FLOWER KITS
GLASS BAFFLE
RECEIVER BRACKET
FLAME FLOWER BRACKET
SWITCH PANEL
PCB BOARD
TOP COVER BRACKET
TOP COVER
28
29
30
31
32
1
2
3
4
5
6
7
8 9 10 11
11
11
11
14
13
16 30
12 13 14 15
16
17
18
19
27
26
28
29
21
31
32
25
24
23
22
21
20
18
9
TS SERIEGLAMOUR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
BOTTOM BOARD
WIRE INCOMING LINE
WIRE
LED BRACKET
LED LOG LIGHT BAR
SHADING BOARD
LED LIGHT BAR
LOG TRAY
HEATER KITS
AIR PASSAGE
LEFT SIDE PANEL
AIR PASSAGE PANEL
FRONT TEMPERED GLASS
FRONT GLASS STOPPER
PS BOARD
SIDE GLASS
BARRIER BAR
FLAME BOARD
SIDE GLASS
LEFT AND RIGHT
BLOCKING STRIPS
RIGHT SIDE PANEL
HANDLE
FLAME MOTOR
FLAME MOTOR BRACKET
BACK COVER
FLAME FLOWER KITS
GLASS BAFFLE
RECEIVER BRACKET
FLAME FLOWER BRACKET
SWITCH PANEL
PCB BOARD
TOP COVER BRACKET
TOP COVER
28
29
30
31
32
1
2
3
4
5
6
7
8 9 10 11
11
11
11
14
13
16 30
12 13 14 15
16
17
18
19
27
26
28
29
21
31
32
25
24
23
22
21
20
18
9
TS SERIEGLAMOUR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
BOTTOM BOARD
WIRE INCOMING LINE
WIRE
LED BRACKET
LED LOG LIGHT BAR
SHADING BOARD
LED LIGHT BAR
LOG TRAY
HEATER KITS
AIR PASSAGE
LEFT SIDE PANEL
AIR PASSAGE PANEL
FRONT TEMPERED GLASS
FRONT GLASS STOPPER
PS BOARD
SIDE GLASS
BARRIER BAR
FLAME BOARD
SIDE GLASS
LEFT AND RIGHT
BLOCKING STRIPS
RIGHT SIDE PANEL
HANDLE
FLAME MOTOR
FLAME MOTOR BRACKET
BACK COVER
FLAME FLOWER KITS
GLASS BAFFLE
RECEIVER BRACKET
FLAME FLOWER BRACKET
SWITCH PANEL
PCB BOARD
TOP COVER BRACKET
TOP COVER
28
29
30
31
32
1
2
3
4
5
6
7
8 9 10 11
11
11
11
14
13
16 30
12 13 14 15
16
17
18
19
27
26
28
29
21
31
32
25
24
23
22
21
20
18
9
TS SERIEGLAMOUR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
BOTTOM BOARD
WIRE INCOMING LINE
WIRE
LED BRACKET
LED LOG LIGHT BAR
SHADING BOARD
LED LIGHT BAR
LOG TRAY
HEATER KITS
AIR PASSAGE
LEFT SIDE PANEL
AIR PASSAGE PANEL
FRONT TEMPERED GLASS
FRONT GLASS STOPPER
PS BOARD
SIDE GLASS
BARRIER BAR
FLAME BOARD
SIDE GLASS
LEFT AND RIGHT
BLOCKING STRIPS
RIGHT SIDE PANEL
HANDLE
FLAME MOTOR
FLAME MOTOR BRACKET
BACK COVER
FLAME FLOWER KITS
GLASS BAFFLE
RECEIVER BRACKET
FLAME FLOWER BRACKET
SWITCH PANEL
PCB BOARD
TOP COVER BRACKET
TOP COVER
28
29
30
31
32
1
2
3
4
5
6
7
8 9 10 11
11
11
11
14
13
16 30
12 13 14 15
16
17
18
19
27
26
28
29
21
31
32
25
24
23
22
21
20
18
9
TS SERIES - EXPLODED VIEW

3
IMPORTANT SAFETY INSTRUCTIONS
1) This heater is hot when in use. To avoid burns, DO
NOT let bare skin touch hot surfaces. If provided, use
handles when moving this heater. Keep combustible
materials, such as furniture, pillows, bedding, papers,
clothes, and curtains at least 3feet (0.9m) from the
front of the heater, and keep them away from the
sides and rear.
2) Extreme caution is necessary when any heater is
used by or near children and whenever the heater
is left operating and unattended.
3) DO NOT operate any heater with a damaged cord
or plug or after the heater malfunctions, has been
dropped or damaged in any manner. Discard heater,
or return to authorizedservice facility for examination
and/or repair.
4) DO NOT run power cord under carpeting. DO NOT
cover power cord with throw rugs, runners, or similar
coverings. DO NOT route power cord under furniture or
appliances. Arrange power cord away from trac area,
and where it will not be tripped over.
5) Connect to properly grounded outlets ONLY.
6) DO NOT insert or allow foreign objects to enter any
ventilation or exhaust opening, as this may cause
electric shock or re, or damage the heater.
7) To prevent a possible re, DO NOT block air intakes or
exhaust in any manner. Doing so could cause a re.
DO NOT use on soft surfaces, like a bed, where
openings may become blocked.
8) A heater has hot and arcing or sparking parts inside.
DO NOT use it in areaswhere gasoline, paint, or
ammable liquids are used or stored.
9) Use this heater only as described in this manual. Any
other use not recommended by the manufacturer
may cause re, electric shock, or injury to persons.
10) ALWAYS plug heaters directly into a wall outlet/
receptacle. NEVER use with an extension cord or
relocatable power tap (outlet/powerstrip).
11) DO NOT place the heater near a bed because objects
such as pillows or blankets can fall o the bed and be
ignited by the heater.
12) NEVER use this heater in bathrooms, laundry rooms,
or any other location where the heater could fall into a
bathtub or pool, become damp, or come in contact
with water.
13) AVOID FIRE! Regularly inspect all air vents to make sure
they are free from dust, lint, or other blockage. Unplug
the unit and clean with a vacuum ONLY.
DO NOT rinse or get wet.
14) ALWAYS mount to wall bracket before use. DO NOT set
on the oor, or other surface, to use.
15) NEVER use a wall mount bracket from another
manufacturer.
16) This product is not intended to be a primary heat source.
It is for supplemental heat only.
17) INDOOR use only! NEVER use this heater outdoors!
Doing so may result in electric shock!
18) Risk of electric shock! DO NOT OPEN!
No user-serviceable parts inside!
19) ALWAYS turn this heater o before unplugging it from the
outlet.
20) ALWAYS disconnect this unit from the power supply
before performing any assembly or cleaning, or before
relocating the electric replace.
21) NEVER leave this heater unattended. ALWAYS unplug this
heater when not in use.
22) ALWAYS store this heater in a dry location. NEVER use
the replace if it has become wet.
23) NEVER plug this heater into an outlet that is old,
cracked, or has any loose wires or connections.
Plugging this heater into a faulty outlet could result in
electric arcing within the outlet that could cause the
outlet to overheat or catch re.
24) ALWAYS check your heater cord and plug connections
with each use!
i) MAKE SURE the plug ts tight in the outlet!
Faulty wall outlet connections or loose plugs can cause
the outlet to overheat.
ii) If the outlet or face plate is HOT, discontinue use
immediately and have a qualied electrician inspect
and/or replace the faulty outlets.

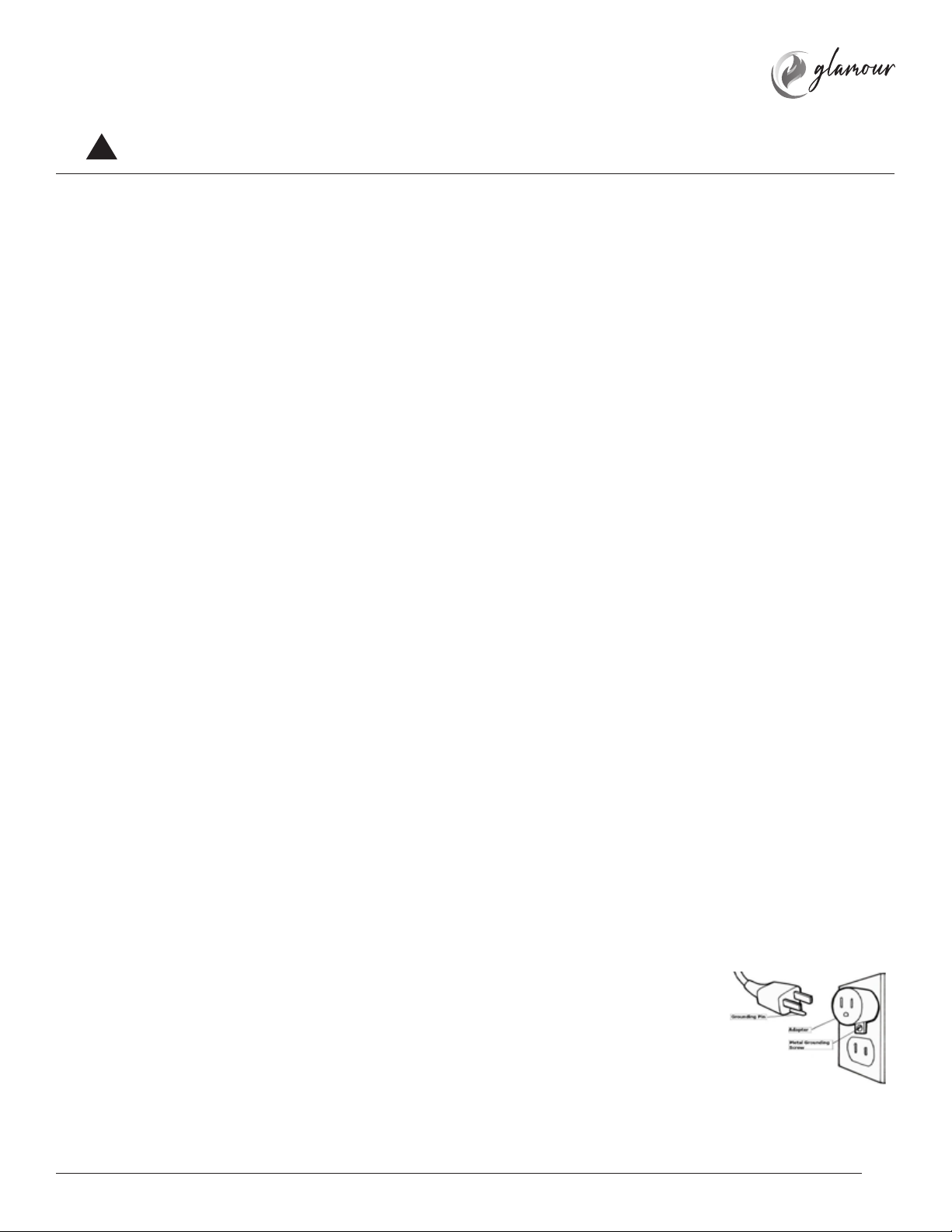

25) The power cord supplied with
the heater has three prongs:
two at blades (live and neutral)
and one round pin (ground). If a
3-slot receptacle is not available, an
adapter MUST be used. The adapter MUST
be properly grounded to the outlet box (see gure at
right). [NOTE: Adapter NOT INCLUDED.]
WARNING
!
SAVE THESE INSTRUCTIONS!
READ ALL INSTRUCTIONS BEFORE USING THIS HEATER!

4
Remove all parts and hardware from the carton and place them on a clean,
soft, dry surface. Parts and assembly steps are grouped for wall-hanging or
recessing use. Check the parts list to make sure nothing is missing. Dispose of
packaging materials properly. Please recycle when ever possible.
You will need the following tools (not included): Phillips screwdriver; stud
nder; level; tape measure; electric drill; 1/4” wood drill bit, hammer.
PARTS AND HARDWARE
SPECIFICATION AND DIMENSIONS
FIREPLACE
PLASTIC TRAY
CRYSTALS
REMOTE
CONTROL BATTERY
A B C D E F
mm/in mm/in mm/in mm/in mm/in mm/in
TS36 1014/39.9 680/26.8 320/12.6 922/36.3 400/15.7 140/5.5
TS42 1067/42.0 680/26.8 320/12.6 975/38.3 400/15.7 140/5.5
TS50 1370/53.9 680/26.8 320/12.6 1278/50.3 400/15.7 140/5.5
TS60 1624/63.9 680/26.8 320/12.6 1532/60.3 400/15.7 140/5.5
TS72 1929/75.9 680/26.8 320/12.6 1837/72.3 400/15.7 140/5.5
TS95 2410/94.8 680/26.8 320/12.6 2318/91.3 400/15.7 140/5.5
MODEL
This product includes a GLASS
panel! Always use extreme caution
when handling glass. Failure to do
so could result in personal injury or
property damage.
PREPARATION
WARNING
!

5
W H1 H2 D
mm/in mm/in mm/in mm/in
TS36 1020/39.9 684/26.9 400/15.7 350/13.8
TS42 1090/42.9 684/26.9 400/15.7 350/13.8
TS50 1376/53.9 684/26.9 400/15.7 350/13.8
TS60 1630/63.9 684/26.9 400/15.7 350/13.8
TS72 1935/75.9 684/26.9 400/15.7 350/13.8
TS95 2416/95.1 684/26.9 400/15.7 350/13.8
MODEL
INSTALLATION AND ASSEMBLY
RECESSED TO WALL INSTALLATION
Your appliance is a wall-mounted, recessed and/or
mantel installed appliance. Select a suitable location that
is not susceptible to moisture and is away from drapes,
furniture and high trac areas.
NOTE: Follow all National and local electrical codes.
MINIMUM CLEARANCE TO COMBUSTIBLES
MINIMUM MANTEL CLEARANCES
When using paint or
lacquer to nish the
mantel, the paint or
lacquer mustbe heat
resistant to prevent
discolouration.
WARNING
0’’
(0 mm)
BOTTOM 0’’ To p 0’’ to mantel
SIDES 0’’ To p 0’’ to ceiling
BACK 0’’ - -
MEASUREMENTS ARE TAKEN FROM THE GLASS FRONT
HOLE SIZE
HOLE SIZE
STEP 1
Selection a
dry wall to
open a hole
for replace
box. Size
of hole as
below chart.
STEP 2
Using the screw driver to take
o the screws from the front.
STEP 4 AND 5
Fix the metal brackets to the TOP
of the replace box.
STEP 3
Have two adult people to pull of
the glass panel and take it out.
( B ) (C)
( D ) ( E )
( B ) (C)
( D ) ( E )
( B ) (C)
( D ) ( E )
ST4*8
Screw
ST4*8
Screw
ST4*8
Screw
ST4*8
Screw
GLASS
Plastic Tray
CRYSTALS
( B ) (C)
( D ) ( E )
( B ) (C)
( D ) ( E )

6
The three sided replace
are designed to be built-in
and allow for the nishing
material (drywall, stone,
tile, ect) to be built right
down to the glass edge.
Note: Due to the many
dierent materials used
on dierent walls, it is
highly recommended that
you consult your local
builder before you install
this appliance.
Make an opening for the
replace according to
requested measurement.
The Glamour TS series
replaces come with a left
and right side pannels oering
3 installation options depending
the style that would suit.
The left and right panel are included.
If you need to x the left or right
panel onto the replace, please x
the screws as following drawings.
Insert the replace
into the wall
opening. Plug in
and check if the
replace works.
INSTALLATION
INSTALLATION OPTIONS
OPTION 1
Both left and right sides
open within a constructed
chimney breast
OPTION 2
Both left and right sides
covered and recessed in
the chimney breast
OPTION 3
Only one side covered up
and installed into a corner
section of a room
Left panel view Right panel view Both left panel and right panel view
ST4*8-Screws
ST4*8-Screws
Left fixing plate
Right fixing plate

7
LOG-SET / CRYSTAL EMBER INSTALLATION
OPERATION
A. Glass front must be removed and the appliance must be
mounted in its nal location before the log-set / crystal /
embers are installed.
B. If your replace come with log-set, take the log-set out of
the package and put it to the replace media slot (Figure 1).
C. To switch to Crystals, rstly take the Log-set out of the
replace slot, then Place the plastic tray (J) to the replace
designed place.Then carefully place crystal embers into the
plastic tray as illustrated. Apply an even layer from side to
side (Figure 2, Figure 3). You can also use both log-set and
crystal embers.
NOTE: Please make the installation according to the embers which you bought.
Figure 1
Figure 2 Figure 3. (Crystal medias)
Read and understand this entire owner’s manual, including all safety information, BEFORE plugging
in or using this product. Failure to do so could result in electric shock, re, serious injury, or death.
WARNING
POWER
Plug the power cord into a AC110-120
Volt outlet (see IMPORTANT SAFETY
INFORMATION on page 3). Make
sure the outlet is in good condition
and that the plug is not loose. NEVER
exceed the maximum amperage
for the circuit. DO NOT plug other
appliances into the samecircuit.
METHODS OF OPERATION
This electric replace can be operated by
the CONTROL PANEL/TOUCH PANEL,
or by the battery powered REMOTE
CONTROL. The operation and functions
of the two methods are the same.
Before operating, please review the
IMPORTANT SAFETY INFORMATION
on page 3, and heed all warnings.

8
REMOTE CONTROL OPERATION
POWER ON/OFF
TIMER
FLAME
HEATER
ON: Enables control panel functions and
remote control. Turns on ame eect.
OFF: Disables control panel functions and
remote control. Turns o ame eect.
FLAME button: Makes ame eect dimmer
and brighter.
NOTE: Flame eect stays on until power button
is turned o. Flame eect must be on for
replace to turn on.
HEATER button: Turns heater on and o.
NOTE: The heater only works when the ame eect is on. If the ame eect is o, the heater will not turn on.
NOTE: To prevent overheating, the heater blows cool air for 10 seconds.
TIMER button:
Controls timer settings to turn o replace at
selected time. Settings range from 1 hours to
9 hours.
1. Press once. Indicator light turns on.
Power turns on. All functions enabled.
2. Press again. Flame eect turns o.
Unit goes to standby. All functions turn o.
1. Press once. Flame brightness eect gets
changing.
2. Press again. Until desired setting is reached.
1. Press once. Indicator light turns on.
Timer is set to 1 hours.
2. Press again until desired setting is reached.
Indicator lights show setting.
POWER
TIMER
FLAME
HEATER
BUTTON FUNCTIONICONS ACTION & INDICATION
When the heater is rst turned on, a slight odor may be present. This is normal and should not occur again unless
the heater is not used for a long period oftime.
To improve operation, aim the remote control at the front of the replace. DO NOT press the buttons too quickly.
Give the unit time to respond to eachcommand.
NOTICE
TEMPERATURE LIMITING CONTROL
This heater is equipped with a Temperature Limiting Control.
Should the heater reach an unsafe temperature, the heater
will automatically turn OFF. TO RESET:
1. Unplug the power cord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANEL to OFF.
Wait 5 minutes.
3. Inspect the replace to make sure no vents are blocked,
or clogged with dust or lint. If they are, use a vacuum to
clean the vent areas.
4. With the POWER switch in the OFF position, plug the
power cord back into the outlet.
5. If the problem continues, have your outlet and wiring
inspected by a professional.
REMOTE CONTROL BATTERY INFORMATION
This remote control uses 2 AAA batteries (not included).
NEVER dispose of batteries in re.
Failure to observe this precaution
may result in an explosion. Dispose
of batteries at your local hazardous
material processing center.
!

9
WARNING! NO SERVICING of the
internal or electrical parts should be
performed by the consumer. Do not
service the unit yourself.
!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving
this replace. Failure to do so could result in electric shock, re, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in electric shock, re, or personal injury.
Risk of electric shock! DO NOT OPEN any panels ! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving
this replace. Failure to do so could result in electric shock, re, or personal injury.
WARNING
WARNING
CARE AND MAINTENANCE
METAL:
• Bu using a soft cloth,
slightly dampened with a
citrus oil-based product.
• DO NOT use brass polish
or household cleaners
as these products will
damage the metal trim.
GLASS:
• Use a good quality glass
cleaner sprayed onto
the cloth or towel. Dry
thoroughly with a paper
towel or lint-free cloth.
• NEVER use abrasive
cleansers, liquid sprays,
or any cleaner that could
scratch the surface.
VENTS:
• Use a vacuum or duster
to remove dust and dirt
from the heater and vent
areas.
PLASTIC:
• Wipe gently with a slightly
damp cloth and a mild
solution of dish soap and
warm water.
• NEVER use abrasive
cleansers, liquid sprays,
or any cleaner that could
scratch the surface.
CLEANING
ELECTRICAL AND MOVING PARTS:
• The fan motors are lubricated at the factory and will not
requirelubrication.
• Electrical components are integrated in the replace and
are not serviceable by the consumer.
STORAGE:
Store heater in a clean dry place when not in use.
MAINTENANCE

10
TROUBLESHOOTING
DISCONNECTED THE APPLIANCE COMPLETELYAND LET COOL PRIOR TO ANY SERVICE.
ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE.
WARNING
!
Fireplace has overheated and safety
devise has caused thermal switch to
disconnect or home circuit breaker
has opened.
1. Loose wiring.
2. Flame motor defective.
3. Flame rod out of place
Wiring is loose.
1. Wiring is loose.
2. Ember is in o mode.
1. Low batteries.
2. Not aiming control correctly.
3. Defective remote control and /or sensor.
1. Fireplace is not plugged in to an
electrical outlet.
2. Control failure.
3. Breaker tripped.
1. Thermal switch has been tripped.
2. Wiring is loose.
3. Heater is defective.
Reset switch by turning main power switch o and
waiting 10 minutes then turning it back on or reset
circuit breaker.
1. Inspect wiring for loose connections.
2. Call a qualied service technician to replace ame motor.
3. «Flame Rod» out of place due to rough transit/handling of the product.
This issue can be corrected as simple as removing the glass, ipping
the replace upside down, removing a set of screws that are holding
the bottom frame plate and placing the ame rod back into place.
1. Disconnect from power source and inspect wiring for loose
connections and repair or replace if necessary.
2. Push the ame button to high.
1. Disconnect from power source and inspect wiring for loose
connections and repair or replace if necessary.
2. Push the ember button to high.
1. Replace batteries in remote control.
2. Aim control at sensor located directly behind glass screen in center of
unit just above logs.
3. Replace remote control and/or sensor.
1. Check plug.
2. Call a qualied service technician.
3. Reset breaker.
1. Turn unit o and unplug unit for 10 minutes. Plug back in and turn
unit on. If plug cannot be reached, follow directions for tripped
circuit breaker.
2. Disconnect from power source and inspect wiring for loose
connections and repair or replace if necessary.
3. Replace heater.
Fireplace turns
o and will not
turn on.
Flame is not
moving.
Flame is not
visible.
Log set and/or
is not glowing.
Remote control
does not work.
Fireplace will
not come on
when switch is
ipped to ON.
Heater does not
provide heat
when turned on.
POSSIBLE CAUSE SOLUTIONPROBLEM
CAUTION: To remove the glass, you will notice two screws on front both sides (right and left) of the replace. Once the
screws are removed, slide the glass up and away from the replace. Once the bottom frame plate is removed, you will notice
one ame motor on right side where the rod should be in place with the rubber plugs. Please remember to always have the
unit disconnected prior to any work, always lay glass as well as the unit on a towel or other material not to damageparts/
frame. This entire process should not take longer than 20-30minutes.
!

11
This warrants to the original purchaser that this product is
free from defects in material and workmanship as of the date
of purchase and that it will, under normal use and proper
care, remain so for one year from the date of purchase.
Missing or initially defective parts will be replaced free of
charge during the period of this limited warranty. If parts
are unavailable, comparable replacement of refund will be
given. The original dated sales receipt is required for all
warranty claims. This warranty does not cover damage wich
has occurred during transport from the point of purchase to
the consumer’s home. This warranty does not cover glass,
light bulbs, batteries, transportation, labor, or other issues
not associated with the manufacture of the product.
This product is for residential use only. Any and all
commercial use of this product voids all warranties, and
frees the manufacturer from all liability.
Read and understand all assembly and operating
instructions, and all safety information and warnings,
before use.
The following will void this warranty:
• Damage caused from tampering with, modifying, or altering
the replace insert in any manner;
• Damage due to incorrect assembly, improper care, misuse,
or abuse;
• Damage from being used with the wrong power source;
• Water damage;
• Damage caused from this insert being used outdoors;
• Damage caused from this insert being used for excessive
periods of time;
• Damage caused from this insert being used in a commercial
application;
• Damage from use as a primary heat source;
• Other misuse or abuse not specically listed herein.
This product is not intended to be used as a primary heat
source. It is for supplemental heating purposes only.
MODEL:
Glamour TS36, TS42, TS50, TS60, TS72, TS95
Power supply:
AC110-120V; 60Hz;
Power consumption:
1500W
Protection class:
I
Light bulb:
LED
Please contact your Glamour
authorized dealer for any question
regarding the warranty or situation
requiring after sales service.
LIMITED WARRANTY

THANKS FOR
YOUR PURCHASE!
Thank you
for purchasing
this product!
If you have questions about
assembly or operation of this
product, are missing parts,
or if the product is damaged,
please contact your
Glamour authorized dealer.
IMPORTED BY:
Granby, Québec J2J2P1
TS36
TS42
TS50
TS60
TS72
TS95
THREE
SIDES
ELECTRIC
FIREPLACE
