Glastender CS-42 User manual

Cocktail Station
Assembly Instructions
CS-72-CCW
Server Side
CS-42 CS-72-CCW
Bartender Side
F-750-045 Rev A 01/24/07

AB
C
D
Cocktail Station Components
Assembly Illustration *
ASink, ice, and tubing chase section
BGT-30 Rotary Glasswasher
C End Panel
DEnd Panel
ETrim Rail for Glasswasher
FKick Rail
GTray Shelf
HTubing Chase
IFront Panel - Back side showing
JFront Panel - Front side showing
KEnd Panel Clip
LEnd Panel Clip
MOvershelves
NOvershelf Bracket
OTray Shelf Clip
PTray Shelf Clip
QFaucet
RWet Waste Strainers
H
F
IJ
K
G
L
M
N
E
N
OP
Q
Back side shown with pre-mounted clips
R
FCross Section
Place this side
facing out
Front side shown
View is of Cocktail Station Server Side

*The illustration included in this instruction diagrams the
assembly of the CS-72 Cocktail Station with CCW Rotation
Glasswasher and double overshelves accessory. Assembly
of additional Cocktail Station models is synonymous with
slight variations.
Install 4 legs on ASink, ice and tubing chase section and 4 legs on BGT-30 Rotary
Glasswasher using 1/4-20 leg bolts provided.
Attach ETrim Rail for Glasswasher to A Sink, ice and tubing chase section, using 8-32S/S hex
nut and afxed 8-32x1/2 phillips pan head machine screw into the end of trim rail.
Clip A Sink, ice, and tubing chase section to front edge and ETrim Rail to the side of B GT-30
Rotary Glasswasher.
Utilizing pre-installed LEnd Panel Clip, attach CEnd Panel to back edge of BGT-30 Rotary
Glasswasher.
Utilizing pre-installed KEnd Panel Clip, attach Clip DEnd Panel to edge of ASink, ice, and
tubing chase section.
Attach end of ETrim Rail to C End Panel using afxed screws into CEnd Panel.
Attach ends of FKick Rail to pre-mounted screws on CEnd Panel and DEnd Panel with
screws provided. NOTE: Reference FCross Section illustration for correct placement.
Insert top edge of I Front Panel with front side facing out under ASink, ice, and tubing chase
section until Ipre-mounted clips are able to be placed over the top of F Kick Rail. Lower I
Front Panel until clips engage with FKick Rail. Insert top edge of JFront Panel with front side
facing out under ETrim Rail until Jpre-mounted clips are able to be placed over the top or F
Kick Rail. Lower JFront Panel until clips engage with FKick Rail.
Mount HTubing Chase with included screws into pre-punched holes of ASink, ice, and tubing
chase section.
Attach ends of G Tray Shelf to Oand Ppre-mounted Tray Shelf Clips located on Dand C End
Panels. Screws to mount are afxed in each end of G Tray Shelf.
Use afxed screws to attach NOvershelf Bracket to the top edges of Cand DEnd Panels.
Use afxed screws to attach MOvershelves to NOvershelf Bracket.
Install QFaucet with provided hardware.
Place RWet Waste Strainers in sinks of ASink, ice, and tubing chase section.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Cocktail Station Assembly Instructions
NOTES:
For CW rotation glasswasher, reverse location of A
and B.
Use adjustable feet in legs to level station and glass-
washer to each other.
1.
2.
CS-72-CCW

5400 NORTH MICHIGAN ROAD • SAGINAW, MICHIGAN 48604 • USA
800.748.0423 • 989.752.4275 • FAX [phone] • www.glastender.com

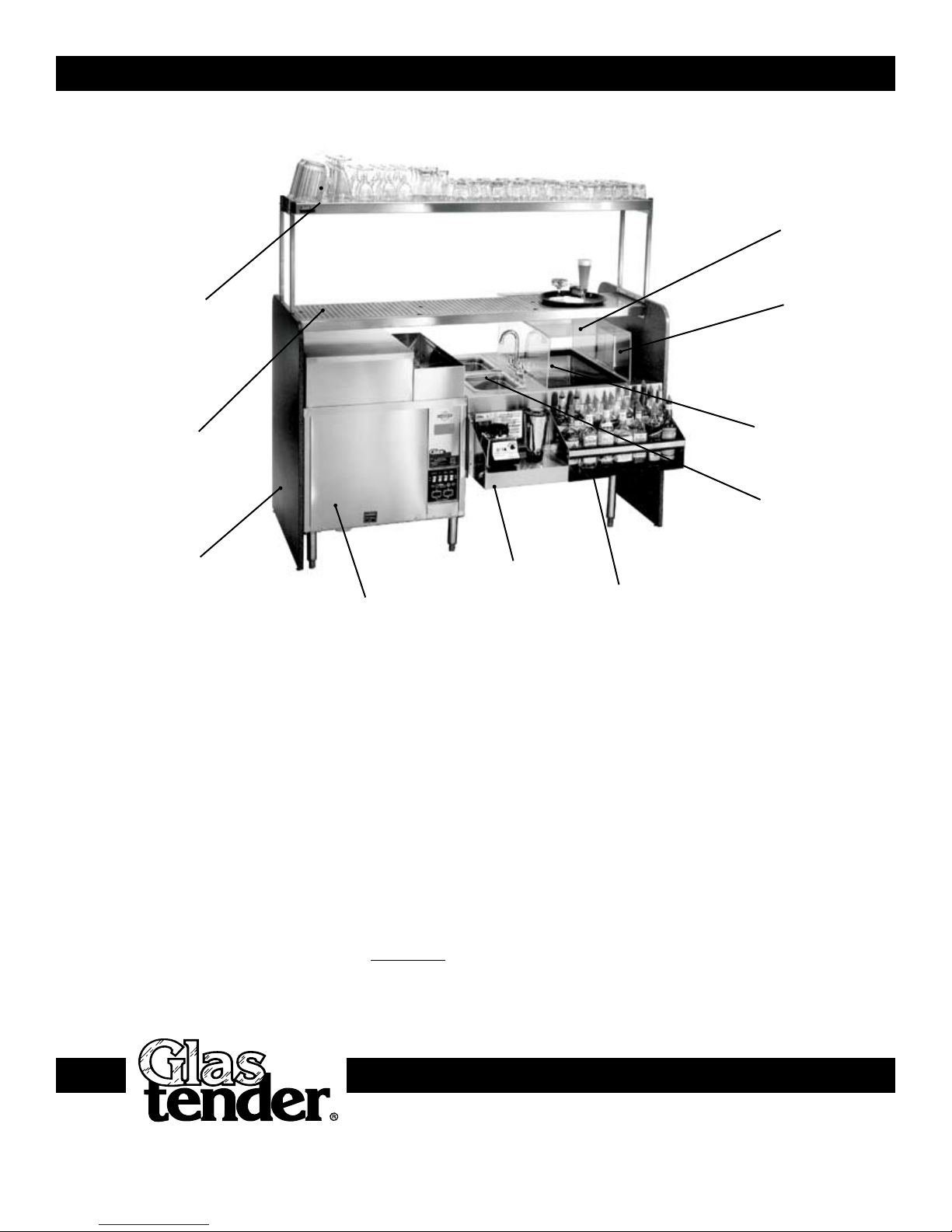

CS-72-CCW with optional SOS/SS-72 single overshelf and SG-30 sneeze guard
Glastender manufactures a large variety of pass-thru cocktail stations. Many of the typical features are
detailed in the example below. Reference our product directory for additional information.
Tubing Chase
Blender Shelf
Automatic Glasswasher
• Available with some models
Laminated (shown)
or stainless front
and end panels
Overshelves (Optional)
• Single (shown)
and double available
Draining Tray Shelf
with perforated inserts
Double Speed Rail
Wet Waste Sinks
with Faucet
and Strainers
Optional
Sneeze Guard
Pass-thru Ice Bin
• Available with
some models
Why does a Cocktail Station have finish panels?
A Cocktail Station actually passes through the bar and is seen
from the customer side. Front and end finish panels are provided
to match the surrounding decor. The end panels are also necessary
to hold up the tray shelf and optional overshelves. Laminated pan-
els are available in any standard manufacturer laminate color.
Please specify the manufacturer, color, and catalog number
when ordering. The finish panels may also be converted to
stainless steel (see cocktail station accessories for conversion
model numbers).
Why are Cocktail Stations offered without panels?
Glastender offers Cocktail Stations without finish panels because
some customers prefer to make their own and we want to offer
them that flexibility. However, the finish panels are required, so
if they are not provided by Glastender, they must be provided by
someone else. The Glastender Specification Guide has drawings
that show the details necessary to fabricate the finish panels.
What is an orientation or rotation specification?
All Cocktail Stations have an orientation or rotation that deter-
mines the work flow. The orientation is dictated by the position of
the glasswasher within the station. Even though assembly style
Cocktail Stations do not have a glasswasher, their orientation
is based on the complete Cocktail Stations from which they
are derived. The orientation and work flow are determined as
follows:
Counterclockwise: The glasswasher is positioned to the bar-
tender’s left. The work flow is right to left.
Clockwise: The glasswasher is positioned to the bartender’s
right. The work flow is left to right.
Promote Team Work, Increase Efciency
