INTRODUCTION

WARNING
• During use the appliance becomes hot. Care should be taken to
avoid touching heating elements.
• The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements. Children
less than 8 years of age shall be kept away unless continuously
supervised. This appliance can be used by children aged from 8
years and above and persons with reduced physical sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning the use of
the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
• Do not use a steam cleaner on any cooking range, hobs and oven
appliances.
• Ensure that the appliance is switched off before replacing the lamp
to avoid electric shock.
• Accessible parts may become hot when the grill is in use. Children
should be kept away.
CAUTION
• The use of a gas cooking appliance results in the production of
heat, moisture and products of combustion in the room in which
it is installed. Ensure that the kitchen is well ventilated especially
when the appliance is in use: keep natural ventilation holes open
or install a mechanical ventilation device (mechanical extractor
hood). Prolonged intensive use of the appliance may call for
additional ventilation, for example opening of a window, or more
effective ventilation, for example increasing the level of mechanical
ventilation where present.
• This appliance is for cooking purposes only. It must not be used for
other purposes, for example room heating.
• The cooking process has to be supervised. A short term cooking
SAFETY

process has to be supervised continuously.
• This appliance must not be installed behind a decorative door in
order to avoid overheating.
• Fire Safety Advice
If you do have a re in the kitchen, don’t take any risks - get everyone out of your home and call the
Fire Brigade.
Ifyouhaveanelectricalreinthekitchen:
• Pull the plug out, or switch off the power at the fuse box - this may be enough to stop the re imme-
diately
• Smother the re with a re blanket, or use a dry powder or carbon dioxide extinguisher
• Remember: never use water on an electrical or cooking oil re.
• Other Safety Advice
• Servicing should be carried out only by authorised personnel.
• Do not operate the appliance without the glass panel correctly tted.
• There is a risk of electric shock, so always make sure you have turned off and unplugged your
appliance before starting. Always allow the product to cool down before you change a bulb.
• Do not modify the outer panels of this appliance in any way.
• This appliance must be earthed.
• The appliance must never be disconnected from the mains supply during use, as this will seriously
affect the safety and performance, particularly in relation to surface temperatures becoming hot and
gas operated parts not working efciently. The cooling fan (if tted) is designed to run on after the
control knob has been switched off.
• GAS WARNING! - If you smell gas: Do not try to light any appliance, Do not touch any electrical
switch. Contact your local gas supplier immediately.

USING YOUR APPLIANCE
Getting to know your product
Note: Your appliance layout may differ depending on the model.
Control Panel

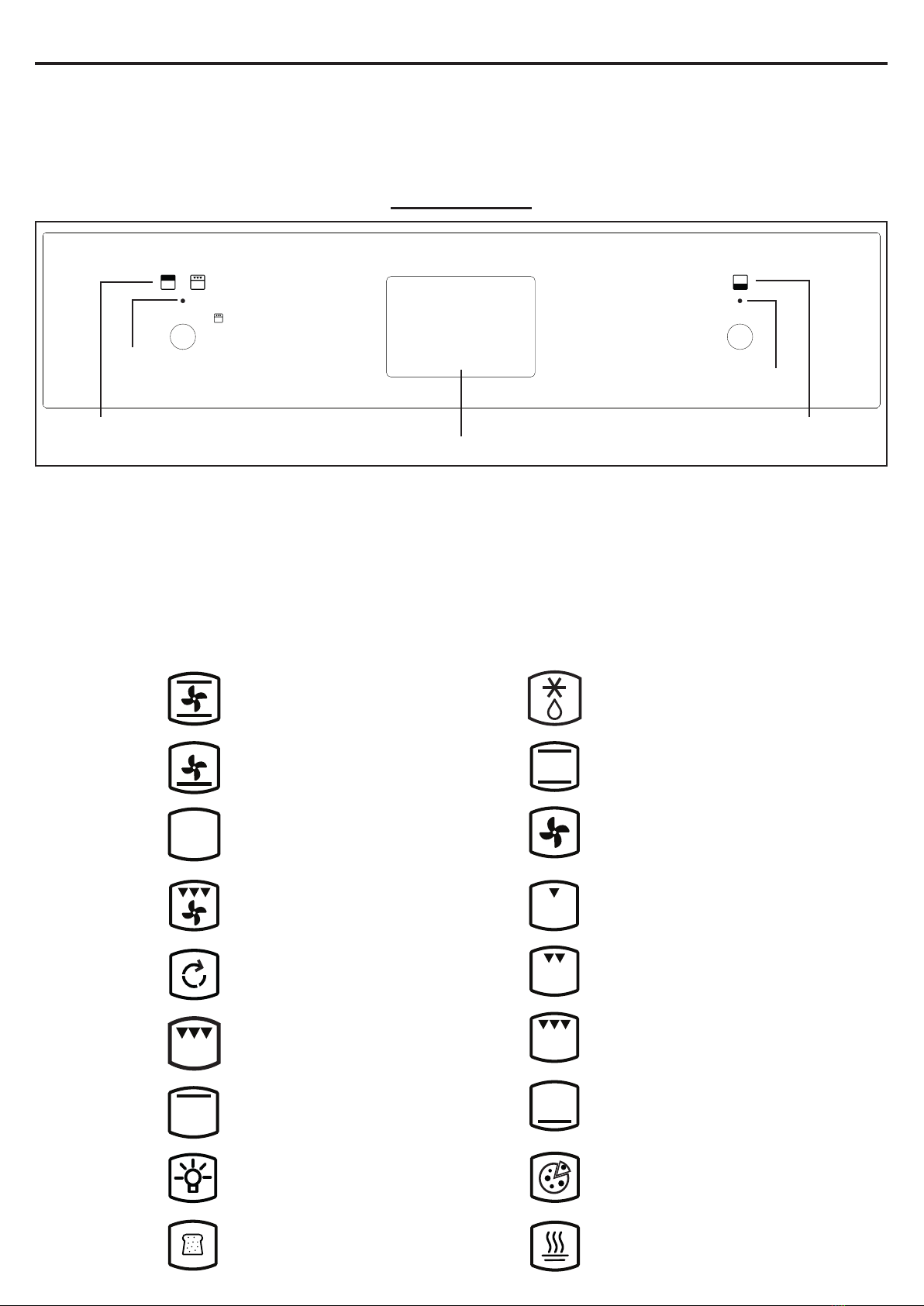

Oven / Grill functions
Note: Your oven may not have all of the functions shown here. We recommend for best cooking results,
please preheat for 15 minutes.
Use Soven setting for slow cooking. Do not try to slow cook using any of the other oven functions.
Defrost
Fanned Oven
Base Heat
Pizza Function
Lights only
Bread Proving Keep Warm
Conventional Grill
Conventional Oven
Oven Selector Control
Base Heat with fan
Intense Baking
Low Grill
Single Grill
Top Heat
Dual Grill
Fanned Grill
SSlow Cook
Off
Main Oven
Clock/Programmer
Top Oven/Grill
Off

Top Oven / Grill Main Oven
Oven/Grill
Someappliancesareautomaticignitionanddonothaveanignitionswitchtted.
Ovens Grill
When using the oven/grill, the red thermostat indicator will come on until the selected temperature is
reached.
When the ovens or grill are switched on, the cooling fan comes on to keep the fascia and control knobs
cool during cooking/grilling. The fan may continue to operate for a period of 10 minutes after the oven
or grill has been switched off.
Important: Never put items directly on the base of the oven, or cover the oven base with foil, as this
may cause the element to overheat. Always position items on the shelf.

Grill
THE DOOR MUST BE OPEN WHEN THE GRILL IS USED FOR CONVENTIONAL GRILLING.

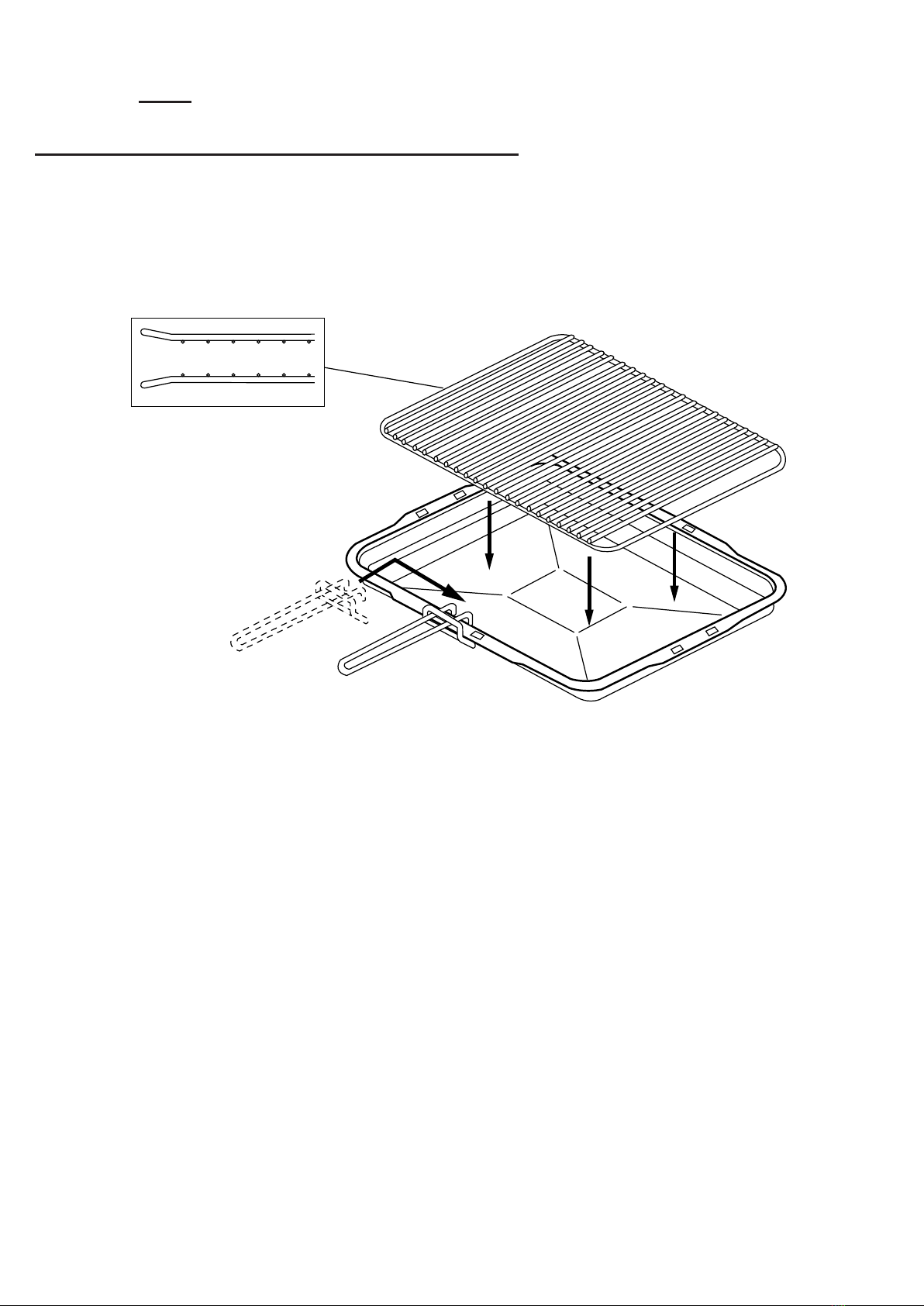

Grill pan, trivet and detachable grill pan handle
The grill trivet, inside the grill pan, can be inverted to give a high or low position, or it may be removed.
The speed of grilling can be controlled by selecting a higher or lower shelf position, or adjusting the grill
setting.
Note: Grill pan handle not included. This can be purchased as an optional extra from our spares store.
Inverted

Please be aware that only the main oven is controlled by the programmer.
Clock / Programmer
Note: Your clock / programmer may not have all these functions
Minute minder
MenuMinus Plus
Cooking time / Duration
End of cooking time
Time of day
Keylock
Auto cooking
Automatic mode
Manual mode
Volume level
7-segment display
Max. adjustable minute minder
Max. adjustable cooking time
Display hours:minutes
Display minutes:seconds
, ,
Using the touch controls
Menu - Scroll through to select a function
Plus - Increase time or volume
Minus - Decrease time or volume
When a function is selected and the time or volume is set, the chosen function will automatically start
seven seconds after setting.
Manual Mode
If the programmer is not in semi-automatic or full-automatic mode you can use oven functions manually.
The manual icon is also on the display.

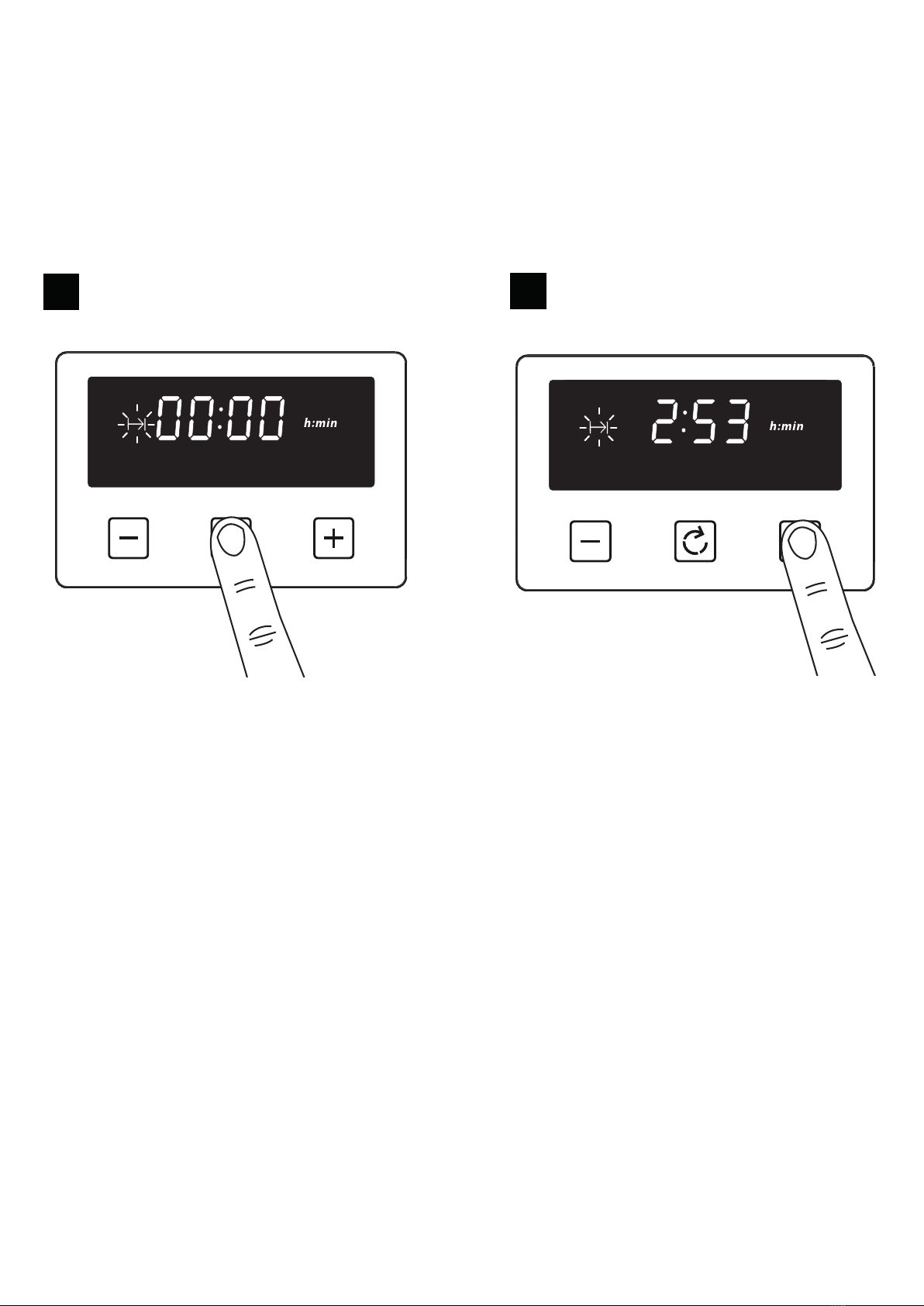

Setting the time of day
By pressing menu, scroll through the functions until you reach ‘time of day’.
1Press the function button until the ‘time of day’
symbol appears
2Press the plus or minus buttons to set a time
Setting the minute minder
The maximum cooking time that can be set is 99 minutes.
1Press the function button until the ‘minute
minder’ symbol appears
2Press the plus or minus buttons to set a time
Once set, the minute minder will start to countdown in steps of seconds. The display will show the
minute minder symbol and the remaining time. The countdown will continue in the background, if other
functions are being set.
When the set time for the minute minder has completed, an alarm is heard and the minute minder
symbol will ash on the display. Press any button to stop the alarm and the time of day is displayed.

To modify or cancel the minute minder
Return to the minute minder function and use either the plus or minus buttons to adjust the time. By
setting the time to ‘0.00’, this will cancel the countdown.
Setting the cooking time (the duration of time the oven will operate for) Semi Auto-
matic cooking
The maximum cooking time that can be set is 23 hours and 59 minutes.
1Press the function button until the ‘cooking
time’ symbol appears
2Press the plus or minus buttons to set a time
Once set, the automatic mode, auto cooking symbol and the time of day is displayed.
When cooking is completed, an alarm is heard and the manual mode symbol ashes on the display.
Press the Menu button to stop the alarm and then the ‘time of day’ will then be displayed. Pressing the
Menu button again will return to manual mode.
To modify or cancel the cooking time
Return to the ‘cooking time’ function and use either the plus or minus buttons to set the time. By setting
the time to ‘0.00’, this will cancel the countdown.

Setting the volume
Press the menu button until “LX” (X = 1, 2 or 3) ashes on the display. Use the plus or minus buttons to
select a tone.
Note: Default tone is L3
Activating / deactivating Key lock
1Press and hold the plus button for 3-5
seconds
2
Once the Key lock is active, the buttons will be inactive. A two beep signal will be heard if the buttons
are pressed.
To deactivate the Key lock
Press and hold the plus button for 3-5 seconds. The Key lock symbol will disappear and the appliance
can continue to be used.
Note: In case of main power loss for a short time (about 1.5 minutes), timer maintains its status.
Key lock status and buzzer tone are memorized independent of the power loss duration.

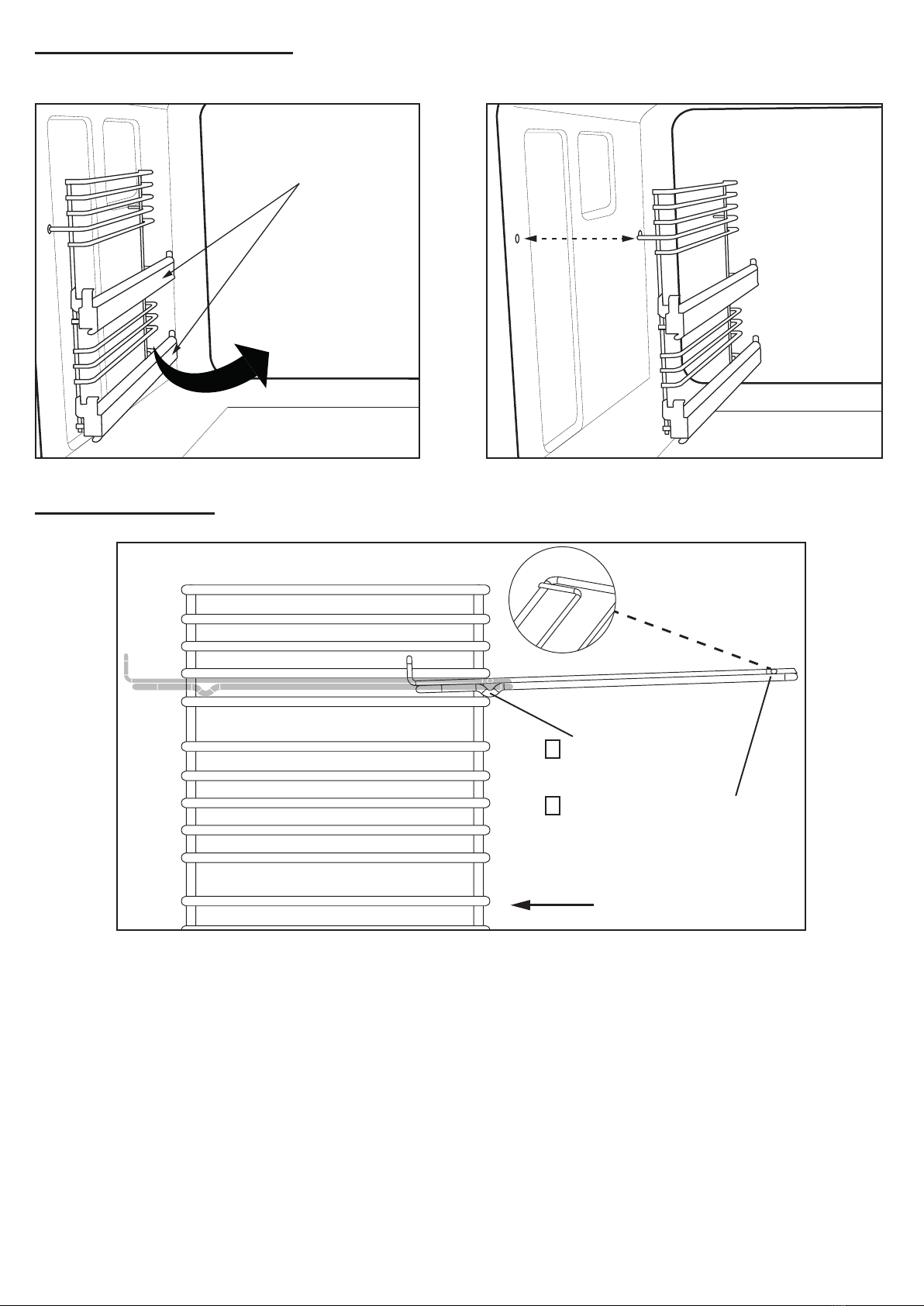

Removing Shelf Runners
Telescopic positions
(if fitted)
Telescopic positions
(if fitted)
Standard shelves
Front of appliance
2
Ensure the shelf is fully pushed
back towards the back of the
oven, until the shelf stopper is
reached.
Slightly raise the shelf and
insert in the chosen shelf
position
1

RemovingTelescopicshelves(iftted)
1
2
Grasp and lift shelf
Lift shelf from the
retaining tabs.
Front of appliance
Before removing the shelves completely, please make sure that the shelf is unclipped from the retaining
tabs.
Changing the light bulb
Not all appliances have the same number and type of bulbs. Before you replace your bulb, check to see
what type you have. Please remember that bulbs are not covered by your warranty.

CLEANING YOUR APPLIANCE
Do’s
Note: Always switch off your appliance and allow it to cool down before you clean any part of it.
Note: Please take extra care when cleaning over the symbols on the control panel, as this can lead to
them fading.
H
Tips: Some foods can mark or damage the metal or paint work e.g.; Vinegar, fruit juices and salt.
Always clean food spillages as soon as possible.
Dont’s
IT IS IMPORTANT TO CLEAN YOUR APPLIANCE REGULARLY AS A BUILD UP OF FAT CAN
AFFECT IT’S PERFORMANCE OR DAMAGE IT AND MAY INVALIDATE YOUR GUARANTEE.
IN ADDITION TO THE ABOVE, DO NOT USE METAL SCRAPERS TO CLEAN THE OVEN DOOR
GLASS.
• Undiluted bleaches
• Chloride products
• Warm, soapy water • Wipe with damp cloth
• Dry with a soft cloth
• Clean, wring out cloth
• Wire Wool
• Abrasive cleaners
• Nylon pads
• Steam cleaners
Do not place in the
dishwasher:
• Cast iron griddle
• Pan supports
We offer a great range of cleaning products and accessories for your appliance.
To shop, please visit our website located at the front of this User Guide.

Burner Nominal rate on (kW) Injector size
Nat Gas LP Gas Nat Gas LP Gas
60
Oven 2.50 2.40 1.15mm 70 AMAL
Grill N/A 2.30 N/A 0.74mm
Total heat input 2.50 2.50 N/A N/A
70 90 Oven & Grill
Oven 2.50 2.40 1.15mm 70 AMAL
Grill 2.25 2.30 1.12mm 0.74mm
Total heat input 4.75 4.80 N/A N/A
70 90 Double oven
Main oven 2.50 N/A 1.15mm N/A
Top oven 1.80 N/A 130 AMAL N/A
Total heat input 4.30 N/A N/A N/A
Gas built in oven
TECHNICAL DATA
Databadge Lower part of the front frame and rear of the appliance
Electric supply 220V - 240V ~ 50Hz 1W - maximum 2660W (if tted with an electric
grill)
Appliance class Class 3 built in oven and grill
Gas category Natural Gas I2H (20) LPG I3+ (28-30/37)
Gas pressure settings G20 Natural gas @ 20 mbar
G31 Propane gas @ 37 mbar
G30 Butane gas @ 28 - 30 mbar
Warning: This cooker must be earthed.
