GLG Creator DLX IP65 RGBWAUV
USER MANUAL
Please read this manual before using.
铝(6063)
FAX：[phone]
TEL：[phone]
General Information
(1) Product statement
First of all thank you for purchasing our GLG lighting product Creator DLX IP65 18*12W 6 in 1
outdoor slim par light, for your safety and better use of this product, please read the user manual
carefully before using, and strictly in accordance with the procedures, so as to avoid personal
safety or damage caused by the misuse of lamps and lanterns.
(2) Product introduction
18*12W RGBAW+UV 6 in 1 led, excellent cooling, great brightness, lower power consumption,
special 42mm lens, flicker free & very soft linear dimmer 0-100%, extremely heavy heat sink, very
strong structure, which has very long life span. 14, 7,8,9,3 channel mode for your optional, auto
run, sound active, DMX 512 & master slave.

GLG Lighting products
www.goedlichtengeluid.nl [email protected] 2
Safety Instructions
(1) Safety instructions
CAUTION!
Be careful with your operations. With a dangerous voltage you can
Suffer a dangerous electric shock when touching the wires!
This device has left our premises in absolutely perfect condition. ln order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
Important:
Damages caused by the disregard of this user manual are not subject to
Warranty. The dealer will not accept liability for any resulting defects or problems.
lf the device has been exposed to drastic temperature fluctuation (e.g. after a delivery),do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
This device is also designed for outdoor use. The fixture must be used in an area with good
ventilation. The fixture can not be used directly into water nor in an area where rain will drop
directly. Also GLG advise for long period use outdoor to protect the fixture with a water protecting
cover.
This device is allowed to be operated with an AC of 100-204V. This device falls under protection-
Class. The power plug must only be plugged into a protection-class l outlet. The Green or
Yellowish-Green conductor must be earthed! The fixture is equipped with special IP65 powercon
and XLR connectors. Connectors for cables are separately available at GLG Lighting.
Always connect the device to the mains least. Always disconnect from the mains, when the device
is not in use or before cleaning it. Never leave the device running unattended! Check the device
and the power cord from time to time. Make sure the power cord is not crimped or damaged by
sharp edges. Never let the power cord come into contact with other cables! Handle the power cord
and all connections with the mains with particular caution!
Do not shake the device. Avoid brute force when installing or operating. Operate the device only
after having familiarized with its functions. Keep away children and amateurs from the device! Do
not permit operation by person not qualified for operating the device. Most damages are the result
of unprofessional operation!

GLG Lighting products
www.goedlichtengeluid.nl [email protected] 3
1.Product features:
* Mast slave.
* DMX 512
* Multi kinds of DMX mode.
* Auto run, master, DMX512, sound active, programming.
* Parameters download between lights.
* 16BIT Gray rate 16BIT
* Fan’s speed automatic adjustable.
* Temperature automatic protection.
* Strobe function.
* Lighting fixture’s running time.
* Positive and negative display.
* Backlight settings.
* Temperature display.
* Software version.
* Dimming liner settings.
* Dimming speed settings.
* Different white with various kinds of color temperature settings.
* Password protection settings.
1.1 DMX 512 controller settings.
1.1-1 DMX512 address choosing without ID address.
* Connect DMX512 controller with each fixture.
* Each fixture has 14 channels, therefore DMX address should gradually increase by value 14,
such as (1, 15 ， 29 ， 43...).
* （ CH14=0 ） If ID address is not setting, the 14 channels cannot be active by the controller .
* Each DMX address can be used multiple times as required.
* Any DMX dress can be used from the range of 001-512.
1.1-1-1DMX location with ID address.
* Each DMX address can be set 66 separate ID address.
ID should be set to the value on each device menus, such as 1, 2, 3 …
* ID address can access via DMX512 console.
2.Operating instruction.
2.1 Key operation.
*MENU: Function key.
*ENTER: Enter key.
*UP: Plus key.
*DOWN: Minus key.

GLG Lighting products
www.goedlichtengeluid.nl [email protected] 4
2.2 Menu

GLG Lighting products
www.goedlichtengeluid.nl [email protected] 5

GLG Lighting products
www.goedlichtengeluid.nl [email protected] 6
2.3 Static settings [STAT]
* Press 【 ENTER 】 into stat setting at 【 STAT 】 manu.
* Press 【 ENTER 】 key to choose 【 Red 】 . 【 Green 】 . 【 Blue 】 . 【 White 】 . 【 Amber 】 . 【 UV 】
【 ZOOM 】 .
* Press 【 UP 】 / 【 DOWN 】 key to choose value.
* Press 【 MENU 】 return back to the previous menu, the parameters that you choose can automatic
save.
Note: When entering the sub-menu to adjust, if no DMX, this fixture is automatically set to be master,
others are slave.
2.4 Auto run [AUTO]
*Choose [AUTO] and press enter is auto run function.
* Press [UP]/[DOWN] to choose auto run program and user self programing.
* Press 【 MENU 】 return back to the previous menu, the parameters that you choose can automatic
save.
* The speed of auto run is adjustable, while user self programming should be set under [EDIT]

GLG Lighting products
www.goedlichtengeluid.nl [email protected] 7
menu.
Note: When entering the sub-menu to adjust, if no DMX, this fixture is automatically set to be master,
others are slave.
2.5 Run mode [RUN]
* Choose [RUN] menu and press [ENTER] into [RUN] mode.
* Press [UP]/[DOWN] to choose running mode.
* Press 【 MENU 】 return back to the previous menu, the parameters that you choose can automatic
save.
* DMX is international standard DMX 512 signal.
* SOUND mean sound function.
* SLAV is online signal .
Note: Under DMX and SLAV mode, no DMX signal connect with the master signal.
2.6 DMX 512 address settings [DMX]
* Choose [DMX] menu and press [ENTER] into address settings.
* Press [UP]/[DOWN] to increase or decrease address value.
* Press 【 MENU 】 return back to the previous menu, the parameters that you choose can automatic
save.

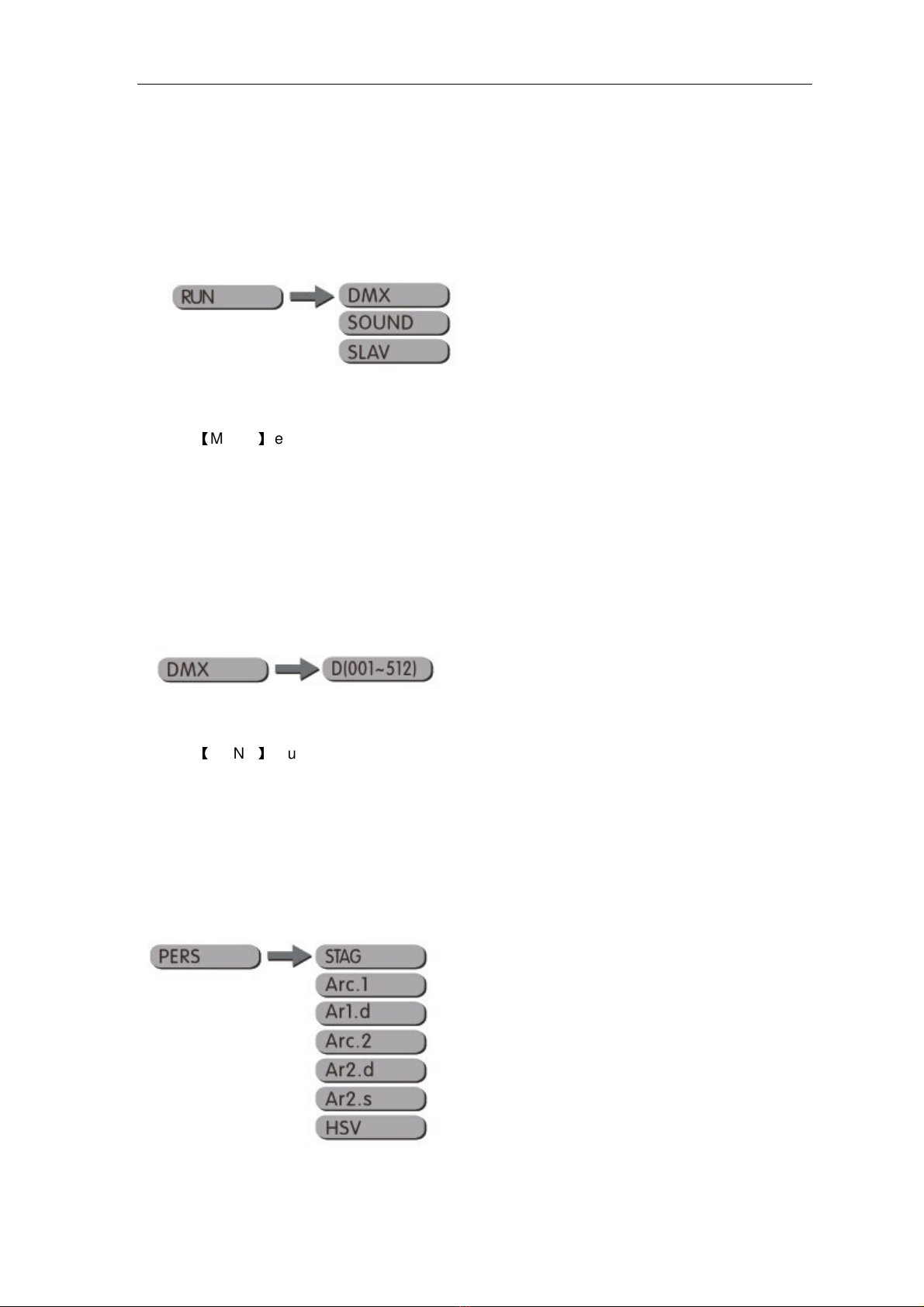

2.7 DMX512 custom channel selection
[PERS].
* Choose [PERS] menu and press [ENTER] into DMX 512 custom channel selection.
* Press [UP]/[DOWN] to choose.

GLG Lighting products
www.goedlichtengeluid.nl [email protected] 8
[STAG] [ARC.1] [AR1.d] [ARC.2] [AR2.d] [AR2.S] [HSV]
For the exact channel value, pls check the DMX channel value sheet for reference.
* Press 【 MENU 】 return back to the previous menu, the parameters that you choose can automatic
save.
2.8 ID address settings [ID].
*Choose [ID] menu and press [ENTER] enter into ID address settings.
* Press [UP]/[DOWN] to choose [01-66] value.
* 【 MENU 】 return back to the previous menu, the parameters that you choose can automatic save.
2.9 ID scene editor [EDIT]
*Choose [EDIT] and press [ENTER] enter into scene editor, total is 10 block, each block has 30
scenes, each scene has 10 parameters.
Press [UP]/[DOWN] to choose block and scene, and press [ENTER] enter into the scene, and press
[ENTER] to choose 10 parameters.
【 Red 】 . 【 Green 】 . 【 Blue 】 . 【 White 】 . 【 Amber 】 . 【 UV 】
6 color’s value range [0-255].
When amend the parameters, press [UP]/[DOWN] can increase or decrease the parameters, the
parameters can be saved automatically.
[ZOOM] value range [0-255].
[Strob] value range [0-20].
[Time], value range is [0-255], the unit is second.
[Fade] transition time, value range is [0-255], the unit is second, [Fade] ‘s time setting should lower
than [Time]’s time setting.
* Press
【 MENU 】 return back to the previous menu, the parameters that you choose can automatic
save.

GLG Lighting products
www.goedlichtengeluid.nl [email protected] 9
Note: when setting [Time] as 0, and not running this scene, and enter into next scene mean you
close the running of this scene.
2.10 Fixture settings [SET]
* At [SET] menu, and press [ENTER] into the fixture parameters settings, [UPLD] is automatically
send, except address code and color correction parameters.
Enter into download and you will need a password, the password is: [UP+DOWN+UP+DOWN],
then press [ENTER] to confirm, if the password is correct, it will show in yellow display, mean it is
sending, when get succeed to send the password, it will show in green display with OK, the slave
receiving the password will show yellow, once it get succeed will show green. When the master get
succeed to send the password, the slave no change or don’t show green display mean it doesn’t get
succeed, then you need to download again.
* [REST] is the factory default parameter settings, press [ENTER] and enter the password
[UP+DOWN+UP+DOWN] then press [ENTER] to confirm. When the fixture get succeed to reset, it
will show OK.
*At [CLRV] press [ENTER] to choose dimming liner mode.
Press [UP/DOWN] to choose.
Liner dimming curve.
Square nonlinear dimming curve.
Nonlinear inverse square dimmer curve.
S-linear dimming curve.
* At [DIM] menu press [ENTER] to choose dimming speed.

GLG Lighting products
www.goedlichtengeluid.nl [email protected] 10
Press [UP/DOWN] to choose dimming speed.
[OFF] dimming speed fastest.
[DIM1] dimming speed fast.
[DIM2] dimming speed slow.
[DIM3] dimming speed slower.
[DIM4] dimming speed slowest.
* At [LED]] menu press [ENTER] to turn on/off of the display.
Press[UP/DOWN] to turn on / off the display.
[ON] :when no press for 60s, it will close the LED display automatically.
[OFF]: not close the LED display.
* At [LEDV]] menu press [ENTER] into display screen forward and reverse switch.
Press [UP/DOWN] to choose turn no or off.
[ON]: LED display screen reverse.
[OFF] : LED display screen forward.
*At [ERR] menu press [ENTER] to disconnect the DMX signal lighting’s status settings.
[SLAVE]: disconnect DMX signal, lighting status no change.
[BLACK]: disconnect DMX signal, lighting close.
[VER]: check the software version.
At [TEMP] press [ENTER] to check the fixture temperature.
* At [HOUR] menu press [ENTER] to check the fixture running time.
* At [FANS] press [ENTER] to choose the speed of the fan.
Press [UP/DOWN] to choose fan’s speed.
[OFF] ： close the fan.
[LOW]: fan runs slow.
[NORM]: fan runs medium.
[AUTO]: fan runs in different speed according to different temperature.
[HIGH] ： fan runs fast.
* [ID] is turn on/off the address settings, press [ENTER] to enter into.
Press [UP/DOWN] to choose turn on/off.
[ON]: Turn the ID function.
[OFF]: Turn off the ID function.
*[RGBW] is adjust color cast is working or not.
Press [UP/DOWN] to choose.
[ON]: adjust color cast is working.
[OFF]: adjust color cast is not working.
* [POWER] settings, press [ENTER] to enter into.
Press [UP/DOWN] to choose.
[HIGH]: highest power.
[NORM]: highest power times 0.9.
