Global Sat ET-333 User manual

環天衛星科技股份有限公司
PRODUCT USER MANUAL
GPS ENGINE BOARD
ET-333
GlobalSat Technology Corporation
台北縣中和市建一路186 號16 樓(遠東世紀廣場)
16, No.186,Chien 1 Road, 235Chung Ho City,Taipei Hsien, Taiwan ,R.O.C.
Tel: [phone](Rep.) Fax: [phone]
Web: www.globalsat.com.tw E-mail:[email protected]

Features:
SiRF starⅢhigh performance GPS Chip Set
Very high sensitivity (Tracking Sensitivity: -159 dBm)
Extremely fast TTFF (Time To First Fix) at low signal level
Compact size (40.5mm * 35 mm * 10mm) suitable for space-sensitive application
Support NMEA 0183 and SiRF binary protocol
Build-in SuperCap to reserve system data for rapid satellite acquisition.
Cold start under 40 seconds, average
Hot start under 1 seconds, average
Specification:
General
Chipset SiRFStarⅢ
Frequency L1, 1575.42 MHz
C/A code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Sensitivity -159 dBm
Accuracy
Position 10 meters, 2D RMS
5 meters, 2D RMS, WAAS enabled
Velocity 0.1 m/s
Time 1us synchronized to GPS time
Datum
Default WGS-84
Acquisition Time
Reacquisition 0.1 sec., average
Hot start 1 sec., average
Warm start 38 sec., average
Cold start 42 sec., average
Dynamic Conditions
Altitude 18,000 meters (60,000 feet) max
Velocity 515 meters /second (1000 knots) max

Acceleration Less than 4g
Jerk 20m/sec **3
Power
Main power input 3.8V ~ 6.5V DC input
Power consumption 70mA (Continuous mode)
60mA (Trickle power mode)
Interface
Baud rate 4,800 to 57,600 bps adjustable
Output message SiRF binary or
NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL
Environmental
Operating Temp -40℃to +85℃

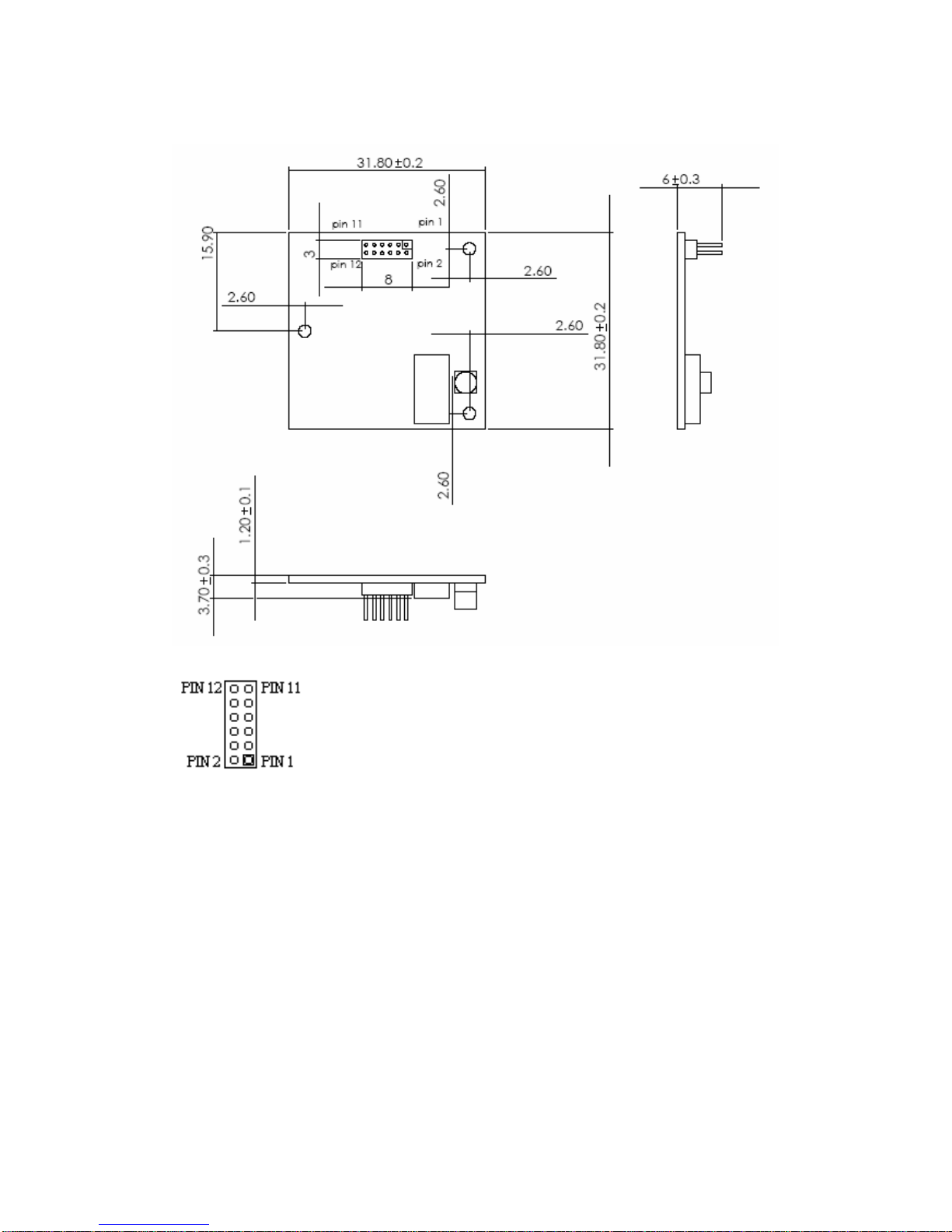

Physical Characteristics

Interface Connection
* Pin-out of the 12-pin interface connector
Pin
Number Name Description Type
1 GND Ground
2 VBAT Backup Battery Input
3 VDC 3.8V~5.5V DC Power Input Input
4 PBRES Push Button Reset Input (Active Low) Input
5 GPIO1 (Reserved)
6 TXA Serial Data Output A (GPS Data) Output
7 RXA Serial Data Input A (Command) Input
8
GND Ground
9 GND Ground
10 SELECT (Reserved)
11 TIMEMARK 1PPS Time Mark Output Output
12 GND Ground
Interface description
* VDC (DC power input):
This is the main DC supply for a 3.8V ~ 5.5V power module board.
* VBAT (Backup battery):
This is the battery backup input that powers the SRAM and RTC when main
power is removed .Typical current draw is 10uA. Without an external backup battery,
the module/engine board will execute a cold star after every turn on. To achieve the

faster start-up offered by a hot or warm start, a battery backup must be connected. To
maximize battery lifetime, the battery voltage should be between 2.5v and 3.6v.
* PBRES (Push button reset):
This pin provides an active-low reset input to the engine board. It causes the
engine board to reset and start searching for satellites.
* SELECT :
Do not connect.
* TXA :
This is the main transmits channel for outputting navigation and measurement
data to user’s navigation software or user written software.
Output TTL level , 0V ~ 2.85V
* RXA :
This is the main receive channel for receiving software commands to the engine
board from SiRFdemo software or from user written software.
Normally this pin must be kept in high, and if you don’t use this pin please
connect a resistor to pull high.
* Time mark :
This pin provides one pulse-per-second output from the engine board that is
synchronized to GPS time.
* GND :
GND provides the ground for the engine board. Connect all grounds.
* RF_IN(MMCX connector) :
This pin receives signal of GPS analog via active antenna .

SOFTWARE COMMAND
NMEA Output Command
GGA-Global Positioning System Fixed Data
Table B-2 contains the values for the following example:
$GPGGA,161229.487,3723.2475,N,12158.3416,W,1,07,1.0,9.0,M,,,,0000*18
Table B-2 GGA Data Format
Name Exam
p
le Units Descri
p
tio
n
Messa
g
e ID $GPGGA GGA
p
rotocol heade
r
UTC Time 161229.487 hhmmss.sss
Latitude 3723.2475 ddmm.mmmm
N
/S Indicato
r
N
N
=north or S=south
Lon
g
itude 12158.3416 dddmm.mmm
m
E/W Indicato
r
W E=east or W=wes
t
Position Fix Indicato
r
1 See Table B-3
Satellites Use
d
07 Ran
g
e 0 to 12
HDOP 1.0 Horizontal Dilution of Precision
MSLAltitude19.0 meters
Units M meters
Geoid Se
p
aration1meters
Units M meters
A
g
e of Diff. Corr. second
N
ull fields when DGPS is not used
Diff. Ref. Station ID 0000
Checksu
m
*18
<CR><LF> End of messa
g
e termination
SiRF Technology Inc. does not support geoid corrections. Values are WGS84 ellipsoid heights.
Table B-3 Position Fix Indicator
Value Descri
p
tion
0 Fix not available or invali
d
1 GPS SPS Mode, fix vali
d
2 Differential GPS, SPS Mode , fix vali
d
3 GPS PPS Mode, fix vali
d

GLL-Geographic Position-Latitude/Longitude
Table B-4 contains the values for the following example:
$GPGLL,3723.2475,N,12158.3416,W,161229.487,A*2C
TableB-4GLLDataFormat
Name Exam
p
le Units Descri
p
tion
Messa
g
e ID $GPGLL GLL
p
rotocol heade
r
Latitude 3723.2475 ddmm.mmmm
N
/S Indicato
r
n
N
=north or S=south
Lon
g
itude 12158.3416 dddmm.mmm
m
E/W Indicato
r
W E=east or W=wes
t
UTC Position 161229.487 hhmmss.sss
Status A A=data valid or V=data not valid
Checksu
m
*2C
<CR><LF> End of messa
g
e termination
GSA-GNSS DOP and Active Satellites
Table B-5 contains the values for the following example:
$GPGSA,A,3,07,02,26,27,09,04,15,,,,,,1.8,1.0,1.5*33
TableB-5GSADataFormat
Name Example Units Description
Message ID $GPGSA GSA protocol header
Mode1 A See Table B-6
Mode2 3 See Table B-7
Satellite Used107 Sv on Channel 1
Satellite Used102 Sv on Channel 2
…..
Satellite Used1Sv on Channel 12
PDOP 1.8 Position dilution of Precision
HDOP 1.0 Horizontal dilution of Precision
VDOP 1.5 Vertical dilution of Precision
Checksum *33
<CR><LF> End of message termination
1. Satellite used in solution.
TableB-6Mode1
Value Description
M Manual-forced to operate in 2D or 3D mode
A 2Dautomatic-allowed to automatically switch 2D/3D
TableB-7Mode2
Value Description
1 Fix Not Available
2 2D

3 3D
GSV-GNSS Satellites in View
Table B-8 contains the values for the following example:
$GPGSV,2,1,07,07,79,048,42,02,51,062,43,26,36,256,42,27,27,138,42*71
$GPGSV,2,2,07,09,23,313,42,04,19,159,41,15,12,041,42*41
TableB-8GSVDataFormat
Name Exam
p
le Descri
p
tio
n
Messa
g
e ID $GPGSV GSV
p
rotocol heade
r
N
umber of Messa
g
es12 Ran
g
e 1 to 3
Messa
g
e Numbe
r
11 Ran
g
e 1 to 3
Satellites in View 07
Satellite ID 07 Channel 1
(
Ran
g
e 1 to 32
)
Elevation 79 de
g
rees Channel 1
(
Maximum90
)
Azimuth 048 de
g
rees Channel 1
(
True
,
Ran
g
e 0 to 359
)
SNR
(
C/No
)
42 dBHz Ran
g
e 0 to 99
,
null when not trackin
g
……. …….
Satellite ID 27 Channel 4
(
Ran
g
e 1 to 32
)
Elevation 27 De
g
rees Channel 4
(
Maximum90
)
Azimuth 138 De
g
rees Channel 4
(
T
r
ue
,
Ran
g
e 0 to 359
)
SNR
(
C/No
)
42 dBHz Ran
g
e 0 to 99
,
null when not trackin
g
Checksu
m
*71
<CR><LF> End of messa
g
e termination
Depending on the number of satellites tracked multiple messages of GSV data may be required.
RMC-Recommended Minimum Specific GNSS Data
Table B-10 contains the values for the following example:
$GPRMC,161229.487,A,3723.2475,N,12158.3416,W,0.13,309.62,120598,,*10
TableB-10RMCDataFormat
Name Exam
p
le Units Descri
p
tio
n
Messa
g
e ID $GPRMC RMC
p
rotocol heade
r
UTC Time 161229.487 hhmmss.sss
Status A A=data valid or V=data not valid
Latitude 3723.2475 ddmm.mmmm
N
/S Indicator
N
N
=north or S=south
Lon
g
itude 12158.3416 dddmm.mmm
m
E/W Indicato
r
W E=east or W=wes
t
S
p
eed Over Ground 0.13 knots
Course Over Ground 309.62 de
g
rees True
Date 120598 ddmm
yy
Ma
g
netic Variation2de
g
rees E=east or W=wes
t
Checksu
m
*10
<CR><LF> End of messa
g
e termination
SiRF Technology Inc. does not support magnetic declination. All “course over ground” data are

geodetic WGS48 directions.
VTG-Course Over Ground and Ground Speed
$GPVTG,309.62,T,,M,0.13,N,0.2,K*6E
Name Exam
p
le Units Descri
p
tio
n
Messa
g
e ID $GPVTG VTG
p
rotocol heade
r
Course 309.62 de
g
rees Measured headin
g
Reference T True
Course de
g
rees Measured headin
g
Reference M Ma
g
netic
S
p
eed 0.13 knots Measured horizontal s
p
eed
Units
N
Knots
S
p
eed 0.2 Km/h
r
Measured horizontal s
p
eed
Units K Kilometers
p
er hou
r
Checksu
m
*6E
<CR><LF> End of messa
g
e termination

NMEA Input Command
A). Set Serial Port ID:100 Set PORTA parameters and protocol
This command message is used to set the protocol(SiRF Binary, NMEA, or
USER1) and/or the communication parameters(baud, data bits, stop bits, parity).
Generally,this command would be used to switch the module back to SiRF Binary
protocol mode where a more extensive command message set is available. For
example,to change navigation parameters. When a valid message is received,the
parameters will be stored in battery backed SRAM and then the receiver will restart
using the saved parameters.
Format:
$PSRF100,<protocol>,<baud>,<DataBits>,<StopBits>,<Parity>*CKSUM
<CR><LF>
<protocol> 0=SiRF Binary, 1=NMEA, 4=USER1
<baud> 1200, 2400, 4800, 9600, 19200, 38400
<DataBits> 8,7. Note that SiRF protocol is only valid f8
Data bits
<StopBits> 0,1
<Parity> 0=None, 1=Odd, 2=Even
Example 1: Switch to SiRF Binary protocol at 9600,8,N,1
$PSRF100,0,9600,8,1,0*0C<CR><LF>
Example 2: Switch to User1 protocol at 38400,8,N,1
$PSRF100,4,38400,8,1,0*38<CR><LF>
**Checksum Field: The absolute value calculated by exclusive-OR the
8 data bits of each character in the Sentence,between, but
excluding “$” and “*”. The hexadecimal value of the most
significant and least significant 4 bits of the result are convertted
to two ASCII characters (0-9,A-F) for transmission. The most
significant character is transmitted first.
**<CR><LF> : Hex 0D 0A

B). Navigation lnitialization ID：101 Parameters required for
start
This command is used to initialize the module for a warm start, by providing current
position （in X, Y, Z coordinates）,clock offset, and time. This enables the receiver
to search for the correct satellite signals at the correct signal parameters. Correct
initialization parameters will enable the receiver to acquire signals more quickly, and
thus, produce a faster navigational solution.
When a valid Navigation Initialization command is received, the receiver will restart
using the input parameters as a basis for satellite selection and acquisition.
Format：
$PSRF101,<X>,<Y>,<Z>,<ClkOffset>,<TimeOfWeek>,<WeekNo>,<chnlCount>,<R
esetCfg>
*CKSUM<CR><LF>
<X> X coordinate position
INT32
<Y> Ycoordinateposition
INT32
<Z> Zcoordinateposition
INT32
<ClkOffset> Clock offset of the receiver in Hz, Use 0 for
last saved value if available. If this is
unavailable, a default value of 75000 for
GSP1, 95000 for GSP 1/LX will be used.
INT32
<TimeOf Week> GPS Time Of Week
UINT32
<WeekNo> GPSWeekNumber
UINT16
（Week No and Time Of Week calculation
from UTC time）

<chnlCount> Number of channels to use.1-12. If your
CPU throughput is not high enough, you
could decrease needed throughput by
reducing the number of active channels
UBYTE
<ResetCfg> bitmask
0×01=Data Valid warm/hotstarts=1
0×02=clearephemeriswarmstart=1
0×04=clearmemory.Coldstart=1
UBYTE
Example: Start using known position and time.
＄PSRF101,-2686700,-4304200,3851624,96000,497260,921,12,3*7F
C). Set DGPS Port ID:102 Set PORT B parameters for DGPS input
This command is used to control Serial Port B that is an input only serial port
used to receive
RTCM differential corrections.
Differential receivers may output corrections using different
communicationparameters.
The default communication parameters for PORT B are 9600
Baud, 8data bits, 0 stop bits, and no parity.
If a DGPS receiver is used which has different communication parameters, use
this command to allow the receiver to correctly decode the data. When a valid
message is received, the parameters will be stored in battery backed SRAM and
then the receiver will restart using the saved parameters.
Format:
＄PSRF102,<Baud>,<DataBits>,<StopBits>,<Parity>*CKSUM<CR><LF>
<baud> 1200,2400,4800,9600,19200,38400
<DataBits> 8
<StopBits> 0,1
<Parity> 0=None,Odd=1,Even=2
Example: Set DGPS Port to be 9600,8,N,1
＄PSRF102,9600,8,1.0*12

D). Query/Rate Control ID:103 Query standard NMEAmessage and/or set
output rate
This command is used to control the output of standard NMEA message GGA,
GLL, GSA, GSV
RMC, VTG. Using this command message, standard NMEA message may be
polled once, or setup for periodic output. Checksums may also be enabled
or disabled depending on the needs of the receiving program. NMEA
message settings are saved in battery backed memory for each entry when the
message is accepted.
Format:
＄PSRF103,<msg>,<mode>,<rate>,<cksumEnable>*CKSUM<CR><LF>
<msg>
0=GGA,1=GLL,2=GSA,3=GSV,4=RMC,5=VTG
<mode> 0=SetRate,1=Query
<rate> Output every <rate>seconds, off=0,max=255
<cksumEnable> 0=disable Checksum,1=Enable checksum
for specified message
Example 1: Query the GGA message with checksum enabled
＄PSRF103,00,01,00,01*25
Example 2: Enable VTG message for a 1Hz constant output with checksum
enabled
＄PSRF103,05,00,01,01*20
Example 3: Disable VTG message
＄PSRF103,05,00,00,01*21

E). LLA Navigation lnitialization ID:104 Parameters required to start
using Lat/Lon/Alt
This command is used to initialize the module for a warm start, by providing
current position (in Latitude, Longitude, Altitude coordinates), clock offset, and
time. This enables the receiver to search for the correct satellite signals at
the correct signal parameters. Correct initialization parameters will enable
the receiver to acquire signals more quickly, and thus, will produce a faster
navigational soution.
When a valid LLANavigationInitialization command is received,the receiver will
restart using the input parameters as a basis for satellite selection and acquisition.
Format:
＄PSRF104,<Lat>,<Lon>,<Alt>,<ClkOffset>,<TimeOfWeek>,<WeekNo>,
<ChannelCount>, <ResetCfg>*CKSUM<CR><LF>
<Lat> Latitude position, assumed positive north of equator and
negative south of equator float, possibly signed
<Lon> Longitude position, it is assumed positive east of Greenwich
and negative west of Greenwich
Float, possibly signed
<Alt> Altitude position
float,possiblysigned
<ClkOffset> Clock Offset of the receiver in Hz, use 0 for last saved value if
available. If this is unavailable, a default value of 75000 for
GSP1, 95000 for GSP1/LX will be used.
INT32
<TimeOfWeek> GPS Time Of Week
UINT32
<WeekNo> GPS Week Number
UINT16
<ChannelCount> Number of channels to use. 1-12
UBYTE

<ResetCfg> bit mask 0×01=Data Valid warm/hot starts=1
0×02=clearephemeriswarmstart=1
0×04=clearmemory.Coldstart=1
UBYTE
Example: Start using known position and time.
＄PSRF104,37.3875111,-121.97232,0,96000,237759,922,12,3*37
F). Development Data On/Off ID:105 Switch Development Data
Messages On/Off
Use this command to enable development debug information if you are having
trouble getting commands accepted. Invalid commands will generate debug
information that should enable the user to determine the source of the
command rejection. Common reasons for input command rejection are invalid
checksum or parameter out of specified range. This setting is not preserved
across a module reset.
Format: ＄PSRF105,<debug>*CKSUM<CR><LF>
<debug> 0=Off,1=On
Example: Debug On ＄PSRF105,1*3E
Example: Debug Off ＄PSRF105,0*3F
G). Select Datum ID:106 Selection of datum to be used for coordinate
Transformations
GPS receivers perform initial position and velocity calculations using an earth-centered
earth-fixed (ECEF) coordinate system. Results may be converted to an earth model (geoid)
defined by the selected datum. The default datum is WGS 84 (World Geodetic System 1984)
which provides a worldwide common grid system that may be translated into local coordinate
systems or map datums. (Local map datums are a best fit to the local shape of the earth and not
valid worldwide.)
Examples:
Datum select TOKYO_MEAN

$PSRF106,178*32
