Global G3440 User manual

Operating Instructions, Parts List, Warranty, & Warranty Repair Center
IMPORTANT! Read carefully before operating this tool. Failure to operate any power tool
properly can result in personal injury and/or property damage!
Free Speed (RPM) ………………..…..11,000
Air pressure (PSI) ……………..…………..90
Hose Size (ID) …………………...……..… 3/8”
Air Inlet (NPT) ………………………..…... 1/4”
Weight (Lbs) …….…….. …..………...…... 4
Wheel Size ………………………………………….4”
Spindle Thread …….………..……3/8”-24 UNF
Avg. Air Consump.(cfm).………………… 17
Overall Length ……….………................ 9”
1. Always wear approved eye protection.
2. Have throttle in “off” position when connecting to air supply.
3. Disconnect tool before performing service, changing accessories, or when not in use.
4. Always be in a safe working distance from others when using tools.
5. Keep tools clean and oiled for best and safest performance.
6. Follow instructions for lubricating and changing accessories.
7. Do not wear loose fitting clothing and remove watches and rings.
8. Always use proper hose and fittings. Never use quick change couplings attached at tool.
9. Keep proper footing and balance at all times.
10. Never carry tools by the hose. Keep hoses from heat, oil, and sharp edges. Check hoses
for weak or worn condition before each use, making certain that all connections are
secure.
Lubrication
Lubricate the tool daily with a good grade of air tool oil. The oil can be applied directly into
the air inlet of the tool and then run the tool. A rust inhibitor oil is acceptable for air tools.
Air Supply
Tools of this class operate on a wide range of air pressure. It is recommended that air
pressure of these tools measure 90 PSI at the tool while running free. Higher pressure and
unclean air will shorten the tool’s life and may create a hazardous condition.
Water in the airline will cause damage to the tool. Ensure that the air tank is drained daily

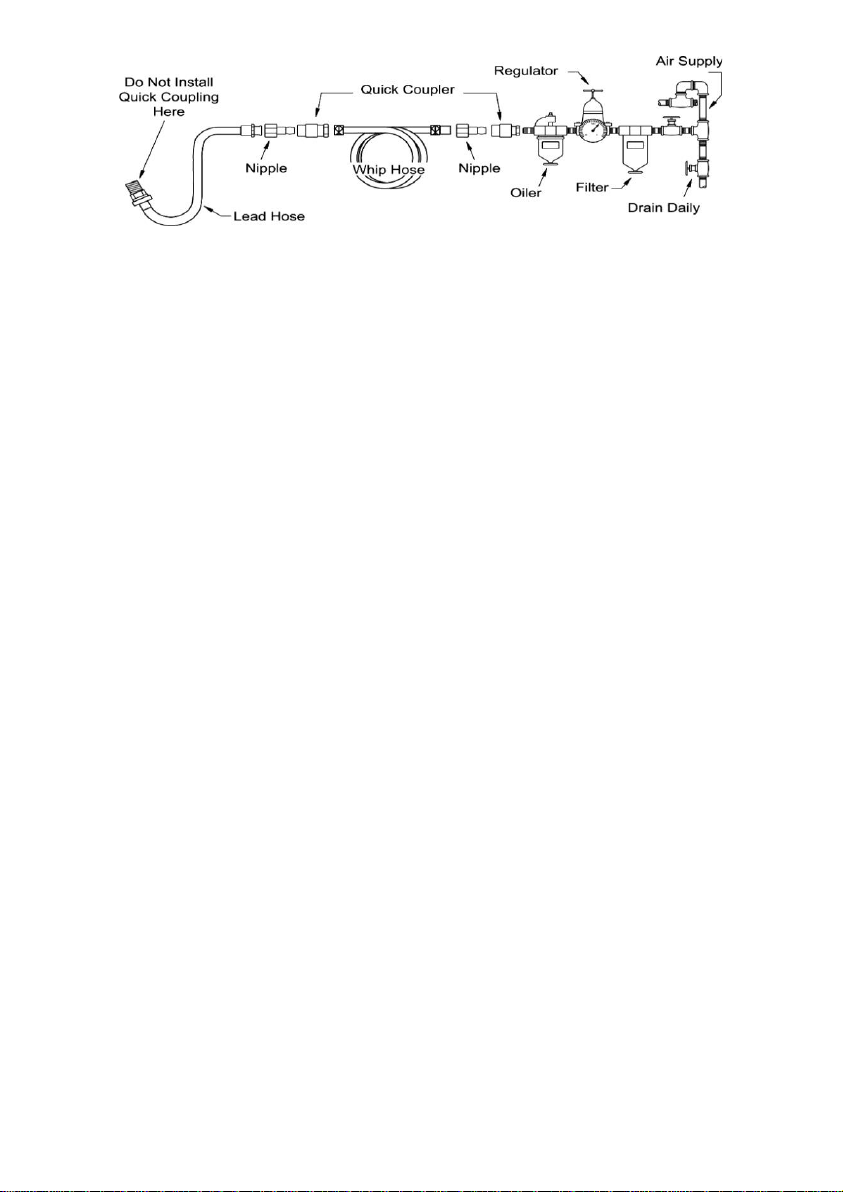

Clean the air inlet filter screen on at least a weekly basis. The recommended hookup
procedure can be viewed in the illustration below.
Model # G3440
4” Angle Grinder

The air inlet, used for connecting air supply, has standard 1/4” NPT American Thread.
Line pressure should be increased to compensate for unusually long air hoses (over 25 feet).
Minimum hose diameter should be 1/4” I.D. and fittings should have the same inside
dimensions.
Operating Instructions
The air regulator can be used as an air throttle for setting positive speed control. Turn the air
regulator lever up for maximum speed.
The air inlet used for connecting air supply has standard 1/4” NPT thread. Have throttle in
“off” position when connecting to air supply. Disconnect tool before performing service,
changing accessories and when not in use. Always use tool at a safe distance from other
people in the work area.
WARNING: Make sure the RPM rating of the grinding discs correspond with the
manufacturer’s recommended speed of the tool.
Maintenance
Other factors outside the tool may cause loss of power or erratic action. Reduced
Compressor output, excessive drain on the air line, moisture or restriction in air lines or the
use of hose connections of improper size or poor condition may reduce air supply. Dirt or
gum deposits in the tool may cut power. This may be corrected by cleaning the air strainer
and flushing out the tool with gum solvent oil. If outside conditions are in order and tool is
out-of-warranty, clean, reassemble, and re-lubricate, or take tool to any air tool service
center. For tools in warranty period, send tool direct to Warranty Center.

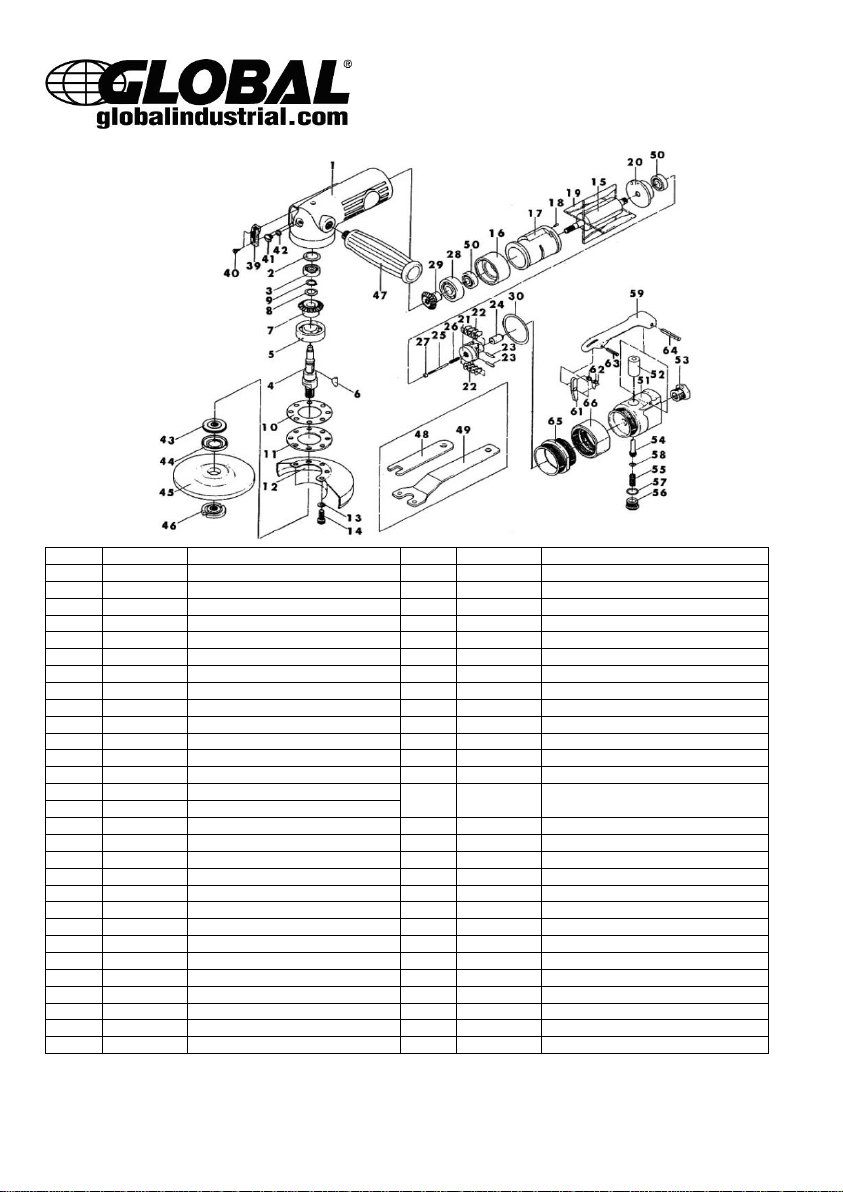

No.
Part No.
Description
No.
Part No.
Description
1
G3440-01
Motor Housing
30
G3440-30
O-Ring
2
G3440-02
Seal Plate
39
G3440-39
Exhaust Deflector
3
G3440-03
Ball Bearing
40
G3440-40
Tapping Screw
4
G3440-04
Arbor
41
G3440-41
Plug
5
G3440-05
Ball Bearing
42
G3440-42
O-Ring
6
G3440-06
Woodruff Key
43
G3440-43
Flange
7
G3440-07
Bevel Gear
44
G3440-44
Flange Rubber Shield
8
G3440-08
Wave Washer
45
G3440-45
Grinding Wheel
9
G3440-09
External Stop Ring
46
G3440-46
Flange Nut
10
G3440-10
Gasket
47
G3440-47
Handle
11
G3440-11
Retainer
48
G3440-48
Wrench (A)
12
G3440-12
Center Wheel Guard
49
G3440-49
Wrench (B)
13
G3440-13
Spring Washer
50
G3440-50
Ball Bearing
14
G3440-14
Hex Socket Head Cap Blot
51
G3440-51
Throttle Valve Housing Include
15
G3440-15
Rotor
G3440-52
16
G3440-16
Front End Plate
53
G3440-53
Air Inlet Bushing
17
G3440-17
Cylinder
54
G3440-54
Valve Stem
18
G3440-18
Spring Pin
55
G3440-55
Valve Spring
19
G3440-19
Rotor Blade
56
G3440-56
Throttle Lever Plug
20
G3440-20
Rear End Plate
57
G3440-57
O-Ring
21
G3440-21
Governor
58
G3440-58
O-Ring
22
G3440-22
Pendulum (2)
59
G3440-59
Throttle Lever
23
G3440-23
Spring Pin (2)
61
G3440-61
Throttle Lever Lock
24
G3440-24
Plunger
62
G3440-62
Torsion Spring
25
G3440-25
Adjust Screw
63
G3440-63
Spring Pin
26
G3440-26
Spring
64
G3440-64
Spring Pin
27
G3440-27
Adjust Nut
65
G3440-65
Lock Ring
28
G3440-28
Ball Bearing
66
G3440-66
Coupling Nut
29
G3440-29
Bevel Pinion
PLEASE READ FOLLOWINGS CAREFULLY BEFORE OPERATING:
1) Always wear Safety Goggles to guard against eye injuries caused by flying particles.
2) Light density, non-detergent lubricant oil (i.e.#60) recommended.
3) Use working pressure of 0-90 PSIG, regular speed: 11,000 RPM.
Model # G3440
4” Angle Grinder

Notice
90% of all Air Tool problems are caused by moisture in air lines
This problem can be avoided by using Air Tool Lubricant (See
“Lubrication” & “Air Supply” section of this manual)
FAILURE TO OIL can void your warranty
Warning: Dust created by power sanding, sawing, grinding, drilling, and other activities
contains particles and chemicals known to cause cancer, birth defects or reproductive harm.
Some examples of these chemicals are:
⚫Lead from lead-based paints
⚫Crystalline silica from bricks, cement and other masonry products
⚫Arsenic and chromium from chemically treated lumber
To reduce your exposure to these chemicals, work in well ventilated areas with approved
safety equipment specially designed to filter out microscopic particles.
One Year Limited Warranty
GLOBAL Industrial air tools carry a limited 1 year warranty to be free from defects in material
and workmanship for one year from date of purchase. We will repair or replace at our
discretion any defective part or unit which proves to be defective in material or
workmanship during this 1 year period. The foregoing obligation is GLOBAL sole liability
under this or any implied warranty, and under no circumstances shall it be liable for any
incidental or consequential damages.
Repairs required by abuse, misuse, damage, or repair attempts (other than GLOBAL
Industrial) are not covered by this warranty.
For warranty claims and returns, please contact GLOBAL
Industrial at 1-800-645-2986 or speak to your local sales
representative. Be certain to include your name, address, and
purchase date, and description of the suspected defect.
11 Harbor Park Drive, Port Washington, NY 11050
Phone: [phone]
