Globalmediapro Fantail HA66 User manual

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 2
5. Features.................................................. 2
6. Operation Controls and Functions....... 4
6.1 Front Panel ........................................4
6.2 Rear Panel.........................................5

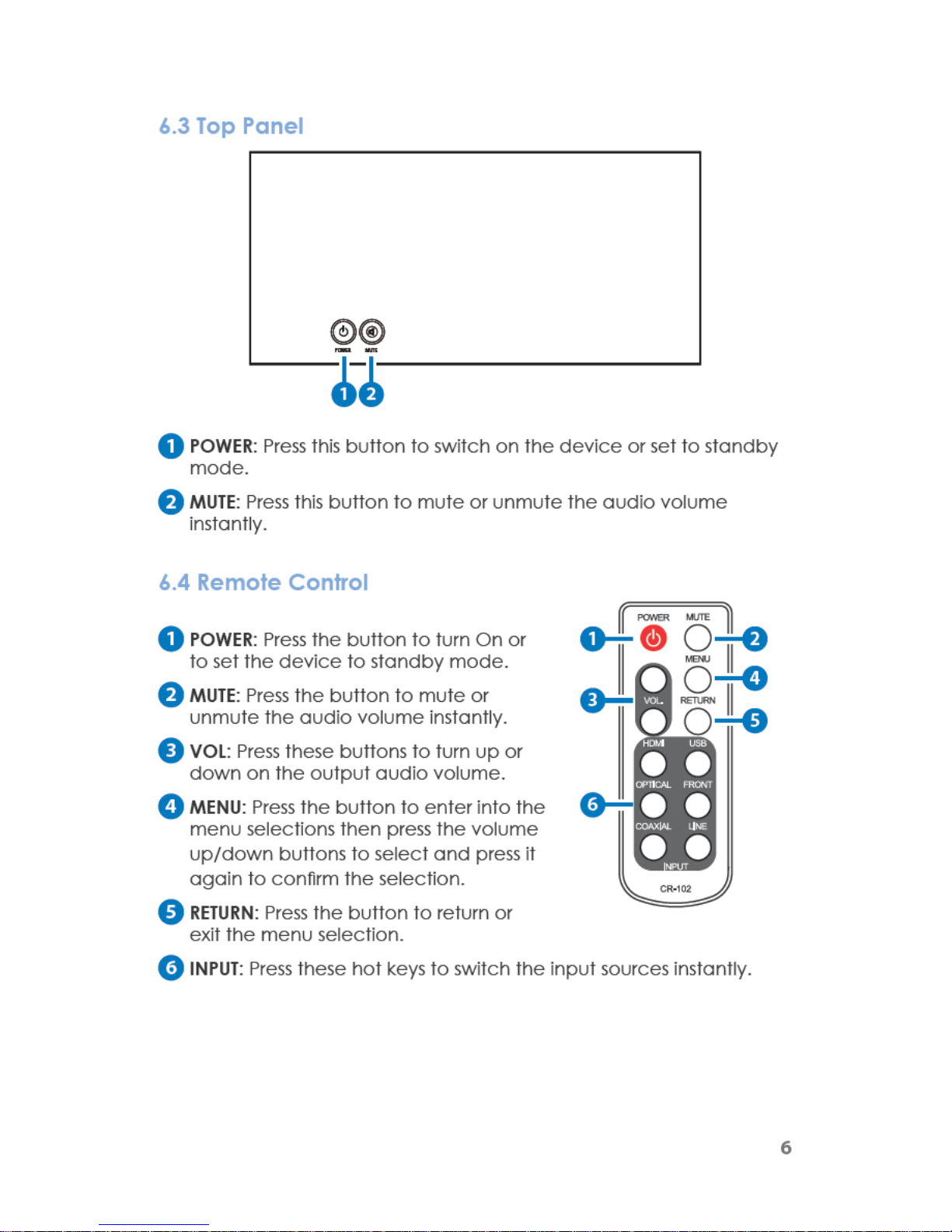

6.3 Top Panel ..........................................6
6.4 Remote Control................................6
6.5 OLED Menu .......................................7
7. Connection Diagram ............................ 8
8. Specications ........................................ 9
9. Acronyms ............................................. 10

1
1. INTRODUCTION
The HD Audio Center is designed to allow multiple audio sources to
be controlled, switched and output to a variety of audio equipment.
With its 6 audio inputs (including an HDMI input) and 6 audio outputs
(including a 6.3mm headphone output) you can integrate and
convert any digital or analog audio source to any type of amplier or
active speakers.
This device has an built-in sampling rate converter which can
upscale audio signals between 44.1 kHz to 192 kHz (24-bit). With HDMI
connectivity, it allows the user to embed or de-embed audio within
the HDMI signal path.
For professionals, the Ti TPA6120A2 headphone amplier, XLR (Low-
noise Professional Balanced output) and 6.3mm headphone jack (3.5
mini-jack adaptor supplied) offer unparalleled audio quality. With a
highly accurate PLL and low jitter reduction clock system, and with an
OLED display and IR remote for controlling the device the HD Audio
Center is an incredibly useful tool for getting the most out of your
audio devices.
2. APPLICATIONS
•Multiple input/output Audio Center
•Audio format and sampling rate conversion
• Professional audio system integration with XLR balanced outputs
•Mac/PC USB audio output support
•Analog to digital or digital to analog audio conversion
•HDMI audio embedding or de-embedding
3. PACKAGE CONTENTS
•1×HD Audio Center
•1×Remote Control (with battery)
•1×6.3mm to 3.5mm Headphone Adaptor
•1×Software CD
•1×5 V/3 A DC Power Adaptor
•Operation Manual

2
4. SYSTEM REQUIREMENTS
Input source equipment such as PC (USB) or DVD player with relevant
connection cables and output to amplier, active speakers or
headphones
5. FEATURES
Main
•6 Input, 6 Output HD Audio Center
•4 Digital Inputs, 2 Analog Inputs
•3 Digital Outputs, 2 Analog Outputs and Headphone Output
•Full system control from IR remote or main control dial via OLED
display.
Digital
• HDMI, USB, Optical and Coaxial digital audio inputs support LPCM
stereo
•HDMI input supports LPCM stereo in all modes but can pass surround
sound signal whilst in bypass mode
• All digital inputs support 192kHz sampling rate at up to 24-bit
resolution
• HDMI, Optical and Coaxial digital outputs
•All digital inputs can be SRC (Sample Rate Conversion) to 44.1, 48,
88.2, 96, 176.4 and 192 kHz via DSP Engine (Digital Signal Processing)
•Highly accurate PLL and low jitter reduction clock system
•HDMI Audio output (video is always bypassed to HDMI output) can
either output the incoming HDMI (HDMI Bypass Mode) or embed
the selected audio signal (HDMI Input Mode)
Analog
• Built-in Ti TPA6120A2 high quality headphone amplier output
• Professional XLR balanced stereo output
•RCA analog stereo output
•RCA analog stereo input
•Mini-jack (3.5mm) stereo input
•Total Harmonic Distortion (THD): Less than 100dB (-20dBFS)
• Analog inputs provide digital output sampling rates up to 192 kHz

3
Misc
•IR Remote with direct source, power and mute buttons
•HDMI audio embedding or de-embedding
•Volume control of analog and headphone outputs or just
headphone output via remote or main control dial
•Direct power and mute button on unit
•High viewing angle OLED display
•Headphone output fades in after system is muted
•6.3mm headphone output (3.5mm mini-jack adaptor supplied)

7
6.5 OLED Menu
1ST LAYER FULL NAME 2ND LAYER
Source In Source Selection HDMI In
USB In
Optical In
Coaxial In
Line In (L/R In)
Front In
Return
SRC Set Sampling Rate Conversion Setup Bypass
192 kHz
176.4 kHz
96 kHz
88.2 kHz
48 kHz
44.1 kHz
Return
HDMI TX Set HDMI Output Setup Bypass
Input
Return
Display Set Display Time Out Setup TimeOut 5s
TimeOut 10s
TimeOut 15s
Return
HP Impedance Headphone Impedance 16 Ω
32 Ω
64 Ω
200 Ω
300 Ω
600 Ω
Return
Line Out Set Headphone/Line Out Setup Fix Level
Volume Level
Return
Reset to Default OK
Return
Return

9
8. SPECIFICATIONS
Input Ports 1×HDMI,
1×USB (Type B),
1×Coaxial,
1×Optical,
1×L/R (Analog Stereo 2RCA),
1×3.5mm Phone Jack (L/R)
Output Ports 1×HDMI,
1×Coaxial,
1×Optical,
1×L/R (Analog Stereo 2RCA),
1×XLR (Balanced Analog Stereo),
1×6.3mm Phone Jack (Headphone)
Digital Audio I/O Support LPCM 2CH
Stereo Audio I/O Level 2 Vrms ±0.2
XLR Blanced I/O Level 4 Vrms ±0.2
Headphone Impedance 16 Ω ~ 600 Ω
ESD Protection Human body model:
±8 kV (air-gap discharge)
±6 kV(contact discharge)
Power Supply 5 V/3 A DC (US/EU standards, CE/FCC/
UL certied)
Dimensions 138 mm (W)×223 mm (D)×50 mm (H)
Weight 680 g
Chassis Material Aluminum
Silkscreen Color Black
Power Consumption 15 W
