GLX GT-80-B User manual

GT-80-B BASS AMP
OWNER’S MANUAL
OVERVIEW
• 12” bass speaker
• RMS 80W / 4 Ohm
• 4-band EQ (low, low mid, high mid, high)
• Chorus
• Aux input
• Line output
• Headphones output
• Built-in limiter
• Bright / boost switch
CAUTION
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture. Do not remove cover. For service, refer to qualified service personnel.
The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and
servicing instructions.
The lightning flash symbol within an equilateral triangles is intended to alert you to the presence of danger.
• Voltage: AC240V~50Hz
ATTENTION
• To avoid damage to the amplifier or other equipment, please turn down the level of all equipment and switch it off before
connection. Turn the equipment on after connection and turn the level up gradually.
• The amplifier is equipped with a protective circuit, which will startup a few seconds after the amplifier is switched on.

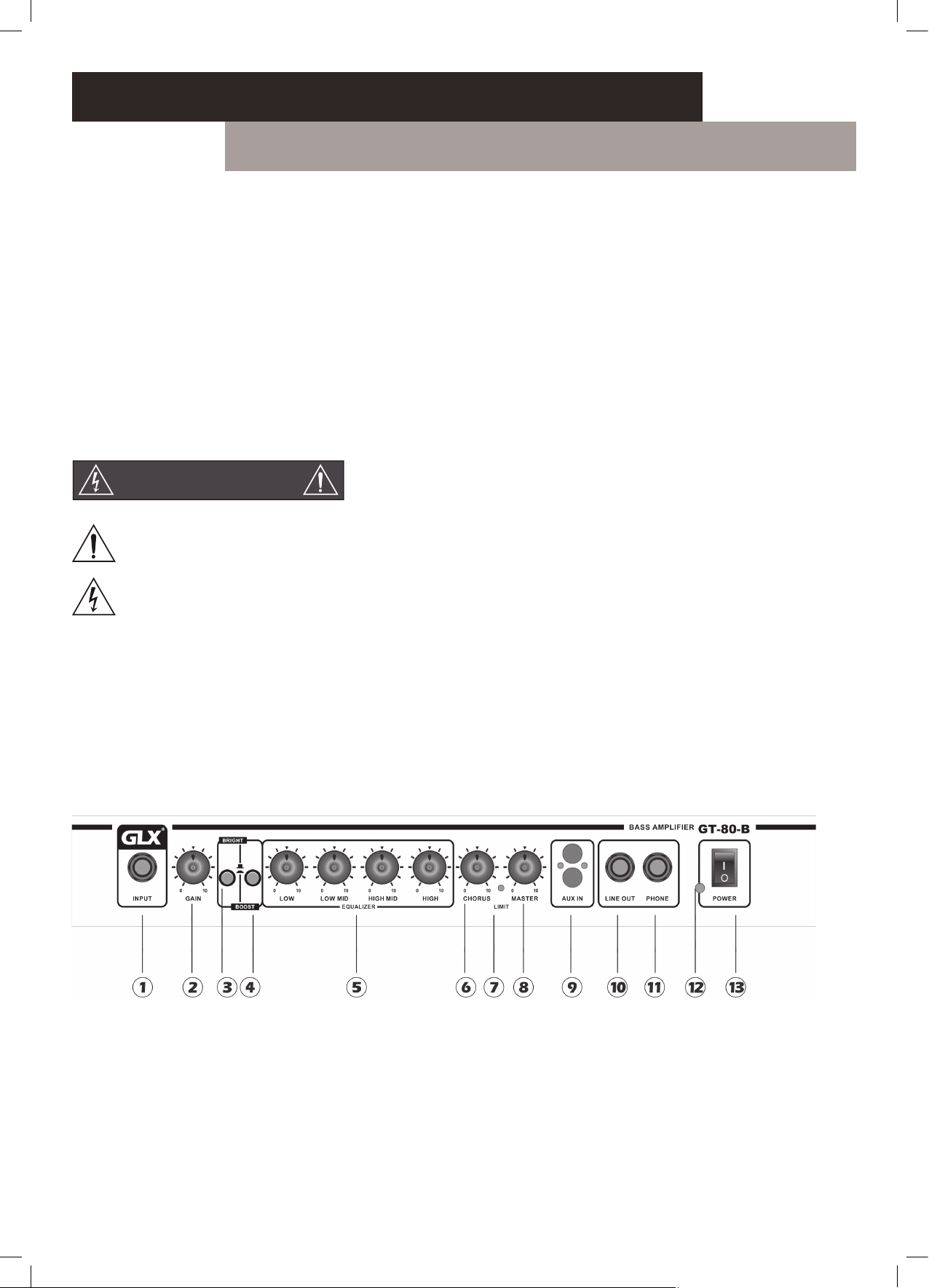

FRONT PANEL
1. INPUT
(1/4”) Use this jack to connect an electric bass guitar.
2. GAIN
Use this control to adjust the gain level.
3. BRIGHT
Use this control to boost the high frequency of your sound.
4. BOOST
Use this control to boost the low frequency of your sound.
12 Bass speaker
RMS 80W/4 Ohm
4 Band EQ(LOW LOW MID MID HIGH HIGH)
Chorus
Aux Input
Line Output
Headphones Output
Built-in Limit
Bright/Boost Switch
Attention
To avoid to damage amplifier or other equipments, please turn off the level of all equipments before
connection and power off the equipments as well.
Power on the equipments ordinal,
This amplifier equips with protected circuit, which will startup for few seconds after the amplifier
powers on.
This amplifier will be MANUAL mode state as it powers on,
BASS AMPLIFIER BP80
Overview
Panel Descriptions
1. INPUT:
(1/4") Use this jack to connect electric bass.
2. GAIN:
Use this control to adjust gain level.
3. BRIGHT:
Use this control to boost the HIGH frequency of amplifier.
4. BOOST:
Use this control to boost the LOW frequency of amplifier.
C A U T I O N
RIS K OF ELECTRIC SHOCK DO N OT O PEN
Caution
To reduce the risk of fire or electric shock. Do not expose this apparatus to
rain or moisture. To reduce the risk of electric shock. Do not remove cover.
Refer servicing to qualified service personnel for repair this apparatus.
The exclamation point within an equilateral triangle is intended to alert you to the presence of important
operating and servicing instructions.
The lighting flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of
danger.
Voltage: AC 220V 50Hz.
~
3510
4
289
7
6
112 11
IN P UT GA I N LO W LO W M ID MI D H IGH MA S TER AU X IN LI N E OUT PH ONE PO WER
BP80
BAS S A M P L I FIER
LI MIT
0 10
HI G H CHO R US
EQ UA L IZE R
0 10 0 10 0 10 0 10 0 10 0 10
13
o
12 Bass speaker
RMS 80W/4 Ohm
4 Band EQ(LOW LOW MID MID HIGH HIGH)
Chorus
Aux Input
Line Output
Headphones Output
Built-in Limit
Bright/Boost Switch
Attention
To avoid to damage amplifier or other equipments, please turn off the level of all equipments before
connection and power off the equipments as well.
Power on the equipments ordinal,
This amplifier equips with protected circuit, which will startup for few seconds after the amplifier
powers on.
This amplifier will be MANUAL mode state as it powers on,
BASS AMPLIFIER BP80
Overview
Panel Descriptions
1. INPUT:
(1/4") Use this jack to connect electric bass.
2. GAIN:
Use this control to adjust gain level.
3. BRIGHT:
Use this control to boost the HIGH frequency of amplifier.
4. BOOST:
Use this control to boost the LOW frequency of amplifier.
C A U T I O N
RIS K OF ELECTRIC SHOCK DO N OT O PEN
Caution
To reduce the risk of fire or electric shock. Do not expose this apparatus to
rain or moisture. To reduce the risk of electric shock. Do not remove cover.
Refer servicing to qualified service personnel for repair this apparatus.
The exclamation point within an equilateral triangle is intended to alert you to the presence of important
operating and servicing instructions.
The lighting flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of
danger.
Voltage: AC 220V 50Hz.
~
3510
4
289
7
6
112 11
IN P UT GA I N LO W LO W M ID MI D H IGH MA S TER AU X IN LI N E OUT PH ONE PO WER
BP80
BAS S A M P L I FIER
LI MIT
0 10
HI G H CHO R US
EQ UA L IZE R
0 10 0 10 0 10 0 10 0 10 0 10
13
o
12 Bass speaker
RMS 80W/4 Ohm
4 Band EQ(LOW LOW MID MID HIGH HIGH)
Chorus
Aux Input
Line Output
Headphones Output
Built-in Limit
Bright/Boost Switch
Attention
To avoid to damage amplifier or other equipments, please turn off the level of all equipments before
connection and power off the equipments as well.
Power on the equipments ordinal,
This amplifier equips with protected circuit, which will startup for few seconds after the amplifier
powers on.
This amplifier will be MANUAL mode state as it powers on,
BASS AMPLIFIER BP80
Overview
Panel Descriptions
1. INPUT:
(1/4") Use this jack to connect electric bass.
2. GAIN:
Use this control to adjust gain level.
3. BRIGHT:
Use this control to boost the HIGH frequency of amplifier.
4. BOOST:
Use this control to boost the LOW frequency of amplifier.
C A U T I O N
RIS K OF ELECTRIC SHOCK DO N OT O PEN
Caution
To reduce the risk of fire or electric shock. Do not expose this apparatus to
rain or moisture. To reduce the risk of electric shock. Do not remove cover.
Refer servicing to qualified service personnel for repair this apparatus.
The exclamation point within an equilateral triangle is intended to alert you to the presence of important
operating and servicing instructions.
The lighting flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of
danger.
Voltage: AC 220V 50Hz.
~
3510
4
289
7
6
112 11
IN P UT GA I N LO W LO W M ID MI D H IGH MA S TER AU X IN LI N E OUT PH ONE PO WER
BP80
BAS S A M P L I FIER
LI MIT
0 10
HI G H CHO R US
EQ UA L IZE R
0 10 0 10 0 10 0 10 0 10 0 10
13
o

5. LOW, LOW MID, HIGH MID, HIGH
Use these controls to boost or cut the low, low mid, high mid and high frequency levels by ±12dB.
6. CHORUS
Use this control to adjust the depth and rate of chorus simultanuously.
7. LIMIT LED
The built-in limiter limits harsh, transient peaks and evens out the bass guitar signal. The LED indicates when the limiter
circuit is activated.
8. MASTER
Use this control to adjust the output level of the amplifier.
9. AUX IN (RCA)
Use this input to connect a CD-player, drum machine, etc.
10. LINE OUT (1/4”)
Use this jack to connect line output.
11. HEADPHONE OUTPUT (1/4”)
Use this jack to connect headphones.
12. POWER LED
This LED indicates when the amplifer is turned on.
13. POWER SWITCH
Use this switch to turn the amplifier on/off.

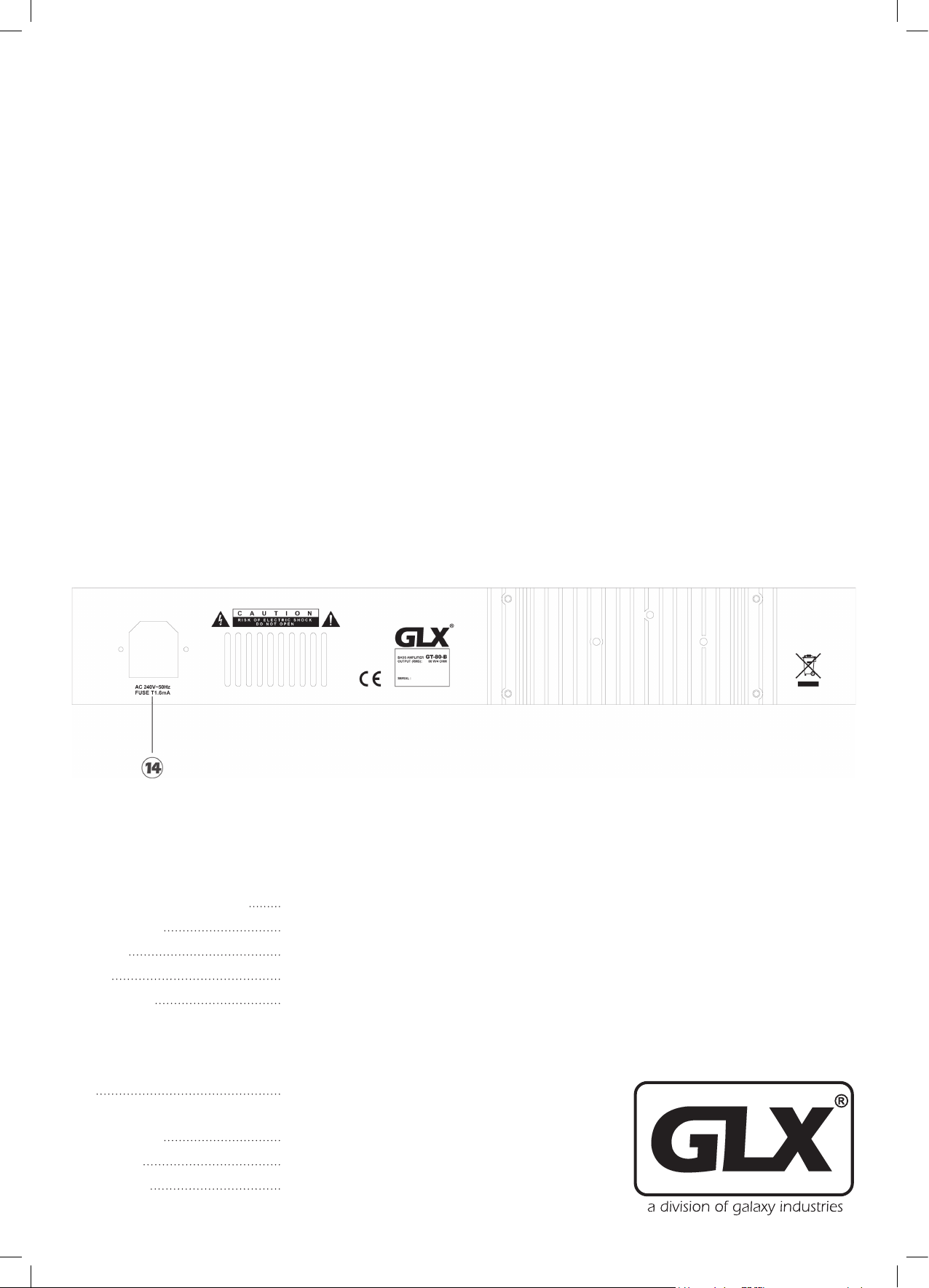

REAR PANEL
14. SOCKET
SPECIFICATIONS
Input sensitive / impedance: -20dBu / 1MΩ (@1KHz)
Output (RMS): 80W / 4Ohm
Speaker: 1x12”
Effect: chorus
Connections: input (1/4”)
aux in (RCA)
headphones (1/4”)
line out (1/4”)
EQ: 4-band EQ: low, low mid, high mid, high
±12dB
Power Supply: 240V~50Hz
Net weight: 18kg
Dimensions: 480x360x515mm
*** appearance and specifications are subject to change without notice – E&OE ***
