GMB Spectrolino User manual

1
2
3
4
5
6
Operating Manual
Technical
Specifications
SpectroScan
operation
Spectrolino
operation
General
Table of Contents
EN
SpectroScan T
operation

1
EN
Table of Contents 1
1 Table of Contents 1
2 General 4
2.1 Spectrolino 4,5/8 mm 4
2.2 Safety 3
2.2.1 Warning symbols 4
2.2.2 General warnings regarding safety 5
2.3 Packaging and transport 7
2.3.1 Unpacking and shipment 7
2.3.2 Removal of the SpectroScan protective packaging 7
3 Spectrolino operation 8
3.1 Included in supply 8
3.2 Functional elements 9
3.3 Set up 11
3.4 Use 13
3.4.1 Manual control measurement 14
3.4.1.1 Absolute white calibration 14
3.4.1.2 Measurement of control originals 15
3.4.2 Taking emissive measurements 15
3.4.2.1 Calibration for emissive measurements 15
3.4.2.2 Monitor measurement 16
3.4.3 Reset 17
3.4.4 Filter substitution 18
3.5 Diagnostics 19

2EN
1Table of Contents 4 SpectroScan operation 21
4.1 Included in Supply 21
4.2 Functional elements 22
4.3 Set up 24
4.4 Use 26
4.4.1 Measurement original setup 26
4.4.2 Definition of original type and orientation 26
4.4.3 Supplementary functions 28
4.4.3.1 Reset 28
4.4.3.2 Demo Mode 28
4.4.3.2 Replacing fuses 28
4.5 Diagnostics 29
5 SpectroScan T operation 30
5.1 Included in supply 30
5.2 Functional elements 31
5.3 Set up 33
5.4 Use 35
5.4.1 Reflection measurement 35
5.4.1.1 Measurement original set up 35
5.4.1.2 Definition of original type and orientation 35
5.4.2 Transmission measurement 37
5.4.2.1 Calibration 38
5.4.2.2 Measurement start up 38

3
EN
Table of Contents 1
5.4.2.3 Aperture substitution 39
5.4.3 Supplementary functions 40
5.4.3.1 Reset 40
5.4.3.2 Demo mode 40
5.4.3.3 Replacing fuses 40
5.4.3.4 Replacing the measurement lamp 41
5.5 Diagnostics 42
6 Technical Specifications 44
6.1 Spectrolino 44
6.2 SpectroScan and SpectroScan T 46
6.3 CE Declaration of conformity 47
6.4 FCC Declaration of conformity 49

4EN
2General
2 General
2.1 Spectrolino 4.5/8 mm
This manual describes the Spectrolino device with measurement apertures ranging from
4.5 to 8 mm. The instructions provided apply to both types of devices, unless differently
indicated.
2.2 Safety
2.2.1 Warning Symbols
For safety reasons it is absolutely essential to read the user manual and all instruction
contained in it.
In the user manual, important instructions are highlighted by the following symbols:
WARNING Symbol: Important warning regarding use.
Failure to follow this instruction may result in data
loss and operating anomalies.
HAZARD Symbol: Failure to follow this instruction may cause risk to
the operator.
ATTENTION Symbol: Failure to respect this information may cause
damage to equipment.

5
EN
General 2
2.2.2 General Safety Warnings
- Spectrolino and SpectroScan/SpectroScan T are not explosion proof.
These devices must not be used in environments where explosion hazards
exist, or subjected to strong electromagnetic radiation.
- Do not use Spectrolino or SpectroScan/SpectroScan T in environments
with temperatures in excess of 40°deg. C.
- Do not try to dismantle Spectrolino or SpectroScan/SpectroScan T for any
reason. Unauthorised access of the equipment will void all warranties.
If access of the equipment is necessary, the regional representative must
be contacted for approval.
- Avoid using sharp objects with the SpetroScan/SpectroScan T, as these
may cause damage to the electrostatic plate. If the electrostatic plate is
damaged, the substrate will not stay in place and the unit will need to be
sent to an authorized service center for repair.

6EN
2General
- Spectrolino and SpectroScan/SpectroScan T should only be operated by
trained personnel. Operation by untrained personnel may result in
damage to the equipment and/or inaccurate data.
- The Spectrolino and SpectroScan/SpectroScan T must be installed on a
stable horizontal surface, unexposed to sunlight and moisture.
- Both devices must be protected against chemical agents, corrosive
vapors, strong vibration and mechanical impact.
- Use only GretagMacbeth accessories and spare parts.
- Before turning ON the SpectroScan/SpectroScan T, ensure that no
objects are leaning or resting on the equipment.
- The electrostatic plate of the SpectroScan/SpectroScan T should be
cleaned with Isopropyl alcohol on clean cloth. Alkaline solvents and soap
should never be used to clean this plate.
- The plastic housings of both the SpectroScan/SpectroScan T and the
Spectrolino should be cleaned with soap and water on a damp cloth.
- The operator should familiarize himself with all operating specifications
contained in Chapter 6 before turning on the equipment.
- The equipment must be transported in its original packaging.

7
EN
General 2
2.3 Packaging and transport
2.3.1 Unpacking and shipment
The Spectrolino and SpectroScan/SpectroScan T are delivered in specially designed
highimpact packaging. SpectroScan is also equipped with mechanical lock down
protection.
- To avoid damage, the devices must always be shipped in their original
packaging. Ensure that the SpectroScan/SpectroScan T is also equipped
with anchor screws for transportation.
2.3.2 Removal of the SpectroScan/SpectroScan T protective packaging
Before starting the device, remove the screws on the back of the measuring table.
Failure to remove the lock down screws, before operation, may result in damage to
the instrument.

8EN
3Spectrolino
operation
3 Spectrolino operation
3.1 Bill of materials
Legend:
1 SpectrolinowithNOfilter
2 Calibrationplatewithwhite
reference
3 Positioning foot
4 Cable set
5 Power supply
6 Manual
7 Carrying case
8 D65 filter, POL filter
(only for Spectrolino
4.5 mm)
9 Video adapter
6
5
41
2
39
8
7
UserManual

9
EN
Spectrolino
operation 3
3.2 Functional elements
Legend:
10 Measurement key
11 Filter tube
12 Release key
13 Centring pin guides
for mounting on
SpectroScan
14 Data interface
15 Identification plate
16 Slot for insertion of
folding tab (24)
17 Whitereference
withserialnumber
18 Slot for mounting
whitereference
19 Calibration plate
20 Positioning pin
17
19 20
18
10
11 12
Type Spectrolino
Part No. 36.55.52
Serial No. 3.257-10156
Gretag-Macbeth AG
CH-8105 Regensdorf
Switzerland
13
14
15
16
12

10 EN
3Spectrolino
operation
Legend:
21 Measuring aperture
withfoldingmechanism
22 Positioning foot
23 Sliding lock
24 Folding tab
25 Monitor support
26 Push-buttons
27 Suctioncupsforattachment
28 Suction release tabs
21
22 24
26
25
27
23
24
28
23

11
EN
Spectrolino
operation 3
3.3 Set-up
The Spectrolino does not have a display. Measurements and analysis of the data is
performed by means of various software packages. The cable set (4) supplied with
the instrument, for connecting it to the computer, will address the following connection
requirements for both Macintosh and Personal Computer. Details of the accessories
provided with the instrument and how they would be configured are covered in the
following diagrams. For direct connection to the computer a power supply (5) is
included. When used with SpectroScan/SpectroScan T, the power is supplied by
SpectroScan/SpectroScan T.
Connection to a PC with a 9 pin serial interface
mini-DIN (36.19.58)
adapter
Spectrolino mini-DIN
(36.50.54) cable
GretagMacbeth
powersupply
mini-DIN (36.19.58)
adapter
Spectrolino
mini-DIN (36.50.54) cable
GretagMacbeth
powersupply
Connection to a PC with a 25 pin serial interface
25M/F (11.54.69)
adapter

12 EN
3Spectrolino
operation
- When connecting to Macintosh, check cable directions. The warning
given on the junction box indicates where the cable terminals must be
inserted.
- To avoid confusion, compare the serial numbers of your own cables with
those given in the respective overviews.
- If the Spectrolino is connected in any of these ways with power supplied,
an acoustical signal will be given (a series of four tones) confirming the
unit is connected correctly.

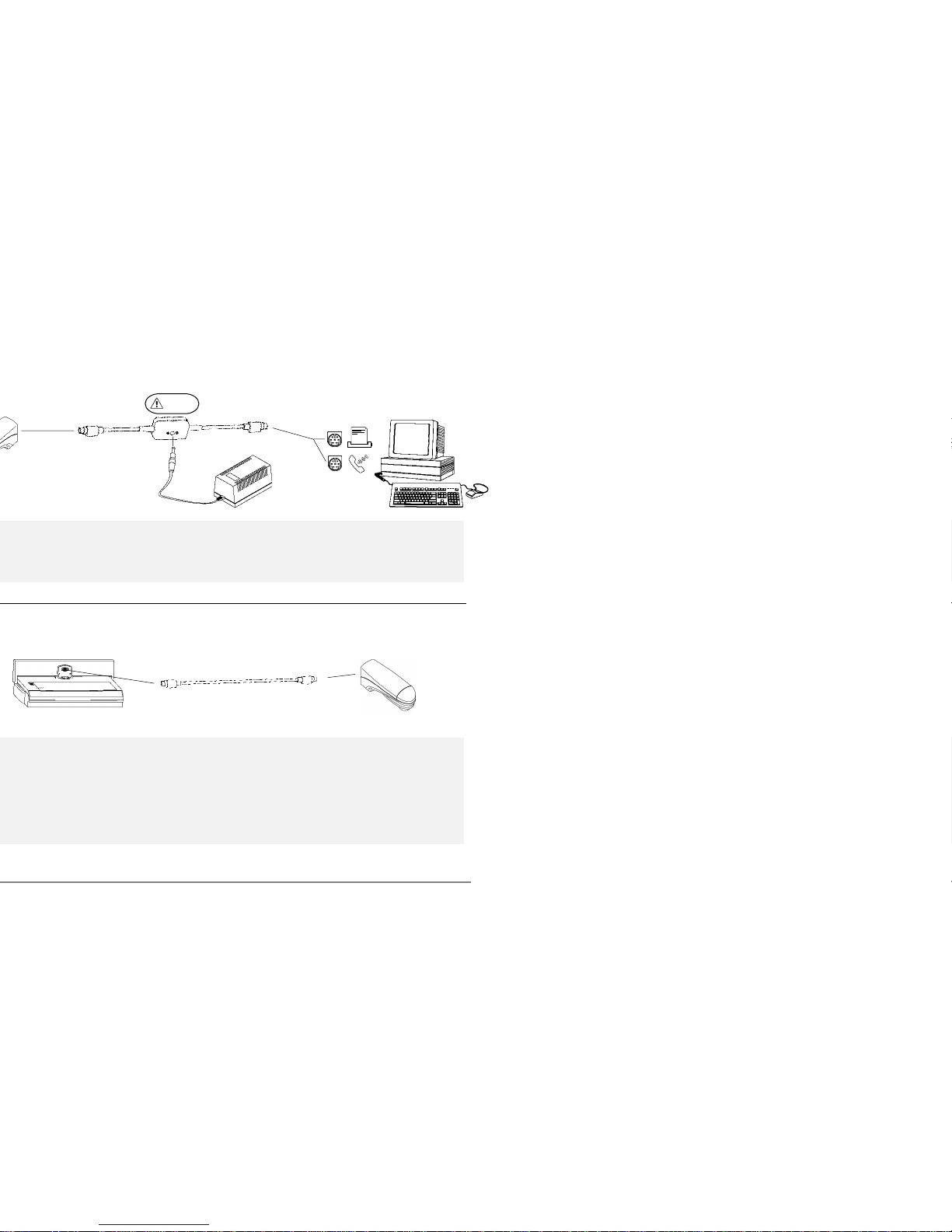

TcableforMAC
(36.55.95)
Spectrolino GretagMacbeth
powersupply
Connection to Macintosh
Connection through the SpectroScan/SpectroScan T for manual measurement of
control or emissions
SpectroScan/SpectroScan T Spectrolino
MAC
Þ
mini-DIN (36.56.36) cable

13
EN
Spectrolino
operation 3
3.4 Use
The Spectrolino is equipped with a single measurement key (10). With this key you
are able to actuate a measurement, as well as performing an absolute white
calibration with automatic filter recognition or restoring the measuring conditions
to the original factory settings.
The Spectrolino has the ability to measure reflectance, both manual and automatic,
as well as take emissive measurements. Depending upon the software employed,
the instrument can be attached to the SpectroScan/SpectroScan T, the positioning foot
(22), or the monitor support (25) by sliding the instrument into the insertion slot (16)
or the centering pins (13) on the SpectroScan/SpectroScan T.
- Be sure to check that the tabs (24) are securely fastened and locked
down to the measuring foot (22) or the monitor support (25) before
operation. This should also be checked when mounting on the
SpectroScan/SpectroScan T. To unlock the instrument, press in and hold
down the release keys (12) on both side of the intrument.
As the Spectrolino is not equipped with any display, its functions, such as mea-
surement, absolute white calibration, etc. are confirmed by acoustic signals. The
various tone sequences are described and illustrated with the various functions.

14 EN
3Spectrolino
operation
- Ensure that the white reference serial number coincides with the serial
number of the Spectrolino .
- Regularly check the cleanliness of the white reference.
- Calibrate the Spectrolino at least once a day.
- If numerous measurements are undertaken in rapid succession, after
about 100 measurements, it is necessary to recalibrate the Spectrolino.
If frequently switched on, the device’s measurement lamp tends to
overheat; this may cause colour shift. Through calibration, measurement
results may be kept constant.
- If subjected to thermal oscillation greater than 5°C, the Spectrolino must
be recalibrated.
3.4.1 Manual control measurement
3.4.1.1 Absolute white calibration
Rest the Spectrolino on the calibration plate (19) with the white reference incorporated
(17), so that the measuring equipment is correctly inserted on the positioning pins (20).
Keep the measurement key (10) pressed for four seconds, until the device confirms
successful calibration by means of an acoustic signal. This signal consists of three
tones: one short low tone, one high long tone and finally another short low tone.
Calibration of the Spectrolino is always an absolute white calibration. If the device has
been set by software to paper references, during calibration it switches back to the
absolute white reference.

15
EN
Spectrolino
operation 3
- Ensure that the Spectrolino is on the same plane as the sample under
measurement. For very thick samples, the measuring device must be
brought to the same height by placing it on a suitable base. An oblique
position of the measuring device may cause errors in measurement.
Position the instrument on the measurement field such that
the colour completely fills the measuring aperture (21).
Lowering the instrument onto the foot retracts the aperture so
that there is no interference with the measurement. The mea-
surement is actuated by brief pressure on the measurement
key (10). A brief single tone confirms that the measurement
has taken place.
3.4.1.2 Measurement of control originals
The Spectrolino is equipped with the measuring foot (22) for manual measurement.
Insert the foot’s folding tab (24) into the slot (16) of the instrument and ensure that the
foot is in the locked position.
3.4.2 Taking emissive measurements
3.4.2.1 Calibration for emissive measurement
Before using the Spectrolino to perform an emissive measurement, it is necessary to
perform a calibration for emissive measurement.
- Emissive measurements may only be performed using the NO filter.
If necessary, before performing the calibration, replace the filter
(for instructions, see chap. 3.4.4 Filter Substitution).

16 EN
3Spectrolino
operation
3.4.2.2 Monitor measurement
The Spectrolino is equipped with a monitor support (25) for emissive measurement.
To set up for this measurement, insert the support’s folding tab (24) into the slot (16)
on the instrument until it locks in position. Attach the measuring device to the monitor
support (25) by means of the sliding lock (23).
Position the Spectrolino on the monitor. The suction cups (27) are
operated by pressing the pressure buttons (26). Usually, mea-
surement is started by software. A succession of three brief tones
confirms successful measurement.
- The Spectrolino may be removed from the monitor by pulling the vent
tabs (28) of the suction cups (27). To avoid damage to the device, never
pull the pressure buttons (26) to release the instrument.
Position the instrument on the calibration plate (19) with the white reference (17),
so that light can not enter the measuring aperture. Emissive calibration can only
be initiated via software activation.

17
EN
Spectrolino
operation 3
3.4.3 Reset
Position the Spectrolino on the calibration plate (19) with the white reference incor-
porated (17). Keep the measurement key (10) depressed for ten seconds. Following
the acoustic signals indicating simple control measurement and absolute white cali-
bration, a sequence of four tones indicates imminent reset. At this point there will be
two tones in rapid succession, that are repeated after a pause. The measuring device
is restored to the original basic settings only after the fifth long tone.
- Resetting must always be performed if any anomalies occur in the link
between software and the Spectrolino, or if the results of measurement
cannot be reproduced. (see chap. 3.5 Diagnostics).

18 EN
3Spectrolino
operation
To substitute a filter attached to the aperture, turn the filter
tube in a counter clockwise direction until the point of the
arrow aligns with the arrow on the instrument. In this po-
sition, the filter may be easily removed. To attach new filter,
align with the reference arrows and turn clockwise to the
end of the mark. This is the only correct position for the filter.
- Important: Following every filter substitution it is necessary to perform
absolute white calibration of the measuring device.
- Keep unused filters in a dark, dry place, well protected from dust.
Regularly check that the filters are clean. Dirt or fingerprints may cause
errors in measurement results.
3.4.4 Filter substitution (only for Spectrolino 4.5 mm)
The Spectrolino comes equipped with three different filters tubes. Depending upon
the application, it is possible to attach a NO filter, a POL filter (Polarisation) or a D65
filter in front of the measuring aperture. The filters are marked with the following white
coloured letters:
Filter NO: UFilter POL: PFilter D65: D65
