GME GA9800 User manual

INstructIoN maNual
4 cHaNNEl amPlIFIEr

PAGE 2 INSTRUCTION MANUAL GA9800
coNtENts
GME strongly recommends that you keep this manual
in a safe place for future reference
ACCESSORIES SUPPLIED ........................2
INTRODUCTION ..............................2
FEATURES ..................................2
PROTECTION CIRCUITRY .......................2
2 OHM PROTECTION ..........................3
ELECTRICAL WIRING ..........................3
FUSES .....................................3
MOUNTING THE AMPLIFIER .....................3
POWER SUPPLY CONNECTIONS ..................3
FOUR CHANNEL INSTALLATION WIRING
1. Low input wiring 2 channel ....................4
2. High input wiring ...........................5
3. Low input wiring 4 channel ....................6
SPEAKER CONFIGURATION
1. 4/8-way speaker ............................7
2. 2-way speaker and subwoofer ..................8
3. 2-way speaker and 2-way subwoofer.............9
4. 4-way speaker and 2-way subwoofer.............9
AMPLIFIER INSTALLATION ......................10
REMOTE CONTROL ..........................10
PRECAUTIONS ..............................10
SPECIFICATIONS .............................10
TROUBLESHOOTING ..........................11
WARRANTY ..........................Back Page
INtroDuctIoN
Congratulations on your purchase of the GME GA9800
marine audio amplifier.
This amplifier is designed to the highest level of quality and
will offer you years of listening enjoyment.
Thank you for making GME your choice for marine audio
equipment.
FEaturEs
• Thermal/Short/Over Load Protection
• 2 Ohm stable (4 Ohm bridged)
• P.W.M.MOSFET power supply
• Power and distress indicator
• Variable low-pass (50–120 Hz)
• Heavy duty heat sink
• Adjustable input sensitivity
• Soft delayed remote turn-on
• Low level and high level input
• Nickel plated terminal strips/RCA jacks
• Built-in remote jack
• Built-in electronic Crossover and an adjustable
Low Pass Control
• Designed with 100% MOSFET Power supply, ensuring
extremely quick switching response and self-protection.
ProtEctIoN cIrcuItry
The amplifier protection circuitry will disable the amplifier if
input overload, short circuit or extremely high temperature
conditions are detected. When the protection mode is in
operation, the LED indicator on the front panel will be
illuminated, indicating the amplier has gone into a
self-preservation mode.
lf you observe that the protection LED is lit, please check
the system carefully to determine what has caused the
protection circuit to engage. The amplifier can be reset by
turning the remote power OFF and then ON again. lf the
amplier shuts down due to a thermal overload condition,
please allow it to cool down before restarting. lf the shut
down is due to an input overload or short circuit, be sure
to repair these conditions before attempting to power up
the amplifier again.
accEssorIEs suPPlIED
• Subwoofer wire
• Remote Control
• Mounting screws
• Allen keys
• Instruction Manual
If any items are missing or
damaged, please contact your
retailer or place of purchase.

GA9800 INSTRUCTION MANUAL PAGE 3
2 oHm ProtEctIoN
Your GME GA9800 amplifier is designed to operate
efficiently at loads down to 2 Ohm. You can install four
8 Ohm speakers per channel when using parallel wiring,
increasing the number of woofers per channel at low
frequencies [up to 100 Hz]. This produces an acoustic
coupling effect, increasing your power output by 3 dB
per speaker, or the equivalent of additional 10W to
each speaker.
When operating at 2 Ohm, the amplier will increase its
output power by approximately 50%. The current draw will
also increase by about the same amount, so be sure you
have enough current to run the amplifiers into a 2 Ohm
load, lf you lack adequate current, your music reproduction
will be distorted.
NOTE: The gain control of any audio amplifier should
not be mistaken for a volume control. lt is a sophisticated
device, designed to match the output level of your audio
source unit to the input level of the amplifier. Do not adjust
this input level to maximum unless your input level requires
it. lgnoring these instructions will result in an input overload
to the amplier, and excessive audio distortion. lt can also
cause the protection circuit to engage.
ElEctrIcal wIrINg
Your GME amplifier is equipped with easy top-access screw
terminals. These terminals are NICKEL Plated in order to
ensure excellent electrical contact, and to resist corrosion.
When making electrical connections to the amplier,
please observe the following:
• Use at least 4 gauge or heavier wires for power and
ground connections.
• Wire the amplier directly to the battery.
• For the ground connection, use the shortest possible wire
to a good chassis ground point.
• Wire the remote connection to the auto start lead of
your stereo.
FusEs
Power fuses protect both the amplifier and the electrical
system of your vessel from fault conditions. lf you must
replace the fuse in your amplier, use a fuse of exactly the
same type and rating. A different type or rating of fuse may
result in damage or fire.
mouNtINg tHE amPlIFIEr
Mark the location for the mounting screw holes by
positioning the amplifier where you wish to install it and
use a scribe [or one of the mounting screws] inserted in
each mounting hole to mark the mounting surface. lf the
mounting surface is carpeted, measure the hole centres
and mark with a felt tip pen.
Drill pilot holes in the mounting surface for the mounting
screws and insert the mounting screws into these holes.
Tighten them securely.
NOTE: Be sure to take note of any wires, lines or other
devices in your vessel which may be located behind any
mounting surface!
PowEr suPPly coNNEctIoNs
The GA9800 amplifier is designed to work within 10 to
16 Volts DC. Before any wires are connected, the vessel’s
electrical system should be checked for correct voltage
supply with the help of a volt meter.
1. Check the voltage at the battery terminals with the
ignition in the OFF position. The Volt Meter should
read no less than 12 Volts.
2. Check the battery with the engine running between
1500 and 2000 rpms. The Volt Meter should now read
between 13.5 and 14.5 Volts.
NOTE: lf your vessel’s electrics are not up to these
specications, we recommend it to be checked by an
Marine Electrician before you continue with the installation.

PAGE 4 INSTRUCTION MANUAL GA9800
4 cHaNNEl INstallatIoN wIrINg

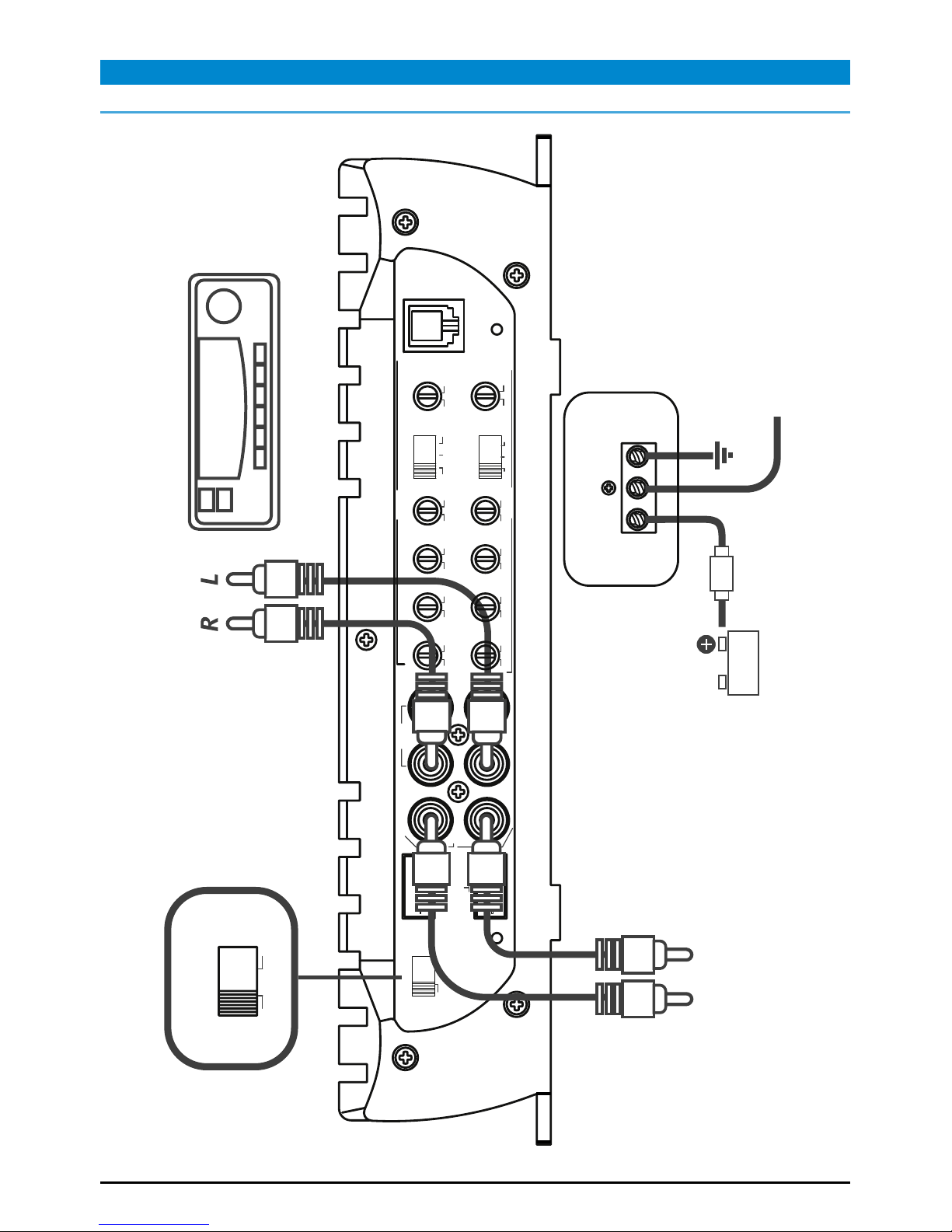

1. Low Input Wiring Configuration 2 Channel
POWER
+12V GNDREM
3/4CH
160HZ
REM
8V 0.3V 0dB20HZ55HZ 40HZ 40HZ
600HZ+18dB HP LPFULL
1/2CH 40HZ 160HZ
8V 0.3V 0dB20HZ55HZ 40HZ 1KHZ
+18dB
PRT
HP LPFULL
3/4CH
LEVEL BASS SUB
HP LP
LP
X-OVER X-OVER
SONICBOOST
LEVEL BASS SUB
HP
SONICBOOST
R2CH
1CH 3CH
4CH
OUTPUT INPUT
PWR
1+ 1- 2- 2+
3+ 3- 4- 4+
INPUTSHIGH
2CH 4CH
INPUT MODE
2CH 4CH
INPUT MODE
Switch in 2CH Position To Audio Outputs of head unit or signal
processor with Stereo Inputs
Chassy ground point
To Remote Turn-On
terminal of head unit
To inputs of Satellite Amplifier. Fuse
Battery
INPUT MODE SWITCH SETTING

GA9800 INSTRUCTION MANUAL PAGE 5
2. High input Wiring Configurations 2/4 Channel
3/4CH
160HZ
REM
8V 0.3V 0dB 20HZ 55HZ 40HZ 40HZ
600HZ+18dBHP LPFULL
1/2CH 40HZ 160HZ
8V 0.3V 0dB 20HZ 55HZ 40HZ1KHZ
+18dB
PRT
HP LPFULL
3/4CH
LEVEL BASS SUB HP LP
LP
X-OVER X-OVER
SONICBOOST
LEVEL BASS SUB
HP
SONICBOOST
R2CH
1CH3CH
4CH
OUTPUT INPUT
PWR
1+ 1- 2- 2+
3+ 3- 4- 4+
INPUTSHIGH
2CH4CH
INPUT MODE
3+ 3- 4- 4+ 1+ 1- 2- 2+
HI-INPUTS HI-INPUTS
Chassis GND
Chassis GND
1+
3+
2–
4–
1–
3–
2+
4+

PAGE 6 INSTRUCTION MANUAL GA9800
3. LOW INPUT WIRING CONFIGURATION 4 CHANNEL
POWER
+12V GNDREM
3/4CH
160HZ
REM
8V 0.3V 0dB20HZ55HZ 40HZ 40HZ
600HZ+18dB HP LPFULL
1/2CH 40HZ 160HZ
8V 0.3V 0dB20HZ55HZ 40HZ 1KHZ
+18dB
PRT
HP LPFULL
3/4CH
LEVEL HP LP
LP
X-OVER X-OVER
LEVEL BASS SUB
HP
SONICBOOST
R2CH
1CH3CH
4CH
OUTPUT INPUT
PWR
1+ 1- 2- 2+
3+ 3- 4- 4+
INPUTSHIGH
2CH4CH
INPUT MODE
2CH 4CH
INPUT MODE
BASS SUB SONICBOOST
Switch in 4CH Position
To Audio Outputs of head unit or signal
processor with Four Channel Outputs
Chassy ground point
Fuse
Battery
INPUT MODE SWITCH SETTING
To Remote Turn-On
terminal of head unit

GA9800 INSTRUCTION MANUAL PAGE 7
FUSE
CH1+ CH1- CH2+ CH2- CH3+ CH3- CH4+ CH4-
BRIDGED
SPEAKERS
BRIDGED
POWER
+12V GNDREM
25
25
HP LPFULL
HP LPFULL
X-OVER
X-OVER
Due to 2 Ohm amplier stability, each speaker port can carry an extra set of 4 Ohm speakers as shown.
CH 3/4 Crossover Mode switch in
Full Range position.
CH 1/2 Crossover Mode
switch in Full Range position.
GME
4 Ohm
speaker
GME
4 Ohm
speaker
GME
4 Ohm
speaker
GME
4 Ohm
speaker
LEFT SPEAKER
LEFT SPEAKER
FRONT SPEAKERS
REAR SPEAKERS
CROSS OVER
SWITCH SETTINGS
RIGHT SPEAKER
RIGHT SPEAKER
sPEaKEr outPut coNFIguratIoN
1. 4/8-Way Speaker Configuration

PAGE 8 INSTRUCTION MANUAL GA9800

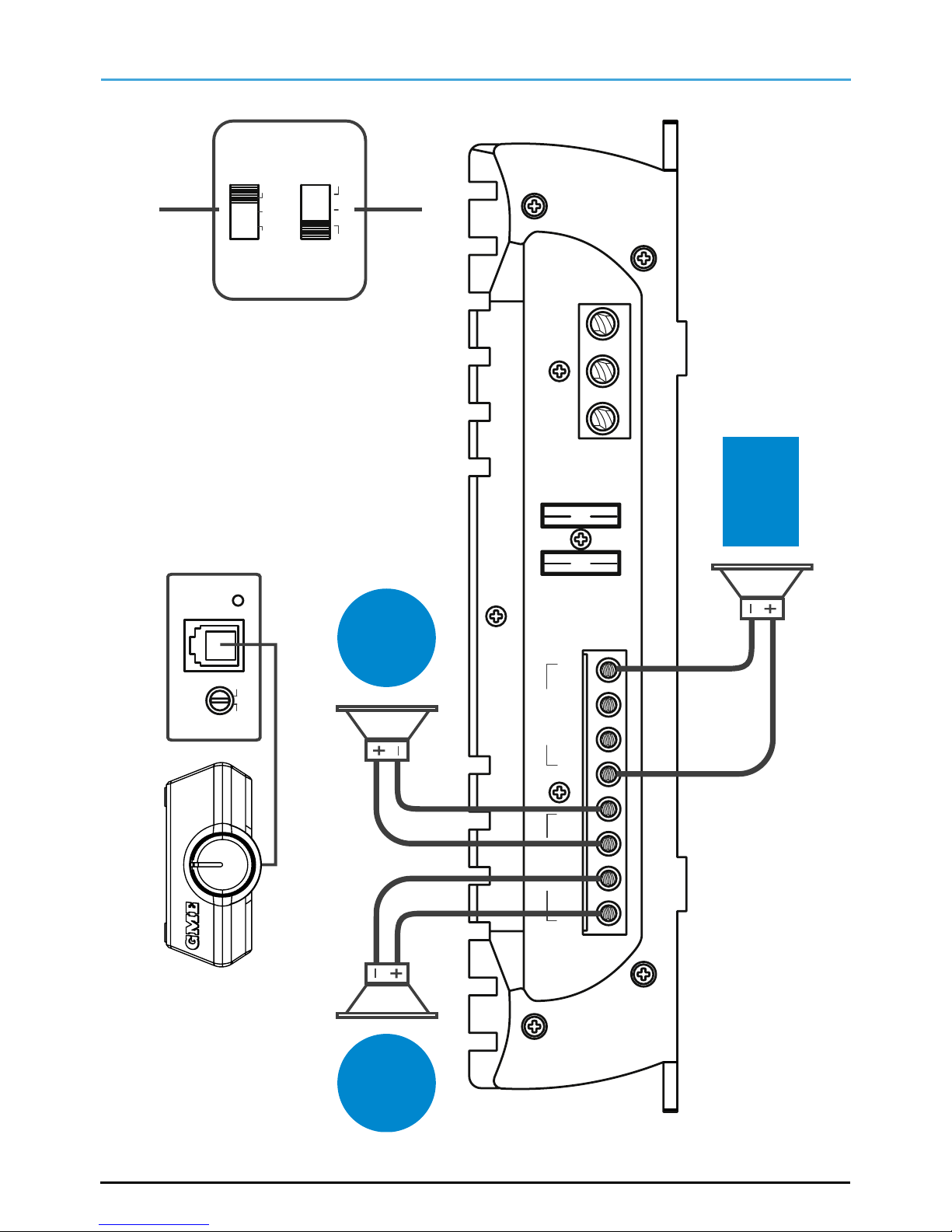

2. 2-Way Speaker and Subwoofer Configuration
40HZ 160HZ
LP
REM
PRT
FUSE
CH1+ CH1- CH2+ CH2- CH3+ CH3- CH4+ CH4-
BRIDGED
SPEAKERS
BRIDGED
POWER
+12V GNDREM
25
25
HP LPFULL
HP LPFULL
X-OVER
X-OVER
CH 3/4 Crossover Mode switch in Low Pass position.
CH 1/2 Crossover Mode
switch in High Pass position.
GME
4 Ohm
speaker
GME
4 Ohm
speaker
GME
Subwoofer
4 Ohm
LEFT SPEAKER
CROSS OVER SWITCH SETTINGS
CH3/4 REMOTE SUBWOOFER
LEVEL CONTROL
RIGHT SPEAKER
SUBWOOFER

GA9800 INSTRUCTION MANUAL PAGE 9
4. 4-Way Speaker and 2-Way Subwoofer Configuration
FUSE
CH1+ CH1- CH2+ CH2- CH3+ CH3- CH4+ CH4-
BRIDGED
SPEAKERS
BRIDGED
POWER
+12V GNDREM
25 25
GME
Subwoofer
4 Ohm
GME
Subwoofer
4 Ohm
GME
4 Ohm
speaker
GME
4 Ohm
speaker
GME
4 Ohm
speaker
GME
4 Ohm
speaker
4 CHANNEL
AMPLIFIER
TRI-MODE ALL
4 CHANNELS.
ALL CROSSOVER
SETTINGS IN THIS
MODE SHOULD BE
FULL RANGE.
GME recommends the following
component values for 12 dB Passive
Crossover.
FREQUENCY
I NDUCTOR CAPACITOR
140 Hz 6.5 mH 220 uF
LEFT
SPEAKER
LEFT
SPEAKER
FRONT SPEAKERS
REAR SPEAKERS
RIGHT
SPEAKER
RIGHT
SPEAKER
Low Pass filter inductor
Low Pass filter inductor
High Pass filter capacitors
High Pass filter capacitors
FRONT SUBWOOFER
REAR SUBWOOFER
HP LPFULL
HP LPFULL
X-OVER
X-OVER
3. 2-Way Speaker and 2-Way Subwoofer Configuration
40HZ 160HZ
LP
REM
PRT
HP LPFULL
HP LPFULL
X-OVER
X-OVER
FUSE
CH1+ CH1- CH2+ CH2- CH3+ CH3- CH4+ CH4-
BRIDGED
SPEAKERS
BRIDGED
POWER
+12V GNDREM
25 25
CH 3/4 Crossover Mode switch
in Low Pass position.
CH 1/2 Crossover Mode
switch in Full Range position.
Min. Speaker
Impedance
4–8 Ohms
GME
Subwoofer
4 Ohm
GME
Subwoofer
4 Ohm
GME
4 Ohm
Speaker
GME
4 Ohm
Speaker
CROSS OVER
SWITCH SETTINGS
CH3/4 REMOTE
SUBWOOFER
LEVEL CONTROL
4 CHANNEL AMPLIFIER
TRI-MODE CHANNEL 1 & 2
BRIDGED MONO FOR CHANNEL 3 & 4.
LEFT
SPEAKER
FRONT SPEAKERS
RIGHT
SPEAKER
Low Pass filter inductor
High Pass filter capacitors
SUBWOOFER
SUBWOOFER

PAGE 10 INSTRUCTION MANUAL GA9800
sPEcIFIcatIoNs
GENERAL
Max. Power @ 2 Ohm: 4 x 367 Watts
RMS Power @ 4 Ohm: 4 x 65 Watts
Bandwidth: 10 Hz – 40 kHz
Signal to Noise: ≥ 95 dB
Channel Separation: ≥ 60 dB
Input Sensitivity Range: 300 mV – 8V
LP Variable Crossover: 40 – 160 Hz & 12 dB/octave
HP Variable Crossover: 40 – 600 Hz/ 1 kHz &
12 dB/octave
Variable Bass Boost: 0 – +18 dB & 45 Hz
Variable Subsonic Filter: 20 – 55 Hz & 12 dB/octave
Phase: No
RCA Input Model: Yes
Input Impedance: 20 K Ohm
Damping Factor: ≥ 200
T.H.D (4 Ohm): 0.05%
Fuse Rating: 2 x 25 Amp
PHYSICAL
Dimensions: 254 mm (10”) (W)
x 56 mm (2.2”) (H)
x 381 mm (15”) (D)
*All specifications are typical and subject to change without notice or obligation
amPlIFIEr INstallatIoN

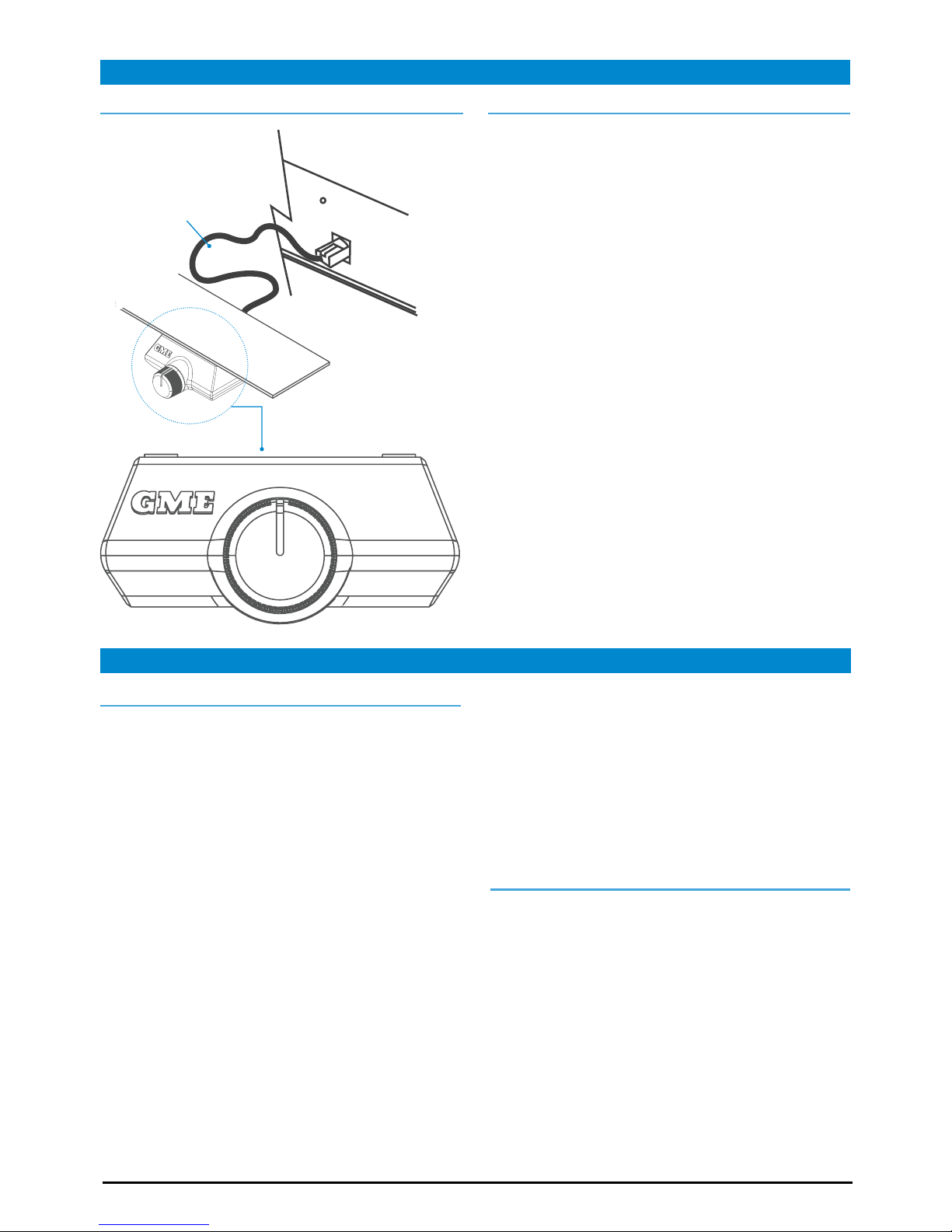

SUBWOOFER Remote control PRECAUTIONS
Before you drill or cut any holes, investigate your vessel’s
layout very carefully. Take care when you work near the gas
tank, fuel lines, hydraulic line and electrical wiring.
Do not operate the amplifier when it is unmounted. Attach
all audio system components securely within the vessel.
Do not mount this amplifier so that the wire connections
are unprotected or in a pinched condition, or likely to be
damaged by nearby objects.
Before making or breaking power connections in your
system, disconnect the vessel’s battery. Conrm that
your head unit or other equipment is turned OFF while
connecting the input jacks and speaker terminals.
lf you need to replace the power fuse, only replace it with a
fuse identical to that supplied with the system. Using a fuse
of a different type or rating may result in damage to your
system which isn’t covered by the manufacturer’s warranty.
REMOTE
REMOTE
LINE CODE

GA9800 INSTRUCTION MANUAL PAGE 11
trouBlEsHootINg
No output 1. Confirm all terminal strip connections are secure and tight.
2. Check both in-line and built-in fuses. Both the ‘+ 12V’ and the ‘REMOTE’ terminal
must have + 12V referenced to chassis ground.
3. Conrm the audio signal source [radio, equalizer, etc.] is connected and is supplying
output signal. To check if the amplier is supplying signal, unplug the RCA cables from
the signal source [but leave them plugged into amp]. Briey tap the centre pin of each
of the disconnected RCA plugs with your nger. This should produce a noise [feedback]
in your speakers.
Only 1 Channel is working 1. Confirm all speaker strip connections are secure and tight.
2. Check the ‘BALANCE’ control on the head unit [or other source] to verify that it is set
to its midpoint.
3. If you are using the Low Level RCA input, reverse the input plugs at the amplier
[switch the R with the L]. If the channel which is silent switches to the other side,
the problem is either in the head unit/other source or the connecting cables.
Weak output Re adjust the Input Sensitivity Control to better suit input signal.
Noise in the audio 1. If the noise is a ’whine’ whose pitch follows the engine speed, conrm that the
amplier and any other signal sources [head unit, etc.] are properly grounded.
2. If the noise is a ‘clicking’ or ‘popping’ noise whose rate follows the engine speed,
this usually means the vessel is equipped with resistor spark plugs and wires, or that
the ignition is in need of service.
3. Check the routing of the speaker and input wires to make sure they are not adjacent
to wires which interconnect lights and other accessories. If the above steps fail to
improve or clear noise interference, the system should be checked by a professional
marine audio installer.
ProBlEm cHEcK ItEm/solutIoN
NOTE: Before moving your amplier, refer to the list below and follow the suggested procedures.
ALWAYS test the speakers and their connecting wires first.
staNDarD commuNIcatIoNs warraNty agaINst DEFEcts
This warranty against defects is given by Standard Communications
Pty Ltd ACN 000 346 814 (We, us, our or GME). Our contact
details are set out in clause 2.7.
1. Consumer guarantees
1.1 Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
1.2 To the extent we are able, we exclude all other conditions,
warranties and obligations which would otherwise be
implied.
2. Warranty against defects
2.1 This warranty is in addition to and does not limit, exclude or
restrict your rights under the Competition and Consumer Act
2010 (Australia) or any other mandatory protection laws that
may apply.
2.2 We warrant our goods to be free from defects in materials
and workmanship for the warranty period (see warranty
table) from the date of original sale (or another period
we agree to in writing). Subject to our obligations under
clause 1.2, we will at our option, either repair or replace
goods which we are satisfied are defective. We warrant
any replacement parts for the remainder of the period of
warranty for the goods into which they are incorporated.
2.3 To the extent permitted by law, our sole liability for breach
of a condition, warranty or other obligation implied by law is
limited.

Part Number: 310442 Drawing Number: 44405-2 INSTRUCTION M A N UA L GA9800
(a) in the case of goods we supply, to any one of the
following as we decide -
(i) the replacement of the goods or the supply of
equivalent goods;
(ii) the repair of the goods;
(iii) the cost of repairing the goods or of acquiring
equivalent goods;
(b) in the case of services we supply, to any one of the
following as we decide –
(i) the supplying of the services again;
(ii) the cost of having the services supplied again.
2.4 For repairs outside the warranty period, we warrant our
repairs to be free from defects in materials and workmanship
for three months from the date of the original repair. We
agree to re-repair or replace (at our option) any materials or
workmanship which we are satisfied are defective.
2.5 We warrant that we will perform services with reasonable
care and skill and agree to investigate any complaint
regarding our services made in good faith. If we are satisfied
under this warranty (to the extent permitted at law),
we agree to supply those services again at no extra charge
to you.
2.6 To make a warranty claim you must before the end of the
applicable warranty period (see warranty table), at your
own cost, return the goods you allege are defective, provide
written details of the defect, and give us an original or copy
of the sales invoice or some other evidence showing details
of the transaction.
2.7 Send your claim to: Standard Communications Pty Ltd.
Unit B, 22-24 College Street, Gladesville, NSW 2111,
Australia. Tel: [phone] Fax: [phone].
Email: [e-mail]
2.8 If we determine that your goods are defective, we will pay for
the cost of returning the repaired or replaced goods to you,
and reimburse you for your reasonable expenses of sending
your warranty claim to us.
3. What this warranty does not cover
3.1 This warranty will not apply in relation to:
(a)
(b) defects and damage caused by use with non Standard
Communications products;
(c) repairs performed other than by our authorised
representative;
(d) defects or damage resulting from misuse, accident,
impact or neglect;
(e) goods improperly installed or used in a manner contrary
to the relevant instruction manual; or
(f) goods where the serial number has been removed or
made illegal.
4. Warranty period
4.1 We provide the following warranty on GME and Kingray
products. No repair or replacement during the warranty
period will renew or extend the warranty period past the
period from original date of purchase.
