GME TX6155 User manual

3 and 5 watt compact UHF CB radios
INSTRUCTION MANUAL

The TX685 and TX6155 are radio transmitting devices.
• When transmitting, keep the antenna more than 25 mm from any part of the head or body.
• Do not transmit near electrical blasting equipment or in explosive atmospheres.
• Do not allow children to operate a radio transmitter unsupervised.
CONTENTS
SAFETY INFORMATION
ACCESSORIES SUPPLIED
TX685
•Li-Ion Battery Pack (2600 mAh, BP024)
• Desktop Charger (BCD020)
• AC Adapter (PS002)
• Removable Flexible Antenna (AE4021)
• Earpiece Style Microphone with VOX
and PTT (HS009)
• Belt Clip (MB045)
• Instruction Manual
TX6155
•Li-Ion Battery Pack (2600 mAh, BP024)
•Desktop Charger (BCD020) - TX6155
• Dual Desktop Charger (BCD021) - TX6155TP
• AC Adapter (PS002)
• Removable Flexible Antenna (AE4021)
• Waterproof Speaker Microphone (MC010)
• Earpiece Style Microphone with VOX
and PTT (HS009)
• Vehicle Lighter 12V DC Lead (BCV007)
• Belt Clip (MB045)
• Instruction Manual
SAFETY INFORMATION.................................. 2
ACCESSORIES SUPPLIED................................ 2
IMPORTANT INFORMATION CONCERNING
UHF CB RADIO.............................................. 3
IMPORTANT ADVICE...................................... 4
FEATURES..................................................... 4
CONTROLS.................................................... 5

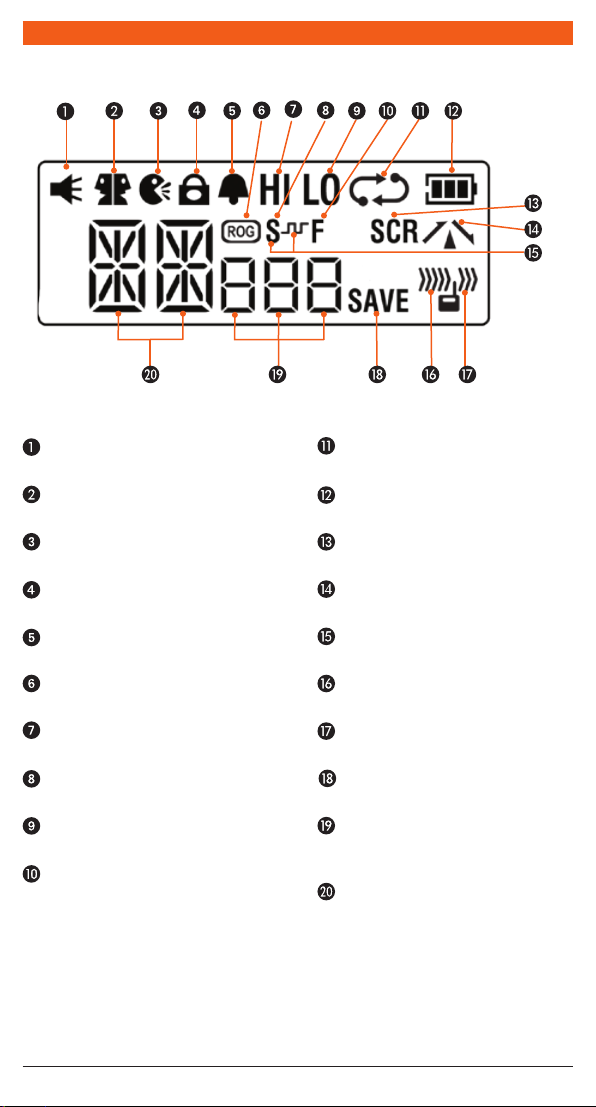

LCD ICONS .................................................. 6

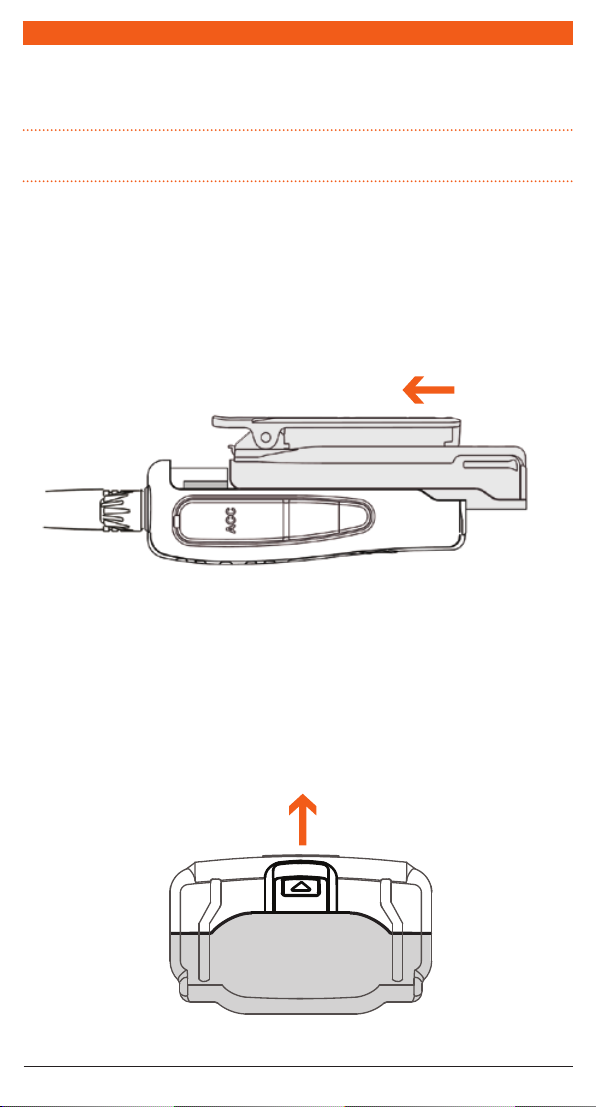

POWERING THE RADIO ................................. 7
Charging the Battery Pack ............................. 8
Battery Low Alert........................................... 9
Battery Usage ............................................... 9
GENERAL OPERATION................................. 10
Power On/Off .............................................. 10
Adjusting the Volume .................................. 10
Display Lighting........................................... 10
Receiving Signals......................................... 10
Transmitting................................................ 10
Selecting Channels...................................... 10
Squelch....................................................... 10
Keypad Lock................................................ 11

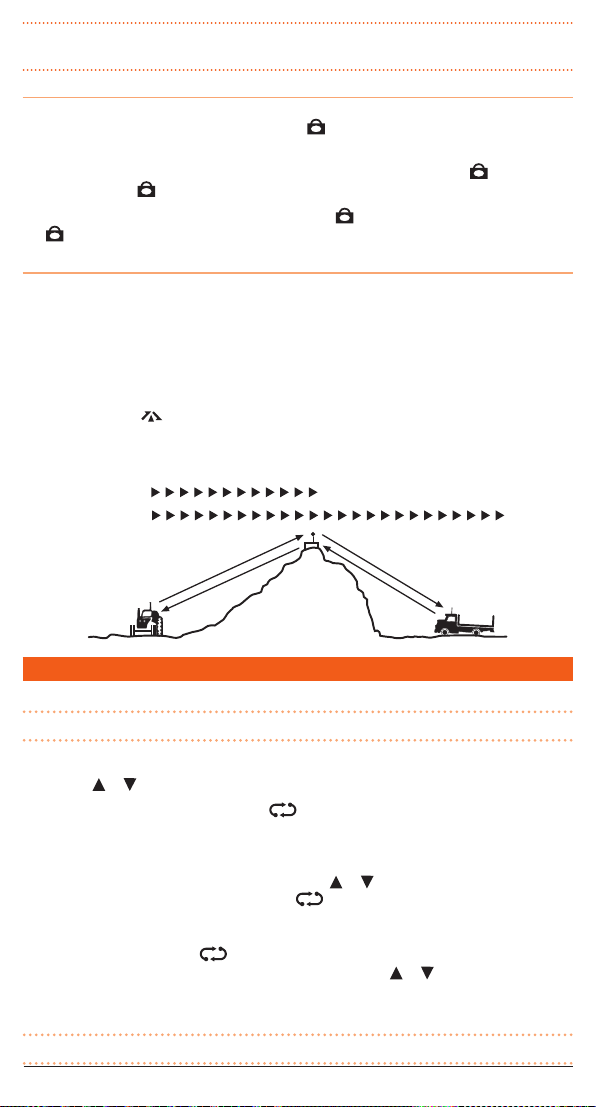

Duplex Operation ........................................ 11

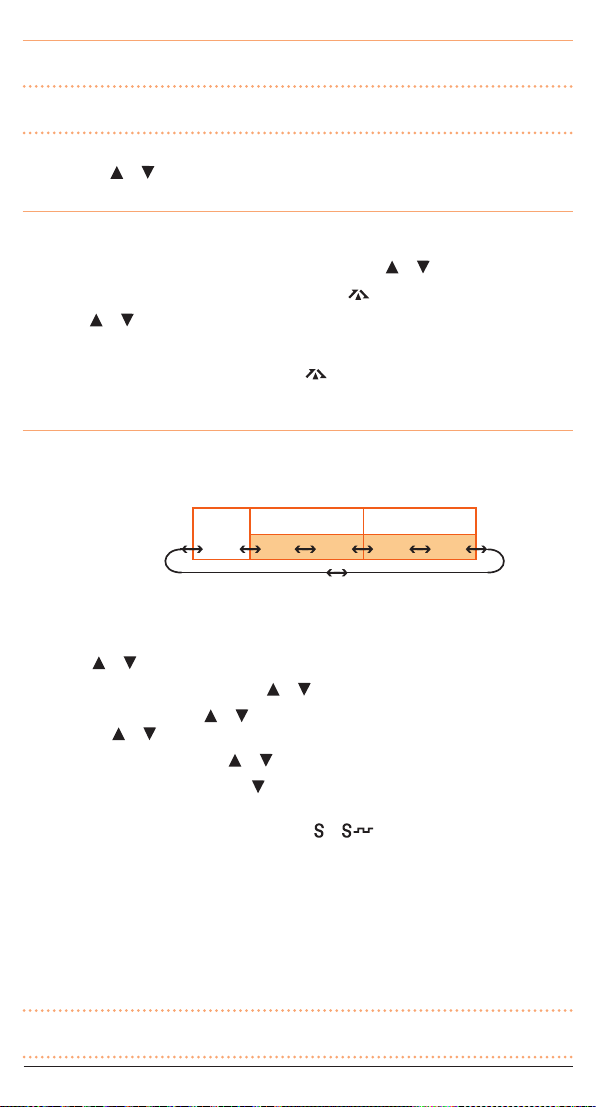

SCANNING ................................................. 11
Scanning Features ....................................... 12
CTCSS, DCS and Silent Mode ...................... 12
MENU......................................................... 12
Using the Menu .......................................... 13
Duplex Mode Selection................................ 13
CTCSS and DCS Code Selection ................... 13
Transmitter Power ....................................... 14
Voice Scrambler........................................... 14
VOX Settings............................................... 14
Squelch Level Setting................................... 15
Roger Beep Tone ......................................... 15
Button Beep ............................................... 15
Call Alarm Selection .................................... 15
Dual Watch ................................................ 16
Dual Watch Operation ................................. 16
DCS TONE CHART ....................................... 16
CTCSS TONE FREQUENCIES ........................ 17
UHF CB OPERATING FREQUENCIES ............ 17
SPECIFICATIONS ......................................... 18
SC CONTRACT WARRANTY
AGAINST DEFECTS ...................................... 18
PAGE 2 INSTRUCTION MANUAL TX6155 / TX685

TX6155 / TX685 INSTRUCTION MANUAL PAGE 3
IMPORTANT INFORMATION CONCERNING UHF CB RADIO
The use of the Citizen Band radio service is licensed in Australia by the ACMA
Radiocommunications (Citizens Band radio Stations) Class Licence and in New Zealand by
the Ministry of Economic Development New Zealand (MED). A General User Radio Licence
for Citizens Band radio and operation is subject to conditions contained in those licences.
The class licence for users and equipment operating in the CB/PRS 477 MHz band has been
amended. This radio meets the new 80 channel standard.
In simple terms the same amount of spectrum is available; however, radio transceivers can
now operate in a narrower bandwidth and hence use less spectrum. These radios are generally
referred to as narrowband or 12.5 kHz radios. By using 12.5 kHz channel spacing instead of
25 kHz, the 40 channels originally allocated can now be expanded to 80 channels thereby
doubling the channel capacity and relieving congestion in the UHF CB/PRS band.
Original 40 channel wideband radios will continue to operate on the original 40 channels,
however they will not be able to converse on the newer channels 41 – 80. The newer
narrowband radios will be able to converse with all older 40 channel wideband radios on all
channels 1 to 40 as well as the newer channels allocated from 41 to 80.
The mixing of narrowband and wideband radios in the same spectrum can cause some
possible operating issues of interference and varying levels of received volume.
POSSIBLE ISSUES
When a new narrowband radio receives a transmission from an older wideband radio the
speech may sound loud and distorted – simply adjust your radio volume for best performance.
When an older wideband radio receives a signal from a new narrowband radio, the speech
may sound quiet – simply adjust your radio volume for best performance.
Depending on how close your receiving radio is to another transmitting radio, there can be
interference from the transmitting radio if it is using a channel adjacent to the channel you are
listening to. Simply try going up or down a few channels from the currently selected channel.
The above situations are not a fault of the radio but a symptom of operating wideband and
narrowband radios in the same bandwidth. This possible interference will decrease over time
as the population of wideband radios ages and decreases.
Further information and updates are available from the Australian Communications and Media
Authority (ACMA) at www.acma.gov.au and the Ministry of Economic Development (MED),
Radio Spectrum Management at: www.rsm.govt.nz
EMERGENCY CHANNELS
The ACMA has allocated channels 5/35 for emergency use only. Channel 5 is the primary
Simplex Emergency Channel. Where a channel 5 repeater is available, you should select
Duplex on CH 5.
NOTE: Channel 35 is the input channel for the channel 5 repeater therefore channel 35
should also not be used for anything other than emergency transmissions.
TELEMETRY CHANNELS
ACMA regulations have allocated channels 22 and 23 for telemetry-only applications and have
prohibited the transmission of speech on these channels. Consequently the radio has a
transmit-inhibit applied to channels 22 and 23.
In the event that additional telemetry/telecommand channels are approved by the ACMA,
these channels shall be added to those currently listed where voice transmission is inhibited.
Currently, transmissions on channels 61, 62 and 63 are also inhibited and these channels are
reserved for future allocation.

PAGE 4 INSTRUCTION MANUAL TX6155 / TX685
TRANSMIT (TX)
TX685 – 3/1 watt and TX6155 – 5/1 watt RF Power: Selectable transmitter power allows you
to conserve battery power when transmitting in close range by using the Low Power setting.
Individually Programmable Duplex Function: User selectable for only those individual
channels in your area that have repeaters, leaving others free for use as extra simplex channels.
RECEIVE (RX)
80†Channels 477 UHF CB
Power-Save Feature: Conserves battery power by sleeping during periods of inactivity.
Calling Tone and Roger Beep: Alerts you to incoming calls.
Signal Receive Indicator
SCANNING AND MEMORY FUNCTIONS
Microprocessor Controlled Frequency Synthesiser: Allows user programmable control of
scanning, channel memories and selected feature options.
Programmable Scan Function: Scans up to 80 UHF CB channels.
Dual Watch: Monitors two channels simultaneously.
PRIVACY FUNCTIONS
Voice Inversion Scrambler: A simple voice scrambler that, when activated, will make your
transmission and reception intelligible only to other radios using the same scrambler technology.
CTCSS & DCS: A built-in Continuous Tone Coded Squelch System and a Digital Coded Squelch
option provide quiet channel operation.
PHYSICAL PROPERTIES
Water & Dust proof IP67 : Provides protection against dust and temporary immersion in water.
Removable Flexible Antenna
Rugged Construction with Die-cast Chassis
USER CONTROLS AND INTERFACE
Keypad Lock: Prevents accidental button presses.
Backlit LCD: For night viewing.
Waterproof/Dustproof speaker microphone – Rated IP67
†Refer to Page 3. Important information concerning UHF CB radio.
IMPORTANT ADVICE
FEATURES
READ ALL INSTRUCTIONS carefully and
completely before operating your radio and
retain this manual for future reference.
• NEVER connect the radio to a power source
other than the supplied battery. This may
damage your radio.
• DO NOT place your radio in front of a
vehicle airbag.
• DO NOT use your radio with a damaged
antenna.
• DO NOT attempt to modify your radio
in any way.
• ALWAYS charge your radio at normal room
temperature.
• ALWAYS switch off your radio where notices
restrict the use of two-way radio or mobile
telephones.
• ONLY use GME approved rechargeable
battery packs with the supplied charger.
• AVOID storing or charging your radio in
direct sunlight.
• AVOID storing or using your radio where
temperatures are below -20°C or above
+60°C.

TX6155 / TX685 INSTRUCTION MANUAL PAGE 5
CONTROLS
Antenna
Indicator LED
PTT Button
Squelch Button
Menu/Function Key
Channel Down
Volume On/Off
Belt Clip
Speaker
Accessory Jack
Microphone
LCD Display
Channel Up
Battery
