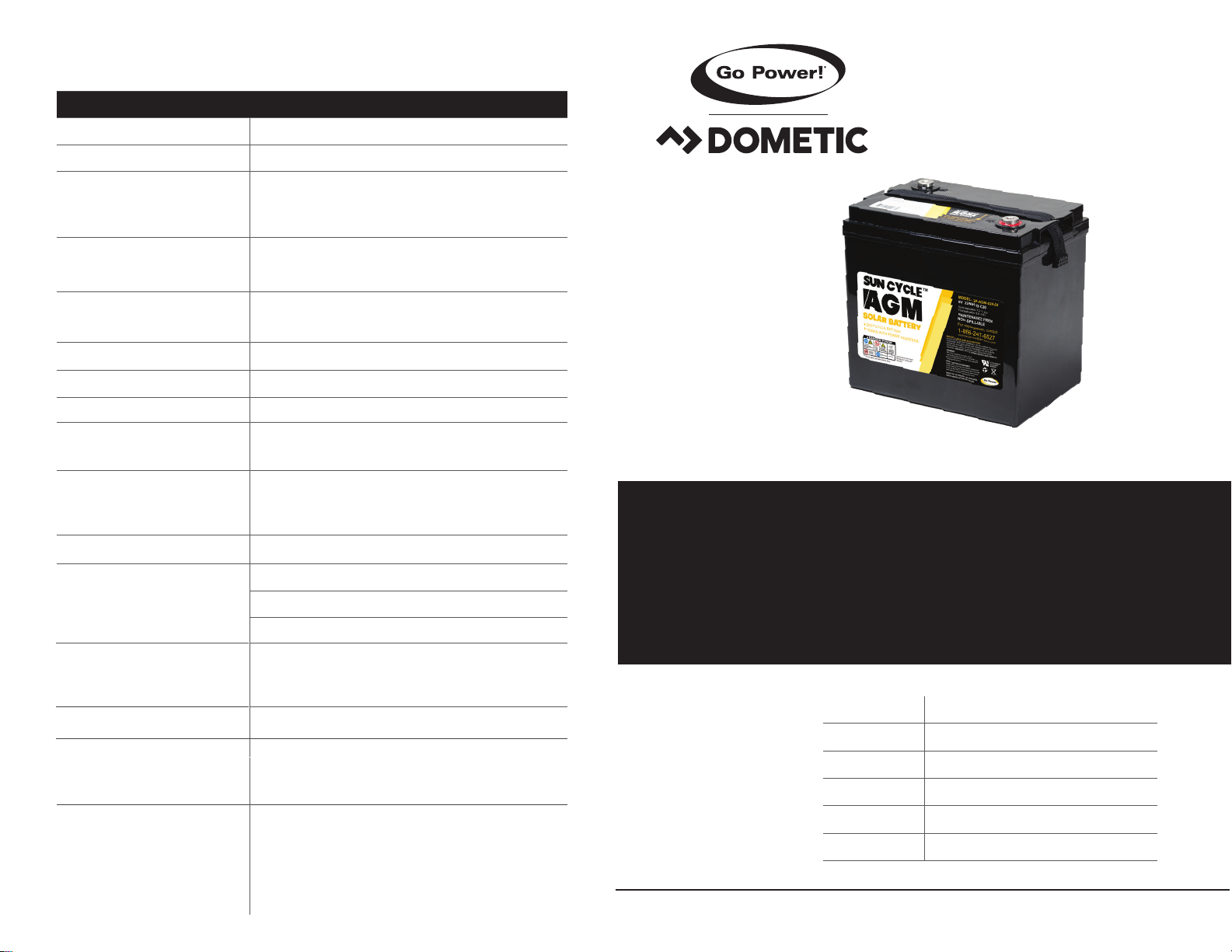

Go Power DOMETIC GP-AGM-224-6V User manual

10.24 in / 260 mm
7.09 in / 180 mm
9.72 in / 247 mm
27
67.25 lbs / 30.5 kg
Nylon Strap
224 Ah/11.2A; 194 Ah/19.4A; 179 Ah/
35.9A
GP-AGM-224-6V
AGM BATTERY
Quick Start Guide
Length
Width
Height
BCI Group #
Weight
Carrying
WARNINGS
- Risk of fire if battery not installed correctly.
- Use caution with metallic objects near battery terminals.
- Keep terminals protected to prevent accidental shorting.
- Disconnect immediately if battery excessively hot or making hissing sounds.
- Replace any battery that has signs of damage to the terminals, case or cover.
- Do not overcharge or overdischarge battery.
BATTERY SPECIFICATIONS
SPECIFICATIONS
Technology AGM, VRLA deep cycle battery
Nominal Voltage 6 V
Rated Capacity
77°F (25 ±5 °C)
Capacity Correction for
Temperature Variations
104°F (40°C) 103%
77°F (25°C) 100%
32°F (0°C) 86%
Maximum Discharge
Current
Specific Energy Density
Volumetric Energy Density
Internal Resistance Approx. 1.4mΩ
Terminals T11
Torque: 11 ~ 14.7 Nm (97.28 - 130 in*lbs)
100% Depth of Discharge ~ 250 cycles
50% Depth of Discharge ~ 1100 cycles
30% Depth of Discharge ~ 2250 cycles
UL; CE; IEC60896-21 & 22
Cycle Life
77°F (25°C)
Temperature Range
Certifications
Charge: 0~40°C (32~104°F)
Discharge: -15~50°C (5~122°F)
Storage: -15~40°C (5~104°F)
Self Discharge
Batteries can be stored for up to 6 months
before a freshening charge is required.
*Batteries stored at temperatures
greater than 77°F (25°C) will require a
recharge sooner.
Cycle Use
Cold Cranking Amps (CCA) 900
Initial Charging Current less than 30.0 A
Voltage: 7.2 V~7.4 V at 77°F (25°C)
Temp. Coefficient -30mV/°C
Standby Use
No limit on Initial Charging Current
Voltage: 6.8 V~6.9 V at 77°F (25°C)
Temp. Coefficient -20mV/°C
2000 A (5s)
116.27 Wh/L
44.07 Wh/kg
Find tech tips, manuals and support at gpelectric.com

Split lock washer
External tooth
lock washer
Do NOT stack smaller
terminals under large ones
Ensure correct strip length and that
stripped wires are completely inserted
into terminal before crimping
Terminals with open-end crimp
barrels may be used to verify wires
are fully inserted before crimping
Minimum 1in gap
between batteries
Minimum 1in gap between batteries
and battery enclosure walls
Positive busbar
Torque battery terminals to
11-14.7 N*m ( 97.3-130 in*lbs)
All busbar connections to external devices (inverter,
converter, solar controller, etc.) to be equal length and
gauge, sized appropriately for each device with suitable
positive circuit protection (fusing or breakers)
Ex) Solar Controller
Ex) Inverter
Ex) Converter
Negative busbar
Connect inner positive and negative terminals
together to form 12V series connection
All battery to busbar connections to
be equal length and gauge
WIRING GUIDE
The illustrations below show how to properly wire AGM batteries.
BATTERY BANK TERMINAL CONNECTIONS
All battery interconnects, busbar and device connections to resist vibration by
using nylon insert lock nuts, thread locking fluid, or lock washers (split lock or
external tooth).
12V 224AH AGM BATTERY BANK PARALLEL CONNECTION
Note: New batteries should never be connected to old batteries. All batteries should be charged to a
minimum of 6.5V before connecting them together
