GoHz HZ-60-500W User manual

GoHz Frequency Converter
User Manual

www.GoHz.com
1
Catalogue
I. Safety Precaution................................................................................................................................. 2
II.Overview.............................................................................................................................................. 3
Product Features......................................................................................................................................... 3
Model Definition ........................................................................................................................................ 3
Checklist..................................................................................................................................................... 3
Nameplate................................................................................................................................................... 3
III. Layout................................................................................................................................................ 4
HZ-60-xxxx Frequency Converter ............................................................................................................. 4
HZ-50-xxxx Frequency Converter .......................................................................................................... 5-6
IV. Installation......................................................................................................................................... 7
Wiring Precaution....................................................................................................................................... 7
Grounding System...................................................................................................................................... 8
Cable Diameter Reference Table ......................................................................................................... 9-10
Wiring Terminals .................................................................................................................................... 11
V. Operation Panel................................................................................................................................ 12
HZ-60-xxxx Frequency Converter ........................................................................................................... 12
HZ-50-11xx & HZ-50-31xx Frequency Converter .................................................................................. 13
HZ-50-33xx Frequency Converter ........................................................................................................... 14
VI. Operation Guide............................................................................................................................. 15
VII. Specification................................................................................................................................... 16
HZ-60-xxxx & HZ-50-11xx Frequency Converter ................................................................................ 16
HZ-50-31xx Frequency Converter ...................................................................................................... 17-18
HZ-50-33xx Frequency Converter ...................................................................................................... 19-20
Drawing & Dimension ........................................................................................................................ 21-22
VIII. Troubleshooting ........................................................................................................................... 23
IX. Maintenance.................................................................................................................................... 24
X. Storage............................................................................................................................................... 25

www.GoHz.com
2
Chapter I. Safety Precaution
Read this user manual before using GoHz frequency converters.
Keep this user manual near the frequency converter for reading at any time.
Careful in transporting the frequency converter to avoid impact.
Do not put the frequency converter on uneven or inclined place.
Do not block the venting holes or slits to keep the frequency converter well-cooling effect, the back of the
frequency converter should keep 10 cm (4 inches) away from the wall.
Double check the frequency converter and power supply specifications are matched and well-wired before
power connection to avoid any careless damage.
Frequency converters have different installations according to different capacities and voltage levels,
choose an appropriate configuration and cable diameter.
Do not overload the frequency converter to prevent the electric shock or cause fires.
Please follow the implementation of electrician laws and regulations.
In case of abnormal phenomenon happens, follow this user manual in troubleshooting or contact the
manufacturer.
Please keep frequency converter clean and do not put heavy objects on top of it.
Prevent any liquids and sundries into the frequency converter, in order to avoid poor contact or short circuit
to cause electric shock or fire.
Better to unplug the power cord in storm, lightning or thunder days.
Avoid placing in direct sunlight, raining or humid place.
Keep it away from the source of ignition and heat to prevent overheat.
Shutdown the power cord during moving or maintaining the frequency converter.

www.GoHz.com
3
Chapter II. Overview
Product Features
GoHz frequency converter is suitable for use with resistive, capacitive, inductive and non-linear loads.
Compatible with 50 Hz & 60 Hz input frequency.
Adjustable single phase 0-300v AC, three phase 0-520v AC output voltage.
Adjustable 40.0 to 120 Hz output frequency, customize 499.9Hz.
Precise 4 LED digital display output frequency, voltage, ampere and wattage.
Isolated operation, no harmonic distortion (EMI, EMC).
Pure sine wave output.
IGBT/PWM technology enhances compact size, low noise and high reliability.
Capable to simulate global voltage, frequency power supplies.
GoHz frequency converters are equipped with electronic circuit/instant trip breaker/buzzer alarm for over
voltage, over current, over temperature, output short circuit protection.
Model Definition
Checklist
Every frequency converter has functional testing before leaving factory, the frequency converter is wooden
packaged, includes:
1 unit frequency converter
1 unit input power cable (only for HZ-60-xxxx series)
Operation manual
Nameplate GoHz Frequency Converter
Model: HZ-60-1101
Capacity: 1kVA
Input: 1P2W 220V 50Hz/60Hz
Output: 1P2W 0 – 300V, 40.0 – 499.9Hz
Serial Number: GoHz-20150101010
HZ-50- 3 1 10
Capacity Code: one to three Arabic numerals, 10 means 10kVA
Output Code: 1 means single-phase output, 3 means three-phase output
Input Code: 1 means single-phase input, 3 means three-phase input
Company code

www.GoHz.com
4
Chapter III. Layout
HZ-60-xxxx Frequency Converter
Power jack
Cooling fan
W:330mm
D:420mm
H:180mm
Fuse

www.GoHz.com
5
HZ-50-xxxx Frequency Converter
①
①
②
③
⑥③
②
⑤
④
⑤
④
R S T N G L N G
Single Phase Three Phase to Single Phase
L N G L N G

www.GoHz.com
6

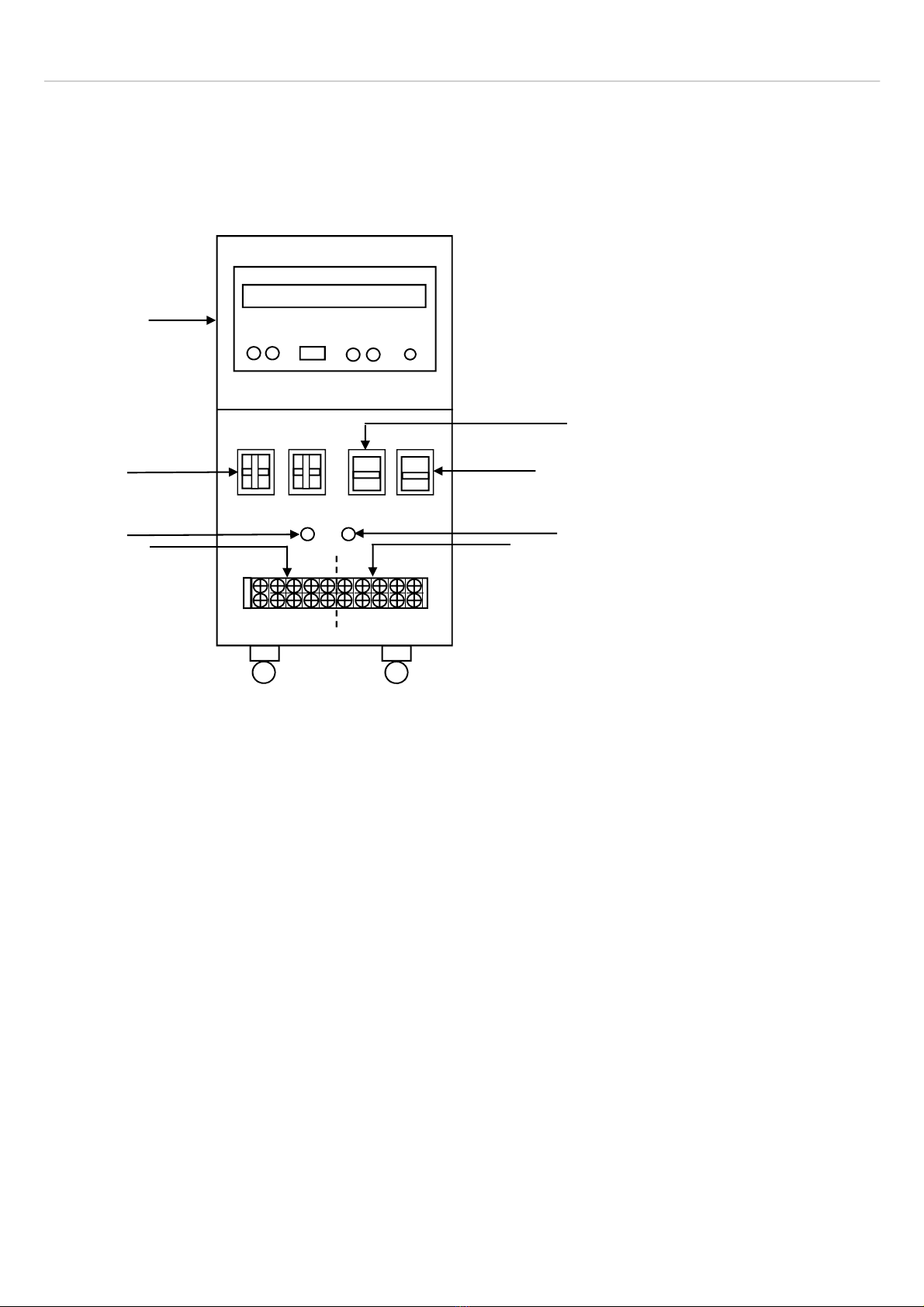

①Operation Panel
②Input Air-switch
③Output Air-switch
④Input Terminals
⑤Output Terminals
⑥Low/High Voltage Switch (For 30kVA and Above)
⑦Low/High Voltage Indicator (For 3-Phase 3kVA to 20kVA)
⑧Phase/Line Voltage Switch (For 3-Phase 3kVA to 20kVA)
①
②
⑥③
⑧
⑦
④⑤
R S T N G U V W N G
Three Phase

www.GoHz.com
7
Chapter IV. Installation
Wiring Precaution
Whether the capacity of the frequency converter in accordance with your loads.
Whether the frequency converter damaged during transportation, if so, do not connect it to power source.
Shut down power before wiring, check the input voltage before installation.
Make sure the specification of the cable in accordance with the frequency converter before wiring. The
cable diameter should follow the voltage level and capacity of the frequency converter.
Please refer to electrician wiring regulations, or following the "Cable Diameter Reference" table.
Avoid sharing the power switch of the frequency converter with other appliances.
Use O-type wiring terminals, make sure it's well-wired, tighten screws to avoid poor contact and prevent
electric shock.
Make sure the power source is correct to match single phase or three phase frequency converter.
For grounding, refer to the next page.
Make sure all switches on "OFF" status before connecting the frequency converter to power source.
Make sure the power source, frequency converter and loads are matching before power on.
Internal semiconductor components are sensitive to static electricity, be careful in touching the metal
control panel.

www.GoHz.com
8
Grounding System
In addition to safety consideration, well-grounded system also can avoid the power system interferes
equipment normal operation.
Ground Cable should be separated with Neutral Cable, unless special applications.
Ground Cable should be 8AWG cable at least or the diameter is basically the same.
Ground Cable is for specified frequency converter only, poor ground will cause interference to other
machines.
Use ground rods in grounding for the best.
Ground Types:
Item Application Resistance value
1
Low voltage power supply system or high voltage electrical
equipment of three-phase four-wire multi-grounded systems
grounding
10Ωor less
2 Ungrounded high-voltage electrical equipment grounding
system. 25Ωor less
3 Low voltage power supply system of three-phase three-wire
ungrounded system. 50Ωor less
4
1. Low voltage electrical equipment grounding
2. Inner system grounding
3. Frequency converter secondary grounding
4. Low voltage electrical equipment metal body grounding.
1. Ground voltage less than 150V is 100Ωor less.
2. Ground voltage 151V to 300V is 50Ωor less.
3. Ground voltage higher than 301V is 10Ωor less.

www.GoHz.com
9
Cable Diameter Reference Table

1Ø 2W / 220V 1Ø 2W / 0-300V
Model
(GoHz) Capacity Input Max. O/P Current Output
L N G
Low High L N G
1102 2kVA ≥2.5mm22.5mm216.8A 8.4A ≥2.5mm22.5mm2
1103 3kVA ≥4mm22.5mm225A 12.5 ≥4mm22.5mm2
1105 5kVA ≥6mm26mm241.6A 20.8A ≥6mm26mm2
1110 10kVA ≥10mm210mm283.2A 41.6A ≥16mm210mm2
1115 15kVA ≥16mm210mm2125A 62.5A ≥25mm210mm2
1120 20kVA ≥25mm210mm2166.6A 83.3A ≥35mm210mm2
1130 30kVA ≥35mm210mm2250A 125A ≥50mm210mm2
3Ø 4W / 380V 1Ø 2W / 0-300V
Model
(GoHz) Capacity Input Max. O/P Current Output
R S T N G Low High L N G
3110 10kVA ≥4mm26mm283.2A 41.6A ≥16mm210mm2
3115 15kVA ≥6mm26mm2125A 62.5A ≥25mm210mm2
3120 20kVA ≥6mm26mm2166.6A 83.3A ≥35mm210mm2
3130 30kVA ≥10mm210mm2250A 125A ≥50mm210mm2
3145 45kVA ≥16mm210mm2375A 187.5A ≥75mm210mm2
3150 50kVA ≥16mm210mm2416.6A 208.3A ≥83mm210mm2
3160 60kVA ≥25mm210mm2500A 250A ≥100mm210mm2
3175 75kVA ≥30mm210mm2625A 312.5A ≥150mm210mm2
3190 90kVA ≥35mm210mm2750A 375A ≥180mm210mm2
31100 100kVA ≥50mm210mm2833.3A 416.7A ≥200mm210mm2
31120 120kVA ≥70mm210mm21000A 500A ≥250mm210mm2
31150 150kVA ≥95mm210mm21250A 625A ≥300mm210mm2

www.GoHz.com
10
Note: user can choose different cables according to the input and output conditions, when the input or
output cable length exceeds 20 meters, the cable diameter should be doubled.
3Ø 4W/ 380V 3Ø 4W / 0-520V
Model
(GoHz) Capacity Input Max. O/P Current Output
R S T N G Low High U V W N G
3303 3kVA ≥1.5mm22.5mm28.4A 4.2A ≥2mm26mm2
3310 10kVA ≥4mm22.5mm227.6A 13.8A ≥6mm26mm2
3315 15kVA ≥6mm26mm241.6A 20.8A ≥8mm26mm2
3320 20kVA ≥6mm26mm255.6A 27.8A ≥10mm26mm2
3330 30kVA ≥10mm26mm283.2A 41.6A ≥16mm26mm2
3345 45kVA ≥16mm210mm2125A 62.5A ≥25mm210mm2
3360 60kVA ≥25mm210mm2166.6A 83.3A ≥35mm210mm2
3375 75kVA ≥30mm210mm2208.3A 104.2A ≥42mm210mm2
3390 90kVA ≥35mm210mm2250A 125A ≥50mm210mm2
33100 100kVA ≥50mm210mm2277.7A 138.8A ≥70mm210mm2
33120 120kVA ≥70mm210mm2333.3A 166.6A ≥95mm210mm2
33150 150kVA ≥95mm210mm2416.6A 208.3A ≥120mm210mm2
33200 200kVA ≥120mm210mm2555.5A 277.7A ≥185mm210mm2
33300 300kVA ≥180mm210mm2833.3A 416.6A ≥240mm210mm2

www.GoHz.com
11
Single Phase Input,
Single Phase output.
Three Phase Input,
Single Phase Output.
Three Phase Input,
Three Phase Output.
R S T N G U V W N G
Input
R S T N G L N G
L N G L N G

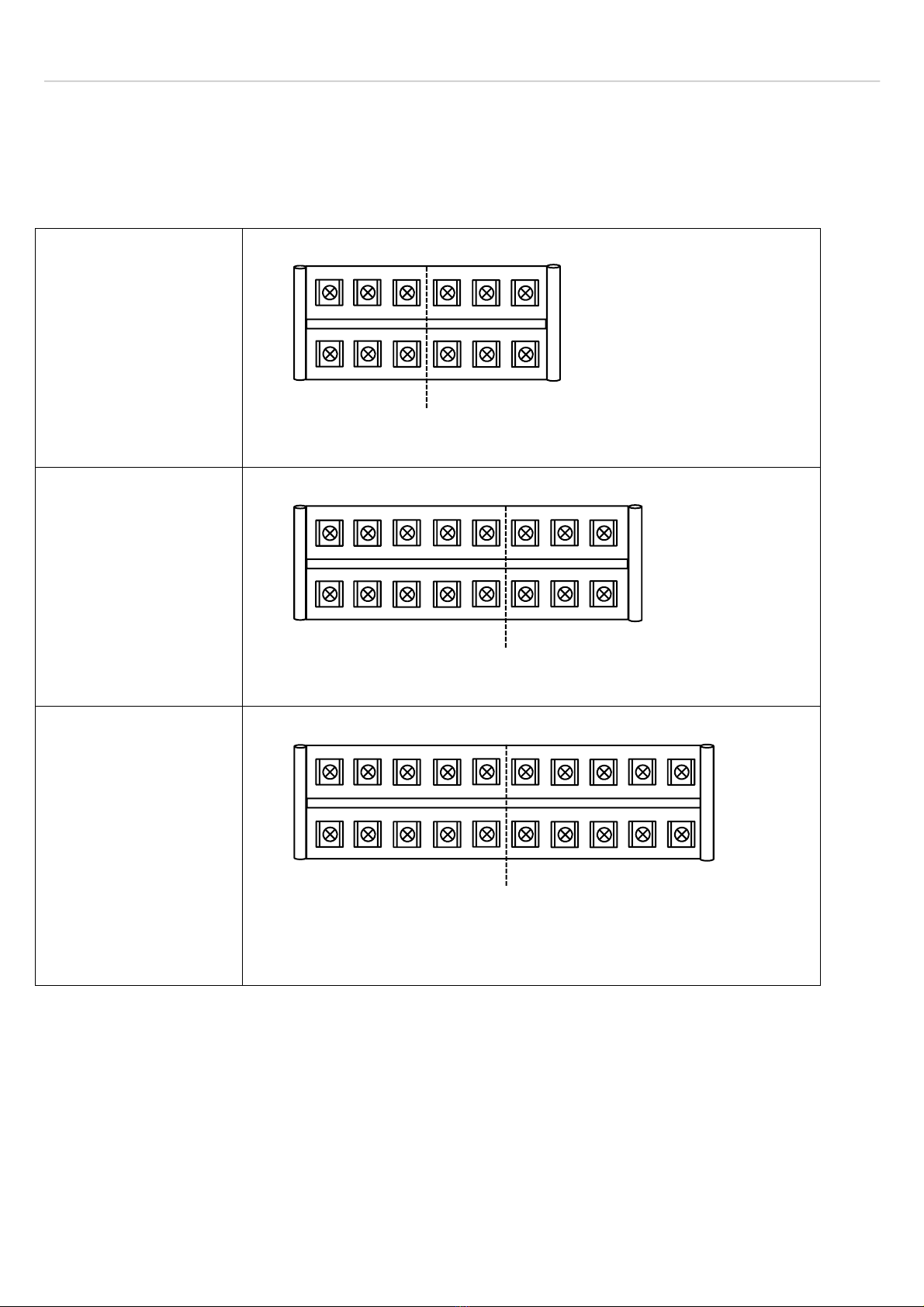

Wiring Terminals
OutputInput
Output
Input
Output

www.GoHz.com
12
Chapter V. Operation Panel
HZ-60-xxxx Frequency Converter
Output Socket
Output Switch
Watt/Power Factor Switch
Watt
Output Volt
Output Hz
AmpVolt
Low/High Volt Switch
Hz
ON/OFF/RESET
Input Switch

www.GoHz.com
13
HZ-50-11xx & HZ-50-31xx Frequency Converter
Watt/PF Switch
Output VoltLow/High Volt Switch
Output Hz
Watt
OFF/RESET
Amp
ON
Volt
Hz
2kVA-30kVA
45kVA-150kVA

www.GoHz.com
14
HZ-50-33xx Frequency Converter
WattAmpVoltHz
Phase/Line
Voltage Switch
U/V/W
Phase Switch
Output Hz Output Volt OFF/RESET
ON
30kVA-500kVA
3kVA-20kVA

www.GoHz.com
15
Chapter VI. Operation Guide
Proper operating procedures allow you to use the frequency converter more smoothly and avoid unnecessary
troubles.
1. Make sure the POWER ON switch is on OFF position.
2. Make sure the switches, rotary buttons, displays are not loosen or damaged.
3. Make sure the power supply is matching with the frequency converter specifications (110V, 220V etc.)
before turning the input POWER ON switch to ON position.
4. Set the output frequency by "FREQUENCY SET" switch. Note, press OFF/RESET for setting hundreds
frequency (1xx.x).
5. Choose the Low/High Voltage output voltage according to the loads, for ≤150V change 0-150V (low) and
0-300V (high) base on required voltage.
6. Press to POWER ON switch (ON).
7. Connect loads cable and turn on the AC OUTPUT switch to obtain required standard AC power supplies.
8. GoHz frequency converter has overcurrent (overload), over temperature, short circuit, instantaneous power
off protection and warning indicators. In case of above phenomenon happens, the protection circuit cut off
output immediately and trigger warning buzzer.
9. Press OFF / RESET switch to cut off the output.
Caution: For 30kVA frequency converter (and above), to switch Low/High voltage, if the frequency
converter is connected loads, the frequency converter must be powered off and turn off the output switch
before switching the voltage.

www.GoHz.com
16
Chapter VII. Specification
HZ-60-xxxx & HZ-50-11xx (Single Phase Input, Single Phase Output)
Model HZ-60-500W HZ-60-1101 HZ-50-1102 HZ-50-1103 HZ-50-1105 HZ-50-1110 HZ-50-1115 HZ-50-1120
Capacity 500VA 1kVA 2kVA 3kVA 5kVA 10kVA 15kVA 20kVA
Input Voltage (Optional) 1 Phase 2 Wire: 110V/220V/230V/240 ± 10%
Frequency 50Hz or 60Hz ± 5%
Output
Voltage
0-150V (Low Voltage range)
0-300V (High Voltage range)
Frequency 40.0Hz to 120Hz (Higher than 120Hz is customized)
Current Low-grade 4.2A 8.4A 16.8A 25A 41.6A 83.2A 125A 166.6A
High-grade 2.1A 4.2A 8.4A 12.5A 20.8A 41.6A 62.5A 83.3A
Load stabilization Rate ≤±1%
Frequency Stability ≤±0.01%
Harmonic Distortion Pure Sine Wave ≤2%
Frequency meter 4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter 4 digit, digital voltage meter, resolution 0.1V
Ammeter 4 digit, digital ammeter, resolution 0.1A
Watt meter 4 digit, digital Watt meter, resolution 0.1W
Protection
With overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working Environment
Temperature 0 - 40 deg. ℃
Humidity 0 - 90% (Non condensation)

www.GoHz.com
17
HZ-50-31xx (Three Phase Input, Single Phase Output)
Model HZ-50-3110 HZ-50-3115 HZ-50-3120 HZ-50-3130 HZ-50-3145 HZ-50-3150 HZ-50-3160
Capacity 10kVA 15kVA 20kVA 30kVA 45kVA 50kVA 60kVA
Input Voltage (Optional)
3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V±10%
3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10%
3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10%
Frequency 50Hz or 60Hz ± 5%
Output
Voltage
0-150V (Low Voltage range)
0-300V (High Voltage range)
Frequency 40.0Hz to 120Hz (Higher than 120Hz is customized)
Current Low-grade 83.2A 125A 166.6A 250A 375A 416.6A 500A
High-grade 41.6A 62.5A 83.3A 125A 187.5A 208.3A 250A
Load stabilization Rate ≤±1%
Frequency Stability ≤±0.01%
Harmonic Distortion Pure Sine Wave ≤2%
Frequency meter 4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter 4 digit, digital voltage meter, resolution 0.1V
Ammeter 4 digit, digital ammeter, resolution 0.1A
Watt meter 4 digit, digital Watt meter, resolution 0.1W
Protection
With overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working Environment Temperature 0 - 40 deg. ℃
Humidity 0 - 90% (Non condensation)

www.GoHz.com
18
HZ-50-31xx (Three Phase Input, Single Phase Output)
Model HZ-50-3175 HZ-50-3190 HZ-50-31100 HZ-50-31120 HZ-50-31150
Capacity 75kVA 90kVA 100kVA 120kVA 150kVA
Input
Voltage(Optional)
3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V±10%
3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10%
3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10%
Frequency 50Hz or 60Hz ± 5%
Output
Voltage
0-150V (Low Voltage range)
0-300V (High Voltage range)
Frequency 40.0Hz to 120Hz (Higher than 120Hz is customized)
Current
Low-grade 625A 750A 833.3A 1000A 1250A
High-grade 312.5A 375A 416.6A 500A 625A
Load stabilization Rate ≤±1%
Frequency Stability ≤±0.01%
Harmonic Distortion Pure Sine Wave ≤2%
Frequency meter 4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter 4 digit, digital voltage meter, resolution 0.1V
Ammeter 4 digit, digital ammeter, resolution 0.1A
Protection
With overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working Environment
Temperature 0 - 40 deg. ℃
Humidity 0 - 90% (Non condensation)
