Gold Metal 4001 User manual

© 2022 Gold Medal Products Co.
Part No. 110016
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
Candy Apple Stoves
Caramel Corn Stove
Models: 4001 and 4002
Model: 2083
Instruction Manual
Model 2083 shown for general image
reference only (kettle not included).

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 2
gmpopcorn.com
SAFETY PRECAUTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning. 008_012221
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
To avoid burns, DO NOT touch the kettle or any heated surface.
DO NOT place or leave objects in contact with heated surfaces.
013_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 3
gmpopcorn.com
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614
Note: Improvements are always being made to Gold Medal’s equipment. This information
may not be the latest available for your purposes. It is critical that you call Gold Medal’s
Technical Service Department at 1-800-543-0862 for any questions about your
machine operations, replacement parts, or any service questions. (Gold Medal
Products Co. does not assume any liability for injury due to careless handling and/or
reckless operation of this equipment.) General images may be used in manual for
reference only.

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 4
gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this
equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold
Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.
Model Description
4001 and 4002: Electric Candy Apple Stoves
2083:Electric Caramel Corn Stove
For smaller operations, the counter-top 120-volt model 4008 Reddy-Apple candy apple cooker
is available for purchase (unit allows you to make candy apples with a minimum of space).
Gold Medal Products also offers gas fired stoves for propane.

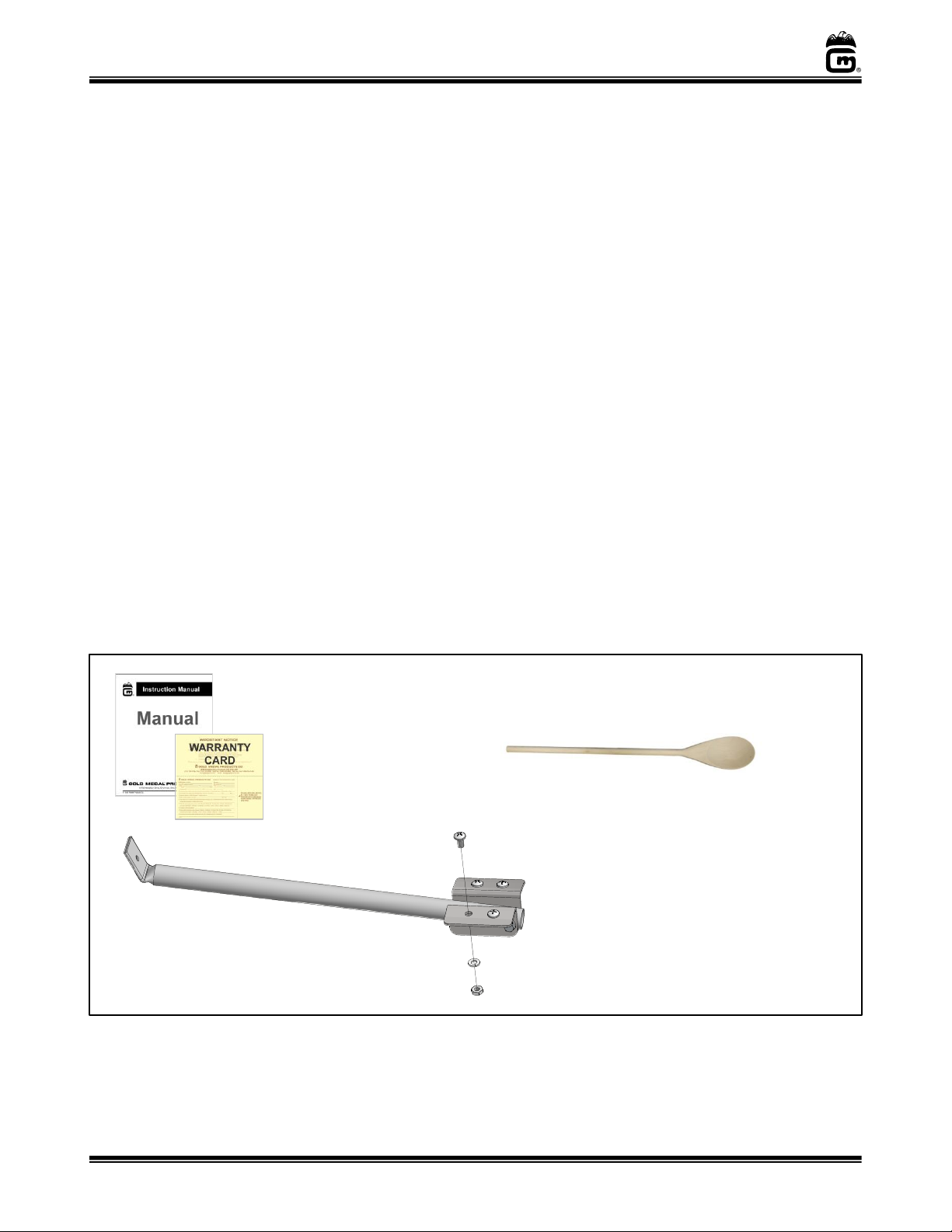

Items Included with this Unit
Instruction Manual and
Registration Warranty Card
Wood Spoon (PN 46207)
1/4 -20 Screw (x4)
Lock Washer (x4)
1/4-20 Hex Nut (x4)
Leg Assembly (x3)
•Brackets preassembled on leg.
•Includes mounting hardware listed.
General images shown
for reference only.

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 5
gmpopcorn.com
Setup
1. Remove all packaging and tape prior to operation.
2. Place unit in a level position on a surface strong enough to support it when in use.
3. Allow enough clearance for proper machine operation; there must be a minimum
clearance of 6” clearance between unit and wall.
4. Attach the three (3) support legs to the wrapper assembly as shown below. DO NOT
operate the stove without the legs.
5. Secure unit to floor to avoid tipping.
6. After setup, the unit should be cleaned prior to use (see Care and Cleaning section).
Leg Assembly
(mounting brackets
are preinstalled)
Lock
Washer
1/4-20 Screw
(fasteners used
4 places per leg)
1/4-20
Hex Nut

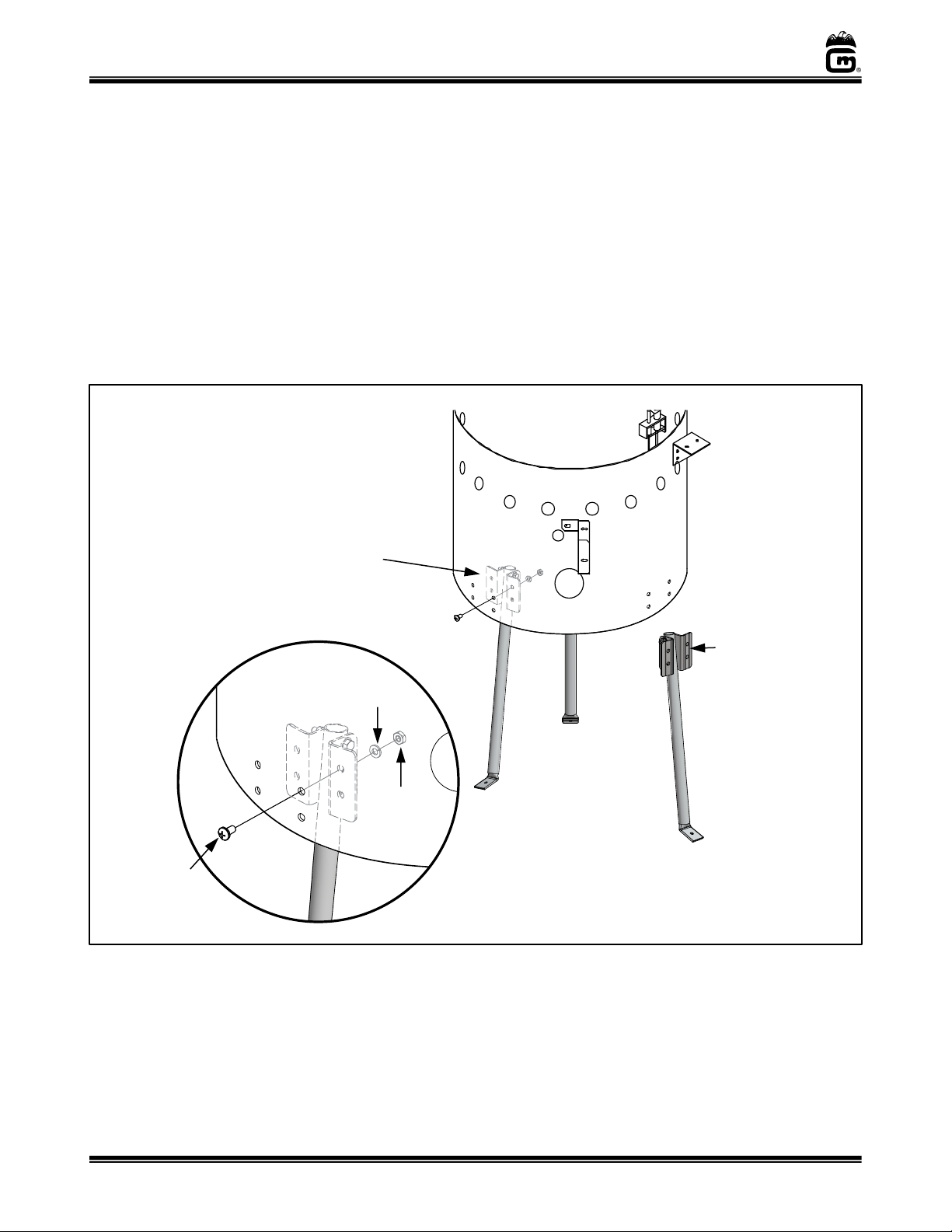

Leg Assembly Installation
1. Use a Philips head screwdriver and
7/16” socket (tools not included).
2. Remove unit fasteners from mounting
brackets (DO NOT remove brackets
from leg).
3. Position leg on interior of unit.
4. Securely fasten each leg assembly
using the (4) screws, lock washers,
and nuts provided, see image below.
General images shown for reference only.

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 6
gmpopcorn.com
Electrical Requirements
The following power supply must be provided (reference unit Data Plate for Wattage requirement):
4001: 208 V~, 60 Hz
4002: 240 V~, 60 Hz
2083: 208/240 V~, 60 Hz
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning. 008_012221
A certified electrician must furnish sufficient power for proper machine operation and install any
supplied receptacle (reference unit Data Plate for model specific Volts AC, Hertz, and Wattage
requirements). We recommend this equipment be on a dedicated and protected circuit. Failure
to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal
Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of
extension cords is not recommended due to safety concerns, and may cause sacrificed and/or
reduced performance. Make sure cord is located to prevent a trip hazard or unit upset.
Before You Plug In Machine
1. Make sure all machine switches are OFF before plugging equipment into receptacle.
2. Make sure wall outlet can accept the grounded plugs (where applicable) on the power
supply cord.
3. The wall outlet must have the proper polarity. If in doubt, have a certified electrician
inspect the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).
5. Install unit in a level position.
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 7
gmpopcorn.com
OPERATING INSTRUCTIONS
Making Candy Apples
Candy Apple Coating
Candy apple coating is a mix of various sugars: sucrose, glucose, and dextrose. Hard candies have
traditionally given chefs trouble. However, using fully prepared mixes such as our APPL-EZ
eliminates most chances of a bad batch.
Follow the instructions on the APPL-EZ bag for the proper amount of sugar and water.
In APPL-EZ, or any other dextrose-based mix, the stated quantity of water is very important.
•Too much water results in a longer cooking time and thicker batch.
•Not enough water results in crystallization and “raw” candy.
•Operate the unit at proper voltage (reference Electrical Specifications section).
Apple Sticks
The large 5½" long, round Northern wood stick is preferred. The length makes small apples
seem larger. Gold Medal also sells the smaller 4½" lengths for economy. The round geometry
makes spinning the apple in the pot easier than flat or square sticks.
Amount of Water
Sufficient water must be used to allow for the correct cooking time. Cooking time is the most
important aspect of candy making.
•Too short of cook time leads to crystallization and no set-up.
•Too much time causes a brownish color, a burnt taste, and too thick a batch.
•Optimum cooking time is between 15 and 20 minutes.
Types of Apples
Pick a hard apple, (in either color). Dipping an apple in hot candy actually cooks the “meat” of the
apple just under the skin. The juices in this “meat” make the skin become sticky.
Never use cold refrigerated apples. Allow refrigerated apples to warm up to room temperature,
otherwise, the candy may not stick to the apple skin.
Temperature
Optimum cooking temperature is 275°F.
Remember: The cooking process actually means melting the sugar crystals. Sugar burns
at 330°F; to be on the safe side, never allow temperature to exceed 300°F.

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 8
gmpopcorn.com
Dipping the Apples
Make sure apples are cleaned, dry, and sticks are inserted. When temperature is 275°F, turn the
heat OFF.
1. Pick up apple by stick, with thumb and index finger, insert into candy apple coating
(immersing entire apple).
2. Remove from candy and carefully scrap off excess candy.
3. Place on greased cooling rack.
Ground Peanut Coatings
Rolling candy apples in ground peanuts makes them very attractive. You must roll apples
immediately after dipping, otherwise nuts may not stick. Shredded coconut may also be used.
Cellophane Wrapping
Cellophane wrappers keep apples good for several days. They are a must in high humidity areas.
Wrap apples as soon as they cool.

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 9
gmpopcorn.com
Care and Cleaning
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
DO NOT immerse in water. DO NOTclean appliance with a water jet or steam
cleaner. Always unplug the equipment before cleaning or servicing. 025_051321
WARNING
To avoid serious burns, DO NOT touch the kettle while it is hot!
028_082715
Good sanitation practice demands that all food preparation equipment be cleaned regularly (only
use non-toxic, food grade cleaners).
For surfaces needing further cleaning or degreasing, Watchdog Stainless Cleaner (Item No. 2088)
is available for use accordingly. For any cleaning products used, follow the manufacturer’s
instructions on the product. DO NOT use oven cleaners or abrasive materials as they will
damage parts of machine.
Follow the directions below to clean the unit each day after use.
1. Turn the unit OFF and unplug it—allow unit to cool before attempting to clean.
2. Do not leave water in pans overnight. Clean all pans/accessories after each use—
remove the insert and take it to sink to clean.
3. If required, carefully clean the element area with a vacuum only.
4. Wipe remaining unit surfaces clean with a soft cloth, SLIGHTLY dampened with soap
and hot water, then wipe again to remove any remaining cleaner.
5. Thoroughly dry unit after cleaning.

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 10
gmpopcorn.com
THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning. 008_012221
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027_010914

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 11
gmpopcorn.com
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or
parts list. (General images may be used in manual for reference only.)
2. Use only approved replacement parts when servicing this unit.
3. When ordering, please include part number, part name, and quantity needed.
4. Please include your model number, serial number, and date of manufacture (located
on the machine nameplate/data plate) with your order.
5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700
Medallion Drive, Cincinnati, Ohio 45241-4807
or place orders by phone or online:
Phone: [phone]
[phone]
Fax: [phone]
[phone]
E-mail: [email protected]
Web Page: gmpopcorn.com

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 12
gmpopcorn.com
Stove Unit - Parts Breakdown
1
2
12
14
15
13
Leg Assembly (mounting
brackets are preinstalled)
To replace an old-style leg,
replace all three as a set to
make sure unit sits correctly.
3, 4, 5
6, 7
8
9
10
11
General images shown for parts reference only
(optional items are sold separately).
Element View

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 13
gmpopcorn.com
Stove Unit - Parts List
Item
Part Description
Part Number
4001
4002
2083
1
WOOD SPOON
46207
46207
46207
2
WRAP AROUND, ELECT
32111
32111
33015
3
SWITCH BOX
27049
27049
27049
4
COVER SWITCH BOX
27050
27050
33023
5
SWITCH
32113
32113
42018
6
LEAD IN ASSEMBLY
16050
32112
89016
7
RECEPTACLE (not shown)
82208
82208
89107
8
ELEMENT CLAMP
32017
32017
32017
9
ELEMENT MOUNT SHELF ASSY
32103
32103
32103
10
HEAT ELEMENT 208V, 4500W
32115
HEAT ELEMENT 240V, 4500W
32101
HEAT ELEMENT 220V, 2600W
33032
11
HEAT RING ASSY
32106
32106
32106
12
LEG ASSY, 25 IN, BOLT ON (brackets preassembled
to leg, includes mounting fasteners listed below)
120453
120453
LEG ASSY, 17 IN, BOLT ON (brackets preassembled
to leg, includes mounting fasteners listed below)
120455
13
1/4-20 X 1/2 P/H PHIL (fastens leg assy. to unit)
12471
12471
12471
14
1/4 SPRING LOCK WASHER (fastens leg assy. to
unit)
12707
12707
12707
15
1/4-20 HEX NUT, S.S. (fastens leg assy. to unit)
12706
12706
12706
Optional Items (sold separately)
Part Description
Part Number
CARAMEL SET, CAN
2087
COPPER KETTLE
2081
19” ALUMINUM KETTLE
2057
WOOD MIXING PADDLE
2093
THERMOMETER
5907

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 14
gmpopcorn.com
Wiring Diagram
Model 4001 and 4002

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 15
gmpopcorn.com
Model 2083

Caramel Apple Stoves Models: 4001 and 4002
Caramel Corn Stove Model 2083
Page 16
gmpopcorn.com
WARRANTY
© 2022 –The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of
Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website
display, without its express written consent.
WARRANTY
Gold Medal Products Co. warrants to the original purchaser each item of its manufacture to
be free of defects in workmanship and material under normal use and service. Gold Medal
Products Co.’s obligation under this warranty is limited solely to repairing or replacing parts,
f.o.b. Cincinnati, Ohio, which in its judgment are defective in workmanship or material and
which are returned, freight prepaid, to its Cincinnati, Ohio factory or other designated point.
Except for “Perishable Parts” on specific machines, the above warranty applies for a period
of two (2) years from the date of original sale to the original purchaser of equipment when
recommended operating instructions and maintenance procedures have been followed. These
are packed with the machine. Parts warranty is two (2) years, labor is six (6) months.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. In no event shall Gold Medal Products Co. be liable for special, incidental or
consequential damages. No claim under this warranty will be honored if the equipment covered
has been misused, neglected, damaged in transit, or has been tampered with or changed in any
way. No claim under this warranty shall be honored in the event that components in the unit at
the time of the claim were not supplied or approved by Gold Medal Products Co. This warranty
is effective only when electrical items have been properly attached to city utility lines only at
proper voltages. This warranty is not transferable without the written consent of Gold Medal
Products Co.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that person,
firm, association, or corporation who was billed by the GOLD MEDAL PRODUCTS CO.,
or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS CO. AT 1-800-543-0862 TO
DISCUSS WITH OUR SERVICE REPRESENTATIVE THE EQUIPMENT PROBLEM,
AND, IF NECESSARY, FOR INSTRUCTIONS CONCERNING THE REPAIR OR
REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
gmpopcorn.com
Phone: [phone] Fax: [phone]
[phone] [phone]
