USER’S MANUAL
Serial Number
Decal
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. GGEX62410.0
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-877-776-4777
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.workoutwarehouse.com
www.workoutwarehouse.com

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

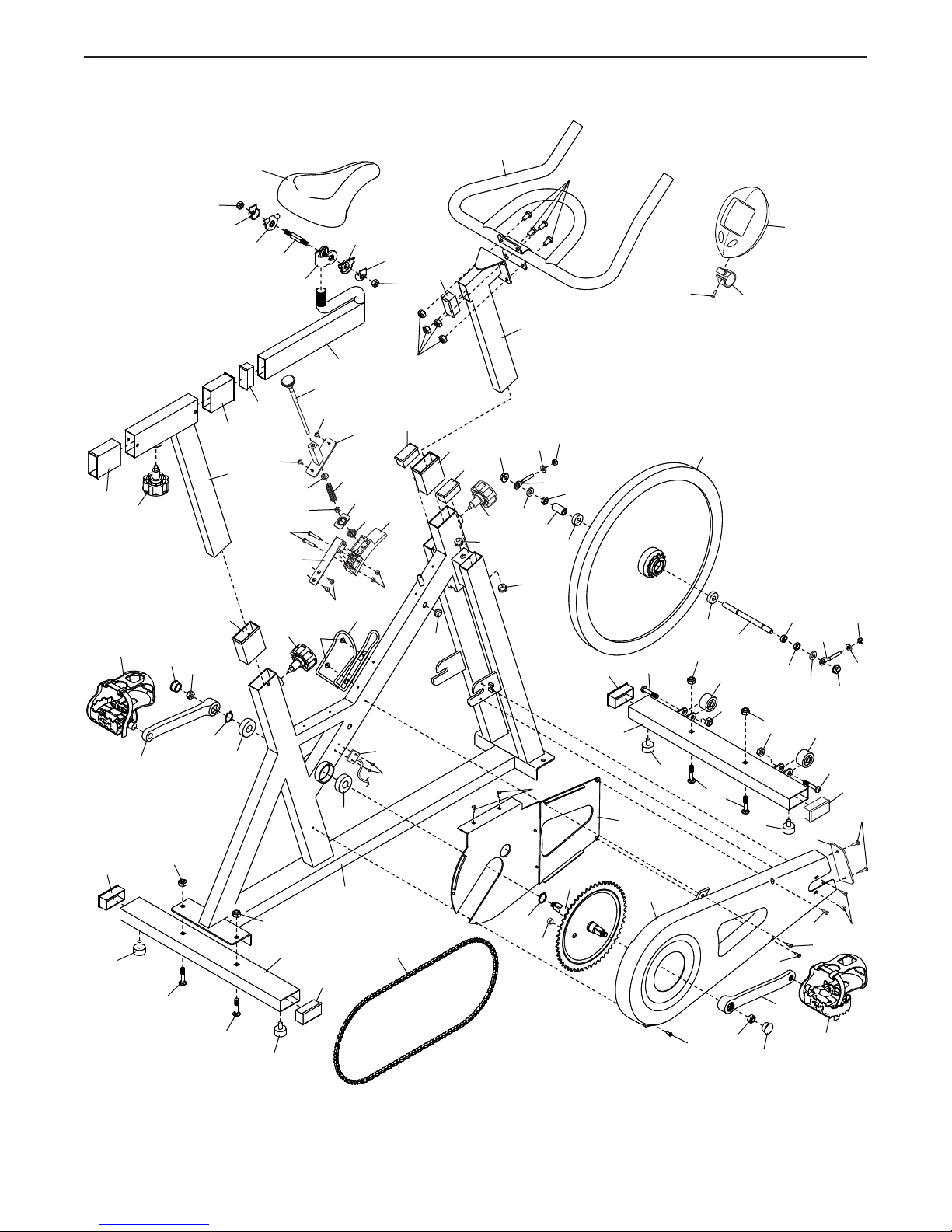

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
TABLE OF CONTENTS
GOLD’S GYM is a registered trademark of Gold’s Gym International, Inc. This product is manufactured and
distributed under license from Gold’s Gym Merchandising, Inc.

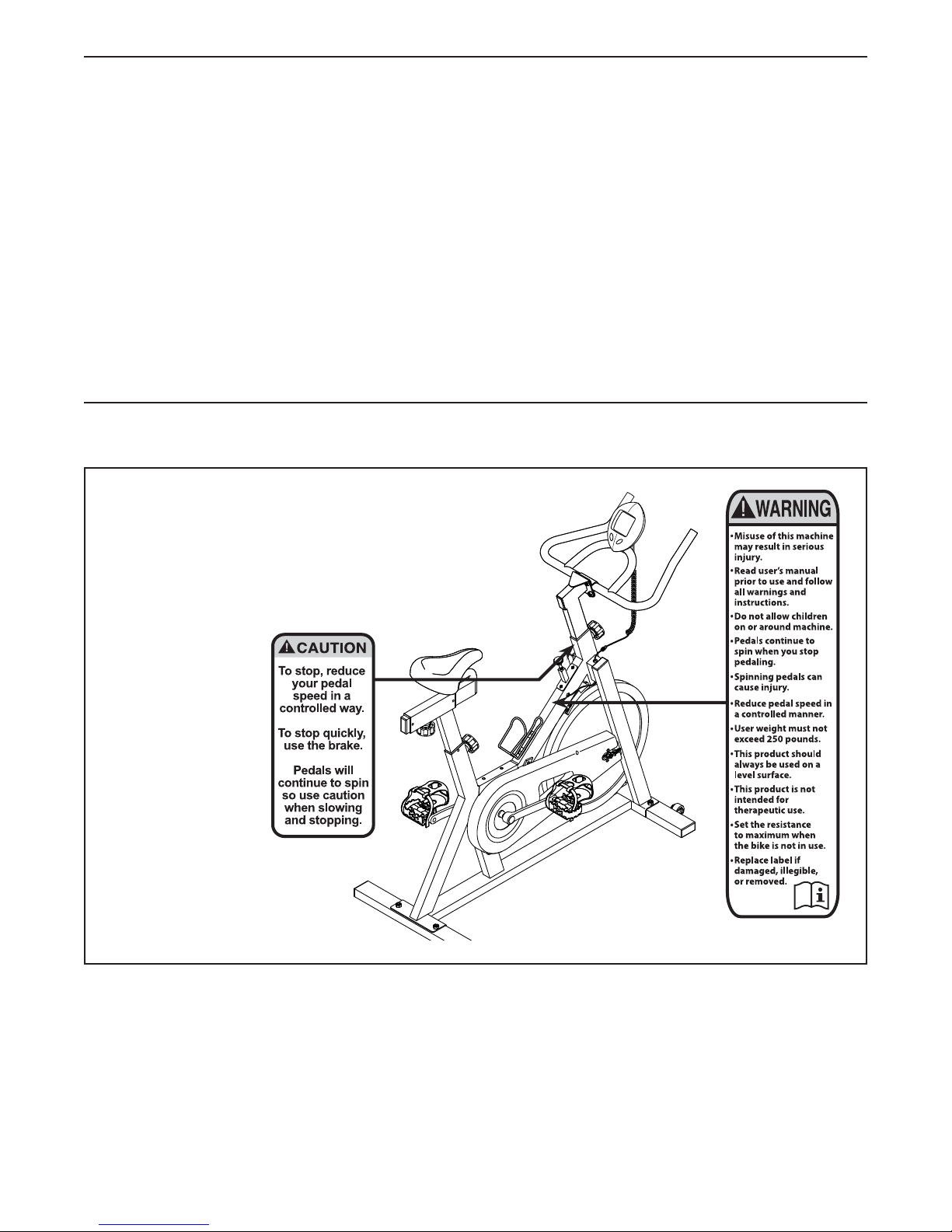

This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover
of this manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decal(s) may not be shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
4. The exercise bike is intended for use in a
supervised environment only.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface,
with a mat beneath it to protect the floor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 250 lbs.
(113 kg).
11. Always keep your back straight while using
the exercise bike; do not arch your back.
12. The exercise bike does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
13. To stop the flywheel quickly, press the resis-
tance knob downward.
14. When the exercise bike is not in use, tighten
the resistance knob completely to prevent
the flywheel from moving.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
IMPORTANT PRECAUTIONS

4
Thank you for selecting the new GOLD’S GYM®
CYCLE TRAINER 310 exercise bike. Cycling is an
effective exercise for increasing cardiovascular fitness,
building endurance, and toning the body. The CYCLE
TRAINER 310 exercise bike provides a selection of
features designed to make your workouts more effec-
tive and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the back cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Resistance Knob
Seat
Adjustment Knob
Console
Adjustment Knob
Pedal/Strap
Water Bottle Holder*
Flywheel
Leveling Foot
Handlebar
BEFORE YOU BEGIN
Wheel
Leveling Foot
Length: 3 ft. 10 in. (116 cm)
Width: 1 ft. 8 in. (51 cm)
*Water bottle is not included

5
1. Orient the Front Stabilizer (7) as shown. Attach
the Front Stabilizer to the Frame (1) with two
M8 x 35mm Carriage Bolts (52) and two M8
Locknuts (62).
1
52
62
1
7
ASSEMBLY
• To hire an authorized service technician to assem-
ble the exercise bike, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a socket set
or a set of ratchet wrenches. To avoid damaging
parts, do not use power tools.

6
2. Attach the Rear Stabilizer (8) to the Frame (1)
with two M8 x 35mm Carriage Bolts (52) and two
M8 Locknuts (62).
2
8
1
3
3. Orient the Handlebar Post (5) as shown.
Loosen the indicated Adjustment Knob (21) on
the front of the Frame (1) and pull it outward.
Then, insert the Handlebar Post (5) into the
Frame.
Move the Handlebar Post (5) upward or
downward to the desired position, release
the Adjustment Knob (21) into an adjustment
hole in the Handlebar Post, and then tighten
the Adjustment Knob. Make sure that the
Adjustment Knob is firmly engaged in an
adjustment hole.
5
Holes
1
4
4. Orient the Handlebar (6) as shown. Attach the
Handlebar to the Handlebar Post (5) with four
M8 x 15mm Button Bolts (54) and four M8
Locknuts (62).
52
62
21
6
5
62
54

7
5
3
1
2
21
21
6. Slide the Seat Clamp (44) on the Seat (4) onto
the Seat Carriage (3).
Then, tighten the two Seat Mount Nuts (69) on
the Seat Clamp (44). Make sure that the nose
of the Seat (4) is pointing straight ahead
before you tighten the Nuts.
4
3
44
69
69
6
5. Orient the Seat Post (2) as shown. Loosen the
indicated Adjustment Knob (21) on the Frame (1)
and pull it outward. Then, insert the Seat Post
into the Frame.
Move the Seat Post (2) upward or downward
to the desired position, release the Adjustment
Knob (21) into an adjustment hole in the Seat
Post, and then tighten the Adjustment Knob.
Make sure that the Adjustment Knob is firmly
engaged in an adjustment hole.
Orient the Seat Carriage (3) as shown. Loosen
the indicated Adjustment Knob (21) on the Seat
Post (2) and pull it outward. Then, insert the Seat
Carriage into the Seat Post.
Slide the Seat Carriage (3) to the desired posi-
tion and then release the Adjustment Knob (21)
into one of the adjustment holes in the Seat
Carriage. Make sure that the Adjustment Knob
is firmly engaged in an adjustment hole.
Holes

8
7. Identify the Right Pedal (15), which is marked
with an “R.”
Using an adjustable wrench, firmly tighten the
Right Pedal (15) clockwise into the Right Crank
Arm (14).
Tighten the Left Pedal (not shown) counter-
clockwise into the Left Crank Arm (not shown).
8. Attach the Console Mount (19) to the Handlebar
(6) with an M4 x 25mm Machine Screw (68).
9. The Console (20) can use one AA battery (not
included); an alkaline battery is recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the battery cover from the back
of the console, and insert the battery into the
battery compartment. Make sure to orient the
battery as shown by the diagram inside the
battery compartment. Then, reattach the bat-
tery cover.
7
8
9
15
19
68
6
20
14
Battery
Compartment

9
10
11. Make sure that all parts are properly tightened before you use the exercise bike. Note: After assembly is
completed, some extra parts may be left over.
10. Slide the Console (20) onto the Console Mount
(19). Connect the wire on the Console to the
Reed Switch Wire (47) in the Frame (1). 20
19
1
47
Wire

10
HOW TO USE THE EXERCISE BIKE
HOW TO ADJUST THE SEAT
You can adjust the angle of the seat to the position that
is most comfortable. You can also slide your seat for-
ward or backward to increase your comfort or to adjust
the distance to the handlebar.
See step 6 on page 7. To adjust the seat, first
loosen the seat mount nuts on the seat clamp a few
turns. Next, tilt the seat upward or downward or slide
the seat forward or backward to the desired position.
Then, retighten the seat mount nuts.

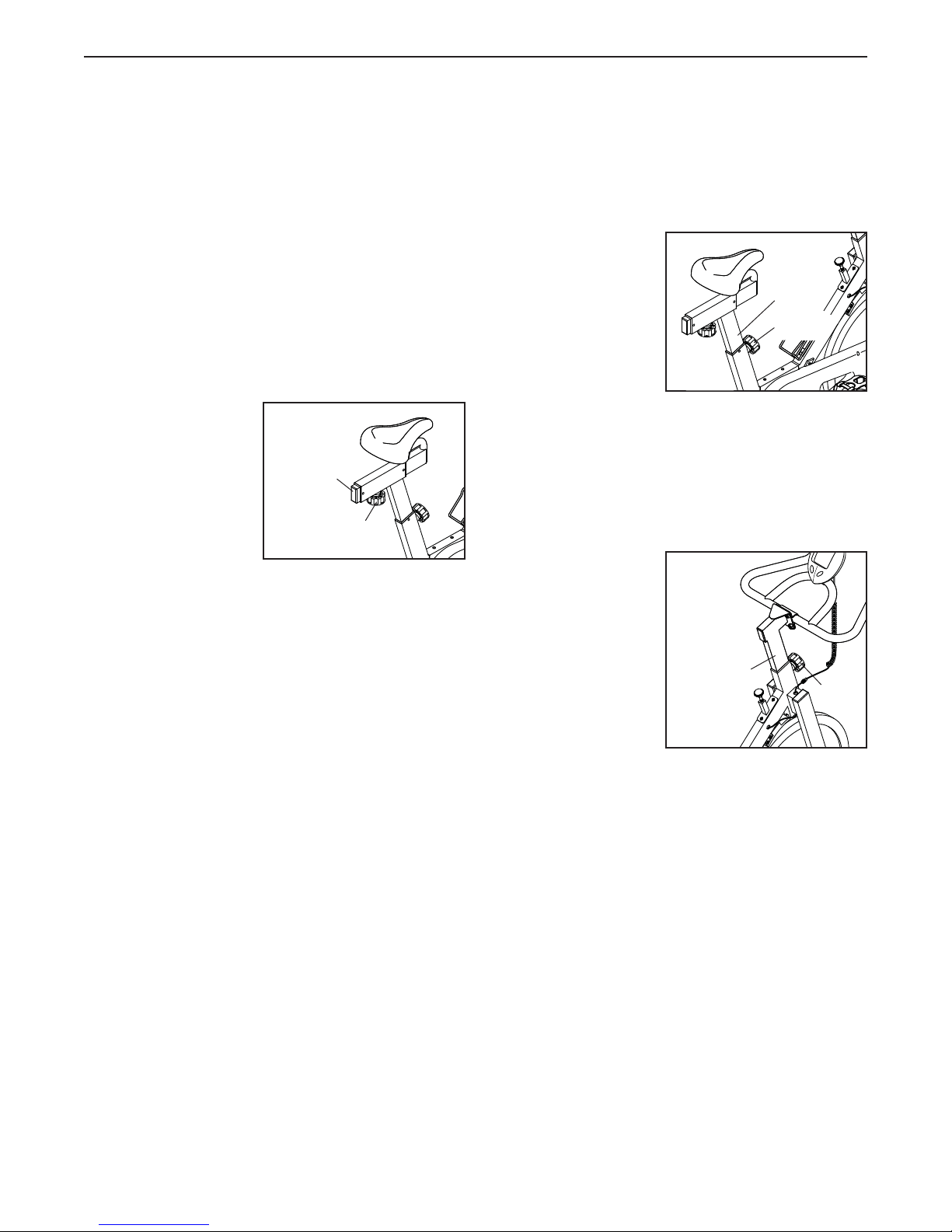

HOW TO ADJUST THE SEAT CARRIAGE
To adjust the position
of the seat carriage,
loosen the adjust-
ment knob, move the
seat carriage forward
or backward to the
desired position, and
then firmly tighten the
adjustment knob.
HOW TO ADJUST THE SEAT POST
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the seat
post, first loosen the
adjustment knob
and pull it outward.
Then, move the
seat post upward or
downward, release
the adjustment knob
into an adjustment
hole in the seat post,
and firmly tighten the adjustment knob. Make sure that
the adjustment knob is engaged in an adjustment
hole. IMPORTANT: Do not adjust the seat post
beyond the stop mark on the seat post.
HOW TO ADJUST THE HANDLEBAR POST
To adjust the handle-
bar post, first loosen
the adjustment knob
and pull it outward.
Then, move the han-
dlebar post upward
or downward, release
the adjustment knob
into an adjustment
hole in the handle-
bar post, and firmly
tighten the adjust-
ment knob. Make sure that the adjustment knob is
engaged in an adjustment hole. IMPORTANT: Do
not adjust the handlebar post beyond the stop
mark on the handlebar post.
Knob
Seat
Post
Seat
Carriage
Knob
Knob
Handlebar
Post

11
HOW TO USE THE PEDALS
To use the pedals (see the drawing on page 4),
insert your shoes into the toe cages and pull the ends
of the toe straps. To adjust the toe straps, press and
hold the tabs on the buckles, adjust the toe straps to
the desired position, and then release the tabs.

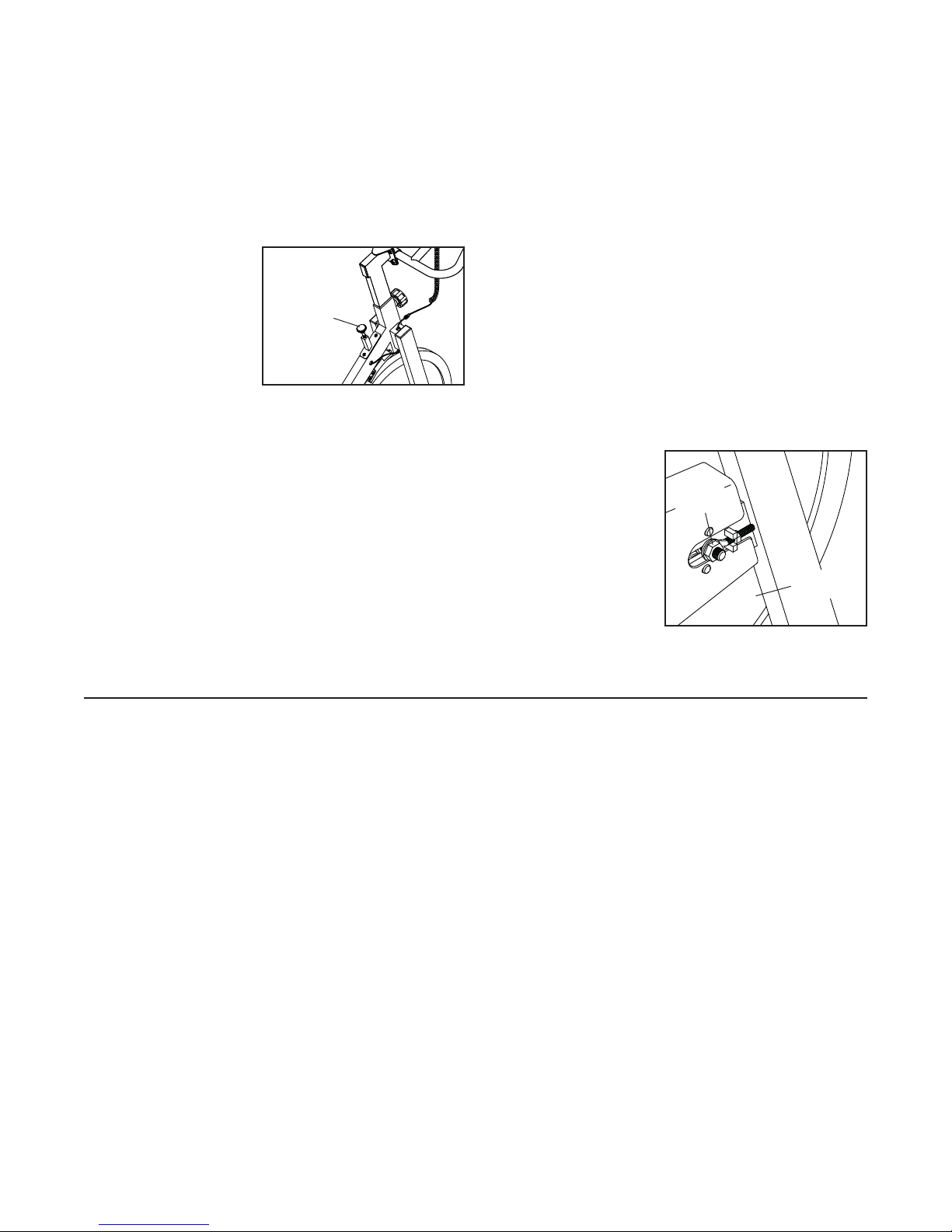

HOW TO ADJUST THE PEDALING RESISTANCE
To increase the resis-
tance of the pedals,
turn the resistance
knob clockwise;
to decrease the
resistance, turn the
resistance knob
counterclockwise.
To stop the flywheel, push the resistance knob
downward. The flywheel should quickly come to a
complete stop.
IMPORTANT: When the exercise bike is not in use,
tighten the resistance knob completely.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike rocks slightly on your floor during
use, turn one or both of the leveling feet on the front or
rear stabilizer (see the drawing on page 4) until the
rocking motion is eliminated.
HOW TO MAINTAIN THE EXERCISE BIKE
Inspect and tighten all parts of the exercise bike regu-
larly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent.
HOW TO ADJUST THE CHAIN
The exercise bike features a chain that must be kept
properly adjusted. If the chain causes excessive noise
or slips as you pedal, the chain should be adjusted.
To tighten the chain,
loosen, but do not
remove, the axle
nuts on both sides
of the flywheel. Pull
the flywheel forward
slightly. Make sure
that the flywheel is
straight and retighten
the axle nuts.
Resistance
Knob
Axle
Nut
Flywheel
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Per FCC rules, changes or modifications not expressly approved by ICON could void the
user’s authority to operate the equipment.

12
FEATURES OF THE CONSOLE
The easy-to-use console features six modes that pro-
vide instant exercise feedback during your workouts.
Scan (SCAN)—This mode displays the time, speed,
distance, calories, and odometer modes, for a few
seconds each, in succession.
Time (TIME)—This mode displays the elapsed time.
Note: If you set a time goal (see step 2 below), this
mode will display the time remaining in your workout.
Speed (SPEED)—This mode displays your pedaling
speed, in miles per hour.
Distance (DIS.)—This mode displays the distance you
have pedaled during your workout, in miles.
Note: If you set a distance goal (see step 2 below),
this mode will display the distance remaining in your
workout.
Calories (CAL.)—This mode displays the approximate
number of calories you have burned during your work-
out. Note: If you set a calorie-burning goal (see step 2
below), this mode will display the number of calories
remaining to be burned in your workout.
Odometer (ODO.)—This mode displays the total dis-
tance, in miles, that has been pedaled on the exercise
bike since it was manufactured.
HOW TO USE THE CONSOLE
Make sure that batteries are installed in the console
(see assembly step 9 on page 8). If there is a sheet
of plastic on the console, remove the plastic.
1. Turn on the console.
To turn on the console, press the Mode button on
the console or simply begin pedaling.
2. Set a workout goal if desired.
To set a time, distance, or calorie-burning goal for
your workout, press the Mode button repeatedly
until the word TIME, DIS., or CAL. appears in the
display. Make sure that the word SCAN does not
appear.
Then, press the Set button repeatedly to set a goal.
When the goal is set, a downward-facing arrow will
appear in the display.
3. Select one of the modes.
Scan mode—To select the scan mode, press
the Mode button repeatedly until the word SCAN
appears in the display.
Time, speed, distance, calories, or odometer
mode—To select one of these modes for continu-
ous display, repeatedly press the Mode button until
the desired selection appears in the display. Make
sure that the word SCAN does not appear in the
display.
Note: To reset the display to zero, press and hold
the Mode button for three seconds.
4. Begin pedaling and follow your progress with
the display.
As you exercise, the console will display the
mode(s) that you select.
An upward-facing arrow will appear in the display
to indicate that the time, speed, and/or calories
modes are counting upward.
If you have set a workout goal, a downward-facing
arrow will appear in the display to indicate that
the time, speed, or calories modes is counting
downward.
When you reach your workout goal, zeros will
appear in the mode display. Then, an upward-fac-
ing arrow will appear in the display and the mode
display will begin to count upward.
5. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for a few seconds, the
console will pause.
The console has an auto-off feature. If the ped-
als do not move and the console buttons are not
pressed for a few minutes, the power will turn off
automatically to save the batteries.

13
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

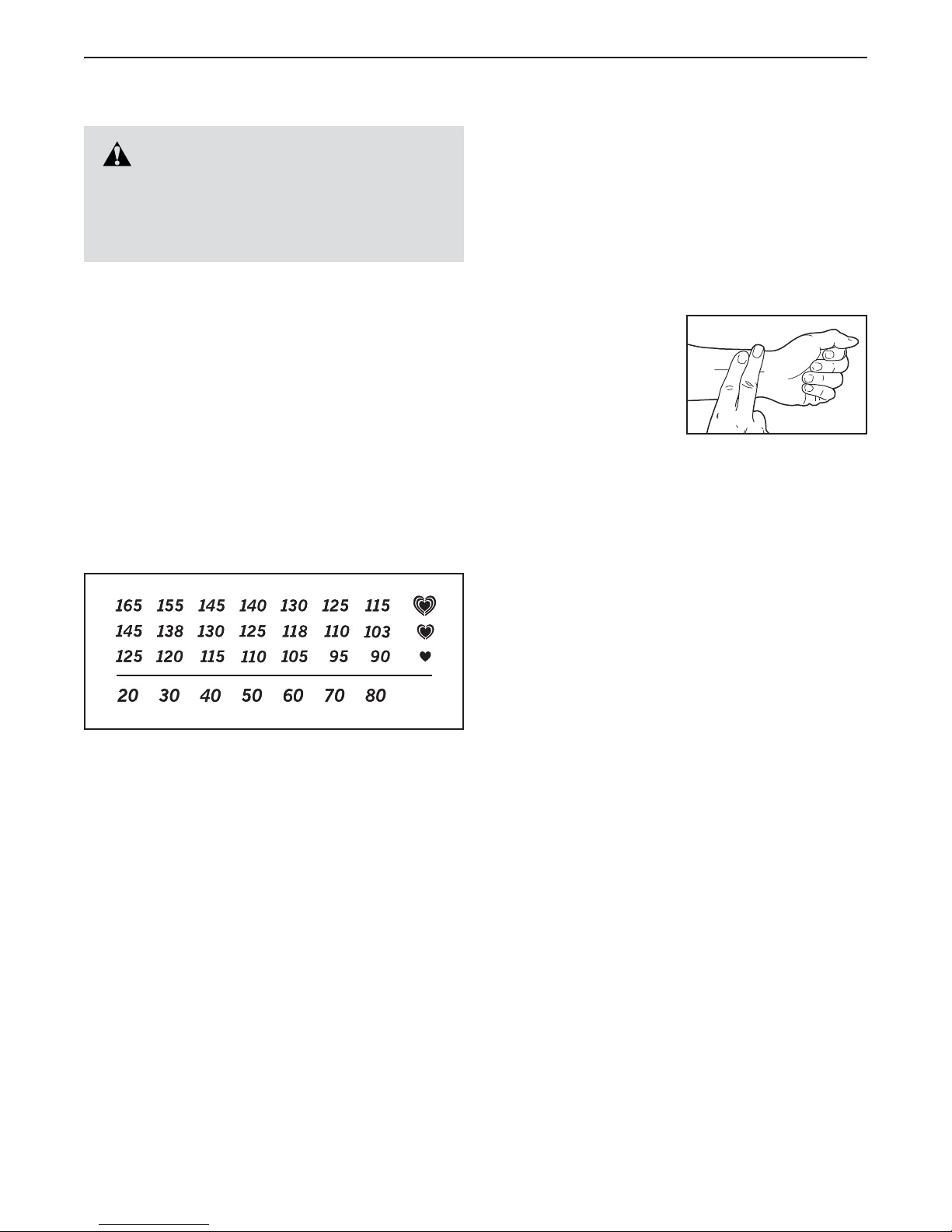

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
HOW TO MEASURE YOUR HEART RATE
To measure your heart
rate, exercise for at least
four minutes. Then, stop
exercising and place
two fingers on your
wrist as shown. Take a
six-second heartbeat
count, and multiply the
result by 10 to find your heart rate. For example, if your
six-second heartbeat count is 14, your heart rate is 140
beats per minute.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise—never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.

14
1 1 Frame
2 1 Seat Post
3 1 Seat Carriage
4 1 Seat
5 1 Handlebar Post
6 1 Handlebar
7 1 Front Stabilizer
8 1 Rear Stabilizer
9 1 Flywheel
10 1 Shield
11 1 Rear Guard
12 1 Chain
13 1 Crank
14 1 Right Crank Arm
15 1 Right Pedal
16 1 Left Crank Arm
17 1 Left Pedal
18 1 Water Bottle Holder
19 1 Console Mount
20 1 Console
21 3 Adjustment Knob
22 4 Leveling Foot
23 4 Stabilizer Cap
24 2 Frame Cap
25 2 Carriage Sleeve
26 2 Crank Cap
27 1 Magnet
28 2 Wheel
29 2 Crank Bearing
30 2 Flywheel Bearing
31 2 Snap Ring
32 1 Resistance/Brake Knob
33 1 Resistance Bracket
34 1 Spring
35 1 Spring Bracket
36 1 Pad Spring
37 1 Resistance Pad
38 1 Pad Bracket
39 1 Large Spacer
40 1 Small Spacer
41 2 D-bracket
42 2 T-bracket
43 1 Stud
44 1 Seat Clamp
45 1 Flywheel Axle
46 1 Front Guard
47 1 Reed Switch/Wire
48 3 Grommet
49 2 M5 x 30mm Bolt
50 2 M10 x 5mm Nut
51 2 20mm Washer
52 4 M8 x 35mm Carriage Bolt
53 2 M8 x 40mm Button Bolt
54 4 M8 x 15mm Button Bolt
55 12 M4 x 15mm Screw
56 2 M4 x 20mm Screw
57 2 M4 x 10mm Screw
58 2 M3 x 15mm Screw
59 2 M10 Nut
60 2 M5 Locknut
61 3 M6 Locknut
62 10 M8 Locknut
63 1 M8 Square Nut
64 2 M10 x 7mm Nut
65 2 Post Cap
66 2 Post Sleeve
67 2 Eyebolt
68 1 M4 x 25mm Machine Screw
69 2 Seat Mount Nut
70 2 13mm Washer
* – User’s Manual
Key No. Qty. Description Key No. Qty. Description
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
PART LIST Model No. GGEX62410.0 R0711C

15
4
25
25
21
2
65 24
24
3
66
66
23
23
55
14
55 57
46
55
56
56
21
7
11
22
28
52
53
62
59
70
64
50
67
41
42 43
44
39
30
29
16
17
31
50
40
67
61
45
13
31
27
30
26
15
9
8
55
42
12
23
22
52
52
22
23
62
53
29
18
37
36
35
34
61
63
64
62
47
58
48
48
48
28
59
65
6
61
20
70
10
1
26
21 55
55 60
62
55
32
62
33
41
5
19
54
68
51
51
62
49
38
55
69
69
22
EXPLODED DRAWING Model No. GGEX62410.0 R0711C

Part No. 318069 R0711C Printed in China © 2011 ICON IP, Inc.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for three (3) years from the
date of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specifically set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specific legal rights; the customer may have other rights that vary from state to
state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.workoutwarehouse.com/registration.
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
ORDERING REPLACEMENT PARTS
