Goldblatt G02775 User manual

®
Serial Number Purchase Date MNL_G02775_V02_20170328
ATTACH YOUR RECEIPT HERE
# G02775
Professional
Tile Saw
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-876-7562, 8 a.m. - 5 p.m.,CST, Monday - Friday.
10 in.
254 mm
15 A
Español página 20

2
TABLE OF CONTENTS
3
10
10
10
13
17
18
19
Important Safety Information..................................................................................
Safety Symbols.....................................................................................................
Specifications........................................................................................................

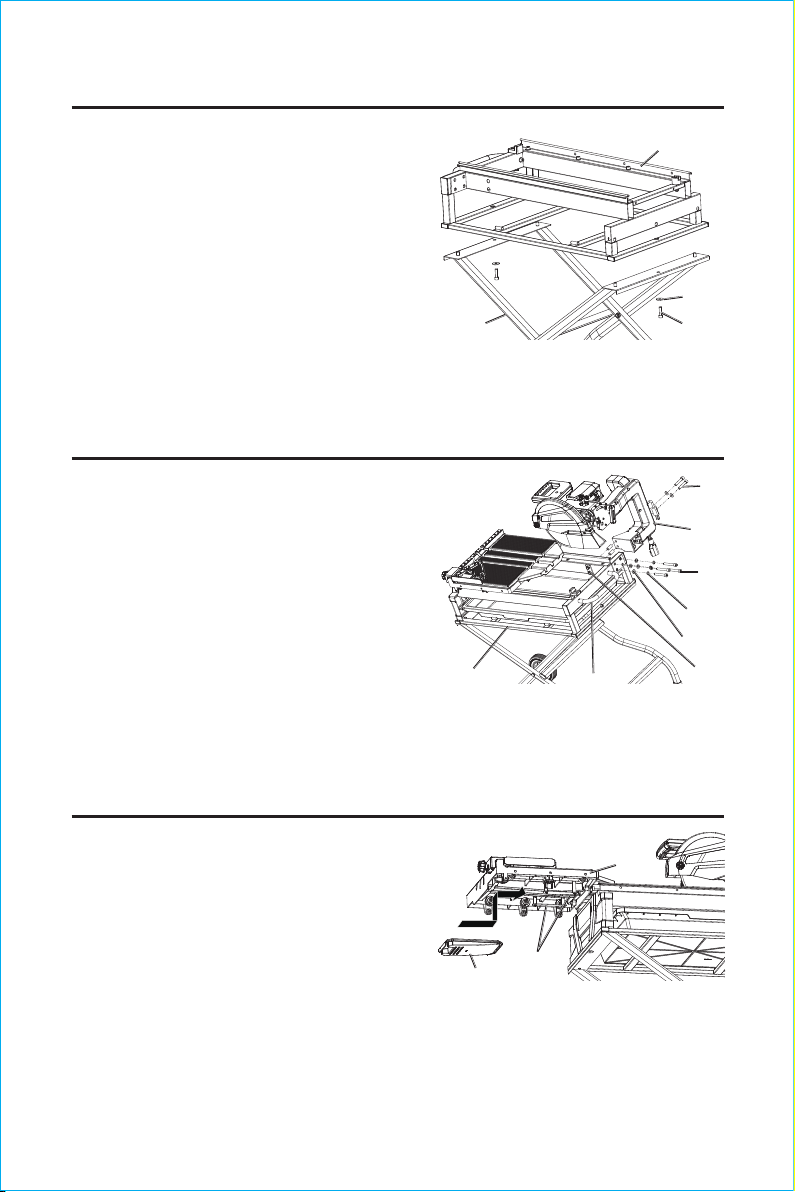

Setup.....................................................................................................................

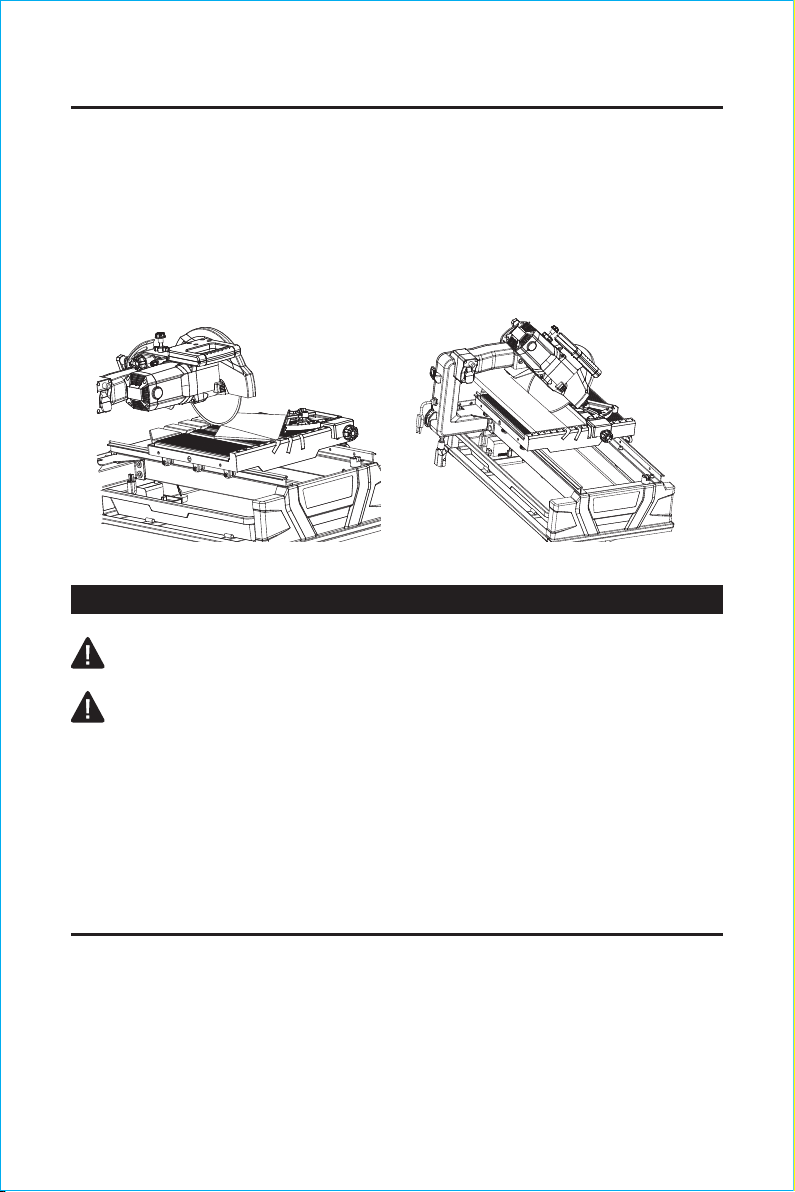

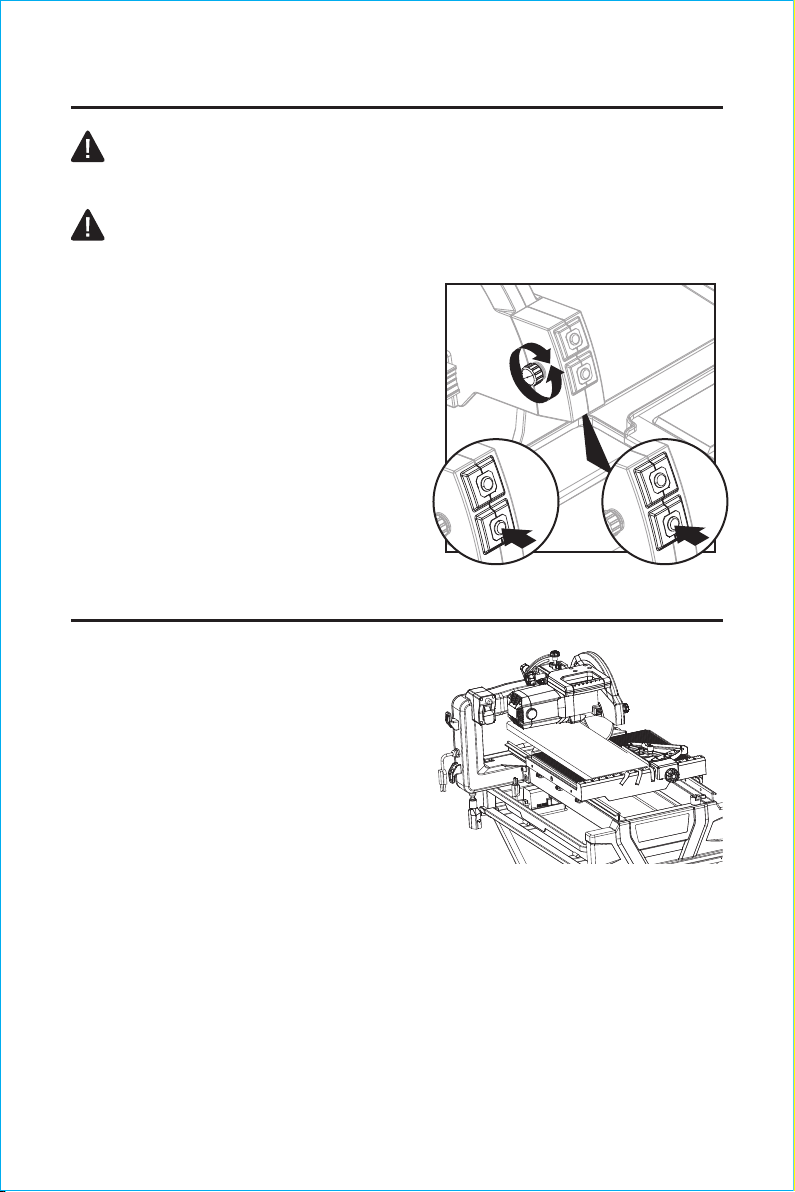

Operation..............................................................................................................
Maintenance..........................................................................................................
Troubleshooting guide...........................................................................................
Warranty................................................................................................................

3
Table A: RECOMMENDED MINIMUM WIRE GAUGE FOR
EXTENSION CORDS (120 VOLT)
NAMEPLATE AMPERES
(at full load)
EXTENSION CORD LENGTH
Do not use.
25′
18
18
16
14
50′
16
16
16
12
100′
16
14
14
150′
14
12
12
0 – 6
6.1 – 10
10.1 – 12
12.1 – 16
General Tool Safety Warnings
1. KEEP GUARDS IN PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are removed from tool before turning
it on.
3. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
4. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use power tools in
damp or wet locations, or expose them to rain. Keep work area well lighted.
5. KEEP CHILDREN AWAY. All visitors should be kept safe distance from
work area.
6. MAKE WORKSHOP KID PROOF with padlocks, master switches, or by
removing starter keys.
7. DON’T FORCE TOOL. It will do the job better and safer at the rate for which
it was designed.
8. USE RIGHT TOOL. Don’t force tool or attachment to do a job for which it
was not designed.
9. USE PROPER EXTENSION CORD. Make sure your extension cord is in
good condition. When using an extension cord, be sure to use one heavy
enough to carry the current your product will draw. An undersized cord will
cause a drop in line voltage resulting in loss of power and overheating.
WARNING
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future reference.
IMPORTANT SAFETY INFORMATION

4
Table A shows the correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller
the gauge number, the heavier the cord.
10. WEAR PROPER APPAREL. Do not wear loose clothing, gloves, neckties,
rings, bracelets, or other jewelry which may get caught in moving parts.
Nonslip footwear is recommended. Wear protective hair covering to contain
long hair.
11. ALWAYS USE SAFETY GLASSES. Also use face or dust mask if cutting
operation is dusty. Everyday eyeglasses only have impact resistant lenses,
they are NOT safety glasses.
12. SECURE WORK. Use clamps or a vise to hold work when practical. It’s
safer than using your hand and it frees both hands to operate tool.
13. DON’T OVERREACH. Keep proper footing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and
safest performance. Follow instructions for lubricating and changing
accessories.
15. DISCONNECT TOOLS before servicing; when changing accessories, such
as blades, bits, cutters, and the like.
16. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch
is in off position before plugging in.
17. USE RECOMMENDED ACCESSORIES. Consult the owner’s manual for
recommended accessories. The use of improper accessories may cause
risk of injury to persons.
18. NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped
or if the cutting tool is unintentionally contacted.
19. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that it will
operate properly and perform its intended function – check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and any
other conditions that may affect its operation. A guard or other part that is
damaged should be properly repaired or replaced.
20. DIRECTION OF FEED. Feed work into a blade or cutter against the direction
of rotation of the blade or cutter only.
21. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF.
Don’t leave tool until it comes to a complete stop.
GENERAL TOOL SAFETY WARNINGS

5
GROUNDING INSTRUCTIONS
110-120 V~ Grounded Tools: Tools with Three Prong Plugs
1. In the event of a malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This tool is
equipped with an electric cord having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into a matching outlet that is
properly installed and grounded in accordance with all local codes and
ordinances.
2. Do not modify the plug provided – if it will not fit the outlet, have the proper
outlet installed by a qualified electrician.
3. Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. The conductor with insulation having an outer surface
that is green with or without yellow stripes is the equipment-grounding
conductor. If repair or replacement of the electric cord or plug is necessary,
do not connect the equipment-grounding conductor to a live terminal.
4. Check with a qualified electrician or service personnel if the grounding
instructions are not completely understood, or if in doubt as to whether the
tool is properly grounded.
5. Use only 3-wire extension cords that have 3-prong grounding plugs and
3-pole receptacles that accept the tool’s plug.
6. Repair or replace damaged or worn cord immediately.
WARNING
To prevent electric shock and death from incorrect grounding wire
connection read and follow these instructions:
7. This tool is intended for use on a
circuit that has an outlet that looks
like the one illustrated above in
Figure A: 125 V~ 3-Prong Plug
and Outlet. The tool has a grounding
plug that looks like the plug illustrated
above in Figure A: 125 V~ 3-Prong
Plug and Outlet.
8. The outlet must be properly installed
and grounded in accordance with all
codes and ordinances.
9. Do not use an adapter to connect this
tool to a different outlet.
Figure A: 125 V~ 3-Prong Plug
and Outlet(for up to 125 V~ and
up to 15 A)
Grounding Pin

6
TILE SAW SAFETY WARNINGS
For Your Own Safety Read Instruction Manual Before Operating Saw
1. Wear eye protection.
2. Use saw-blade guard and spreader for every operation for which it can be
used, including all through sawing.
3. Keep hands out of the line of saw blade.
4. Use an appropriate push-stick when required.
5. Know how to reduce risk of kickback.
6. Do not perform any operation freehand.
7. Never reach around or over saw blade.
8. Make sure the workpiece is supported at all times while sawing. Use a
roller stand (not provided) with larger workpieces if necessary.
9. To properly understand all safety warnings, be familiar with the following
safety terms and equipment:
a. Featherboard – A block with “fingers” that hold the workpiece against the
fence while sawing.
b. Through-sawing – A cut made from one side of a tile to the opposite side,
without stopping.
c. Push-stick – A narrow strip of wood or other soft material with a notch cut
into one end and which is used to push short pieces of material through
saws. It provides a safe distance between the hands and the cutting tool.
Must be narrower than the cut width to prevent contact with the blade.
d. Freehand – Feeding a workpiece through the saw without using a fence or
guided support to guide it. NOT A SAFE METHOD.
e. Kerf – The gap made by the saw in the workpiece.
f. Kickback – A sudden reaction to a pinched, bound, or misaligned blade,
causing an uncontrolled workpiece to lift up and out of the saw toward
the operator.
g. Spreader – A metal plate that follows the saw blade to keep the kerf (gap)
from closing on the saw blade. Spreaders, except riving knives, must be
aligned to the blade after blade adjustment to prevent binding.
10. As noted previously, Kickback is a sudden reaction to a pinched, bound, or
misaligned blade, causing an uncontrolled workpiece to lift up and out of the
saw toward the operator. Kickback is usually a result of tool misuse and can
be limited or avoided by following the precautions below:
• Fence must be completely parallel to the saw blade.
• Workpiece must be free from flaws and from foreign objects
(such as nails and screws).

7
TILE SAW SAFETY WARNINGS
• Support large workpieces along their entire length. Large workpieces tend
to bend, grabbing the blade.
• Maintain control of the workpiece. Do not allow the workpiece to rest against
the moving blade without holding onto it.
• If the blade binds or a cut is interrupted, turn off the power switch and hold
the workpiece still until the blade stops. Correct the cause of blade binding
before proceeding.
11. Check the guard for proper operation with saw disconnected from power
before each use. Do not disable any guard. Do not operate saw if any
movable guard does not move freely and close instantly. Make sure any
movable guard does not touch the blade in all angles, depths of cut,
and positions.
12. Keep the guard in place while through-sawing. Verify that the spreader lines
up with the blade to prevent binding.
POSITION OF TILE SAW
EXTENSION CORDS
13. To avoid the possibility of the tool plug or
receptacle getting wet, position tile saw to
one side of a wall mounted receptacle to
prevent water from dripping onto the
receptacle or plug. The user should arrange
a “drip loop” in the cord connecting the saw
to a receptacle. The “drip loop” is that part
of the cord below the level of the receptacle,
or the connector if an extension cord is used,
to prevent water traveling along the cord and
coming in contact with the receptacle.
14. If the plug or receptacle does get wet, DON’T unplug the cord. Disconnect the
fuse or circuit breaker that supplies power to the tool. Then unplug and
examine for presence of water in the receptacle.
15. If an extension cord is used, the drip loop must
be before the cord connection and the
extension cord connection must be placed
on an elevated surface.
16. Use only extension cords that are intended for
outdoor use. These extension cords are
identified by a marking “Acceptable for use
with outdoor tools; store indoors while not in
use.” Use only extension cords having an
electrical rating not less than the rating of the
product.
Figure B: Drip Loop
Power Cord
Tile Saw
Drip
Loop
Figure C: Extension Cord Drip Loop
Power Cord
Extension
Cord
Tile Saw
Drip Loop

Do not use damaged extension cords. Examine extension cord before using
and replace if damaged. Do not abuse extension cords and do not yank on
any cord to disconnect. Keep cord away from heat and sharp edges. Always
disconnect the extension cord from the receptacle before disconnecting the
product from the extension cord.
17. WARNING – To reduce the risk of electrocution, keep all connections dry and
off the ground. Do not touch plug with wet hands.
18. Ground Fault Circuit Interrupter (GFCI) protection should be provided on the
circuit(s) or outlet(s) to be used for the tile saw. Receptacles are available
having built-in GFCI protection and may be used for this measure of safety.
Do not operate tool without GFCI intact. Do not replace
cord in order to bypass the GFCI. If the cord is
damaged, do not use the product, take the product to
an authorized service center for repair. Failure to
do so can result in serious personal injury.
8
EXTENSION CORDS
19. DO NOT OPERATE WITH ANY GUARD DISABLED, DAMAGED, OR
REMOVED. Moving guards must move freely and close instantly.
20. The use of accessories or attachments not recommended by the manufacturer
may result in a risk of injury to persons.
21. When servicing use only identical replacement parts.
22. Do not depress the spindle lock when starting or during operation.
23. Only use safety equipment that has been approved by an appropriate
standards agency. Unapproved safety equipment may not provide adequate
protection. Eye protection must be ANSI-approved and breathing protection
must be NIOSH-approved for the specific hazards in the work area.
24. Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
25. Industrial applications must follow OSHA guidelines.
26. Maintain labels and nameplates on the tool. These carry important safety
information. If unreadable or missing, contact Harbor Freight Tools for a
replacement.
27. Avoid unintentional starting. Prepare to begin work before turning on the tool.
28. People with pacemakers should consult their physician(s) before use.
Electromagnetic fields in close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
ADDITIONAL TILE SAW SAFETY WARNINGS A - Reset button
B - Test button
WARNING !
RESET
TEST
RESET
TEST
A
B

9
POSITION OF TILE SAW
29. WARNING: Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities, contains chemicals known [to the State of
California] to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement or other masonry products
• Arsenic and chromium from chemically treated lumber Your risk from these
exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles. (California Health & Safety Code §
25249.5, et seq.)
30. WARNING: Handling the cord on this product will expose you to lead, a
chemical known to the State of California to cause cancer, and birth defects
or other reproductive harm. Wash hands after handling. (California Health &
Safety Code § 25249.5, et seq.)
31. The warnings, precautions, and instructions discussed in this instruction
manual cannot cover all possible conditions and situations that may occur. It
must be understood by the operator that common sense and caution are
factors which cannot be built into this product, but must be supplied by the
operator.
This tool vibrates during use. Repeated or long-term exposure to vibration may
cause temporary or permanent physical injury, particularly to the hands, arms and
shoulders. To reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an extended period should first be
examined by a doctor and then have regular medical check-ups to ensure
medical problems are not being caused or worsened from use. Pregnant
women or people who have impaired blood circulation to the hand, past hand
injuries, nervous system disorders, diabetes, or Raynaud’s Disease should
not use this tool. If you feel any medical or physical symptoms related to
vibration (such as tingling, numbness, and white or blue fingers), seek
medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces the blood supply to the hands
and fingers, increasing the risk of vibration-related injury.
3. Use tools with the lowest vibration when there is a choice between
different processes.
4. Include vibration-free periods each day of work.
5. Grip tool as lightly as possible (while still keeping safe control of it). Let the
tool do the work.
VIBRATION SAFETY

10
6. To reduce vibration, maintain the tool as explained in this manual. If any
abnormal vibration occurs, stop use immediately.
VIBRATION SAFETY
EXPLANATION OF SYMBOLS
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this manual including all text under subheadings therein before
set up or use of this product.
SETUP - BEFORE USE:
TECHNICAL SPECIFICATIONS
Code
Model
Voltage
No load speed
Insulation class
Dimensions of the diamond disc
Bevel cuts
Max. cutting length
Max. cutting width
Max. cutting diagonal
Max. cutting depth
Net weight
G02775
TC250Va
120V~ 60Hz 15AMP
4000 RPM
Class I
10" x 5/8" (254 x 16 mm)
0°/22.5°/45°
24" (610 mm)
12-29/32" (328 mm)
18" (457 mm)
3-1/2" (89 mm) at 90°
1-1/2" (38 mm) at 45°
90.4 lbs (41 kg)
Read instructions before use
Risk of electric shock
Risk of injury when instructions
are not followed
Wear ear protection
Wear eye protection
Wear suitable face mask
Wear gloves
Waste electrical products should
not be disposed of with household
waste
Wet conditions alert
Conforms to United States
and Canadian standards
®
C
184892
US

11
Power Switch: The Power Switch includes a Key for safety. The Tile Saw switch
cannot be turned on without the key. Remove the Key after use.
Reset Button: Directly above the Power Switch is the Reset Button. If the Tile
Saw overheats it will shut down automatically. Allow it to cool down, make sure
there are no loose connections or damaged cords, and then press the Reset
Button to restart the Saw. Do not force workpieces into the saw and make sure
the blade is properly wetted to reduce overheating.
Toggle Table Stop: This allows the Table to be removed if needed. Lift the
Stop and turn it to lock/unlock. If the slot is aligned with the Table, the Table can
be removed. If the slot is turned sideways, the Table is locked into the saw.
Table Lock Lever: To lock the Table in place, line up this Lever′s pin with the
hole in the rail, and press the Lever towards the rail. Pull out on the Lever to
unlock the Table.
WARNING
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool to its “OFF” position, remove the key, and
unplug the tool from its electrical outlet before assembling or making any
adjustments to the tool.

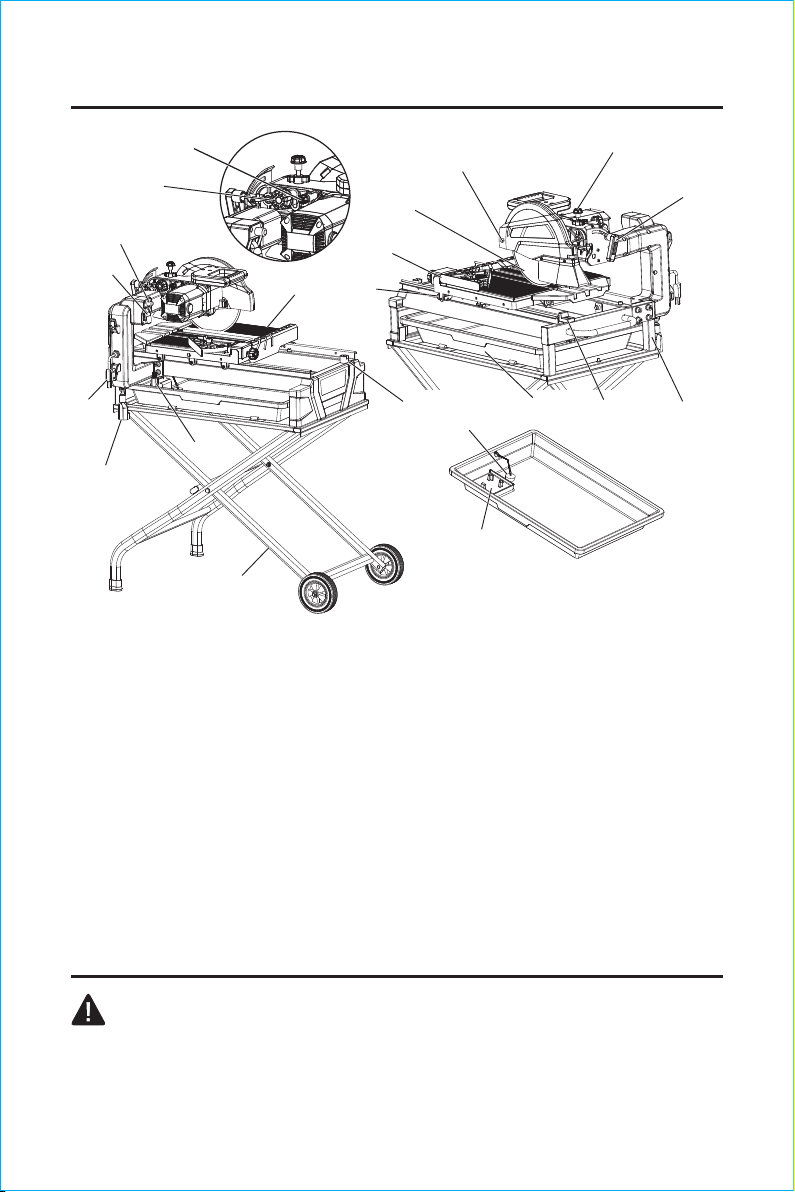

FUNCTIONS
Pump Outlet
Bevel Lock
Lever
Depth Stop
Water Tray
Frame
Stand
Water
Tray
Table
Power
Switch
& Key
Reset Button
Depth
Lock
Depth
Knob
Guard Screw
Miter Gauge
Table
Lock
Lever
Toggle
Table Stop
Table
Stop
Drain
Plug
Blade
Pump
Bracket
Power
Cord
Pump
Power
Cord
ASSEMBLY

12
INSTALLING THE WATER TRAY FRAME TO THE LEG STAND
1. Lock the Toggle Table Stop by pulling
up on it and turning it until the slot in the
center of the Stop is horizontal
(left to right).
2. Pull the Table to the front of the Frame.
From under the right side of the Table,
align the hole in the rail with the pin in
the Table Lock Lever. Push the pin into
the rail, locking the Table.
3. Align the holes on the Water Tray Frame
with the holes on the Stand.
4. Insert Short Bolts through Washers and into holes. Tighten securely.
INSTALLING MOTOR HEAD AND WATER TRAY FRAME
1. Install Handle to end of Water Tray Frame
using Bolts and Washers.
2. Align the holes in the Motor Head
assembly with the holes on the side of
the Water Tray Frame.
3. Insert two Short Bolts through Washers,
and then into holes on side of Motor Head.
Loosely secure using Lock Nuts.
4. Insert four Long Bolts through Lock
Washers and Washers. Insert into holes
on end of Water Tray Frame, as shown. Finger tighten.
5. Tighten all Bolts securely.
INSTALLING THE PARTICLE TRAY
1. Unlock the Table Lock Lever. Lift and
turn the Toggle Table Stop so that its slot
aligns with the Table.
2. Pull the Table to the front of the Water
Tray Frame.
3. Slide the Particle Tray into the Grooves
on the underside of the Table.
4. Return the Table to its working position, and lift then turn the Toggle Table Stop
so that its slot aligns sideways.
Figure D: Water Tray Frame Installation
Stand
Water Tray
Frame
Washer
Short
Bolt
Figure E: Motor Head Installation
Figure F: Particle Tray
Motor
Head
Short
Bolt
Long
Bolt
Lock
Washer
Lock
Nut
Water
Tray Frame
Washer
Handle
Particle Tray
Grooves
Table

13

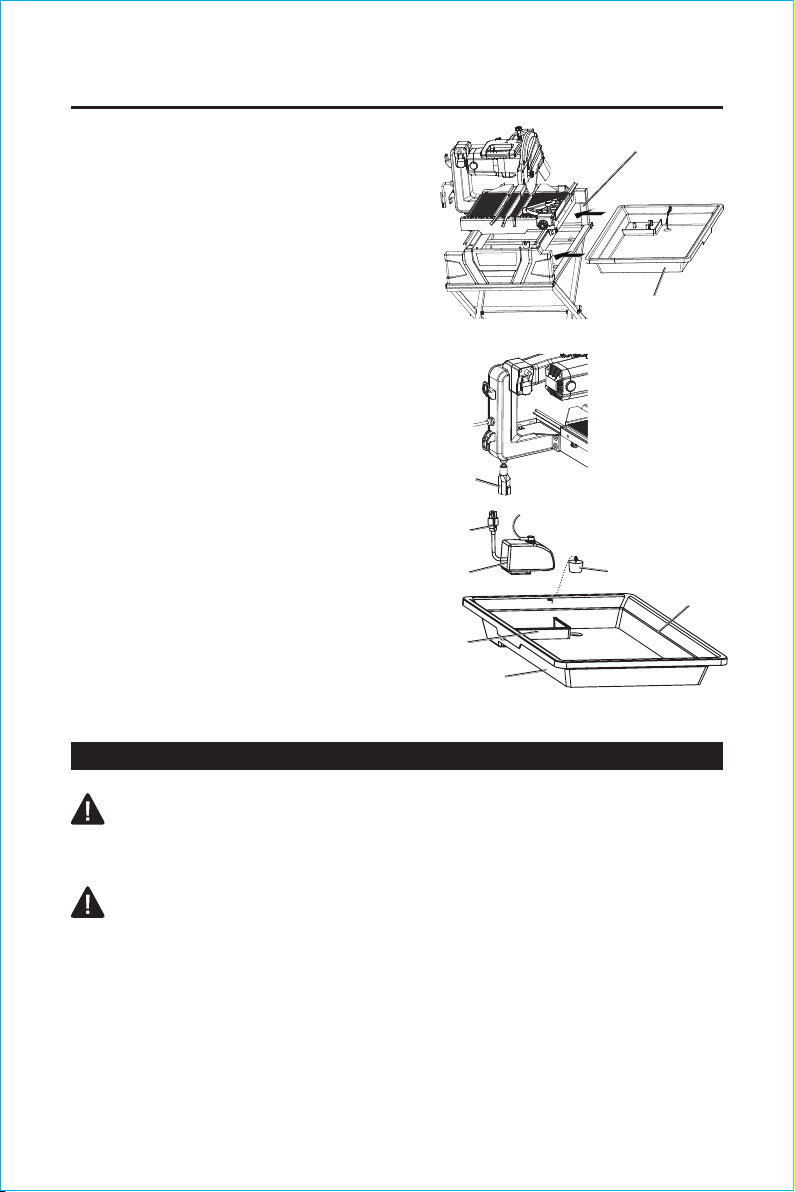

WATER TRAY AND PUMP SETUP
1. From the right side of the saw, place the
Water Tray (drain plug end to the left) on
the lip at the bottom of the Water Tray
Frame.
2. Slide the Water Tray in under the Table
until it rests in place within the tabs.
3. Adjust the flow control on the Pump to
the desired level.
4. Place the Pump into the Pump Bracket in
the Pump Basin. It should fit securely into
the Bracket.
5. Connect the clear water Hose from
under the arm of the Motor Head to the
Hose Connector on the Pump.
6. Make sure your hands are dry and
the Tile Saw is unplugged, then attach
the Pump Power Cord to the Pump
Outlet on the Motor Head.
7. Fill the Water Tray with clean water up
to the Fill Rim (see Figure H) before
every use.
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this manual including all text under subheadings therein before
set up or use of this product.
WARNING !
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool to its “OFF” position, remove the key, and
unplug the tool from its electrical outlet before assembling or making any
adjustments to the tool.
TO PREVENT SERIOUS INJURY:
DO NOT OPERATE WITH ANY GUARD DISABLED, DAMAGED,
OR REMOVED.
OPERATING INSTRUCTIONS
Figure H: Pump setup
Figure G: Water Tray Installation
Water Tray
Water Tray
Frame
Water
Tray
Drain Plug
Fill Rim
Pump
Pump
Basin
Pump
Power
Cord
Pump
Outlet

14
INSTALLING BLADE
1. Unplug the saw.
2. Loosen the Guard screw with screwdriver
(not supplied).
3. Open the Guard to expose the Spindle.
4. Loosen the Spindle Nut counterclockwise
and remove the old Blade, if installed.
5. Place the Inner Flange onto the Spindle.
Install with the cupped side of the Inner
Flange facing the tile saw housing.
6. Wipe a drop of oil onto the Inner Flange
where it will contact the Blade.
WARNING! TO PREVENT SERIOUS
INJURY: Only use a smooth rim, wet
cutting, 10″ Blade rated to at least
4,000 RPM on this tool.
Do not use a Blade that is too thick to allow Outer Flange to engage with the flats
on the Spindle. Do not use a Blade that has openings, grooves, or teeth.
7. Slide the Blade onto Spindle.
8. Place Outer Flange onto the Spindle. The flats on the Outer Washer align with
the flats on the Spindle. Install with the cupped side of the Outer Flange facing
the blade.
9. Place Spindle Nut on Spindle.
10. Press and hold the Spindle Lock in.
11. Wrench-tighten Spindle Nut securely. Release the Spindle Lock.
12. Close the Guard, and tighten the Guard screw with screwdriver(not supplied).
to secure it.
MITER ADJUSTMENT
Note: The Miter Gauge can be used from
either the left or the right side of the Blade.
1. Place the slot on the underside of the
Miter Gauge on the Table Fence.
2. Lock the Miter Gauge securely to the
table by turning the Gauge Lock Knob
clockwise.
3. To adjust angles:
a. Loosen the Miter Lock Lever.
b. Set to the desired angle by moving the Guide left or right.
c. Tighten the Miter Lock Lever securely before turning on the saw.
Miter Lock
Lever Miter Gauge
Gauge
Lock
Knob
Table
Fence
Figure K: Miter Gauge
Inner
Flange
Outer
Flange
Spindle
Nut
Blade
Blade
Figure I: Blade Assembly
Figure J: Securing Blade
Spindle
Lock
Wrench
Guard
Guard
Screw

15
Figure L: Bevel Lock Lever
Bevel Lock
Lever
Figure M: Depth Controls
Depth Knob
Depth
Lock
Depth Stop Depth Stop
Lock
BEVEL ADJUSTMENT
1. Slide the Table clear of the Blade
to prevent blade damage.
2. Loosen the Bevel Lock Lever.
3. Adjust the Motor Head to the desired
angle: 0º, 22.5º or 45º. Do not set bevel
to any other setting, the slots in the table
are designed only for these cuts.
4. Tighten the Bevel Lock Lever.
DEPTH ADJUSTMENT
1. Depth Lock: Use the Depth Lock to lock
the Motor Head in the down position;
press it in while the Motor Head is down
to lock, and pull out while holding down
the Motor Head to unlock.
2. Depth Knob: The Depth Knob can be
used to lock the Motor Head at a
particular cutting depth; tighten it to lock
the Motor Head in place, loosen it to allow adjustment.
3. Depth Stop: This controls the maximum cut depth. If the blade cuts too deeply
or too shallowly; loosen the Depth Stop Lock, adjust the Depth Stop, and
tighten the Depth Stop Lock again.
WORK PIECE AND WORK AREA SET UP
1. Designate a work area that is clean and well-lit. The work area must not allow
access by children or pets to prevent distraction and injury.
2. Route the power cord along a safe route to reach the work area without creating
a tripping hazard or exposing the power cord to possible damage. The power
cord must reach the work area with enough extra length to allow free movement
while working. Set up the Power Cord with a drip loop, see Position of Tile Saw
on page 7.
3. There must not be objects, such as utility lines, nearby that will present a
hazard while working.
4. Keep workpieces pressed firmly against the Table and Fence while cutting.
5. Mark cut lines using waterproof marker or crayon.
Note: This tool is intended for use on man-made masonry and tile products only.

USING THE LASER GUIDE OR LED
GENERAL OPERATING INSTRUCTIONS
16
DANGER
Laser radiation. Avoid direct eye contact with light source.
WARNING !
Use of controls or adjustments or performance of procedures other than those
specified herein could result in hazardous
radiation exposure.
• Press on the laser or LED switch button to
turn on the laser or LED.
• When the laser guide switch is turned on,
it will generate a red line. The laser line is
pre-adjusted at the factory.
• Turn the laser adjustment knob if the
laser line isn’t aligned.
• Press on the laser or LED switch button
again to turn off the laser or LED.
Figure O: Straight Cut
Figure N
1. Fill the Water Tray with clean water up
to the Fill Rim (see Figure H on page 13)
before every use.
CAUTION: Water level must be kept above
lip of pump basin at all times during
operation.
2. Adjust the Miter, Bevel, and Depth
settings as needed, see previous page.
Lock all settings in place.
3. Place the workpiece on the Table and
firmly against the Miter Gauge and Fence.
4. Make sure the workpiece is clear of the Blade, then dry your hands, plug in
the Saw, insert the Key and turn the Power Switch to the ON position.
5. Make sure the pump is supplying enough water to the Blade. If needed, dry
your hands, unplug the Saw, adjust the Pump′s flow control, dry your
hands again, and plug the Saw back in.
2
2
3
1

17
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
WARNING !
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool to its “OFF” position, remove the key, and
unplug the tool from its electrical outlet before performing any inspection,
maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration occurs, have the
problem corrected before further use.
MAINTENANCE AND SERVICING
GENERAL OPERATING INSTRUCTIONS
6. Let the Blade build up to full speed before cutting.
7. Hold the material firmly against the rip guide and feed the material into
the Blade.
8. When the cut is made, turn the Saw OFF. Wait for the Blade to come to a
complete stop before removing any part of the workpiece.
9. To prevent accidents, turn off the Saw, remove the Key, and unplug the Tile
Saw after use. Clean, then store the Saw indoors out of children’s reach.
CLEANING, MAINTENANCE, AND LUBRICATION
1. BEFORE EACH USE, inspect the general condition of the tool. Check for
loose hardware, misalignment or binding of moving parts, cracked or broken
parts, damaged electrical wiring, and any other condition that may affect its
safe operation.
2. AFTER USE, wipe external surfaces of the tool with clean cloth. Also, clean
the following after every use, and as needed during extended use:
Figure P: Miter Cut Figure Q: Bevel Cut

TROUBLESHOOTING
Problem Possible Causes Likely Solutions
Tool will
not start.
1. Cord not connected.
2. No power at outlet.
3. Tool’s thermal reset
breaker tripped
(if equipped).
4. Internal damage or wear.
(Carbon brushes or
switch, for example.)
1. Check that cord is plugged in.
2. Check power at outlet. If outlet
is unpowered, turn off tool and
check circuit breaker. If breaker
is tripped, make sure circuit is
right capacity for tool and circuit
has no other loads.
3. Turn off tool and allow to cool.
Press reset button on tool.
4. Have technician service tool.
Tool
operates
slowly.
Extension cord too long
or wire size too small.
Eliminate use of extension cord.
If an extension cord is needed,
use one with the proper diameter
for its length and load. See
Table A on page 3.
Performance
decreases
over time.
1. Accessory dull or
damaged.
2. Carbon brushes worn
or damaged.
1. Keep cutting accessories
sharp. Replace as needed.
2. Have qualified technician
replace brushes.
Excessive
noise or
rattling.
Internal damage or wear.
(Carbon brushes or
bearings, for example.)
Have technician service tool.
18
CLEANING, MAINTENANCE, AND LUBRICATION
• Rails
• Particle Tray (see page 12)
• Water Tray (see page 13, empty out sediment and water)
• Pump filter and housing (see page 13, can often be rinsed off without opening
pump).
3. If Blade is out of alignment, Table does not slide smoothly or other issues
interfere with smooth operation, have the saw serviced by a qualified
technician before further use.
4. WARNING! If the supply cord of this power tool is damaged, it must be
replaced only by a qualified service technician.

Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply before service.
TROUBLESHOOTING
ONE-YEAR LIMITED WARRANTY
Problem Possible Causes Likely Solutions
Overheating. 1. Forcing machine to work
too fast.
2. Accessory misaligned.
3. Accessory dull or
damaged.
4. Blocked motor housing
vents.
5. Motor being strained by
long or small diameter
extension cord.
1. Allow machine to work at its
own rate.
2. Check and correct accessory
to fence and/or table alignment.
3. Keep cutting accessories sharp.
Replace as needed.
4. Wear ANSI-approved safety
goggles and NIOSH-approved
dust mask/respirator while
blowing dust out of motor
using compressed air.
5. Eliminate use of extension
cord. If an extension cord is
needed, use one with the
proper diameter for its length
and load. See Table A on
page 3.
19
The manufacturer warrants this item against defects in materials and
workmanship for one (1) years from the date of purchase. If within this period the
product is found to be defective in material or workmanship, the manufacturer will,
at its option, repair, replace or refund the original purchase price to the customer.
Please keep the original sales receipt as proof of purchase and call
1-877-876-7562, 8 a.m. – 5 p.m., CST, Monday – Friday for warranty service.
This warranty is void if product is used for commercial purposes. This warranty is
not transferable and does not cover products damaged by misuse, neglect,
accident, alterations or use and maintenance other than that specified in the
owner's manual. This warranty does not apply to any expendable parts that can
wear from normal use.
As some states do not allow exclusions or limitations on an implied warranty, the
above exclusions and limitations may not apply to you. This warranty gives you
specific legal rights, and you may have other rights that vary from state to state.
