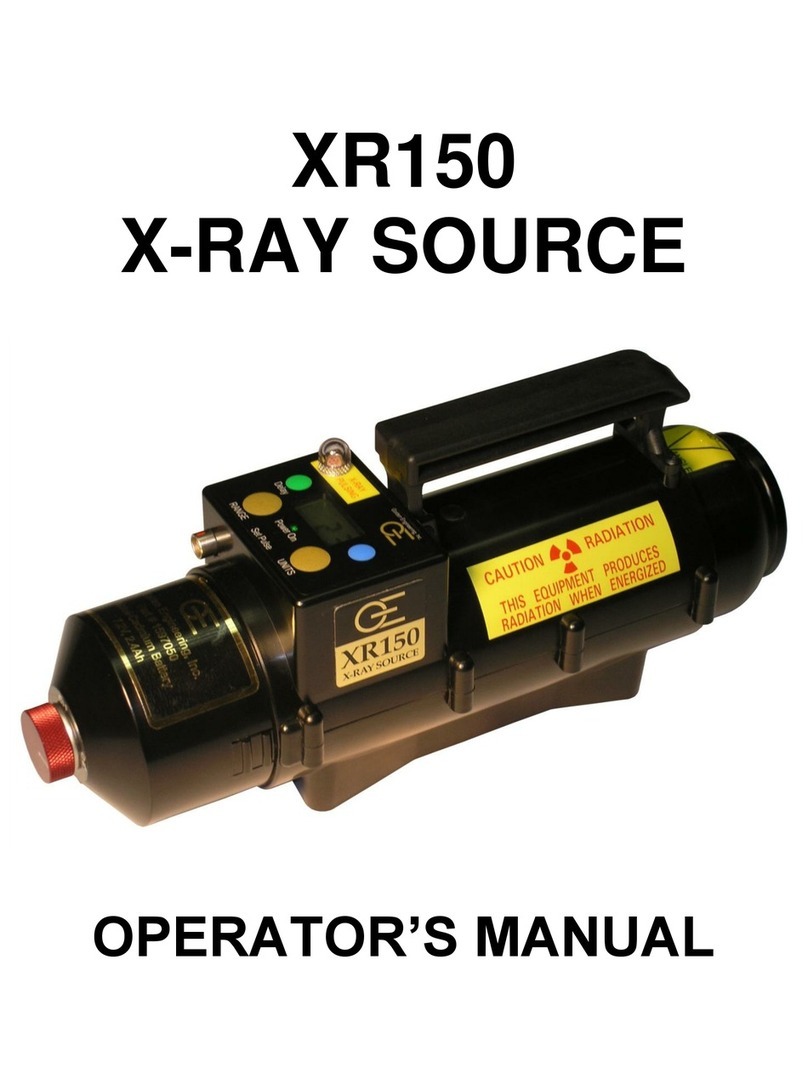

Golden engineering XR150 User manual

XR150
Golden Engineering, Inc.
6364 Means Road, Box 185
Centerville, IN 47330 USA
Phone: [phone]
Golden Engineering
Portable X-ray Technology
12V X-RAY GENERATOR
OPERATOR’S MANUAL
DECEMBER 2020

1

2
CONTENTS
INTRODUCTION____________________________________________________________________ 3
WARNINGS _______________________________________________________________________ 4
PHYSICAL DESCRIPTION _____________________________________________________________ 5
CONTROL MODULE ____________________________________________________________ 7
REAR VIEW ___________________________________________________________________ 8
REMOTE CABLE CONNECTOR_____________________________________________________ 9
DESCRIPTION OF OPERATION _______________________________________________________ 10
OPERATING INSTRUCTIONS _________________________________________________________ 11
NAVIGATING THE MENU____________________________________________________________ 13
BOOT SCREEN________________________________________________________________ 13
SET NUMBER OF COUNTS/PULSES________________________________________________ 14
SET DELAY TIME_______________________________________________________________ 14
MANUALLY ENTERING PULSE TRAINS______________________________________________ 14
RESET PULSE COUNTER_________________________________________________________ 15
PULSE COUNT EXCEEDS DUTY CYCLE______________________________________________ 16
LIFETIME PULSE COUNT_________________________________________________________ 16
BACKLIGHT __________________________________________________________________ 17
PULSES PER COUNT ___________________________________________________________ 17
DISABLE DUTY CYCLE WARNING _________________________________________________ 17
GENERATOR IDENTIFICATION____________________________________________________ 17
MULTIPLE PULSE TRAIN EXCEEDS DUTY CYCLE _______________________________________ 18
ERROR MESSAGES_________________________________________________________________ 19
TROUBLESHOOTING _______________________________________________________________ 20
RECOMMENDED PULSE SETTINGS ____________________________________________________ 21
CE CERTIFICATE ___________________________________________________________________ 22
SPECIFICATIONS __________________________________________________________________ 23
SPARE PARTS AND ACCESSORIES _____________________________________________________ 24
WARRANTY ______________________________________________________________________ 26
RETURNING UNIT FOR REPAIR________________________________________________________ 26

3
X-ray generators from Golden Engineering are industrial type open beam X-ray generators intended to
radiograph inanimate objects. The devices are a pulsed X-ray device that produces X-ray pulses of very short
duration (10-50 nanoseconds). The energy produced by the X-ray generator varies from model to model, and in
the XR150 12V is approximately 150 kVp, which makes it possible to radiograph up to one (1/2) inch (1.27 cm)
of steel.
Each unit ships with two keys, two 12V battery packs, and one battery charger.
Many users choose to add other accessories like a Remote Cable or Carrying Case. Refer to the Spare Parts and
Accessories section for more details.
INTRODUCTION
RADIATION WARNING
The X-ray generator produces high levels of radiation and must be operated by qualied personnel
who have read the WARNINGS and OPERATING INSTRUCTIONS sections of the manual before
operating the device.

4
The X-ray generators from Golden Engineering are pulsed X-ray generators that emit hazardous ionizing
radiation when pulsing. The unit should only be operated by authorized personnel who are properly trained to
safely operate the X-ray generator. The X-ray generator must be registered with proper authorities prior to use
and should not be used to intentionally expose humans.
Develop and closely follow a safe operating system for using the X-ray generator. The safe operating system
must ensure that no one is exposed to radiation above the permissible limits which are 2 mR (0.02 mSv) per hour
for a member of the public. The safe operating system must ensure the X-ray generator is used within federal
and state guidelines.
All operators and users of the X-ray generator must wear a personal radiation monitoring
device, such as a TLD (thermoluminescent dosimeter), lm badge, and/or a pocket dosimeter
consistent with the appropriate federal, territorial or provincial standards. If an operator or
bystander is exposed to an unacceptable level of radiation
contact your Radiation Safety Ofcer and/or appropriate
health care provider.
Due to the short pulse width of the pulsed X-ray, survey meters of the Geiger-
Mueller and scintillator type do not accurately detect the radiation emitted
from pulsed X-ray generators.
Survey meters should be of the ionization chamber (ion chamber) type and should be used in the integration
mode. Survey meters must not be used in the rate mode because the pulsed X-ray generator does not produce
constant radiation. Pulsed X-ray generators produce very high rates of radiation for very short periods of time
resulting in either unrealistically high readings or no readings for a survey meter in rate mode.
The X-ray generators have no explosion proof rating and should not be used in an explosive atmosphere. The
Spark Gap could be a source of ignition.
WARNINGS
NOTE: Electronic dosimeters
and survey meters of the
Geiger-Mueller and scintillator
types may not detect the X-ray
Generator’s radiation pulses.

5
BATTERY
RADIATION WARNING LABEL
CONTROL MODULE
PICATINNY RAIL
BATTERY PACK. The standard battery pack is a
DeWalt® 12V 3 amp-hour Li Ion battery.
The X-ray generator is equipped a 21 mm
picatinny rail located on each side of the
housing.
PHYSICAL DESCRIPTION
XR150 12V

6
BEAM
ANGLE
LABEL COLLIMATOR
HANDLE
HIGH VOLTAGE PULSER/TUBEHEAD
The main body of the X-ray Generator
is the tube head. The head contains the
tube cavity, cold cathode type X-ray tube,
spark gap, high voltage capacitor, and
transformer.
The base of the unit contains an
identication label and a ¼-20
brass insert compatible with
standard camera tripods. The
base also accommodates a quick
release external tripod mount.
The identication label located on
the bottom of the generator lists
the manufacturer’s name, model
number, serial number, weight, volt,
amp, and production date.
TRIPOD MOUNT
The standard collimator
located on the front of the
head limits the X-ray beam to
40 degrees.
The handle of the XR150 is attached to the front
sides of the Control Module. Loops are
BASE

7
The 80 character LCD is the main
interface with the unit. See the
Operating Instructions for more details
on the various control screens.
X-RAY PULSING LIGHTS
ENTER / EMERGENCY STOP
KEY
POWER ON LIGHT
LIQUID CRYSTAL DISPLAY (LCD)
MODEL
IDENTIFICATION
DIRECTIONAL BUTTONS
DELAY SWITCH
Stops the unit before it begins
pulsing or stops the unit in the
middle of a pulse train.
Also used as the enter button to
select desired option.
Pressing both Left and Right arrow
buttons simultaneously initiates
the delay mode, allowing the
operator to use the unit without
the remote cable.
Left, Right, Up and Down
buttons used to navigate
through the menu.
Blinks once per second after time
delay button or remote cable button
is pressed to warn that the X-ray
Generator is going to pulse. The light
stays on continuously while the unit is
pulsing.
This is a failsafe warning light. If the
light does not work the X-ray unit will
not pulse. See settings menu for fail-
safe override in emergency situations.
Illuminates when battery voltage
is applied to control module.
Main power switch to turn
the unit on and off.
CONTROL MODULE
BEAM ANGLE
LABEL
Top View
Control Module

8
REAR VIEW
POSITIVE +
REMOTE CABLE
CONNECTOR
BATTERY
TERMINAL
BLOCK
TEMPERATURE
SENSOR
NEGATIVE -
Rear View
BATTERY PACK
The standard battery pack is a DeWalt® 12V 3 amp-
hour Li Ion battery. In the USA the battery is rated at
12V, but outside the USA it may be rated as 10.7 or
12V.
BATTERY CHARGER
The standard battery charger is the DeWalt® DCB115
charger for both 110V and 220V. (Note: DeWalt
model numbers may change). Battery charge time is
typically less than one hour.
See battery charger manual for additional instructions
and warnings.

9
REMOTE CONNECTOR: LEMO EEG.0K.305.CLN
MATING CABLE PLUG: LEMO FGG.305.CYCC50Z
GROUND PIN
REMOTE SWITCH PIN
Remote switch inputs are activated when connected to ground pin.
34
5
2
1
PIN # 5 PIN CONNECTOR (B OR K) 7 PIN K CONNECTOR
1 +5 VOLTS 100 mA MAXIMUM +5 VOLTS 1 A MAXIMUM
2 REMOTE SWITCH (5 sec delay) REMOTE SWITCH (5 sec delay) (+3V)
3 REMOTE SWITCH – NO DELAY REMOTE SWITCH – NO DELAY (+3V)
4 X-RAY ON / FEEDBACK SIGNAL X-RAY ON / FEEDBACK SIGNAL (+5V)
5 GROUND (COMMON 0 VOLTS) RS232-RX
6 RS232-TX
7 GROUND (COMMON 0 VOLTS)
5 PIN K REMOTE CABLE CONNECTOR 7 PIN K REMOTE CABLE CONNECTOR
5
1
2
34
6
7
REMOTE CONNECTOR: LEMO EGG.0K.307.CLN
MATING CABLE PLUG: LEMO FGG.0K.307.CYCC50Z
The X-ray Generator is equipped with Lemo “K” series connector located on the lower left corner of the back of
the control module. This is where the remote cable or imaging system cable is attached. Depending on the options
of the unit, this may either be 5 pin or 7 pin connector.
See the diagrams and table below for the details of each conguration.
REMOTE CABLE CONNECTOR
SERIAL INFORMATION
Baud Rate: 57600
8 – bit data
1 stop bit
Hardware ow control: None
Parity: none
Voltage Input: +/- 25V
Voltage Output: +/- 6V

10
The block diagram below illustrates how the X-ray generator functions. The following sequence of events takes
place each time the unit is red:
PULSE DETECTOR
USER INTERFACE
X-RAY TUBE
HIGH VOLTAGE
CAPACITOR
CONVERTER
BATTERY
SPARK GAP
CONTROLLER
BLOCK DIAGRAM
DESCRIPTION OF OPERATION
1. User initiates operation of the machine.
2. The controller sends a signal to the converter to begin oscillating.
3. Once oscillating, the converter section changes the DC battery voltage to 22Khz AC.
4. The transformer charges the High Voltage Capacitor to about 9000 volts.
5. The spark gap arcs after the High Voltage Capacitor reaches peak voltage.
6. The pulse detector signals the control block that the unit has pulsed.
7. As the High Voltage Switch is closed, a high voltage transient of approximately 150,000 volts
and 10-30 nanoseconds in duration is applied across the X-ray tube generating X-rays.
The closing of the High Voltage Switch produces an audible pulsing sound. The X-ray generator cannot produce
X-rays without the pulsing sound so it serves as an additional warning the unit is functioning.
This unit generates X-rays through high voltage bombardment of a tungsten target.
The X-ray generator does not contain radioactive materials.
All the high voltage is contained within the aluminum canister and as long as the canister is not punctured the
operator is not exposed to dangerous voltages.

11
DR Remote Cable Time Delay
Determine Pulse
Initiation Method
Position X-ray Generator*
Attach Battery
Connect System
Turn on X-ray Generator
using key and turning
clockwise 1/4 turn
Set pulse count to 100
View Image
Retreat to imaging system
controller (computer)**
Follow imaging system
instructions to set pulses
and initiate pulse train
Turn off X-ray generator
Position X-ray Generator*
Attach Battery
Attach Remote Cable
Turn on X-ray Generator
using key and turning
clockwise 1/4 turn
Set pulse count
View Image
Retreat length of cable
behind X-ray generator
Press and hold cable
button down to initiate and
complete pulse train
Turn off X-ray generator
Retrieve image plate or
lm cassette
Position X-ray Generator*
Attach Battery
Turn on X-ray Generator
using key and turning
clockwise 1/4 turn
Set pulse count
View Image
Press left and right arrow
buttons simultaneously to
initiate time delay
Retreat safe distance
behind X-ray generator
Turn off X-ray generator
Retrieve image plate or
lm cassette
Set delay time
OPERATING INSTRUCTIONS

12
24 - 72 IN
(60 - 180 CM)
X-ray generator Object Imager
X-ray Beam
All models100’ (30m)
a
** The operator should always stand outside of the exclusion zone. The exclusion zone (below) should be a
controlled area free of all personnel while X-ray pulses.
* The X-ray generator should be positioned directly in front of the object to be X-rayed and the imager placed
directly behind the object to be X-rayed. Imager should be placed as close to the object as possible. Distance
between X-ray generator and imager is usually 24 to 72 inches (60 to 180 cm). During operation the unit should
be stabilized on a at surface, a tripod, or a custom xture suitable for holding the weight of the device. Refer
to the Specications table for details.
The following are basic operation instructions to take an X-ray image using the X-ray generator. Certain
applications may require modications to these basic procedures.
a
a
b
b
EXCLUSION ZONE
XR150 12V
a 10’ (3 m)
b 20’ (6 m)
c 100’ (30 m)
c
X-ray Beam

13
After a unit is red with the buttons, this
screen is displayed and the delay counts
down until the unit res.
The X-RAY PULSING lights ash and the
unit will beep intermittently during the
countdown.
The lights are on and a continuous beep
sounds while the unit is actually ring.
Press both buttons
to re the X-ray
2 sec
3 More menus
Home screen displays Counts (C) or Pulses (P) & Delay Time (D)
Settings = Header (Title Screen) for the main menu
Set CT = Set Counts (pulses)
Set DT = Set Delay time (In delay mode only, safety time
before initial pulse)
Set PTr = Set Multiple Pulse Trains
Home = Back to Home Screen
ResetPC = Reset Pulse Counter
Life PC = Lifetime Pulse Counter
NAVIGATING THE MENU
HOME SCREEN
The boot screen shows a “9” at the end of a normal boot cycle.
If there is a problem during boot, make note of this number
and tell the customer support representative when calling for
help.
BOOT SCREEN

14
25 Counts per pulse train
x5 Pulse trains
125 Counts (375 pulses)
OR
to change
cursor position
OR
to change value
to accept and
return to the
HOME screen
25 Pulses per pulse train
x5 Pulse trains
125 Pulses
FIRST set the number of counts/pulses (see above setting to 25)
Select Set PTr from the menu and press Enter.
Use arrows to adjust number of pulse trains and press the right
arrow to set the time between.
Use arrows to adjust time between trains and press Enter.
Right arrow from the right cursor position to select ‘Save’ and
press Enter.
MANUALLY ENTERING PULSE TRAINS
The number of counts (or pulses, depending on
the Pulses per Count setting) that will be sent
when the unit is red.
Change this by selecting Set CT from the menu
and press Enter.
SET NUMBER OF COUNTS/PULSES
Delay Time is the number of seconds between
triggering the unit to re with the buttons.
Change this by selecting Set DT from the menu
and press Enter.
SET DELAY TIME
Note: Press Enter and return to Home before pulsing the XR150.
The XR150 will not pulse if software is not back to HOME screen.
The HOME screen will now look like this to indicate it is in pulse train mode
Use arrows to adjust number of counts/pulses.
Right arrow from the right cursor position to select ‘Save’ and press Enter.
Left arrow from the left cursor position to cancel changes.
Use arrows to adjust the safety delay time (in seconds).
Right arrow from the right cursor position to select ‘Save’ and press Enter.
Left arrow from the left cursor position to cancel changes.
Left arrow from the left cursor position to cancel changes.

15
HOME SCREEN
DUTY CYCLE WARNING
The XR150 is a light duty machine that is not made to pulse continuously. The maximum duty cycle for the units is
100 counts (300 pulses) every four minutes. In temperatures above 90°F (32.22°C) or continual use situations,
rest a minimum of 30 sec every 50 pulses and 4 min after every 200 pulses. Exceeding the duty cycle will shorten
the life of the tube and head, and may also cause thermal damage to the circuit boards.
Pulse counter is similar to a trip odometer on an automobile. The
counter can be reset to 0 to track the number of pulses since it was
reset. Operator can use this feature to track number of pulses
since the last tube replacement, number of pulses used on a specic
job, or any other event the operator wants to track.
RESET PULSE COUNTER
NAVIGATING THE MENU

16
back to the HOME screen
Press ANY key
PULSE COUNT EXCEEDS DUTY CYCLE
If the number of counts exceeds 100 (300 pulses),
the unit will automatically split the pulses into
consecutive pulse trains of 25 counts (75 pulses) with
a delay 60-second delay between them. See the
below example of setting 200 counts.
Set PULSES higher than 200,
press Enter.
Lifetime pulse count tracks the total number of pulses the unit
has red. Please note the number displayed on the LCD is
total number of PULSES the unit red, NOT the total number of
COUNTS. The XR150 res three pulses for each count entered
so the 12,549 Lifetime pulses that appear on LCD below equals
4183 lifetime COUNTS the XR150 has red.
LIFETIME PULSE COUNT
It may be necessary to re the whole
pulse train without splitting it. To
manually override the split, rst disable
the Duty Cycle Warning in the
Home - DutyWarn menu (see pg 17).
The unit is now ready to re the
complete entered pulse train.
After the Duty Cycle Warning is
disabled, the generator will allow pulse
trains larger than 100.
Set the desired number of pulses on the
Set CT screen and press Enter.
(see pg 17)
See the details of the Home
menu on page 17.

17
Use Arrows to change setting
Press Enter to select
GENERATOR IDENTIFICATION
ASTERISK (*) APPEARS
ON BOOT SCREEN WHEN
WARRANTY HAS BEEN
VOIDED
Allows the user to switch between 1 or 3 pulses per count.
PULSES PER COUNT
Allows the user to turn the backlight on and off.
BACKLIGHT
Allows the user to turn off the duty cycle warning in otder to send
longer pulse trains without automatically splitting them.
DISABLE DUTY CYCLE WARNING
Displays the software version, generator serial number, and high
voltage head number.

18
MULTIPLE PULSE TRAIN EXCEEDS DUTY CYCLE
If multiple pulse train combination exceeds 100 counts in 4 minutes the LCD will
warn that settings exceed duty cycle and ask if operator wants to continue. The
software will allow operator to continue, but they must acknowledge that they
are exceeding duty cycle and could void the warranty.
This example incidates 6 pulse trains of 25 counts with a rest of 10 seconds
between pulse trains.
Unit would have been within the duty cycle had the operator entered at least
60 seconds between pulse trains of 25 counts, decreased to 4 pulse trains of 25
counts, or decreased the number of pulse counts from 25 to 10.

19
ERROR MESSAGES
Displayed if duty cycle is reached (100 counts in 4 minutes).
Current not detected. No current ow going to the head.
Occurs at beginning of pulse train. Check 20 amp fuse on the
oscillator board. If fuse is ok problem could be in head or
electronics. Replace board or send back for repair.
Pulse rate is slower than 1 pulse per second. Either low
battery, problem with transformer, or electronics. Charge
battery, or replace oscillator board.
Battery voltage is too low to pulse XR150. Charge the
battery.
The failsafe warning LED is not lighting up. The control board
may need to be replaced or the unit may need to be returned
for service.
Occurs when the generator is powered off with multiple pulse
trains set. On the Continue screen, select NO to return to a
single pulse train, or YES to keep the multiple train setting.
The boot screen displays an asterisk (*) when the warranty has
been voided.
The boot screen shows a “9” at the end of a normal boot
cycle. If there is a problem during boot, make note of this
number when calling for help.
