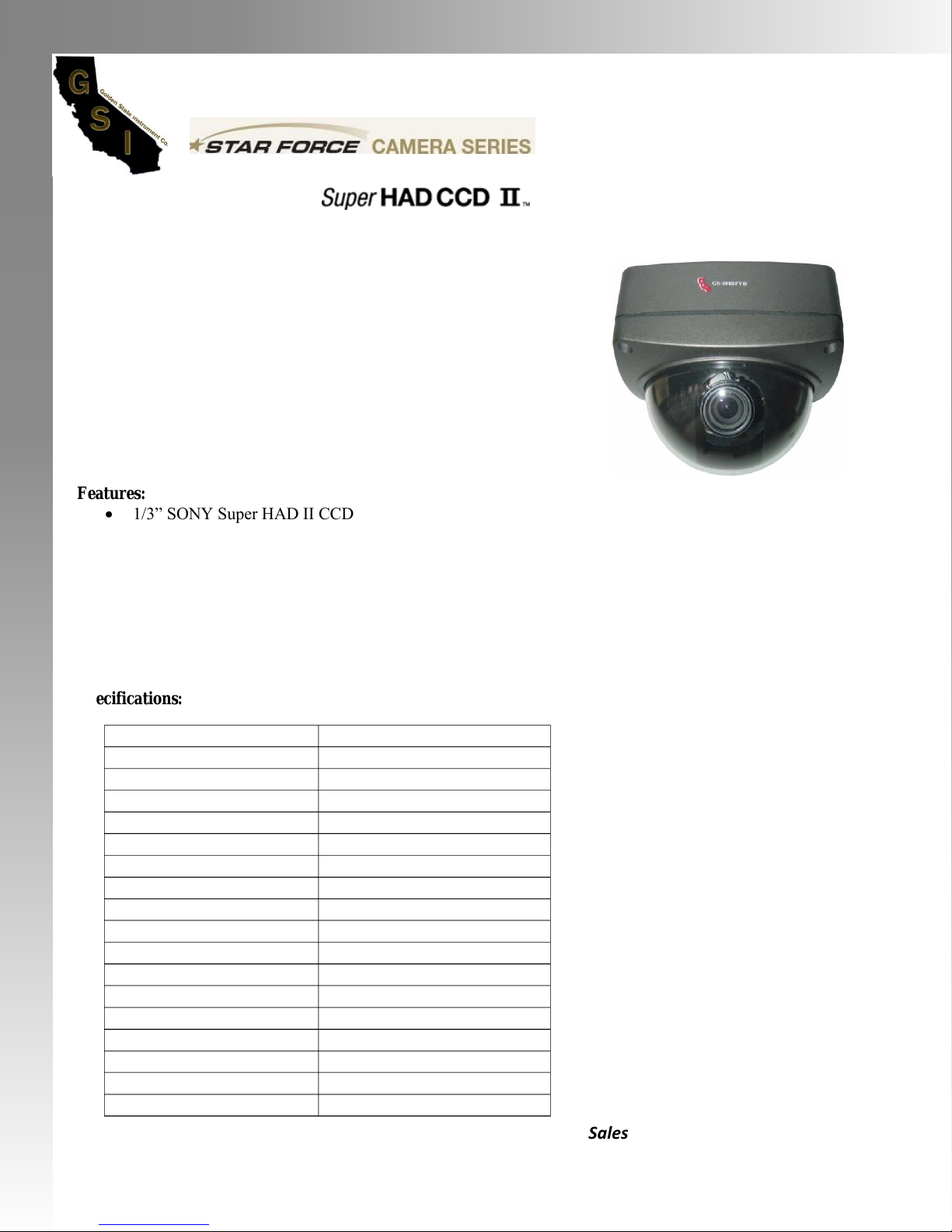

GOLDEN STATE INSTRUMENT GS-500 SFVD User manual

Starforce Dome Camera
GOLDEN STATE INSTRUMENT CO.
GS-500 SFVD
Vandal Dome X-Y-Z Axis Mount
2.8-11mm Auto-Iris Varifocal Lens
600 TVL Color Camera
Features:
1/3” SONY Super HAD II CCD
Ultra High 600 TVL Color Resolution
Super BLC (Back Light Compensation)
2.8-11mm Auto-Iris Varifocal Lens
Ultra Advanced DNR (Dynamic Noise Reduction)
Minimum Illumination 0.0001 LUX
Starforce DSP (Digital Signal Processor)
Specifications:
3002 Dow Ave Suite 228
Tustin, CA 92780 USA
www.goldenstateinst.com
Sales : 800-227-2330
Tech Support: 888-808-0909
Email : [email protected]
This new camera combines two powerful technologies
and puts them on one camera. Our “Starforce”
technology provides great low light performance enabling
the camera to see in color in the dark with a minimum
illumination of 0.0001 LUX. With Sony’s Super HAD II
CCD gives the camera unbeatable sensitivity. With an
Ultra High 600 TVL of color resolution gives this camera
superior image quality unmatched by others. The 3 axis
mount makes this a very versatile camera that can be
placed on ceilings or walls with very little effort.
Signal System
NTSC
Image Sensor
1/3” SONY Super HAD II
DSP (Digital Signal Processor
Starforce
Effective Pixels
768(H) x 494(V)
Scanning System
525 Lines 2:1 Interlace
Scanning Frequency (V)
59.94Hz
Resolution
Ultra High 600 TVL
Min. Illumination
0.0001 LUX
Light Compensation
BLC (Back Light Compensation)
S/N Ratio
More than 67dB
Shutter Speed
1/60 ~ 1/1000,000 sec.
Video Output
1.0 Vp-p (75Ω)
Sync System
Internal / Line Lock
Voltage
Dual Voltage 12VDC/24VAC
Power Consumption
180 mA
Dimensions
4.65” Diameter 3.54” Height
Weight
3.38 lbs
Operating Temperature
-4°F to 122°F
Vandal Proof Dome
X-Y-Z, 3 Axis Mount
Dual Voltage 12VDC / 24 VAC
OSD (On Screen Display) Menu Controls
Turbo AGC (Automatic Gain Control)
Video Test Jack
Sharpness and Mirror Functions
WARNING:
Do Not Point Camera Directly
into the sun.
Do Not cut video or power
wires
Observe Correct Voltage and
Polarity
Failure to Observe Warnings
May Void Warranty

Operating Instructions:
LENS
▪DC/VIDEO ▪MANUAL
SHUTTER
▪AUTO ▪FLK
WHITE BAL
▪ATW ▪MANUAL ▪AWC SET
BACKLIGHT
▪OFF ▪LOW ▪MEDIUM ▪HIGH
AGC
▪OFF ▪LOW ▪MEDIUM ▪HIGH
DNR
▪OFF ▪LOW ▪MEDIUM ▪HIGH
SENSE-UP
▪AUTO ▪OFF
SPECIAL
▪CAM ID ▪COLOR ▪SYNC ▪MOTION DET
▪PRIVACY ▪MIRROR ▪SHARPNESS
▪RESET ▪RETURN
EXIT
Return to Live Image
LENS
Using this function to control screen brightness
(Do Not Set To Manual)
SHUTTER
You can select either auto or FLK shutter
(Leave at Auto)
AGC (AUTO GAIN CONTROL)
For optimal results leave on “High”
SENS-UP
When it is night or dark the camera automatically detects
the light level and maintains a clear picture
(64x Recommended)
White Balance
Use White Balance to adjust the screen color
ATW, MANUAL, AWC-SET
BLC (Back Light Compensation)
Enables a user to select a desired area on a picture and
view that area more clearly
DNR (Digital Noise Reduction)
Reduces the background noise in low luminance
environments
DAY/NIGHT
You can display pictures in color or black and white
OSD (On Screen Display) Menu
Warning:
Lens Type must be set to “DC” for
camera to work properly
OSD Controls: Use Joystick-Push in to Set
SET: Enter OSD Menu/Select Option
UP: Moves Cursor Up
DOWN: Moves Cursor Down
LEFT: Moves Cursor Left/ Change
selected item parameters
RIGHT: Moves Cursor Right/ Change
selected item parameters
MIRROR
Horizontal Reverse
SHARPNESS
Adjust the clarity of your image
(Recommend 11x-13x)
MONITOR
Change to CRT or LCD depending on your
monitor
CAM TITLE
Enter the title to display on the screen
MOTION DET
Feature that allows you to be alerted of moving
objects on the screen
PRIVACY
Mask an area you want to hide on the screen
(Bathroom Entrances etc.)
EXIT
Save, Do Not Save
Reset (Restores settings to factory defaults)
