Golden Vantage 1801(A) User manual

1
30" AND 36" UNDER CABINET-MOUNT
RANGE HOOD
Universal Installation Instructions and Use & Care Guide
For questions about features, operation/performance parts, accessories or service, call:
1-626-453-0550
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
Revised September 2014
Disclaimer: Item purchased may be slightly different from the manual.
Model:
1801(A)
1802
GV-SR01

2
TABLE OF CONTENTS
RANGE HOOD SAFETY ....................................................................3
INSTALLATION REQUIREMENTS ...................................................4
Tools and Parts Requirements ...................................................4
Location Requirements .............................................................4
Installation Dimensions ............................................................5
Ventilation Requirements .........................................................6
Electrical Requirements ............................................................7
INSTALLATION INSTRUCTIONS ..................................................8
Prepare ......................................................................................8
Install Range Hood ...................................................................9
Complete Installation ..............................................................11
RANGE HOOD USE .........................................................................12
Range Hood Controls ..............................................................12
RANGE HOOD CARE ......................................................................14
Cleaning .................................................................................14
Replacement ...........................................................................15
TROUBLE SHOOTING ...................................................................13
WARRENTY & SERVICES .............................................................16
Maintenance ...........................................................................15
Cleaning .................................................................................

3
IMPORTANTSAFETYINSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, READ THE
FOLLOWING:
■ Use this unit only in the manner intended by the
manufacturer. If you have questions, please
contact the manufacturer.
■ Before servicing or cleaning the unit, switch the power off
and lock the service panel. This will prevent the power
from accidentally turning on. If the service panel does not
lock, secure a warning label, such as a tag, to the service
panel.
■ Installation work and electrical wiring must be done by a
qualified professional(s) in accordance with all applicable
codes, standards, and fire-rated constructions.
■ Do not operate any fans with a damaged cord or plug.
Discard the fan or return to an authorized service
facility for further examination and/or repair.
■ To prevent back draft, sufficient air is needed for
proper combustion. Gas from fuel burning equipment
needs to exhaust through the flue (chimney). Follow the
heating equipment manufacturer's guideline and safety
standards such as those published by the National Fire
Protection Association (NFPA), the American Society
for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
■ When cutting or drilling into walls or ceilings; be aware of
electrical wires, piping, and other utilities.
■ Ducted fans must always be vented outdoors.
CAUTION: For general ventilation use only. Do not use
to exhaust hazardous or explosive materials and vapors.
CAUTION: To reduce the risk of fire and to properly
exhaust air, be sure to duct air outside - DO NOT vent
exhaust air into attics, crawl spaces, garages, or within
walls and ceilings.
WARNING: TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE, READ THE FOLLOWING:
■ Never leave surface units unattended at high settings.
Boil-over can cause smoke and grease to spill over that
may ignite. Heat oils slowly on low or medium settings.
■ Always turn the hood ON when cooking at high heat or
when flambéing food (i.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambé).
■ Clean ventilation fans frequently. Grease should not be
allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware
appropriate for the size of the surface element.
WARNING: TO REDUCE THE RISK OF INJURY. IN
THE EVENT OF A RANGE TOP GREASE FIRE, READ
THE FOLLOWING:
■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
■ NEVER PICK UP A FLAMING PAN - you may be burned.
■ DO NOT USE WATER, including wet dishcloths or towels -
a violent steam explosion will result.
■ Use an extinguisher ONLY if:
–You know you have a class ABC extinguisher, and you
already know how to operate it.
–The fire is small and contained in the area where it
started.
–The fire department is being called.
–You can fight the fire with your back to an exit.
Based on "Kitchen Fire Safety Tips" published by NFPA.
■ WARNING: To reduce the risk of fire or electrical shock,
do not use this fan with any solid-state speed control
device.
RANGE HOOD SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
DANGER
You can be killed or seriously injured if you don't immediately
follow instructions.
W ARNING
You can be killed or seriously injured if you don't follow
instructions.

4
INSTALLATION REQUIREMENT
TOOLS AND PARTS
REQUIREMENTS
Electrical drill or ratchet driver
1/2” drill bit for drilling pilot holes
1 ¼” drill bit for drilling electrical wiring access
hole.
Screwdrivers: Philips & Straight blade
Pliers
Tape measure or ruler and pencil
Electrical supplies for wiring
Aluminum foils tape and/or duct tape
Hammer
Jigsaw or saber saw
Stud finder
Parts Supplied
Body 1 Pc
Chimney mounting bracket 2 Pc
Installation manual 1 Set
Metal grease filter 2-3 Pcs
Hardware 1 Set
Disclaimer: Screws many vary from model to
model.
LOCATION REQUIREMENTS
IMPORT ANT : Observe all governing codes
and ordinances. Have a qualified technician
install the range hood. It is the installer’s
responsibility to comply with installation
clearances specified on the model/serial
rating plate.
Canopy hood's location should be away from
strong draft areas, such as windows, doors, and
strong heating vents.
Cabinet opening dimensions that are shown must
be used. Given dimensions provide minimum
clearance.

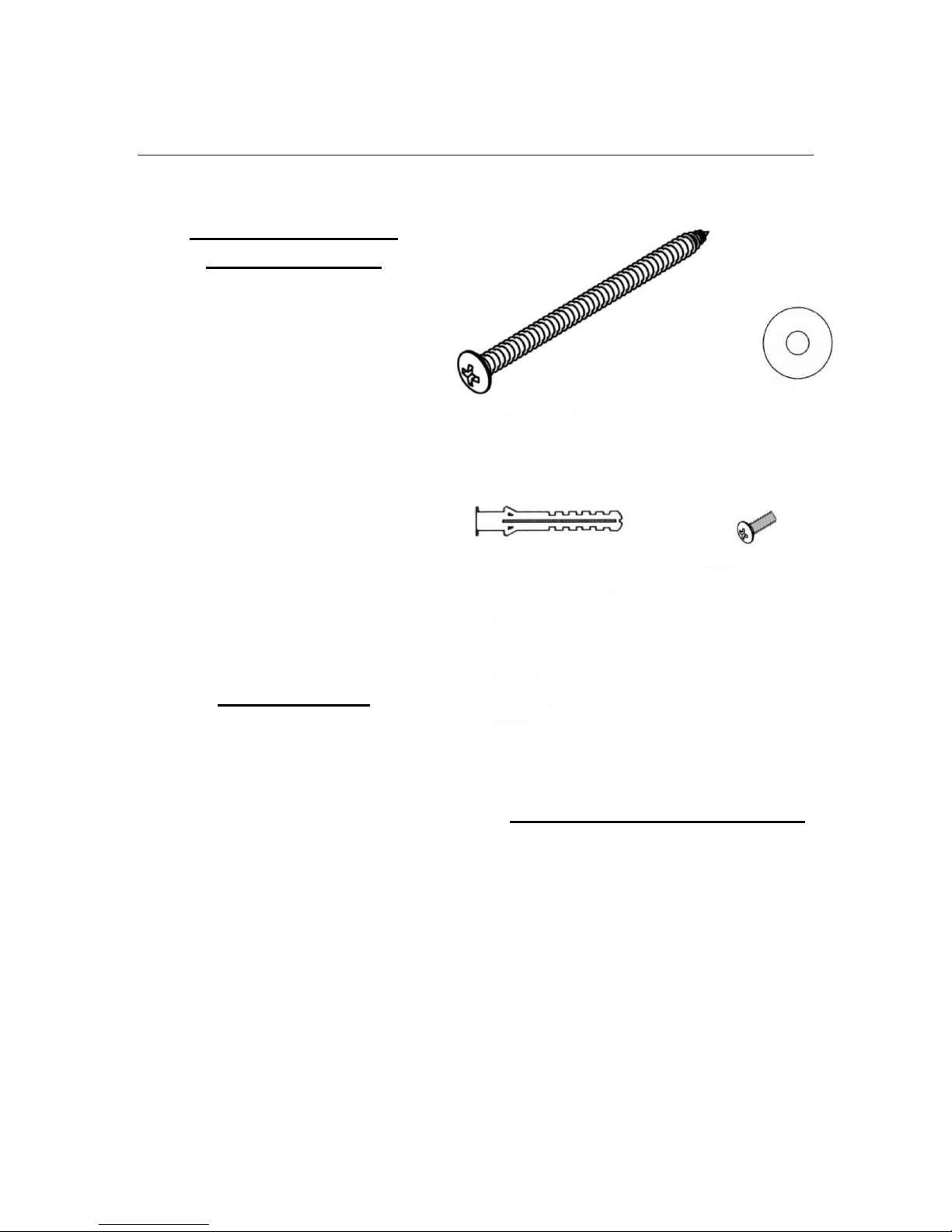

M5 x 60 QTY:6
8 x 50 Wall anchor QTY:6
Washer QTY:4
M5 x 10 QTY:4

5
INSTALLATION DIMENSIONS
A. Countertop height
B. Hood height from ceiling to bottom of the range hood filter surface: D-A-C=B
C. 27” min. from cooking surface, suggested 30” max.
D. Ceiling height

6
VENTILATION REQUIREMENTS
■ Range hoods must be ventilated to the
outdoors, except for non-vented
(recirculating) installations.
■ Do not ventilate the range hood into an
attic or other enclosed areas.
■ Do not use 4" (10.2 cm) laundry-type wall
caps.
■The length of the range hood and the
number of elbows should be kept to a
minimum to provide maximum performance.
For the most efficient and
quiet operation
■Use no more than three 90° elbows.
■Make sure there is a minimum of 24" (61
cm) of straight duct between the elbows if
more than one elbow is used.
■Do not install two elbows together.
■Use clamps to seal all joints in the vent
system.
■The vent system must have a damper. If
the roof or wall cap has a damper, do not
use the damper supplied with the range
hood.
■Use caulking to seal exterior walls or roof
openings around the cap.
■The size of the vents should be uniform.
Cold Weather Installations
An additional back draft damper should be
installed to minimize backward cold air flow.
A thermal break should be installed to
minimize conduction of outside temper-
atures as part of the vent system. The
damper should be on the cold air side of the
thermal break.
The break should be as close as possible to
where the vent system enters the heated
portion of the house.
Makeup Air
Local building codes may require the use of
makeup air systems, when using ventilation
systems greater than specified CFM of air
movement. The specified CFM varies from
state to state. Consult your HVAC
professional for specific requirements in
your area.

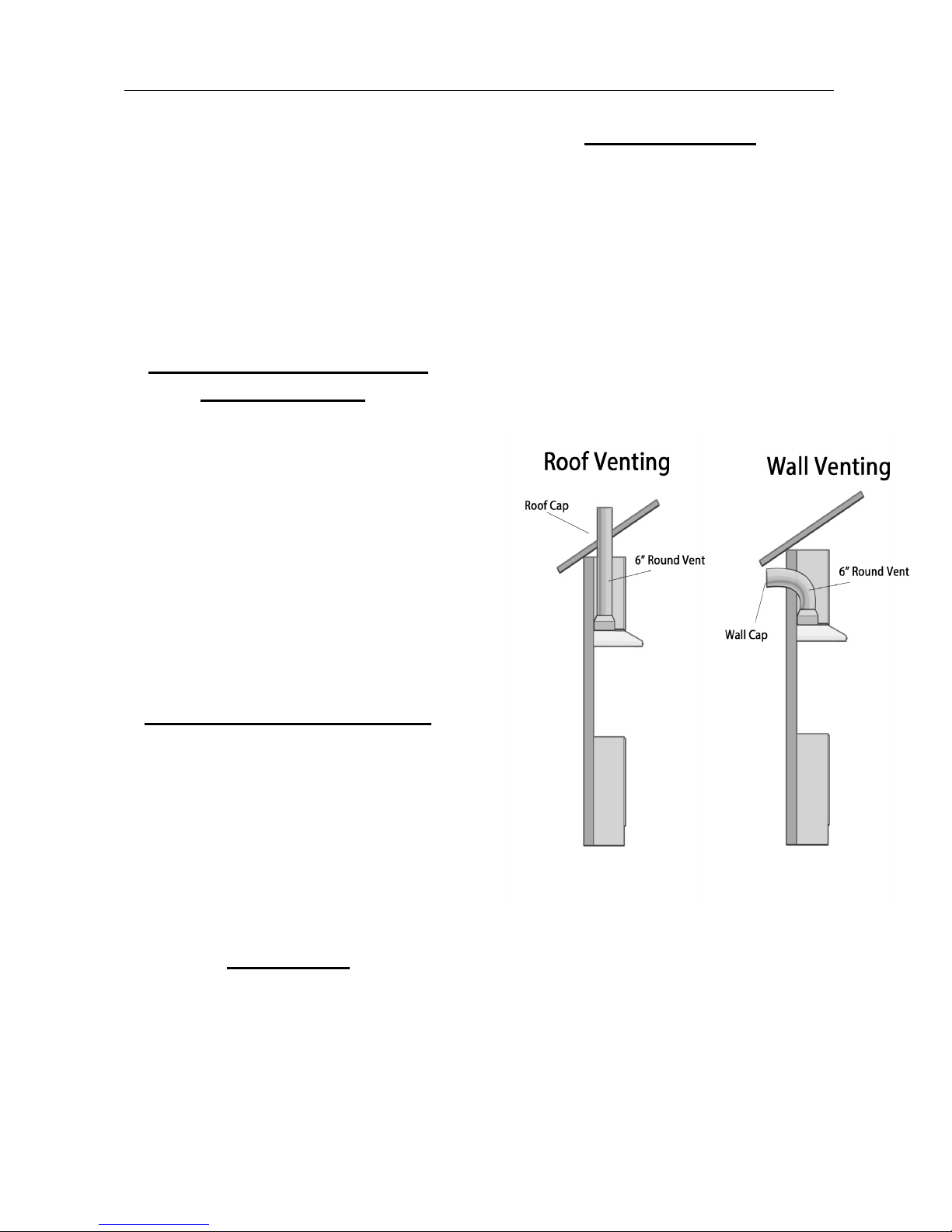

Venting Method
This canopy hood is factory set for through
the roof or wall.
A 6" (15.2 cm) round vent system is needed
for installation. The hood exhaust opening is
6" (15.2 cm) round.
To vent through a wall, a 90° elbow is
needed.
If exhaust ducting with a diameter of less
than 5.91” (150 mm) or if flat ducting is used,
the noise level of the range hood will
increase and extraction will be less efficient.
.

7
Calculating Vent System
Length
To calculate the length of the system you need,
add the equivalent feet (meters) for all vent
pieces used in the system.
ELECTRICAL
REQIUREMENTS
Observe all governing codes and ordinances.
Ensure that the electrical installation is adequate
and in conformance with the National Electrical
Codes, ANSI/NFPA 70 (latest edition), or CSA
Standards C22.1-94, Canadian Electrical Code,
Part 1 and C22.2 No. 0-M91 (latest edition), all
local codes, and ordinances. If codes permit and
a separate ground wire is used, it is
recommended that a qualified electrician
determine that the ground path is adequate.
A copy of the above code standards can be
obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
■ A 120 volt, 60 Hz., AC only, 15-amp, fused
electrical circuit is required.
■ If the house has aluminum wiring, follow the
procedure below:
1. Connect a section of solid copper wire to the
pigtail leads.
2. Connect the aluminum wiring to the copper
wire using special connectors and/or tools
designed and UL listed for joining copper to
aluminum.
Follow the manufacturer's recommended
procedure for the electrical connector.
Aluminum/copper connection must conform to
local codes and industry accepted wiring
practices.
■ Wire sizes and connections must conform to
the rating of the appliance as specified on the
model/serial rating plate. The model/serial plate
is located behind the filter on the rear wall of the
range hood.
■ Wire sizes must conform to the requirements of
the National Electrical Code, ANSI/NFPA 70
(latest edition), or CSA Standards C22. 1-94,
Canadian Electrical Code, Part 1 and C22.2 No.
0-M91 (latest edition) and all local codes and
ordinances.

8
Preparation
Advanced Preparations:
Be Familiar with the controls of the range hood by reading through Range Hood Controls
on Page, 12
Place the range hood on a flat, stable surface. Connect
the range hood to a standard outlet and test out all of
controls.
Place all supplied parts and required hardware on a
flat, stable surface and verify all the parts are included.
Carefully remove the white plastic protective coat from the range hood.
Preparations:
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening
Decide the location of the venting pipe from the hood to the outside. Refer to
Calculating Vent System Length on page 5
A straight, short vent will allow the hood to perform more efficiently.
Try to avoid as many transitions, elbows, and long run as possible. This may reduce the
performance of the hood.
IMPORTANT: Peel white plastic protective coat off the hood, if any.
Use silver tape or duct tape to seal joints between the pipe sections.

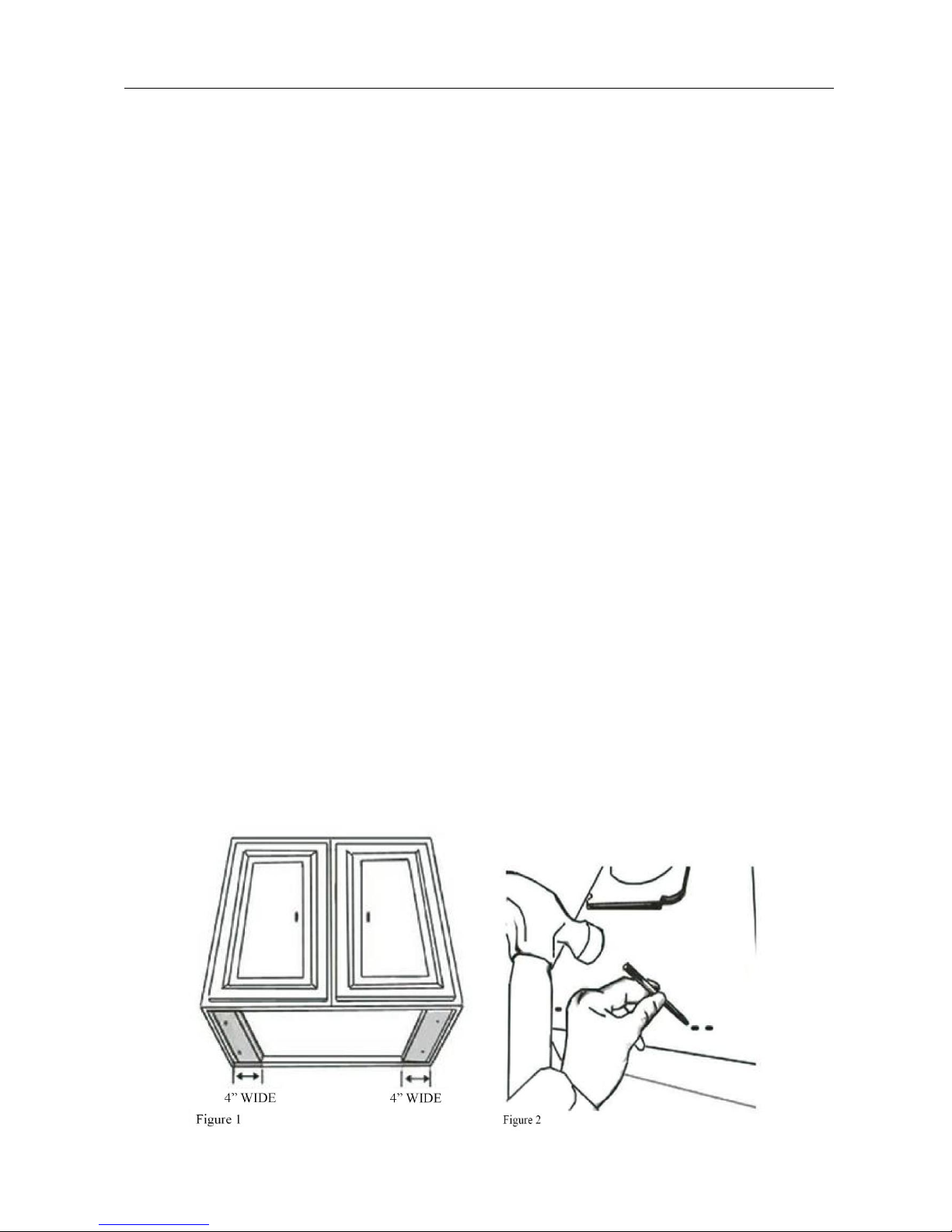

For installing under cabinets with a recessed bottom, attach 4-inch wide wood filler
strips (not provided) on each side. Refer to figure 1.
Using references in measurements and diagrams on page 5, create an opening for
electrical wires and hood exhaust under the cabinet.
CAUTION: If moving the cooking range is necessary to install the hood, turn off the power on
an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE.
Puncture the knockout holes (for mounting under the cabinet) on the hood as shown in
Figure 2.
If necessary, attach two rubber stands with adhesive tapes to the back corners of the
hood.

9
Installation
Installations:
Measure the distance between the stove top and the bottom of
the range hood. A distance of 27” to 30” is recommended.
1. There are two ways (A or B) to mount this range hood. 1801A and 1802, Type B does not work.
A. Proceed if you would like to mount this range hood without using the hood-
mounting bracket.
1. Using references on page 5, center the hood beneath the cabinet and flush
with the front of the cabinet.
2. Draw the electrical wires through the cabinet access opening if not done so
already.
3. From inside of the hood, place screws into the exact center of each
knockout hole and secure to cabinet bottom. Finish tightening all screws
until secure. Be careful when using electrical screwdrivers, they may cause
damage to the range hood. Skip part B below and proceed to step 2.
CAUTION: Make certain the range hood is secure before releasing!
B. Proceed if you would like to mount this range hood using the provided hood-
mounting bracket (If included).
1. Using references on page 5, mark the leveling point of the hood. Position
two mounting screws on the wall, leaving 1/8” space away from the wall.
Mounting the hood on wall studs or lumbar’s is high recommended.
2. Attach the hood-mounting bracket to the back of the hood with four screws
as show in figure 3.
3. Puncture the knockout wire access hole at the back of the hood and draw
the electrical wires.
4. Align hood-mounting brackets to the screws on the wall and hook hood into
place as shown in Page 10. Tighten screws to secure hood to the wall.
CAUTION: Make certain the range hood is secure before releasing!
2. For safety purpose, pre-drilled mounting holes are provided through the back of the hood. For
a more secure installation, use as many mounting holes as needed to secure from the inside of
hood.
3. Use 8"(size may vary) venting pipe (follow building codes in your area) to connect the exhaust on
the hood to the ductwork above. Use silver tape or duct tape to make all joints secure and air tight.
SAFETY WARNING: Risk of electrical shock. This range hood must be properly grounded. Make
sure this is done by qualified electrician in accordance with all applicable national and local
electrical codes. Before connecting wires, switch power off at service panel and lock service
panel to prevent power from being switched on accidentally.

Connect the hooks, gaskets and screws to the unit by screwdriver.
Screw the anchor screws to suitable location, then hook on, lock screws.
Figure 3
10

11
Installation Continued
4. Connect the range hood to a designated standard outlet or cut off the plug and connect three
wires (black, white and green) to house wires and cap with wire connectors. Connect according
to colors ( I.e. black to black, white to white, and green to green. (If applicable)
5. Store excess wires in the wiring box.
6. Drop oil tunnel into recess support near rear of hood. Refer to figure 6.
7. To install baffle filters, refer to Baffle Filters on page 7, for baffle filter placement. Refer to
figure 7for the following five steps:
1. Angle baffle filter toward back of hood.
2. Push baffle filter up until almost level.
3. Slide forward into recess behind the front of the hood.
4. Lower baffle filter.
5. Slide back until it fits into resting positions.
8. Repeat step 7 to install all baffle filters.
9. Turn power ON in control Panel. Check all lights and fan operations.
10. Make sure to leave this installation guide for the homeowner.

12
Control Operation
Control Panel Layout and Buttons configurations:
A) Lamp:
Press the lamp display one time to activate the light, press the lamp display again to
deactivate it.
B) Timer:
When the range hood is on “Standby Mode, press the timer button for 3 seconds. The
range hood will then enter the time setting state; the display screen will show numbers.
Press the “+ to set hours and Press the “-“ to set the minutes. After 10 seconds, it will
automatically exit the time setting state and the time you have entered will be saved.
When the range hood is on, touch the timer button one time. This will turn on the timer
mode and the display with show 03:00. Each time you press the timer button, it will
increase by 1 minute and the maximum timer setting is 60 minutes.
Within the last 3 seconds of the timer setting, the range hood will have three beeps.
C) “-“
In standby mode, press this button one time and the range hood will start at F1 speed. If
the button is pressed again, the speed will stay the same.
D) “+
In standby mode, press this button one time, the range hood will start at F3 speed. If the
button is pressed again, the speed will stay the same.
E) Speed/Gas/Heater sensor
1. Speed Function – In standby mode, press this button one time, the range hood will
start at F3, press this button again and the range hood will turn off.
2. Gas/heater sensor – In standby mode, hold this button for 3 seconds, the range
hood will enter automatic gas/heater sensor mode. “AUTO will flash on the display.
That means that the gas/heater sensor is on, the motor and the lamps will turn on
automatically if the gas/temperature in the kitchen increases at a rapidly. Hold the
button for 3 seconds and the sensor will be turned off.
F) Power
When the range hood is in the original state, touch this button. It will enter the
standby mode. Touch the button again and it will turn off the range hood completely.
When the range hood is on, touch this button one time, it will display 60 seconds. The
lamp can turn on/off and the speed can be changed in this mode. Press the button again
and it will turn off the range hood immediately.

13
Check if the range hood has been plugged in, make sure that all power has been turned
back ON, fused not blown and all electrical wiring are properly connected.
Swap out light assembly to working ones to determine whether it is caused by a
defective bulb.
2. The range hood vibrates when the blower is on:
The range hood might not have been secured properly on the ceiling or wall.
3. The blower or fan seems weak:
Check that the duct sized used is at least 8” or 3-1/4 x 10”. Range hood WILL NOT
function efficiently with insufficient duct size. For example: 10” duct over 8” hole and
loosely secured.
Check if duct is clogged or if damper unit (half-circular flapper) is not installed correctly
or opening properly. A tight mesh on a side wall cap unit might also cause restriction to
the air flow.
4. The lights work but the blower is not spinning at all. It’s stuck or it’s rattling.
The blower might be jammed or scraping the bottom due to shipping damage. Please
contact us immediately.
5. The hood is not venting out properly.
Make sure the distance between the stove top and the bottom of the hood is within
27”-30” in distance.
Reduce the number of elbows and length of duct work. Check if all joints are properly
connected, sealed, and taped.
Make sure the power is on high speed for heavy cooking.
NOTE: For all other inquiries, please contact us.
Troubleshooting
1. If the range hood or halogen light does not operate after installation:

14
Read and understand all instructions and warnings in this manual before operating the
appliance. Save these instructions for future reference.
Always leave safety grills and filters in place. Without these components. Operating
blowers could catch on to hair, fingers and loose clothing.
NEVER dispose cigarette ashes, ignitable substances, or any foreign objects into blowers.
NEVER leave cooking unattended. When frying, oil in the pan, it can easily overheat and
catch fire. The risk of self combustion is higher when the oil has been used several times.
NEVER cook on “open” flames under the range hood. Check deep-fryers during use.
Superheated oil may be flammable.
Cleaning:
The saturation of greasy residue in the blower and filters may cause increased
inflammability. Keep unit clean and free of grease and residue build-up at all times to
prevent possible fires.
Filters must be cleaned periodically and free from accumulation of cooking residue. Old
and worn filters must be replaced immediately.
DO NOT operate blowers when filters are removed. Never disassemble parts to clean
without proper instructions. Disassembly is recommended to be performed by qualified
personnel only. Read and understand all instructions and warnings in this manual before
proceeding.
Use and care Information
Operation:

15
Safety warning: Never put your hand into area housing the fan while the fan is
operating!
For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil
container regularly. Regular care will help preserve the appearance of the range hood.
Cleaning Exterior surfaces:
Clean periodically with hot soapy water and clean cotton cloth. Do not use
corrosive or abrasive detergent, or steel wool/scoring pads, which will scratch
and damage the stainless steels surface. For heavier soil use liquid degreaser.
If hood looks splotchy, use a stainless steel cleaner to clean the surface of the
hood. Avoid getting clean solution onto or into the control panel. Follow
directions of the stainless steel cleaner. CAUTION: DO NOT leave on too long,
as this may cause damage to the hoods finish. Use a soft towel to wipe off the
cleaning solutions. Gently rub off any stubborn spots, Use dry soft towel to dry
the hood.
After cleaning, you may use non abrasive stainless steel polish to polish and buff
out the stainless luster and grain. Always scrub lightly, with clean cotton cloth,
and with the grain.
DO NOT allow deposits to accumulate or remain on the hood.
DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere
to the surface and cause rusting.
DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to
remain in contact with water after exposure and wipe dry with a clean cloth.
Replacing Filters:
Should filters wear out due to age and prolonged use, please contact us for
replacement filters.
Note: Also replace damaged filters that has punctured or broken mesh.
Replacing the light bulb:
Make sure the range hood is unplugged or turn OFF the breaker.
Make sure the lights are cool to touch, carefully align the arrow on the inner
ring with the arrow on the outer ring where it says OIPEN. The inner ring will
loosen the light and will be available for removal. To install the new lights,
reverse the steps.
Turn ON the breaker and range hood to test for operation.
Maintenance

16
LIMITED WARRANTY
For three year from the date of purchase, when this major appliance is operated and maintained according
to instructions attached to or furnished with the product, Www.shoprangehoods.com will pay for Factory
Specified Parts. This limited warranty is valid only in the United States or Canada and applies only when the
major appliance is used in the country in which it was purchased. Outside the 50 United States and Canada,
this limited warranty does not apply. Proof of original purchase date is required to obtain service under this
limited warranty. ITEMS EXCLUDED FROM WARRANTY
This limited warranty does not cover:
1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major
appliance, to replace or repair house fuses, or to correct house wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are
excluded from warranty coverage.
3. Repairs when your major appliance is used for other than normal, single-family household use or when it
is used in a manner that is contrary to published user or operator instructions and/or installation instructions.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of consumables or cleaning products
not approved by Www.shoprangehoods.com.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance,
unless such damage results from defects in materials or workmanship and is reported to
Www.shoprangehoods.com within 30 days from the date of purchase.
6. Any food loss due to refrigerator or freezer product failures.
7. Costs associated with the removal from your home of your major appliance for repairs. This major
appliance is designed to be repaired in the home and only in-home service is covered by this warranty.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions.
10. Major appliances with original model/serial numbers that have been removed, altered or cannot be easily
determined. This warranty is void if the factory applied serial number has been altered or removed from your
major appliance. The cost of repair or replacement under these excluded circumstances shall be borne by
the customer. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR
THE SHORTEST PERIOD ALLOWED BY LAW. WWW.SHOPRANGEHOODS.COM SHALL NOT BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO
NOT ALLOW THE EXCLU-SION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS, SO THESE EXCLU-SIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE OR PROVINCE TO PROVINCE.
If you need service, first see the “Troubleshooting” section of the User Manual. After checking
“Troubleshooting,” you may find additional help by calling Www.shoprangehoods.com. In the U.S.A., call 1-
626-453-0550 or visit our website at www.ShopRangeHoods.com .Keep this book and your sales slip
together for future reference. You must provide proof of purchase or installation date for in-warranty
service.
Write down the following information about your major appliance to better help you obtain assistance or
service if you ever need it. You will need to know your complete model number and serial number. You can
find this information on the model and serial number label located on the product.
Dealer name____________________________________________________
Address _______________________________________________________
Phone number__________________________________________________
Model number __________________________________________________
Serial number __________________________________________________
Purchase date __________________________________________________
SHOPRANGEHOODS.COM MAJOR APPLIANCE WARRANTY
