Goobay 67249 User manual

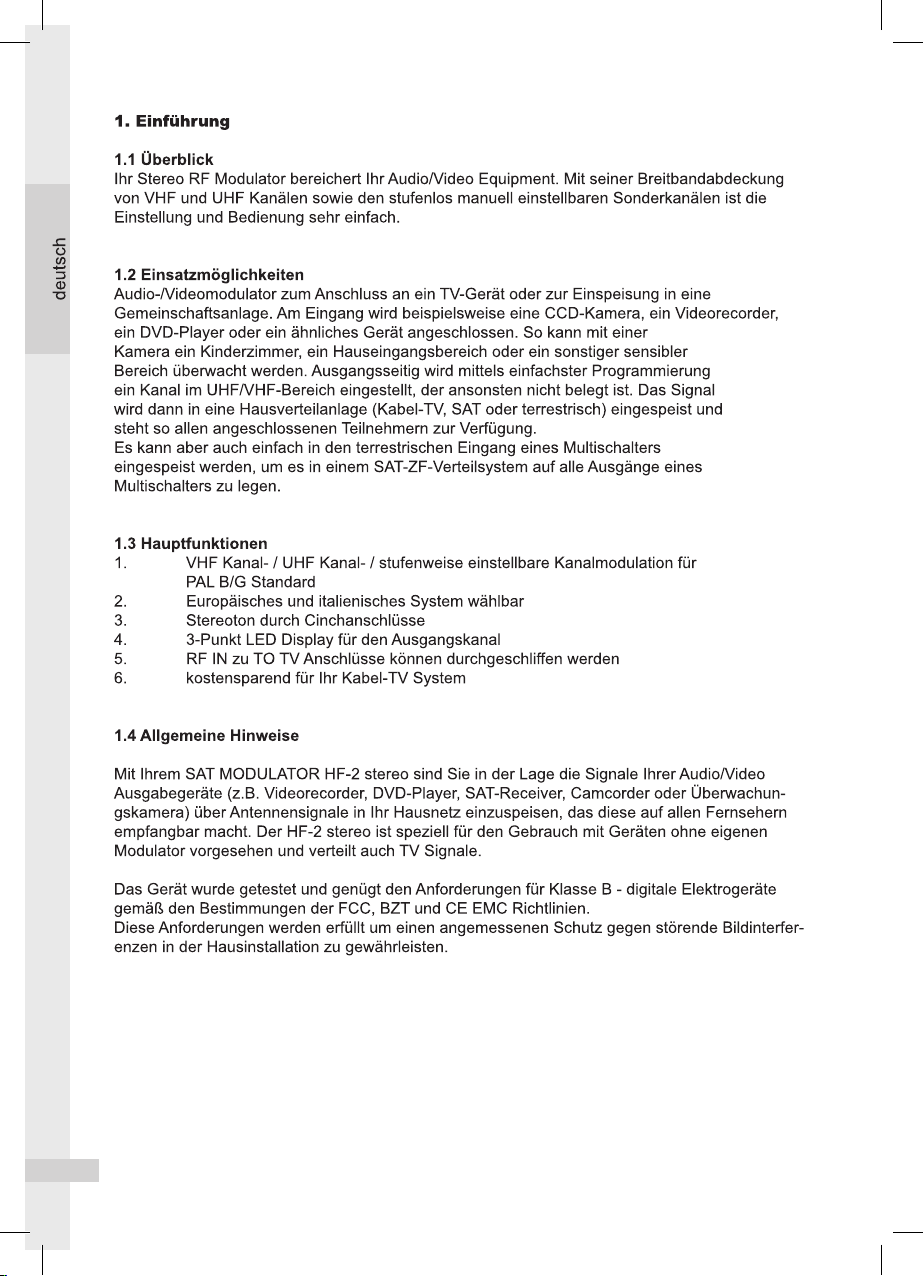

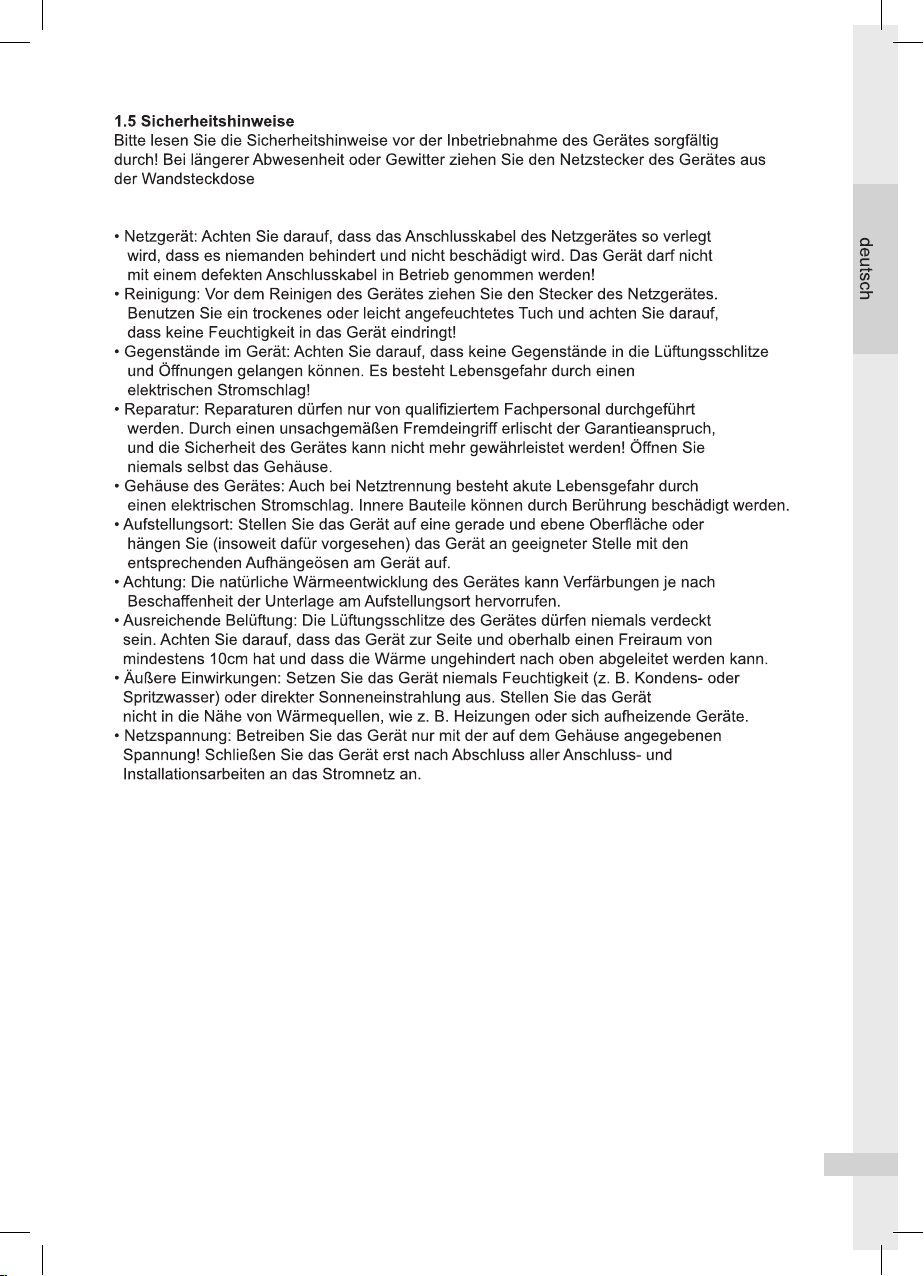

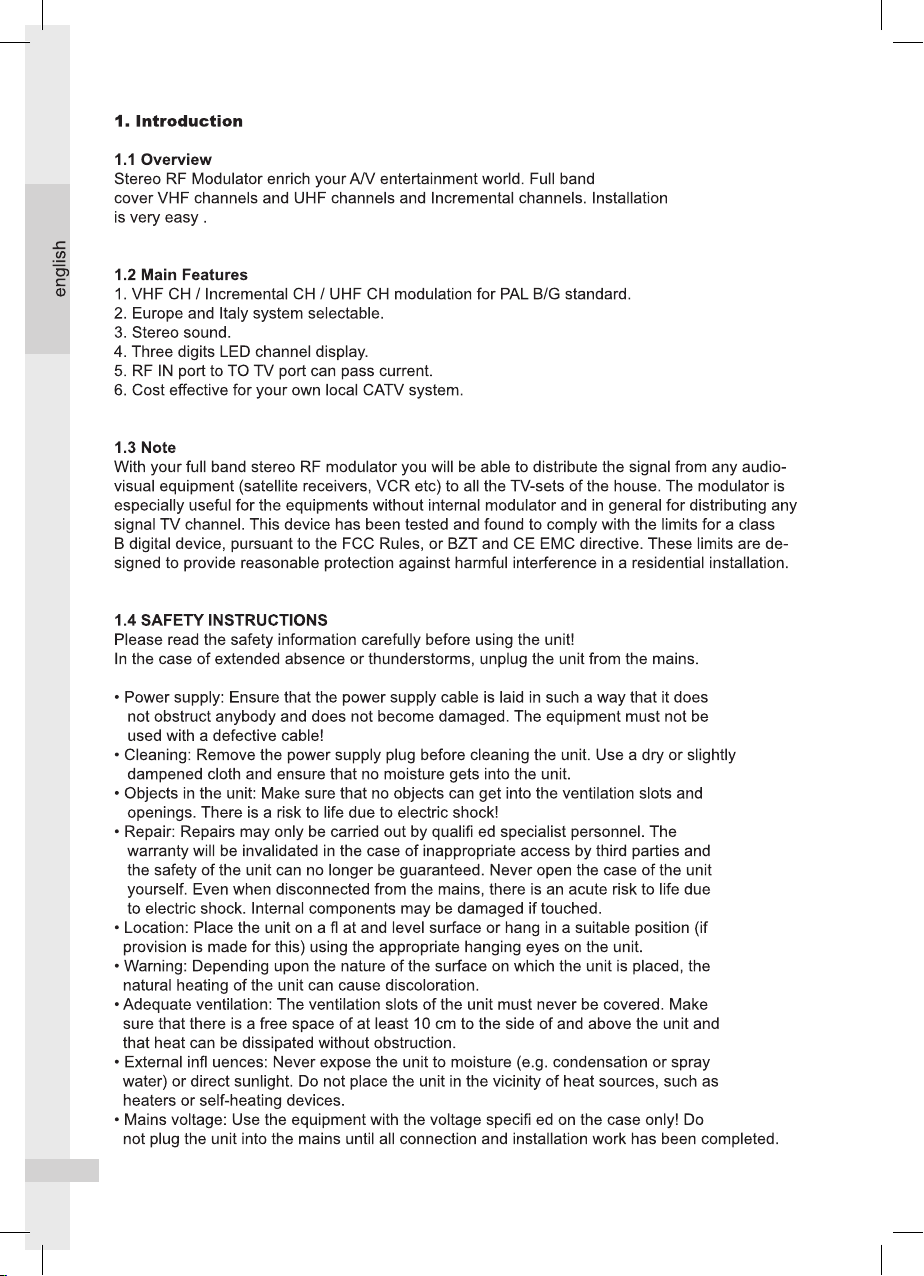

1

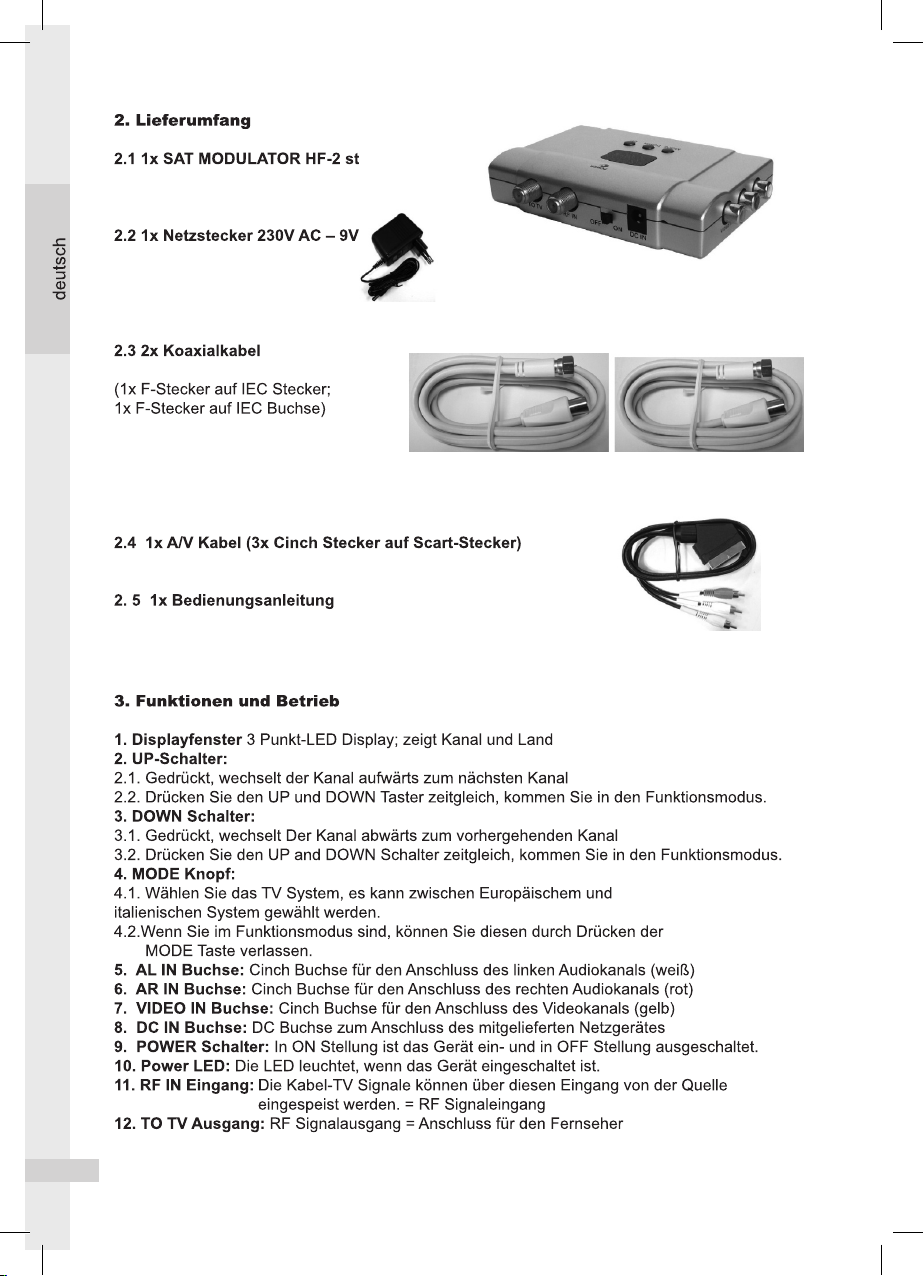

2

3

4

5

6
Function bit Item bit note
Audio System
0 4.5MHz
1 (default) 5.5MHz
2 6.0MHz
3 6.5MHz
Signal generator 0 (default) Normal operation
1 Test signal on
A/V carrier rate 0 12dB
1 (default) 16dB

7
channel frequency
(MHz)
channel frequency
(MHz)
channel frequency
(MHz)
E02 48,25 S24 327,25 38 607,25
E03 55,25 S25 335,25 39 615,25
E04 62,25 S26 343,25 40 623,25
S03 119,25 S27 351,25 41 631,25
S04 126,25 S28 359,25 42 639,25
S05 133,25 S29 367,25 43 647,25
S06 140,25 S30 375,25 44 655,25
S07 147,25 S31 383,25 45 663,25
S08 154,25 S32 391,25 46 671,25
S09 161,25 S33 399,25 47 679,25
S10 168,25 S34 407,25 48 687,25
E05 175,25 S35 415,25 49 695,25
E06 182,25 S36 423,25 50 703,25
E07 189,25 S37 431,25 51 711,25
E08 196,25 S38 439,25 52 719,25
E09 203,25 21 (UHF) 471,25 53 727,25
E10 210,25 22 479,25 54 735,25
E11 217,25 23 487,25 55 743,25
E12 224,25 24 495,25 56 751,25
S11 231,25 25 503,25 57 759,25
S12 238,25 26 511,25 58 767,25
S13 245,25 27 519,25 59 775,25
S14 252,25 28 527,25 60 783,25
S15 259,25 29 535,25 61 791,25
S16 266,25 30 543,25 62 799,25
S17 273,25 31 551,25 63 807,25
S18 280,25 32 559,25 64 815,25
S19 287,25 33 567,25 65 823,25
S20 294,25 34 575,25 66 831,25
S21 303,25 35 583,25 67 839,25
S22 311,25 36 591,25 68 847,25
S23 319,25 37 599,25 69 855,25

8
channel frequency
(MHz)
channel frequency
(MHz)
channel frequency
(MHz)
VHF 30 51 711,25
01 A 53,75 31 551,25 52 719,25
02 B 62,25 32 559,25 53 727,25
03 C 82,25 33 567,25 54 735,25
04 D 175,25 34 575,25 55 743,25
05 E 183,25 35 583,25 56 751,25
06 F 192,25 36 591,25 57 759,25
07 G 201,25 37 599,25 58 767,25
08 H 210,25 38 607,25 59 775,25
09 H1 217,25 39 615,25 60 783,25
10 H2 224,25 40 623,25 61 791,25
UHF 41 631,25 62 799,25
21 471,25 42 639,25 63 807,25
22 479,25 43 647,25 64 815,25
23 487,25 44 655,25 65 823,25
24 485,25 45 663,25 66 831,25
25 503,25 46 671,25 67 839,25
26 511,25 47 679,25 68 847,25
27 519,25 48 687,25 69 855,25
28 527,25 49 695,25
29 535,25 50 703,25

9
8. Disposal Instructions
EU members only
According to the European WEEE directive, electrical and electronic equipment
must not be disposed with consumers waste. Its components must be recycled
or disposed apart from each other. Otherwise contaminative and hazardous
substances can pollute our environment.
You as a consumer are committed by law to dispose electrical and electronic devices to
the producer, the dealer, or public collecting points at the end of the devices lifetime for
free. Particulars are regulated in national right. The symbol on the product, in the user`s
manual, or at the packaging alludes to these terms. With this kind of waste separation,
application, and waste disposal of used devices you achieve an important share to
environmental protection.
WEEE Directive: 2012/19/EU
WEEE No: 82898622

10
Pillmannstraße 12
38112 Braunschweig
Germany
Made in China.
Hotline: [phone]
E-Mail: [e-mail]
Web: www.goobay.de
