Gordon 58892 Assembly instructions

Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference. 22h
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2021 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 58892
SAFETY OPERATION MAINTENANCESETUP
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
General Power Tool Safety Warnings
WARNING Read all safety warnings and
instructions. Failure to follow the warnings
and instructions may result in electric shock,
fire and/or serious injury.
Save all warnings and instructions for
future reference.
The term ″power tool″ in the warnings refers to
your battery-operated (cordless) power tool.
1. Electrical safety
Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
2. Personal safety
a. Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment
of inattention while operating power tools
may result in serious personal injury.
b. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
3. Power tool use and care
a. Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the switch
is dangerous and must be repaired.
b. Remove the batteries from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk
of starting the power tool accidentally.
c. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
d. Maintain power tools. Check for
misalignment or binding of parts, breakage
of parts and any other condition that
may affect the power tool’s operation. If
damaged, have the power tool repaired
before use. Many accidents are caused
by poorly maintained power tools.
4. Service
a. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that
the safety of the power tool is maintained.
Metal Detector Safety Warnings
1. Maintain labels and nameplates on
the tool. These carry important safety
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
2. Handle Tool carefully at all times. Dropping Tool
can cause damage to circuit boards and housing,
which can cause the tool malfunction or failure.
3. Do not mix old and new batteries. Do not
mix alkaline, standard (carbon-zinc), or
rechargeable (nickel-cadmium) batteries.
Position batteries in proper polarity. Do
not use swollen or leaking batteries.
4. Wear ANSI-approved safety goggles and heavy-duty
work gloves when assembling and digging holes.

Page 3For technical questions, please call 1-888-866-5797.Item 58892
SAFETYOPERATIONMAINTENANCE SETUP
5. Consult local regulations before using
detector, digging, or taking any findings.
Obtain property owner’s permission
before detecting on their property.
6. Only use and store in normal temperature
environments. Extremes in temperature can
shorten effectiveness of electronic devices
and melt or damage plastic parts.
7. Avoid electrical shock. Any metal detector may
discover underground power lines, explosives
or other items which when struck could cause
personal injury. Do not use this product in areas
where there might be underground electric lines
or pipes buried at shallow depths. Never search
in military zones where bombs or other explosives
may be buried. Avoid striking any line known or
suspected to be carrying electric power. Do not
search any pipeline, particularly if it could contain
a flammable gas or liquid. In areas of uncertain
conditions, use reasonable caution before using
the Tool. If there is any question about a condition
being safe of unsafe, do not operate the Tool.
8. Keep the Metal Detector away from any lights,
TVs, computers, and mobile telephones. These
can all cause electromagnetic interference.
9. Only the Search Coil is waterproof. Do
not immerse the unit beyond Search Coil.
10. Keep the Tool clean. Wipe the housing after
each use. The search coil is washable and can
be fully submerged. Never submerge the control
housing. Protect the control housing from rain,
blowing surf and heavy mist. Disassemble the
Leg and wipe it clean after use in sandy areas.
11. Use the right tool for the job. There are certain
applications for which this tool was designed.
Do not modify this tool and do not use this tool
for a purpose for which it was not intended.
12. This product is not a toy. Keep
it out of reach of children.
13. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields
in close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure. In
addition, people with pacemakers should:
• Avoid operating alone.
• Properly maintain and inspect
to avoid electrical shock.
14. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
SAVE THESE INSTRUCTIONS.
SPECIFICATIONS
Battery Type 2x 9V
Headphone Jack 3.5 mm
Length 41" - 51"
Max Target Depth 200mm under soil ground
FCC
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

Page 4 For technical questions, please call 1-888-866-5797. Item 58892
SAFETY OPERATION MAINTENANCESETUP
SETUP - BEFORE USE
Read the ENTIRE IMPORTANT SAFETY INFORMATION section
at the beginning of this manual including all text under subheadings
therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool off and remove the batteries before assembling
or making any adjustments to the tool.
Note: For additional information regarding the parts listed in the following
pages, refer to Parts List and Diagram on page 11.

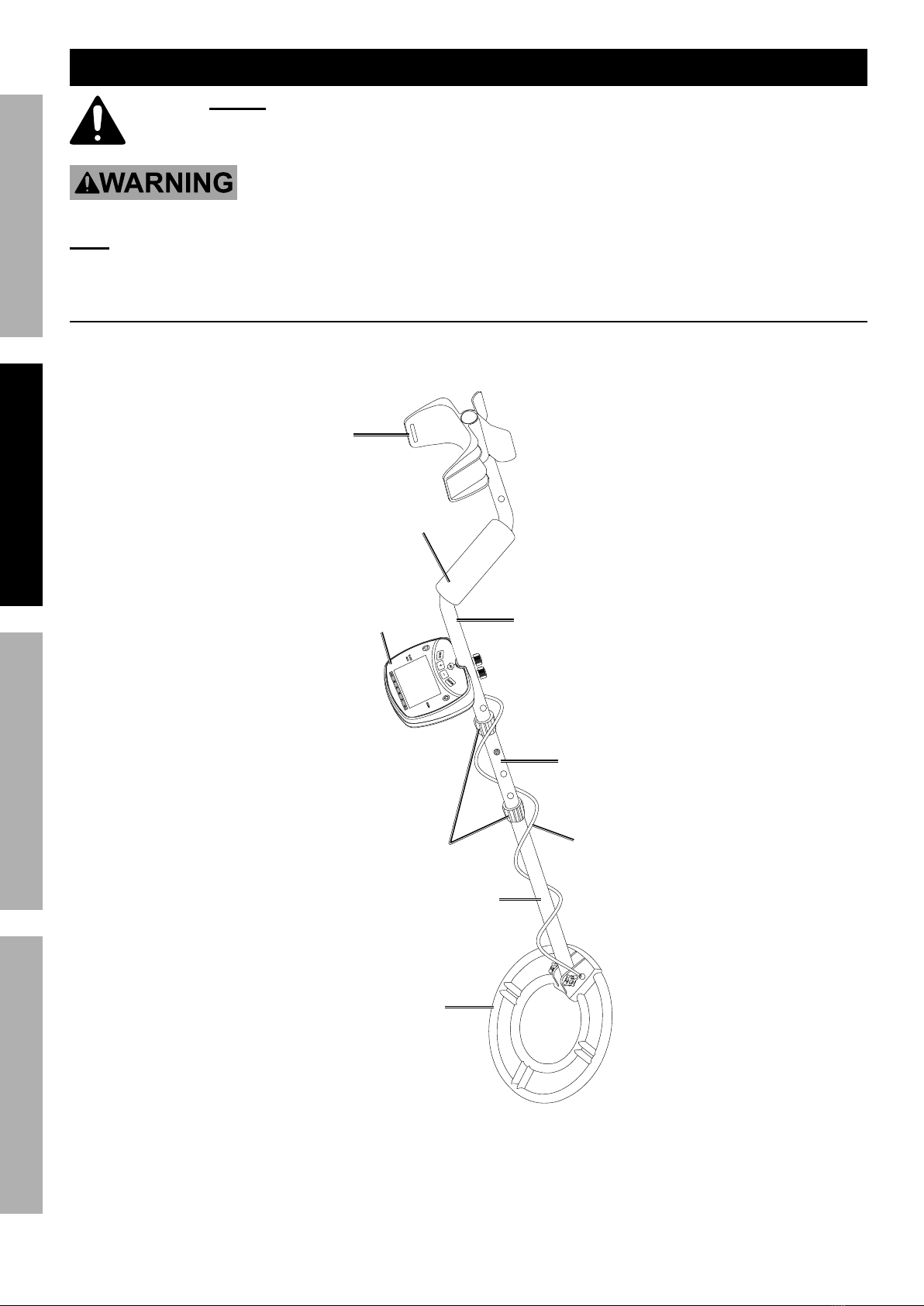

Components
Lower
Shaft
Control
Box
Arm
Support
Search
Coil
Cable
Lock Nuts
Center
Shaft
Upper
Shaft
Handle

Page 5For technical questions, please call 1-888-866-5797.Item 58892
SAFETYOPERATIONMAINTENANCE SETUP
Tool Set Up
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool off and remove the batteries before adjusting tool
or installing accessories.
Assembling Shaft
1. Press button on Lower Shaft, then slide into
Center Shaft until button pops out of hole.
2. Press button on Center Shaft, then slide into
Upper Shaft until button pops out of hole.
3. Tighten Lock Nuts securely.
Attaching Search Coil
1. Remove Knob, Washers and Bolt.
2. Place Bushings inside both sides
of hole on Lower Shaft.
3. Place Search Coil over hole on Lower Leg. Thread
Bolt through assembly. Finger tighten Knob.
4. Hold the unit in a comfortable position, and
adjust the Shaft sections until the overall Shaft
is at the desired length. Adjust Search Coil
until it is parallel with the ground. Tighten
Knob securely, but do not overtighten.
Knob
Bolt
Search
Coil
Bushing
Lower
Leg
Bushing
Installing Batteries
1. Turn power off, then remove Battery Cover
from the back of the Control Box.
2. Insert batteries and replace the Battery Cover.
Notice: Do not install old and new batteries together.
Do not install alkaline, carbon-zinc or rechargeable
batteries together. Position batteries in proper
polarity. Do not use swollen or leaking batteries.
Note: When storing the unit for a week or more, remove
the batteries. Extend battery life by using Headphones,
as they require less power than the built-in speaker.
Battery
Cover
Attaching Control Box
1. Attach Control Box to Upper Shaft and
secure with Control Knob Screws.
2. Loosely wrap Search Coil’s Cable around Shaft and
connect it to the back of the Control Box. Rotate
the plug counter-clockwise to lock it into place.
3. Optional: Unplug the Cable and slip the
Cover over the Control Box with the elastic
band underneath. Plug the Cable back in.
Control Box
Cover
Cable
Using Headphones
WARNING! TO PREVENT SERIOUS INJURY: Do
not wear headphones while operating your detector
near high traffic areas. Pay attention to traffic safety.
Insert Headphone Plug into Headphone
Jack on the bottom of the Control Box.
Note: Speaker disables when
Headphones are plugged in.
CAUTION! TO PREVENT HEARING LOSS:
set the volume level to minimum before using
the Headphones, then adjust the level up to a
comfortable listening level. Extended high volume
listening can lead to permanent hearing loss.

Page 6 For technical questions, please call 1-888-866-5797. Item 58892
SAFETY OPERATION MAINTENANCESETUP

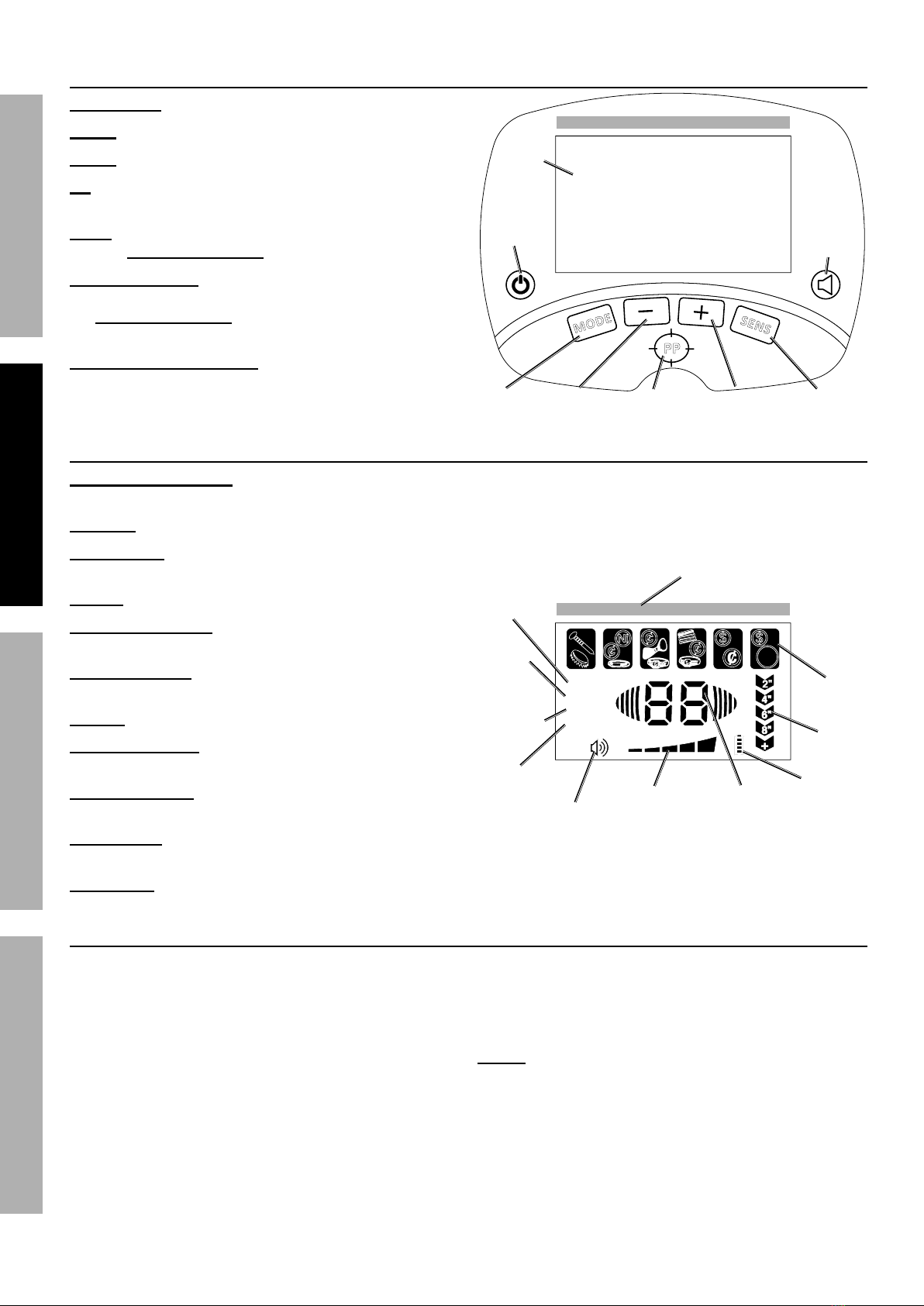

Control Panel Buttons
LCD Display - Displays operating information/data.
Power - Switches Control Box power ON or OFF.
MODE - Selects detection Mode.
PP - Used to accurately pinpoint /locate
an object underground.
SENS - Adjust sensitivity level; used in conjunction
with the Decrease/Increase buttons.
Volume/Backlight - Quick press allows volume
level to be adjusted; used in conjunction with
the Decrease/Increase buttons. Two second
press will turn backlight ON or OFF.
Decrease (-) / Increase (+) - Increases
(+) or decreases (-) range for volume,
sensitivity, and DISC Mode.

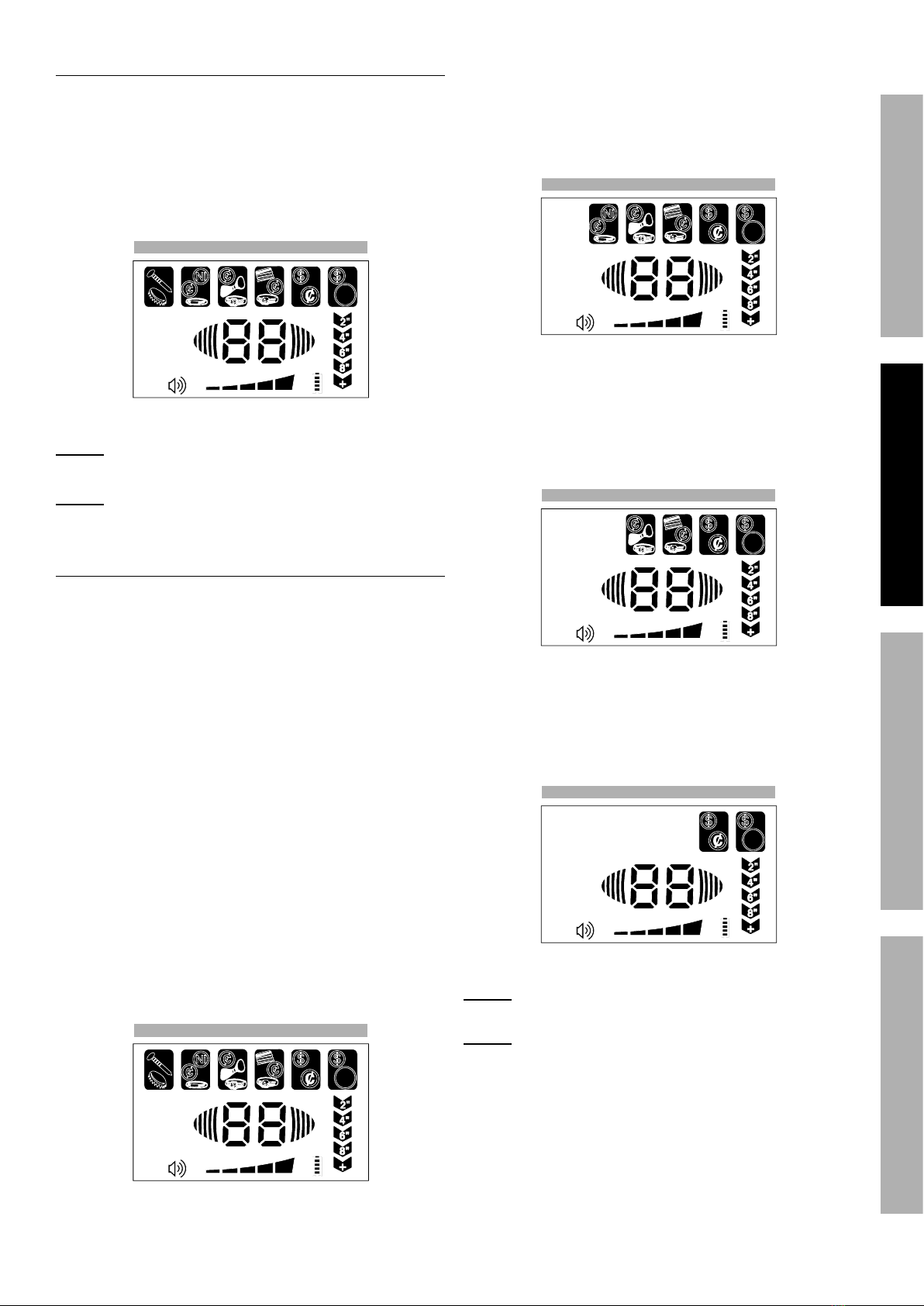

< 40 50 60 70 80 90 +
MODE COIN
DEPTH
SENS
PP
MODE
A-M
MEMO RY
JEWE LRY
DISC
Silver
Pinpoint Increase
Decrease
Mode Sensitivity
Volume/
Backlight
Power
LCD
Display
LCD Display Icons
Target ID Digital Scale - Visual reference scale for
Target ID and Target Digital Value Range.
Target ID - Displays target types.
Target Depth - Displays approximate
depth of underground objects.
Battery - Displays battery level.
Target Digital Value - Displays digital
value of the detected target.
Sensitivity Level - Displays current
detection sensitivity level setting.
Volume - Displays volume level.
JEWELRY (Mode) - Mode is for detecting
non-ferrous (non-iron) metals.
MEMORY (Mode) - Mode is for detecting metal with the
same Target ID as the metal example in its memory.
DISC (Mode)- Mode allows the operator to selectively
eliminate certain catagories (Target ID) from detection.
A-M (Mode) - Mode is for detection of all metal types.
Modes and Testing
1. Press Power and after a few seconds the Display
will show the four Modes, Sensitivity Level, and
Battery Level.
After 15 minutes if no button is pressed or object
is detected, the unit will power off automatically.
2. Before beginning a search outside, test the unit
with samples of metal. Use the following:
• an iron nail
• a Nickel
• a Penny (zinc coin, after 1982)
• a silver Quarter
3. Place the Metal Detector on a non-metal surface
with the Search Coil face up. Make sure the
unit is away from TVs, computers, or any device
that can cause electromagnetic interference.
NOTE: Remove any watches, rings, or other
metal objects on your fingers and hands.
4. Power on the Metal Detector and:
a. Press Volume/Backlight and then
Decrease (-) to set volume to low.
b. Press MODE and select the desired Mode.
< 40 50 60 70 80 90 +
MODE COIN
DEPTH
SENS
PP
MODE
A-M
MEMO RY
JEWE LRY
DISC
Silver
Target ID
Target
Depth
A-M
(Mode)
DISC
(Mode)
MEMORY
(Mode)
JEWELRY
(Mode)
Volume
Battery
Level
Sensitivity
Level
Target
Digital Value
Target ID
Digital Scale

Page 7For technical questions, please call 1-888-866-5797.Item 58892
SAFETYOPERATIONMAINTENANCE SETUP
A-M Mode
Use this Mode to detect all metal types.
1. Press MODE and select A-M so that the Metal
Detector will respond to all metal types.
Sweep the metal samples 2 to 3 inches or more
above the center of the Search Coil. Once detected,
a tone should sound, along with its Target Digital
Value displayed and its Target ID icon flashing.
< 40 50 60 70 80 90 +
MODE COIN
DEPTH
SENS
PP
MODE
A-M
MEMO RY
JEWE LRY
DISC
Silver
Figure A: A-M Mode - All Metals
NOTE: Be sure to move the samples over the Search
Coil otherwise the Detector will not respond.
NOTE: If needed, press SENS and then Increase (+)
to increase the Metal Detector’s sensitivity.
DISC Mode
Use this Mode to discriminate between metal types.
1. Press MODE and select DISC so that the Metal
Detector will only respond to specific metals.
When all Target ID icons are seen then all metal
types will be detected. Press Increase (+) to
eliminate an icon from left to right. Once an icon
is removed all metals within that range will not be
detected. Restore icons by pressing Decrease (-).
When the Detector is set to detect all
metals it will signal a specific metal
differently from the others. As a test:
a. Sweep the iron nail 2 to 3 inches above
the Search Coil. Once detected, a tone
will sound, its Target Digital Value will
display, and the Target ID icon will flash.
• Sweep the Nickel and once detected, its
tone will sound, its Target Digital Value will
display, and its Target ID icon will flash.
• Repeat for the Penny and silver Quarter. Their
tones should sound, Target Digital Values will
be displayed and their Target ID icons flashing.
< 40 50 60 70 80 90 +
MODE COIN
DEPTH
SENS
PP
MODE
A-M
MEMO RY
JEWE LRY
DISC
Silver
Figure B: DISC Mode - All Metals
b. Eliminate the Target ID “Iron” icon by pressing
Increase (+) once and it should disappear.
Sweep the iron nail above the search coil
and the unit should NOT respond. Sweeping
the other samples should produce a tone
and reading on the Display as before.
< 40 50 60 70 80 90 +
MODE COIN
DEPTH
SENS
PP
MODE
A-M
MEMO RY
JEWE LRY
DISC
Silver
Figure C: DISC Mode - “Iron” Not Detected
c. Eliminate Target ID “Nickel” icon by pressing
Increase (+) once again. Sweep the nickel in
front of the Search Coil. The unit should NOT
respond to the Nickel or to the iron nail but
should respond to the Penny and silver Quarter.
< 40 50 60 70 80 90 +
MODE COIN
DEPTH
SENS
PP
MODE
A-M
MEMO RY
JEWE LRY
DISC
Silver
Figure D: DISC Mode - “Iron, Nickel” Not Detected
d. Eliminate Target ID “Pull Tab” and “Penny” icons
by pressing Increase (+) two more times. Sweep
the samples in front of the Search Coil. The
unit should NOT respond to the nail, Nickel, or
Penny but should respond to the silver Quarter.
< 40 50 60 70 80 90 +
MODE COIN
DEPTH
SENS
PP
MODE
A-M
MEMO RY
JEWE LRY
DISC
Silver
Figure E: DISC Mode - “Quarter” Detected Only
NOTE: The Target ID “silver Quarter” Icon
cannot be eliminated.
NOTE: The detection of aluminum is similar
to silver, so both metals will be detected within
the same Target ID Icon. The detection of
gold is similar to the Nickel setting.
2. Restore Target ID Icons by pressing Decrease (-)
until all desired icons reappear or press the
MODE button to reset menu selections.

Page 8 For technical questions, please call 1-888-866-5797. Item 58892
SAFETY OPERATION MAINTENANCESETUP
MEMORY Mode
Use this Mode to detect metal types
similar to a saved metal object.
1. Once a metal object is recovered and you
want to search for the same type metal object,
press MODE and select MEMORY.
< 40 50 60 70 80 90 +
MODE COIN
DEPTH
SENS
PP
MODE
A-M
MEMO RY
JEWE LRY
DISC
Silver
Figure F: MEMORY Mode - Object Saved In Memory
a. Sweep over the metal object so that its Target
Digital Value displays and its associated
Target ID Icon flashes. The first metal
object the unit identifies will be saved.
b. Once saved, the Target Digital Value will
disappear from the Display and the Target ID
Icon will stop flashing. “MEMORY” will be seen
on the Display. The unit will now only respond
to the same type of metal that was saved.
Note: In the MEMORY Mode, the Detector will
respond to all metals in the saved Target Icon range.
c. When the same type of metal is detected,
the tone will play, its Target Digital Value will
display and the Target ID Icon will flash.
d. Press MODE to clear the saved setting
and exit the MEMORY Mode or select
MEMORY to save a new metal object.
JEWELRY Mode
Use this Mode to detect non-ferrous (iron) metal types.
1. Press MODE then select JEWELRY. The
JEWELRY Mode ignores most nails and small
iron pieces but will detect jewelry, coins, and
other metals in those Target ID Icon ranges.
< 40 50 60 70 80 90 +
MODE COIN
DEPTH
SENS
PP
MODE
A-M
MEMO RY
JEWE LRY
DISC
Silver
Figure G: JEWELRY Mode - Non-Ferrous Metals
GENERAL OPERATING INSTRUCTIONS
1. Once all the tests and adjustments have been
made, the Metal Detector is ready for outdoor use.
2. Power the unit up, press MODE and
select the desired Mode.
Note: When first searching, it is recommended to
select A-M and set Sensitivity Level to maximum.
3. Adjust the Volume to minimum then put on the
headphones (if used). Once tone is played while
operating, adjust the Volume as desired.
4. If in a dark area, turn on the Display’s
Backlight. To save power, the Backlight will
automatically turn off after 10 minutes.
5. Slowly walk the detection area and slowly sweep
the Search Coil back and forth, keeping it level and
about 1″ to 3″ from the ground. Tilting or raising
the Search Coil during the sweep will produce false
readings. If needed, adjust the Sensitivity Level.
6. The Search Coil may be used under water.
Only the Search Coil is waterproof.
7. When a metal object is detected, a tone will
sound, the Target Digital Value will be seen
on the Display, the associated Target ID
Icon will flash, and the approximate Target
Depth of the object will be displayed.
8. Look at the flashing Target ID Icon to
determine what kind of metal it is and
whether you wish to dig it out.
9. To Pinpoint an object’s location, press PP.
When “PP” is seen on the Display, slowly move
the Search Coil over the area that triggered the
unit. The tone will sound when the Search Coil
is near the object. The Target Depth indicator
will show the approximate depth of the object.
Figure H: Pinpoint Target Object
< 40 50 60 70 80 90 +
MO DE COIN
DE PTH
SENS
PP
MODE
A-M
ME MO RY
JE WE LRY
DI SC
Silver
Pinpoint
10. When finished and to prevent accidents, turn off
the tool and remove the batteries. Clean, then
store the tool indoors out of children’s reach.

Page 9For technical questions, please call 1-888-866-5797.Item 58892
SAFETYOPERATIONMAINTENANCE SETUP
Tips for Searching in Different Environments
1. There are many factors which influence the
sensitivity and accuracy of detecting and
discriminating between metal objects, including
the angle, depth, size and oxidation of the target
object. Various soil or seawater conditions, and
also electromagnetic and electrical interference
surrounding the target can also affect readings.
Other metal detectors in the area will also cause
interference, so when there is more than one unit
in use, be sure they are at least 10 yards apart.
2. Some ways to help increase success are:
a. If there is interference from similar metal
detectors in your searching area, lower the
Sensitivity Level setting to stop the interference.
b. If there is interference from electrical cables, TV,
radio, or other electrical devices in your searching
area, lower the Sensitivity Level setting.
c. When searching in highly mineralized areas, the
unit may sound even if there is no metal. Lower
the Sensitivity Level setting, eliminate some
Target ID icons (eliminates detection of certain
metal types) and increase the distance of the
Search Coil from the ground until the false signal
disappears. To set detection, place a test metal
object in highly mineralized earth or wet sand
and eliminate Target ID icons as needed to focus
the detection range for the desired metal object.
d. When searching in a trash area, set the unit
into the JEWELRY mode so that the unit can
ignore most invaluable metals such as nails,
bottle caps, cans, and small pieces of iron.
e. Generally, the higher the Sensitivity Level,
the worse the detection of the selected metal
object will be, as undesired, similar metals will
be detected. If needed, lower the Sensitivity
Level to have better discrimination and detection
of the selected metal object without interference
from other metals and mineralized earth.
f. Remove all metal digging tools when searching.
g. Reference the chart below for common examples
of metal objects, their tone pitch, Target ID
icons, and Target Digital Value ranges.
Target
Iron,
Bottle
Cap
Nickel,
Jewelry
Pull-
Tab,
Jewelry
Zinc
Penny,
Bottle
Cap,
Jewelry
Quarter,
Copper
Half
Dollar,
Silver
Tone
Pitch Low Low Medium Medium High High
Target
Icon
Digital
Value
Range
0-40 41-55 56-65 66-75 76-85 86-99
Note: Table for general reference only. There are a wide variety of
metals and no metal object can be identified for certain until unearthed.

Page 10 For technical questions, please call 1-888-866-5797. Item 58892
SAFETY OPERATION MAINTENANCESETUP
MAINTENANCE AND SERVICING
Procedures not specifically explained in this manual must be performed
only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn the Power
Switch of the tool off and remove the batteries from the tool before performing any
inspection, maintenance, or cleaning procedures.
Do not use damaged equipment. Have the problem corrected before further use.
CLEANING AND MAINTENANCE
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for loose hardware,
misalignment or binding of parts, cracked or broken
parts, damaged electrical wiring, and any other
condition that may affect its safe operation.
2. Handle the Metal Detector gently and carefully.
Dropping it can damage circuit boards and the case,
and can cause the Metal Detector to malfunction.
3. AFTER USE, wipe external surfaces of the
tool with a damp clean cloth, then dry. Do
not use harsh chemicals, cleaning solvents,
or strong detergents to clean the detector.
Troubleshooting
Problem Possible Causes Likely Solutions
Unit displays or
sounds without
a target.
1. Metal Detector can receive
interference from power lines and
other electromagnetic sources.
2. Environmental humidity
is very high.
3. Sensitivity Level is set too high.
4. Sweeping the Search Coil to
fast or at the wrong angle.
5. Other Metal Detectors
in close proximity.
1. Change search location or removed source of
interference.
2. Wait for humidity level to lower.
3. Adjust Sensitivity Level lower.
4. Use correct operating techniques as described
in GENERAL OPERATING INSTRUCTIONS.
Unit does not
detect anything.
1. Sensitivity Level is set too low.
2. Target ID range is
eliminated (not selected).
3. Search Coil not parallel
with ground.
1. Adjust Sensitivity Level higher.
2. Select correct Target ID range.
3. Use correct operating techniques as described
in GENERAL OPERATING INSTRUCTIONS.
Unit displays
multiple Target ID
ranges, emits
multiple tones, etc.
1. Multiple metal types in
the search area.
2. Target ID range cannot
be determined (heavily
oxidized metal, etc.)
1. Adjust Sensitivity Level lower to increase
discrimination between target objects.
2. Sweep the Search Coil at differing angles.
Unit does not
function.
1. Dead Battery.
2. Cable connection is poor.
1. Replace Batteries.
2. Reconnect cable as described in
SETUP -BEFORE USE.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply before service.

Page 11For technical questions, please call 1-888-866-5797.Item 58892
SAFETYOPERATIONMAINTENANCE SETUP
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
PARTS LIST AND DIAGRAM
Parts List
Part Description Qty
1 Search Coil 1
2 Cable 1
3 Lower Shaft 1
4 Lock Nut 2
5 Button 2
6 Center Shaft 1
7 Control Box Screw 2
8 Control Box 1
Part Description Qty
9 Upper Shaft 1
10 Knob 1
11 Bushing 2
12 Bolt 1
13 Control Box Cover (not shown) 1
14 Carrying Case (not shown) 1
15 Headphones (not shown) 1
Assembly Diagram
12
3
4
5
6
7
8
9
10
11
12
1
11
3
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175448279 when ordering parts.

26677 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
LIMITED 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
