0010-TITAN GER
5 Systems in 1 Device

English User Manual
Critical Warning
•••
Please be sure that all precautions
taken against risks
Do not use your device while it is
raining or on extremely wet floor
Turn on your device after you make
sure that all parts are in place
Make sure that the device battery
is fully charged before searching
If the battery start to give a peep
sound, close the device and
recharge the battery
Do not start the pulse induction
system without connecting the coil
cable to the device, other ways the
device will stop in the middle of
opening
It is recommended to read the user
manual before start working on the
device to understand everything
and to avoid mistakes doing the
search
After the device start make sound
and turn off automatically put the
battery on charge and do not try to
start the device without charging
the battery
Overview
➢Dear customer, thank you for
choosing the TITAN GER –1000
➢This device enables you to detect
underground gold &Treasures
➢TITAN GER –1000 designed to
reach 45 meters under the ground
➢and 2500 meters front range
➢In addition, it contain five systems
to confirm your target
➢and identify the target
underground and its depth
Be aware of high voltage resources, and
do not use any charger other than the
original charger that come with the
device
Main unit of the device is under
warranty against all electronic
breakdowns for two (2) years
Any damages caused by user errors
(laying open the main unit, hits, harms
etc.) are not within this warranty
Battery , antenna and tablet are also not
within this warranty
You should follow the instructions in
this user manual strictly to minimize the
faults and to use your device correctly

English User Manual
The Long Range System
1
Signal Recipient
Signal Transmitter
Dispatcher Antenna
Recipient Antenna
This system specializes to cover vast areas and locate the target with in 1
meter Square up to depths of 45 meters below the surface of the ground and
Front Range up to 2,500 meters.
Connect the Dispatcher
Antenna
The long-range system parts

English User Manual

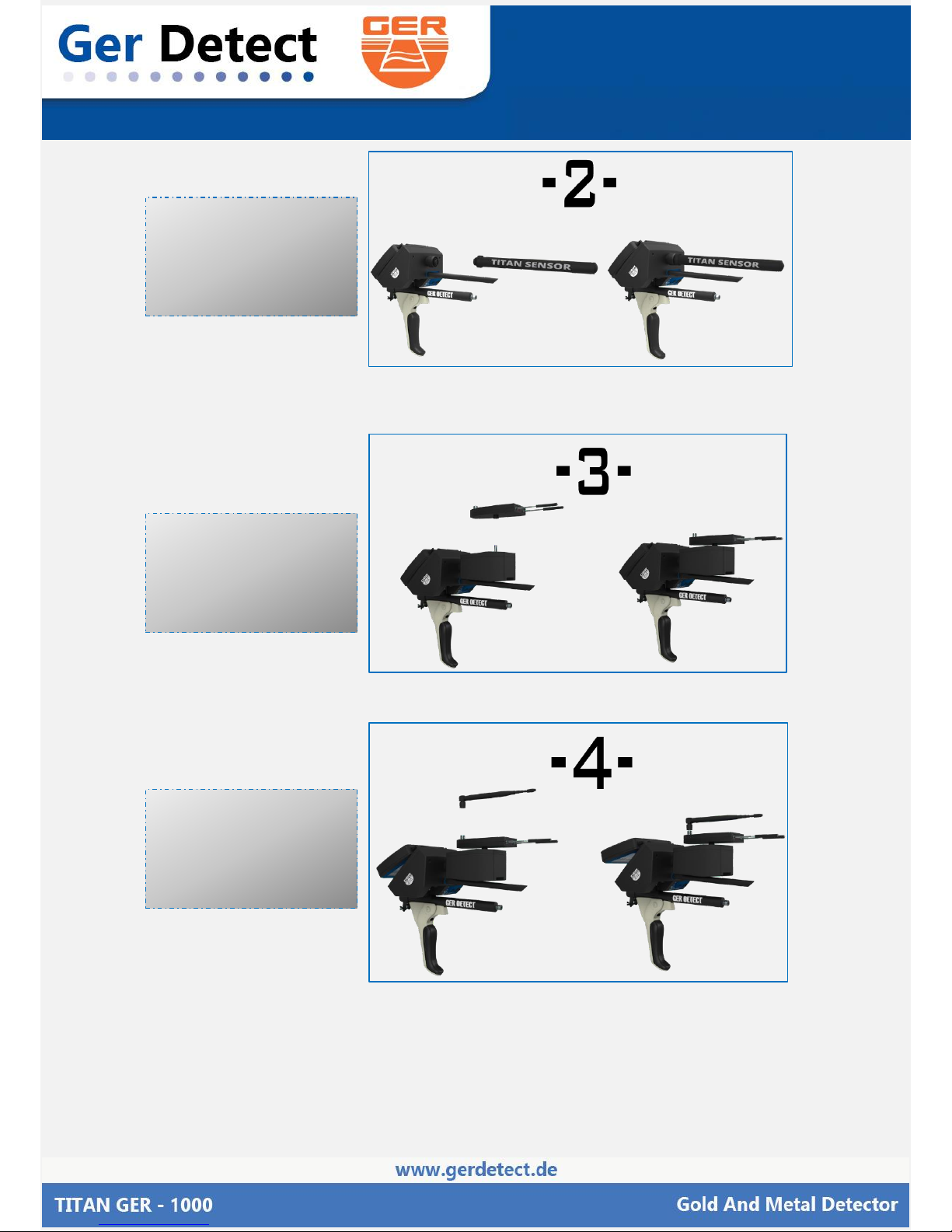

Connect the Signal
Transmitter
Connect the Signal
Recipient
Connect the Recipient
Antenna

English User Manual
- Connect the Battery
to the Device
- Open the Device
Screen and Start The
Device Through
ON / OFF switch

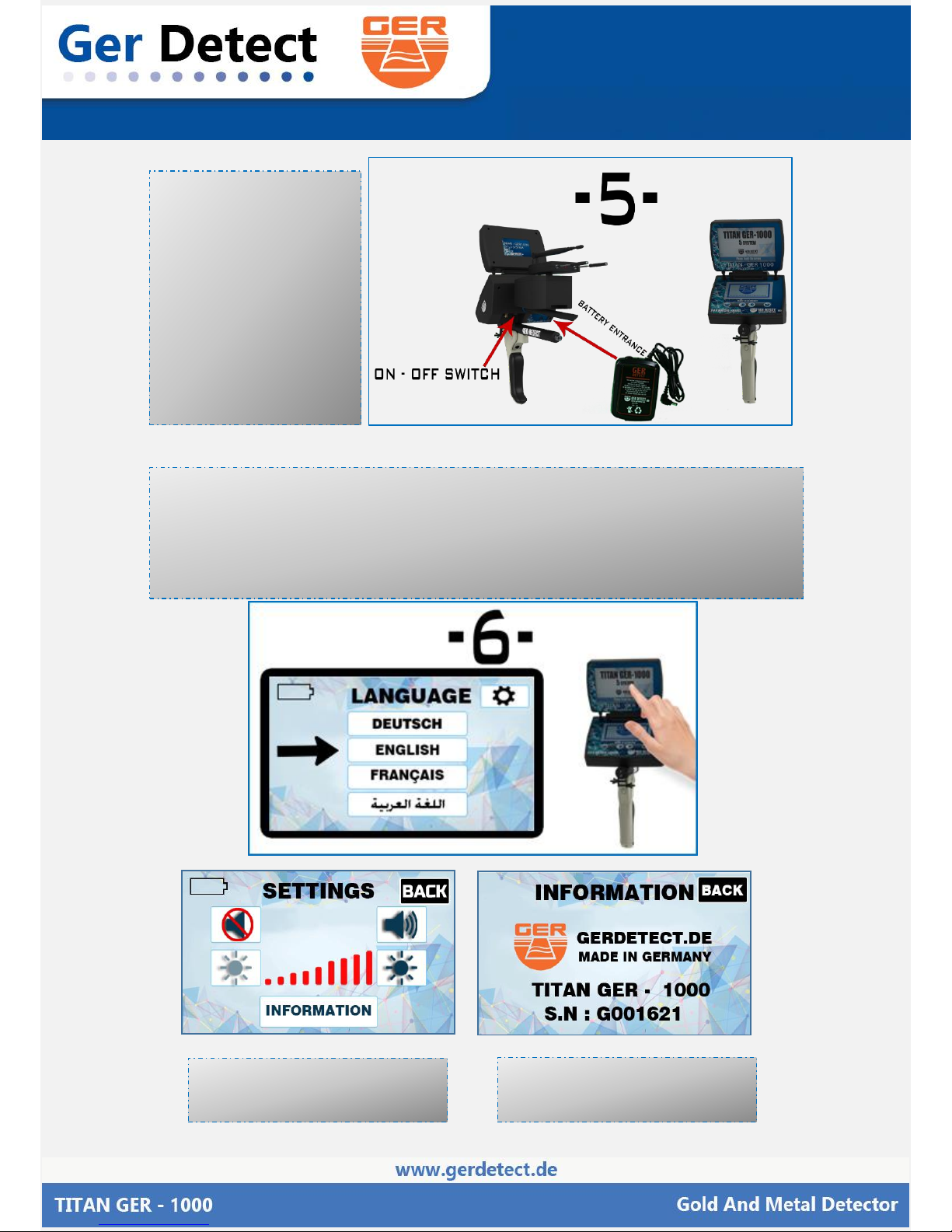

CLICK ON THE SCREEN OF THE DEVICE TO DISPLAY THE LANGUAGES LIST
THE DEVICE WORKS ON FOUR LANGUAGES:
(DUTCH-ENGLISH-FRENCH-ARABIC )
Press on setting icon to
enter to setting screen
Press on information icon
to enter to information
screen

English User Manual
After selecting the language, you want to work in (English for example)

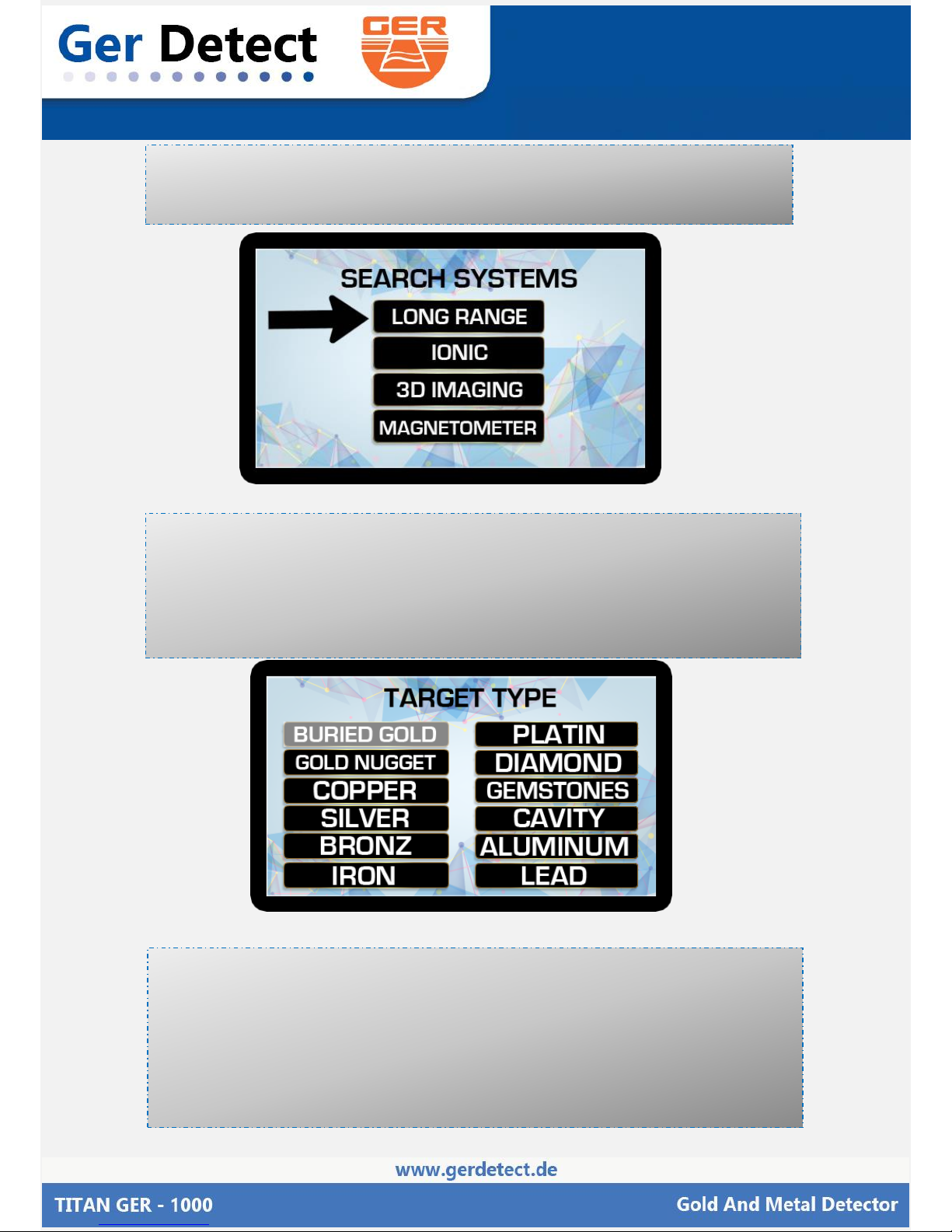

The search systems menu will appear (Select long-range search system )
After selecting the long-range system, the metals that this system can
detect will appear :
Choose the metal to be search for from a list of metals through pressure on
the metal name,
(BURIED GOLD FOR EXAMPLE)
After selecting, the metal to be searched for, the Front Range Options will
appear
Choose the Front Range according to the area you want to reach
You can select between
(0500 M - 1000 M - 1500 M - 2000 M - 2500 M)
Choose 2500 M for example.

English User Manual
After selecting the Front Range, the search screen will appear which contain
an indicator, which will guide you directly to the target. Make sure that the
antenna is pointing ahead
Adjust the antenna with the indicator on the screen to receive accurate
signal
Increase the length of the antennas receiving a signal
To able the device to detects targets even to 2500 meters

English User Manual
Star the search by holding the device as follow:
If the target on the right side the indicator
Will Point to the right side and the seam to the left side as follow
North to South
South to North
East to West
West to East
After detecting the target, confirm the target from four direction

English User Manual

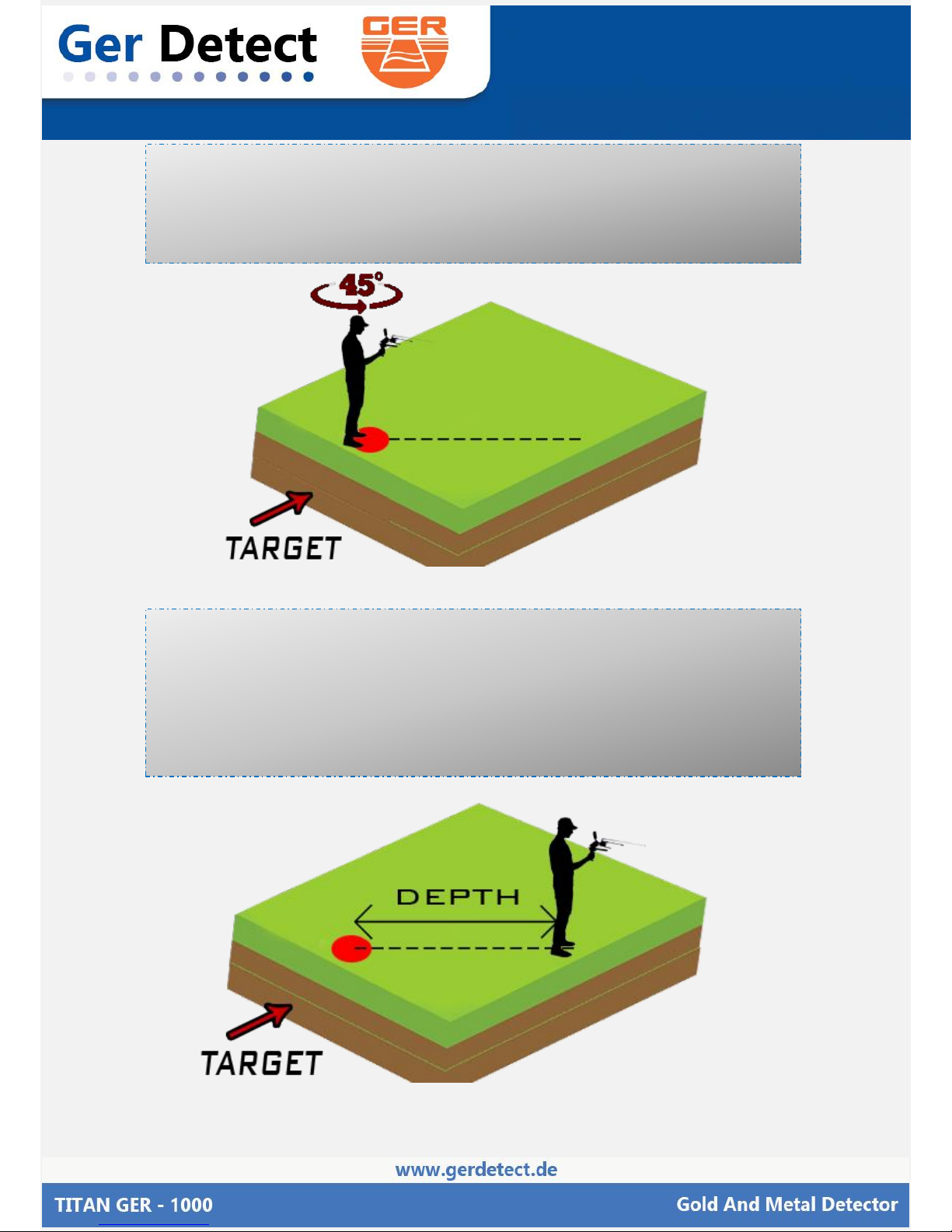

To determine the depth of the discovered target Stand above target and
turn
45 degrees
Walk straight ahead until the antenna reverse to the back
Measure the distance between the antennas reversing back and the target
center point.
The distance between the antennas reversing back and the center point is
equal the target depth
For example, if the distance is 10 m the depth of the target is 10.

English User Manual
The Ionic Search System
2

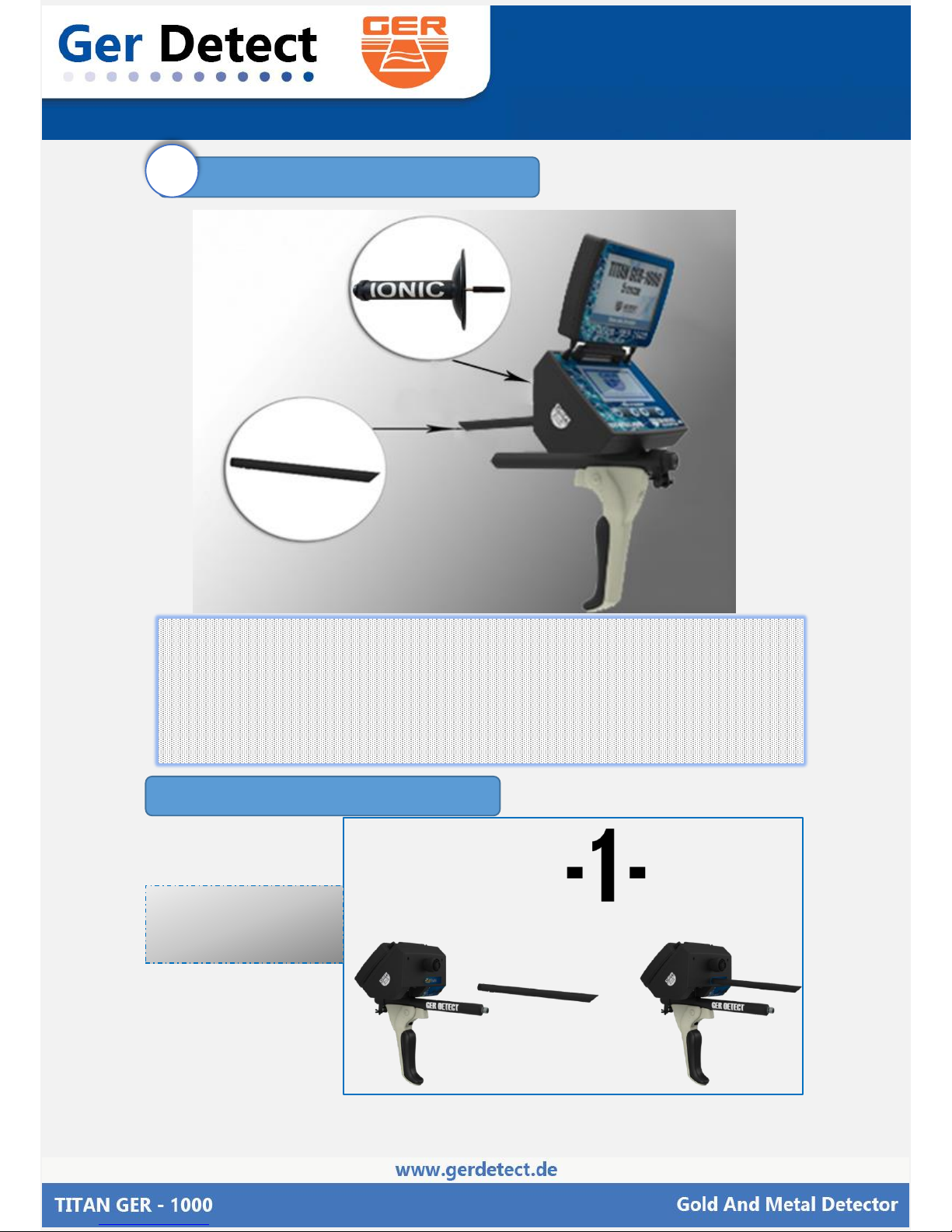

ionic sensor
Dispatcher Antenna
This system specializes to cover vast areas and locate the target with
In
1meter Square up to a depths of 45 meters below the surface of
The ground and Front Range up to
2500 meters vertical
Connect component
Connect the
Dispatcher Antenna

English User Manual
Connect the Ionic
Sensor
- Connect the Battery to the Device
- Open the Device Screen and Start the Device through ON / OFF switch
Click on the screen of the device to display the languages list
the device works on four languages:
(DUTCH-ENGLISH-FRENCH-ARABIC)

English User Manual
After selecting the language, you want to work in (English for example)
The search systems menu will appear, Select
IONIC search system
After selecting the ionic system, the search screen will appear.
Point the device to the ground if the device start to make a sound you must
calibrate
The device with the ground by pressing on the
calibration button
as follow:
North to South
South to North
East to West
West to East
After selecting the ionic system you have to determine the direction
from north / south

English User Manual
After you finish the calibration, start the search by moving the device
180 degrees right and left.
When the device detect a target, it will start to make a sound.
In addition, the indicter will start to move to alert you about the target
discovered.
The sound will start Accelerating when you will be close to the target.
YOU CAN ALSO USE THE IONIC SEARCH SYSTEM DURING THE DRIVING IN
A MOVING VEHICLE... AS FOLLOW:

English User Manual
In the event of lack of vision, you can operate the laser to locate the target
place.
Through the laser ON OFF, button
Note:
When you use the Ionic Search System the researcher should avoid directing device
northward never, because the device will make a sound (This is because the device in
this case will be Reverse of magnetic fields, which is directing from north to south)

English User Manual
3D Imaging System
3
This system specializes to show you the area scanned on the tablet
screen in three-dimensional photo and through which you can specify
the target size, shape and depth of the target underground up to 45
meters.
3D Sensor
Dispatcher Antenna
Tablet Holder
Tablet
Connect component
Connect the
Dispatcher Antenna

English User Manual

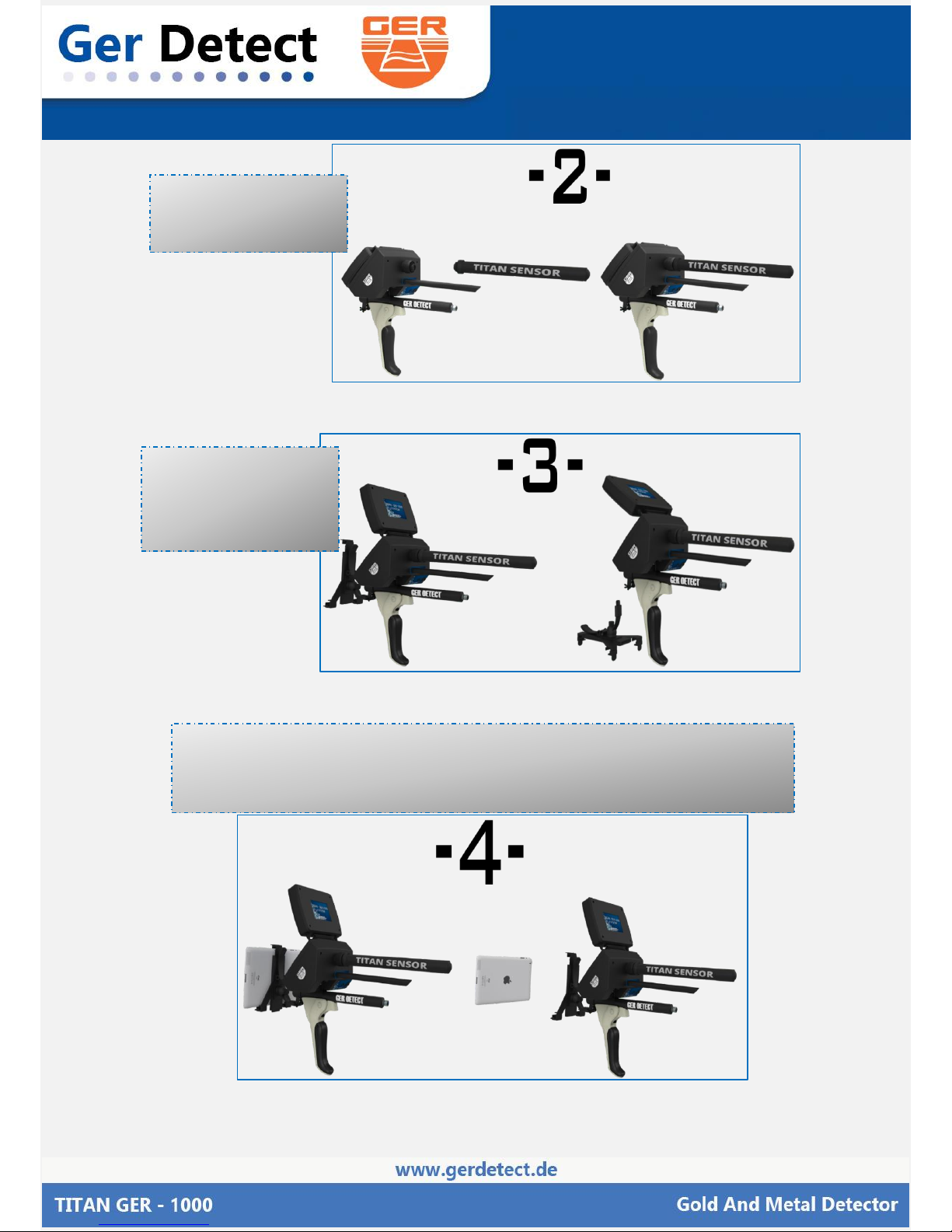

Connect the 3D
Imaging Sensor
Install the Tablet
Holder To The
Device
Fix the tablet that supplied with the device on the tablet holder which
Contains analysis program to display the photo

English User Manual
- Turning to the tablet to make a Bluetooth connection between
the device and the analysis program.
-

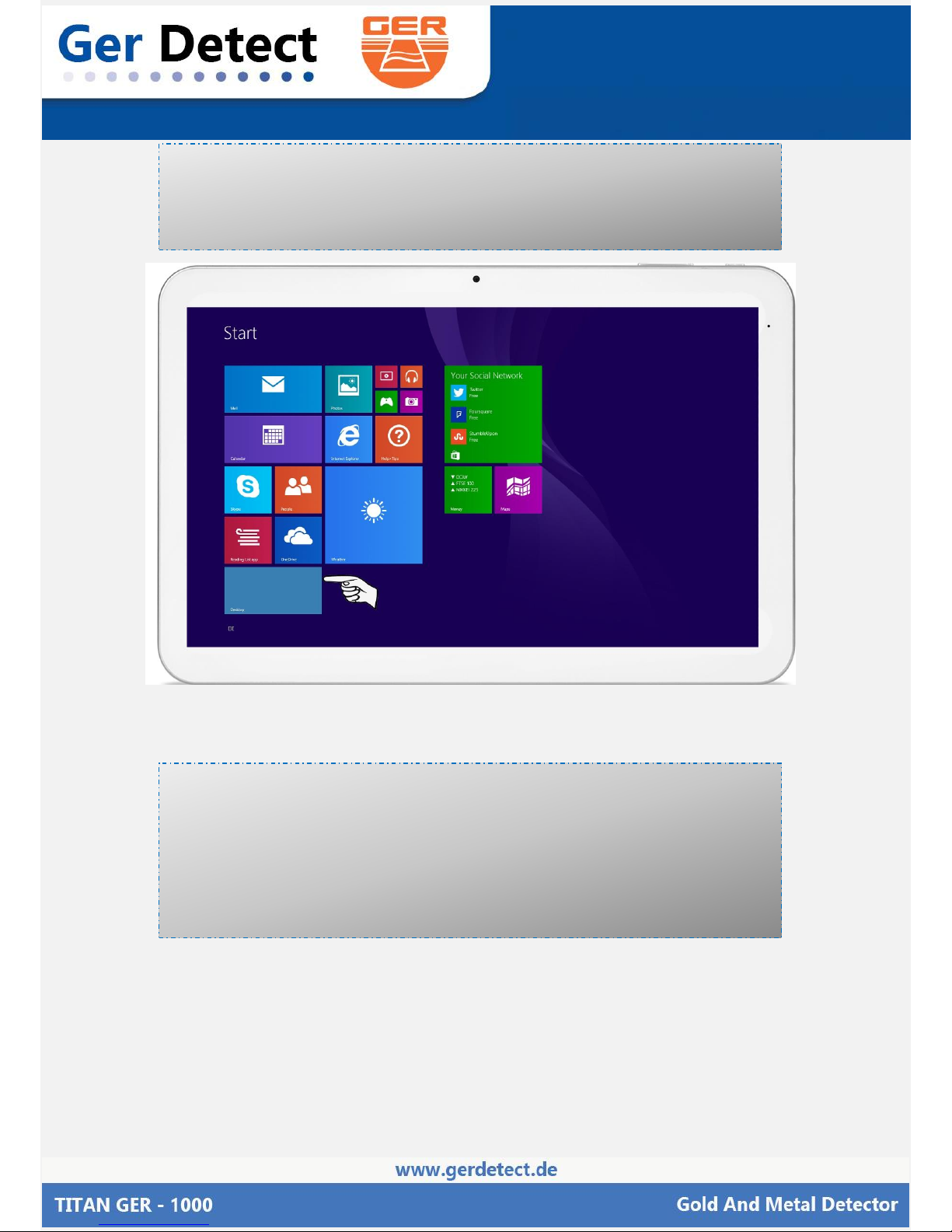

Click on the Desktop option
The desktop screen will appear.
1- Touch the arrow to revel the hidden icons.
2- Click on the Bluetooth icon.
3- Chose add a Bluetooth device

English User Manual
The tablet will start to search for any devices with Bluetooth in the area.
When the device Bluetooth appear click on pair.

English User Manual
NOTE: The Bluetooth password is 1000
Now
select the 3D IMAGING system from the systems menu in the device.
After selecting the 3D imaging system, the search screen will appear.
