We thank you for the confidence you have shown by purchasing
our appliance which is designed to simplify your life. To make the use of the
product easier, we have supplied detailed instructions for use, and installation
instructions supplied on a separate sheet. The instructions should allow you to
learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The freezer chest is intended for use in household, for freezing fresh food and
long-term storage of frozen food (up to one year, depending on the type of
food).
Please visit our website where you can enter your appliance model number,
indicated on the rating plate or the warranty sheet, to find detailed description
of your appliance, tips on use, troubleshooting, service information, instructions
for use etc.
http://www.gorenje.com
Important safety warning
!

3
CONTENTS
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
4 IMPORTANT NOTES AND PRECAUTIONS
4 SAFETY AND WARNING INFORMATION
11 INSTALLING YOUR NEW APPLIANCE
13 APPLIANCE DESCRIPTION
14 OPERATING THE APPLIANCE
15 DEFROSTING
16 CLEANING AND CARE
17 TROUBLESHOOTING
19 DISPOSAL OF THE APPLIANCE
MISCELLANEOUS

4
IMPORTANT NOTES AND
PRECAUTIONS
For your safety and correct usage, before installing and
first using the appliance, read this user manual carefully,
including its hints and warnings. To avoid unnecessary
mistakes and accidents, it is important to make sure that all
people using the appliance are thoroughly familiar with its
operation and safety features. Save these instructions and
be sure that they remain with the appliance if it is moved
or sold, so that anyone using it throughout its life, will be
properly informed on its usage and safety notices.
For the safety of life and property, keep the precautions of
these user's instructions as the manufacturer is not
responsible for damages caused by omission.
Safety for children and others who are vulnerable people
According to EN standard
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
SAFETY AND WARNING
INFORMATION
!

5
According to IEC standard
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Keep all packaging away from children as there is risk of
suffocation.
• If you are discarding the appliance, pull the plug out of
the socket, cut the connection cable (as close to the
appliance as you can) and remove the door to prevent
children playing from suffering an electric shock or from
closing themselves inside it. I
• f this appliance, featuring a magnetic door seals, is to
replace an older appliance having a spring lock (latch) on
the door or lid, be sure to make the spring lock unusable
before you discard the old appliance. This will prevent it
from becoming a death trap for a child.
General safety
• WARNING —This appliance is intended to be used in
household and similar applications such as
-staff kitchen areas in shops, offices and other working
environments;
-farm houses and by clients in hotels, motels and other
residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
!

6
• WARNING — Do not store explosive substances such
as aerosol cans with a flammable propellant in this
appliance.
• WARNING — If the supply cord is damaged, it must
be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• WARNING — Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
• WARNING — Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
• WARNING — Do not damage the refrigerant circuit.
• WARNING — Do not use electrical appliances inside the
food storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
• WARNING — The refrigerant and insulation blowing
gas are flammable. When disposing of the appliance,
do so only at an authorized waste disposal centre. Do
not expose to flame. WARNING —When positioning
the appliance, ensure the supply cord is not trapped or
damaged.
• WARNING —Do not locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
Replacing the LED (some models only)
• WARNING—The LED light must not be replaced by the
user! If the LED light is damaged, contact the customer
helpline for assistance.
Refrigerant
The refrigerant isobutene (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a high
level of environmental compatibility, which is nevertheless

7
flammable. During transportation and installation of the
appliance, ensure that none of the components of the
refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
• WARNING — Refrigerators contain refrigerant andgases
in the insulation. Refrigerant and gases must be disposed
of professionally as they may cause eye injuries or
ignition. Ensure that tubing of the refrigerant circuit is
not damage prior to proper disposal.
Caution:risk of fire
If the refrigerant circuit should be damaged:
• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is
situated.
It is dangerous to alter the specifications or modify this
product in any way.
Any damage to the cord may cause a short circuit, fire, and/
or electric shock.
!Electrical safety
• The power cord must not be lengthened.
• Make sure that the power plug is not crushed or
damaged. A crushed or damaged power plug may
overheat and cause a fire.
• Make sure that you can access the main plug of the
appliance.
• Do not pull the main cable.
• If the power plug socket is loose, do not insert the power
plug. There is a risk of electric shock or fire.

8
• You must not operate the appliance without the interior
lighting lamp cover.
• The fridge is only applied with power supply of single
phase alternating current of 220~240V/50Hz. If
fluctuation of voltage in the district of user is so large
that the voltage exceeds the above scope, for safety
sake, be sure to apply A.C. Automatic voltage regulator
of more than 350W to the fridge. The fridge must
employ a special power socket instead of common one
with other electric appliances. Its plug must match the
socket with ground wire.
Daily use
• Do not store flammable gass or liquids in the appliance,
There is a risk of an explosion.
• Do not operate any electrical appliances in the appliance
(e.g.electric ice cream makers,mixers etc.).
• When unplugging always pull the plug from the mains
socket,do not pull on the cable.
• Do not place hot items near the plastic components of
this appliance.
• Do not place food products directly against the air outlet
on the rear wall.
• Store pre-packed frozen food in accordance with the
frozen food manufacture’s instructions.
• The appliances manufactures storage recommendations
should be strictly adhered to.Refer to relrelevant
instructions for storage.
• Do not place carbonated or fizzy drinks in the
freeze compartment as it creates pressure on the
container,which may cause it to explode,resulting in
damage to the appliance.
• Frozen food can cause frost burns if consumed straight
from the freezer compartment.
• Do not place the appliance in direct sunlight.

9
• Keep buring candles,lamps and other items with naked
flames away from the appliance so that do not set the
appliance on fire.
• The appliance is intended for keeping food stuff and/
or beverages in normal household as explained in this
instruction booklet The appliance is heavy.Care should
be taken when moving it.
• Do not remove nor touch items from the freezer
compartment if your hands are damp/wet,as this could
cause skin abrasions or frost/freezer burns.
• Never use the base,drawers, doors etc. to stand on or as
supports.
• Frozen food must not be refrozen once it has been
thawed out.
• Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth
and lips.
• To avoid items falling and causing injury or damage to
the appliance, do not overload the door racks or put too
much food in the crisper drawers.
caution!
Care and cleaning
• Before maintenance, switch off the appliance and
disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects, steam
cleaner, ethereal oils, organic solvents or abrasive
cleansers.
• Do not use sharp objects to remove frost from the
appliance. Use a plastic scraper.

10
Installation Important!
• For electrical connection carefully, follow the instructions
given in this manual.
• Unpack the appliance and check if there are damages on
it. Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought
it. In this case retain packing.
• It is advisable to wait at least four hours before
connecting the appliance to allow the oil to flow back in
the compressor.
• Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be
too close to a wall to avoid touching or catching warm
parts (compressor, condenser) to prevent the risk of a
fire, follow the instructions relevant to installation.
• The appliance must not be locate close to radiators or
cookers.
• Make sure that the mains plug is accessible after the
installation of the appliance
Service
• Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician or
competent person.
• This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
1) If the appliance is Frost Free.
2) If the appliance contains freezer compartment.

11
INSTALLING YOUR NEW
APPLIANCE
• Before using the appliance for the first time, you should review the following tips.
Ventilation of appliance
It is necessary to have good ventilation around the freezer to allow for the
dissipation of heat, high efficiency, and low power consumption. For this reason,
sufficiently cleared space should be available around the freezer. It is advisable
for there to be 75 mm separating the back of the freezer to the wall and at least
100 mm of space on its two sides, a height of over 100 mm from its top.
Class Temperature
SN from +10 °C to +32 °C
N from +16 °C to +32 °C
ST from +16 °C to +38 °C
T from +16 °C to +43 °C
• Stand you appliance in a dry place to avoid damage by moisture.
• Keep the appliance out of direct sunlight, rain or frost. Stand the appliance
away from heat sources such as stoves, fires or heaters.
• This appliance operates also by environmental temperature of -15°C if above
instructions are strictly followed.
Leveling of appliance (models with feet)
The appliance should be level in order to eliminate vibration. To make the
appliance level, it should be upright and both adjusters should be in stable
contact with the floor. You can also adjust the level by unscrewing the
appropriate level adjustment in the front (use your fingers or a suitable
spanner).

12

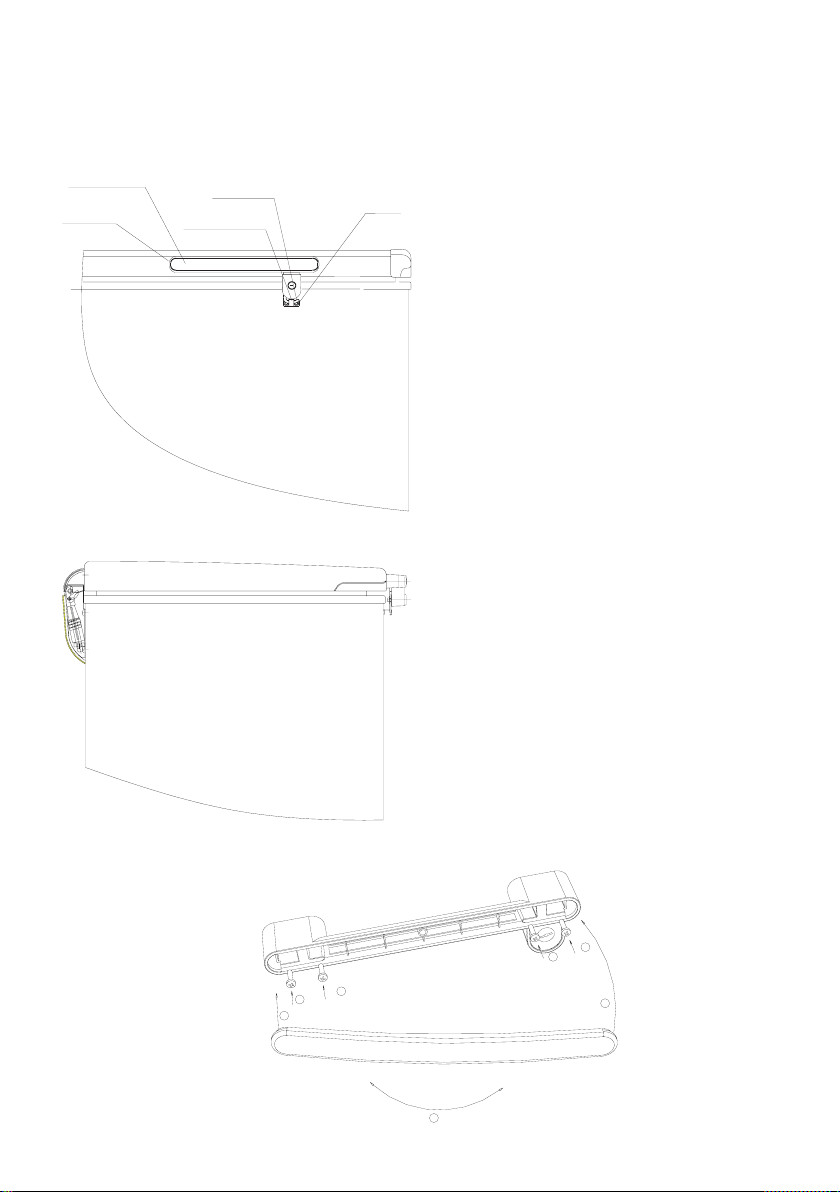

Installing the handle and hook
1. How to assemble the handle:
2. How to assemble the hook:
3. How to insert the handle-cover into the handle:
7
4
5
3
6
1
2
Handle Cover Lock Hook Screw
Below Lock Hook
Handle 1. Take out the four screws from the
plate of the handle;
2. Use the Philips type screws to fasten
the handle.
1. Disassemble two screws from the
package;
2. Position the hook against the
package and tightly fasten the Philips
screws.

13
APPLIANCE DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
1. Door handle (different handle
options)
2. Door
3. Hinge
4. Basket (some models only)
5. Power supply cord with plug
6. Side cover
7. Light On
8. Light Alarm
9. Light Active
10.Foot/wheels (some models only)
11. Drain
12.Temperature control knob
Never touch the interior of the freezer chamber or frozen foods in the
compartment with wet hands as this could result in frostbite.
The above picture is for reference only; configuration is subject to the actual
product.

14
OPERATING THE APPLIANCE
TEMPERATURE SETTING
To adjust the temperature inside the freezer compartment, adjust the
temperature control dial on front-bottom side of the chest freezer.
If the cooling performance is inadequate, turn the temperature control dial in the
direction of MAX. If it is too cold, turn the dial in the direction of MIN.
When you need the unit to stop running temporally, please turn the temperature
control dial in the direction of .
A Temperature settings knob – Switching the appliance on/o
B Signal light on: The appliance is powered (there is voltage in the appliance)
C Signal light on: High temperature alarm
D Signal light on: Cooling system operates
A
DC B

15
DEFROSTING
You should defrost the freezer compartment two or three times a year when the
ice is about 4 mm thick. to defrost, follow these steps:
• Set the thermostat to MAX at least 12 hours before defrosting.
• After this period has elapsed, switch o the freezer compartment by removing
the plug from the main power supply.
• Remove all food from the freezer and wrap them in paper and store them in a
cold place and leave the door open.
• When the defrosting is finished, the compartment must be cleaned and wiped
dry.
• Switch the appliance back on using the thermostat set to MAX and wait at
least one hour before replacing the foodstus.
• After a few hours the thermostat can be set back to the original position.
• WARNING: Do not use mechanicals devices or other artificial means to
accelerate the defrosting process, other than those recommended by the
manufacturer.
• WARNING: Do not use electricals appliances inside the food storage
compartment of the appliances, unless they are of the type recommended by
the manufacturer.

16
CLEANING AND CARE
For hygienic reasons the appliance (including exterior and interior accessories)
should be cleaned regularly (at least every two months).
Warning!
The appliance must not be connected to the mains during cleaning. Danger of
electrical shock! Before cleaning switch the appliance o and remove the plug
from the mains socket.
Exterior cleaning
To maintain good appearance of your appliance, you should clean it regularly.
• Wipe the digital panel and display panel with a clean, soft cloth.
• Spray water onto the cleaning cloth instead of spraying directly on the surface
of the appliance. This helps ensure an even distribution of moisture to the
surface.
• Clean the doors, handles and cabinet surfaces with a mild detergent and then
wiped dry with a soft cloth.
Warning!
• Do not use sharp objects as they are likely to scratch the surface.
• Do not use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or
organic solvent such as Benzene for cleaning. They may damage the surface
of the appliance and may cause fire.
Interior cleaning
You should clean the appliance interior regularly. It will be easier to clean when
food stocks are low. Wipe the inside of the freezer with a weak solution of
bicarbonate of soda, and then rinse with warm water using a wrung-out sponge
or cloth. Thoroughly dry all surfaces and removable parts before putting them
back into place.

17
TROUBLESHOOTING
Problem: Solution
Power failure
• Keep the opening and closing of the door for a
minimum time to prevent cold air from escaping.
• Avoid placing new items in the cooler as this will
raise the temperature inside the compartment.
• In case of a long power suspension, place dry ice
in the freezer.
Power cord problems
• If the supply cord is damaged it must be replace
by a special cord or assembly available from the
manufacturer or the service agent.
• The showcase must be positioned so that the plug
is accessible to the wall outlet.
When not used for a
long period
• Remove all items from the compartment and
disconnect the power cord plug from the wall
outlet.
• Clean the compartment interior and wipe away all
water.
• To prevent mold formation and foul odors, leave
the door open to dry the compartment completely.
Transportation
• Disconnect the power cord plug from the wall
outlet.
• When moving the appliance, make sure that the
feet do not damage the power cord.
• Do not let the feet hit against floor steps,
thresholds, etc.
Temporary storage
• Put piece of wood or other similar item between,
the door and main unit to prevent closing of the
door
• Be sure not to store the unused chest freezer in a
location where children play.
• Should a child enter the compartment and the
door is closed, the child may not be able to open
the door from the inside.
If you experience a problem with your appliance or are concerned that the
appliance is not functioning correctly, you can carry out some easy checks
before calling for service, please see below. You can carry out some easy
checks according to this section before calling for service.
Warning! Don't try to repair the appliance yourself. If the problem persists after
you have made the checks mentioned below, contact a qualified electrician,
authorized service engineer or the shop where you purchased the product.

18
Problem: Solution
No refrigeration at all
• Is the power supply interrupted?
• Is the power cord plug disconnected from the wall
outlet?
• Are the shop`s power fuses blown and/or circuit
breaker activated?
• Is the temperature control turned off?
Inadequate refrigeration
• Is the place of installation ventilated?
• Is the freezer exposed to direct sunlight, placed
near a heater or stove?
• Are the lids opened and closed frequently?
• Are items stocked beyond the load line?
• Is the temperature control dial in the direction of
MAX. If it is too cold, turn dial in direction of MIN.
• Is a lot of frost forming in the freezer
compartment?
Excessive noise
• Is the floor underneath the freezer the freezer
sturdy enough?
• Is the unit shaking and/or rattling?
• Is the rear panel of the unit in contact with a wall,
etc.?
• Is there a container or something behind the
freezer? The compressor will generate a rather
loud sound for a while after operation is started.
The noise will cease together with refrigeration.
Condensation on cooler
exterior
• Condensation may condense on the exterior of the
unit and the door during hot and humid days or
depending on the place of installation. This occurs
when the humidity is high and water particles
in the cold surfaces. This is normal. Wipe away
condensation with a dry cloth.
The circumference of
chest freezer feels hot
• Especially in summer or in the period of starting
running, the circumference of the chest freezer
feels hot because the Chest freezer inside has a
pipe for radiating and preventing condensation.
The heat does not affect inside goods.

19
DISPOSAL OF THE APPLIANCE
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the
packaging into a suitable waste collection container to recycle it.
Before disposal of the appliance
1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug
Warning! Refrigerators contain refrigerant and gases in the insulation.
Refrigerant and gases must be disposed of professionally as they may cause
eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not
damage prior to proper disposal.
CORRECT DISPOSAL OF THIS PRODUCT
The symbol on the product or its packaging indicates that the
product should not be treated as normal household waste. The
product should be taken to an authorized collection centre for
waste electric and electronic equipment processing. Correct
disposal of the product will help prevent any negative effects
on the environment and health of people which could occur
in case of incorrect product removal. For detailed information
on removal and processing of the product, please contact the
relevant municipal body in charge of waste management, your
waste disposal service, or the store where you bought the
product.

Gorenje, d.d.
Partizanska 12
SI - 3320 Velenje, Slovenija
[e-mail]
www.gorenje.com
