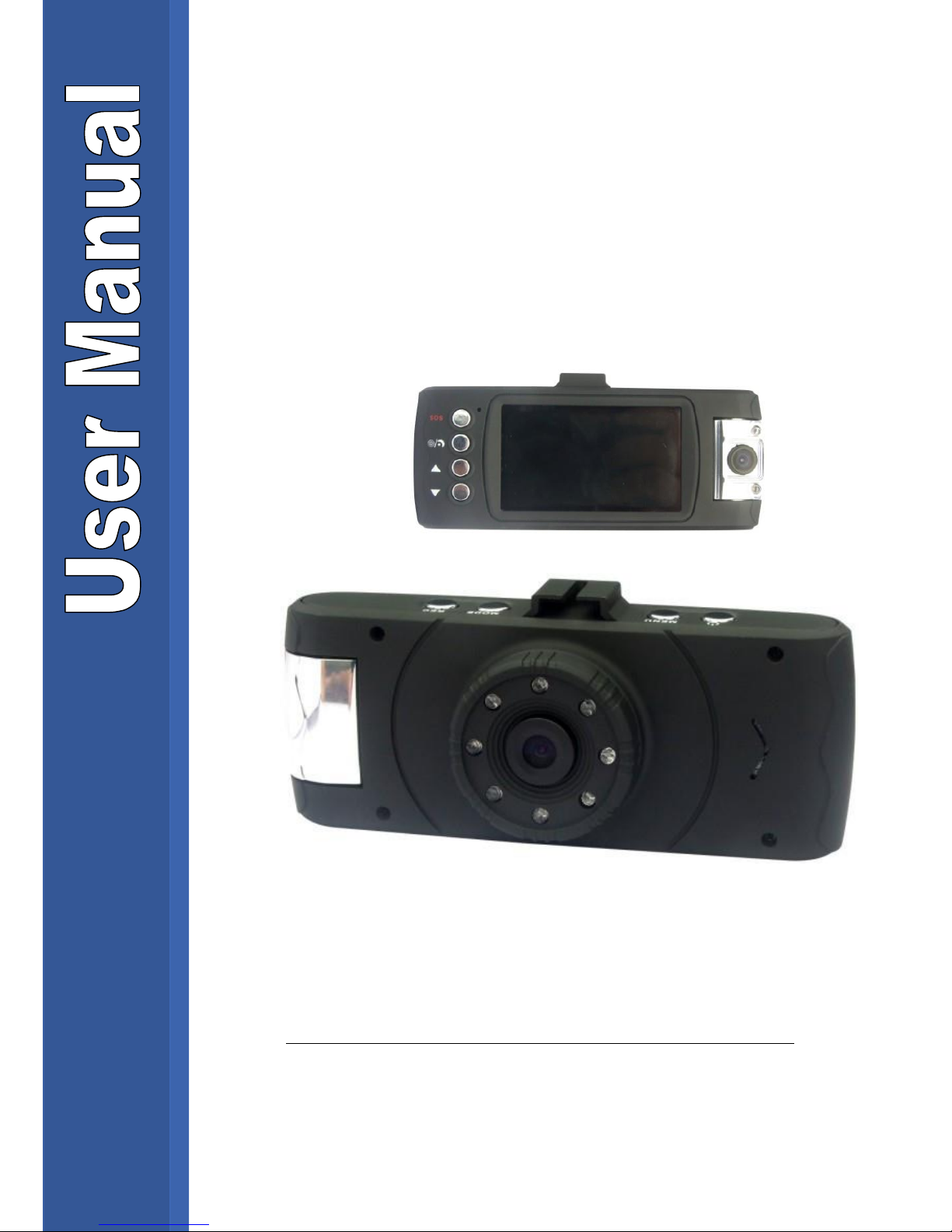

GoShockFree GSF420 User manual

GSF420
The Two Way Street
http://stores.ebay.com.au/Goshockfree

Thanks for purchasing this product. Please read the instructions carefully before using this
product.
•FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is
subjected to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in residential installations. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio or television equipment reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Move the equipment away from the receiver.
-Plug the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/television technician for additional suggestions.
You are cautioned that any change or modifications to the equipment not expressly approved by
the party responsible for compliance could void your authority to operate such equipment.
The symbol of the crossed out wheeled bin indicates this product should not be placed
in municipal waste. Instead, you need to dispose of the waste equipment by handing it
over to a designated collection point for the recycling of waste electrical and electronic
equipment.

Page 1
Caution
1. Do not drop, puncture or disassemble the device; otherwise the warranty will
be voided.
2. Avoid all contact with water, and dry hands before using.
3. Use the device with care.
Avoid pressing hard on the device body.
4. Use only the accessories supplied by the manufacturer.
5. Keep the device out of the reach of children.
6. For your own safety, don’t operate the device while driving.
7. Do not block your drivers view when mounting this device on the windscreen,
we (the seller) do not take responsibility of improperly positioned units.
8. Please follow the instructions in this manual and use only the supplied
accessories to avoid unpredicted damages to the device. Failure to follow the
instructions will invalidate the warranty and may also endanger personnel
safety, for which the seller assumes no responsibility.
If your cigarette lighter draws power while the car is off, please disconnect this
device to avoid draining the car battery.
This device will turn off if the max/min temp is reached.

Product Description
This DVR (Digital Video Recorder) is a dual-channel simultaneous video
recording product dedicated for the evolving need of recording devices for
automobiles. It features superior compact digital audio/video recording and
high quality photo taking capability, high speed USB2.0 interface, and parallel
battery charging and filming operation.
Features
Dual channel simultaneous recording and displaying on screen
2.7” HD display without distortion, Front lens can have180°rotation
H.264 image compression technique
Day/Night filming mode switch
30fps Recording
Plug-‘n-Play HD PC CAMERA
16 IR LED for aided night vision
Cyclic recording mode
Motion detection
Automatic recording when the vehicle starts, charging while recording.
HDMI Output
3 minute LCD shut off (Australian road compliance necessity)

Specifications
Image sensor
OV9712 CMOS WXGA HD sensor
Video resolution
480P/720P/1080P
Language
Traditional & simplified Chinese, English, Russian,
Japanese, Korean
LCD display
2.7” TFT
Memory
TF card up to 32GB
Focus range
12cm～∞
Photo format
JPEG
Video format
MOV
Audio
Built in microphone and speaker
USB
USB2.0
Battery
Built-in 3.7V/600mAh lithium battery
Working
temperature
0-65℃
Dimension
124×46×24mm (L×W×H)
Weight
125g
Accessories
USB cable, charger(for car), mounting frame, manual,
HDMI cable(optional)

Included Accesories
USB Cable
Charger
Window Mount
HDMI cable
AV cable

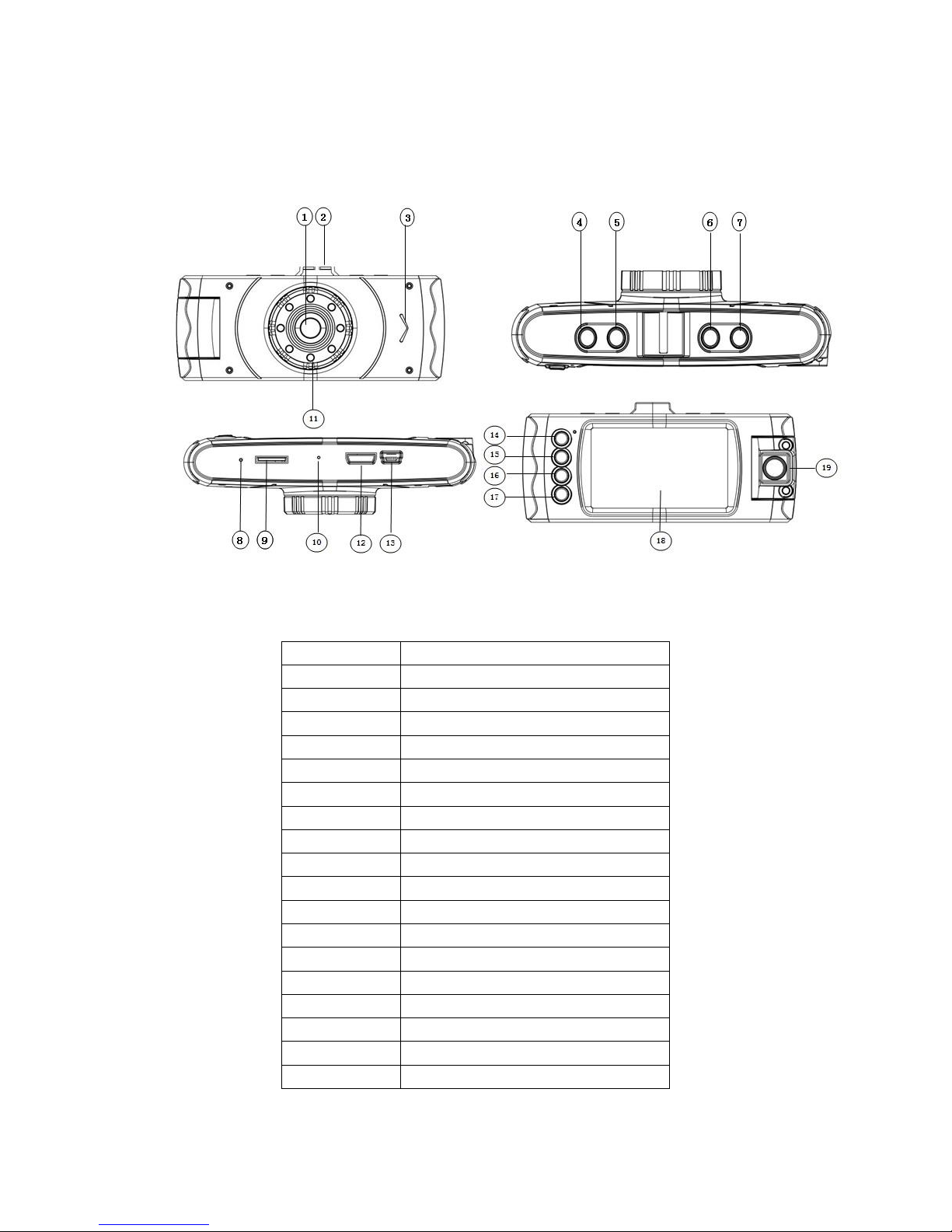

Technical Specifications:
1
Front lens
2
Mounting position
3
Speaker
4
Power button
5
MENU button
6
MODE button
7
REC button
8
RESET button
9
TF slot
10
MIC
11
LED light
12
HDMI port
13
USB port
14
SOS button
15
Day/Night mode button
16
UP button
17
DOWN button
18
LCD display
19
Back lens

Button Functions
On and Off
MENU Option menu of each operation mode
MODE Switch operation mode and corresponding menu
REC Start/Pause/OK
▼Press it next turn to switch between day/night mode when stand by
or operating. Press it shortly to turn on/off night vision IR LED. The
status will display on LCD when the button released.
▲Button Switch the camera to display
SOS Lock the current video so cyclic recording cannot delete
Day and night mode toggle, automatic debugging to best effect
Installation & Operation:
Mount the device preferably behind the rear view mirror or anywhere which
does not restrict the driver’s vision of the road. When the adapter is plugged
into the car’s charger, the device will start to work automatically when the car
starts and will switch off when the car is turned off.

Battery:
The device includes an in built a 600mAh lithium battery. It will take about
90minutes to charge it completely in off state. The battery can be charged
when DVR is in operation. The working current is about 380mA for normal and
580mA for night vision operation.
On/Off and screen saver:
1. Press the POWER button for 3 seconds to turn on/off DVR. The display will
show “Turning off…” when turned off.
2. Press the POWER button can turn on/off the LCD display for saving energy.
Note: If the message “Turning off…” is not shown on the LCD display, just the
LCD display is turned off, not the device.
Date/Time Setup:
Press the “MENU” button to enter setup mode, press the “MODE” button to
bring up the setup menu. Pick “Date/Time” option, “Down”, “UP” buttons to
adjust the right date and time. Press “OK” button to confirm and activate the
settings.

Video Recording Mode:
1. 1. Video is the default mode when powered up, the “ ” icon on the
left upper corner will flash.
2. Press “REC” button to pause/resume the recording operation
3. Press the POWER button to switch the camera displayed
4. “720P” high resolution mode is preferred for the smooth filming during
high speed motion.
5. Press “MENU” button enter set up mode, press “▲” button to set up
resolutions , press “REC” button to select resolution
Photo Mode:
Press “MODE” button once switches to photo taking mode. The upper left
corner of the display will show icon. There are three resolutions 1.3M, 3M,
and 5M, for choice. Photo mode works only with the wide angle camera.
Playback Mode:
1. Press “MODE” to enter the playback mode to check the video images taken.
2. Press “MODE” will stop the playback.
3. Press “MENU” for delete option can delete the selected file.

Menu and Mode
Menu
Mode
Resolution (Filming)
480P/720P/1080P
Resolution (Photo)
1.3M/3M/5M
Filming Interval
2min/5min/10/min/off
Back Camera
Off/On
White Balance
Auto/Sunny/Fluorescence/Cloudy/Incandescence
The fill light
Day mode/ Night mode
Voice Recording
Off/On
Language
Simplified Chinese/Traditional Chinese English
/Russian /Japanese/Korean
Frequency
50Hz/60Hz
Date & Time
/
Reformat
Confirm/Cancel
Default Setup
Confirm/Cancel
Software version
/
