Gowise usa Gw22710 User manual

GW22710

Instruction Manual

Electric Pressure Oven

WWW.GOWISEUSA.COM

SET

TABLE OF CONTENTS

Product Introduction 3

Important Safeguards 4

Product Structure & Features 5

Control Panel & Settings 7

Before First Use 10

Cleaning & Maintenance 11

Error Codes 11

Warranty 12

PRODUCT INTRODUCTION

The GoWISE USA Electric Pressure Oven provides an innovative way to cook

your standard oven meals. This pressure oven is designed with a smart

function that allows you to customize up to 10 cooking presets and 4

easy-to-use cooking functions: BAKE, TOAST, ROAST, and BROIL. The

pressure function ensures your meats remain juicy and full of flavor and

reduces cook time.

It also comes with a baking pan, crumb tray, rotisserie stake and forks,

rotisserie removal tool, baking rack, and baking rack removal tool.

SPECIFICATIONS

Voltage: 120V

Rated Frequency: 60Hz

Rated Power: 1600W

Dimension(DxWxH): 19”x16.3”x14.3”

Oven Capacity: 26L

IMPORTANT SAFEGUARDS

1. READ THE MANUAL.

2. The surface of the pressure oven can get hot, always use caution

when operating, and keep away from wall or other objects that might

be damaged from excessive heat.

3. To protect against electrical shock, do not immerse cord or oven

in water or any other liquid.

4. Close supervision is necessary when the oven is operating. Keep

children away from the pressure oven, especially when it is operating.

5. Always unplug the pressure oven from outlet when not in use, and

before cleaning. Allow adequate time to cool before putting in or

taking out parts, or cleaning.

6. Do not operate the pressure oven if the cord or plug is damaged. If

you receive a pressure oven with a damaged cord or plug, contact

customer support.

7. The use of non approved accessories & attachments may cause injury

and void the warranty.

8. Not for outdoor use.

9. Do not allow the cord or plug to hang over edge. This can pose a

hazard to the user and damage the pressure oven.

10. Never place the pressure oven on or near hot gas, an electric burner,

or heated oven.

11. Extreme caution must be used when moving appliance containing

hot oil or other hot liquids.

12. Do not mishandle the cord or plug; when removing the cord from the

outlet, always pull by the plug end, and not by the cord.

13. Do not use the appliance for any other purpose, other than the

intended use.

14. A fire may occur if the pressure oven is covered or touching

flammable materials. Allow adequate space between the pressure

oven and surrounding objects.

15. This pressure oven is rated for household use only.

PRODUCT STRUCTURE & FEATURES

PRODUCT STRUCTURE & FEATURES(continued)

1 Heating Tube The heating elements that sit at the top and bottom

of the pressure oven

2 Rotisserie Stake & Forks For cooking chicken, or other roasts. Rests on top of the

stake holders

3 Rotisserie Removal Tool A tool that can lift up the rotisserie for safe and easy

food/stake removal

4 Pressure Release Valve Steam and pressure releases through this exhaust. Keep

hands and face away when releasing

5 Oven Handle For opening the pressure oven door. The pressure valve

will release once the handle is open

6 Glass Window Viewable area for checking cooking progress & ingredients

7 Control Panel Touch screen control interface

8 Roasting Tray For food placement

9 Roasting Rack For food placement

10 Rack Removal Tool A tool that can lift up the rack for safe and easy

food/rack removal

11 Crumb Tray Slides in below the bottom heating tube to catch

crumbs and other fallen ingredients

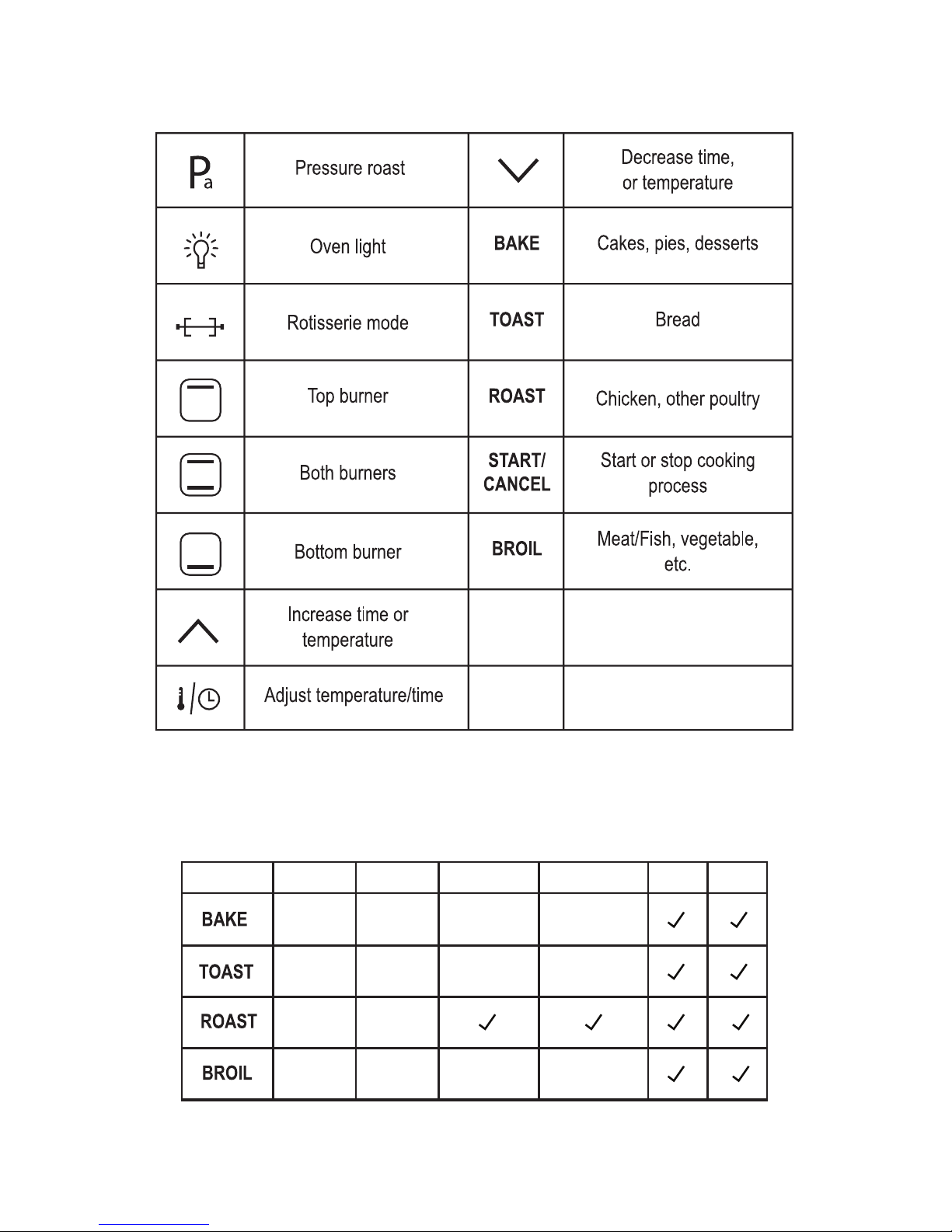

CONTROL PANEL & SETTINGS

SET Create and access your

Smart presets

PRESSURE OVEN SETTINGS (CONTINUED ON NEXT PAGE)

TB= TOP BURNER; BB= Bottom burner

PRESET TIME PRESSURE ROTISSERIE TB BB

40 MINS. 355°F

5 MINS. 300°F

45 MINS. 480°F

20 MINS. 430°F

MAX-TEMP.

CONTROL PANEL & SETTINGS(continued)

TB= TOP BURNER; BB= Bottom burner

PRESET TIME TEMP. PRESSURE ROTISSERIE TB BB

15 MINS. 355°F

18 MINS. 400°F

Suggested Smart Presets

Cake

Roasted

vegetables

520 MINS.Rice

25 MINS. 400°F

Pork Chops

60 MINS. 400°FStew

30 MINS. 400°FChicken

40 MINS. 430°FPotatoes

15 MINS. 400°FShellfish

3 MINS. 400°FToast

10 MINS. 400°F

Frozen

Snacks

30 MINS. 325°F

Spare

Ribs

18 MINS. 425°F

(water

bath/pan)

60 MINS. 450°F

Casserole

Rotisserie

Chicken

375°F

(water

bath/pan)

8 MINS. 450°FBeef

20 MINS. 355°F

Baked

fish

To Set, a new Smart preset, press 'SET' until you come to the first

free slot, then select the burner setting you desire and whether you

want to use pressure and or rotisserie. Set the temperature & time

and then the 'Start' button. That slot will now remember those

settings for the next time you are preparing the same meal.

CONTROL PANEL & SETTINGS(continued)

BAKE TOAST ROAST

STA RT/

CANCEL BROIL SET

Timer

Rotisserie

Bottom

Burner

Decrease

Time/Temp

Roast

Function

Smart

presets

Broil

Function

Start/Cancel

On/O

Bake

Function

Toast

Function

Increase

Time/Temp

Top

Burner

Double

Burner

Pressure

Oven Light

BEFORE FIRST USE

1. Remove from packaging and remove all packaging materials before

using.

2. Read the user manual thoroughly and keep the user manual in a safe

place for future reference.

3. Use in a well ventilated area.

4. Ensure the plug or power cord is not damaged, frayed, or kinked.

5. Only use the pressure oven on a flat, stable, and heat resistant surface.

6. Allow adequate space around the pressure oven and keep flammable

objects away from the pressure oven, as the pressure oven will heat

up during operation.

PREPARE AND CHECK BEFORE INSTALLATION

1. Use appropriate included accessories for your recipes. When using the

rotisserie stake, always use the forks to keep the ingredients in place

on the stake. Insert and remove the rotisserie using the rotisserie

removal tool.

2. For easier clean-up, use the included crumb tray when cooking

ingredients that could spill or splatter.

3. Only remove or place in accessories when the pressure oven is cool

and not operating.

4. Press the pressure button "Pa" on the menu to seal pressure in the

oven.

5. When steaming or cooking with water bath or pan, use the included

rack, baking tray/s, and rack removal tool. Always use caution when

removing hot ingredients.

6. Once the cooking cycle has finished, the pressure oven will beep. Press

"Pa" to ensure that all the pressure has been released and that it is safe

to open the oven door.

USING THE APPLIANCE

NOTE : As a safety feature, the oven door is electronically locked when there is pressure

inside the unit. The pressure must be released before the opening the unit. If you are

canceling a cook cycle, you must wait at least 5-10 minutes for all of the pressure to be

released from the oven before opening the unit.

CLEANING AND MAINTENANCE

1. Unplug the pressure oven after cooking, and allow the oven to cool

completely before attempting to clean.

2. Always clean the pressure oven cavity and oven accessories after every

use.

3. If the pressure oven will not be used for a long period of time, be sure

to dry the pressure oven cavity and accessories well and store

accessories in the pressure oven.

WARNING:

To avoid change of color or cracking never use gasoline, alcohol, organic

solvents, or cleaning powder to clean your oven.

It is suggested to only use soft cleaning solvents on your pressure oven.

To avoid damage to oven or electric shock, never use a metal brush or

other abrasive materials to clean the pressure oven.

ERROR CODES

Error Code

Reason

Temperature sensor opens/

circuit protection

Solution

When the temperature sensor is open,

the pressure oven will show error code

E1, and beep 10 times. Remove the plug

from outlet and allow to cool before

attempting to use the oven again.

E2 Temperature sensor short circuit

protection

When the temperature sensor shorts

out, the oven will stop working, show

error code E2, and beep 10 times.

Remove the plug from outlet and allow

to cool before attempting to use the

oven again.

E3 Over temperature protection When pressure oven cavity reaches

575°F or more, the pressure oven will

turn off, show error code E3, and beep

10 times. Remove the plug from outlet

and allow adequate time to cool before

attempting to use the oven again.

E4 Sensor connection failure The temperature change cannot be

recognized, the oven will turn off, then

show error code E4, and beep 10 times.

Remove the plug from outlet and allow

adequate time to cool before

attempting to use the oven again.

WARRANTY

General Warranty (Excluding Refurbished/Auction Items)

GoWISE USA has a 1-year limited warranty on all products. Products are warrantied

against defects in materials and workmanship for 1-year from the date of purchase

when used in accordance with the instructions provided. This warranty does not

cover damages or wear resulting from accident, misuse, abuse, commercial use, or

unauthorized adjustment and/or repair. A proof of purchase is required to start a

warranty claim. If it is a gift, please contact the gifter for a copy of the receipt. If it

is inappropriate, you may request that the gifter open the warranty claim on your

behalf.

GoWISE USA® shall not be liable for loss of use or any other incidental,

consequential or indirect costs, expenses or damages. There are no express

warranties except as listed above. This warranty gives you specific legal rights, and

you may have other rights which vary from state to state.

CALL: 855-233-9199 for RETURN INSTRUCTIONS.

WE DO NOT SERVICE PRODUCTS OUTSIDE THE 48 CONTIGUOUS UNITED STATES.

(WE WILL SHIP TO A FREIGHT FORWARDER FOR CUSTOMERS)

NOTE: Customers are responsible for all return shipping costs. When item(s) are

returned under warranty as being defective, they are thoroughly tested to verify

manufacturer defect. If any item(s) are determined to be in proper working order

after testing, all shipping costs to have the product returned to the customer will

be the responsibility of the customer

Refurbished Policy

All Refurbished items are sold “AS IS” and are not eligible for refunds. If a

refurbished item is received either defective or DOA (Dead on Arrival), customers

MUST contact GoWISE USA customer support within 30-days from delivered date.

THIS WARRANTY ONLY APPLIES TO REFURBISHED ITEMS THAT ARE PURCHASED

DIRECTLY FROM GOWISE USA AND DOES NOT APPLY TO REFURBISHED ITEMS THAT

ARE PURCHASED FROM 3RD PARTY SELLERS.

30 Day Return Period

All return requests must be made within 30 days from the date our

customers purchase their product(s). Refunds are only applicable during

the 30-day return period and may be subject to restocking fees up to 15%

of the original purchase amount. If the product is defective within 30 days,

GoWISE USA will cover the cost of return shipping, however, a picture

and/or video is required to receive a prepaid label. If the product is

missing any accessories that were included in the original shipment or the

product is damaged, altered, or dirty (remains of previously cooked

product could be a health hazard), the item may no longer be eligible for a

refund or replacement. Any decision of refund and/or replacement will be

decided at the discretion of GoWISE USA.

NOTE: EVIDENCE OF DEFECT IS REQUIRED TO BEGIN RETURN PROCESS.

Customers are responsible for all return shipping costs after 30 days.

Defective / Freight Damaged

Products that are within the 30-day return period and have been

determined by customer service to be defective are qualified for a return

label for the product to be returned to GoWISE USA for inspection and

testing. GoWISE USA will provide a return shipping label for defective

product(s) only. Customers must contact the Carrier (shipping company)

for products that have arrived damaged after initial transit. Clear

photographic AND video proof of damage and/or defective products is

REQUIRED prior to GoWISE USA authorizing the return of any product.

Regarding Purchase From 3rd Parties

In order for the GoWISE USA customer service team to look up the

warranty information regarding the product(s), the original order

information and/or proof of purchase is required. Without this

information GoWISE USA will be unable to move forward with providing a

replacement under warranty, as we do not know the date or origin of the

purchase. GoWISE USA does not have a working business relationship

with 3rd party selling sites or services or individuals which are not listed

below as one of our Authorized Retailers. GoWISE USA is not responsible

for making inquiries to such 3rd parties for the purpose of obtaining

documentation. It is the responsibility of the person(s) making the

warranty claim to provide original documentation such as order

information and/or a receipt so that customer service can process your

request. Any defective product will be replaced as long as the issues with

the device fall within warranty guidelines.

Authorized Retailers

-Amazon

-GoWISE USA

-WayFair

-morningsave.com

-Houzz

-Home Depot

-etailz

-Bed Bath & Beyond

-jet.com

-walmart.com

WARRANTY(continued)
