GoWISE USA GW44806 User manual

Please read through this manual carefully before use
IMPORTANT SAFEGUARDS AND TIPS
3D AIR FRYER OVEN
& PROFESSIONAL DEHYDRATOR
USER MANUAL
Model No.: GW44806
WWW.GOWISEUSA.COM

2
THANK YOU FOR YOUR PURCHASE!
Join
Contact Our Customer Care Team
Register Your Product
Specifications
Explore
the GoWISE Community on
Facebook, Instagram, Twitter, and
Pinterest for updates, tips, and
great deals!
855-233-9199
[e-mail]
Live Chat at gowiseusa.com
M-F 8:30am - 4:00pm MST
www.gowiseproducts.com/apps/
product-registration
(Normally the serial number is on
the bottom of the product. Please
check there first.)
Voltage: 120V, 60Hz
Watts: 1700W
Capacity: 25 Qt
Temp. Range: 120F-450F
recipes on our recipe App or
www.gowiseproducts.com/blogs/
recipes

Register Your Product............................
Specifications...........................................
Important Safeguards...........................
Important......................................
Overheating Protection..................
Electric Power................................
Automatic Shut-Off........................
Electromagnetic Fields...................
Parts and Accessories............................
Control Display.........................................
Buttons.........................................
Using the Digital Controls..............
Set Up & Using 3D Air Fryer Oven......
Before First Use.............................
Using Your Accessories...................
Cooking Preset Chart.............................
Internal Temperature Chart.................
Trussing a Whole Chicken......................
Rotisserie Roast a Whole Chicken......
Cleaning Your 3D Air Fryer Oven........
Troubleshooting & Error Codes...........
Warranty...................................................
2
2
4
7
7
7
7
7
8
10
10
11
14
14
16
20
21
22
24
26
27
28
TABLE OF CONTENTS

4
IMPORTANT SAFEGUARDS
HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE
1.1. NEVER IMMERSENEVER IMMERSE the main unit
housing in water, as it contains
electrical components and
heating elements. Do not rinse
under the tap.
2.2. TO AVOID ELECTRIC SHOCK,
DO NOT put liquid of any kind into
the main unit housing containing
the electrical components.
3.3. This appliance has a polarized
plug (one prong is wider than
the other). This plug is intended
to fit into a polarized outlet only
one way. TO AVOID ELECTRIC
SHOCK, DO NOT force the plug
into the outlet if it does not fit. If
the plug does not fit fully into the
outlet, reverse the plug. If it still
does not fit, contact a qualified
electrician. DO NOT ATTEMPT to
modify the plug in any way.
4.4. ALWAYS make sure that the plug
is inserted into the wall socket
properly and without any other
appliances on the same outlet.
5.5. To prevent food being in contact
with the heating element, DO
NOT OVERFILL any of the
cooking trays.
6.6. DO NOT COVER OR BLOCK the
air intake vent or air outlet vent
while the GoWISE 3D Air Fryer
Oven is in operation. Doing so
prevents even cooking and may
damage the unit or cause it to
overheat.
7.7. NEVER POUR oil into the square
accessory basket. This could
result in fire or personal injury.
8.8. While cooking, the internal
temperature of the unit
reaches several hundred
degrees Fahrenheit. TO AVOID
PERSONAL INJURY, never place
hands inside the unit unless it has
thoroughly cooled.
9.9. This appliance is NOT INTENDED
FOR USE by persons with
reduced physical, sensory, or
mental capabilities or persons
with a lack of experience and
knowledge unless they are
UNDER THE SUPERVISION of a
responsible person or have been
given proper instruction to use
the appliance. This appliance is
NOT INTENDED FOR USE by
children.
10.10. When cooking, DO NOT PLACE
the appliance against a wall or
other appliances. Leave at least
five inches of free space along
the back, sides, and above the
appliance. Do not place anything
on top of the appliance.
11.11. DO NOT USE this unit if the plug,
the power cord, or the appliance
itself is damaged in any way.
12.12. DO NOT PLACE the unit on stove
top surfaces.
13.13. If the power cord is damaged,
YOU MUST HAVE IT REPLACED
by the manufacturer, its service

IMPORTANT SAFEGUARDS
HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE
agent, or similarly qualified
person to avoid hazard.
14.14. Keep the appliance and its power
cord OUT OF THE REACH of
children when it is in operation or
during the cooling process.
15.15. KEEP THE POWER CORD AWAY
from hot surfaces. DO NOT PLUG
in the power cord or operate the
unit controls with wet hands.
16.16. NEVER CONNECT this appliance
to an external timer switch or
separate remote control system.
17.17. NEVER USE this appliance with
an extension cord of any kind.
18.18. DO NOT OPERATE the appliance
on or near flammable materials,
such as tablecloths and curtains.
19.19. DO NOT USE the GoWISE 3D Air
Fryer Oven for any purpose other
than described in this manual.
20.20. NEVER OPERATE the appliance
unattended.
21.21. KEEP YOUR HANDS AND FACE
at a safe distance from the air
outlet vent, as hot air is released
through it while in operation. Also,
avoid the vent while removing the
square accessory basket from
the appliance. The unit’s outer
surfaces may become hot during
use. USE OVEN MITTS or use the
rotisserie tong when handling hot
components. Always use oven
mitts when handling hot objects
and surfaces.
22.22. Should the unit emit black smoke,
UNPLUG IMMEDIATELY and
wait for smoking to stop before
removing oven contents.
23.23. When the time has run out during
a cooking cycle, cooking will stop,
but the fan WILL CONTINUE
RUNNING for 20 seconds to cool
down the unit.
24.24. ALWAYS operate the appliance
on a horizontal surface that is
level, stable, and noncombustible.
25.25. If the GoWISE 3D Air Fryer
Oven is used improperly, for
professional or semi-professional
purposes, or if it is not used
according to the instructions in
this user manual, the warranty
becomes invalid, and the
manufacturer will not be held
liable for damages.
26.26. ALWAYS unplug the appliance
after use.
27.27. Let the appliance cool down for
approximately 30 minutes before
handling, cleaning, or storing.
28.28. Make sure the ingredients
prepared in this unit come out
cooked to golden-yellow color
rather than dark brown. Remove
burnt remnants.
29.29. This appliance is intended
for normal household use
only. It is not intended for
use in commercial or retail
environments.
5

6
IMPORTANT SAFEGUARDS
MAKE SURE THE UNIT RESTS ON
A FLAT LEVEL SURFACE 5 INCHES
AWAY FROM ANY OTHER WALL
OR APPLIANCE AND WELL AWAY
FROM ANY CURTAINS, FABRICS, OR
CLOTHS.
SAVE THESE
INSTRUCTIONS
5”
5”
30.30. Please note that this unit is
constantly emitting heat through
the air vents, the unit must
be placed on a heat resistant
surface. It is the end-user’s
responsibility to verify the heat
capacity of their countertops.
We recommend using a silicone
pad or spare, non-artificial tile
to protect your countertops
from heat damage. The care
and use of countertops is the
responsibility of the end user.
HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE

7
IMPORTANT SAFEGUARDS
Electric Power
Automatic Shut-Off
Electromagnetic Fields
If the electrical circuit is overloaded
with other appliances, you unit may
not operate properly. It should be
operated on a dedicated electrical
circuit.
The appliance has a built-in shut-off
device which will automatically
shut down the unit when the timer
LED reaches zero. You can manually
turn off the appliance by pressing the
power button. The fan will
continue running for about 20
seconds to cool down the unit.
This appliance complies with all
standards regarding electromagnetic
fields. According to the instructions in
this manual, the appliance is safe
to use based on scientific evidence
available today if handled properly.
Important Overheating Protection
•Before initial use and after
subsequent use, hand wash all
included accessories. Wipe the
outside and inside of the unit
with a warm moist cloth and mild
detergent. Preheat the unit for
a few minutes to burn off any
residue.
•NOTE: The oven may smoke
the first time it is used. It is not
defective, and the smoke will
burn off within a few minutes.
Should the inner temperature control
system fail, the overheating
protection system will be activated,
and the unit will not function.
Should this happen, unplug the
power cord. Allow time for the unit to
cool completely before restarting or
storing.

8
PARTS
1. Unit Housing
2. Control Display
3. Side Air Intake Vents
4. Power Cord + Plug
5. Internal Heating Compartment
6. Oven Door
7. Air Outlet Vent
8. Dehydrator Slot
PARTS AND ACCESSORIES
Unit Dimensions:
Outside: 18.75” D x 17.75” W x 11.6” H
Inside: 12.5” D x 12.5”W x 9.5” H
2
8
1
3
5
6
7
4

9
PARTS AND ACCESSORIES
ACCESSORIES
1. Rotisserie Rod & Forks
2. Rotisserie Tong
3. Air Fry Basket
4. 12” Pizza Pan
5. 2 Wire Racks
6. 2 Mesh Trays
7. Baking Pan
8. Grill Tray
9. Drip Pan
1
2
3
4
5
6
7
8
9

10
TIME/TEMP: Adjust the time and
temperature of cooking presets or
manual function
UP & DOWN arrows: Increase or
decrease TEMP & TIME
PRE-HEAT: Pre-heat the oven before
cooking
KEEP WARM: Keep food warm for up
to 1 hour
REHEAT: Heat up leftovers quickly
LIGHT: Turn the internal cooking light
on or off
ROTISSERIE: Activate the Rotisserie
function
SPEED: Change the fan speed
between high and low
TOP: Manually select top-only
heating element
BOTTOM: Manually select bottom-
only heating element
BACK: Manually select back-only
heating element
START/PAUSE: Start and stop the
cooking process
POWER: Power the unit on and off
*Refer to the Cooking Preset Chart
of this manual (pg. 20) for default
settings for each preset button.

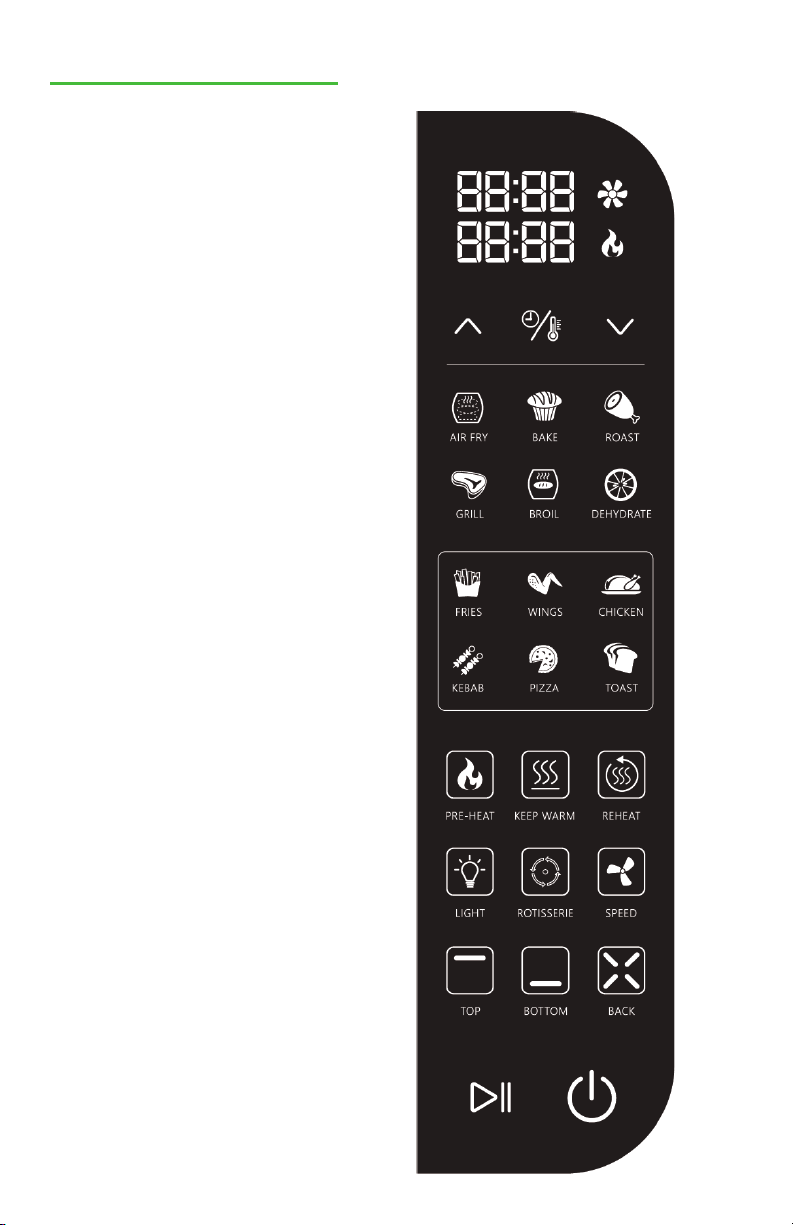

CONTROL DISPLAY
BUTTONS
CONTROL DISPLAY

11
CONTROL DISPLAY
USING THE DIGITAL CONTROLS
NOTE: The 3D Air Fryer Oven
uses 1700 Watts that are divided
among 3 heating elements. The
back heating element reaches
1200 Watts while the top and
bottom uses 250 watts each.
It is recommended to use the
back heating along with another
heating element if choosing
to use 2 instead of 3 heating
elements.
4.4. The FAN speed is defaulted to
HIGH. To change the fan speed,
press the SPEED button to
switch between high and low.
5.5. If using a rotisserie accessory,
press the ROTISSERIE button to
activate the rotisserie.
6.6. If you would like to pre-heat
your oven, press the PRE-HEAT
button.
NOTE: When PRE-HEAT is
selected, the unit will first heat to
your selected temperature, then
beep to alert you that it is time to
insert your food. Once you insert
your food and close the oven
door, the time will begin to count
down
7.7. Press the (START/PAUSE)
button to begin cooking. The
icon and icon will light up on
the digital display meaning both
the fan and heating element are
running.
1.1. Once the unit is plugged in,
the display lights will flash
once with a single chime/beep.
The (POWER) button will be
illuminated.
2.2. Press the button to turn on
the oven and the digital display
will light up displaying zero.
NOTE: The unit will automatically
shut down after 60 seconds.
3.3. Select a preset or manually set a
time and temperature to begin.
Customize Your Cooking Settings
Have complete control over your
cooking experience such as time,
temperature, heating element
settings, and fan speed.
1.1. Press the TIME/TEMP button
and the temperature setting will
flash first. Use the “ “ and “ “
arrows to adjust the temperature
in increments of 10° between
120°F – 450°F.
2.2. Once you have reached the
desired temperature setting,
press the TIME/TEMP button
again and the time setting will
flash. Use the “ “ and “ “
arrows to adjust time in 1 minute
increments up to 1 hour max.
NOTE: Press and hold the “ “
or “ “ arrows to adjust time in
5 minute increments..
3.3. As a default, all 3 heating
elements will be illuminated,
however you can change your
settings to use the top, bottom,
or back heating elements.

Using the Dehydrate Function
The Dehydrate function uses low heat
along with a built-in fan to dry out
food. It reduces the overall amount
of water found in fruits, veggies,
and other foods, so it won’t spoil so
quickly.
1.1. Select the DEHYDRATE preset.
The top and bottom heating
elements and a low fan speed
will be selected by default.
2.2. Use the TIME/TEMP button and
the “ “ and “ “ arrows to
adjust the time and temperature.
3.3. Press the button to start the
cooking cycle.
NOTE: There is a dehydrating slot
located at the back of the oven.
Removing the cover plate from the
slot will allow for extra air flow and
faster dehydrating. THIS PART MUST
ONLY BE REMOVED WHEN USING
THE DEHYDRATE FUNCTION. DO
NOT REMOVE THIS PART WHEN
USING OTHER FUNCTIONS.
12
Using the Presets
Your 3D Air Fryer Oven comes
with 12 cooking presets to take the
guesswork out of cooking times and
temperatures.
1.1. Press the button of your desired
preset. The selected preset
will illuminate and the preset’s
time and temperature will be
displayed on the digital display.
NOTE: Refer to the Cooking
Preset Chart of this manual (pg.
20) for detailed default settings
for each preset.
2.2. To adjust preset settings, press
the TIME/TEMP button until the
desired setting flashes. Use the
“ “ and “ “ arrows to change
the settings. The temperature
can be adjusted in increments
of 10° between 120°F – 450°F
for all presets except Dehydrate.
The time can be adjusted in 1
minute increments between
1-60 minutes (except Dehydrate).
NOTE: Press and hold the “ “
or “ “ arrows to adjust time
in 5 minute increments (except
Dehydrate).
3.3. Press the button to begin
cooking. The icon and
icon will light up on the digital
display meaning both the fan and
heating element are running.
NOTE: Use the heating element
buttons to select single, dual or 3D
heating before starting the cooking
cycle.
CONTROL DISPLAY
USING THE DIGITAL CONTROLS

13
CONTROL DISPLAY
USING THE DIGITAL CONTROLS
Using the Pre-heat Function
Pre-heating your oven gives you the
best results.
1.1. Select a preset or manually set a
time and temperature.
2.2. Press the PRE-HEAT button and
the button will illuminate.
3.3. Press the button to begin the
pre-heating process.
4.4. When the oven is pre-heated, it
will beep to indicate it’s ready to
cook, and the PRE-HEAT button
light will turn off.
5.5. Open the door and put the food
inside. Close the door and the
unit will automatically enter
your selected preset or manual
cooking mode selection, and the
time will begin to count down.
NOTE: Press the button to turn
off the pre-heat process at any point.
The unit will enter standby mode.
Using the Keep Warm Function
Keep your food warm until you are
ready to eat. You can select the Keep
Warm function by itself (150°F for
30 minutes), or in conjunction with
another cooking setting. To use KEEP
WARM with another cooking setting,
follow the instructions below.
1.1. Select a preset or manually set a
time and temperature.
2.2. Press the KEEP WARM button
and the button will illuminate.
3.3. Press the button to begin the
cooking process.
4.4. When your cooking cycle is done,
the unit will beep 3 times and
switch to Keep Warm mode
(150°F for 30 minutes). The unit
will beep twice every five minutes
to alert you that Keep Warm
mode is running.

14
BEFORE FIRST USE
1.1. Unbox the unit and place on a
countertop or flat surface away
from any water source and
near a polarized outlet. Before
plugging in the unit, remove
accessories from the Internal
Heating Compartment. Unwrap
accessories.
2.2. Rinse the accessories with warm
water and dry thoroughly. Place
the Drip Pan at the bottom of the
Internal Heating Compartment
and close the oven door.
3.3. Plug in the unit. Press the
button to turn on the oven. Press
the TIME/TEMP button and use
the “ “ and “ “ arrows to set
to 350°F for 5 minutes.
4.4. Press the button to begin
heating.
5.5. This process will burn off any
remaining residue left from the
manufacturer. There may be
a slight burning smell but, will
dissipate after a few minutes.
6.6. Your new GoWISE 3D Air Fryer
Oven & Professional Dehydrator
is now ready for use!
SET UP AND USING 3D AIR FRYER OVEN
MAKE SURE THE UNIT RESTS ON
A FLAT LEVEL SURFACE 5 INCHES
AWAY FROM ANY OTHER WALL
OR APPLIANCE AND WELL AWAY
FROM ANY CURTAINS, FABRICS, OR
CLOTHS.
5”
5”

15
SET UP AND USING 3D AIR FRYER OVEN
NOTE: The oven door has two
different open positions – halfway
and fully open. This is to prevent you
from accidentally slamming the glass
door down onto your countertop.
When you open the door, it will
intentionally stop at the halfway
position. Pull towards you again to
lower the door into the fully open
position.
Halfway Open Position
Fully Open Position
GET TO KNOW YOUR OVEN
•The 3D Air Fryer Oven will only
begin heating once the oven door
is completely closed.
•The oven door can be opened
during the cooking process
– the unit will stop heating
automatically until the door is
closed again. The fan will also
stop while the door remains open.
If the oven door remains open for
6 minutes, the unit will shut down.

Choose the correct cooking rack per
cooking application. The Mesh Rack
is perfect for dehydration, but is also
great for cooking crispy snacks.
Use the Drip Pan to catch oils and
juices as you rotisserie roast or grill,
or to collect the crumbs that fall off
while air frying or baking.
USING YOUR ACCESSORIES
Inserting the Mesh Rack
16
SET UP AND USING 3D AIR FRYER OVEN
Inserting the Drip Pan
NOTE: Make sure that the Drip Pan
is inserted below the bottom heating
element.

USING YOUR ACCESSORIES
17
SET UP AND USING 3D AIR FRYER OVEN
Inserting the Wire Rack Inserting the Air Fry Basket
The Wire Rack is best used for
holding the Pizza Pan at the correct
cooking distance from the internal
heating elements.
Cook your food with the Air Fry
Basket to get perfectly golden crispy
results without flipping.

18
USING YOUR ACCESSORIES
SET UP AND USING 3D AIR FRYER OVEN
Inserting the Baking Pan
The Baking Pan is designed to fit
into the tray slots in the oven, so you
do not have to use a rack. Insert the
Baking Tray in the slot of your choice.
The Grill Tray is designed to fit directly
onto the bottom heating element.
Insert the tray on top of the heating
element and align the heating
element with the grooves on the
bottom of the Grill Tray so it lays flat.
Ensure that the Drip Pan is inserted
below the bottom heating element to
catch oils and juices as you grill.
Inserting the Grill Tray
NOTES:
•Only use silicone-tipped tongs
when using the Grill Tray to avoid
scratching the nonstick surface.
•When removing the Grill Tray, be
sure to use oven mitts to avoid
personal injury.

19
USING YOUR ACCESSORIES
SET UP AND USING 3D AIR FRYER OVEN
Removing the Rotisserie Rod
1.1. Open the oven door.
2.2. While wearing oven mitts on both
hands and using the Rotisserie
Tong, hook the bottom left and
right sides of the Rotisserie
Rod, in the gaps of the rod and
carefully lift the rod out of the
resting slot on the left side of
the oven – carefully pull the rod
out of the Rotisserie socket and
remove from the oven.
NOTE: Contents will be hot and can
easily burn – use caution not to let
scalding meat juices or oils from
falling on the skin by holding a catch
tray or plate under the Rotisserie
contents.
CAUTION! Contents and cooking
accessories will be extremely hot
after every use. To prevent personal
injury, always use oven mitts to
remove contents and always wait
until the unit has cooled sufficiently
before touching or cleaning any area
of the Internal Heating Compartment
of the 3D Air Fryer Oven.

20
COOKING PRESET CHART
Cooking time of a whole roasted chicken may vary depending on
weight. Use a meat thermometer to check the internal temperature as
per the chart on page 21.
Preset Default
Temperature
Default
Time
Default
Heating Element
Fan
Speed
Air Fry 430°F 20 min Top, Bottom, & Back High
Bake 350°F 40 min Top, Bottom, & Back High
Roast 400°F 20 min Top, Bottom, & Back High
Grill 450°F 12 min Top, Bottom, & Back High
Broil 450°F 8 min Top, Bottom, & Back High
Dehydrate 160°F 12 hr Top & Bottom Low
Fries 430°F 20 min Top, Bottom, & Back High
Wings 400°F 15 min Top, Bottom, & Back High
Chicken 430°F 45 min Top & Back High
Kebab 370°F 18 min Top, Bottom, & Back High
Pizza 420°F 15 min Top, Bottom, & Back High
Toast 400°F 4 min Top, Bottom, & Back High
NOTES:
•BROIL and GRILL work best
when used with the PRE-HEAT
function. Be sure to select the
PRE-HEAT function before
starting the cooking preset.
Preheating allows the oven to
reach your selected temperature
then beep to alert you that it is
time to insert your food. Once
you insert your food and close
the oven door, the time will begin
to count down.
•The CHICKEN preset is for
rotisserie cooking a whole chicken
and will automatically activate the
ROTISSERIE function. CHICKEN
uses the top and back heating
elements by default. This is
because juices and fat from the
chicken will fall onto the bottom
heating element, creating smoke
if the bottom heating element is
used.
•Cooking time for a whole roasted
chicken may vary depending on
weight. Use a meat thermometer
to check the internal temperature
as per the chart on page 21. The
recommended max weight you
can rotisserie in the 3D Air Fryer
Oven is 5 lbs.
