Gozney Dome User manual

AU/NZ DOC-0018-02.1
Technical Manual

Wood-fired cooking made easy.

4
Introduction
DANGER
If you smell gas:
Shut gas off to the appliance.
Extinguish any open flame.
If odour continues, keep away from the
appliance and immediately call your fire
department.
WARNING
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity
of this or any other appliance.
An LPG cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.

5
This instruction manual contains important information
necessary for the proper assembly and safe use of the
appliance.
Read and follow all warnings and instructions before
assembling and using the appliance. Follow all warnings and
instructions when using the appliance. Keep this manual
for future reference.
Never operate this appliance in enclosed
areas. Failure to follow these instruc-
tions could result in asphyxiation, fire or
explosion which could cause property
damage, personal injury or death.
Never operate this appliance unat-
tended.
Never operate this appliance within 1.5m
of any structure, combustible material or
other gas cylinder.
Never operate this appliance within 7.5m
of any flammable liquid.
Do not fill the cooking vessel beyond the
opening of the oven mouth.
Heated liquids remain at scalding
temperatures long after cooking
process.
Never touch cooking appliance until
liquids have cooled to 45C or less.
If a fire should occur, keep away from
the appliance and immediately call your
fire department. Do not attempt to extin-
guish an oil or a grease fire with water.

6
Dome gets extremely hot and should
not be used by children. Do not allow
children near the device during or after
operation. Dome can stay hot for a few
hours after use.
Do not use under any apartment or
balcony or deck.
This appliance is for cooking purposes
only. It must not be used for other
purposes, for example heating a room.
Dome has not been designed or
intended to be used on a marinecraft or
within a recreational vehicle or any other
form of confined area.
Assembly and operation of the oven
should be carried out by a competent
person.
The use of alcohol, prescription or
non-prescription drugs may impair the
consumers ability to assemble or operate
the device safely.
Do not use any plastic or glass utensils
within Dome.
Use heat-resistant gloves when operat-
ing the oven.
Do not insert items into Dome that are
bigger than the dimensions of the oven
mouth.
Do not over fill Dome or cover the burner.
Do not use an unlined masonry chimney
as the flue for this appliance.
Do not operate Dome in strong winds.
Winds can extinguish the flame and also
cause irregular air pressure resulting in
the flame and heat coming out the back
of Dome. Use a wind break in open areas
but keeping over 45cm away from the
device.
Do not pour water on to the cooking
stone as this will likely crack it and could
be dangerous because of oil and grease.
Do not modify this appliance.
Do not spray aerosols in the vicinity of
this appliance while it is in operation.
Do not place articles on or against this
appliance.
Do not use the appliance indoors. It is
only suitable for use outdoors.
For replacement parts go to Gozney.
com.
GENERAL ADVICE

7
This appliance shall only be used in an
above ground open-air situation with
natural ventilation, without stagnant
areas where gas leakage and products
of combustions are rapidly dispersed
by wind and natural convection. Any
enclosure in which the appliance is used
shall comply with one of the following:
Warning: Do not use the gas or wood
appliance of Dome in enclosed or on
small balconies.
Within a partial enclosure that includes
an overhead cove and no more than two
walls. A common example is an outdoor
gazebo.
The appliance may be within a partial
enclosure that includes an overhead
cover and more than two walls, the
following shall apply:
at least 25% of the total wall area is
completely open;
and at least 30% of the remaining wall
area is open and unrestricted.
Any enclosure with walls on all sides
but at least one permanent opening at
ground level.
In the case of balconies, at least 20%
of the total of the side, back and front
wall areas shall be and remain open and
unrestricted.
PARTIAL ENCLOSURES

8
Flue Pipe
Flue Cap
Flue Top
Gas Hose & Regulator
Eye Bolts & Chain (use with the stand
only)
Gas Control Dial
Storage
Product Overview - What's in the Box
Oven
Dock

9
Gas Inlet
Air Inlet Puck
Thermometer
Steam Plug
Ash Tray
Burner Guard
Stone Puck
Flue Outlet
Ø127mm
Steamer Input

10
Data Plate
Gozney Limited, Units 18 & 19, Radar Way, Christchurch, Dorset, BH23 4FL UK.
Appliance name: Gozney Dome
Model/type No.: 4555-V1-03
Trade name: Gozney Dome
Gas pressure: 2.75 kPa
Gas rate: 30 MJ/h
Gas type: ULPG
Jet orifice: 1.52mm

11

1
This section details the correct operation and install of a
Gozney Dome.

Operation & Installation

14
SAFETY CONSIDERATIONS
This appliance must be installed on a
secure level base prior to use.
WARNING: This appliance will become
very hot, do not move it during
operation.
WARNING: Keep away from children
and pets.
The Dome unit and the burner must
always be well ventilated.
Do not move or leave Dome
unattended whilst in use.
Do not operate Dome in strong winds.
Wind can extinguish flame.
Do not wear flammable loose garments
or sleeves.
Do not cover oven mouth when there
is an active flame, this will cause
damage to the oven.
Product may contain sharp edges!
Please use caution.
Never use gas and wood simultaneously.
Do not use or store flammable materials
in or near this appliance.
WARNING: Contact your local munici-
pality for any building codes applicable
to the use, installation and operation of
outdoor cooking appliances.
Outdoor installations must conform to
local codes or, in the absence of local
codes, with the following standards:
AS/NZS 5601

15
CARBON MONOXIDE
Carbon Monoxide is a highly poison-
ous gas which can be produced when
the device isn’t receiving enough
ventilation.
We therefore recommend using wood
or gas fuels in a well ventilated area
away from direct wind and to never
cover the oven mouth when there is an
open flame present.
It is difficult to know if your device is
producing Carbon Monoxide as it is an
odourless and colourless gas.
It can, however cause these symptoms
when you are exposed to it:
• Tightness across the forehead
• Headache
• Weakness
• Dizziness
• Nausea
• Vomiting
• Coma, intermittent convulsions
• Depressed heart action, slowed
respiration
If the exposure has been severe it may
cause death.
Please follow local regulations and
install a CO alarm if necessary.
FIRE
Most fires are caused by a build up of
grease, or (if using gas) an improper gas
connection. In the event of a fire ensure
all people and pets are kept as far away
as possible.
Use a fire extinguisher if possible, but
if water is the only fire retardant avail-
able, thoroughly soak the area around
the appliance. When spraying water on
Dome itself, do not use a strong jet of
water, as this may cause splashing of
burning grease, resulting in a further
spreading of the fire.

2
This section details the set up of the oven and the
accessories included with your Dome.

Setup & Accessories

18
Moving the Oven
The lifting straps located on
the bottom of the oven are
only suitable for single use.
Please remove them once
the oven is located to its final
location and use hand holds
below.
Do not move Dome whilst in
operation or when it is still
hot.

19

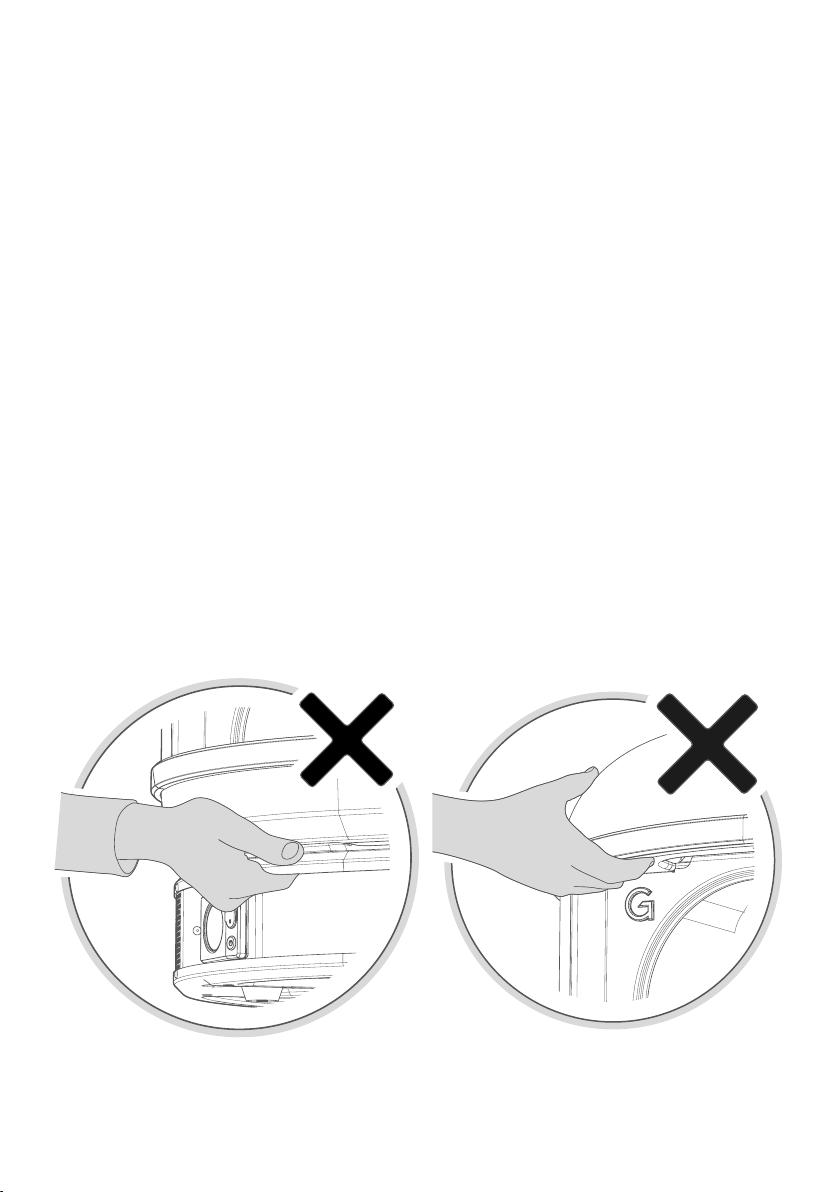

Never attempt to move the oven on your
own. Two people should pick up the
oven lifting from under the rounded ends
of the oven, do not use the mouth of the
oven as a lifting point.
Remove anything loose and all transit
packaging in the oven before moving.
Always plan the route you are going to
take, remove any obstacles on your path
and ensure the oven will fit through the
intended route.
Ensure the area you are moving the
oven to fits with the guidelines on the
following page.

20

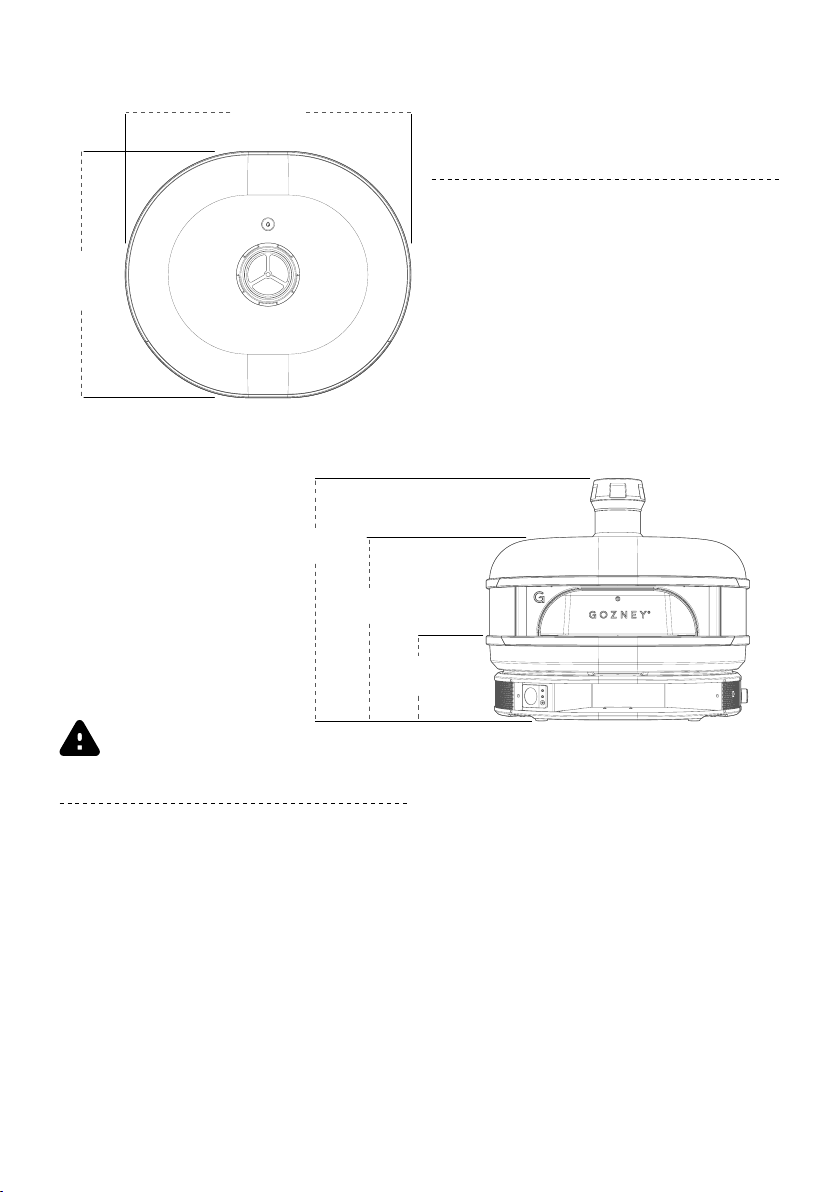

732mm
630mm
660mm
488mm
226mm
OVEN PLACEMENT
When deciding where to place Dome
ensure the area is large enough to
accommodate the oven with 5cm around
the base of the dock for air intake. It
is important nothing is blocking the
meshed panels as this will affect the
performance of Dome.
WARNING
When placing your oven it is important
to maintain proper clearances from
combustible construction. Ensure Dome
has 30cm clearance (back and sides)
and 100cm clearance (front) from any
combustible construction.
Under no circumstances is the oven
to be placed under or on top of any
combustible structure.
Always keep the area around the oven
clear of any combustible materials,
gasoline and other flammable vapours
and liquids.
