Grace Company Q'nique 16X Manual User manual

Instruction Manual
Copyright June 15, 2022 V 1.6wThe Grace Company

i
Important Safeguards
When using an electrical appliance, basic safety precautions should always be followed,
including the following.
DANGER - To reduce the risk of electric shock, do not leave the machine unattended when plugged
in. Always unplug this machine from the electric outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re, electric shock, or injury to persons:
• This appliance is not to be used by persons (including children) with reduced physical, sensory, or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance. Children shall not
play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Use this machine only for its intended use as described in this manual. Use only attachments
recommended by the manufacturer as contained within this manual.
• Never operate this machine if it has a damaged cord or plug, it is not working properly, or it has been
dropped, damaged, or dropped into water. Return the machine to the nearest authorized dealer or
service center for examination, repair, or electrical or mechanical adjustment.
• Never operate the machine with any air openings blocked. Keep ventilation openings of the quilting
machine free from the accumulation of lint, dust, and loose cloth.
• Never drop or insert any object into any opening.
• The appliance is intended for indoor use only. Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
• Connect this appliance to a properly grounded outlet only. See grounding instructions on next page.
• To disconnect, turn all controls to the o position, then remove the plug from the outlet by grasping
the plug. Do not pull on cord. Always switch o or unplug the appliance when leaving it unattended.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• If the supply cord is damaged, it must by replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
• Keep ngers away from all moving parts. Special care is required around the quilting machine needle.
• Always use the proper needle plate. The wrong plate can cause the needle to break.
• Do not use bent or damaged needles.
• Do not pull or push fabric while stitching. It may deect the needle, causing it to break.
• Switch the quilting machine o when making any adjustments in the needle area, such as threading
the needle, changing the needle, or changing the presser foot, etc.
• Always unplug the quilting machine from the electrical outlet when removing covers, lubricating, or
when making any other user servicing adjustments mentioned in the instruction manual.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and o by the utility.
If using this machine in an area with inconsistent input power, it is recommended the surge protector
is connected to a backup battery supply.
SAVE THESE INSTRUCTIONS!
Do not discard box or packaging.

ii
Important Safeguards (continued)
GROUNDING INSTRUCTIONS
This product must be grounded. In the event of malfunction or breakdown, grounding provides a path
of least resistance for electric current to reduce the risk of electric shock. This product is equipped
with a cord that has an equipment-grounding conductor and a grounding plug. Plug the cord from the
quilting machine into a surge protector. The surge protector must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. The conductor with insulation having an outer surface that is green, with or without yellow
stripes, is the equipment-grounding conductor. If repair or replacement of the cord or plug is necessary,
do not connect the equipment-grounding conductor to a live terminal. Check with a qualied electrician
or serviceman if the grounding instructions are not completely understood, or if in doubt as to whether
the product is properly grounded.
Do not modify the plug provided with the product - if it will not t the outlet, have a proper outlet
installed by a qualied electrician.
Grounding Methods
Figure 61.1
(B)
Cover of
Grounded
Outlet Box
Metal
Screw
(A)
Grounding
Pin
Surge
Protector
To Sewing
Machine
(C)
Adapter
Grounding
Means
(D)
Grounding
Pin
Surge
Protector
To Sewing
Machine
Grounding
Conductor
This product is for use on a nominal 120 V circuit, and has a grounding pin as illustrated above (A). A
temporary adapter, shown in (B) and (C), may be used to connect this plug to a 2-pole receptacle (B) if
a properly grounded outlet is not available. The temporary adapter should be used only until a properly
grounded outlet can be installed by a qualied electrician. The green colored rigid ear, lug, and the like,
extending from the adapter must be connected to a permanent ground such as a properly grounded
outlet box cover. Whenever the adapter is used, it must be held in place by the metal screw.
A qualied electrician should be consulted if there is any doubt as to whether an outlet box
is properly grounded.
Grounding Methods

iii
Table of Contents
Important Safeguards ................................ i
Table of Contents...................................... iii
Machine Specications ..............................iv
Machine Layout .........................................v
Ports and Plug-Ins ................................... vii
My Machine Details...................................ix
Included Parts and Tools ............................x
Welcome to Your Q’nique 16X Manual ........ 1
Animated Instructions ............................... 3
Out-of-the Box Assembly ..............3
Part One ................................... 4
Task 1 - Prepare Frame for the Machine ..... 5
Part Two ................................... 6
Task 2 - Installing the Wheels.................... 7
Part Three............................... 12
Task 3 - Installing the Handlebars .............13
Task 4 - Attaching the Thread Stand .........16
Task 5 - Turning the Machine On/O.........17
Preparing to Quilt ........................18
Task 6 - Winding a Bobbin........................19
Task 7 - Loading the Bobbin Case .............22
Task 8 - Threading the Machine ................24
Part Four................................. 30
Quilting ........................................31
Using the Handlebar Controls ...................32
Adjusting Thread Tension .........................33
Getting Started........................................36
Maintaining the Machine .............40
Preparing the Oil Bottle............................41
Oiling and Cleaning..................................42
Changing the Needle................................46
Adjusting the Hopping Foot ......................48
Reinstalling the Needle Plate ....................51
Reinstalling the Anti-Backlash Spring.........53
Repairs and Diagnostics ..............55
Reinstalling the Hook Holder.....................56
Timing the Machine .................................59
Appendix......................................63
Choosing Your Needle ..............................64
Choosing Your Thread..............................66
Choosing Your Fabric and Batting..............69
Troubleshooting Guide .............................70
Index......................................................72

iv
Machine Specifications
Features
• Adjustable handles for comfortable extended
use (page 13)
• Q-Display (page 32)
• Dual thread mast and stands for quilting and
winding bobbin at the same time
• Built-in bobbin winder (page 19)
• Dual wheels for stability (page 7)
• Stitches per minute (SPM) range of 90 to
1700 stitches
1
2
3
4
5
1
2
3
4
5
Patents Pending
Product Dimensions
Body:
• Height: 781.05 mm, or 30.75 inches
• Width: 381 mm, or 15 inches
• Length: 820 mm, 32.3 inches
• Weight: 21.5 kg, or 47.5 lbs
Quilting Arm:
• Height: 210.8 mm, or 8.3 inches
• Length: 406.4 mm, or 16 inches
Electrical
• Input Voltage: 115/230 VAC
• Peak Power Consumption: 200 W

v
Machine Layout

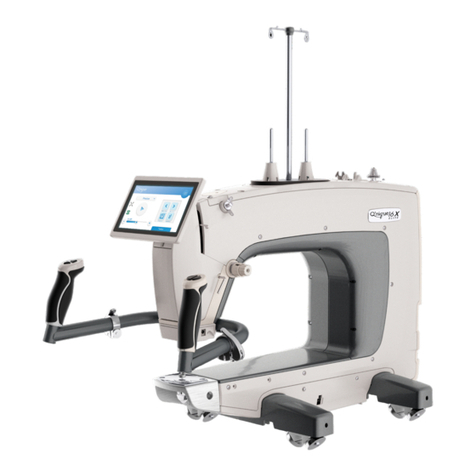

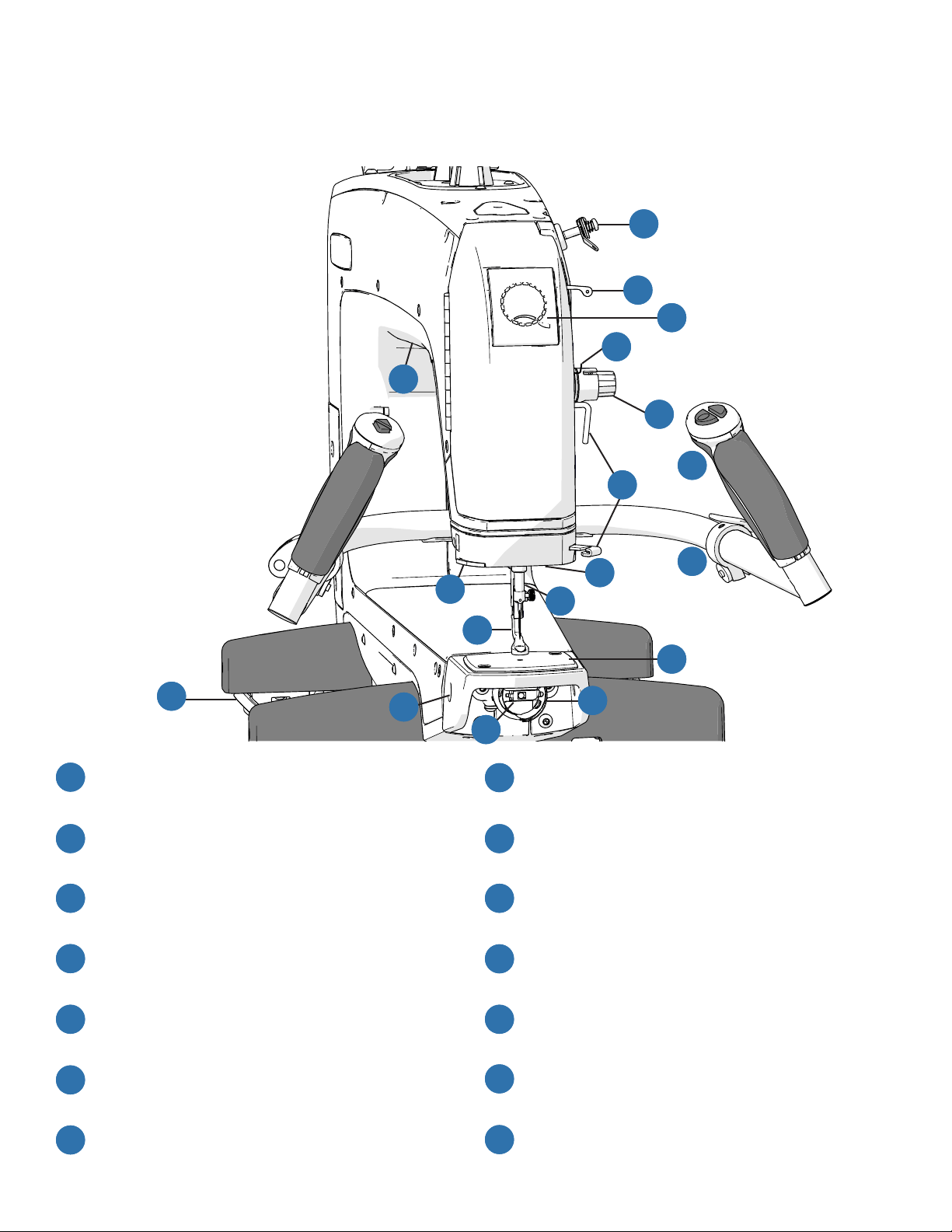

Quilting Machine (Front View)
• Small Thread Tensioner (page 24)
Tensions thread when quilting.
• Take-Up Lever (page 24)
Tensions thread when quilting.
1. Q-Display (page 32)
Visual display to show stitching speed.
• Tensioner Check Spring (page 24)
Applies additional tension to thread.
• Throat Lights
Lights up sewing area when machine is on.
• Large Thread Tensioner (page 24)
Tensions thread as adjusted when quilting.
2. Handlebar Controls (page 32)
Controls machine functions.
• Thread Guides (page 24)
Positions thread when quilting.
3. Handle Bar Levers (page 13)
Used to adjust handle position.
Lamp
Lights up needle area when machine is on.
• Thread Cutter (page 24)
Cuts excess thread from threading machine.
• Needle Bar (page 24)
Holds the needle when quilting.
• Hopping Foot (page 48)
Presses fabric down when quilting.
• Needle Plate (page 51)
Covers top of hook assembly.
1
10
7
11
12
13
8
14
3
6
92
4
5
11
8
12
13
14
10
15 16
17
3
7
9
2
4
6
1
18
5

vi
Machine Layout (continued)
1. Hand Wheel
Raises and lowers the needle bar.
2. Bobbin Thread Tensioner (page 19)
Tensions thread when winding a bobbin.
3. Bobbin Thread Guide (page 19)
Guides thread to the bobbin thread tensioner.
4. Bobbin Stand (page 19)
Holds the bobbin for winding.
5. Bobbin Thread Cutter (page 19)
Cuts wound bobbin thread.
1. Bobbin Winder Thread Stand (page 19)
Holds a cone of thread for winding bobbin.
2. Thread Mast (page 16)
Guides thread when quilting.
1. Top Thread Stand (page 24)
Holds a thread cone for threading machine.
Handle Bar Clamp (page 13)
Used to adjust handlebar position.
• Timing Cut-Out (page 59
Accesses hook assembly set screws.
• Hook Assembly (page 19)
Holds the bobbin case and hooks the top
thread to create stitches.
• Bobbin Case (page 19)
Holds M class bobbin and controls bottom
thread tension.
• Machine Wheels (page 7)
Shuttles the machine up and down the
bottom carriage.
Quilting Machine (Top View)
19
20
22
23
24
25
26
27
15
16
17
19
20
22
21
23
24
25
26
18
27
21

vii
Ports and Plug-Ins
Power On/O Switch (page 17)
Turns machine on and o.
Power Port with Retainer (page 17)
Connects and holds power cable to the
machine.
Back Handle Mount Cover
For mounting the back handle accessory.
USB Connector Port
For 7 inch back handles display and for
updating.
USB Connector Port
For 2.4 inch back handles display.
Quilt Motion Tablet Port
For optional automation accessory.
Left Rear Handle Cable Port
For back handle accessory.
Right Rear Handle Cable Port
For back handle accessory.
Lower Encoder Port
Connects encoders to machine (upgrade
required).
Upper Encoder Port
Connects encoders to machine (upgrade
required).
Accessory Ports
For laser accessory.
Machine Rear (Rear View)
1
11
8
9
3
7
10
2
4
5
1
10
7
8
3
6
9
2
4
5
11
6

viii
Ports and Plugins (continued)

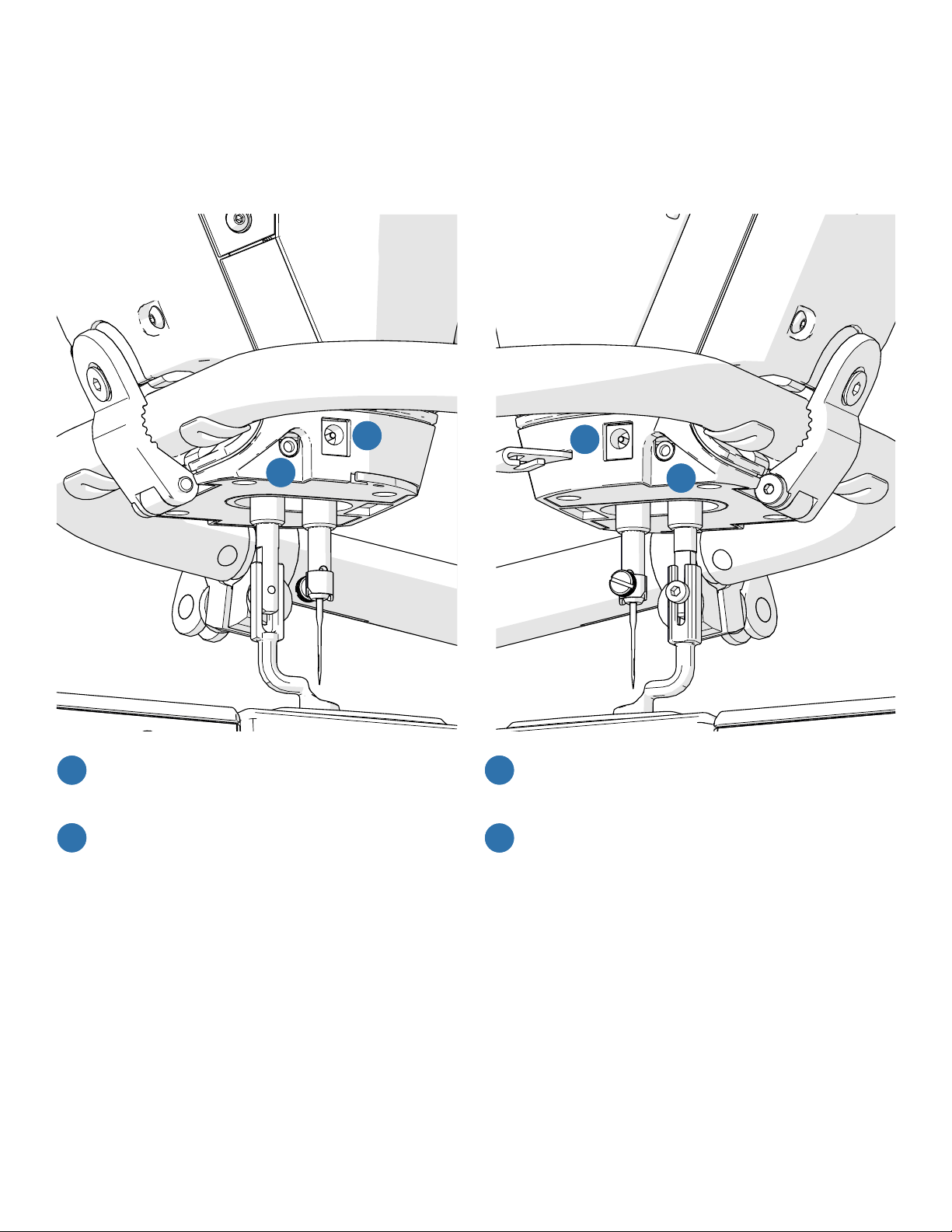

Machine Throat Left
Left Accessory Port
For laser accessory.
Left Handlebar Port (page 13)
Connects handlebar controls to machine.
Right Accessory Port
For laser accessory.
Right Handlebar Port (page 13)
Connects handlebar controls to machine.
13
12
13
12
Machine Throat Right
15
14
15
14

ix
My Machine Details
Use this page to write down some information about your machine. This will be helpful if you ever
need to call a Grace Company support technician.
Machine Type: ______________________________________
Machine Serial Number: _______________________________
Date of Purchase: ____________________________________
What Frame are You Using? ____________________________
Select Which Machine Accessories You Have Purchased:
Q’nique 16X Manual
Find your serial number on the silver sticker on
the back of the machine.
• Q’nique 16X Upgrade
• QuiltMotion
• Back Handles
• Q’nique Laser Stylus
• Magnique Magnifying Glass
• Ruler Base
• Quilt Perfect Ruler Feet Kit
• 360 Wonder Foot
• 4 Piece Accessory Hopping Foot
• 9 Piece Accessory Hopping Foot
• Thread Spool Accessory

x

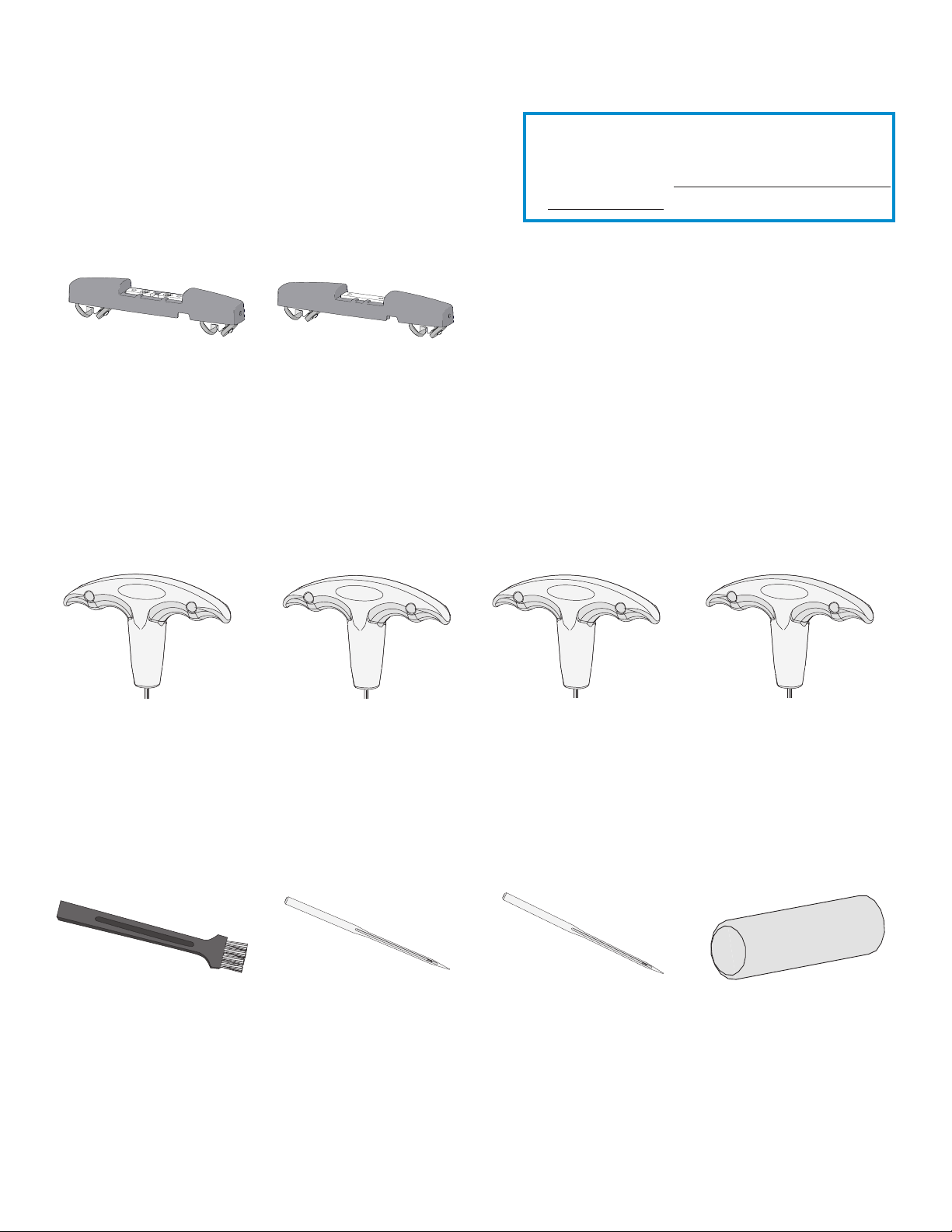

Included Parts and Tools
Front Wheel
Assembly
SMP-09-16239
See page 7
Back Wheel
Assembly
SMP-09-16244
See page 7
Level One (Workstation)
T-handle Allen
Wrench 4 mm
4 mm
HDW-03-13114
T-handle Allen
Wrench 3 mm
3 mm
HDW-03-13115
T-handle Allen
Wrench 2.5 mm
2.5 mm
HDW-03-13116
Tools Box
2 mm
T-handle Allen
Wrench 2 mm
HDW-03-13117
Lint
Brush
SMP-03-10170
See page 42
Needle
Magnet
SMP-09-13837
See page 46
Needle Size 16
(one ten pack)
ACC-01-14516
See page 46
ACC-01-14517
See page 46
Needle Size 18
(one 10 pack)
(one pre-installed)
Tip: Parts are grouped together in the
packaging for your convenience. For the
best experience, do not remove parts from
the packaging until instructed to do so.

xi

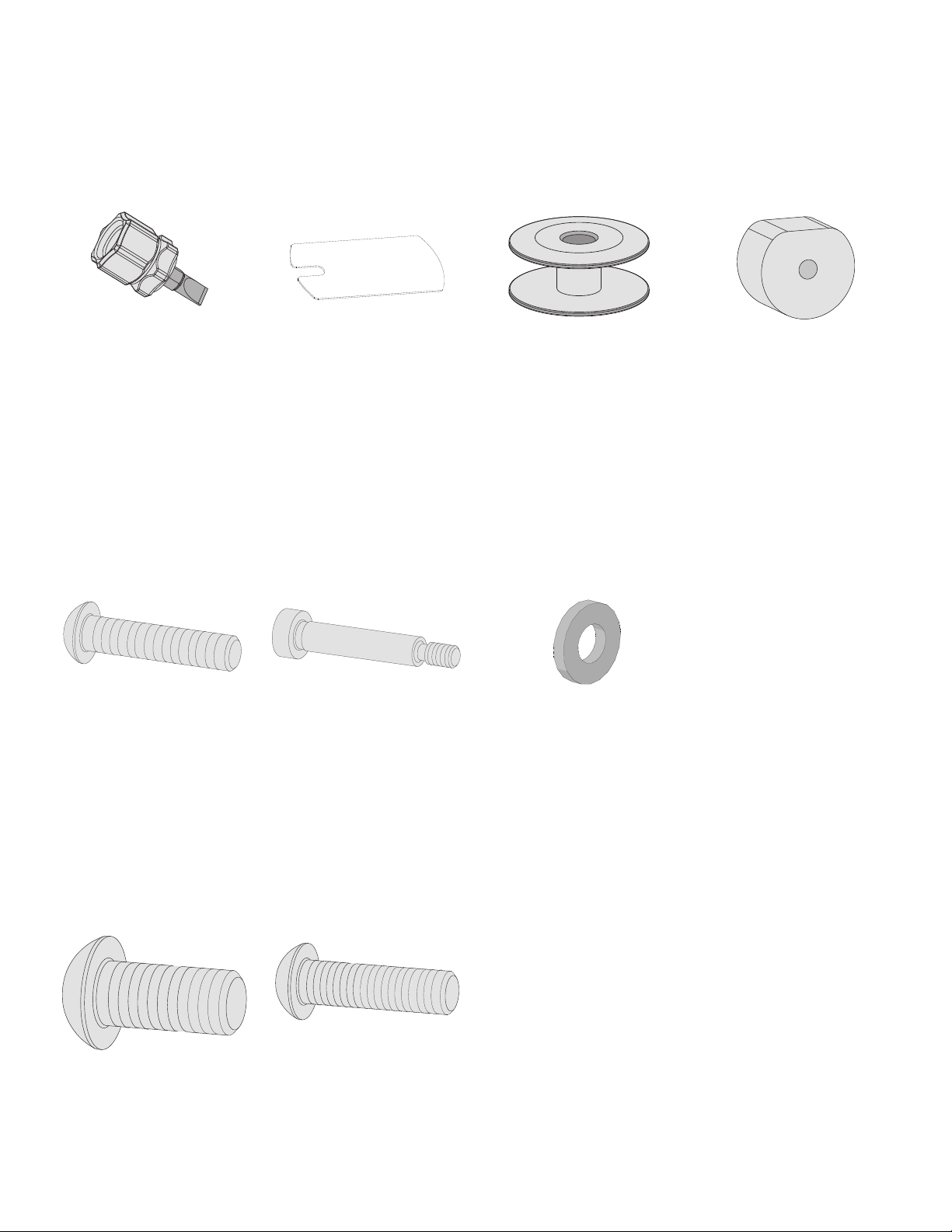

Included Parts and Tools (continued)
Hopping Foot
Height tool
SMP-03-12171
See page 48
Flat-head
Screwdriver
SMP-03-10169
See page 51
Timing
Spacer Tool
SMP-03-11320
See page 59
M Class Bobbin (x3)
(Two pre-installed)
SMP-08-10070
See page 19
Thread Stand Hardware Box
SBHCS Screw
M4 x 12 mm (x3)
HDW-03-14247
See page 16
SBHCS Screw
M4 x 20 mm (x1)
HDW-03-11661
See page 16
Wheel Base Hardware Box
SBHCS Screw
M6 x 35 mm (x2)
HDW-03-10738
See page 11
Shoulder Bolt
M6 (x2)
HDW-03-10541
See page 11
Washer M6 (x2)
HDW-03-11557
See page 11

xii

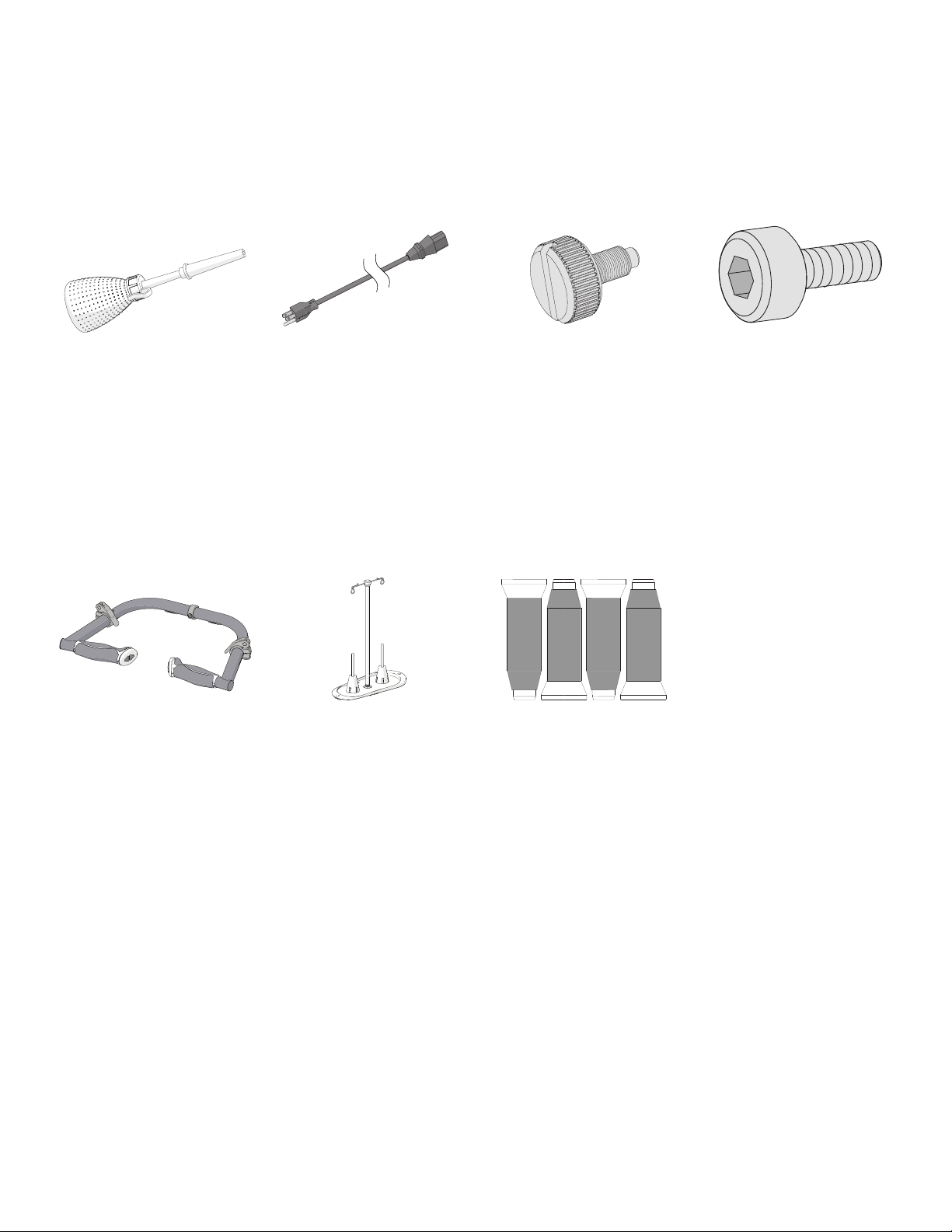

Included Parts and Tools (continued)
M3 Thumb Screw
(needle bar spare)
HDW-03-11736
See page 46
Hopping Foot
Screw
HDW-03-10966
See page 48
Power
Cord
SMP-02-14466
See page 17
Oil
Bottle
SMP-09-13888
See page 42
Power Cord/Oil Bottle Box
Handlebar
Assembly
SMP-09-14066
See page 13
Level Two
SMP-09-16235
See page 16
Thread Stand
Assembly Sample Thread Kit
MIS-11-16122

1
Welcome to Your Q’nique 16X Manual
We are pleased to introduce you to the newest part of your quilting setup. This machine has been
especially designed to help quilters like you have the tools available to create quality projects.
This manual is broken into four sections (or parts). Notications at the end of each section will
direct you to switch to your frame manual or QuiltMotion manual for instructions on assembling
those products. This creates a streamlined process of building a complete quilting setup in the most
ecient way. Use the following owchart to guide you in navigating multiple manuals. If you are not
using one of the products in the owchart, just move to the next item in the chart.
Thank you again for choosing us to help with your quilting projects.
- The Grace Company

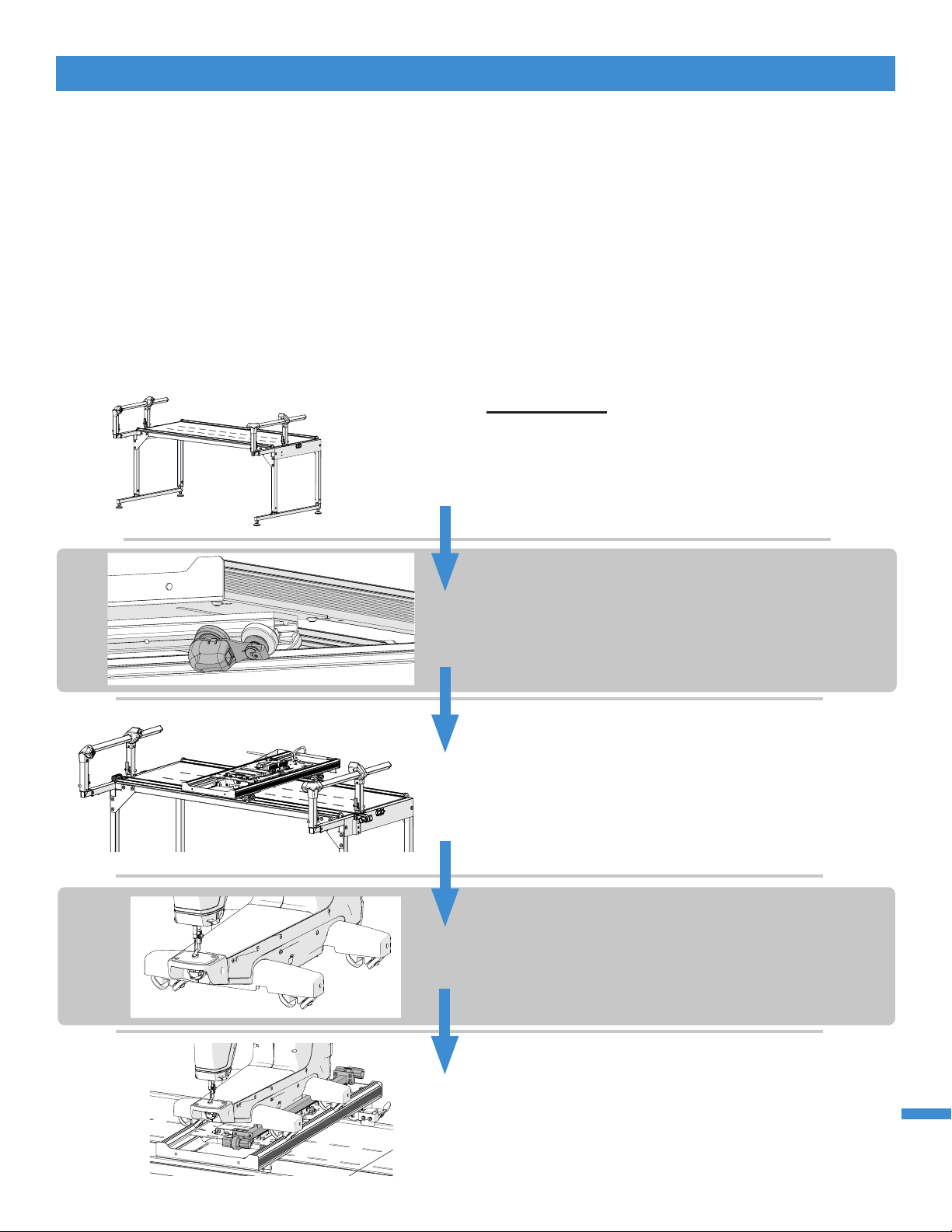

Start Here: Frame Manual: Part One
• Assemble the frame’s legs, table, and sides.
• Install the channel lock onto the bottom
carriage.
• Align your tracks.
Quilting Machine Manual: Part One
• Install the lower encoder onto the bottom
carriage.
QuiltMotion Manual: Part One
• Prepare the bottom carriage.
• Install the long belt across the frame.
Quilting Machine Manual: Part Two
• Install your machine’s wheels.
• Align your wheels.
QuiltMotion Manual: Part Two
• Install the short belt.
• Tension the short belt.

2
Frame Manual: Part Two
• Install the channel lock on the machine or top
plate.
• Prepare the top plate and home sewing
machine.
• Place the machine or top plate on the frame.
Quilting Machine Manual: Part Three
• Install the handles and the thread mast.
Frame Manual: Part Three
• Install the rails and fabric bungees.
• Position and adjust the rails.
• Adjust the carriage stop.
• Level the frame.
QuiltMotion Manual: Part Three
• Install the tablet bracket.
• Plug in QuiltMotion.
• Use the quilting modes and settings in the
display.
• Maintain the machine and perform repairs.
Quilting Machine Manual: Part Four
Frame Manual: Part Four
• Install the velcro tape
• Install the cloth leaders
• Attach the fabric

3
Out-of-the Box Assembly
This section of the manual covers all the steps to assemble the machine after you bring it home for
the  rst time.
Animated Instructions
To provide the best possible customer experience, we also o er animated video instructions for
setting up this product. To view the animated instructions, visit our website at:
https://l.ead.me/16xmanualstart.
You can also use your smartphone to scan this QR code:
Task 2 - Installing the Wheels .............................................................................page 7
Task 3 - Installing the Handlebars .....................................................................page 13
Task 4 - Attaching the Thread Stand..................................................................page 16
Task 5 - Turning the Machine On/Off .................................................................page 17

4
Part One | Out of Box Assembly
Part One
Before completing the tasks in Part One of your machine instructions, please complete Part One of
your frame instructions.
Progress Checkpoint:
Have you:
• Assembled your frame’s legs and table?
• Installed and align the frame tracks?
• Installed the channel lock on the bottom carriage?
• Installed the rail supports?
Note: Do not install the rails at this time.
If you’ve already fully assembled your frame, uninstall your frame’s take-up rail.

5
Congratulations! You have completed Part
One of this manual.
If you are also installing QuiltMotion,
complete Part One of your QuiltMotion
manual.
If you are not installing QuiltMotion at this
time, continue to Part Two of this manual
on page 6.
Part One | Out of Box Assembly
Task 1 - Prepare Frame for the Machine
• Microfiber or
Damp Cloth
Parts & Tools Needed:
Instructions
Take the following steps to prepare your frame and bottom carriage for your machine:
1. Take a damp cloth, or a microber cloth, and wipe down the tracks on your frame and bottom
carriage. Make sure the frame is clear of foam or other pieces of packaging that may have stuck
to your frame.
1

6
Part Two
Before completing the tasks in Part Two of your machine instructions, please complete Part One of
your QuiltMotion instructions if you will be installing automation today.
Progress Checkpoint:
QuiltMotion Manual Part One (optional)
Have you:
• Installed the motor plate into your bottom carriage?
• Installed the long belt onto your frame?
Part Two | Out of Box Assembly

7
Task 2 - Installing the Wheels
Part Two | Out of Box Assembly
Front Wheel
Assembly
Back Wheel
Assembly

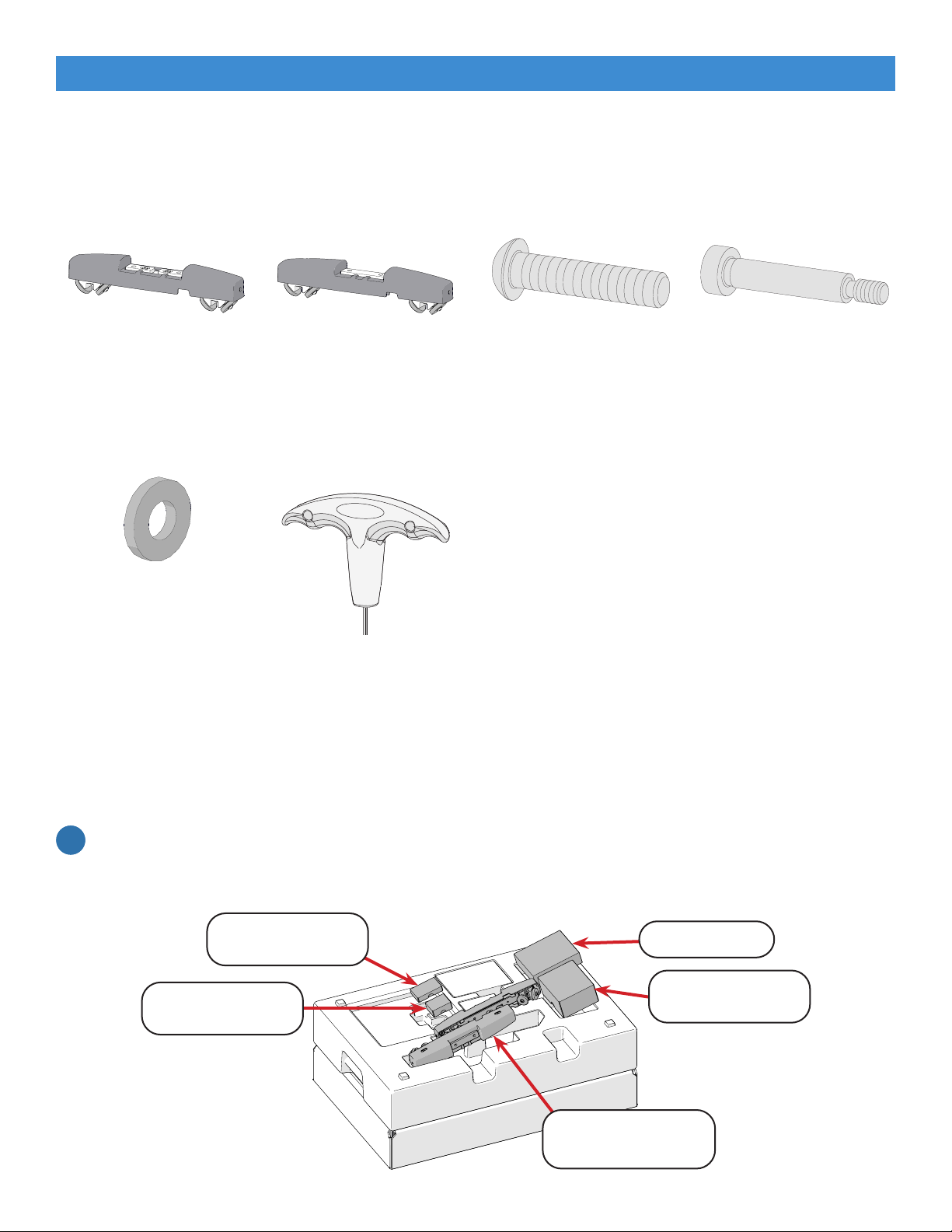

Parts & Tools Needed:
SBHCS Screw
M6 x 35 mm (x2)
Shoulder Bolt
M6 (x2)
Instructions
Take the following steps to install the wheels on the bottom of the machine:
1. Remove the front and back wheel assemblies, the tools box, the wheel install hardware
box, the power cord/oil bottle box, and the thread stand hardware box from the top
layer of packaging. Set them aside.
1
Wheel Install
Hardware Box
Thread Stand
Hardware Box
Power Cord/Oil
Bottle Box
Front and Back
Wheel Assemblies
Tools Box
Packaging Level One Packaging Level One Wheel Install
Hardware Box
Wheel Install
Hardware Box
T-handle Allen
Wrench 4 mm
4 mm
Washer M6 (x2)
Wheel Install
Hardware Box
