INSTRUCTIONS–PARTS LIST 308411
Rev. B
AIR-ASSISTED AIRLESS ELECTROSTATIC
Gun Washer Kit
Part No. 236659
For use with Graco Gun Washer to clean the PRO
AA4500 Electrostatic Spray Gun. The kit enables you
to clean exterior gun surfaces and internal fluid pas-
sages without getting solvent into the air passages or
turbine.
WARNING
Observe all warnings. Read and understand all
instruction manuals before operating equipment.
To reduce the risk of serious injury, including
splashing fluid or solvent in the eyes or on the
skin, shut off the air to the pump, relieve all sys-
tem pressure, and drain the solvent from the
gun washer tank before installing the kit.
Install Gun Support, Trigger Lock, and
Fluid Inlet Adapter
1. Relieve the gun washer system pressure.
2. Remove a gun support (A) or spray nozzle (B)
from one of the four cleaning stations. See Fig. 1.
NOTE: To ease removal of the spray nozzle, re-
move the metal platform from the gun washer
tank.
3. Remove the spray nozzle that is next to the station
where you will install the PRO AA4500 gun sup-
port (4) and install the plug (6). See Fig. 2.
4. With the metal platform (C) in place, screw the
PRO AA4500 gun support (4), supplied with the
kit, into the 1/8” npt hole. Orient the support so it
faces the center of the gun washer.
5. If the gun support (4) replaced a spray nozzle (B–
See Fig. 1), install the trigger lock (7) and fluid inlet
adapter (5) to use with the fourth gun station. See
Fig. 2. Place the wire loops on the snap ring (8)
and snap it around an open spray nozzle.
Fig. 1
A
B
03669
A
Fig. 2
4
8 7
5
03670
6
C
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 1999, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
See manual 308393 for complete gun
washer warnings and instructions.
Parts

2 308411
Install Air Cap Blank and Tip Housing
WARNING
To reduce the risk of serious injury, including
fluid injection, splashing in the eyes or on the
skin or electrostatic shock, always follow the
Pressure Relief Procedure in gun manual
308294 before removing the gun for cleaning.
1. Relieve the gun pressure, then remove the gun
from the air and fluid supply lines.
2. Pointing the gun down, unscrew and remove the
retaining nut (E), tip guard (F), air cap (G) and
spray tip (H). See Fig. 3. Set aside the air cap and
spray tip to clean separately.
Fig. 3 02004A
E
F
GH
3. Using the parts from the kit, press the two washers
(3) into the tip housing (2) and press the tip hous-
ing into the air cap blank (1). See Fig. 4.
4. Install the kit parts on the gun and the tip guard
(F). Tighten the retaining nut (E) until the air cap
blank (1) is snug.
Fig. 4
3
2
1
E
1
03671
B
F
03671B
5. Screw the fluid inlet adapter (5) onto the gun fluid
inlet and install the adapter on the gun support (4).
See Fig. 5.
6. To lock the gun trigger in the open position, install
the wire trigger lock (7) around the gun handle and
trigger.
Fig. 5
5
4
7
0367
2

308411 3
WARNING
To reduce the risk of electrostatic shock, fire, or
explosion; which could result in serious injury
and property damage, be sure to follow these
precautions.
DMake sure the ES ON-OFF valve lever (elec-
trostatics) is OFF before cleaning the gun.
DNever allow solvent to enter the air passage
of any electrostatic gun.
DNever place the gun air inlet over a gun
support.
DOnly use the fluid inlet adapter provided with
the gun washer.
DFollow the spray gun manufacturer’s cleaning
recommendations and the solvent material
safety data sheets when selecting a solvent.
DAlways use solvent with the highest possible
flashpoint.
DUse only non-conductive solvent when clean-
ing electrostatic guns.
7. Operate the gun washer as instructed in the gun
washer manual. Clean the gun air cap, tip guard,
and tip as instructed in the gun manual.
8. Remove the gun from the gun washer and blow or
wipe any solvent remaining on the gun exterior.
Re-assemble the Gun
9. Remove the air cap blank (1), tip housing (2) and
washers (3) from the gun. See Fig. 4.
10. Install the gun spray tip (H) and air cap (G), tip
guard (F), and retaining nut (E). Tighten the retain-
ing nut firmly. See Fig. 3.
11. Place the gun in its hanging bracket, with the
nozzle pointing down as shown in Fig. 6, until it is
used again.

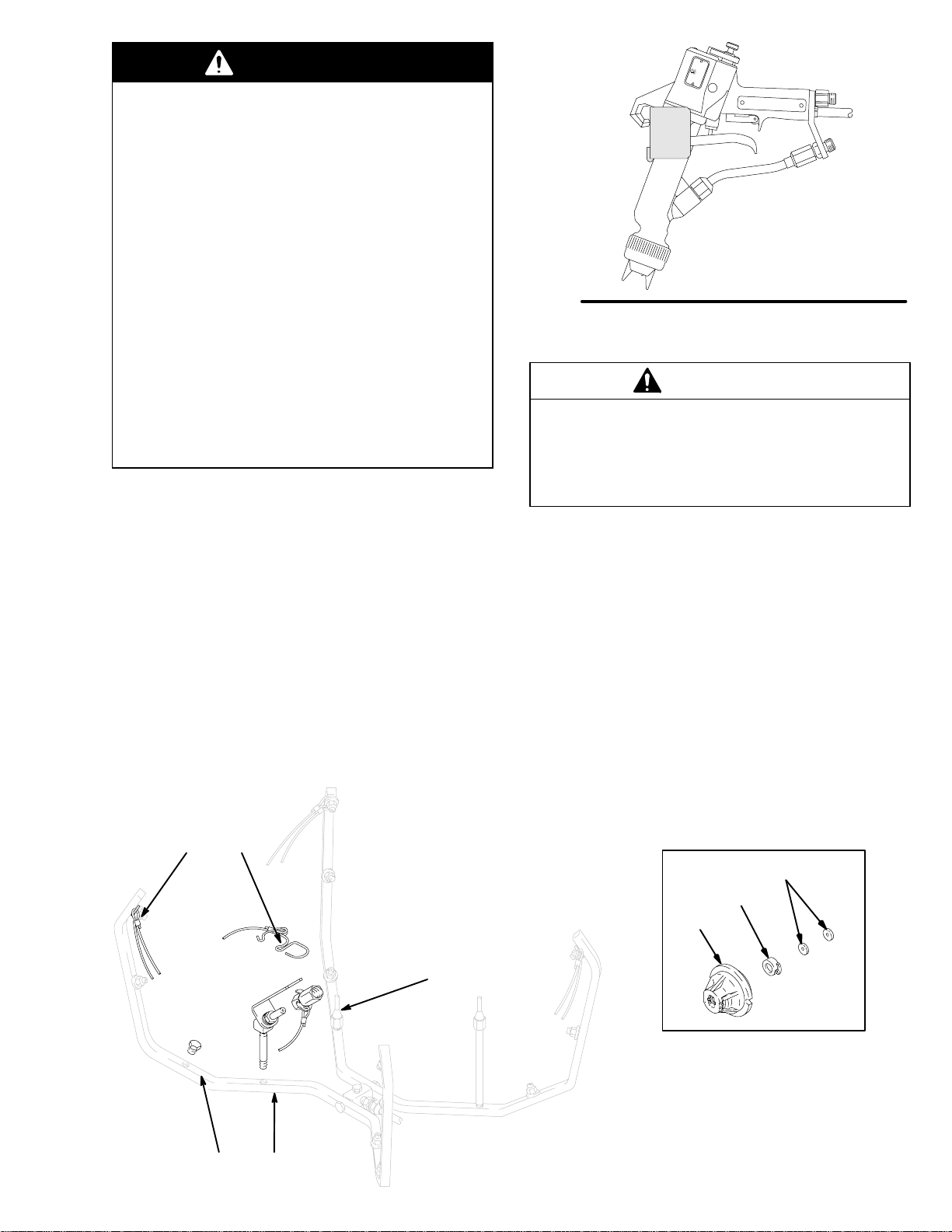

Fig. 6 02012B
CAUTION
Always hang the gun with its nozzle pointing down to
avoid having solvent run into the gun air passages.
Solvent in the gun air passages can cause poor at-
omization and excessive current demands and can
damage the gun.
Parts List
Ref.
No. Part No. Description Qty.
1 195903 AIR CAP BLANK 1
2 188406 HOUSING, tip 1
3 183459 WASHER 2
4 236689 GUN SUPPORT, PRO AA4500;
brass 1
5 512835 ADAPTER, fluid inlet; brass;
Includes cable & 1 snap ring 1
6 512827 PLUG; brass 1
7 512802 TRIGGER LOCK, wire; stainless
steel; Includes cable & 2 clamps 1
8 112851 SNAP RING 1
3
2
1
Parts Drawing
03673
4
8 7
5
6

4 308411
