Graco 2525DD User manual

Instructions
AquaMax Pressure Washers 3A0679D
EN
-For high pressure water cleaning-
-For outdoor use only-
IMPORTANT SAFETY INSTRUCTIONS
Read all warnings and instructions in this manual.
SAVE THESE INSTRUCTIONS.
PROVEN QUALITY. LEADING TECHNOLOGY.
Model Horse Power and
Motor Brand
Maximum Working
Pressure
PSI MPa bar
2525DD 160cc Honda 2500 17.24 172.4
2730DD 200cc Honda 2700 18.62 186.2
3030DD 270cc Honda 3000 20.68 206.8
3540DD 390cc Honda 3500 24.13 241.3
4043BD 480cc Vanguard 4000 27.6 276
37-1110 012113

2
CONTENTS
Important User Information.......................................... 3
Spray Precautions ......................................................... 3
Fire & Ventilation Precautions ...................................... 4
Carbon Monoxide Hazard............................................. 4
Detergent Cleaning Precautions.................................. 4
Burn Hazard ................................................................... 4
Miscellaneous Safety Precautions............................... 5
Adjustment Precautions ............................................... 5
Personal Protective Equipment ................................... 5

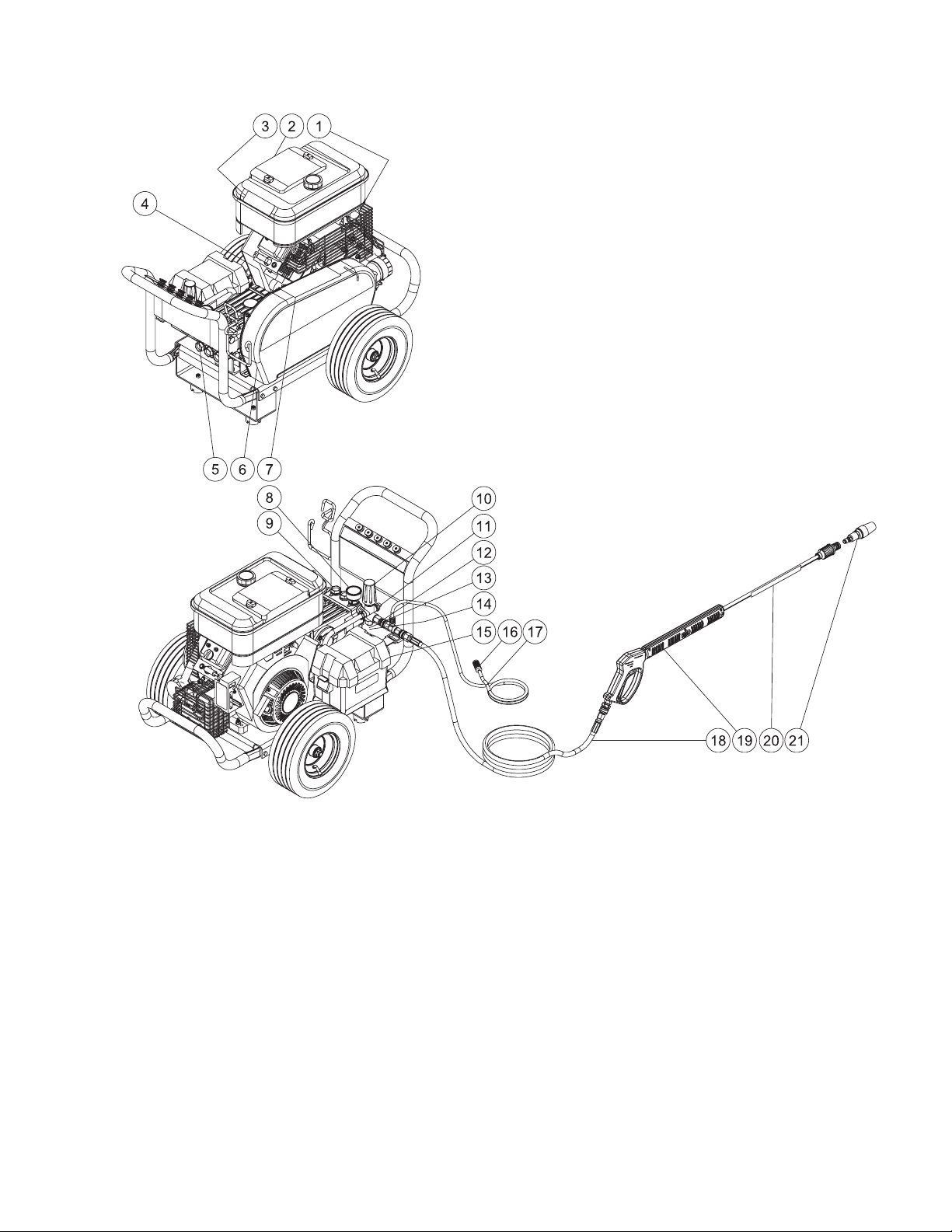

Component Identication – Direct Drive Models ....... 6
Component Identication – Belt Driven Models......... 7
Installation & Preparation
Instructions .................................................................... 8
Attire ................................................................................ 8
Setup ............................................................................... 8
Engine Fuel Tank ............................................................. 9
Nozzle Review ................................................................. 9
Nozzle Connection ........................................................ 10
Water Supply ................................................................. 10

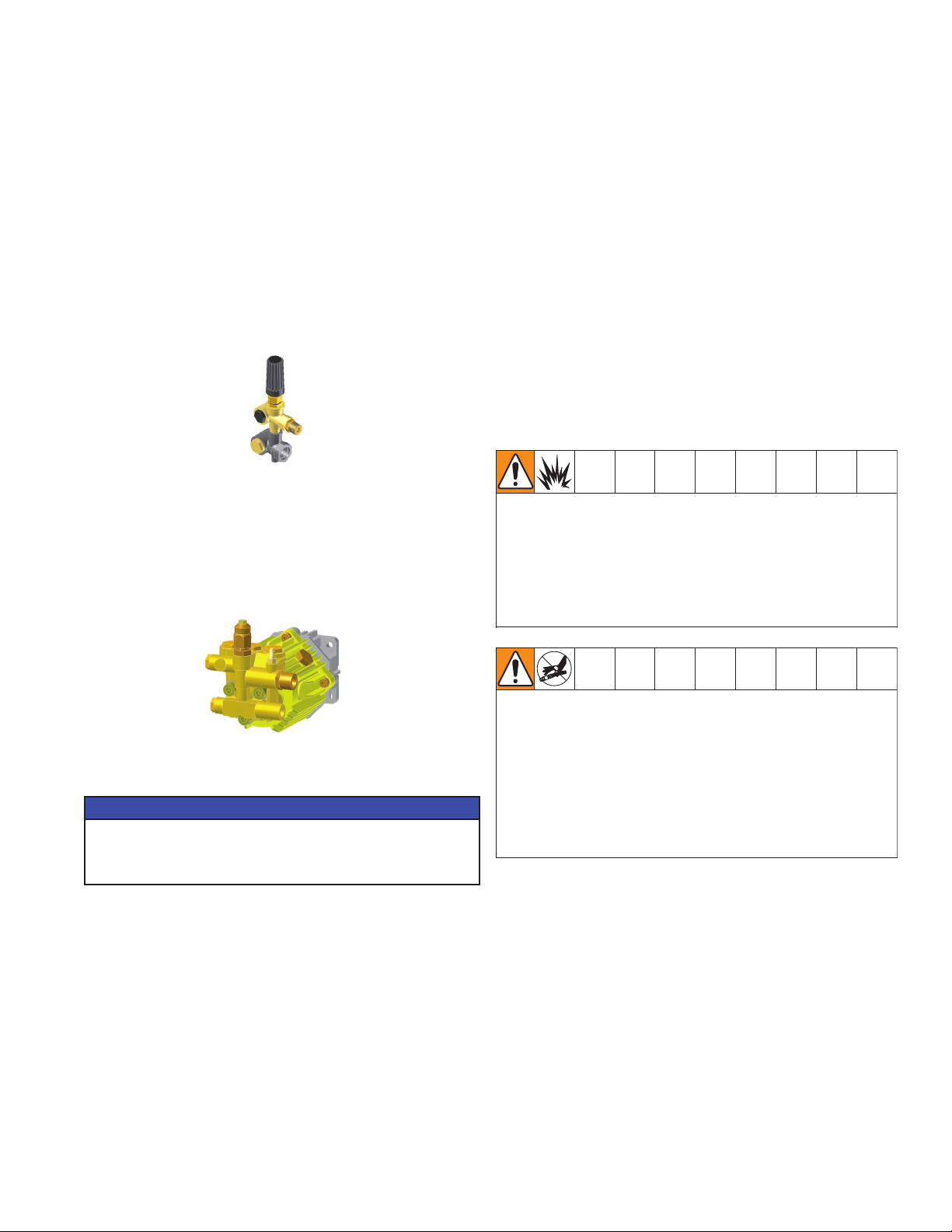

Unloader........................................................................ 11
Thermal Relief Valve ...................................................... 11
Pre-Start Inspection Procedures................................... 11
Operating Instructions ................................................ 12
Priming The Pump......................................................... 12
Start-Up......................................................................... 13
Cleaning With Detergents.............................................. 14
Shutdown ...................................................................... 14
Storage & Maintenance
Instructions .................................................................. 15
Engine............................................................................ 15
Pump ............................................................................. 15
Nozzles.......................................................................... 15
Quick Couplers.............................................................. 15
Belt Tension Adjustment (4043BD Only) ....................... 15
Winterizing..................................................................... 16
Troubleshooting........................................................... 17
Pump Service: 2525 Model
Pressure Washers........................................................ 18
For Outlet Valves ........................................................... 18
For Inlet Valves .............................................................. 18
Servicing Plungers Or Internal Bearings ....................... 18
THIS SPARK IGNITION SYSTEM COMPLIES WITH
CANADIAN ICES-002.
CE SYSTÈME D’ALLUMAGE PAR ÈTINCELLE EST
CONFORME À LA NORME NMB-002 DU CANADA.
Servicing V-Packings..................................................... 18

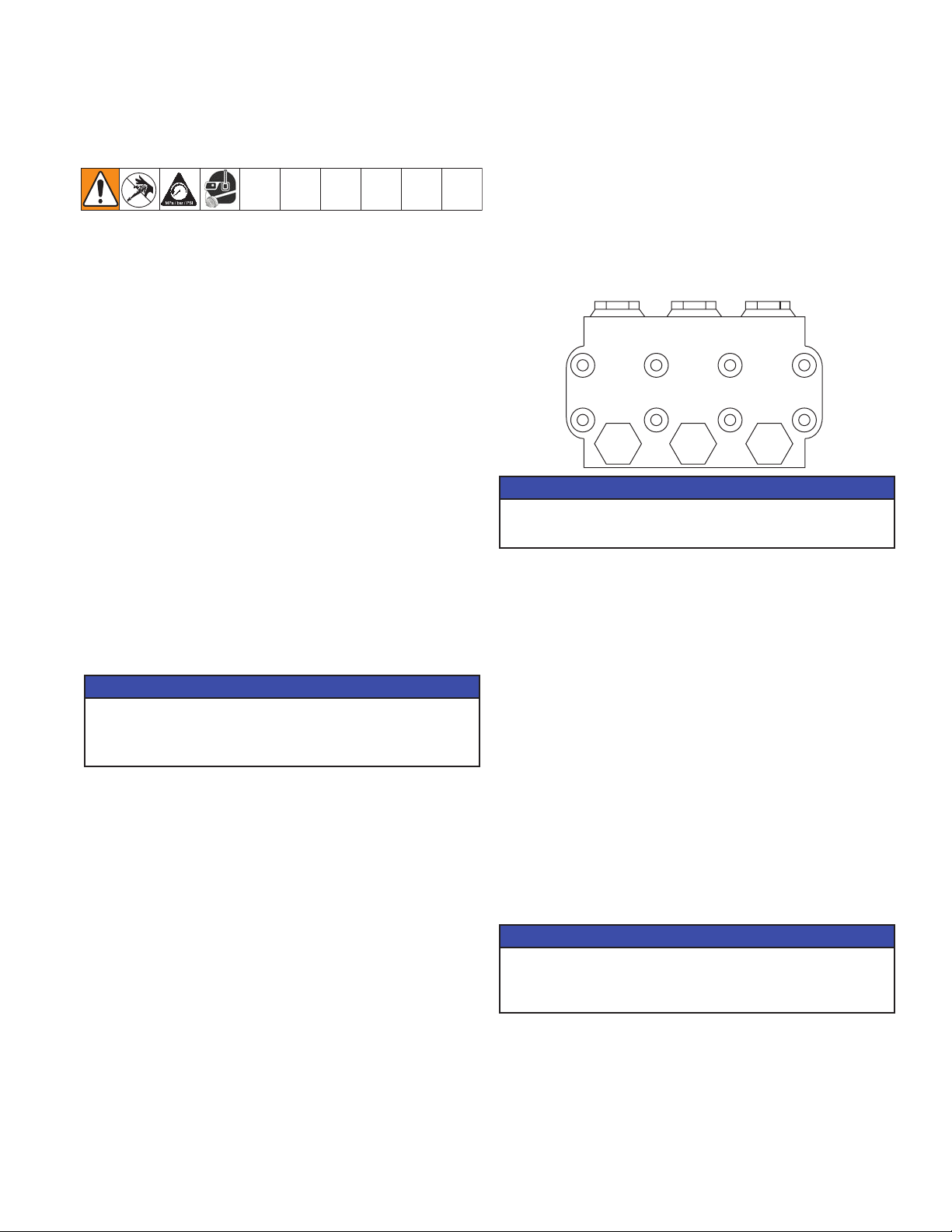

Pump Service: 2730 Model
Pressure Washers........................................................ 19
Valves ............................................................................ 19
Pumping Section........................................................... 19
Servicing Plungers......................................................... 19
Servicing V-Packings..................................................... 19
Pump Service: 3030 And 3540 Model
Pressure Washers........................................................ 20
Valves ........................................................................... 20
Pumping Section........................................................... 20
Servicing Plungers......................................................... 20
Servicing V-Packings..................................................... 20
Pump Service: 4043 Model
Pressure Washers........................................................ 21
Valves ........................................................................... 21
Pumping Section........................................................... 21
Servicing Plungers......................................................... 21
Servicing V-Packings..................................................... 21
Pressure Washer - Parts ............................................. 22
262316- Model 2525DD ................................................ 22
Pump Assembly - Parts - Series A............................. 24
24E735 (For Use With Model 2525DD) ......................... 24
Pump Assembly - Parts- Series B.............................. 26
24R713 (For Use With Model 2525DD) ......................... 26
Pressure Washer - Parts ............................................. 28
262318- Model 2730DD ................................................ 28
Pump Assembly - Parts .............................................. 30
244749 (For Use With Model 2730DD).......................... 30
Pressure Washer - Parts ............................................. 32
262320- Model 3030DD ................................................ 32
262322- Model 3540DD ................................................ 32
Pump Assembly - Parts .............................................. 34
24E753 (For Use With Model 3030DD) ......................... 34
24E750 (For Use With Model 3540DD) ......................... 34
Pressure Washer - Parts ............................................. 36
262326- Model 4043BD ................................................ 36
Pump Assembly - Parts .............................................. 38
803508 (For Use With Model 4043BD).......................... 38
Notes ............................................................................ 40
Technical Data ............................................................. 41
Graco Standard Warranty ........................................... 42

3
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-spe-
cic risks. When these symbols appear in the body of this manual, refer back to these Warnings. Product-
specic hazard symbols and warnings not covered in this section may appear throughout the body of this
manual where applicable.
IMPORTANT USER INFORMATION
The engine exhaust from this product contains chemicals known to the State of California to cause cancer,
birth defects or other reproductive harm.
This product contains one or more chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
The following is required by California State law, Section 4442 of the California Public Resources Code.
Other states may have similar laws. Federal laws apply on federal lands.
• A spark arrester must be added to the mufer of this engine if it is to be used on any forest covered,
brush covered or grass covered unimproved land. The arrester must be maintained in effective working
order by the operator.
• See your engine or equipment dealer for spark arrester mufer options.
SPRAY PRECAUTIONS
Risk of injection or severe cutting injury. If an accident does occur and the spray appears to have pen-
etrated the skin, seek emergency medical care. Do not treat as a simple cut. If you are using cleaning
agents, be prepared to tell a physician exactly what kind.
• Keep clear of nozzle.
• Do not direct discharge stream at persons or pets.
• Only trained operators should use this product. When operating this unit, basic precautions should
always be observed.
• Keep away from the spray. Because of the high pressure and velocity of the spray, uids can penetrate
the skin, causing serious injury.
• Never point the gun at yourself or anyone else. Never put your hand, ngers or body directly over the
spray nozzle. Always keep operating area clear of all persons. Use extreme caution when operating
near children.
Always wear protective goggles when operating the unit to shield the eyes from ying debris and deter-
gents. Other protective equipment such as rubber suits, gloves and respirators are advisable, especially
when using cleaning detergents. Use extreme caution when operating near children.
• Stay alert-watch what you are doing. Do not operate the unit when fatigued or under the inuence of
alcohol or drugs.
• Never squeeze the trigger unless securely braced. The thrust from the water traveling through the
nozzle may be powerful enough to cause the operator to lose balance if unprepared. Do not overreach
or stand on unstable support. Wet surfaces can be slippery, wear protective foot gear and keep good
footing and balance at all times. Never trigger the gun while on a ladder or roof.
• Caution should be used when directing spray toward fragile materials such as glass. Shattering could
result in serious injury.
• Always hold on rmly to the gun/wand assembly when starting and operating the unit. Failure to do so
can cause the wand to fall and whip dangerously. Never operate the gun with the trigger wired in the
open position. To prevent accidental discharge, the trigger gun should be securely locked when not in
use.
WARNING

4
• Do not direct spray on or into electrical installations of any kind! This includes electrical outlets, light
bulbs, fuse boxes, transformers, etc. Severe electrical shock may occur.
• Even after you shut off the unit, there is high pressure water left in the pump, hose and gun until you
release it by triggering the gun. Before removing the spray nozzle or servicing the unit, always shut off
the unit and trigger the gun to release trapped pressure.
FIRE & VENTILATION PRECAUTIONS
• This unit was designed for outdoor use only. Never operate this unit in an enclosed area. Always make
certain there is adequate air (oxygen) for combustion as well as ventilation to prevent the presence of
poisonous carbon monoxide gases. Beware of poorly ventilated areas or exhaust fans which can cause
inadequate combustion or engine overheating.
• Never operate this unit in the presence of ammable vapors or combustible dust, gases or other com-
bustible materials. (A spark may cause an explosion or re.) When servicing this machine, be especial-
ly careful to properly dispose of any ammable materials. Do not spray ammable liquids.
• Do not smoke while lling engine fuel tank
• Never ll the engine fuel tank while the unit is running or hot. Allow the engine to cool two minutes
before refueling.
• Do not refuel indoors or in a poorly ventilated area.
• Always refuel slowly to avoid the possibility of spilled fuel which may cause a risk of re.
• Do not operate the unit if gasoline is spilled. Wipe unit clean and move the unit away from the spill.
Avoid creating any ignition until the gasoline has evaporated.
• Do not store the unit near an open ame or any equipment such as a stove, furnace, water heater, etc.,
which utilizes a pilot light or devices which can create a spark.
CARBON MONOXIDE HAZARD
Exhaust contains poisonous carbon monoxide, which is colorless and odorless. Breathing carbon monox-
ide can cause death.
• Do not operate in an enclosed area.
DETERGENT CLEANING PRECAUTIONS
• Do not use solvents or highly corrosive detergents or acid type cleaners with this pressure washer.
• Know your detergent. Be prepared to tell a physician exactly what you are using in the event of an
emergency. Read the Material Safety Data Sheet (MSDS) provided with your detergent and all deter-
gent labels. Follow all appropriate instructions regarding preparation use, safety and transportation.
Keep all detergents out of the reach of children.
• Do not use this pressure washer to dispense hazardous detergents.
• Do not alter the detergent injection feature in any manner not prescribed in this manual. Use only genu-
ine replacement parts for necessary repairs.
BURN HAZARD
Equipment surfaces and uid that’s heated can become very hot during operation. To avoid severe burns:
• Do not touch hot uid or equipment.
WARNING

5
MISCELLANEOUS SAFETY PRECAUTIONS
Never allow children or adolescents to operate this unit.
Read and follow all handling, operations, maintenance and safety instructions listed in this manual and the
engine operator’s manual that accompanies this unit, and provide such information to anyone who will be
operating this unit.
In freezing temperatures, the unit must always be warm enough to ensure there is no ice formation in the
pump. Do not start this unit if it has been transported in an open or under heated vehicle without rst al-
lowing the pump to thaw.
When connecting the water inlet to the water supply mains, local regulations of your water company must
be observed. In some areas the unit must not be connected directly to the public drinking water supply.
This is to ensure that there is no feedback of the detergents into the water supply. (Direct connection is
permitted if a back ow preventer is installed.)
Do not allow any part of your body or the high pressure hose to make contact with the mufer. Avoid
dragging the hose over an abrasive surface such as cement. This causes wear and eventual rupturing.
High pressure hoses should be inspected daily for signs of wear. If evidence of failure exists, promptly re-
place all suspect hoses to prevent the possibility of injury from the high pressure spray. If a hose or tting
is leaking , never place your hand directly on the leak.
Do not operate the unit without all protective covers in place.
Never run the unit with the governor disconnected or operate at excessive speeds.
To reduce the risk of injury, maintain a safe distance for persons while operating this unit. Close supervi-
sion is necessary when operating the unit near children.
Do not leave pressurized unit unattended. Shut off the unit and release trapped pressure before leaving.
Do not move the unit by pulling on the hose.
ADJUSTMENT PRECAUTIONS
• Never alter or modify the equipment, be sure any accessory items and system components being used
will withstand the pressure developed. Use only genuine parts for repair of your pressure washer. Fail-
ure to do so can cause hazardous operating conditions and will void warranty.
• Never make adjustments to the machinery while it is connected to the engine without rst removing the
ignition cable from spark plug. Turning the machinery over by hand during adjustment or cleaning might
start the engine and machinery with it, causing serious injury to the operator.
• Know how to stop the pressure washer and bleed pressures quickly. Be thoroughly familiar with con-
trols.
• Before servicing the unit; turn the unit off, relieve the water pressure, and allow the unit to cool down.
Do not make repairs while unit is running. Service in a clean, dry, at area. Block the wheels to prevent
the unit from moving.
• Follow the maintenance instructions specied in this manual.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating area
of the equipment to help protect you from serious injury, including eye injury, hearing loss, inhalation of
toxic fumes, and burns. This equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the detergent manufacturer.
WARNING

6
Component Identication – Direct Drive Models
Item Description
1. Detergent Strainer
2. Detergent Hose
3. Water Inlet
4. Water Inlet Quick Connect Adapter
5. Water Outlet
6. Decal - Warning/Caution/Operation
7. Oil Sight Glass
8. Pump
9. Adjustable Unloader Knob
10. Decal - Caution: Risk Of Fire
11. Decal - Warning: Risk Of Burns
12. Engine
13. Pressure Gauge
14. Thermal Relief Valve
15. High Pressure Discharge Hose
16. Gun Assembly
17. Decal - Warning: Risk Of Injection
18. Quick Connect Nozzle

7
Component Identication – Belt Driven Models
Item Description
1. Decal - Warning: Risk Of Burns
2. Engine
3. Decal - Caution: Risk Of Fire
4. Oil Sight Glass
5. Decal - Warning/Caution
6. Beltguard
7. Decal - Operations (E/S/F)
8. Pressure Gauge
9. Pump
10. Adjustable Unloader Knob
11. Thermal Relief Valve
12. Water Outlet
13. Water Inlet
14. Water Inlet Quick Connect Adapter
15. Battery Box
16. Detergent Strainer
17. Detergent Hose
18. High Pressure Discharge Hose
19. Gun Assembly
20. Decal - Warning: Risk Of Injection
21. Quick Connect Nozzle

8
INSTALLATION & PREPARATION
INSTRUCTIONS
Attire
Proper attire is essential to your safety. It is advised to
utilize whatever means necessary to protect eyes, ears,
and skin. Additional safety attire (such as respiratory
mask) may be required when using detergent cleaning
agents with this washer.
Setup
This unit should only be placed on a level surface to en-
sure proper lubrication for the engine and water pump
while operating.
Do not use unit in an area:
• with insufcient ventilation.
• where there is evidence of oil or gas leaks.
• where ammable gas vapors may be present.
Be certain to block the wheels to prevent the unit from
moving while operating.
Do not allow the unit to be exposed to rain, snow or
freezing temperatures. If any part of the unit becomes
frozen, excessive pressure may build up in the unit
which could cause it to burst resulting in possible seri-
ous injury to the operator or bystanders.
Before initial use, ensure the oil cap/dipstick is inserted
into the pump. Because of varying shipping require-
ments, the pump may need to be shipped with an oil
travel plug instead of the dipstick in the pump. If your
pump has been shipped with an oil travel plug, you
will need to remove it and replace the plug with the oil
dipstick provided with the unit.
Once properly installed, check the oil sight glass on the
pump crankcase. Be certain the oil level is in the center
of the sight glass before each use. If the level appears
to be low, add pump oil and ll only to the center of the
oil sight glass. (Refer to the parts listing for the correct
pump oil) do not overll!

9
INSTALLATION & PREPARATION
INSTRUCTIONS
Engine Fuel Tank
Review “Fire & Ventilation Precautions” pg. 4, before
fueling.
Locate the Safety Decals on your unit and heed their
warnings.
A minimum of 86 octane fuel is recommended for use
with this unit. Do not mix oil with gasoline.
Purchase fuel in quantities that may be used within 30
days. Use of clean, fresh lead free gasoline is recom-
mended. Leaded gasoline may be used if lead-free is
unavailable. Do not use gasoline containing methanol
or alcohol.
Check the engine oil level before starting the engine.
(See engine manual.)
Fill the fuel tank according to accompanying engine
manual instructions.
Occasional carburetor and choke adjustments will be
necessary for the engine. Refer to the engine manual
supplied with this unit for proper adjustment proce-
dures.
Review the engine manual accompanying this pressure
washer for correct engine start-up and maintenance
procedures.
Nozzle Review
Various nozzles may be quick-connected into the end
of the wand to change the spray pattern or use the
detergent feature. When using Quick Connects (Q.C.),
be certain the connection is securely locked. If not,
the high pressure water may shoot the nozzle from the
wand, causing severe injury or serious damage.
To determine spray fan, refer to the actual number
stamped on the nozzle. The rst two digits indicate the
spray fan in degrees, i.e.; 0=0°, 15=15°, 25=25°, 40 =
40°, 65=detergent/low pressure, rotoblast nozzle.
The 0° nozzle (RED): This is a blasting nozzle. It deliv-
ers a very concentrated stream of water. Be cautious
when using the straight narrow stream. It is not recom-
mended for use on painted or wood surfaces, or items
attached with adhesive backings. Uses: Removing
weeds from sidewalk cracks, stubborn stains from con-
crete, masonry, aluminum and steel, caked mud from
equipment, and cleaning lawn mower undersides.
The 15° nozzle (YELLOW): This is a chiseling nozzle.
The spray should be directed at a 45° angle to the
surface and used like a scraper to remove paint, grease
and dirt. Uses: Surface preparation (removing mildew
stains and paint chips).
The 25° nozzle (GREEN): This is a ushing nozzle.
This pattern is best suited for ushing dirt, mud, and
grime. Uses: Wet sweeping leaves from walks, curbs
and driveways, cleaning stable oors, washing swim-
ming pool bottoms, degreasing engines.
The 40° nozzle (WHITE): This is a wash nozzle. This
wide spray pattern disperses the water pressure over a
large area and is recommended for moderate washing.
Uses: Washing down aluminum siding, cleaning win-
dows, washing vehicles, spraying sidewalks, driveways
and patios. (not available for Model 2525)
The 65° nozzle (BLACK): This is a low pressure de-
tergent application nozzle. This broad spray pattern
distributes solution over vast areas under low pressure.
Uses: Detergent application, misting or rinsing.
The Rotoblast nozzle: Rotating nozzles increase your
cleaning power and decrease your cleaning time.
They offer 0° spray impact with 25° coverage. Nozzles
include lter with quick connect and offer heavy-duty
components for long life and reliability. Uses: Sidewalks,
driveways, track vehicles, muddy areas, old peeling
paints and concrete surfaces.


10
INSTALLATION & PREPARATION
INSTRUCTIONS
Nozzle Connection
Be certain the trigger gun is locked in the “OFF” posi-
tion.
The nozzle assembly should be disconnected from
the gun/wand assembly at this time by retracting the
locking ring on the quick-connect tting to remove the
nozzle.
Water Supply
Select a water supply hose which is a quality grade of
garden hose measuring at least 3/4” ID and no longer
than 50 feet.
Check the water inlet strainer to ensure it is clean and
free of any obstructions. Periodic cleaning of the water
strainer will help prevent pump problems.
NOTICE
As a strainer becomes obstructed, it restricts proper
ow of water to the pump. This can result in cavita-
tions which will cause premature failure of pump
packings.
1. Using a screw driver, remove the screen from the water
inlet.
2. Clean or replace if necessary.
Connect the hoses.
1. Connect one end of the water supply hose to the water
inlet of the unit.
2. Connect the other end of the hose to your pressurized
water supply.
Note: Do not use a non-pressurized water supply (i.e.
from a pond or well) with this unit.
3. Connect the high pressure discharge hose to the water
outlet of the unit.
4. Securely connect the other end of the hose to the
gun assembly. (A wrench may be required on some
models.)
5. Connect the wand assembly to the gun/hose assembly.
Follow the incoming water requirements listed below:
1. Water pressure must be a minimum of 25 pounds per
square inch (PSI) and a maximum of 125 PSI. (A typical
outdoor faucet will generally supply this PSI if turned
completely “ON”.)
2. Incoming GPM must be approximately one gallon more
than the outgoing GPM stated on the pressure washer
nameplate. (You can check GPM by timing how long
it takes to ll a 5 gallon container.)
NOTICE
Incoming water temperature must not exceed 125°F
for Model 2525, and 145°F for other models. Exces-
sive pump damage may result if the water tempera-
ture exceeds this acceptable level.
NOTICE
Damage to the equipment could occur. Never allow
the unit to operate without the incoming water line
attached and the water supply completely turned on.
