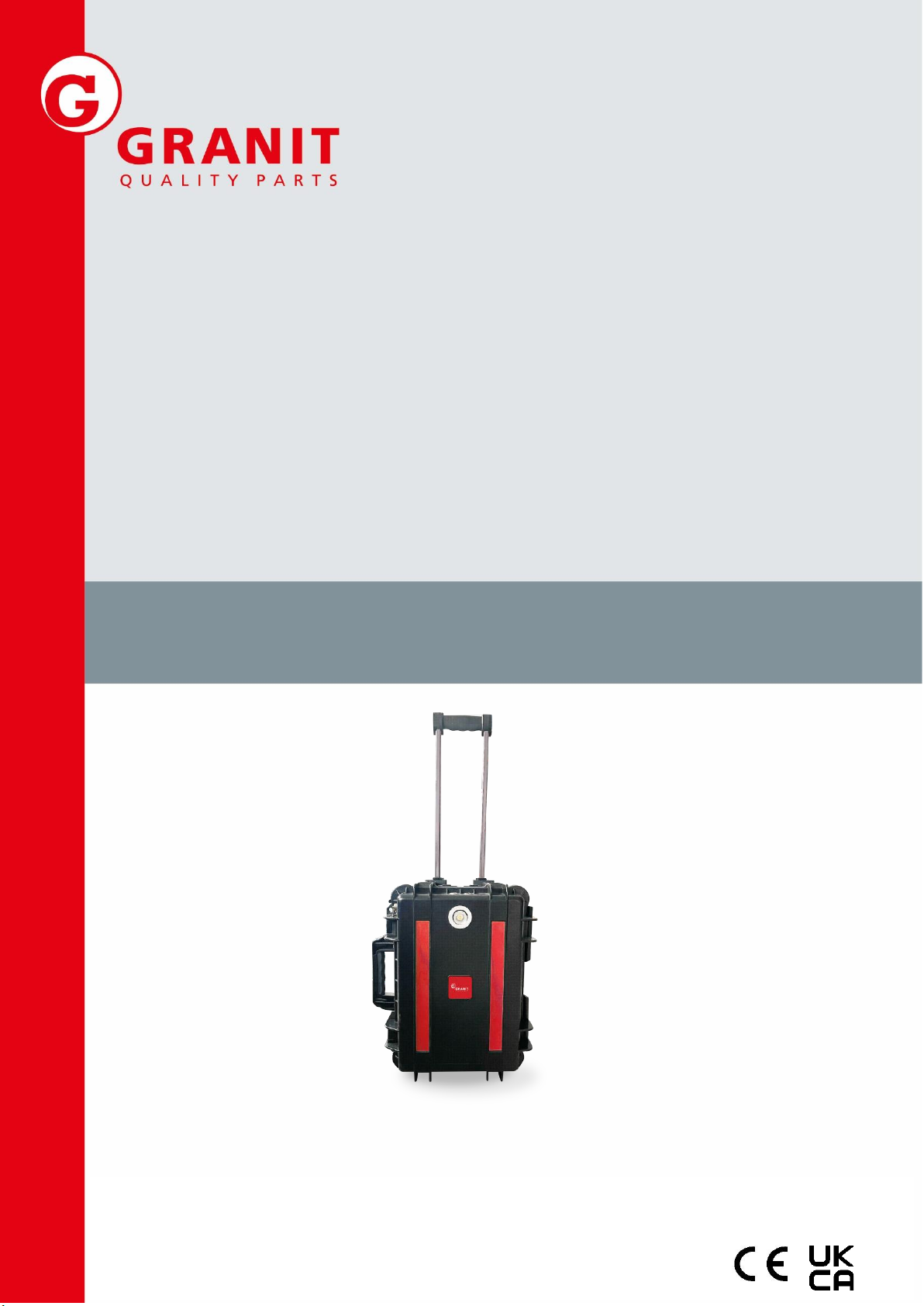

Granit POWERBAG 12048300 User manual

Operating Instructions
Portable Power Station
12048300
These operating instructions must be read thoroughly before use and followed. These operating instructions must
be retained for future reference.
Translate of the original operating instructions

Operating Instructions
12048300
2
Table of contents
About these operating instructions and symbol descriptions...................................... 3
Safety and accident prevention rules ..................................................................... 3
2.1 General safety instructions ............................................................................. 3
2.2 Device-specific warnings and safety instructions ............................................... 3
Performance specifications ................................................................................... 5
3.1 Intended use ................................................................................................ 5
Operating Instructions ......................................................................................... 7
4.1 Start/Stop the operation ................................................................................ 7
4.1.1 AC power output (230V) ............................................................................. 7
4.1.2 DC Output 5V (1A or 2.1A).......................................................................... 8
4.1.3 DC Output 12V .......................................................................................... 9
4.2 LED Light ....................................................................................................10
4.3 Operation Cautions.......................................................................................10
Charging the POWERBAG ....................................................................................11
5.1 Battery Charger ...........................................................................................11
5.2 Features of the Battery charger......................................................................12
5.3 How to operate the battery charger ................................................................12
Technical Parameters ..........................................................................................15
6.1 POWERBAG Technical Parameters ..................................................................15
6.2 Reference Load Time ....................................................................................15
Troubleshooting .................................................................................................16
Transportation and Storage .................................................................................16
8.1 Maintenance for long term storage of the product ............................................16
Temperature limitations ......................................................................................16
EU-Declaration of Conformity...............................................................................17
UKCA Declaration of Conformity ...........................................................................18
Disposal ............................................................................................................19
Warranty...........................................................................................................19
Addresses .........................................................................................................19
Legal Notice.......................................................................................................19

Operating Instructions
12048300
3
About these operating instructions and symbol
descriptions
Incorrect operation can lead to serious injury or death.
Incorrect operation or negligence may result in personal injury,
damage to the equipment or faulty measurements.
Instructions and tips for operation.
Numbers in illustrations (1, 2, 3 ...) refer to the corresponding numbers in brackets
(1), (2), (3) ... in the text next to the item numbers in the tables.
Instructions for which the order must be followed are numbered (1, 2, 3, ...).
Lists are marked with bullet points (●, ●, ...).
Safety and accident prevention rules
2.1 General safety instructions
These operating instructions were prepared so that you can work safely with the
equipment.
Read these Operating Instructions thoroughly before use. Pay particular attention to the
safety instructions.
Keep all supplied documents with the equipment for future reference if required. Keep
the purchase receipt for any warranty claims.
If you lend or sell the equipment, supply all documentation with it.
Observe the operating and maintenance instructions found in this manual.
Defective equipment must be repaired promptly in order to minimize the extent of
damage and avoid endangering the safety of the equipment.
The system components may only be used and operated under the conditions laid down
in these operating instructions.
Retrofits, changes or modifications to the equipment are strictly prohibited. They require
consultation with and written approval by the manufacturer.
Failure to observe the following safety instructions can lead to serious accidents with
severe material damage and personal injury!
2.2 Device-specific warnings and safety instructions
Follow this Manuel strictly and operate this unit only in a dry and ventilated
environment
Avoid operating this product in an environment where are volatile combustible
liquids, corrosive liquids or conductive fiber dust. The equipment contains lithium
batteries and must be kept away from fire.
Avoid exposure to dust, rain, and direct sunlight.

Operating Instructions
12048300
4
To avoid overheating please make sure that the ventilation of the product is free
from any objects and that the product is placed with sufficient space around the fan.
Please clean this product regularly with dry cleaning rags to avoid dust on the
surface. Do not wash the equipment with water or any other liquids.
Please do not place the heavy things or liquid containers on the top of this products
Do not turn off this product immediately after use as long the fans are still working.
Turn of the product only after the fans stopped working.
Children and people with disabilities and impairments may only operate the device
under supervision.
Please use only the dedicated charger to charge the equipment.
Do not keep the product unattended during operating or charging.
Do not immerse the housing of the device in water or mud.
To reduce the risk of dropping the device or toppling it over, resulting in injury,
make sure that it is safely positioned, including during operation when equipment is
connected. Ensure easy access to the connected equipment as well as sufficient
cable length. Connected cables must not be under tension.
Inspect the device and all accessories for damage before each use. Do not use the
device if it is damaged or defective.
Do not use the device to operate life-sustaining medical equipment.
After a fall, always check the device for damage. Do not continue to use the device if
there is any visible damage.
Avoid dropping the device to protect it from damage. Ensure that the device is
securely placed on a non-slip surface and that it does not protrude over the edge of
the surface. Secure the device against falling.
Never use the product after any physical damage or if the housing of the product is
broken.
If you detect smoke or fire immediately stop to use the product and use a fire
extinguisher as first aid. Call the fire brigade and inform them that lithium-ion
batteries are on fire.
In case of improper use, the batteries inside the device may leak. In case of contact,
rinse off with water. If the liquid gets into the eyes, seek medical attention. Contact
with battery acid can cause skin irritation or burns.
Fumes may be released if the device is damaged or used improperly. Exposure to
these fumes may cause irritation of the respiratory tract. In this case, ventilate the
room and consult a doctor in case of discomfort.

Operating Instructions
12048300
5
Never try to make any repair work on your own. This can lead to injuries by
electrical shock, toxic fumes or fire.
Never open the product or try to make any repair work inside the product. If the
product does not work check pt. 7 of this Manual or contact the supplier or
manufacturer or an authorized service partner. Opening the equipment or making
any repair work must to be done by authorized professional electricians.
It is recommended to charge the product under no load.
Any direct contact with the electrical outlets can cause electrical shocks and can lead
to injuries.
Performance specifications
3.1 Intended use
The POWERBAG is a portable power station based on Lithium-Ion battery technology.
The POWERBAG has a large battery capacity in a small size and light weight.
It integrates a high-power inverter and is still easy to carry.
The durable housing is designed for inside and outside applications and is providing you a
simple solution of a flexible and mobile power supply.
Features:
-intelligent automatic dynamic charge and discharge management platform Multi-
function display, showing battery voltage, battery power and voltage output.
-Small size, large capacity, light weight, easy to carry.
-SPWM: sine wave pulse width modulation, high precision low ripple voltage output.
-Pure Sine wave AC 110/220V voltage output. Suitable power supply for most
electrical equipment.
-High capacity, long life and high efficiency lithium-ion battery technology.
-AC (110V/220V) and DC (DC5V/12V) output at the same time.
-Overcharge and over-discharge protection.
-power monitoring and low battery warning function.
-Safety functions for: short circuit, over load, battery over charge, over temperature
and other protection functions with the intended purpose.
-LED light.

Operating Instructions
12048300
6
Button Instructions
POWERBAG Button Instruction
1. Battery Voltage & Level 8. Charging Input
2. AC Output Voltage 9. Power Switch
3. AC Output Socket
4. LED Light Switch
5. LED Light
6. DC 5V Output
7. DC 12V Output

Operating Instructions
12048300
7
Operating Instructions

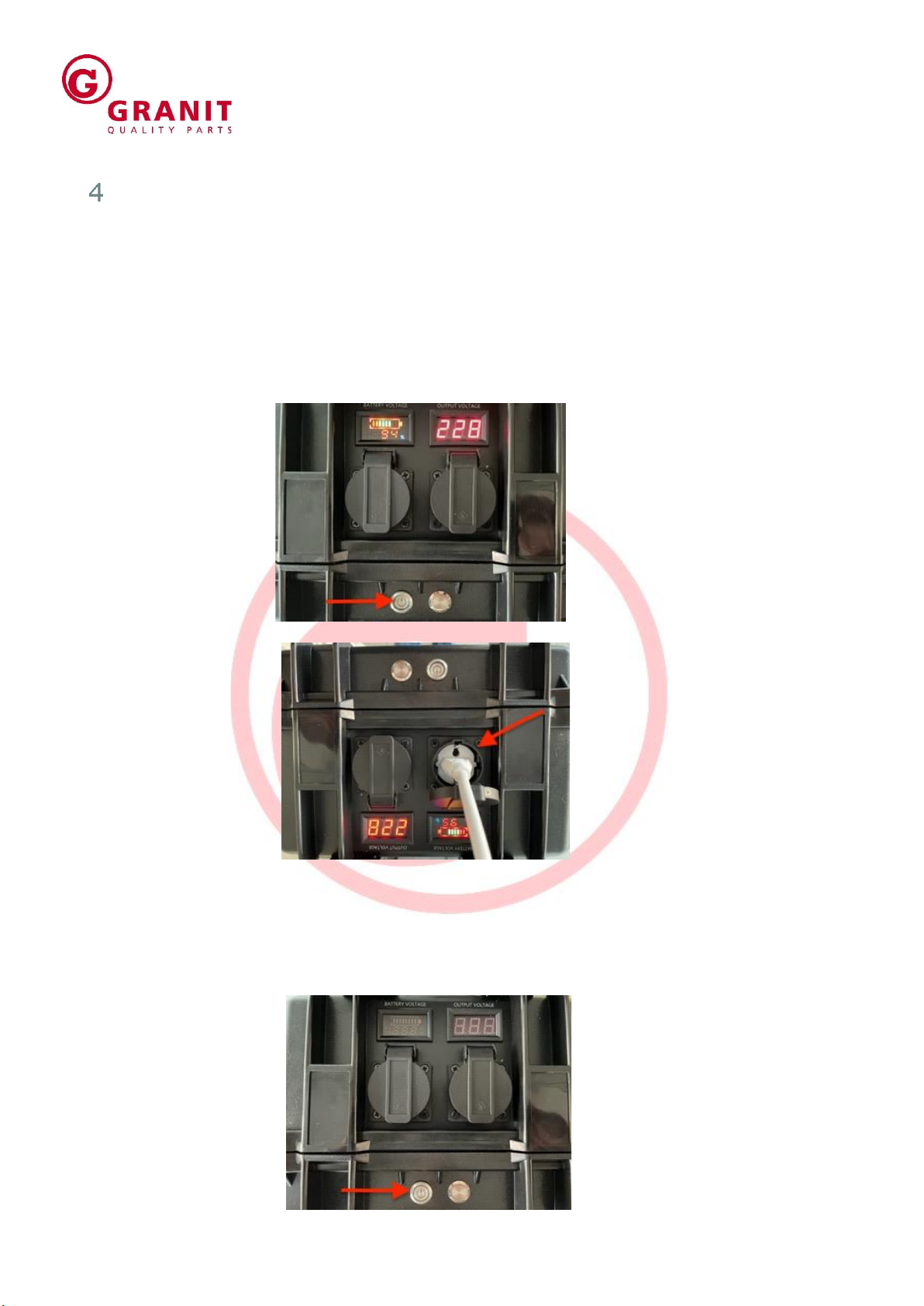

4.1 Start/Stop the operation
4.1.1 AC power output (230V)
1. Check the power of the load to ensure that the rated power of the load does not exceed
the rated power of the POWERBAG (1800W/1500W).
2. Press the Power Switch (9) to start the portable power station. After AC output voltage is
stable, plug the load into the socket.
3. The multi-function display can indicate battery voltage, battery level and AC output
voltage
4. After use disconnect the load and press the Power Switch (9) after the fans stopped.

Operating Instructions
12048300
8
4.1.2 DC Output 5V (1A or 2.1A)
1. Press the Power Switch (9) to start the portable power station. Check the DC power rating
on your device
2. Connect the device on the 5V 1A or 2.1A USB connector
3. After use press the Power Switch (9) to switch the POWERBAG off.

Operating Instructions
12048300
9
4.1.3 DC Output 12V
1. Press the Power Switch (9) to start the portable power station. Check the DC power rating
on your device.
2. Connect the device to the 12V DC output

Operating Instructions
12048300
10
4.2 LED Light
To turn on the LED light press the Power Switch (9) and thereafter the LED Light Switch
(4).
To turn the LED light off press again the LED Light Switch (4)
If the POWERBAG is not switched off after using the system continues to
consume energy and will discharge the battery!
4.3 Operation Cautions
When the battery voltage is too low, the temperature is too high or the load exceeds the
power rate, the buzzer will alarm and stops the power supply.
The alarm signal reminds the user to recharge (if battery voltage is too low)
or cool off (if the temperature is too high) or disconnect the load (if the load
exceeds the rated power of the POWERBAG 3000.
At start up the power consumption of some electrical devices is greater than
its nominal power, such as inductive load device. In this case the load will
exceed the maximum power of the System and it will switch off!
When the voltage of the battery drops below 45V reduce the load to less than 1/3 of the rated
load (< 600 Watt/ < 500 < Watt) to prevent the battery from being discharged too quickly
and to protect the power station.

Operating Instructions
12048300
11
Charging the POWERBAG

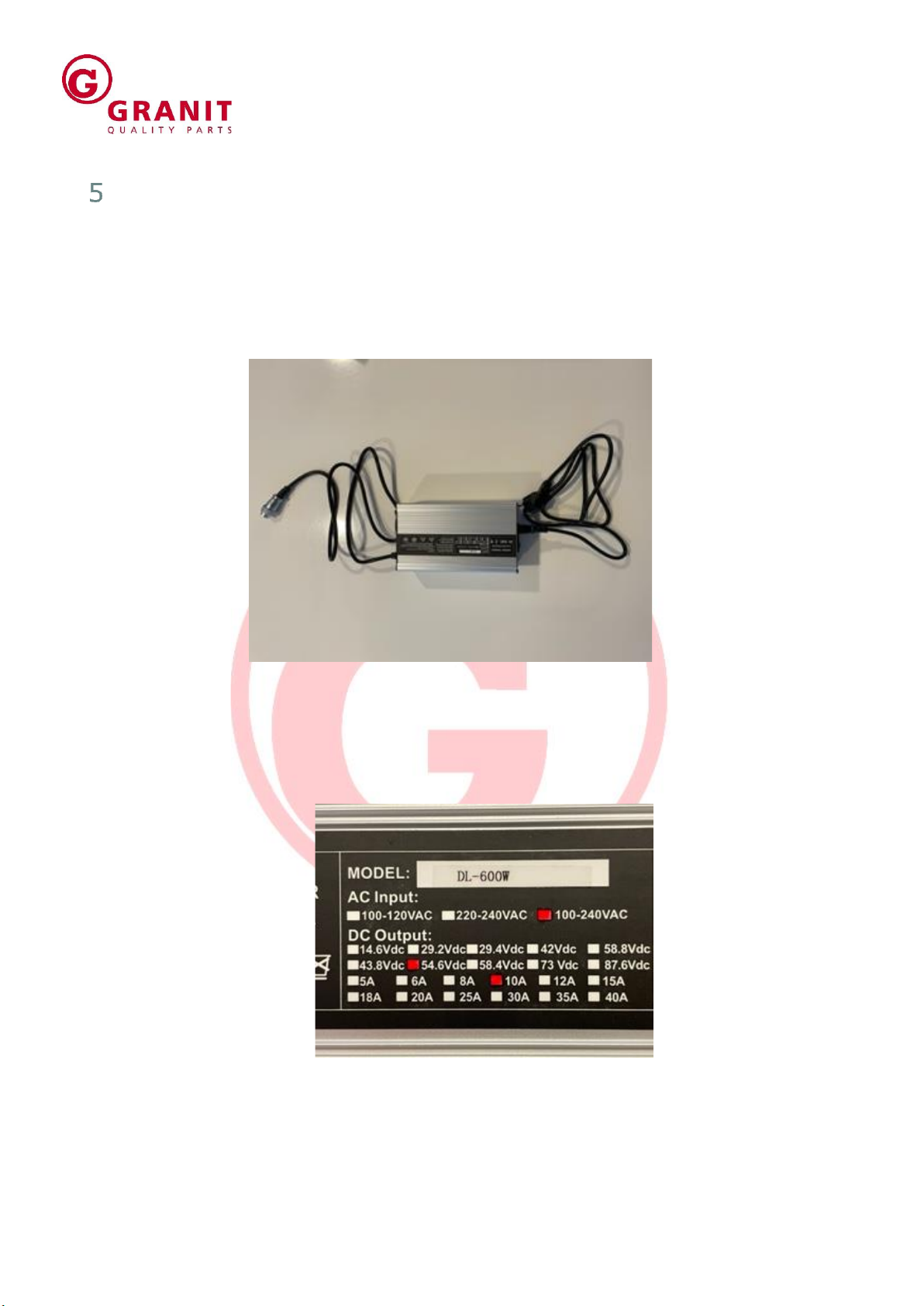

5.1 Battery Charger
The AC/DC Battery charger Model: DL-600W is part of the POWERBAG supply and must be
used to charge the battery from the grid.
The technical configuration of the battery charger Model: DL- 600W is for
AC Input: 100-240 VAC
DC Output: 54.6 VDC
Current: 10A

Operating Instructions
12048300
12
5.2 Features of the Battery charger
1. advanced high frequency switching mode power supply technology
2. DC output isolated from AC input
3. Single Input 110VAC and 230 VAC or universal Input 110/230VAC, 50-60Hz
4. Charging parameters are insensitive to AC input line voltage variations
5. automatic battery charging: CC,CV
6. 2 LEDs: LED 1 Red (power on), LED 2 Red/green (charging/full)
7. Short circuit, over voltage, over temperature, reverse polarity protection
8. Efficiency > 85%
9. Forced ventilation with fans
10. 100% full load burn-in test.
5.3 How to operate the battery charger
1. Check if the local grid supply complies to the battery chargers input voltage 110V or
230.
2. Connect the charger to the AC socket
3. Turn the charger switch from OFF position (O) to ON position (I)

Operating Instructions
12048300
13
4. LED1 Red confirms AC power on and LED2 Green confirms charger connects well
5. Connect the battery charger plug to the Charging Input (8) of the POWERBAG and fix
the connection with the screw shell.

Operating Instructions
12048300
14
6. LED2 Red confirms charger is charging, LED2 Green confirms battery fully charged
(NPositive +; LNegative -; Brown +ve terminal, Blue -ve terminal)
The battery charger DL-600W has a relay for reverse polarity
protection. The charger does not have output voltage and current
when charger AC power is on but disconnected from the battery. It will
have voltage and current output as soon it is connected to the battery.
Never use another battery charger for charging the Powerbag 3000
then the recommended charger DL-600W with the required AC input
Voltage and DC output Voltage and current. Using another charger can
damage the Powerbag 3000 and can cause a fire hazard.

Operating Instructions
12048300
15
Technical Parameters
6.1 POWERBAG Technical Parameters
Model No
12048300
Battery Type
Lithium Battery (NMC)
AC Current Output
8.2A/13.6A
AC Voltage Output
220V/110V
Power Output
1800W/1500W
Peak Power
3600W/3000W
Waveform Output
Pure Sine Wave
Frequency
50Hz/60Hz
DC Voltage Output
DC 5V/2A DC12V/3A
Protection
functions
Overcharge, Overdischarge, Overload, Overtemperature, Short circuit
protection, Undervoltage etc.
Charging
parameters
54.6V/10A
Battery capacity
48V/60Ah
Charging time
6h
Cycle life
>3000 times
Appearance size
458*348*205(mm)
Weight
25.0Kg
6.2 Reference Load Time
Equipment
Power(W)
Usage Time(h)
LED Light
5
600
LCD TV
30
100
Laptop
45
60
Household fans
75
40
Audio
150
20
Refrigerator
150
20
Desktop computer
200
15
Washing machine
300
9
Vacuum cleaner
500
6
Air Conditioning (1P)
800
3
Microwave oven
1200
2.5
Electric kettle
1500
2
Electric heating
1800
1.5
Electric water heater
2200
-
The above load test usage time is for reference only. The actual usage time
will vary depending on the technical parameters of the costumers.

Operating Instructions
12048300
16
Troubleshooting
No AC Output:
Check multi-function LCD screen displays if the battery symbol is displayed or not.
If not, please charge the battery for 1 –2 minutes to activate the battery.
No DC Output:
Turn on POWER switch (9)
Long time alarm:
Overheat or low battery level will lead to long time alarm. If the temperature is too
high, please stop using the power station and let it cool down before the next use. If
the battery voltage is too low, please recharge the power station timely.
LED Light (5) not lighting:
Turn on the power switch again and then switch on the light.
No display on the screen after turning the Power Switch (9) on:
The battery voltage is too low and is under the protection level. Please turn off the
Power Switch (9) and then plug in the charger. Please use the battery when it is fully
charged.
Transportation and Storage
Do not transport or store the product upside down. Avoid heavy vibrations and shocks.
The storage place should be free of flammable, explosive, toxic and other chemicals
or corrosive gases. Avoid strong mechanical vibration, shock and strong
electromagnetic fields as well as direct sunlight exposure.
8.1 Maintenance for long term storage of the product
Store the product in a dry and temperate area with about 80% of the maximum
rated battery capacity and disconnect all charging equipment and consumers.
Recharge the product every 2 month
Temperature limitations
Temperature for recharging: 0°- 50° Celsius degrees
Working temperature (discharging): - 20 - 50°Celsius degrees
Avoid high temperature differences in short term, which leads to
condensation
Power output and battery capacity may variate according to the
temperature

Operating Instructions
12048300
17
EU-Declaration of Conformity
The manufacturer,
Wilhelm Fricke SE
Zum Kreuzkamp 7
DE-27404 Heeslingen
hereby declares on its sole responsibility that the powerbag
Type/series identification: 12048300
conforms to the provisions of
2014/35/EU Low Voltage Directive
The product was developed in accordance with the following standards:
EN 62368-1:2014+A11:2017
Authorised person for documentation:
Mr. Eike Viebrock
Wilhelm Fricke SE
Zum Kreuzkamp 7
DE-27404 Heeslingen
The serial number and model year are shown on the type plate of the equipment.
Heeslingen, 11/04/2023
Translation of the original Conformity Declaration
________________________________________
Holger Wachholtz, Board

Operating Instructions
12048300
18
UKCA Declaration of Conformity
The manufacturer,
Wilhelm Fricke SE
Zum Kreuzkamp 7
DE-27404 Heeslingen
declares under their sole responsibility that the mobile powerbag
Type/series identification: 12048300
conforms to the provisions of
Electrical Equipment (Safety) Regulations 2016
The product was developed in accordance with the following standards:
EN 62368-1:2014+A11:2017
Authorised person for documentation:
Mr Eike Viebrock
Wilhelm Fricke SE
Zum Kreuzkamp 7
DE-27404 Heeslingen
The serial number and model year are shown on the type plate of the equipment.
Heeslingen, 11.04.2023
Original UKCA Declaration of Conformity
__________________________________
Holger Wachholtz, board

Operating Instructions
12048300
19
Disposal
On a product, the symbol of a dustbin with a cross through it means that the product cannot
be disposed of with the household waste. In the case of batteries or rechargeable
batteries/accumulators containing mercury (Hg), cadmium (Cd) or lead (Pb), the chemical
symbol is shown under the crossed-out dustbin symbol. The end user has an obligation to
return the batteries or rechargeable batteries/accumulators. These can be handed in free of
charge to the retailer or at any collection point. Electronic devices and rechargeable
batteries/accumulators should be handed in separately to each other. Make sure that the
batteries or accumulators are in a discharged state or, if necessary, protected against short
circuits. When purchasing products, try to ensure that the products have a long service life.
to minimise the amount of waste produced. If your electric or electronic device contains
personal data, you are responsible for deleting it.
Incorrect disposal of batteries or rechargeable batteries/accumulators can, because of the
substances they contain, harm the environment and human health. Special care should be
taken when handling lithium batteries. Products should be checked to see if they can be re-
used, for example, by being repaired, before you dispose of them.
!!! Always observe local disposal regulations !!!
Warranty
The warranty terms of Wilhelm Fricke SE, as can be found in the sales documents and the
current version of the Terms and Conditions, apply.
In case of questions, please contact the company’s customer service line.
Addresses
Sales/customer service/ Tel.: [phone]
Spare parts sales: Fax: [phone]
Postal and shipping address: Wilhelm Fricke SE
Zum Kreuzkamp 7
DE-27404 Heeslingen
Legal Notice
Translation of the original operating instructions for 12048300
Manufacturer: Wilhelm Fricke SE - DE-27404 Heeslingen
1nd edition, April 2023
©2023 Wilhelm Fricke SE
Reproduction in whole or in part is prohibited without the written consent of the Wilhelm Fricke SE company.
All product names mentioned in these Operating Instructions are trademarks of their respective companies.
Printed on paper made from chlorine and acid-free bleached pulp.
