Granit PHR 40 User manual

Operating Instructions
Baling Press PHR 40
11675195
These operating instructions must be read thoroughly before use and followed carefully. Please retain
these operating instructions for future reference.
Translation of the original operating instructions

Operating Instructions for Baling Press 11675195
2
Table of Contents
About these operating instructions and description of symbols .................................. 3
Safety and accident prevention regulations ............................................................ 3
General safety instructions............................................................................. 3
Safety instructions for operation ..................................................................... 4
Precautionary measures................................................................................. 5
Specifications ..................................................................................................... 5
Intended use ................................................................................................ 5
Technical data .............................................................................................. 5
Electrical component ..................................................................................... 6
Hydraulic components ................................................................................... 7
Start-up: ..................................................................................................... 9
Power transmission, control ......................................................................... 11
Compliance with safety requirements ............................................................ 14
Maintenance and repair ..................................................................................... 15
General maintenance instructions ................................................................. 15
Storage and transportation ................................................................................ 19
EU declaration of conformity............................................................................... 20
Disposal........................................................................................................... 21
Warranty ......................................................................................................... 21
Addresses ........................................................................................................ 21
Legal notice...................................................................................................... 21

Operating Instructions for Baling Press 11675195
3
About these operating instructions and description of
symbols
Incorrect operation may lead to serious injury or death.
Incorrect operation or carelessness may result in injury, damage to the
equipment or incorrect measurements.
Advice and tips for operation.
Numbers in illustrations (1, 2, 3 etc.) refer to the corresponding numbers in brackets
((1), (2), (3) etc.) in the text next to item numbers in the tables.
Instructions where the order must be followed are numbered (1, 2, 3 etc.).
Lists are marked with bullet points (●, etc.).
Safety and accident prevention regulations
General safety instructions
These operating instructions have been produced to enable you to work safely with
the equipment.
Anyone not familiar with these instructions should not operate the equipment.
Read these operating instructions carefully before use. Pay particular attention to the
safety instructions.
These operating instructions are intended for people with basic technical
understanding of the use of equipment such as that described here.
Anyone with no experience of such equipment should first seek assistance from an
experienced user.
Keep all documents supplied with the equipment for future reference. Keep the proof
of purchase for any warranty claims.
If you lend or sell the equipment, all documentation should be supplied with it.
Observe the operating and maintenance instructions found in this manual.
Children should be supervised to ensure that they do not play with the equipment.
Mechanical maintenance should be performed at the prescribed intervals and to the
prescribed extent.
Following maintenance work, all dismantled protective devices must be properly
reinstalled. The protective devices and their protective functions should be inspected
by a competent person before using the machine.
Defective equipment must be repaired promptly in order to minimise the extent of
damage and avoid endangering the safety of the equipment.

Operating Instructions for Baling Press 11675195
4
The baling press should only be used and operated under the conditions laid down in
these operating instructions.
Retrofits, changes or modifications to the equipment are strictly prohibited. They
require consultation with and written approval by the manufacturer.
If, during operation, (residual) hazards and risks become apparent which are not
described in this manual, the operator is obliged to report this to the manufacturer.
Never exceed the permitted lifting weight.
Only position and use the baling press on firm level ground.
Never operate or reach under the raised punch if you have not taken additional
precautionary measures to permanently prevent a downward movement.
Do not change the setting of the safety valve. Before each use the check the
functionality and look for possible leaks.
If the system is pressurised, air escaping suddenly can cause serious injury.
Before working on the pneumatic system, it must be depressurised.
Disconnect compressed air connection only in an unpressurised state.
If the compressed air line is defective, replace it immediately. Escaping air can cause
serious injury.
Do not bend lines sharply, pull them over sharp edges or pinch them.
Safety instructions for operation
Place this press only on a stable, flat, dry and non-slip surface which can bear the
load. Keep the ground clean, tidy and free from unnecessary materials. Ensure there
is sufficient lighting.
Check the press before each start. NEVER operate the equipment if it is bent, broken,
cracked, leaking or otherwise damaged. Also, do not use the equipment if it can be
assumed to have damaged components or if it has been subjected to impact.
Ensure that all bolts and nuts are tightened.
Ensure that the workpiece is centred and secured.
Always keep hands and feet away from the worktop.
Do NOT use the baling press to compress springs or other articles that could break
free and pose a hazard. Never stand in front of the press when under load, and never
leave it unattended.
Do NOT operate the press if you are tired or have consumed alcohol, drugs or other
intoxicants.
Inexperienced persons must not operate the press.
Do not make any changes to the press.
NEVER use brake fluid or other unsuitable liquids. Avoid mixing different types of oil
when filling with hydraulic oil. Only use high-quality oil for the baling press.

Operating Instructions for Baling Press 11675195
5
Never expose the press to rain or bad weather.
If the press needs to be repaired and/or certain components need to be replaced,
have the work done by an authorised technician and use only spare parts supplied by
the distributor.
Precautionary measures
To prevent injuries caused by sharp parts, always wear protective gloves when
assembling, maintaining and cleaning the equipment.
While working with and on the equipment, wear protective work shoes, safety goggles
and body-covering, snug-fitting clothing.
Before every use, always perform a visual and a functional check of the equipment to
identify damage and worn parts, and arrange for them to be repaired by trained staff
before use.
Lubricate all moving parts regularly to ensure smooth running.
The press must only be used by persons over 16 years old. As an exception, use by a
teenager is permitted when used under the supervision of an instructor in the course
of training to gain skill.
Specifications
Intended use
The PHR60 baling press is suitable for semi-automatic compacting of bales with dimensions
of 480 x 800 x 480 mm (height x width x depth), which may weigh about 20 –60 kg
depending on the material (paper, rags, plastic). This reduces storage and transport costs.
Description of the operation site:
The equipment can be set up in a location protected from environmental influences on a
partially covered surface. Due to its interchangeability, it can be moved easily. No special fire
protection requirements are required for the operation site. General fire safety regulations
apply. The baling press must only be operated by a trained person who has full responsibility
for the operation.
Technical data
Depth of the press: 640 mm
Height of the press: 1980 mm
Width of the press: 940 mm
Bale dimensions 480 x 800 x 400 mm
Bale weight: approx. 20 - 60 kg depending on the material to be baled
Manual binding: number of binding sites 4
Pressing force: 250 KN (25 MPa)
Baling time: 28 sec.
Nominal voltage: 2P+Z 230V/50Hz
Baling pressure:: 160 bar
Grid usage: 2.3 kW
Weight 350kg

Operating Instructions for Baling Press 11675195
6

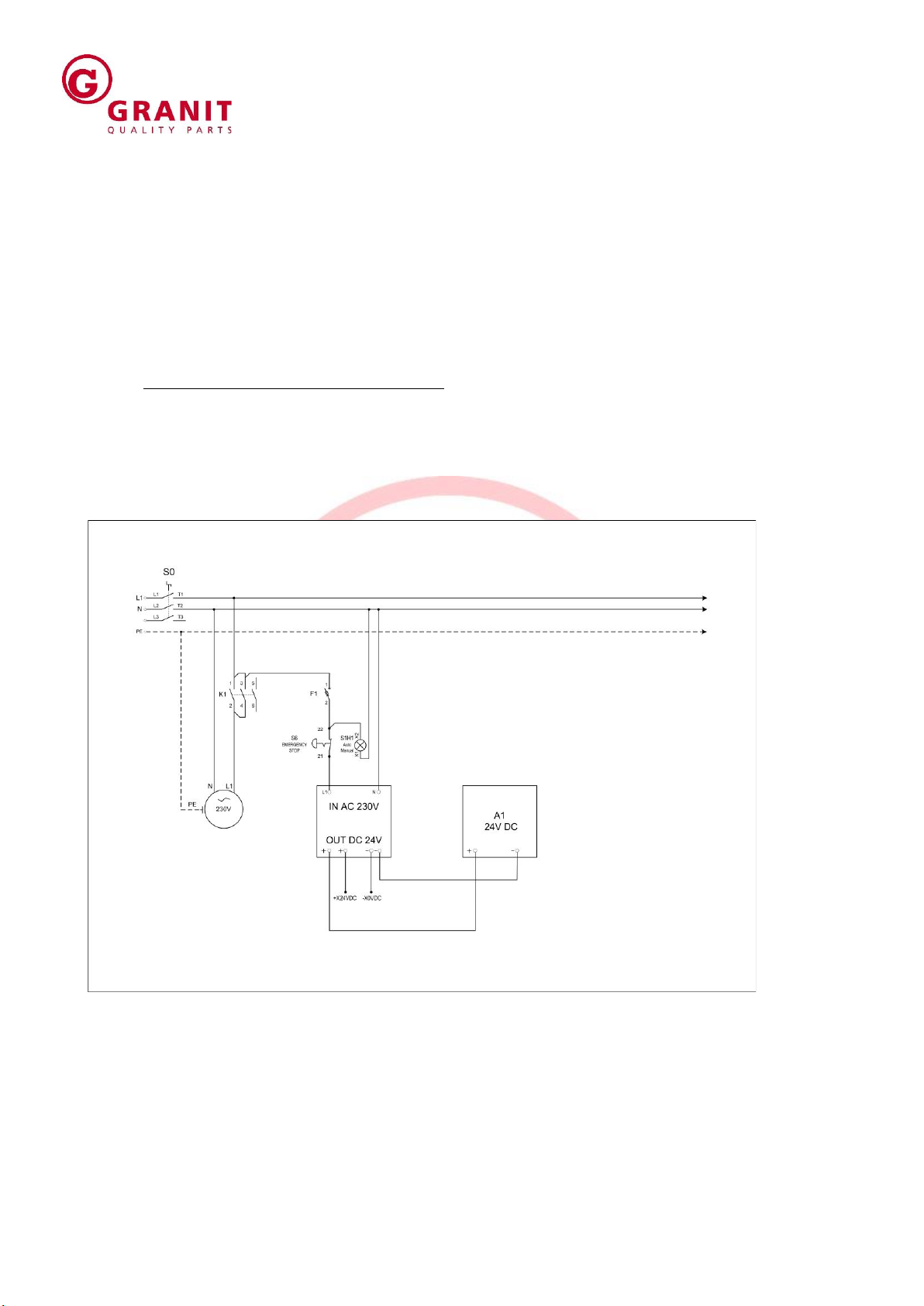

Electrical component
General information:
Nominal voltage: 230V
Rated power: 2.2 kW
Control voltage: 24 V, DC/AC
Electric motor type: SLg 112M-4PC
Speed: 1435 rpm cos φ: 0.84
Rated current consumption: 11.3 A
Protection rating: IP-55
Motor overload circuit breaker: PZKMO-16
Motor protection: DILOOAM-G (24VDC)

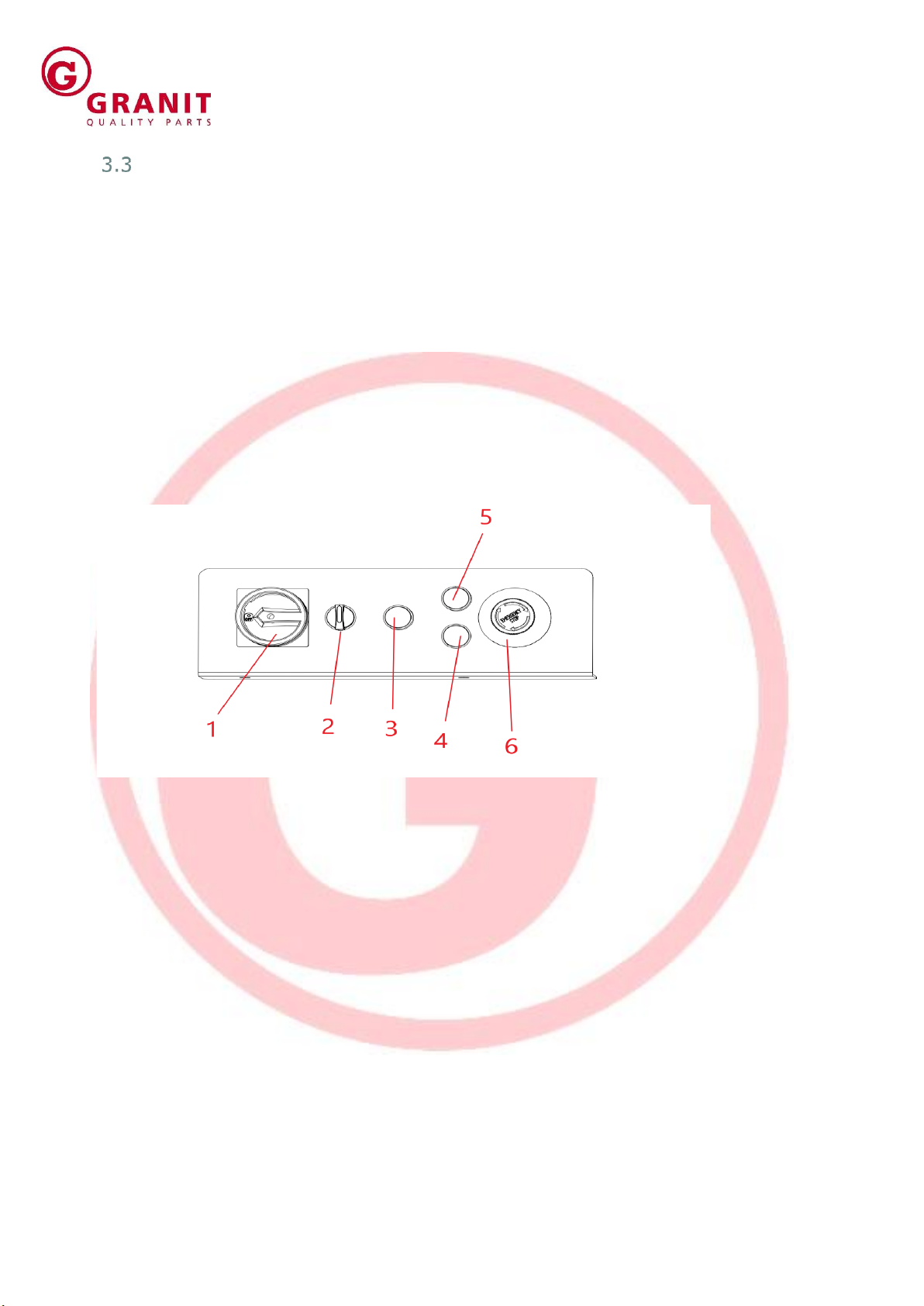

Elements for switching the control unit on and off:
1. Main switch
2. Automatic/manual mode changeover switch
3. Baling press ready indicator.
4. Up button
5. Down button
6. Emergency stop switch

Operating Instructions for Baling Press 11675195
7
Hydraulic components
Name Quantity
Quantity: 1x
Electric valve: 1x
Hydraulic cylinder: 1x
Pressure controller 1x
Hydraulic cylinder: 1x
Design:
The description and illustrations may differ from the original depending on the series. The
series may vary due to the continuous product improvement reserved by the manufacturer.
The PHR60 baling press consists of a bale chamber and a head section fitted above the
chamber
The pressing head is a stable welded construction made of S235 and S355 steel to which
hydraulic cylinders with casing, hydraulic drive and control box with electric control are
connected.
The purpose of the proximity limit switch adaptor initiator is to adjust the position of
the pressing components and prevent an interruption of the baling process. This switch also
acts as a safety switch to prevent intentional or unintentional opening of the chamber door
during operation.
The equipment is mounted on transport bags for transport by forklift or pallet truck
Door locks are attached to the chamber door
Description of Figure 2
1. Cylinder/hydraulic cylinder
2. Bracket for attaching the belt/cord for the bale strap
3. Baling press main frame
4. Cooling the hydraulic system
5. Upper door locking lever
6. Transport bags
7. Control panel
8. Safety switch
9. Locking bolts of the lower door latches
10. Upper door latch
11. Cylinder rod
12. Pressing head
13. Proximity limit switch to end the baling process
14. Upper door
15. Securing the lower door
16. Belt/cable guide channel for tying the bale
17. Ratchet wheel

Operating Instructions for Baling Press 11675195
8
FIGURE 1: BALING PRESS

Operating Instructions for Baling Press 11675195
9
Assembly and operation
Installation advice
General use:
The PHR60 baling press is suitable for semi-automatic compacting of bales with dimensions
of 600 x 800 x 400 mm (height x width x depth), which may weigh about 20 –60 kg
depending on the material (paper, rags, plastic). This reduces storage and transport costs.
Description of the operation site:
The equipment can be set up in a location protected from environmental influences on a
partially covered surface. Due to its interchangeability, it can be moved easily.
No special fire protection requirements are required for the operation site.
General fire safety regulations apply. The baling press must only be
operated by a trained person who has full responsibility for the operation.
Installation instructions
The machine should be placed in a location protected from environmental influences
such as rain, snow and frost.
A clearance of at least 1–1.5 m should be left around the machine to ensure free
movement (the so-called safety zone).
A minimum clearance of 1000 mm (1 metre) is required in front of the feeding area
for safe feeding and bale removal.
The power source for operation must be an installed 2P+Z 16A socket, equipped with
a C16 overcurrent circuit breaker and a residual current circuit breaker with a
nominal differential current ≤30mA.
The equipment is connected to the power source using a power cable terminated
with a 2P+Z connector.
Start-up:
1. Reposition the belt or binding cable before loading the chamber.
2. Set the main switch to position 1 ON. (Item 1, Fig. 1)
3. Open the upper chamber door - make sure that the lower door is closed and locked.
4. Stop loading when the level reaches the edge of the chamber side wall (edge under
the piston, pressure hammer).
5. Close and lock the upper door.
6. Select operating mode - AUTO (automatic cycle)
7. In AUTO mode: Press the “AUTO/DOWN” button. The automatic pressing cycle starts
- the press automatically crushes the loaded material and returns to the upper
position, which is indicated by the “UP” button lighting up.
8. Open the upper door and begin with further loading and pressing. Repeat the
procedure until the “READY” indicator light comes on or the operator is sure that the
machine is ready.

Operating Instructions for Baling Press 11675195
10
9. When the “READY” light is illuminated, turn off the pump and go into manual mode
to unload the finished bale. Open and close the loading door again and use the UP
button to raise the pressure plate so that the binding belt can be pulled through.
10. After pulling in the binding belt for the bale, close the door and press the bale again
with the “AUTO/DOWN” button.
11. When the bale has been pressed again, open the upper and lower loading doors and
tie the bale.
Description of bale removal:
1. Pull the bale ejection lever on the pressure plate towards you and turn it 180° to the
right.
2. Stand on the left side of the baling press and press the yellow “PACKAGE OUT”
buttons with both hands. The pressure plate moves up and activates the bale
ejection mechanism. The finished bale falls out of the baling press. Continue lifting
until the upper position of the pressure plate is reached (the “UP” button lights up).
3. Return the bale ejection lever to its left-hand position by turning it 180° clockwise.
The bale ejection mechanism is lowered and baling is now possible again.
Except for the operator, no one should be within a radius of 2 m around the
machine, as a falling bale can cause an accident!!!
Additional advice.
- The baling process can only be started in the upper head position.
- If the automatic baling process needs to be interrupted, press the “EMERGENCY STOP”
button.
- Even in the event of abnormal operation or in order to avoid an accident, the machine
can be stopped by pressing the “EMERGENCY STOP” button (safety switch, Fig.1, item 6).
Binding and ejection of bales:
When the machine reaches the desired bale size, an electronic sensor or proximity switch
stops the machine’s working cycle. The green indicator light indicates that the bale is ready.
The bale piston remains on the pressurised bale. Lift it after the baling process.
The discharge process may only be carried out by the operator!
No one other than the machine operator must be within 2 m of the machine,
as falling bales can cause accidents!
The electronic control system, determined by the discharge mechanism, is
designed so that the appliance only works upwards when the door is open.
It is possible to restart the system in accordance with the switch-on
sequence when the door is closed.

Operating Instructions for Baling Press 11675195
11
Power transmission, control
Description of Figure 5
1. OIL TANK
2. PUMP
3. COUPLING
4. ELECTRIC MOTOR
5. CYLINDER
6. 4-WAY DISTRIBUTOR TYPE H
7. 2-WAY DISTRIBUTOR
8. SAFETY VALVE
9. OIL FILTER

Operating Instructions for Baling Press 11675195
12
DESCRIPTION OF ELECTRICAL EQUIPMENT:
1. Double chamber baling press mains voltage:
3/PE/400/230 V 50 Hz.
2. The connection cable can be connected to a socket with short-circuit protection and a
main switch suitable for the plug 32A-6h/220/380~.
3. The press may only be connected to the 32A-6h/220/380~ plug used. Any changes
are PROHIBITED!
4. Built-in GZ 1M20 type motor protection device based on the values set by the
manufacturer at the start of a dangerous overload:
Disconnects the motor from the mains
5. Touch protection of the baling press: Reset (TN).
Control system diagrams:

Operating Instructions for Baling Press 11675195
13

Operating Instructions for Baling Press 11675195
14
Compliance with safety requirements
1. The rotating parts of the equipment (e.g. motor) are protected from contact,
the main electrical switch is lockable and thus secured against unintentional switch-
on.
2. the baling door closing mechanism switches off when the door is open and prevents
the press from operating.
3. The relevant standard requirements in accordance with: colour, size, labelling, value
of the supplied electrical voltage, operating mechanisms; in the event of a stop due
to the risk of an accident, the press is equipped with a special button labelled “STOP”,
the dimensions, colour and position of which comply with the following standards:
PN, DIN, EN.
4. The high-pressure hydraulic system is closed and the hydraulic parts are housed in a
casing which can only be removed by use of a tool.
5. Labels comply with the applicable specifications.

Operating Instructions for Baling Press 11675195
15
Maintenance and repair
General maintenance instructions
The equipment may only be operated by the person who has been assigned this
function.
The press may only be operated by those trained by a person designated by the
manufacturer!
The person designated by the manufacturer will receive training on the safe
operation of the press; this training will be confirmed by the signature on the
training log.
Prerequisites for the operator of the press:
current working ability, certified by a company doctor;
knowledge of the safe operation of the equipment.
There are no contraindications for the use of the equipment by women.
Verification of correct functioning:
The press may only be operated by those trained by a person designated by the
manufacturer!
The person designated by the manufacturer will receive training on the safe operation of the
press; this training will be confirmed by the signature on the training log.
The hydraulic system ensures a constant pressure load of 200 bar. In the
event of an overload, the safety valve opens and returns the oil to the oil tank.
The following should also be checked before starting up:
 Whether oil leaks or loose screws are visible.
 Operator space –this person only undertakes a visual assessment without
interfering with the interior of the machine.
 Is the power cable undamaged and connected to the power socket in the baling
press? The pump will thereby be checked for proper operation, because if the phase
is reversed, the pump will run in the opposite direction. There are further checks as
to whether the buttons light up when connected,
 and whether the door locking mechanism is working correctly.
 At the start of work, it is necessary to check that the safety button is working
properly and that the lock is activated when the safety button is pressed.

Operating Instructions for Baling Press 11675195
16
Maintenance:
The following maintenance tasks should be carried out:
Mechanisms:
yearly
half-yearly
quarterly
monthly
weekly
daily
•
- Clean the machine in places accessible to the operator
(OPERATOR)
•
- Clean the area under the bale discharge (OPERATOR)
•
- Clean the guides along which the head moves
(OPERATOR)
•
- Visual inspection of the screws and cotter pins used to
secure the pins which are visible to the operator, without
any need to reach into the baling press (OPERATOR).
•
- Visual check of the welds in the places visible to the
operator.
•
- Apply GREASE STP WT/068/00 technical lubricant or
another common lubricant, except lithium, to the head
position locking and unlocking lever (OPERATOR).
•
Check the screws to which the operator has access for
looseness, and tighten if necessary (OPERATOR)
The operator will receive information on the individual tasks and on the necessary
consumables and aids during practical training in the area of operation and maintenance at
the appropriate time.

Operating Instructions for Baling Press 11675195
17
Hydraulics:
yearly
half-yearly
quarterly
monthly
weekly
daily
•
- Check the hydraulic system (valves, cylinders, hoses, connections
etc.) for proper operation, damage, wear and leaks (SERVICE)
•
- Check the hydraulic cylinders for signs of corrosion and possible
damage to the seals (SERVICE)
•
- Oil change after 2,000 operating hours with heavy dust or after
3,000 operating hours without dust (SERVICE)
•
- Replace the oil filter element (return filter) (during oil change)
(SERVICE)
•
- Check the hydraulic line fasteners, to be tightened if necessary
(SERVICE)
•
- Check whether the Teflon hoses are worn, to be replaced if
necessary (SERVICE)
The operator will receive information on the individual tasks and on the necessary
consumables and aids during practical training in the area of operation and maintenance at
the appropriate time.

Operating Instructions for Baling Press 11675195
18
ELECTRICAL INSTALLATION AND CONTROL:
yearly
half-yearly
quarterly
monthly
weekly
daily
•
Check the cable routing and electrical installation fasteners for
damage (SERVICE)
•
- Check the cable cores in the control cabinet (SERVICE)
•
- Check whether the fuses are correctly seated (SERVICE)
•
- Check the operation of the emergency switches (OPERATOR).
•
- Check the operation of the control and indicator lights (USER)
•
- Check the operation and fastening of the magnetic sensors and
ensure the correct position of the head in relation to the
chambers (OPERATOR).
The operator will receive information on the individual tasks and on the necessary
consumables and aids during practical training in the area of operation and maintenance at
the appropriate time.
The operator must be familiar with and adhere strictly to the machine’s
operating and maintenance instructions and safety instructions. This also
applies to all persons who are responsible for the operation of the machine.

Operating Instructions for Baling Press 11675195
19
Health and safety requirements during maintenance:
During any maintenance work on the machine, it must be physically disconnected from the
mains (by unplugging).
Repairs:
Any repairs to the machine should only be carried out by an authorised person after
disconnection from the mains. Repairs to the operating electronics may only be carried out
by the manufacturer!
Storage and transportation
Transportation:
The equipment must only be transported in an upright position on multi-purpose HGVs.
During transportation, the press must be properly secured by placing it on a pallet and
securing it with at least three tensioning straps. The straps must be fastened in such a way
as to prevent the press from slipping during transportation. If necessary, transporting the
press separately from the dismantled head section is permitted. In this case, the press
should be secured with straps as described above, while the head section should also be
placed on a pallet and secured with straps with hooks attached to the openings of the head
section.
The baling press must only be transported in an upright position!
The equipment may be lifted and moved with a battery-powered forklift
truck, provided that it is secured against slipping and falling!

Operating Instructions for Baling Press 11675195
20
EU declaration of conformity
The distributor,
Wilhelm Fricke SE
Zum Kreuzkamp 7
DE-27404 Heeslingen, Germany
hereby declares on its sole responsibility that the baling press
type/series identification: 11675195
complies with the provisions of the
2006/42/EC Machinery Directive
The product was developed in accordance with the following standards:
EN 12100:2010
Documentation authorised by:
Mr. Eike Viebrock
Wilhelm Fricke SE
Zum Kreuzkamp 7
DE-27404 Heeslingen, Germany
The serial number and model year can be found on the equipment’s type plate.
Heeslingen, 25/12/2020
Translation of the original Declaration of Conformity
________________________________________
Holger Wachholtz, Board of Directors
