Grant Vortex Eco
Utility Floor Standing Condensing Oil Boiler Range
Installation, Servicing & User Instructions
Part No. Doc: 80 Rev 01 October 2008
Grant Vortex Eco Condensing manual 11/11/08 09:17 Page 2

Project3 6/11/08 13:28 Page 1

3
Grant Vortex Eco Utility Oil Boilers
During the combustion process, hydrogen and oxygen
combine to produce heat and water vapour. The water
vapour produced is in the form of superheated steam in
the heat exchanger. This superheated steam contains
sensible heat (available heat) and latent heat (heat
locked up in the flue gas). A conventional boiler
cannot recover any of the latent heat and this energy is
lost to the atmosphere through the flue.
The Grant Vortex condensing boiler contains an extra
heat exchanger which is designed to recover the latent
heat normally lost by a conventional boiler. It does this
by cooling the flue gases to below 90° C, thus
extracting more sensible heat and some of the latent
heat. This is achieved by cooling the flue gases to their
dew point (approximately 55° C).
To ensure maximum efficiency, the boiler return
temperature should be 55° C or less, this will enable
the latent heat to be condensed out of the flue gases.
The boiler will achieve nett thermal efficiencies of
100%.
To achieve maximum performance from the Grant
Vortex boiler, it is recommended that the heating
system is designed so that a temperature differential of
20° C between the flow and return is maintained. The
use of modulating circulating pumps (now widely
available) and effective control systems should be
considered.
The Grant Vortex boiler will however still operate at
extremely high efficiencies even when it is not in
condensing mode and therefore is suitable for fitting to
an existing heating system without alteration to the
radiator sizes. The boiler is capable of a maximum
flow temperature of 75° C.
How a condensing boiler works
1.1 Heating system design considerations
1.2
To achieve the maximum efficiencies possible from
the Grant Vortex boiler, the heating system should be
designed to the following parameters:
Radiators:-
Flow temperature 70° C
Return temperature 50° C
Differential 20° C
Underfloor:-
Flow temperature 50° C
Return temperature 40° C
Differential 10° C
1 Size radiators with a mean water temperature of
60° C.
2 Design system controls with programmable room
thermostats or use weather compensating controls
to maintain return temperatures below 55° C.
The boiler should not be allowed to operate with
return temperatures of less than 40° C when the
system is up to operating temperature.
3 The use of a pipe stat is recommended to control
the return temperature when using weather
compensating controls.
1 - INTRODUCTION

4Grant Vortex Eco Utility Oil Boilers
2 - USER INSTRUCTIONS
Theboilerisfullyautomaticonceswitchedon,providing
centralheating(andalsoheatingyourdomestichotwater
if you have a hot water cylinder fitted).
A 'mains on' neon, see Fig. A, lights when the boiler is
switched on, but does not necessarily indicate the burner
is firing.
If your system includes a programmer, the boiler will
provide hot water and central heating during the
periods set on the programmer.
To gain acces to the controls, pull the front panel
forward at the top to disengage the fixing clips then lift
it up and off the boiler. To replace locate the bottom of
the panel over the fixing tags then push it towards the
boiler to engage the fixing clips.
Fig. A Boiler controls
About your boiler
2.1
Boiler controls (see Fig. A)
2.2
1Ensure that - There is sufficient fuel, of the correct
type, in the supply tank and all fuel supply valves are
open. The water supply is on. The electricity supply
to the boiler is off. The boiler On/Off switch is set to
OFF. The room thermostat (if fitted) is at the desired
setting. The boiler thermostat is set to the required
setting (see Section 2.7).
2 Switch on the electricity supply to the boiler.
3 Set the On/Off switch to ON and, if fitted, the
programmer (CH or HW) to ON.
The boiler will now light automatically.
4 If you have a programmer fitted in your system, refer
to the instructions supplied with the programmer and
set the programmer. Set the HW and CH functions to
TIMED. The boiler will now operate during the 'on'
periods set on the programmer.
Lighting your boiler (see Fig. A)
2.3
Boiler
thermostat
Overheat
thermostat
reset button
(under cover)
On/Off
switch
OVERHEAT
RESET
HEATING
TEMPERATURE
OVERHEAT
RESET
BOILER
OFF
ON
HEATING
TEMPERATURE
ON
BOILER
OFF
Lock-out
button Front panel removed
(pull forward at top, then lift off)
Front panel
fixing clips
Front panel bottom locating tags
GRANT
Mains On
neon

5
Grant Vortex Eco Utility Oil Boilers
For short periods - Set the On/Off to OFF.
To restart, simply set the switch to ON.
For long periods: Set the On/Off switch to OFF and
switch off the electricity supply to the boiler. If
required, the fuel supply valve may be closed and the
water and electricity supplies turned off at the mains.
To restart, refer to the full lighting instructions given
in Section 2.3.
1 Check that the boiler On/Off switch is ON.
2 Check that the programmer (if fitted) is working
and is in an 'on' period.
3 Check that all thermostats are set to the desired
setting and are calling for heat.
4 Check if the burner 'Lock-out' reset button (on the
burner) is lit. If it is, press it to start the burner. If
the burner fails to light and goes to 'Lock-out'
again, check that you have sufficient fuel in the
storage tank and that the fuel supply valve is open.
Check that the fire valve in the oil supply line has not
tripped
5 Ensure that a fuse has not blown or that the
electricity supply has not failed.
6 Check to see if the safety thermostat has operated
(see Section 2.7).
If the burner still fails to light after carrying out these
checks then a fault exists. Switch off the electricity
supply to the boiler and contact your Service engineer.
Grant Vortex boilers only operate on Class C2 Kerosene
to BS 2869:1998.
You should always quote this type of fuel when ordering
from your supplier.
Do not wait until the fuel runs out before you order
some more. Sludge in the bottom of the tank may be
drawn into the fuel lines. If it is possible, switch off the
boiler when the new supply is delivered and leave the
fuel to settle for an hour before restarting the boiler.
2 - USER INSTRUCTIONS
1 Boiler thermostat - This control allows the
temperature of the water leaving the boiler to heat
the radiators and domestic hot water to be adjusted.
Note: If you have a cylinder thermostat on your hot
water cylinder, this will control the temperature of
your domestic hot water. The boiler thermostat
setting must be equal to or above the cylinder
thermostat setting to enable the cylinder thermostat
to control the domestic hot water system.
2 Burner Lock-out reset button - If there is a
burner malfunction, a built-in safety circuit
switches the burner off and the 'Lock-out' reset
button (on the burner) will light. Usually such
malfunctions are short lived and pressing the reset
button will restore normal operation.
If the burner continually goes to 'Lock-out' a fault
exists or the fuel supply is low. If you have sufficient
fuel, you will need to call your Service engineer.
3 Safetythermostat-Yourboilerisfittedwithasafety
overheat thermostat which will automatically switch
off the boiler in the case of a control malfunction
causing overheating.
If your boiler goes off and you try to light it but
nothinghappensandthe'Lock-out'resetbuttononthe
burner is not lit, the overheat thermostat has probably
operated.Theboilerwillnotlightuntilthethermostat
is reset. To reset, unscrew the small plastic cap (see
Fig. A), press the button then replace the cap.
If this condition continually repeats, contact your
Service engineer.
4 Programmer (if fitted) - Refer to the instructions
supplied with the Programmer.
5 Ventilation - Always ensure that the boiler has
adequate ventilation. Any ventilation openings
provided by the Installer must not be obstructed.
Periodically check that they are clear.
Do not attempt to 'box in' the boiler or build a
compartment around it before consulting your
Installer.
Do not place any combustible material around or
on the boiler or flue pipe.
6 Flue terminal - The flue terminal on the outside
wall must not be obstructed or damaged.
In severe conditions check that the terminal does
not become blocked by snow.
Turning off your boiler (see Fig. A)
2.4
Points to check if burner fails to light
2.5
About your fuel
2.6
General notes and care of your system
2.7

6Grant Vortex Eco Utility Oil Boilers
7 Frost protection - Your Installer may have fitted a
frost thermostat. If not, and you are likely to be
away for a short time, leave the boiler on with the
boiler thermostat set at a low setting. For longer
periods the boiler and system should be drained.
Contact your Service engineer for draining and
filling the system.
8 Cleaning and servicing - Lightly wipe over the
case with a damp cloth and a little detergent. Do
not use abrasive pads or cleaners.
You must have your boiler serviced at least once a
year to ensure safe and efficient operation. Contact
your Service engineer for further details.
9 Failure of electricity supply - If the electricity
supply fails, the boiler will not operate. It should
relight automatically when the supply is restored.
If a programmer is fitted it will retain the time
settings for up to 24 hours and will not have to be
reset to the correct time of day when the supply is
restored (the display remains for up to 1 hour, but
will re-appear when the supply is restored).
The boiler requires a 230/240 V ~ 50 Hz supply. It
must be protected by a 5 Amp fuse.
Warning: This appliance must be earthed.
If your boiler is operating on a sealed heating system,
the installer will have pressurised the system and
should have told you (or set it on the pressure gauge)
the system pressure when cold (this is normally
between 0.5 and 1.0 bar, which will increase slightly
when hot). If the pressure (when cold) is below the set
pressure mentioned above, you can re-pressurise the
system. If the system requires frequent re-pressurising,
ask your Installer or Service engineer to check the
heating system for leaks and to check the expansion
vessel air charge.
The boiler or system will be fitted with an automatic air
venttoremove air from thesystem.Any air trapped inthe
radiators should be removed by venting the radiators
using the vent screw at the top of each radiator. Only vent
a radiator if the top is cool and the bottom is hot.
Excessive venting will reduce the system pressure, so
only vent when necessary and check the system pressure
asmentionedabove.Re-pressurisethesystemifnecessary.
2 - USER INSTRUCTIONS
The boiler or system may be fitted with a safety valve
to release excess pressure from the system. If water or
steam is emitted from the end of the safety valve
discharge pipe, switch off the boiler and contact your
Installer or Service engineer.
The expansion vessel air charge must be checked
annually. Failure to maintain an adequate air
charge in the vessel may invalidate the warranty.
To re-pressurise the system by adding water:
1 Only add water to the system when it is cold and
the boiler is off. Do not overfill.
2 Ensure the flexible filling loop (see Fig. B) is
connected and that the shut off valve connecting it
to the boiler is open and the double check valve at
the front is closed.
Avalve is open whentheoperatingleveris in line with
the valve, and closed when it is at right angles to it.
3 Gradually open the double check valve on the front
of the filling loop until water is heard to flow.
When the black needle of the pressure gauge is
between 0.5 and 1 bar, close the valve.
4 Vent each radiator in turn, starting with the lowest
one in the system, to remove air.
5 Continue to fill the system until the pressure gauge
indicates between 0.5 and 1.0 bar. Close the fill
point valve.
6 Repeat steps 4 and 5 as required.
7 Close the valves either side of the filling loop and
disconnect the loop.
Electricity supply
2.8
Sealed central heating system
2.9
Sealed system filling loop arrangement - Fig. B
Central
heating
system
Mains
water
supply
Pressure gauge
Double check valve
Shut off valve
Flexible filling hose

7
Grant Vortex Eco Utility Oil Boilers
22 mm
22 mm
22 mm (only connect plastic pipe)
100 mm
28.5 mbar
10 mbar
28 m
1m
65 to 75° C
111° C ± 3° C
Less than 50° C
230/240 V ~ 50 Hz Fused at 5 Amp
90
4.2
0.85
¼" BSP Male (on end of flexible fuel hose)
Minimum flue draught - 8.7 N/m² (0.035 in wg)
Maximum flue draught - 37 N/m² (0.15 in wg)
2.5 bar
2.5 bar
Boiler technical data
3.1
3- BOILER TECHNICAL INFORMATION
Model
Water content litre
gal
* Weight (dry) kg
lb
Max. heat output kW
(kerosene) Btu/h
Flow connection
Return connection
Min. flow rate (ΔT=10°C) l/h
Min. flow rate (ΔT=20°C) l/h
Condensate connection
Flue diameter (conventional)
Waterside resistance
Flow/Return temp. diff. of 10°C
Flow/Return temp. diff. of 20°C
Maximum static head
Minimum circulating head
Boiler thermostat range
Limit (safety) stat shut off temp
Max. hearth temperature
Electricity supply
Motor power Watts
Starting current Amps
Running current Amps
Oil connection
Conventional flue
Max operating press - sealed sys
Max operating press - open sys
*Weight includes burner but excludes flue.
Vortex Eco Utility
21/26
13
2.9
103
227
25.6
87 350
2 200
1 100
26/35
19
4.2
121
267
34.7
118 400
22 mm
22 mm
2 980
1 490
15/21
13
2.9
103
227
20.7
70 600
22 mm
22 mm
1 780
890

8Grant Vortex Eco Utility Oil Boilers
3 - BOILER TECHNICAL INFORMATION
Note: Grant Vortex Eco boilers are only for use with kerosene.
Grant Vortex Eco oil boilers using Class C2 kerosene
3.3
(kW)
15.1
18.1
20.7
20.7
22.7
25.6
25.6
30.8
34.7
(Btu/h)
51 500
61 750
70 600
70 600
77 500
87 350
87 350
105 100
118 400
Nozzle
0.50/80°EH
0.55/80°EH
0.60/80°EH
0.60/80°EH
0.65/80°EH
0.75/80°EH
0.75/80°EH
0.85/80°EH
1.00/80°EH
Oil
press.
(bar)
7.0
7.5
8.5
8.5
8.5
8.0
8.0
9.1
8.0
Smoke
No.
0 - 1
0 - 1
0 - 1
0 - 1
0 - 1
0 - 1
0 - 1
0 - 1
0 - 1
Fuel flow
rate
(kg/h)
1.29
1.53
1.78
1.78
1.95
2.19
2.19
2.65
2.93
Flue
70 - 75
75 - 80
80 - 85
85 - 90
85 - 90
90 - 95
75 - 80
85 - 90
90 - 95
CO2
(%)
11 - 12
11 - 12
11 - 12
11 - 12
11 - 12
11 - 12
11 - 12
11 - 12
11 - 12
Heat Output
15/21
Riello RDB2.2
21/26
Riello RDB2.2
26/35
Riello RDB2.2
Model and
burner type
Sealed system data - Utility models with sealed system kit
3.2
Heating system pressure (cold)
Operating pressure of pressure relief valve
Expansion vessel size
Max heating system volume (including boiler)*
Cold water mains connection (for filling loop)
Pressure relief valve discharge connection
Maximum 1.0 bar, Minimum 0.5 bar
2.5 bar
12 litres (pre-charged at 1 bar)
128 litres (approximately)
15 mm compression (provided)
15 mm compression (provided)
* Based on vessel charge and system cold fill pressure of 0.5 bar
SEDBUK
efficiency
(%)
93.0
92.4
92.1
Disc setting B
Disc setting C
Disc setting C
Fixed
Fixed
Fixed
Fixed
Fixed
Fixed
Burner
head/disc
setting
*
*
*
Notes:
1 The data given above is approximate only and based on the boiler using a low level flue.
2 The above settings may have to be adjusted on site for the correct operation of the burner.
3 Gas Oil is not suitable for use with the Grant Vortex Eco boiler range.
4 The net flue gas temperatures given above are ± 10%.
5 When commissioning the air damper must be adjusted to obtain the correct CO2level.
6 * Factory settings: 15/21 - 18.1 kW, 21/26 - 22.7 kW, 26/35 - 30.8 kW.
7 The combustion door test point may be used for CO2and smoke readings only. Do not use this test point for temperature or efficiency readings.
8 When setting the 15/21 to 15.1 kW output the burner air adjuster disc requires repositioning. Refer to Section 7 Commissioning.
When setting the 26/35 to 25.6 kW output the combustion head must be changed. Refer to Section 9.4 Cleaning the burner.
9 The installer must amend the boiler data label if the output is changed.
Flue gas analysis
To allow the boiler to be commissioned and serviced, the boiler is supplied with a combustion test point on the front cleaning door. When this
test point is used please note the following:
1. The test point is for CO2and smoke readings only.
2. The boiler efficiency and temperature must be taken from the flue test point on high level and vertical flue adaptors.
3. Low level flues do not contain a test point. The temperature and efficiency readings must be taken from the flue terminal.
Burner
head
type
T1
T1
T1
T1
T2
T2
T2
T3
T3
Flue gas temp °C
Door
155 - 160
175 - 180
185 - 190
195 - 200
205 - 210
215 - 220
190 - 195
215 - 220
220 - 225

9
Grant Vortex Eco Utility Oil Boilers
3 - BOILER TECHNICAL INFORMATION

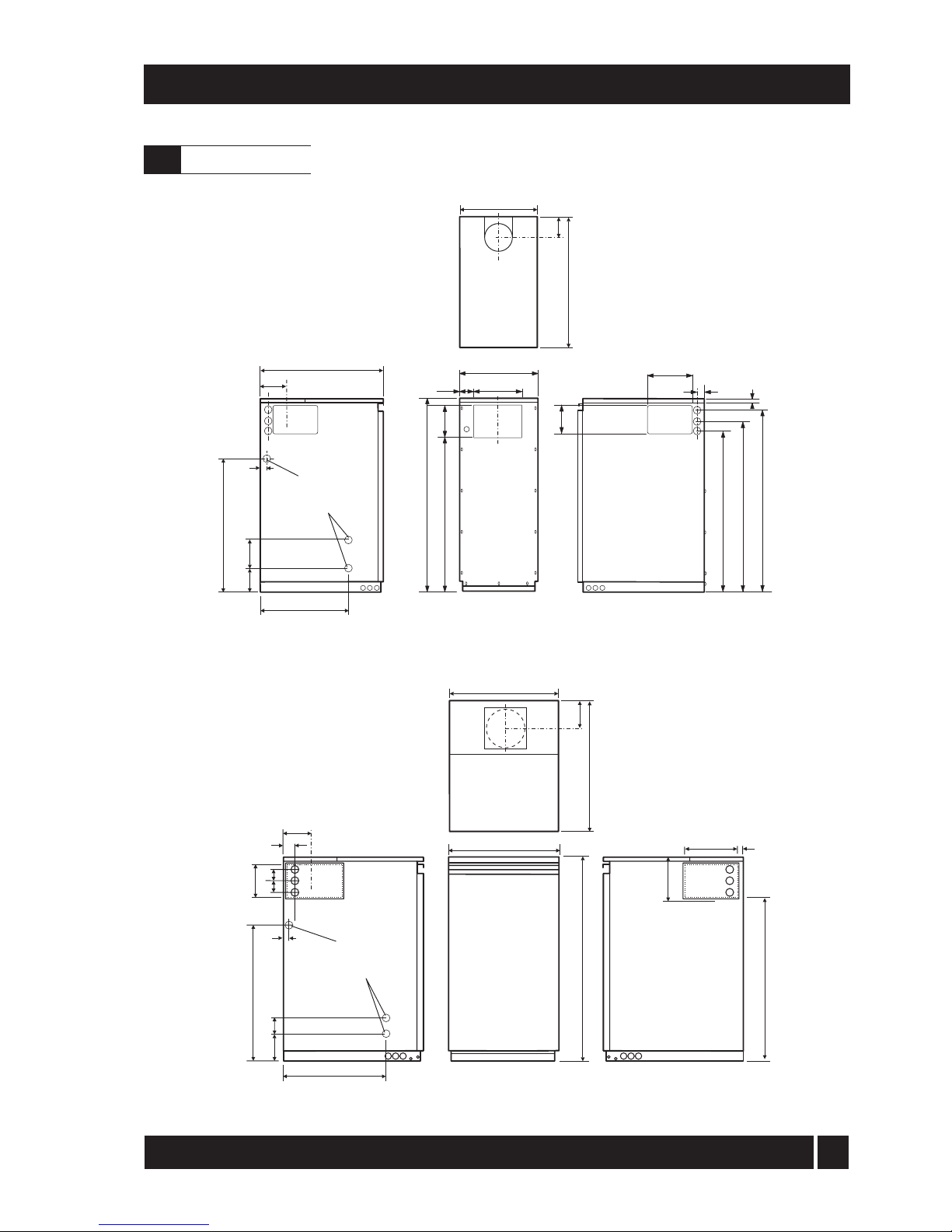

Fig. 1b - 26/35 Utility dimensions
Fig. 1a - 15/21, 21/26 Utility dimensions
Boiler dimensions
3.4
61
82
170 61
86
LEFT SIDE VIEW
587
19
115
60 25
Flue centre line
RIGHT SIDE VIEW
PLAN VIEW
470
603 150
FRONT VIEW
470
441
250
900
696
205
Flue
spigot
Alternative
condensate
drain outlets
624
17
REAR VIEW
430
200115
125
860
705
RIGHT SIDE VIEW
200
28
125
813
712
17
LEFT SIDE VIEW
110
605
Flue centre line
Flue centre
line
Alternative
condensate
drain outlets
177
88
445
PLAN VIEW
430
605
110

10 Grant Vortex Eco Utility Oil Boilers
4 - GENERAL BOILER INFORMATION
Boiler description
4.1
Green system ...... Standard external high level/
vertical flue starter kit (room sealed) - components
available:
External high level/vertical flue starter kit short
(room sealed)
Extensions 150 mm, 250 mm, 450 mm, 950 mm,
adjustable 195 to 270 mm and 45° elbow
High level terminal
Vertical terminal
White system ...... High level and vertical concentric
balanced flue kit - components available:
Extensions 225 mm, 450 mm, 950 mm, adjustable
275 to 450 mm and 45° elbow
Vertical concentric balanced flue kit
Extensions 225 mm, 450 mm, 950 mm, adjustable
275 to 450 mm and 45° elbow
Red system (15/21 and 21/26 only) ..... A flexible
vertical balanced flue system designed to be fitted
inside an existing masonry chimney.
Flue extensions and 45° elbows from the Grant
‘White’ system may be used to extend the flue
system between the boiler and the flexible section
of the system.
All burners are pre-set for use with kerosene and are
supplied ready to connect to a single pipe fuel supply
system with a loose flexible fuel line and 3/8" to 1/4" BSP
male adaptor supplied with the boiler.
If required, an additional flexible fuel line (600 mm) and
3/8" to 1/4" BSP male adaptor are available to purchase
from Grant Engineering (UK) Limited, for two-pipe oil
supply systems, Part No. RBS104.
The temperature of the water leaving the boiler to heat
the radiators and hot water cylinder is User adjustable.
The boiler is fitted with an overheat thermostat (which
allowsittobeusedonasealedcentralheatingsystem)which
willautomaticallyswitchofftheboileriftheheatexchanger
exceeds a pre-set temperature of 111° C ± 3° C.
The control panel is fitted with an ON/OFF switch,
boiler thermostat control knob and the manual reset
button for the overheat thermostat.
Boiler components
4.2
The Grant Vortex range of automatic pressure jet oil
boilers have been designed for use with a fully pumped
central heating system with indirect domestic hot water
cylinder. They are not suitable for use with either a direct
cylinder or a 'primatic' cylinder or gravity hot water.
The boilers are suitable for use on open vented or
sealed central heating systems. System models are
supplied with the necessary components factory fitted.
See Section 4.13.
All models are supplied with the control panel and
burner factory fitted.
The boilers can be connected to either a conventional
flue system or a balanced flue system, as required.

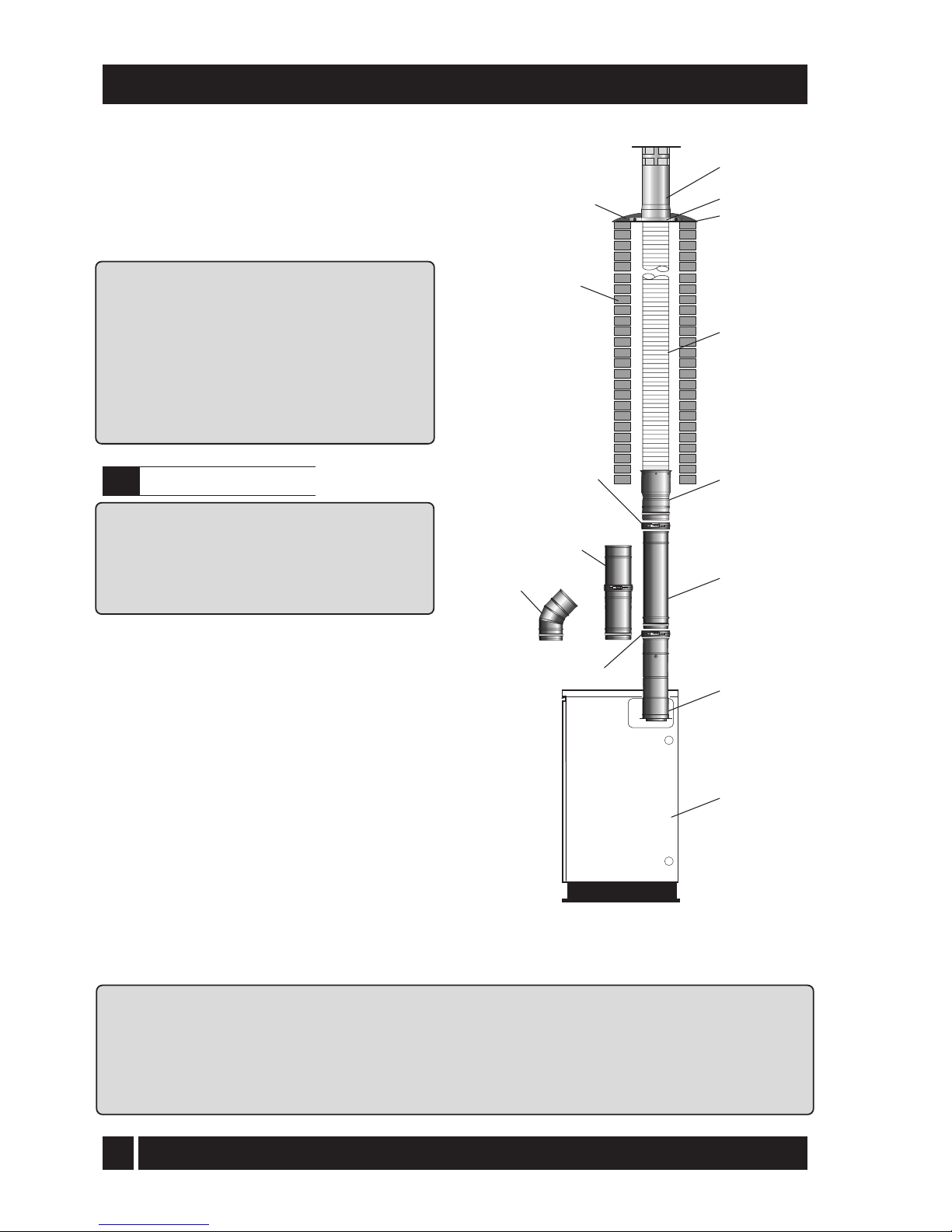

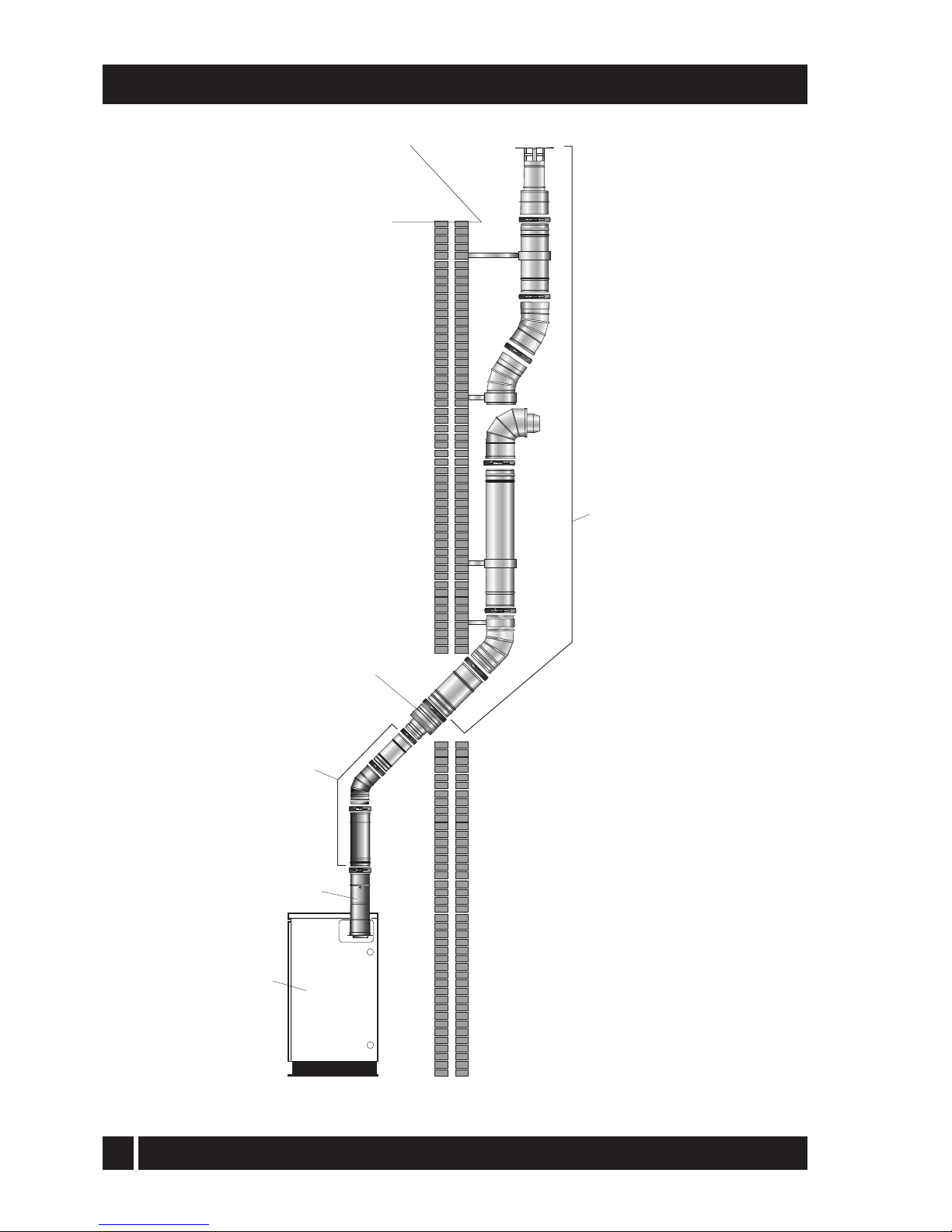

For Conventional flue applications where a chimney is
to be lined - Grant recommends the use of the Grant
‘Orange’ flue system, specifically designed for the
Vortex range of condensing boilers. Refer to Section
4.7 for further details.
Where a rigid conventional flue - either internal or
external - is required, Grant recommends the use of the
Grant 'Green' and 'Orange' flue system components. As
no flue adaptor is supplied with the boiler it will be
necessary to purchase the Grant CF adaptor kit in
order to correctly connect the 'Green' and 'Orange
system flue components to the boiler.
Flue adaptor kit - Ref. CFA15/70 - is used for all Vortex
models from 15 to 70 kW as they all can use the 100 mm
'Green' and 'Orange' system components to construct a
flue of maximum vertical height 8 metres.
Important: The flue system materials and construction
MUST be suitable for use with oil-fired condensing
boilers. Failure to fit a suitable conventional flue may
invalidate the warranty on the boiler.
Fittinginstructions for the Low level concentric, High level
and Vertical balanced flue kits are supplied with the kits.
Where a balanced flue system is required, the following
flue kits are available from Grant Engineering (UK)
Limited.
Refer to Section 4.8 for further details.
Yellow system ..... Standard low level concentric
balanced flue - components available:
Low level concentric balanced flue short
Extensions 225 mm, 450 mm and 675 mm
90° extension elbow
45° extension elbow
45° elbow

11
Grant Vortex Eco Utility Oil Boilers
The installation should also be in accordance with the
latest edition of the following British Standard Codes
of Practice:-
BS 715 Metal flue pipes, fittings, terminals
and accessories.
BS 799:5 Oil storage tanks.
BS 1181 Clay flue linings and flue terminals.
BS 4543:3 Factory made insulated chimneys for
oil fired appliances.
BS 4876 Performance requirements for oil
burning appliances.
BS 5410:1 CodeofPracticeforoilfiringappliances.
BS 5449 Forced circulation hot water systems.
BS 7593 Code of Practice for treatment of
water in heating systems.
BS 7671 Requirements for electrical
installations, IEE Wiring Regulations.
Failure to install and commission appliances
correctly may invalidate the boiler warranty.
IMPORTANT
Before starting any work on the boiler, or fuel supply
please read the health and safety information given in
Section 14 on page 47.
4.4.1 Fuel storage
The tank should be positioned in accordance with the
recommendationsgiven in BS 5410:1:1997, which gives
details of filling, maintenance and protection from fire.
A steel tank may be used and must be constructed to
BS 799:5:1987 and OFS T200.
A galvanised tank must not be used.
A plastic tank may be used and must comply with
OFS T100.
Note: Plastic tanks should be adequately and
uniformly supported on a smooth level surface, across
their entire base area.
Fuel supply
4.4
Installation of a Grant Vortex boiler must be in
accordance with the following recommendations:-
a Building Regulations for England and Wales,
and the Building Standards for Scotland issued
by the Department of the Environment and any
local Byelaws etc.
b Model and local Water Undertaking Byelaws.
c Applicable Control of Pollution Regulations.
d The following OFTEC requirements:-
OFST 100 Polythene oil storage tanks for
distillate fuels.
OFST 200 Fuel oil storage tanks and tank
bunds for use with distillate fuels,
lubrication oils and waste oils.
Further information may be obtained from the
OFTEC Technical Information Book 3
(Installation requirements for oil fired boilers
and oil storage tanks).
4 - GENERAL BOILER INFORMATION
Regulations to comply with
4.3
Regional statutory requirements may deem this appliance to be a 'controlled service'.
Where this is the case, it is a legal requirement that the appliance is installed and
commissioned either under the remit of building control or by a 'Competent person' such
as a suitably qualified Oftec registered technician.
Fig. 2 - Components
OVERHEAT
RESET
HEATING
TEMPERATURE
ON
BOILER
OFF
Lock-out
button
Front panel
removed
(pull forward
at top, then
lift off)
Front panel
fixing clips
Condensate
trap
Front panel bottom locating tags
GRANT
Air supply
tube
Burner

12 Grant Vortex Eco Utility Oil Boilers
4 - GENERAL BOILER INFORMATION
4.4.2 Fuel pipes
1 Fuel supply pipes should be of copper tubing with
an external diameter of at least 10 mm.
Galvanised pipe must not be used.
All pipe connections should preferably use flared
fittings. Soldered connections must not be used on
oil pipes.
2 Flexible pipes must not be used outside the boiler case.
3 A remote sensing fire valve must be installed in the
fuelsupply line (outside) whereit enters the building,
with the sensing head located above the burner.
Recommendations are given in BS 5410:1:1997.
4 A metal bowl type filter with a replaceable micronic
filter must be fitted in the fuel supply line adjacent to
theboiler. A shut-off valveshould be fitted beforethe
filter, to allow the filter to be serviced.
5 A flexible fuel hose, adaptor and 1/4" BSP isolation
valve are supplied loose with the boiler for the final
connection to the burner. If a two pipe system or
'Tiger Loop' type de-aerator is used, an additional
flexible fuel hose (600 mm) and 3/8" to 1/4" BSP male
adaptor are available to purchase from Grant
Engineering (UK) Limited, Part No. RBS104.
6 Metal braided flexible hoses should be replaced
annually when the boiler is serviced. Long life
flexible pipes should be inspected annually and
replaced at least every 60 months.
4.4.3 Single pipe system - (See Fig. 3)
1 Where the storage tank outlet is above the burner
the single pipe system should be used. The height
of the tank above the burner limits the length of
pipe run from the tank to the burner.
2 As supplied the burner is suitable for a single pipe
system.
4.4.4 Two pipe system - (See Fig. 4)
1 When the storage tank outlet is below the burner,
the two pipe system should be used. The pipe runs
should be as shown in Fig. 4. The return pipe
should be at the same level in the tank as the
supply pipe, both being 75 to 100 mm above the
base of the tank. The pipe ends should be a
sufficient distance apart so as to prevent any
sediment disturbed by the return entering the
supply pipe.
2 Avoid the bottom of the tank being more than 3 m
below the burner.
3 A non-return valve should be fitted in the supply
pipe together with the filter and fire valve. A non-
return valve should be fitted in the return pipe if
the top of the tank is above the burner.
4 To be used with a two-pipe system, the burner
must be fitted with an additional flexible fuel hose
(a flexible fuel hose (600 mm) and 3/8" to 1/4" BSP
male adaptor are available to purchase from Grant
Engineering (UK) Limited), Part No. RBS104. See
Section 4.4.6.
5 The pump vacuum should not exceed 0.4 bar.
Beyond this limit gas is released from the oil.
For guidance on installation of top outlet fuel tanks and
suction oil supply sizing, see OFTEC booklet T1/139.
Available at www.oftec.org.uk.
Fig. 3 - Single pipe system
Filter
Fire
valve
Shut-off
valve
Shut-off
valve
A
Sludge
valve
Fill
pipe
Vent
pipe
Level
gauge
Fuel
storage
tank
Fire
valve
sensor
Pump
Head A
(m)
Maximum pipe run (m)
0.5
1.0
1.5
2.0
10mm OD pipe
10
20
40
60
12mm OD pipe
20
40
80
100

13
Grant Vortex Eco Utility Oil Boilers

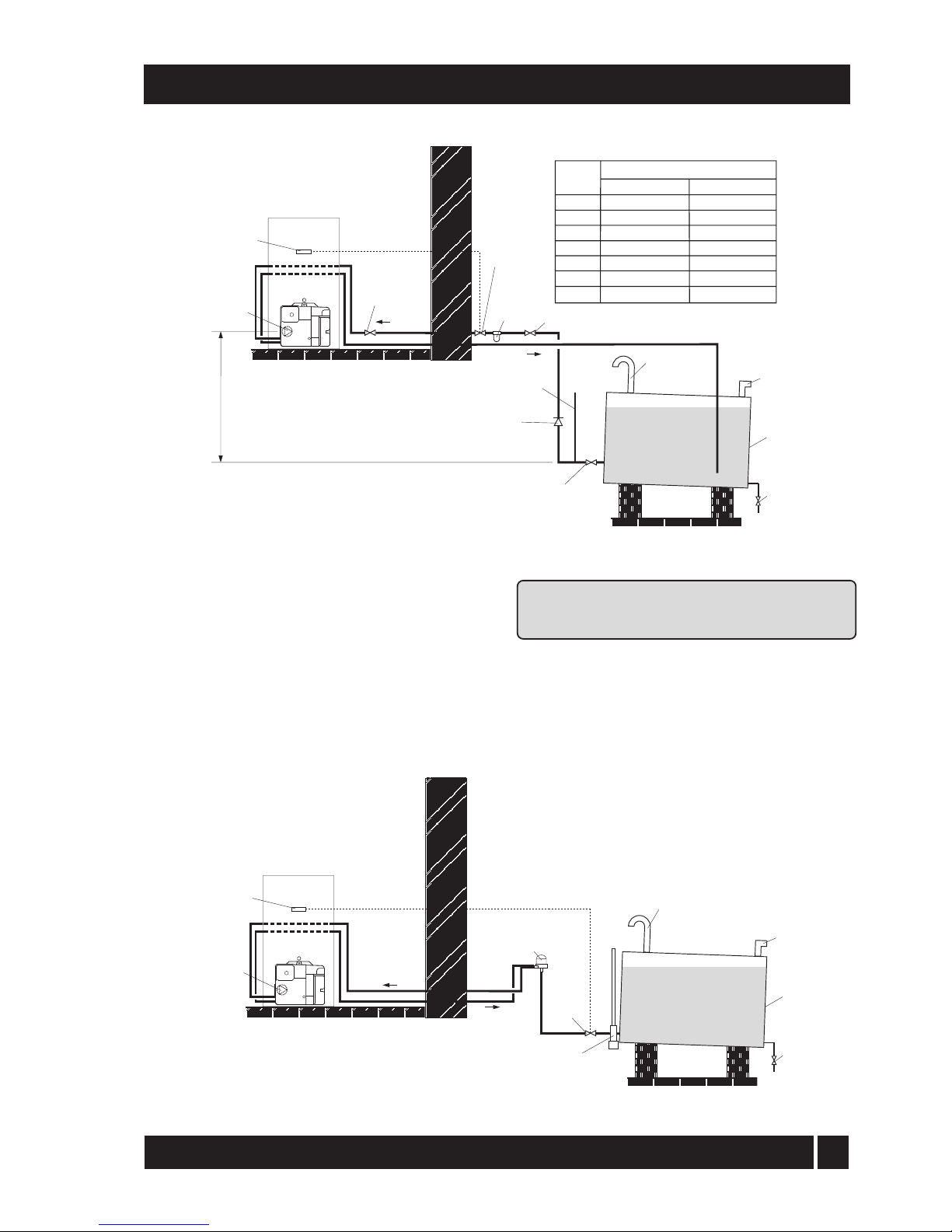

Fig. 5 - De-aeration device system
4.4.5 Tiger Loop system - (See Figs. 5 and 6)
1 WhenThestoragetankisbelowtheburner,analternative
toatwopipesystemcanbeachievedusinga'TigerLoop'
typeoilde-aerator.Thiseffectivelyremovestheairfrom
the oil supply on a single pipe lift.
2 The de-aerator is connected close to the boiler as a
two pipe system (omitting the non-return valve) as
shown in Fig. 5. Refer to the manufacturers
instructions supplied with the de-aerator.
The de-aerator must be mounted vertically.
4 - GENERAL BOILER INFORMATION
Fig. 4 - Two pipe system
Note: To prevent any possibility of fuel fumes
entering the building, the de-aerator must be fitted
outside.
3 To be used with a de-aerator, the burner must be
fitted with an additional flexible fuel hose (a
flexible fuel hose (600 mm) and 3/8" to 1/4" BSP
male adaptor are available to purchase from Grant
Engineering (UK) Limited), Part No. RBS104. See
Section 4.4.6.
Filter
Fire
valve
Shut-off
valve
Shut-off valve
Shut-off
valve
See
section 4.4.6
A
Return
Supply
Head A
(m)
Maximum pipe run (m)
0
0.5
1.0
1.5
2.0
3.0
3.5
10mm OD pipe
35
30
25
20
15
8
6
12mm OD pipe
100
100
100
90
70
30
20
Non
return
valve
Fire
valve
sensor
Sludge
valve
Fill
pipe
Vent
pipe
Level
gauge
Fuel
storage
tank
Fire
valve
Tankmaster
See
section 4.4.6
Sludge
valve
Fill
pipe
Vent
pipe
Fuel
storage
tank
De-aeration device
e.g.Tiger Loop
See Fig.6
Fire
valve
sensor
Return
Supply

14 Grant Vortex Eco Utility Oil Boilers
4.4.6 Two pipe oil supplies
Riello RDB burner - See Fig. 7
1 The fuel pump is supplied for use with a single
pipe fuel supply system. For use on a two pipe
system, it is necessary to fit the By-pass screw (see
Fig. 7) into the tapping in the return port.
2 The By-pass screw is supplied in the boiler
accessory pack.
3 Remove the plastic burner cover (secured by two
screws). To gain access, it may be necessary to
removethe plinth - loosen the screw securingtheright
hand side of the plinth, then withdraw the plinth
forward from the right and away from the case.
4 Remove and discard the blanking plug from the
return connection of the pump and fit the By-pass
screw using an hexagonal key.
5 Connect the return oil flexible fuel hose to the pump.
6 Connect the 3/8" to 1/4" BSP adaptor to the flexible
fuel hose.
7 Flexible fuel hoses and adaptors are available to
purchase from Grant Engineering (UK) Ltd.
Fig. 6 - Tiger loop 'de-aeration' device
4 - GENERAL BOILER INFORMATION
Fig. 7 - Riello RDB pump
1 Oil inlet connection
2 Return connection
3 By-pass screw
4 Pressure gauge connection
5 Pressure adjuster
6 Vacuum gauge connection
7 Solenoid
8 Supply to nozzle
1 A 230/240 V ~ 50 Hz mains supply is required.
Refer to Section 10 for connection details.
The boiler must be earthed.
2 The supply must be fused at 5 Amp and there must only
be one common isolator for the boiler and control
system, providing complete electrical isolation.
3 A fused double pole switch or a fused three pin
plug and shuttered outlet socket should be used for
the connection.
4 The power supply cable should be at least 0.75 mm²
PVC as specified in BS 6500, Table 16.
5 All the wiring and supplementary earth bonding
external to the boiler must be in accordance with
the current I.E.E. Wiring Regulations.
6 Any room thermostat or frost thermostat used must
be suitable for use on mains voltage.
7 In the event of an electrical fault after installation
of the boiler, the following electrical system checks
must be carried out:- Short circuit, Polarity, Earth
continuity and Resistance to earth.
Electricity supply
4.5
1/4" BSP female
connections
Tiger Loop
SUPPLY
TO PUMP
RETURN
FROM PUMP
SUPPLY
FROM TANK
12
3
4
5
6
7
8

15
Grant Vortex Eco Utility Oil Boilers
BOILERIN
ROOM
Conventionalopen flue
C
BOILERIN
COMPARTMENT
Conventionalopen flue
compartment ventilated from room
Conventionalopen flue
compartment ventilated from outside
CC
D
D
E
BOILERIN
ROOM
Room sealed balanced flue
no ventilation required to room
BOILERIN
COMPARTMENT
Room sealed balanced flue
compartment ventilated from room
Room sealed balanced flue
compartment ventilated from outside
B
B
A
A

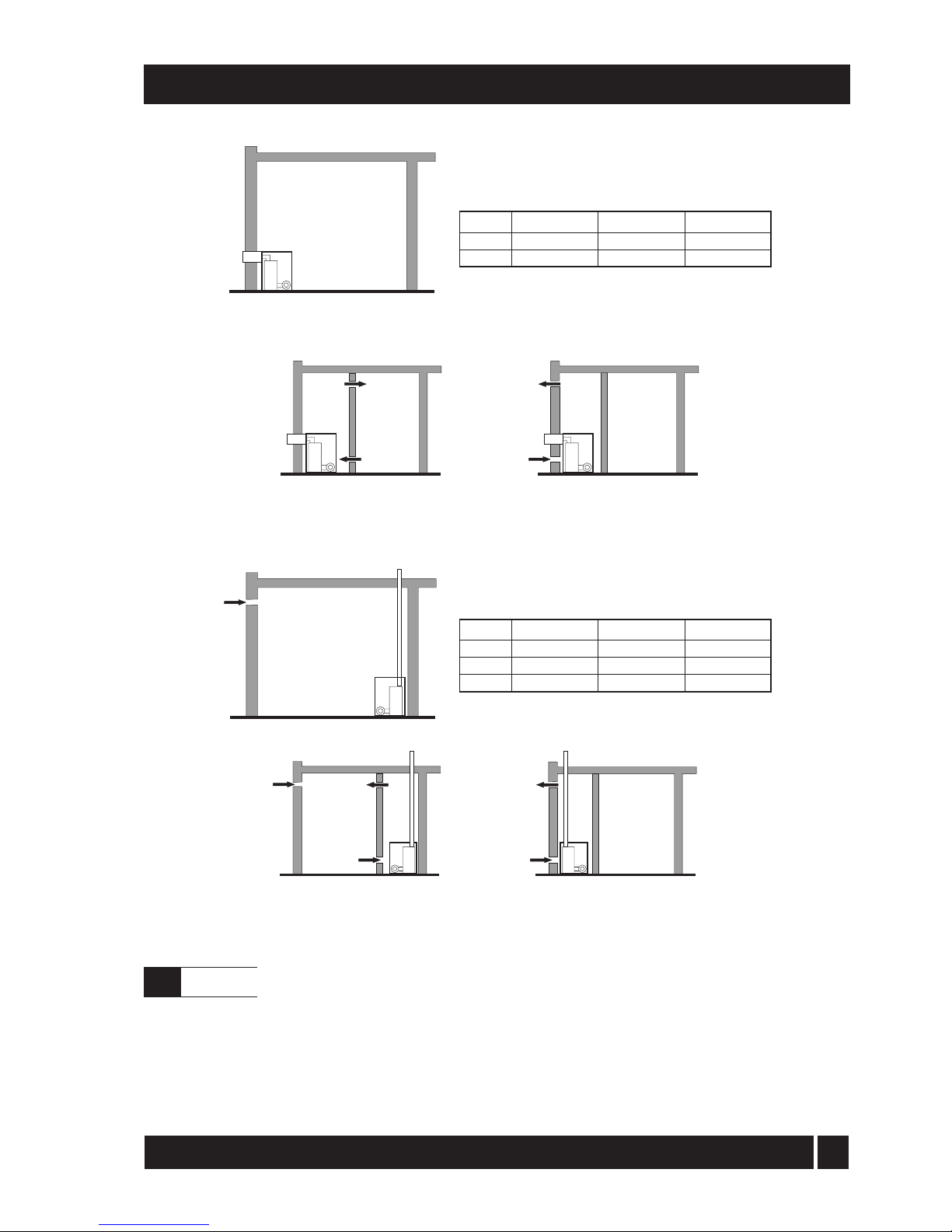

Fig. 8 - Air supply for room sealed balanced flue boilers
4 - GENERAL BOILER INFORMATION
Fig. 9 - Air supply for conventional flue boilers
15/21 kW
116 cm² (18 in²)
232 cm² (36 in²)
26/35 kW
198 cm² (31 in²)
396 cm² (62 in²)
Output
Vent A
Vent B
15/21 kW
116 cm² (18 in²)
232 cm² (36 in²)
348 cm² (54 in²)
26/35 kW
198 cm² (31 in²)
396 cm² (62 in²)
594 cm² (93 in²)
Output
Vent C
Vent D
Vent E
Air supply
4.6
See Figs. 8 and 9
A sufficient permanent air supply to the boiler should
be provided:
a For proper combustion of fuel and effective
discharge of combustion products to the open air.
b For the ventilation of any confined space in
which the boiler is installed to prevent
overheating of the boiler any equipment in and
near the boiler.
21/26 kW
143 cm² (23 in²)
286 cm² (46 in²)
429 cm² (69 in²)
21/26 kW
143 cm² (23 in²)
286 cm² (46 in²)

16 Grant Vortex Eco Utility Oil Boilers
4 - GENERAL BOILER INFORMATION
It should be both the designer's and installer's concern
that the air required for these functions be introduced
so as to cause as little discomfort as possible to the
building occupants and thus to offer them the least
temptation to obstruct the ventilators.
Further details may be obtained from BS 5410:1:1997.
Notes:
For a boiler fitted in a compartment, which is
ventilated as shown, no additional allowance is
necessary.
Open flue - Extract fans, where needed, should
be in accordance with Section 4.4.7 in BS 5410
Part 1 1997.
All ventilation areas given are for domestic
applications. For all other cases refer to BS
5410 Part 2 1978.
Under no circumstances can Grant Vortex boilers
be installed with existing flue systems. Only flue
systems and components suitable for wet flues
should be used.
Failure to install the correct type of flue system will
invalidate the warranty.
See Fig. 10a and 10b
General
Grantcondensing boilershavehighoperating efficiencies
and low flue gas temperatures. Care must be taken to
ensuretheflue system is suitablefor the very lowflue gas
temperatures and condensate in the flue gases.
Suitable conventional flue systems (Orange system)
are available from Grant UK - see Fig. 10a.
1 The flue must terminate in a down draught free area,
i.e. at least 600 mm above the point of exit through the
roof or preferably above the ridge level.
2 The condensate may be allowed to run back into
the boiler. A condensate drain at the base of the
flue system is not required.
3 The flue terminal must be at least 600 mm from
any opening into the building, and 600 mm above
any vertical structure or wall less than a horizontal
distance of 750 mm from the terminal. See Fig. 11.
4 If an existing chimney is to be used, it must be lined
with a smooth bore stainless steel liner suitable for
use with oil fired condensing boilers. The top and
bottom of the annular space must be sealed.
The internal flue and liner diameter for all models
must be 100 mm (4 in).
Conventional flue system
4.7
Grant recommends the use of the Grant 'Orange'
flue system, specifically designed for the Vortex
range of condensing boilers. Refer to Section 4.7
for further details.
The maximum vertical height (from the top of the
boiler to the terminal) for the 'Orange' system is
19 metres.
Fig. 10a - Grant Orange flue system in a typical
brick chimney
Brick
chimney
Flaunching
Locking band
Rigid to flexi flue
connector (bottom)
This
component
must be installed
vertically
Note:
Extension
Boiler flue
connector
Boiler
Flexi pack
Terminal
Adjustable section 235/300mm
WXA250/100
WXA250/125
100mm dia.
125mm dia.
Locking band
C
45 elbow
O
Top plate
Clamp

17
Grant Vortex Eco Utility Oil Boilers
5If a rigid flue is used internally or externally, it must
be of the twin-wall type incorporating seals at all
joints,constructed with a stainless steel innerskinand
be suitably insulated and weatherproofed. Grant
recommends the use of the Grant 'Green' flue system
components for this application. Refer to Section 4.1
for details. The internal flue diameter for a rigid flue
for all models is 100 mm (4 in).
Note: As no flue adaptor is supplied with the boiler it
willbenecessary to purchase the Grant CF adaptor kit
(Ref. CFA15/70) in order to correctly connect the
'Green' system flue components to the boiler.
If required, it is possible to use the white painted
single-wall straight flue extensions, adjustable
extensionsand elbowsfromtheGrant 'Orange'system
for the internal section of the flue system, see Fig
10b. These components can be fitted between the
boiler connector and flue adaptor. The flue adaptor,
to which the external twin-wall 'Green' flue
components are connected, can therefore be situated
just before the flue system passes through the wall.
Note: Grant 'Orange' system single-wall flue
components must not be used externally.
The maximum vertical height (from the top of the
boiler to the terminal) for the 100 mm diameter
'Green' system twin-wall flue is 8 metres.
6 Twin-wall flues are recommended for externally
run flues to reduce the possibility of the condensate
freezing in the flue.
7 No part of any flue system should be made of an
asbestos material; aluminium must not be used in
any part of the flue. Only stainless steel flue
components should be used.
8 If the draught conditions are satisfactory, the flue
should terminate with a standard cowl.
9 Refer to the locally applicable Building
Regulations, BS 5410:1 and OFTEC Installation
Requirements (Books 2 and 3) for further guidance
on conventional flue systems.
It is important to ensure that the flue system is sealed
and that condensate cannot escape. Up to 1.5 l/h of
condensate can be produced in a conventional flue
system.
Only use flue systems suitable for oil fired condensing
boilers.
Do not use fire cement. The use of high temperature
silicone sealants is recommended.
4 - GENERAL BOILER INFORMATION
Grant EZ-Fit Flexi Pack conventional flue system
(Orange System) - See Fig. 10a
A range of Flexi pack conventional flue lining kits are
availablefromGrantUK.Thepackshavebeenspecifically
produced for Grant Vortex oil fired condensing boilers.
Contents of Grant EZ-Fit Flexi Pack
The pack includes a terminal/top plate/flexi flue adaptor,
stainless steel smooth bore flexible flue liner, a rigid to flexi
adaptor and a boiler flue connector.
Extensions
A range of white powder coated single wall extensions
are available to connect the boiler to the flexible liner.
The external diameter of the extensions is 100 mm.
Extensions are supplied with locking bands.
Flue extensions cannot be cut.
An adjustable extension and 45° elbow are also
available. See Figs. 10a and 10b.
The rigid flue between the boiler and flexible flue liner
should incorporate an adjustable section to allow
inspection and cleaning of the flue system.
Part No.
GFKIT 6/100
GFKIT 8/100
GFKIT 10/100
GFKIT 11/100
GFKIT 12/100
GFKIT 14/100
GFKIT 16/100
Flexi Pack (Orange System)
100 mm dia. x 6 metre
100 mm dia. x 8 metre
100 mm dia. x 10 metre
100 mm dia. x 11 metre
100 mm dia. x 12 metre
100 mm dia. x 14 metre
100 mm dia. x 16 metre
Part No.
WX 150/100
WX 250/100
WX 450/100
WX 950/100
Extensions (Orange System)
100 mm dia. x 150 mm
100 mm dia. x 250 mm
100 mm dia. x 450 mm
100 mm dia. x 950 mm

18 Grant Vortex Eco Utility Oil Boilers
4 - GENERAL BOILER INFORMATION
Fig. 10b - Hybrid flue system using Grant Orange and Green system components
Green System
components
(refer to Fig.10c)
Orange System
components
(refer to Fig.10a)
Boiler flue
connector
(from CFA15/70 kit)
Adaptor
(from CFA15/70 kit)
Boiler

19
Grant Vortex Eco Utility Oil Boilers
4 - GENERAL BOILER INFORMATION
Apart from a conventional flue, several balanced flue
options are available for use with the Grant Vortex
boilers. All are suitable for use with Class C2 kerosene.
Note: None of the flue sections in the following
system can be cut.
1 Lowlevelhorizontalbalancedflue(Yellow system)
Available in Short (for single thickness brick walls)
and Standard kits.
Extensions are available which extend the flue by
225 mm, 450 mm or 675 mm. 90° and 45° elbows
are also available.
The maximum flue length - from the centre of the
boiler flue outlet to the outer face of the wall - is 4
metres (with or without elbows included). No more
than 2 x 45° or 1 x 90° elbow should be fitted per
system.
2 High level (horizontal) balanced flue (White
system)
Allows the flue to rise vertically within the building
before exiting through the wall horizontally.
The maximum flue length - from the top of the
boiler flue outlet to the outer face of the wall - is 10
metres for all Vortex boilers.
Extensions are available which extend the flue by
225 mm, 450 mm or 950 mm. An adjustable
extension of 275 to 450 mm is also available.
A 45° elbow is also available. No more than 6 x 45°
elbows should be fitted per system. Each elbow reduces
the overall maximum length of the system by 1 metre.
3 Vertical balanced flue (White system)
Allows the flue to rise vertically from the boiler to
exit through the roof.
The maximum flue length - from the top of the
boiler flue outlet to the terminal - is 12 metres for
all Vortex boilers.
Extensions are available which extend the flue by
225 mm, 450 mm or 950 mm. An adjustable
extension of 275 to 450 mm is also available.
A 45° elbow is also available. No more than 6 x
45° elbows should be fitted per system. Each elbow
reduces the overall maximum length of the system
by 1 metre.
Balanced flue options
4.8
4 External balanced flue (Green system)
Where it is not practical to use a low level (Yellow
system) or internal high level/vertical (White
system) balanced flue, the boiler can be fitted with
an external vertical/high level flue (Green system).
See Fig. 10c.
The Starter kit fits to the boiler in the same way as a
low level balanced flue (Yellow system) and the
external Tee allows the connection of a twin wall
insulated flue pipe and a combustion air inlet -
providing a room sealed flue system. The external
system can terminate at either high level or vertically
(above roof level) as required. See Fig. 10c.
The minimum dimensions for locating the terminal
from building features (windows, doors, etc.) are
shown in Fig. 11.
If the flue terminal is fitted less than 2 metres above a
surface to which people have access, the terminal must
be protected by a guard. The guard must be fitted
centrally over the flue terminal and securely fixed to
the wall.
The low level balanced flue (Yellow system) is
supplied with a stainless steel guard. This must be
fitted in all circumstances to prevent objects from
entering the flue outlet.
The terminal must be positioned so as to avoid
products of combustion accumulating in stagnant
pockets around the buildings or entering into
buildings. Care should be taken that the plume from
condensed flue gases does not cause a nuisance.
The following external flue (Green system) components
are available from Grant Engineering (UK) Limited.

20 Grant Vortex Eco Utility Oil Boilers
4 - GENERAL BOILER INFORMATION

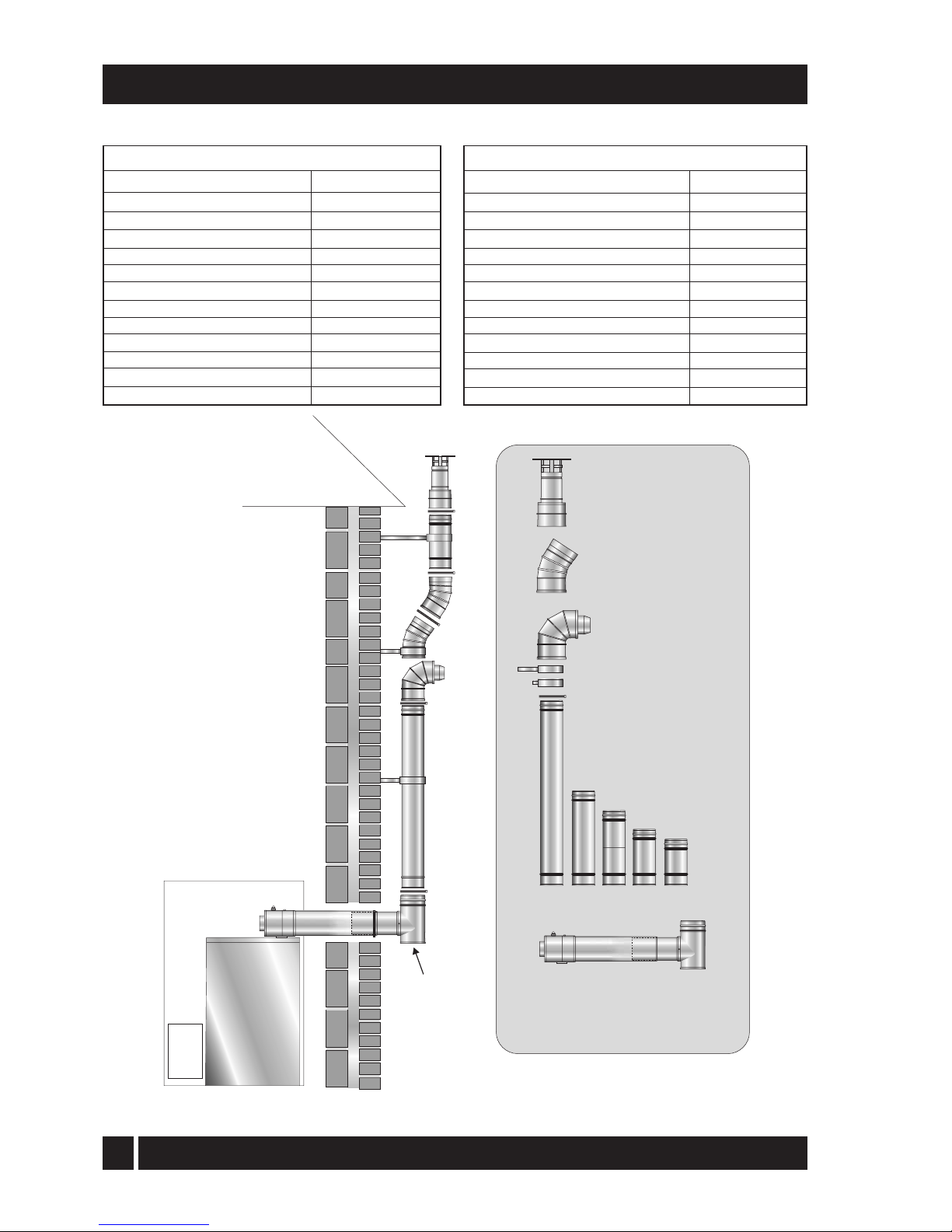

Fig. 10c - External balanced flue (Green system)
Green System components
Item - for 15/21 and 21/26 models
Starter kit - standard
Starter kit - short
150 mm extension
250 mm extension
450 mm extension
950 mm extension
195-270 mm adjustable extension
45° elbow
High level terminal
Vertical terminal
Wall bracket - standard
Wall bracket - extended
Part No.
GK90
GK90S
GX150/90
GX250/90
GX450/90
GX950/90
GXA250/90
GE45/90
GTH90
GTV90
GWB90
GEB90
Vertical terminal kit
GTV90 (15/21, 21/26)
GTV200 (26/35)
45 elbow kit
GE45/90 (15/21, 21/26)
GE45/200 (26/35)
O
Starter kit
GK90 (15/21, 21/26)
GK200 (26/35)
GK90S - short (15/21, 21/26)
GK200S - short (26/35)
High level terminal kit
GTH90 (15/21, 21/26)
GTH200 (26/35)
Extension kits
Wall bracket
Extended wall bracket
Locking band
Air
intake
DO NOT
OBSTRUCT
Components and Part Numbers
Typical
flue system
Green System components
Item - for 26/35 model
Starter kit - standard
Starter kit - short
150 mm extension
250 mm extension
450 mm extension
950 mm extension
195-270 mm adjustable extension
45° elbow
High level terminal
Vertical terminal
Wall bracket - standard
Wall bracket - extended
Part No.
GK200
GK200S
GX150/200
GX250/200
GX450/200
GX950/200
GXA250/200
GE45/200
GTH200
GTV200
GWB200
GEB200
