Chapter 1 GR3399 Development Board Introduction
1.1 Brief Introduction
GR3399 dev board bases on Rockchip RK3399 (64bit) chip platform, which is designed
by Shenzhen Graperain Technology Co., Ltd..
GR3399 dev board consists of GR3399 SOM and carrier board.
GR3399 SOM is based on Rockchip RK3399, 64 bit 6-core, work-station-level processor.
It’s Dual-core Cortex-A72 + Quad-core Cortex-A53. The frequency is up to 2.0GHz. The
new kernel is almost 100% performance up than A15/A17/A57.
Integrated with ARM Mali-T860 MP4 graphics processor, supports OpenGL
ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, Directx11, AFBC ( ARM Frame Buffer
Compression ). Such powerful GPU supports H.265HEVC and VP9, H.265 encode and
4K HDR. And it can be applied to computer vision, learning machine, 4K 3D etc..
Interfaces: Dual MIPI-CSI, dual ISP, PCIe, USB3.0, USB2.0, TypeC etc.
GR3399 development board designed almost all the functions of the CPU, especially in
data communication and expansion. Peripherals on board including: 4G LTE, TypeC,
USB3.0, USB2.0, Gigabit Ethernet, dual-wifi, bluetooth, audio/video input/output, sensors,
display port, communication port, cameras etc..
It supports Android7.1, Linux and Debian. Source code are open.
Applications: high-definition display with advertising machine, vending machines, teaching
terminals, automatic identification, robotics, security monitoring, financial POS, vehicle
control terminals, VR, etc.. With the dev board to test, it will accelerate product
development time.
GR3399 dev board features:
Size: 186mm*116mm, can be used in final product.
Powerful functions, rich interfaces, wide applications.
Supports Android7.1, Linux, Debian. Source code open, accelerate develop time.
Stable and reliable board.
1.2 Specifications
Parameters
Appearance
Gold finger SOM + carrier board
Size
186mm*116mm
Layer
SOM 8-layer/carrier board 4-layer

System Configuration
CPU
Rockchip RK3399
Frequency
Cortex A53 quad core 1.4GHz + dual core
A72 (2GHz)
RAM
standard 2GB, can be custom to 4GB
eMMC
4GB/8GB/16GB/32GB eMMC optional,
standard 8GB
Power IC
RK808, dynamic frequency modulation
Graphic and video processor
Mali-T860 MP4, quad core GPU
Support OpenGL ES 1.1/2.0/3.0/3.1,
Openvg1.1, OpenCL, Directx11
Support 4K VP9 and 4K 10bits H265/H.264
video encoder, up to 60 fps
1080P multi-form video encoder
1080P video encoder, H.264, VP8
Interfaces parameters
Display
MIPI , eDP output
Ethernet
RTL8211E Gigabit PHY
Touch
Capacitive touch,can use USB or UART to
extend resistive touch
Audio
AC97/IIS/PCM, support record and play
audio
SD
2 channel SDIO output
eMMC
On board eMMC
Ethernet
Gigabit
USB HOST
2 channel HOST2.0, 1 channel HOST3.0
USB TYPEC
1 channel
UART
5 channel UART, support flow control uart
PWM
2 channel PWM output
IIC
6 channel IIC output
SPI
1 channel SPI output
ADC
5 channel ADC
Camera
1 channel BT656/BT601, 2 channel MIPI
output
HDMI
High-definition audio and video output, Audio
and video synchronization output
MIPI
1channel MIPI RX, 1 channel MIPI TX, 1
channel MIPI RX/TX
eDP
Support
Electrical characteristics
Input Voltage
12V/2A
Output Voltage
12V/5V/3.3V

Storage temperature
-30~80 degree
Working temperature
-20~70 degree
1.3 Dev Board Appearance

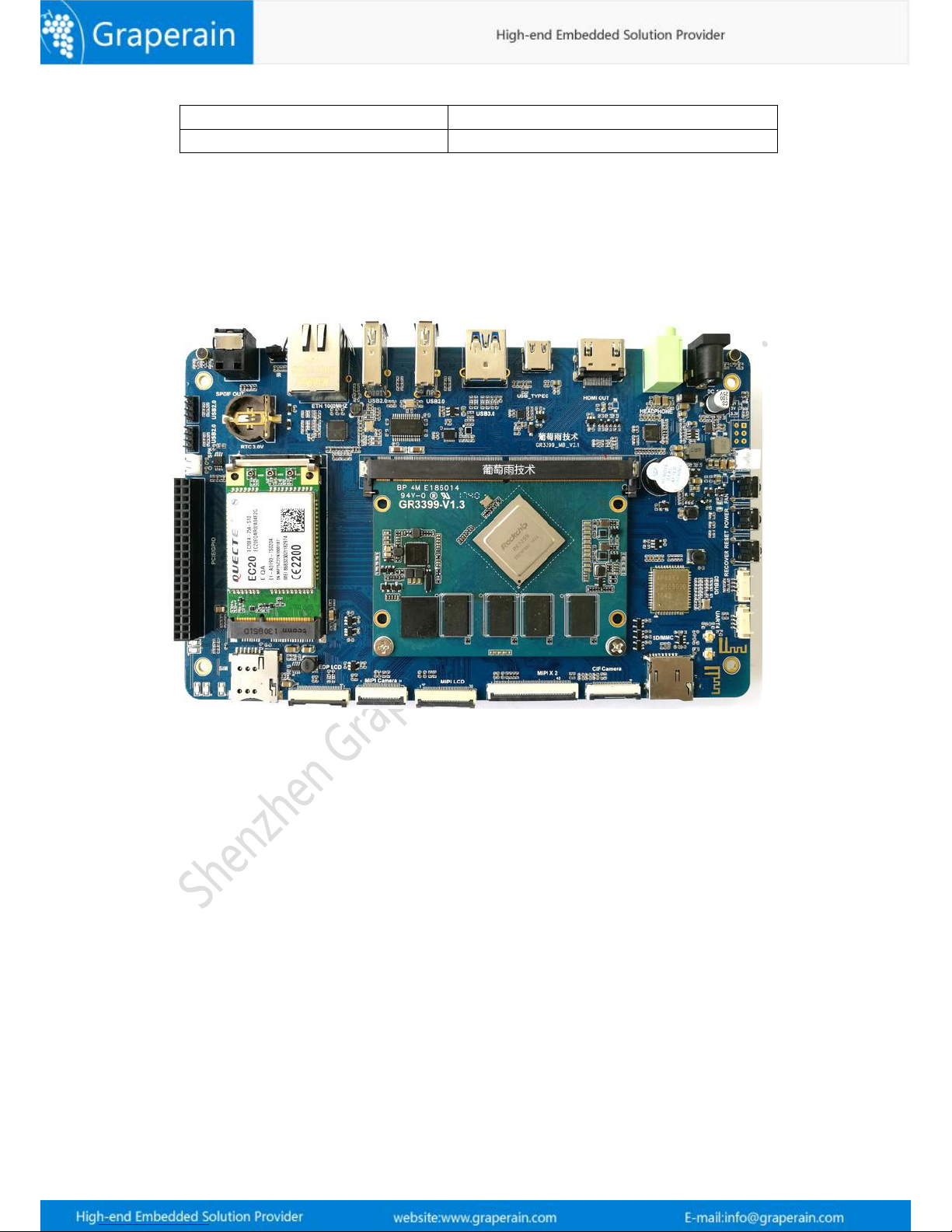

Dev board front side

1.4 Dev Board Structure
Size
1.5 SOM Appearance
Please refer to GR3399 Gold Finger System on Module Introduction.pdf.

Chapter 2 Dev Board Hardware Manual
2.1 Hardware Interfaces Description
Interfaces details
Number
Name
Description
【1】
12V power charger
12V power input
【2】
Earphone
Audio earphone output
【3】
HDMI TypeA
HDMI TypeA output
【4】
TypeC
TypeC
【5】
USB3.0
USB3.0
【6】
USB2.0
USB2.0
【7】
USB2.0
USB2.0
【8】
Ethernet
RJ45
【9】
IR receiver
IR receiver
【10】
SPDIF OUT
SPDIF output
【11】
4G Mic
4G communication record
【12】
USB2.0
USB2.0 4pin
【13】
RTC
RTC
【14】
USB2.0
USB2.0 4pin
【15】
Speaker
2pin speaker socket
【16】
GPIO
Include PCIE and GPIO extension
【17】
4G module
4G LTE, EC20 module in default

【18】
LED
Controllable LED
【19】
4G LED
4G LED light
【20】
LED
Controllable LED
【21】
4G SIM card
4G SIM card slot
【22】
EDP LCD
EDP LCD
【23】
DVP Camera
DVP Camera
【24】
MIPI LCD
MIPI LCD, standard 7 inch mipi
【25】
GR3399 SOM
GR3399 SOM
【26】
Dual MIPI
Dual MIPI, input/output
【27】
MIPI Camera
MIPI Camera, standard OV13850
【28】
TF card
TF card slot
【29】
BT/WIFI antenna
BT/WIFI antenna
【30】
BT/WIFI onboard
antenna
BT/WIFI onboard antenna
【31】
BT/WIFI onboard
antenna
BT/WIFI onboard antenna
【32】
UART no.4
UART no.4, TTL
【33】
Debugging UART
Debugging UART, TTL
【34】
Upgrading key
Upgrading key
【35】
Reset
Reset
【36】
Power
Power
【37】
Buzzer
Buzzer
【38】
Fan socket
Fan socket, 12V power supply
【39】
External voltage
seat
External volt, 12V/5V/3.3V, GND
【40】
Audio recording
Audio recording MIC
【41】
Sensors(not mark
in pic)
Onboard gravity sensor, gyroscope, light
sensor
2.2 GR3399 SOM Pin Definitions
Pin Definitions
Back
pins
Signal
Front
pins
Signal
1
GND
2
VCC_SYS
3
GND
4
VCC_SYS
5
GND
6
VCC_SYS
7
GND
8
VCC_SYS
9
GND
10
VCC_SYS
11
GND
12
VCC_SYS

13
GND
14
VCC_SYS
15
RESET_L
16
VCC_SYS
17
POWER_KEY
18
VCC_SYS
19
VCC_CHARGE_EN
20
VCC_SYS
21
PMIC_EXT_EN
22
VCC_SYS
23
VCC_3V0
24
VCC_SYS
25
VCC_3V0
26
VCC_SYS
27
VCC_SDIO
28
VCC3V3_S5
29
VCC_SDIO
30
VCC3V3_S5
31
VCC3V3_S0
32
GND
33
VCC3V3_S0
34
GND
35
VCC3V3_S7
36
GND
37
VCC3V3_S7
38
GND
39
VCC1V8_DVP
40
GND
41
VCC1V8_CODEC
42
GND
43
VCC1V8_CODEC
44
EDPAUXN
45
VCC_1V5
46
EDPAUXP
47
VCC_1V5
48
GND
49
VCC1V8_S3
50
EDP_TX0N
51
VCC1V8_S3
52
EDP_TX0P
53
VCC_1V8
54
GND
55
VCC_1V8
56
EDP_TX1N
57
VCC_RTC
58
EDP_TX1P
59
VCC_EFUSE
60
GND
61
MAC_TXD3
62
EDP_TX2P
63
MAC_TXEN
64
EDP_TX2N
65
MAC_CRS
66
GND
67
MAC_TXD1
68
EDP_TX3P
69
MAC_RXER/INT
70
EDP_TX3N
71
MAC_TXD2
72
GND
73
MAC_MCLK
74
GPIO2_B4/DVP_PDN0_H
75
MAC_RXD3
76
GPIO2_B1/I2C6_SDA/CIF_HRE
77
MAC_TXD0
78
GPIO2_B0/I2C7_SCL/CIF_VSY
79
MAC_RXDV
80
GPIO2_A0/I2C2_SDA/CIF_D0
81
MAC_RXD0
82
GPIO2_A1/I2C2_SCL/CIF_D1
83
MAC_COL/PMEB
84
GPIO2_A2/CIF_D2
85
MAC_RXCLK
86
GPIO2_A3/CIF_D3
87
MAC_TXCLK
88
GPIO2_A4/CIF_D4
89
MAC_MDC
90
GPIO2_A5/CIF_D5
91
MAC_RXD1
92
GPIO2_A6/CIF_D6
93
MAC_RXD2
94
GPIO2_A7/I2C7_SDA/CIF_D7
95
MAC_MDIO
96
GPIO2_B2/I2C6_SCL/CIF_CLKI
97
GND
98
GPIO2_B3/CIF_CLKO

99
PCIE_TX2P
100
GND
101
PCIE_TX2N
102
SPI1_CLK
103
GND
104
SPI1_RXD
105
PCIE_RX2_P
106
SPI1_TXD
107
PCIE_RX2_N
108
SPI1_CSN0
109
GND
110
GPIO0_B5
111
PCIE_TX3N
112
GPIO0_A2
113
PCIE_TX3P
114
GPIO1_C6
115
GND
116
TOUCH_INT_L
117
PCIE_RX3_P
118
LCD_EN_H
119
PCIE_RX3_N
120
GPIO1_D0
121
GND
122
I2C4_SCL
123
PCIE_REF_CLKP
124
I2C4_SDA
125
PCIE_REF_CLKN
126
GPIO1_A1
127
GND
128
SPK_CTL_H
129
PCIE_TX0N
130
GPIO1_A0
131
PCIE_TX0P
132
GPIO0_B0
133
GND
134
GPIO1_C7
135
PCIE_RX0_N
136
GPIO1_A3
137
PCIE_RX0_P
138
GPIO1_A4
139
GND
140
IR_RX
141
PCIE_TX1N
142
GND
143
PCIE_TX1P
144
RTC_CLK_OUT
145
GND
146
GND
147
PCIE_RX1_N
148
HOST1_DP
149
PCIE_RX1_P
150
HOST1_DM
151
GND
152
GND
153
ADC_IN0
154
HOST0_DM
155
ADC_IN1
156
HOST0_DP
157
ADC_IN2
158
GND
159
ADC_IN4
160
TYPEC0_U2VBUSDET
161
ADKEY_IN
162
USB3_SSTXN
163
GND
164
USB3_SSTXP
165
USB3_DP
166
GND
167
USB3_DM
168
USB3_SSRXP
169
GND
170
USB3_SSRXN
171
TYPEC0_DM
172
GND
173
TYPEC0_DP
174
TYPEC0_TX2N
175
GND
176
TYPEC0_TX2P
177
TYPEC0_SBU2_DC
178
GND
179
TYPEC0_SBU2_DC
180
TYPEC0_RX2P
181
GND
182
TYPEC0_RX2N
183
TYPEC0_SBU2
184
GND

185
TYPEC0_SBU1
186
TYPEC0_TX1N
187
GND
188
TYPEC0_TX1P
189
TYPEC0_RX1N
190
GND
191
TYPEC0_RX1P
192
HDMI_TX2P
193
GND
194
HDMI_TX2N
195
MIPI_TX0_D0P
196
GND
197
MIPI_TX0_D0N
198
HDMI_TX1P
199
GND
200
HDMI_TX1N
201
MIPI_TX0_D1P
202
GND
203
MIPI_TX0_D1N
204
HDMI_TX0P
205
GND
206
HDMI_TX0N
207
MIPI_TX0_CLKP
208
GND
209
MIPI_TX0_CLKN
210
HDMI_TXCP
211
GND
212
HDMI_TXCN
213
MIPI_TX0_D2N
214
GND
215
MIPI_TX0_D2P
216
MIPI_RX0_D0N
217
GND
218
MIPI_RX0_D0P
219
MIPI_TX0_D3P
220
GND
221
MIPI_TX0_D3N
222
MIPI_RX0_D1N
223
GND
224
MIPI_RX0_D1P
225
MIPI_TX1/RX1_D3N
226
GND
227
MIPI_TX1/RX1_D3P
228
MIPI_RX0_CLKN
229
GND
230
MIPI_RX0_CLKP
231
MIPI_TX1/RX1_D2N
232
GND
233
MIPI_TX1/RX1_D2P
234
MIPI_RX0_D2N
235
GND
236
MIPI_RX0_D2P
237
MIPI_TX1/RX1_CLKN
238
GND
239
MIPI_TX1/RX1_CLKP
240
MIPI_RX0_D3N
241
GND
242
MIPI_RX0_D3P
243
MIPI_TX1/RX1_D1N
244
GND
245
MIPI_TX1/RX1_D1P
246
BT_REG_ON_H
247
GND
248
WIFI_HOST_WAKE_L
249
MIPI_TX1/RX1_D0N
250
WIFI_REG_ON_H
251
MIPI_TX1/RX1_D0P
252
BT_HOST_WAKE_L
253
GND
254
GPIO0_B4
255
SDMMC0_CLK
256
CHG_CC_INT_L
257
SDMMC0_PWR_H
258
UART0_RTS
259
SDMMC0_DET_L
260
UART0_TXD
261
SDMMC0_CMD
262
UART0_CTS
263
SDMMC0_D0
264
UART0_RXD
265
SDMMC0_D1
266
DVP_PDN1_H
267
SDMMC0_D2
268
CAMERA_RST_L
269
SDMMC0_D3
270
CABC_EN

271
SDIO0_CMD
272
BT_WAKE_L
273
SDIO0_D0
274
GPIO4_C6/PWM1_D
275
SDIO0_D1
276
GPIO4_B3
277
SDIO0_D2
278
PORT_HPD
279
SDIO0_D3
280
SPDIF_TX
281
SDIO0_CLK
282
PCIE_CLKREG
283
RTC_CLK0_WIFI
284
GPIO4_D2
285
GND
286
I2C1_SDA
287
I2S_CLK
288
I2C1_SCL
289
I2S0_LRCK_RX
290
GPIO4_A5
291
I2S0_SCLK
292
HP_DET_H
293
HDMIIN_PWREN18/I2S1_SCL
294
VCC5V0_HOST_EN
295
HDMIIN_STBY/I2S1_SDI0
296
UART2DBG_RX
297
GPIO3_D4/I2S0_SDI1
298
UART2DBG_TX
299
HDMIIN_PWREN33/I2S1_SDO
300
LCD_RST_H
301
HDMIIN_RST/I2S1_LRCK_RX
302
LCD_BL_PWM
303
I2S0_SDI0
304
I2C_SDA_HDMI
305
GPIO3_D5/I2S0_SDO2
306
HDMI_CEC
307
I2S0_SDO0
308
I2C_SCL_HDMI
309
GPIO3_D6/I2S0_SDO1
310
GND
311
I2S0_LRCK_TX
312
GND
313
GND
Note: more details of GR3399 SOM, please refer to GR3399 Gold Finger System on
Module Introduction.pdf.

Chapter 3 Hardware Design
3.1 Design Reference
If use GR3399 platform for product design and development, related to power supply,
USB, HDMI, eDP, MIPI, PCIe, TypeC, audio, network (Ethernet, WIFI, Bluetooth), camera
etc., can refer to our carrier board design. the circuit and layout of those parts are open to
customers.

Chapter 4 Product Portfolio
4.1 System on Module Series
G4418 SOM( Samsung S5P4418)
G6818 SOM( Samsung S5P6818)
G3288 SOM(Rockchip RK3288, stamp hole)
GR3288 SOM (Rockchip RK3288 Immersion Gold MXM)
GR3128 SOM(Rockchip RK3128 Immersion Gold MXM)
GR3399 SOM(Rockchip RK3399 Immersion Gold MXM)
M9 SOM(Qualcomm 8916, 8953)
4.2 Development Board Series
G4418 development board ( Samsung S5P4418 )
G6818 development board ( Samsung S5P6818 )
G3288 development board ( Rockchip RK3288 stamp hole)
GR3288 development board ( Rockchip RK3288 Immersion Gold MXM )
GR3399 development board ( Rockchip RK3399 Immersion Gold MXM)
4.3 Single Board Computer (SBC) Series
G4418 single board computer ( Samsung S5P4418 )
G6818 single board computer ( Samsung S5P6818 )
G3128 single board computer ( Rockchip RK3128 )
G3288 single board computer ( Rockchip RK3288 )
G3399 single board computer ( Rockchip RK3399 )
Instructions: More information and other products, please pay attention to website or
contact us directly.
www.graperain.com
