GRAUPNER Fatshark Attitude V2 User manual

Manual
Fatshark Attitude V2 CE goggles
No. 48325
EN

2 - 20
48325_jh_V1

Index
3- 20
48325_jh_V1
Introduction ............................................................................4
Service centre.........................................................................4
Intended use .........................................................................5
Package content ....................................................................5
Symbol description.................................................................6
Safety notes ...........................................................................6
Controls description ...............................................................8
Trinity head tracker ................................................................9
Video connections................................................................11
Using an external receiver.....................................................11
Charging the battery.............................................................11

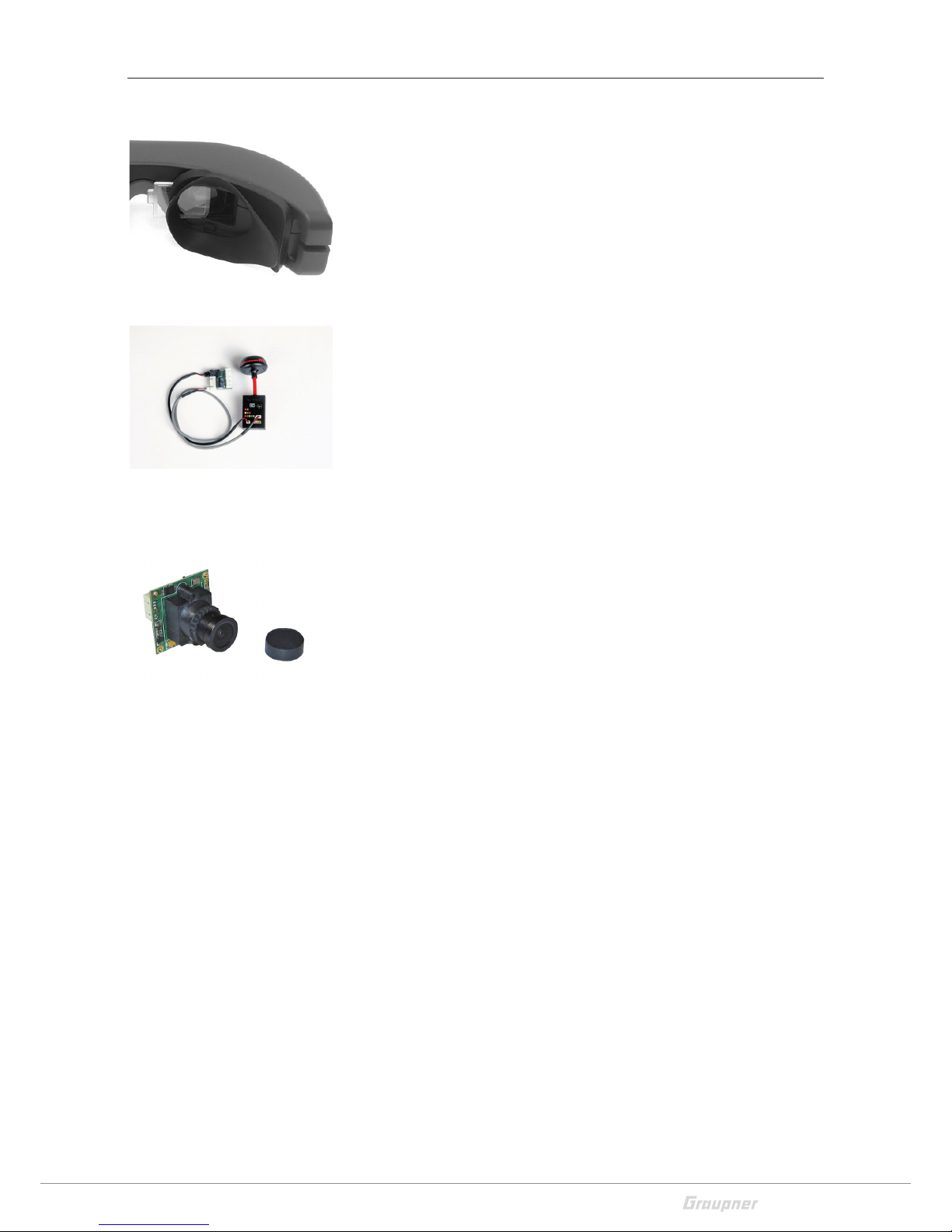

Accessories..........................................................................13
Operational advice................................................................14
Technical data ......................................................................15
Trouble shooting...................................................................16
Declaration of conformity ......................................................17
Battery warranty ...................................................................17
Notes on environmental protection .......................................18
Care and maintenance .........................................................18
Warranty certificate...............................................................18

4 - 20
48325_jh_V1
Introduction
Thank you very much for choosing a Fat Shark AttitudeV2 FPV
goggles.
This Fat Shark AttitudeV2 FPV goggles is extremely versatile. Read
this manual carefully to achieve the best results with your
Fat Shark AttitudeV2 FPV goggles and first of all to control safely
your model. If you experience any trouble during operation,
take the instructions to help or ask your dealer or Graupner
Service Centre.
Due to technical changes, the information may be changed
in this manual without prior notice. Be always updated by
checking periodically for news on our website, www.graupner.
de.
This product complies with national and European legal
requirements
To maintain this condition and to ensure safe operation, you
must read and follow this user manual and the safety notes
before using the product!
NOTE
This manual is part of that product. It contains important in-
formation concerning operation and handling. Keep these
instructions for future reference! Take this into considera-
tion when you pass it on to other future owner.
Service centre
Graupner-Zentralservice
Graupner GmbH
Henriettenstrasse 96
D-73230 Kirchheim / Teck
Servicehotline
(+49) (0)7021/722-130
Mon - Thu
9:15 am - 5:00 pm
Fri
9:15 am - 1:00 pm
For the service centres outside Germany please refer to our web
site www.graupner.de
Graupner in InternetGraupner in Internet

5- 20
48325_jh_V1
Intended use
The Fat Shark AttitudeV2 FPV goggles are a portable device that
reproduces Audio/Video signal (images and sounds) sent by a
5,8 GHz FPV camera or a directly connected Audio/Video source
(e.g. DVD Player).
The Fat Shark AttitudeV2 FPV goggles with integrated, wireless
NexWaveRF 5G8 receiver module uad Trinity (3 axis Pan/Tilt/
Roll) Headtracking technology is intended for use above men-
tioned, any other use is not permitted. For any improper use no
guarantee or liability is assumed.
Read carefully and entirely this manual before you try to use the
Fat Shark AttitudeV2 FPV goggles.
Graupner constantly works on the development of all products;
we reserve the right to change the item, its technology and
equipment.
Target group
The item is not a toy. It is not suitable for children under 14. The
use of the Fat Shark AttitudeV2 FPV goggles should be performed
only by experienced modellers. If you do not have sufficient
knowledge about dealing with radio-controlled models,
please contact an experienced modeller or a model club.
Package content
1x Attitude V2 Headset
1x 5.8GHz circular polarized SpiroNET Antenna (for headset)
1x LiPo battery 2S1P 1000mAh 7.4V
1x Charge cable
1x AV cable -> 3.5mm jack (3m)
1x Graupner teacher/pupil Data cable
1x Cleaning towel for the optics
1x Decals sheet

6 - 20
!
48325_jh_V1
Symbol description
Always follow the information marked with the CAUTION or WARN-
ING symbol. The signal word WARNING indicates the potential for
serious injury, the signal word CAUTION indicates potential minor
injuries.
The NOTE indicates important information that should alert you
to potential property damage..
Safety notes
General
These safety instructions are intended not only to protect
the product, but also for your own and other people’s
safety. Therefore please read this section very carefully
before using the product!
Do not leave the packaging material lying around, this could
be a dangerous toy for children.
Persons, including children, with reduced physical, sen-
sory or mental capabilities, or lack of experience or
knowledge, or not capable to use safely the Fat Shark
AttitudeV2 FPV goggles must not use the Fat Shark AttitudeV2
FPV goggles without supervision or instruction by a
responsible person.
For safety and conformity (CE) reasons the goggles must not
be modified or changed in any way.
If a disease has been diagnosed to your eyes or if you sus-
pect of having eye problems, you have an eye injury, epilepsy
or glaucoma, then you must consult your doctor before
using these video glasses and do not use the video goggles
without your doctor’s permission.
If you have heart problems or high blood pressure, you seek
advice before using these video glasses by your doctor and
do not use these video glasses without your doctor’s per-
mission.
Stop immediately using your video glasses if you have one
of the following symptoms:
• Eye fatigue, discomfort, or nausea
• Nausea and momentary loss of consciousness
• headache
• Pain in the neck or shoulders
• Dizziness and balance disorders
Do not use the device for a long time without breaks. Make
every 2 hours a 10 to 15 minute break
!

7- 20
48325_jh_V1
Use without interruption at maximum volume may cause
ears damage (deafness etc.).
Take the video glasses into operation only when the situation
allows it and if their use does not become a threat to you or
your environment.
Never use the goggles in cars.
The use of video glasses absorbs you completely. Do not
perform any other tasks at the same time.
Make sure that the cord does not wrap around your neck,
body or arms. Risk of injury!
Make sure that the video glasses are not exposed to rough
mechanical stress and avoid the influence of extreme tem-
peratures, direct sunlight and intense vibration (e.g. in vehi-
cles).
Treat the video glasses at all times carefully. They can even
be damaged by vibration, pressure, blows or falls from a low
height.
The video glasses must not come into contact with moisture,
(e.g. use when it rains). This can damage the video goggles
and it may lead to risk of short circuit, fire, injury (electric
shock, burns).
Keep the video glasses out of the reach of children. They are
not a toy and they can cause adverse health effects if used
in an uncontrolled manner.
Never leave the packing materials around! Plastic wrap or
bags, polystyrene parts, etc. can be a dangerous toy for chil-
dren! Risk of suffocation!
Repair work may only be carried out by a specialist or a spe-
cialised workshop.
For all questions that are not answered in this manual, please
contact our Customer Service or other experts.

8 - 20
48325_jh_V1

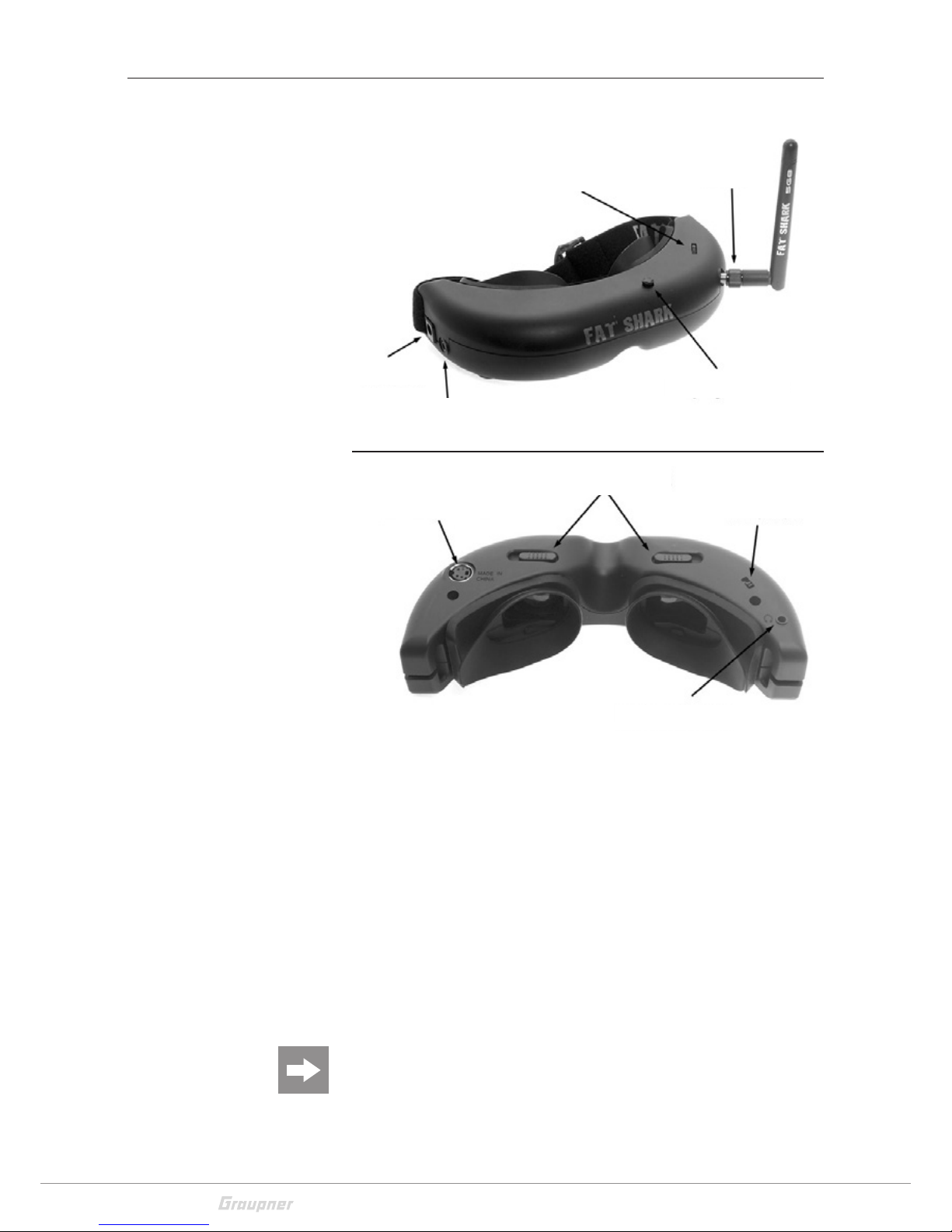

Controls description
Brightness/contrast control:
Pressing left and right increases/decreases display contrast.
Press forward/back increases/decreases brightness.
RX power switch:
The receiver module power is controlled by this switch. Turn off
RX module to avoid video conflict with video source via the AV
cable.
Channel select:
Rocking the channel select switch forward and back will cause
the channel to incrementally increase/decrease. Audio beep
sounds on channel change. A long beep sounds on channel top
and bottom limits.
Note:
Fat Shark only guarantees compatibility with Fat Shark or Immer-
sionRC transmitters.
Selectable channels with frequency
12
1. Channel select / Headtracker
reset
2. Antenna SMA
3. Display control
4. AV in/out
5. Power input
3
4
3
1. PS/2 Data port (Head tracker)
2. IPD adjustment
3. RX on/off
4. Earphone jack
12
3
4

9- 20
48325_jh_V1
CH1: 5740 MHz; CH2: 5760 MHz; CH3: 5780 MHz; CH4: 5800
MHz; CH5: 5820 MHz; CH6: 5840 MHz; CH7: 5860 MHz
Head tracker menu/reset:
Activated by a vertical press on the channel rock switch.
Low battery warning:
Audio warning is emitted if the input voltage drops below 6,8V.
Volume control:
There is no volume control - volume level is set at high. Please
use with adjustable earphone accessory for volume control.
Trinity head tracker
For a complete and up to date list of compatible RC radios and
their setup, a head tracking sticky thread is maintained at www.
FPVlab.com under SPONSORS GATE/FAT SHARK.
Note:
Head tracker initiates in pause mode. Head tracker reset button
needs to be depressed and held to start camera motion.
Menu navigation and settings:
(To access the menu: Press and keep pressed the head tracker
button, connect the battery and release SOON the button)
Beep code Mode
1 short beep: P/T/R on channel 5/6/7
2 short beeps: P/T/R on channel 6/7/8
3 short beeps: 1 short beep: P/T on channel 5/6
2 short beeps: P/T on channel 5/7
3 short beeps: P/T on channel 5/8
4 short beeps: P/T on channel 6/7
5 short beeps: P/T on channel 6/8
6 short beeps: P/T on channel 7/8
No selection: exit menu.
4 short beeps: Long beep then enter reverse servo
direction sub menu.
1 short beep: reverse pan direction
2 short beeps: reverse the tilt direc-
tion
3 short beeps: reverse the roll func-
tion
No selection: exit menu.

10 - 20
48325_jh_V1
1 long beep: Adjust servo center point: press to
gain manual control of the
camera with the headset. Adjust
camera to desired center
position and press button to set new
camera center. Note that
if your servos are not near the center
point before adjusting, the
servo travel may be limited in one
direction.
1 short beep: Long beep then enter pan ratio sub
menu.
1 short beep: ratio = 1:1
2 short beep: ratio = 1:1,5
No selection: exit menu.
2 short beeps: Long beep then enter tilt ratio sub
menu.
1 short beep: ratio = 1:1
2 short beep: ratio = 1:1,5
No selection: exit menu.
3 short beeps: Auto pause on/off (if movement
exceeds 90 degree, put HT in
pause mode)
4 short beeps: Long beep then enter motion limits
sub menu
1 short beep: standard range = 1.04
ms – 2.0ms (center =
1.52ms +/- 0.48)
2 short beep: extended range =
0.8ms–2.24ms (center=1.52ms +/-
0.72)
No selection: exit menu
5 short beeps: Long beep then enter cycle time sub
menu
1 short beep: standard cycle (8CH
PPM, 20ms)
2 short beep: rapid cycle (3CH PPM,
8ms)
No selection: exit menu
6 short beeps: Restore factory defaults
2 long beeps: No selection made, automatically exits
menu

11- 20
48325_jh_V1
Video connections
AV in/out Port
RCA Connector: Gelb: Video, Weiß: Audio
Links, Rot: Audio Rechts
Video recording
Connect AV cable to AV out port on right side of headset. Con-
nect recording device to cables and set up as per manufacturer
directions.
Note: Cables pins are not all the same (see above chart), be sure
to connect to headset using the included cable.
Using an external receiver
Use the AV cable to connect headset to the RCA AV port of
external devices.
To share the base station power supply with your goggles, pick
up a 3m Dominator AV cable accessory from your retailer. Note;
internal receiver must be shut off to properly display external AV.
Charging the battery
CAUTION
General notes on safety and handling LiPo batteries
• NEVER leave a LiPo battery unattended when in charge.
Charge the batteries only in rooms where a smoke detector is
installed.
• ALWAYS control the battery and the charger during the entire
charge process.
• ALWAYS charge the batteries on a non-flammable surface.
• ALWAYS keep an extinguisher suitable for Lithium “Class type
D” when charging LiPo batteries.
• NEVER charge LiPo batteries at a higher rate than 1C („C“
means the indicated capacity of the battery).
• NEVER charge the LiPo battery with a charger which does not
detect the full charge state of the battery. Over-warming or inflat-
ing of the LiPo cells indicates a problem and the LiPo battery
should be disconnected from the charger and brought to a fire-
safe place.
• ALWAYS interrupt the charge or discharge process of a LiPo
battery if you detect smoke or if the battery slowly inflates. Let
!

12 - 20
48325_jh_V1
the battery stay for at least 30 minutes in a fire-safe place. Do
not use the battery any more and dispose it as indicated.
The 1000 mAh, 7,4 V LiPo battery suits a 3 poles balancer con-
nector though which it can be charged with normal RC battery
chargers (not included in the package). Follow the instruction
manual of your charger to set the proper options to charge a 1A
7,4V LiPo battery. Some battery chargers require discharge
cables to be connected. Use the discharge cable adapter
included in the package to use those kind of chargers. Do not
charge with current higher than 1A!
Note (1): : If the charger fails to announce charge complete, but
is showing battery voltage at 8.4V, the charge can be consid-
ered finished.
Note (2): If battery becomes fully discharged or accidentally
shorted, an internal safety circuit will trip. To reset the battery,
tap 9V direct to the barrel connector via the discharge adapter
cable’s banana connector (black = GND, red = 9V). This will
instantly reset the battery and it can be recharged as normal.

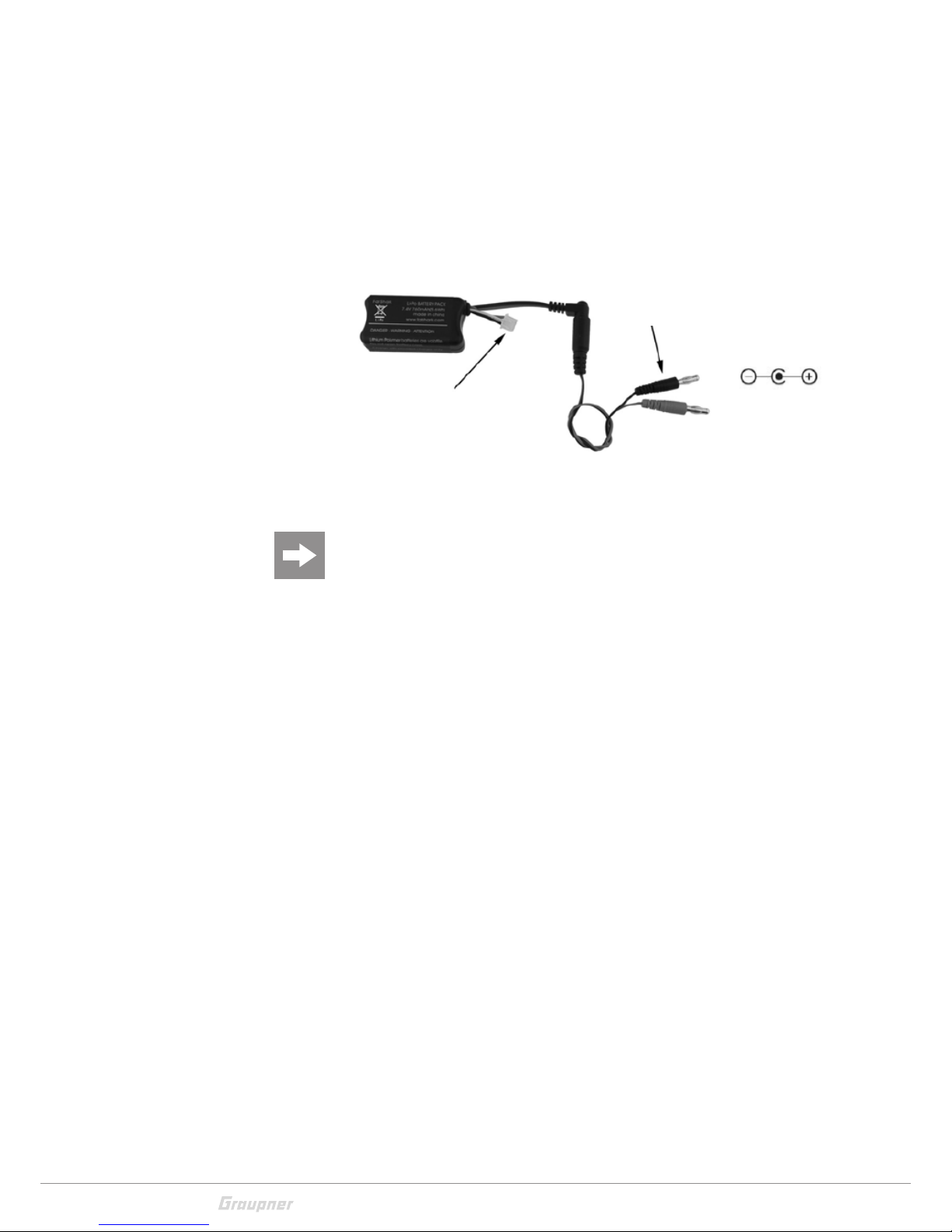

Balancer connector
Connection to RC charger
Charge cable

13- 20
48325_jh_V1
Accessories
No.48340.6, Diopter lens
For near sighted users, diopter lens insert sets are available that
include -2, -4 and -6 dpt. Peel off rubber eye cups and insert
into slots seated in front of the lens.
Replace rubber.
No.48326, 5,8 GHz 25mW FPV transmitter
The ImmersionRC 25mW transmitter is based on the super sta-
ble 5.8GHz band NexwaveRF and Fatshark compatible. It fea-
tures its own 5V output for the FPV camera with the standard
5-pin connector, which makes it plug-and-play capable with
most systems. These characteristics make it one of the best CE
certified FPV transmitters which are currently available.
48337 RunCam 600TVL DC 5-17V 2,8mm FPV Camera
RunCam 600TVL DC 5-17 V wide power supply input
FPV Camera
PZ0420M
600TVL resolution for faster reaction times
28 x 28 mm
Better colours
More contrast
IR blocked
OSD direct connection
Programmable via OSD

14 - 20
48325_jh_V1
Operational advice
• For best performance, select a channel that has the least
amount of interference. While the transmitter is turned OFF, turn
on the video headset and look at the screen as you check each
channel. Clear channels will have a consistent static back-
ground. Channels with interference will have horizontal static
lines.
• Always perform a range test before flying. This includes AV and
RC controls. Some RC receivers can be affected by the proxim-
ity of other electronic devices particularly the AV TX.
• Try to space out your components as much as possible to
avoid interference to your RC control range (keep stuff away
from RX)
• Until experienced, practice flying in a familiar area to avoid
becoming disorientated.
• Due to antenna characteristics, there is a “null” in line with
antenna direction. You may experience excessive video breakup
when flying overhead.
• 5.8Ghz signal strength drops off very fast, stay safely within
solid AV range.
• For maximum distance it is very important that a clear line of
sight exists between the transmitter and the video headset. 2 of
the worst causes of interference are human bodies and rein-
forced concrete.
• Place your TX antenna in open area in a vertical orientation.
• Multipathing (reflections off buildings/ tall objects) causes sig-
nal cancellation and result in broken video. Fly in open areas
away from buildings or other tall structures (i.e. barns, hills).
• 5.8Ghz AV with 2.4Ghz RC controllers: 2.4Ghz may cause
harmonic interference on Ch2 – Ch7 of the 5.8Ghz AV (Ch1 not
affected). The headset has been equipped with a high pass filter
that will allow the system to work with CE certified 2.4Ghz RC
controllers. However, the filtering may be insufficient to remove
noise from overpowered non CE certified controllers.
If you experience interference from your RC radio, change the
AV channel to channel 1.
• Although you don’t require any license to operate this device,
you are still legally responsible for operating in a responsible
manner.

15- 20
48325_jh_V1
Technical data
Headset technical data
Optics FOV 35 degrees diagonal
Interpupillary (IPD) distance:
59 – 69 mm (adjustable)
Optional diopter lens inserts
available in -2, -4, -6 dp
Mechanical Ergonomic molded shape.
Rubber eye cups for ambi-
ent light
shielding
Weight: 150g
Adjustable headband
Audio Stereo System NTSC/PAL auto select
(interlaced)
Two full color micro VGA
LCD‘s
(640 X 480 dots), 922k
pixels
User controls Channel selection
Display adjustment
Head Tracker reset/menu
nav
Head tracker Magnetic, gyro, accelerome-
ter Trinity 9DOF, 3 axis head
tracker
Electrical data Power supply, 7-13V
(2S/3S supply)
Power consumption: 350mA
CH1: 5740MHz
CH2: 5760MHz
CH3: 5780MHz
CH4: 5800MHz
CH5: 5820MHz
CH6: 5840MHz
CH7: 5860MHz
Antenna 5G8 2,15dBi dipole (circular
polarized compatible)
Interfaces 3.5mm 4p AV in/out port
Power in port (barrel
connector.
Center pin is +’ve, collar is
GND)
3.5mm 3p Earphone port
PS/2 DIN data (HT) port

16 - 20
48325_jh_V1
Trouble shooting
If you cannot resolve your problem with the help of the following
notes, please feel free to contact our service centre.
OBSERVATION POSSIBLE CAUSE / SOLUTION
No image, display is completely dark. - No power supplied. Check power
connections.
No image, display is glowing dark grey. - If using wireless module, turn on RX power
on bottom of headset.
- If using AV in cable, check video source.
- Ensure TX is on and camera connections
solid
- Ensure lens cap is removed from camera
- Trying to power a 12V camera with the 5V
TX supply (need to connect 12V camera
direct to RC pack.
Complete white screen LCD driver has failed and needs to be repla-
ced under warranty. Contact your retailer.
Lots of interference lines (horizontal lines) - Choose a cleaner channel.
Lots of interference lines (horizontal lines)
when using 5.8Ghz receiver.
- Ensure headset is turned on before RC
radio
- Review controller manual for correct set-
tings
- Check servos are plugged into correspon-
dingly selected channels
Head tracker not working but can hear beeps
(can enter and navigate beep menu)
- Check to see if cause is harmonic interfe-
rence from
2.4Ghz RC controller (turn radio on/off).
- Use CH1 on TX/headset (Ch1 not affected
by 2.4Ghz)
- check correct frequency antenna is used
Head tracker not working, and no beeps (can’t
enter nor navigate beep menu)
- Cable was modified and resulted in voltage
applied to signal line (fried HT)
- Mated to an aftermarket channel mixer
and wired wrong resulting in voltage applied
to signal line
- Incorrect installation of aftermarket UHF
RC system resulting in voltage applied to
signal line .
Head tracker stops working after short time Auto disengage function activated. Follow
menu instructions to turn off.
Short range - Ensure 5.8Ghz antenna were installed
- Turn off transmitter and check for other
sources of interference
- Ensure transmitter has clear LOS to head-
set. Test in wide open area, away from any
obstructions
Short range (con‘t) - Ensure that a compatible antenna is instal-
led. Do not use other manufacture antenna,
they may be dual band or may be reverse
SMA (no center pin to connect to receiver)
White dots on LCD display Goggles lens were left exposed to sun
allowing magnified
sunlight to burn off LCD color filter.

17- 20
48325_jh_V1
Declaration of conformity
48325 Attitude V2 goggles
Graupner declares that the product is conform to EU norms.
EMC 2004/108/EC: EN 55022:2010+AC:2011
EN 55024:2010
Battery warranty
The warranty on batteries is limited to 6 months.
For this time we will only ensure that the battery fulfils its func-
tion, only batteries which can not be more charged and dis-
charged any more can be replaced on warranty. This does not
apply to batteries in which the charge and discharge notes were
not observed. Battery packs may be connected in parallel or in
series only in exceptional cases, as the cell capacities and the
charging condition may be too different. Supplied LiPo batteries
are therefore selected.

18 - 20
48325_jh_V1
Notes on environmental protection
Disposal notes
This symbol on the product, user manual or packaging indicates
that this product must not be disposed of with other household
waste at the end of its life. It must be handed over to the appli-
cable collection point for the recycling of electrical and electronic
equipment.
The materials are recyclable as marked. By recycling, material
reusing or other forms of scrap usage you are making an impor-
tant contribution to environmental protection. Batteries and
accumulators must be removed from the device and disposed
of at an appropriate collection point. Please inquire if necessary
from the local authority for the appropriate disposal site.
Care and maintenance
Notes on care
The product does not need any maintenance, it works so as it
is without any special care. In your own interest please protect
the model from dust, dirty and humidity!
Clean the product only with a dry cloth (do not use detergent!)
lightly rub.
Warranty certificate
The Graupner, Henriettenstrassee 96, 73230 Kirchheim/Teck
grants from the date of purchase of this product for a period of
24 months. The warranty applies only to the material or opera-
tional defects already existing when you purchased the item.
Damage due to wear, overloading, incorrect accessories or
improper handling are excluded from the guarantee. The legal
rights and claims are not affected by this guarantee. Please
check exactly defects before a claim or send the product,
because we have to ask you to pay shipping costs if the item is
free from defects.
The present construction or user manual is for informational pur-
poses only and may be changed without prior notice. The cur-
rent version can be found on the Internet at www.graupner.de on
the relevant product page. In addition, the company Graupner
has no responsibility or liability for any errors or inaccuracies that
may appear in construction or operation manuals.
No liability can be accepted for printing errors.
P

19- 20
48325_jh_V1
Notice

20 - 20
48325_jh_V1
