Operator Manual
LC25/40
25 and 40 Foot Lister / Cultivator
Read the operator manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show alternate spacings and/or optional equipment not
supplied with standard unit.
34855

Machine Identification
Record your machine details in the log below. If you replace this manual, be sure to transfer this information to the new
manual.
If you or the dealer have added options not originally ordered with the machine, or removed options that were originally
ordered, the weights and measurements are no longer accurate for your machine. Update the record by adding the
machine weight and measurements with the option(s) weight and measurements.
Dealer Contact Information
Model Number
Serial Number
Machine Height
Machine Length
Machine Width
Machine Weight
Year of Construction
Delivery Date
First Operation
Accessories
Name:
Street:
City/State:
Telephone:
Email:
Dealer’s Customer
No.:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

LC25/40 Cover Index iii
2018-08-15 Cover Index 591-049M
© Copyright 2013 All rights Reserved
Great Plains Manufacturing, Inc. provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been
taken in the preparation of this manual, Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for
damages resulting from the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as
it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
Trademarks of Great Plains Manufacturing, Inc. include: AccuShot, Max-Chisel, Row-Pro,
Singulator Plus, Short Disk, Swath Command, Terra-Tine, Ultra-Chisel, and X-Press.
Registered Trademarks of Great Plains Manufacturing, Inc. include: Air-Pro, Clear-Shot, Discovator, Great Plains, Land Pride, MeterCone,
Nutri-Pro, Seed-Lok, Solid Stand, Terra-Guard, Turbo-Chisel, Turbo-Chopper, Turbo-Max, Turbo-Till, Ultra-Till, Whirlfilter, and Yield-Pro.
Brand and Product Names that appear and are owned by others are trademarks of their respective owners.
Printed in the United States of America
Table of Contents
Important Safety Information.................................................1
Safety Decals ....................................................................4
Introduction.............................................................................9
Description of Unit .............................................................9
Intended Usage ..........................................................9
Models Covered .........................................................9
Document Family .......................................................9
Using This Manual......................................................9
Definitions...................................................................9
Owner Assistance............................................................10
Further Assistance...........................................................10
Preparation and Setup .........................................................11
Post-Delivery/Seasonal Setup.........................................11
Pre-Planting Setup ..........................................................11
Hitching Tractor to Implement .........................................12
Check/Change Hitch Configuration 2013-................12
Check/Change Hitch Configuration 2014+...............13
Hitch Tractor (LC40 only) .........................................14
Hydraulic Hose Hookup............................................14
Electrical Hookup (LC25/40) ....................................15
Raise Parking Stands...............................................15
Leveling the Implement ...................................................16
Center Frame L/R Leveling (LC25/40) .....................16
Wing Leveling (LC40 only) .......................................16
Front-to-Back Leveling (LC25/40) ............................16
Operating Instructions .........................................................17
Pre-Start Checklist...........................................................17
Wing Lock Pins (LC40 only) ............................................17
Folding (LC40 only) .........................................................18
Unfolding (LC40 only)......................................................19
2014+ Independent Fold ..........................................19
Transporting the Lister / Cultivator ..................................20
Transport Checklist ..................................................20
Field Operations (LC25/40) .............................................21
Configure Lister Rows ..............................................21
Configure Cultivator Rows........................................21
Operations Checklists .....................................................22
Hitching ....................................................................22
Transport..................................................................22
Field Start (wings/folding LC40 only) .......................22
Field Turns ...............................................................22
End Field Work.........................................................22
Parking ............................................................................23
Storage............................................................................23
Adjustments..........................................................................24
Frame Adjustments (LC25/40) ........................................25
Front-to-Back Leveling .............................................25
Row Unit Adjustments (LC25/40) ....................................26
Row Unit Down Pressure (Springs) .........................27
Coulter Adjustments (LC25/40)................................28
Barring-Off Adjustments (LC25/40)..........................30
Lister Adjustments (LC25/40)...................................31
Cultivator Adjustments (LC25/40) ............................33
Shield Adjustments (LC25/40) .................................34
Troubleshooting ...................................................................35
Maintenance and Lubrication..............................................36
Maintenance....................................................................36
Bleeding Fold Hydraulics (LC40 only) .............................37
Unfolded Bleeding....................................................37
Lubrication ............................................................................38
Options ..................................................................................42
Appendix A - Reference Information ..................................44
Specifications and Capacities LC40................................44
Specifications and Capacities LC25................................45
Tire Inflation Chart (LC25/40)..........................................45
Dimensions (Field) LC25.................................................46
Dimensions (Field) LC40.................................................47
Dimensions (Transport) LC40 .........................................48
Hydraulic Diagram LC40 .................................................49
Torque Values Chart .......................................................50
1-Year Limited Warranty .................................................51

Table of Contents Index
Table of Contents Index

2018-08-15 Table of Contents Index 591-049M
LC25/40 Table of Contents Index 1
Important Safety Information
Look for Safety Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of
equipment, hazard control and accident prevention are
dependent upon the awareness, concern, prudence and
proper training of personnel involved in the operation,
transport, maintenance and storage of equipment.
Be Aware of Signal Words
Signal words designate a degree or level of hazard
seriousness.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
This signal word is limited to the most extreme situations,
typically for machine components that, for functional
purposes, cannot be guarded.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury, and includes hazards that are exposed when
guards are removed. It may also be used to alert against
unsafe practices.
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury. It may also be used to alert against unsafe
practices.
Prepare for Emergencies
Be prepared if a fire starts.
Keep a first aid kit and fire extinguisher handy.
Keep emergency numbers for doctor, ambulance, hospital
and fire department near phone.
Be Familiar with Safety Decals
Read and understand “Safety Decals” on page 4, thoroughly.
Read all instructions noted on the decals.
Keep decals clean. Replace damaged, faded and illegible
decals.
Wear Protective Equipment
Wear clothing and equipment appropriate for the job.
Prolonged exposure to loud noise can cause hearing
impairment or loss. Wear suitable hearing protection such
as earmuffs or earplugs.
Avoid wearing entertainment headphones while operating
machinery. Operating equipment safely requires the full
attention of the operator.

2018-08-15 Table of Contents Index 591-049M
LC25/40 Table of Contents Index Important Safety Information 2

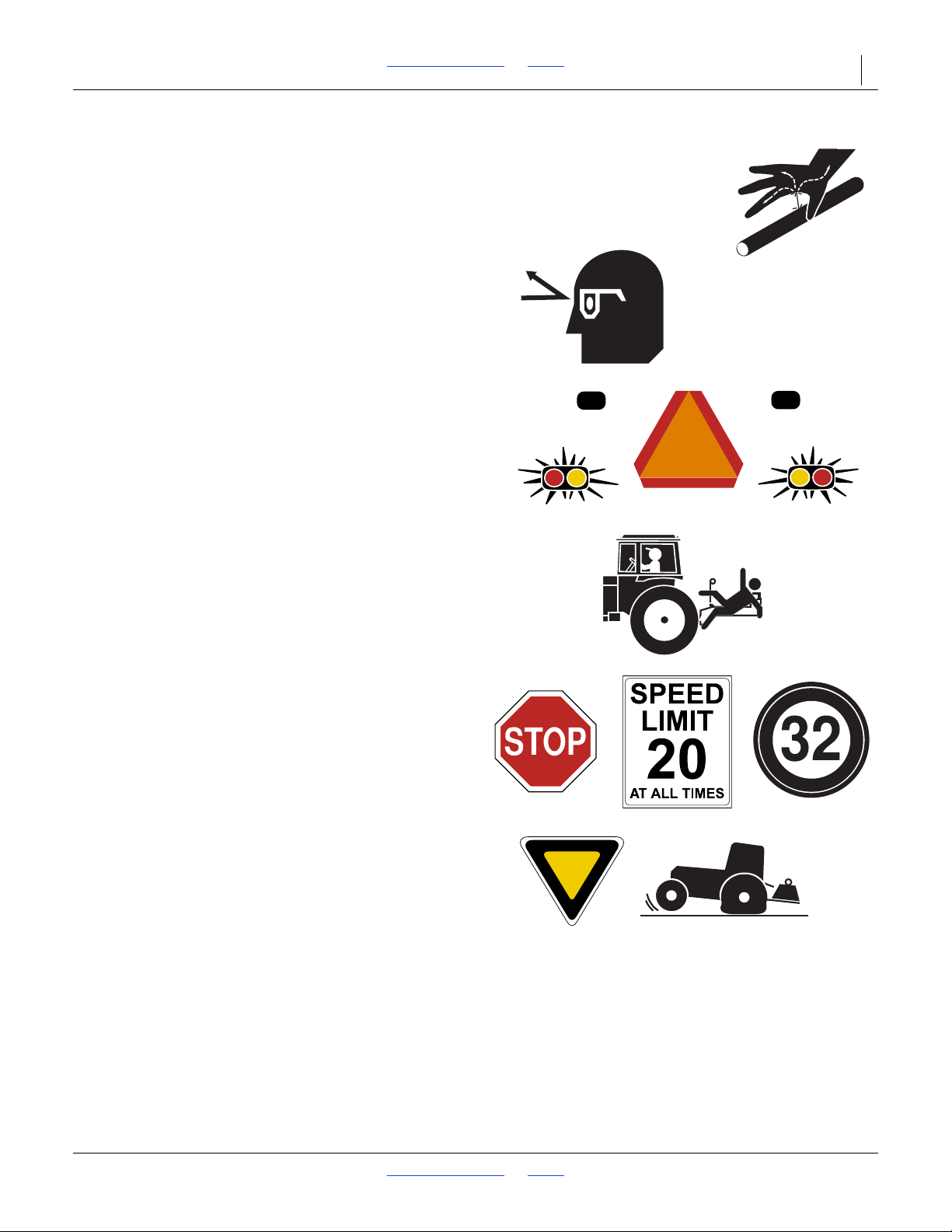

Avoid High Pressure Fluids
Escaping fluid under pressure can penetrate the skin,
causing serious injury.
Avoid the hazard by relieving pressure before
disconnecting hydraulic lines.
Use a piece of paper or cardboard, NOT BODY PARTS, to
check for suspected leaks.
Wear protective gloves and safety glasses or goggles when
working with hydraulic systems.
If an accident occurs, seek immediate medical assistance
from a physician familiar with this type of injury.
Use Safety Lights and Devices
Slow-moving tractors and towed implements can create
a hazard when driven on public roads. They are difficult
to see, especially at night.
Use flashing warning lights and turn signals whenever
driving on public roads.
Use lights and devices provided with implement.
Keep Riders Off Machinery
Riders obstruct the operator’s view. Riders could be
struck by foreign objects or thrown from the machine.
Never allow children to operate equipment.
Keep all bystanders away from machine during operation.
Transport Machinery Safely
Maximum transport speed for implement is 20 mph
(32 km/h). Some rough terrains require a slower speed.
Sudden braking can cause a towed load to swerve and
upset.
Do not exceed 20 mph (32 km/h). Never travel at a speed
which does not allow adequate control of steering and
stopping. Reduce speed if towed load is not equipped with
brakes.
Comply with state and local laws.
Do not tow an implement unless the towing vehicle is
rated for, and ballasted for, the weight of the implement.
Carry reflectors or flags to mark implement in case of
breakdown on the road.
Do not fold or unfold the implement while the tractor is
moving.

LC25/40 Table of Contents Index Important Safety Information 3
2018-08-15 Table of Contents Index 591-049M
Check for Overhead Lines
The implement requires at least 14 feet (4.3 m) vertical
clearance in transport. Contacting overhead electrical
lines can introduce lethal voltage levels on implement
and tractor frames. A person touching almost any metal
part can complete the circuit to ground, resulting in
serious injury or death. At higher voltages, electrocution
can occur without direct line or body contact.
Avoid overhead lines during folding, unfolding, transport
and parking.
Shutdown and Storage
Lower implement, put tractor in park, turn off engine, and
remove the key.
Secure implement using blocks and supports provided.
Detach and store implement in an area where children
normally do not play.
Practice Safe Maintenance
Understand procedure before doing work. Use proper
tools and equipment. Refer to this manual for additional
information.
Work in a clean, dry area.
Lower the implement, put tractor in park, turn off engine,
and remove key before performing maintenance.
Make sure all system pressure is relieved.
Disconnect battery ground cable (-) before servicing or
adjusting electrical systems or before welding on
implement.
Inspect all parts. Make sure parts are in good condition
and installed properly.
Remove buildup of grease, oil or debris.
Remove all tools and unused parts from implement before
operation.

2018-08-15 Table of Contents Index 591-049M
LC25/40 Table of Contents Index Important Safety Information 4

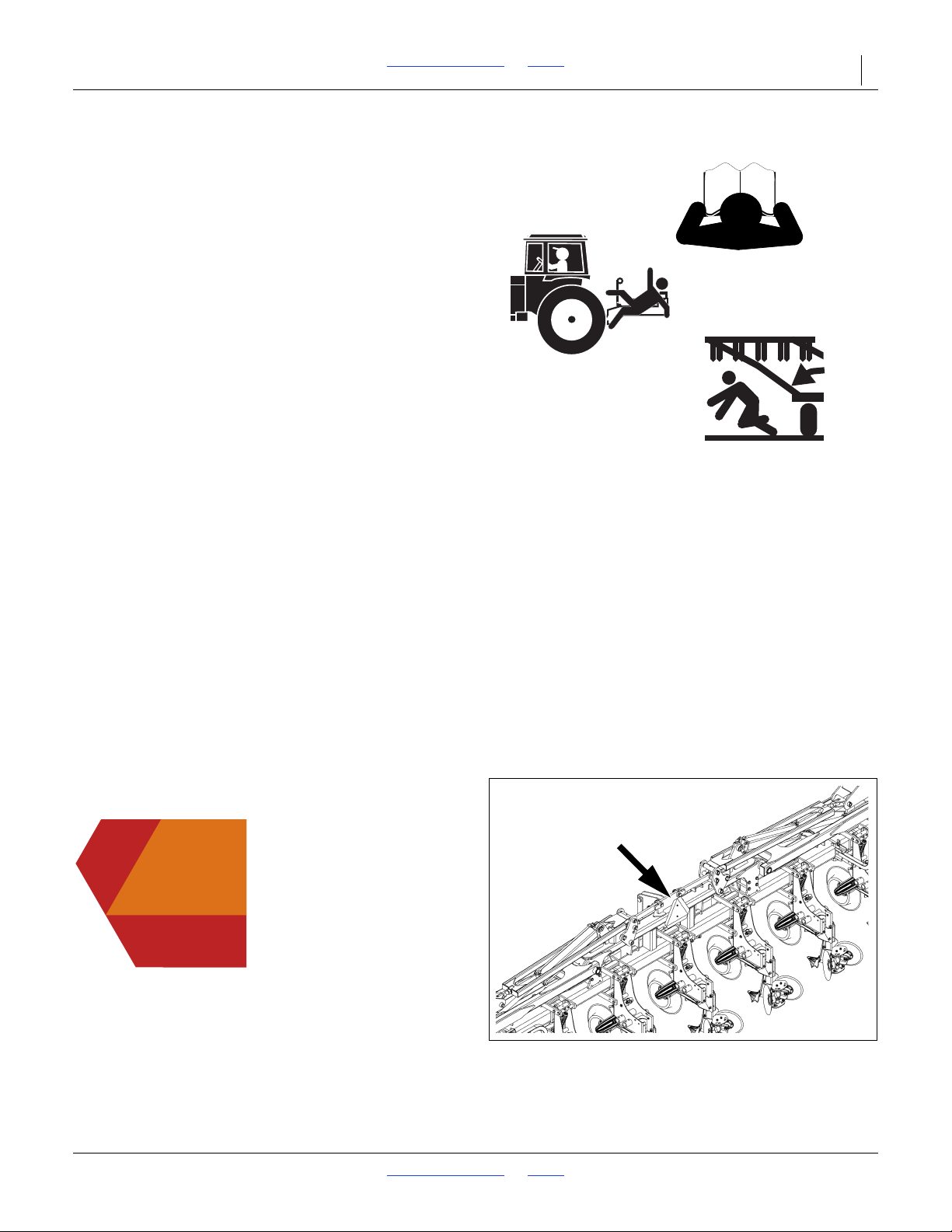

Safety At All Times
Thoroughly read and understand the instructions in this
manual before operation. Read all instructions noted on
the safety decals.
Be familiar with all implement functions.
Operate machinery from the driver’s seat only.
Do not leave implement unattended with tractor engine
running.
Do not dismount a moving tractor. Dismounting a moving
tractor could cause serious injury or death.
Do not stand between the tractor and implement during
hitching.
Keep hands, feet and clothing away from moving parts.
Watch out for wires, trees, etc., when folding and raising
implement. Make sure all persons are clear of working
area.
Safety Decals
Safety Reflectors and Decals
Your implement comes equipped with all lights, safety
reflectors and decals in place. They were designed to
help you safely operate your implement.
Read and follow decal directions.
Keep lights in operating condition.
Keep all safety decals clean and legible.
Replace all damaged or missing decals. Order new decals
from your Great Plains dealer. Refer to this section for
proper decal placement.
When ordering new parts or components, also request
corresponding safety decals.
Slow Moving Vehicle Reflector
818-055C
On center rear face of center frame tie tube;
1 total
To install new decals:
1. Clean the area on which the decal is to be placed.
2. Peel backing from decal. Press firmly on surface,
being careful not to cause air bubbles under decal.
34856

LC25/40 Table of Contents Index Important Safety Information 5
2018-08-15 Table of Contents Index 591-049M

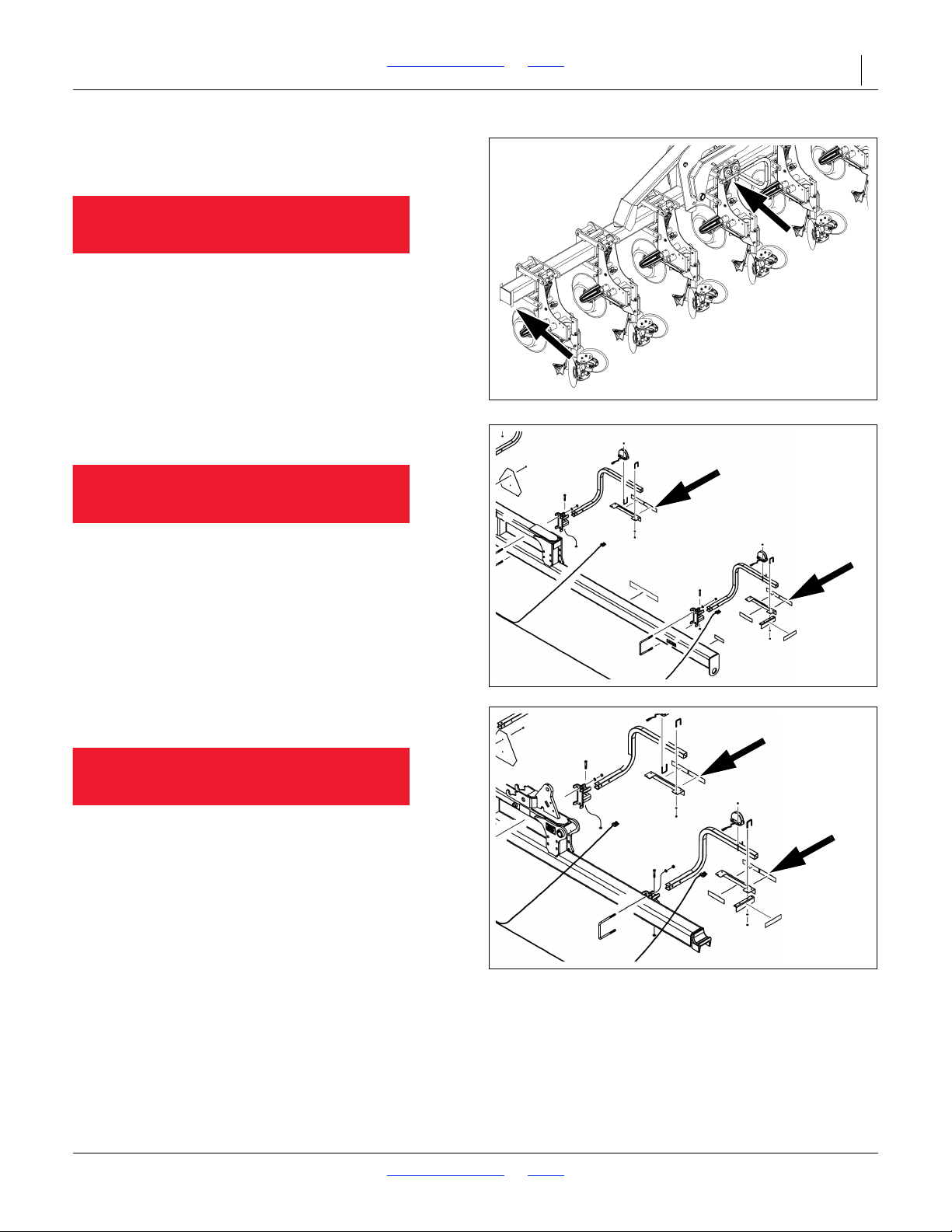

838-266C
Red Reflectors; LC25 S/N C1010X- and
LC40 S/N C1165Q-
On rear face of lighting bracket, at each outboard end,
one rear of wing tool bars, one each outboard end;
4 total
838-266C
Red Reflectors; LC25 S/N C1011X+
On rear face of four reflector brackets mounted on
lighting brackets, outboard of daytime reflectors;
4 total
838-266C
Red Reflectors; LC40 S/N C1166Q+
On rear face of four reflector brackets mounted on
lighting brackets, outboard of daytime reflectors;
4 total
34856
68395A
68393A

2018-08-15 Table of Contents Index 591-049M
LC25/40 Table of Contents Index Important Safety Information 6
838-267C
Daytime Reflectors; LC25 S/N C1010X- and
LC40 S/N C1165Q-
On rear face of light bracket mount tube, inboard of red
reflectors;
2 total
838-267C
Daytime Reflectors; LC25 S/N C1011X+
On rear face of four reflector brackets mounted on
lighting brackets, inboard of red reflectors;
4 total
838-267C
Daytime Reflectors; LC40 S/N C1166Q+
On rear face of four reflector brackets mounted on
lighting brackets, inboard of red reflectors;
4 total
34856
68395A
68393A

LC25/40 Table of Contents Index Important Safety Information 7
2018-08-15 Table of Contents Index 591-049M
838-265C
Amber Reflectors; LC25 S/N C1010X- and
LC40 S/N C1165Q-
On outboard sides of vertical sections of light bracket
mount tubes, on front face of wing tool bars at outboard
ends;
4 total
838-265C
Amber Reflectors; LC25 S/N C1011X+
On front and outboard sides of four reflector brackets
mounted, on outboard lighting brackets;
4 total
838-265C
Amber Reflectors; LC40 S/N C1166Q+
On front and outboard sides of four reflector brackets
mounted, on outboard lighting brackets;
4 total
34855
68395A
68393A

2018-08-15 Table of Contents Index 591-049M
LC25/40 Table of Contents Index Important Safety Information 8
818-557C
Danger (in Spanish):
Advising non-English readers to seek translation
On front face of hitch tube, just left of center;
1 total
818-590C
Danger: Hitch Crush
On front face of hitch tube, each end;
2 total
838-599C
Danger: Electrocution
On front face of center frame tie tube, left of center;
1 total
34855
848-512C
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
34855
34855

LC25/40 Table of Contents Index Important Safety Information 9
2018-08-15 Table of Contents Index 591-049M
858-097C
Danger: Tip Over / Crushing Hazard
On front face of center frame tie tube, left and right of
center;
2 total
See page 20 and page 25 for more detail on this hazard.
818-045C
Warning: Pinch/Crush
On front face of center frame outer pivot plates;
2 total
818-188C
Warning: Speed
On front face of wing flex base lug;
1 total
34855
858-097C
To prevent seriousinjury or death:
Never unhitch from a folded
implement.
Alwaysunfold and lower parking
standsbefore unhitchingfrom
tractor.
TIP OVER
CRUSHING HAZARD
DANGER
34855
34855
818-188C Rev. C
Do Not exceed 20 mph maximum transport
speed. Loss of vehicle control and/or machine
can result.
To Prevent SeriousInjury or Death:
EXCESSIVE SPEED HAZARD
WARNING

2018-08-15 Table of Contents Index 591-049M
LC25/40 Table of Contents Index Important Safety Information 10
818-339C
Warning: High Pressure Fluid Hazard
On front face of hitch tube, just right of center;
1 total
818-579C
Warning: Pinching or Crushing
On front face of outer wing pivot plates;
2 total
818-587C
Caution: General Instructions
On front face of hitch tube, just left of center;
1 total
34855
34855
34855
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Read Owner’s Manual before usingmachine.
Stand clear when foldingand unfoldingmarkers.
Stand clear when raisingand loweringmachine.
Keep all safety shieldsand devicesin place.
Keep hands, feet, and clothingaway from
Never ride on machine.
Alwayslower or properly support machine
Escapinghydraulic fluid can cause serious
Review safety instructionswith all operators
movingchainsand sprockets.
BEFORE servicing.
818-587C Rev. B
injury.
annually.
CAUTION

2018-08-15 Table of Contents Index 591-049M
LC25/40 Table of Contents Index 11
Introduction
Great Plains welcomes you to its growing family of new
product owners. The 25 and 40 Foot Lister Cultivator
(LC25/40) has been designed with care and built by
skilled workers using quality materials. Proper setup,
maintenance, and safe operating practices will help you
get years of satisfactory use from the machine.
Description of Unit
The LC25/40 Lister / Cultivator is a 3-point mounted soil
preparation implement for use in bedded conditions. The
LC25 tool bar has a working width of 21 feet 3 inches to
27 feet 11 inches. The LC40 three section stack-folding
tool bar has a working width of 40 feet (12.2 m). Both
accept:
•short or long lister row units, or
•cultivator row units, with optional barring-off discs.
Row units may be converted between lister and cultivator
functions by exchanging components.
Multiple points of adjustment are provided.
Intended Usage
Use the LC25/40 Lister / Cultivator for building and
maintaining beds in conventionally tilled ground. Do not
modify the lister / cultivator for use with attachments
other than Great Plains options and accessories
specified for use with the LC40.
Models Covered
Document Family
Using This Manual
This manual will familiarize you with safety, assembly,
operation, adjustments, troubleshooting, and
maintenance. Read this manual and follow the
recommendations to help ensure safe and efficient
operation.
The information in this manual is current at printing.
Some parts may change to assure top performance.
Definitions
The following terms are used throughout this manual.
Right-hand and left-hand as used in
this manual are determined by facing
the direction the machine will travel
while in use unless otherwise stated.
An orientation rose in some line art
illustrations shows the directions of:
Up, Back, Left, Down, Front, Right.
A crucial point of information related to the current topic. Read
and follow the directions to remain safe, avoid serious damage
to equipment and ensure desired field results.
Useful information related to the preceding topic.
2013- refers to implements manufactured in 2013 or
earlier.
2014+ refers to implements manufactured in 2014 or
later.
Figure 1
LC40 Lister / Cultivator
34855
U
D
F
B
L
R
L
R
LC25-0830 25-foot, 8-row (9-unit), 30 inch spacing
LC25-0870 25-foot, 8-row (9-unit), 70 cm spacing
LC25-0875 25-foot, 8-row (9-unit), 75 cm spacing
LC25-0836 25-foot, 8-row (9-unit), 36 inch spacing
LC25-0838 25-foot, 8-row (9-unit), 38 inch spacing
LC25-0840 25-foot, 8-row (9-unit), 40 inch spacing
LC25-081M 25-foot, 8-row (9-unit), 1 m spacing
LC40-1236 40-foot, 12-row (13-unit), 36 inch spacing
LC40-1238 40-foot, 12-row (13-unit), 38 inch spacing
LC40-1240 40-foot, 12-row (13-unit), 40 inch spacing
LC40-1630 40-foot, 16-row (17-unit), 30 inch spacing
591-049M Owner’s Manual (this document)
591-049P Parts Manual (LC40)
591-074P Parts Manual (LC25)
U
D
F
B
L
R

2018-08-15 Table of Contents Index 591-049M
LC25/40 Table of Contents Index Introduction 12
Owner Assistance
If you need customer service or repair parts, contact a
Great Plains dealer. They have trained personnel, repair
parts and equipment specially designed for Great Plains
products.
Refer to Figure 2
Your machine’s parts were specially designed and
should only be replaced with Great Plains parts. Always
use the serial and model number when ordering parts
from your Great Plains dealer. The serial-number plate is
located on front face of the main tool bar truss.
Record your LC25/40 Lister / Cultivator model and serial
number here for quick reference:
Model Number:__________________________
Serial Number: __________________________
Further Assistance
Great Plains Manufacturing, Inc. and your Great Plains
dealer want you to be satisfied with your new implement.
If for any reason you do not understand any part of this
manual or are otherwise dissatisfied, please take the
following actions first:
1. Discuss the matter with your dealership service
manager. Make sure they are aware of any problems
so they can assist you.
2. If you are still unsatisfied, seek out the owner or
general manager of the dealership.
If your dealer is unable to resolve the problem or the
issue is parts related, please contact:
Great Plains Service Department
1525 E. North St.
P.O. Box 5060
Salina, KS 67402-5060
Or go to www.greatplainsag.com and follow the contact
information at the bottom of your screen for our service
department.
Figure 2
LC25/40 Serial Number Plate
34858
*GP-Z1001R*

2018-08-15 Table of Contents Index 591-049M
LC25/40 Table of Contents Index 13
Preparation and Setup
This section helps you prepare your tractor and LC25/40
Lister / Cultivator for use.You must level the implement,
hook up the implement hydraulics to the tractor, and
check that the hydraulics have been bled.
Post-Delivery/Seasonal Setup
On initial delivery, use with a new tractor, and seasonally,
check and as necessary, complete these items before
continuing to the routine setup items:
•Bleed hydraulic fold system (page 39).
•Wing leveling and alignment (page 18).
•De-grease exposed cylinder rods if so protected at
last storage.
Pre-Planting Setup
Complete this checklist before routine setup:
Read and understand “Important Safety
Information” starting on page 1.
Check that all working parts are moving freely, bolts
are tight, and cotter pins are spread.
Check that all grease fittings are in place and
lubricated. See “Lubrication” on page 40.
Check that all safety decals and reflectors are
correctly located and legible. Replace if damaged.
See “Safety Decals” on page 4.

2018-08-15 Table of Contents Index 591-049M
LC25/40 Table of Contents Index Preparation and Setup 14
Hitching Tractor to Implement
This page applies to: LC40 models only.
Check/Change Hitch Configuration 2013-
These instructions apply to LC40 models manufactured
in 2013. For 2014+ see page 15.
Choose a hitch option that is compatible with your tractor
3-point. The LC40 has two ASABE S217 / ISO 730-1
hitch configurations:
Category 3 (80 to 225 hp / 60 to 168 kW)
Category 4 (180 to 400 hp / 135 to 300 kW)
Changing between categories requires exchanging pins
and bushings at the implement hitch.
Refer to Figure 3 (showing only the hitch plates;
depicting Category 3 arm pins and bushings
installed, and Category 3 link pin stored)
Category 3 Hitch Pins
1. Remove the Category 3 link (upper) pin from the
upper rear storage hole. Relocate it to the lower
holes of the upper hitch plates. The upper
Category 4 link pin may be left in the upper
plates.
2. At the rear of the lower hitch plates, remove two:
805-168C PIN HTCH 1.44X8.38 USBL
These are the smaller of the lower hitch pins.
3. Also remove four sets:
803-027C NUT HEX 3/4-10 PLT
804-023C WASHER LOCK SPRING 3/4 PLT
802-086C HHCS 3/4-10X2 3/4 GR5
591-031H CAT 3 WIDE BUSHING WELDMENT
The bushings are required to reduce the hole sizes
at the lower forward pin holes.
4. Remove the Category 4 arm pins from the
forward holes of the lower hitch plates. Store them in
the rear holes of the plates.
5. Mount the bushings on the outside facesaof the
inner hitch plates, using the bolts , lock
washers and nuts .
Category 4 Hitch Pins
1. Remove the Category 3 link (upper) pin from
lower holes of the upper hitch plates. Relocate it to
the upper rear storage hole. The upper Category 4
link pin should already be in place in the upper
plates.
2. At the rear of the lower hitch plates, remove two:
591-127D PIN 2 X 10 7/8 USABLE 1045
These are the larger of the lower hitch pins.
3. At the forward holes of the lower hitch plates, remove
the two Category 3 hitch pins . Relocate the
bushings to the lower rear holes, and secure with
bolts , lock washers and nuts .
Figure 3
Changing Hitch Category 2013-
34864
23
42
26
14
40
38
1
14
36
32
38
1
42
40
a. Or as needed to accommodate the spacing of the tractor lift arms.
32
36
26
14
23
14
26
36
32
38
1
42
23
40
14
26
36
32

LC25/40 Table of Contents Index Preparation and Setup 15
2018-08-15 Table of Contents Index 591-049M
Check/Change Hitch Configuration 2014+
These instructions apply to: LC25 models and LC40
models manufactured in 2014 or later.
Choose a hitch option compatible with the tractor 3-point.
The LC25/40 has three ASABE S217 / ISO 730-1 hitch
configurations:
Category 3N (narrow, 80 to 225 hp / 60 to 168 kW)
Category 3W (wide, 80 to 225 hp / 60 to 168 kW)
Category 4 (N or W, 180 to 400 hp / 135 to 300 kW)
Changing between categories requires exchanging pins
and bushings at the implement hitch.
2014+ Top Link
Refer to Figure 4
For all hitch categories, this pin:
805-291C PIN CLVS 1.75X4.38 USBL
is left in place in the top front center holes.
For Category 4, move (as needed) this pin:
805-119C PIN HTCH 1.25X4.50 USBL
to the top rear center holes.
For Category 3, move (as needed) this pin:
805-119C PIN HTCH 1.25X4.50 USBL
to the front mid center holes.
2014+ Lower Links
Refer to Figure 5
To change the lower links, remove all pins, bushings and
spacers at the bottom front 2-point locations.
For Category 3N, relocate:
591-031H CAT 3 WIDE BUSHING WELDMENT
to the inside face of the inside plates of the bottom front
2-point holes. Relocate
591-057H CAT 3 HITCH PIN SUPPORT SPACER
to the inside face of the outside plates of the bottom front
2-point holes. Secure each with 2 bolts. Relocate
805-518C PIN HTCH 1.44X8.88 USBL
to the bottom front 2-point holes. Store the removed
parts in the lower rear holes.
For Category 3W, relocate:
591-031H CAT 3 WIDE BUSHING WELDMENT
to the outside face of the outside plates of the bottom
front 2-point holes. Relocate
591-057H CAT 3 HITCH PIN SUPPORT SPACER
to the outside face of the inside plates of the bottom front
2-point holes. Secure each with 2 bolts. Relocate
805-518C PIN HTCH 1.44X8.88 USBL
to the bottom front 2-point holes. Store any removed
Category 4 parts in the lower rear holes.
For Category 4, relocate the following parts from the
rear storage holes to the bottom front 2-point holes:
591-032H PIN HITCH 2 X 12 7/8 PLT
591-058H CAT 4N LOWER HITCH PIN SPACER
Store the removed Cat 3 parts in the lower rear holes.
42

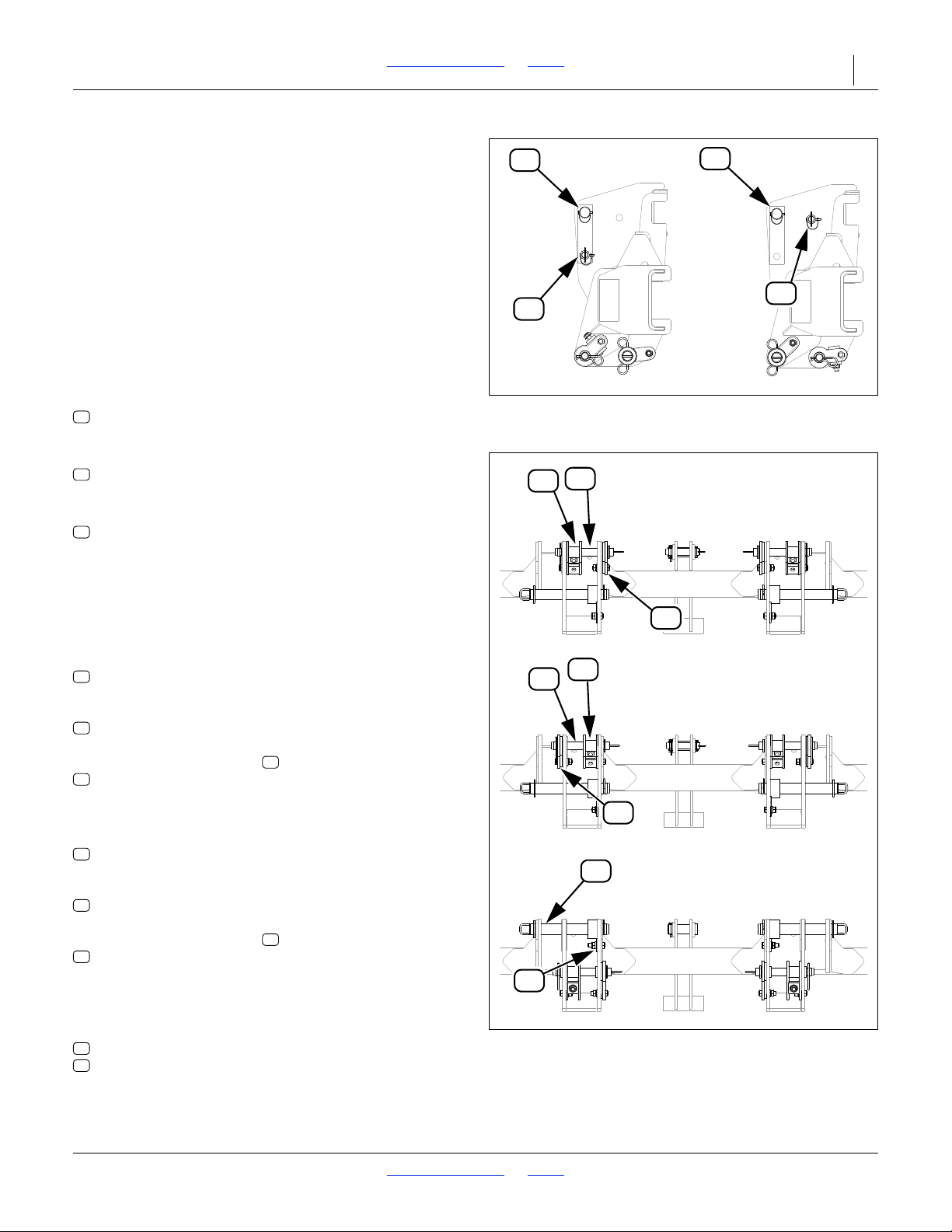

Figure 4 Side View
2014+ Category 3 & 4 Top Link
591-007A
38
38
42 Category 3 Category 4
42
Figure 5 Bottom View
2014+ Category 3 & 4 Lower Links
591-007A
Category 3N
14
16 43
Category 4
15
17
Category 3W
14
16
43
38
38
14
16
16
43
14
16
16
43
15
17

2018-08-15 Table of Contents Index 591-049M
LC25/40 Table of Contents Index Preparation and Setup 16
Hitch Tractor (LC40 only)
Crushing Hazard:
Do not stand or place any part of your body between the
implement and moving tractor. You may be severely injured or
killed by being crushed between the tractor and implement.
Stop tractor engine and set parking brake before installing the
hitch pins.
4. Connect the tractor lift arms to the lower hitch pins. If
using a quick hitch, ensure that the pins lock
securely.
5. Connect the top link to the upper hitch pin.
Front-to-back leveling is performed in later steps.
Hydraulic Hose Hookup
High Pressure Fluid Hazard:
Only trained personnel should work on system hydraulics!
Check all hydraulic lines and fittings before applying
pressure. Relieve pressure before disconnecting hydraulic
lines. Wear protective gloves and safety glasses or goggles
when working with hydraulic systems. Fluid escaping from a
very small hole can be almost invisible. Use paper or
cardboard, NOT BODY PARTS, to check for leaks. Escaping
fluid under pressure can have sufficient pressure to penetrate
the skin causing serious injury. If hydraulic fluid is injected
into the skin or eyes, seek immediate medical assistance from a
physician familiar with this type of injury. Within a few hours
gangrene can start to develop. DO NOT DELAY.
Refer to Figure 6
Great Plains hydraulic hoses have color coded handle
grips to help you hookup hoses to your tractor outlets.
Hoses that go to the same remote valve are marked with
the same color.
Color Coded Hose Handles
To distinguish hoses on the same hydraulic circuit, refer
to the symbol molded into the handle grip. Hoses with an
extended-cylinder symbol feed cylinder base ends.
Hoses with a retracted-cylinder symbol feed cylinder rod
ends.
Connect fold hoses to suitable tractor remote valves.
Color Hydraulic Function
Gray 2013- Combined Fold Cylinders
2014+ Left Wing Fold Cylinders
Green 2014+ Right Wing Fold Cylinders
Figure 6
Color Coded Hose Handles
31733
