Green Panther 173 User manual

Note: Please read the following instructions before use. This book contains important information on SAFETY, ASSEMBLY, OPERATION
& DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
Front Tine Tiller
17 3
User Manual
Front
Tine Tiller
17 3

2
MANUAL CONTENTS
Introduction

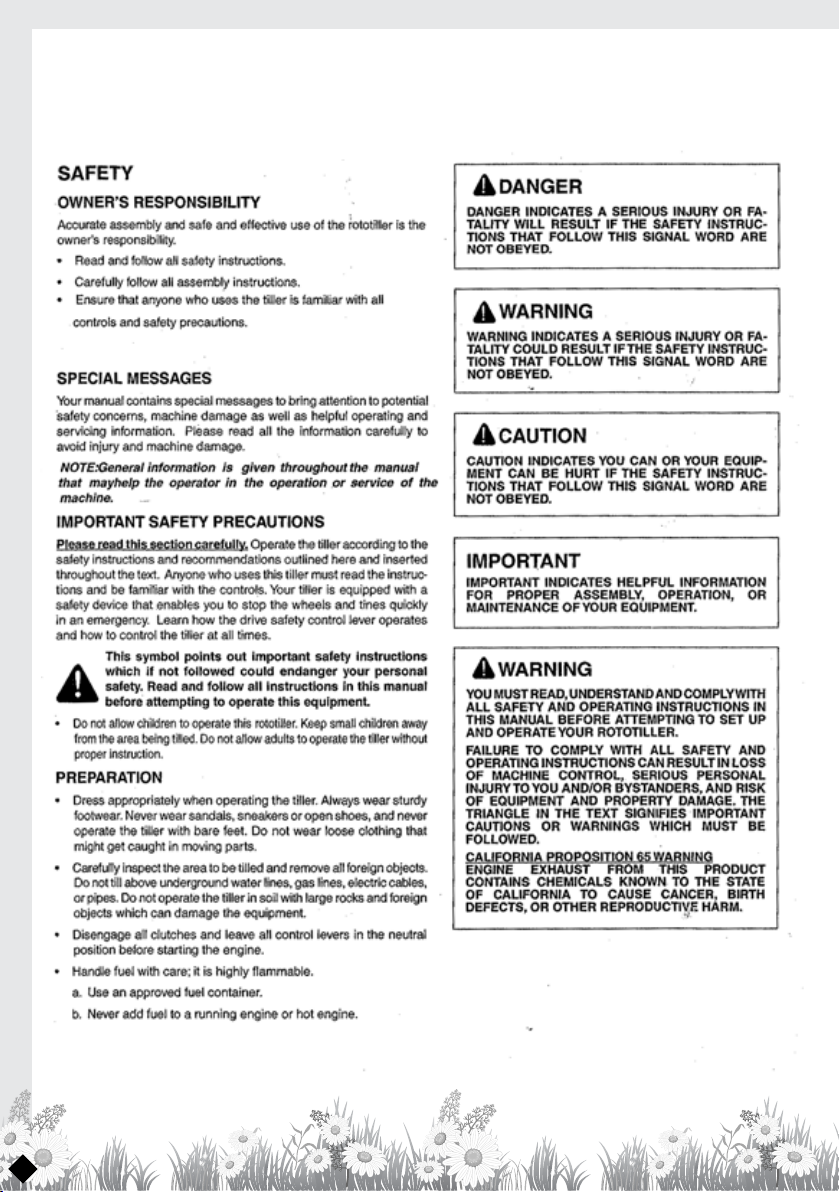

Safety

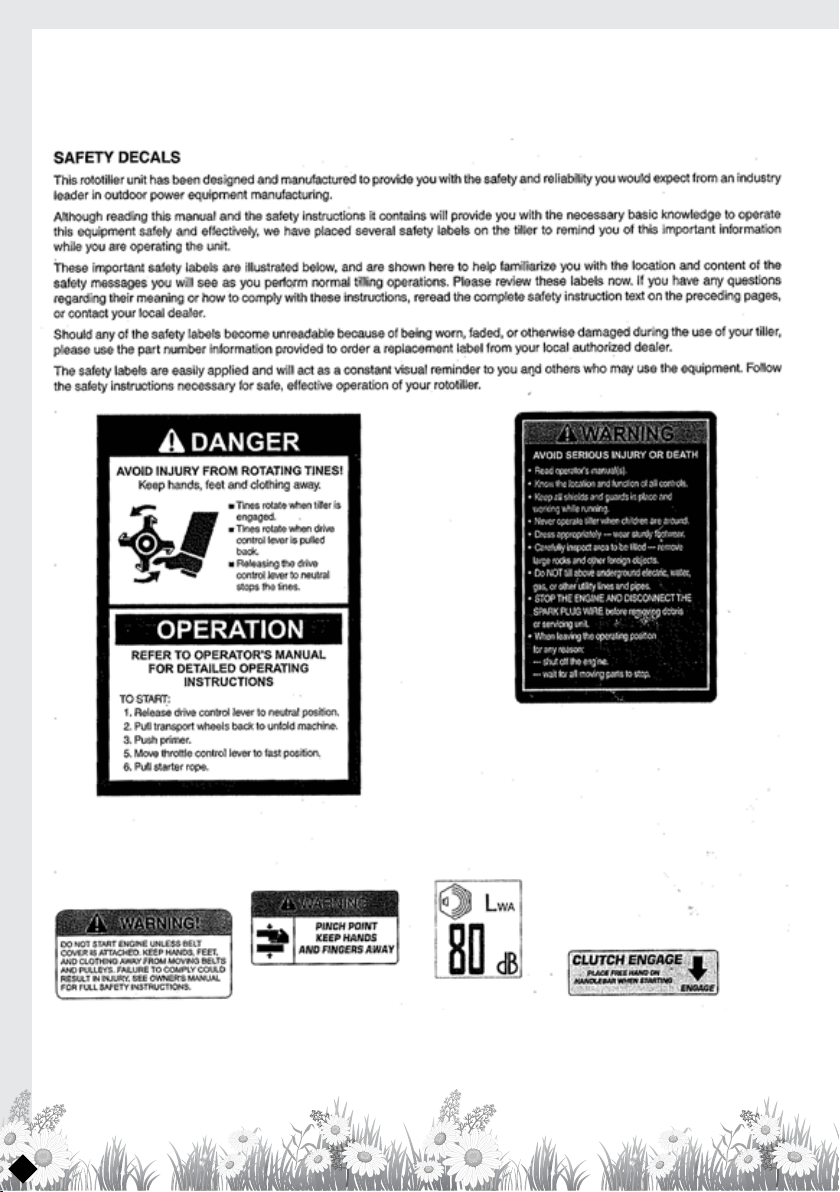

Safety Decals

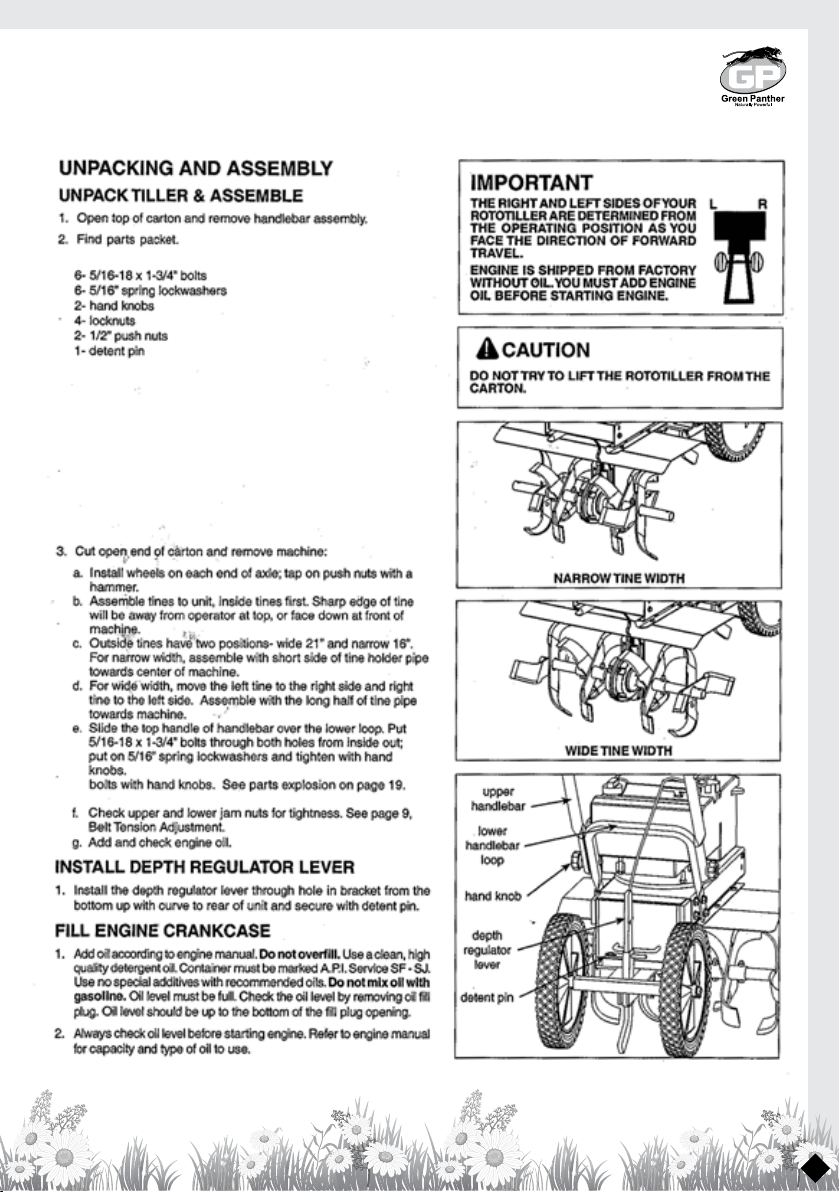

Unpacking and assembly
Features

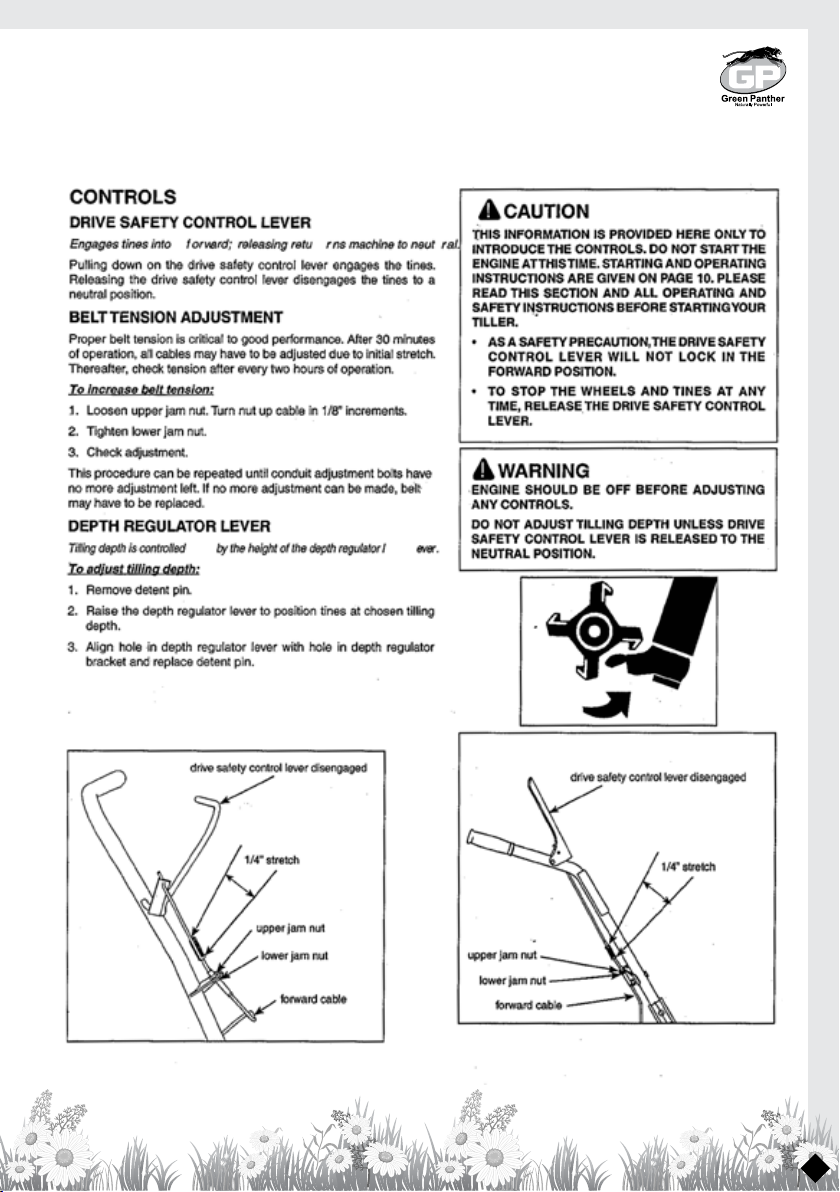

Controls

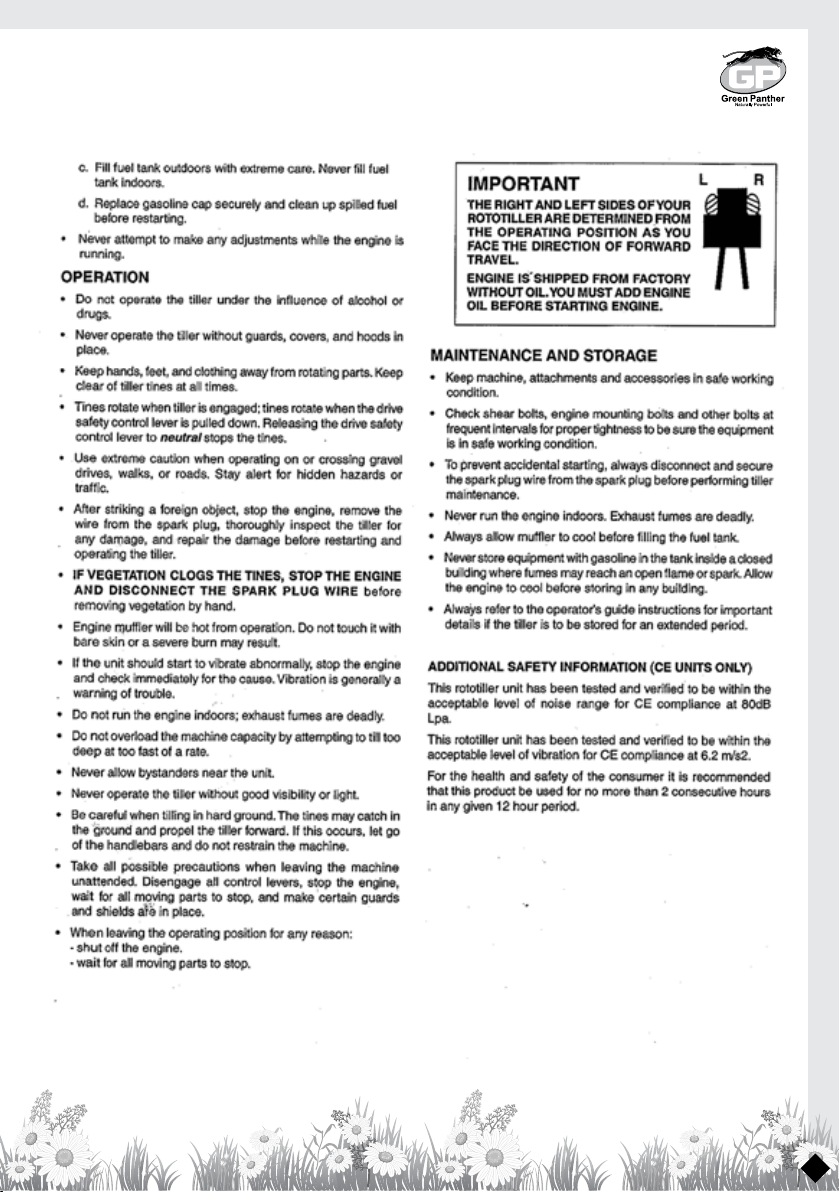

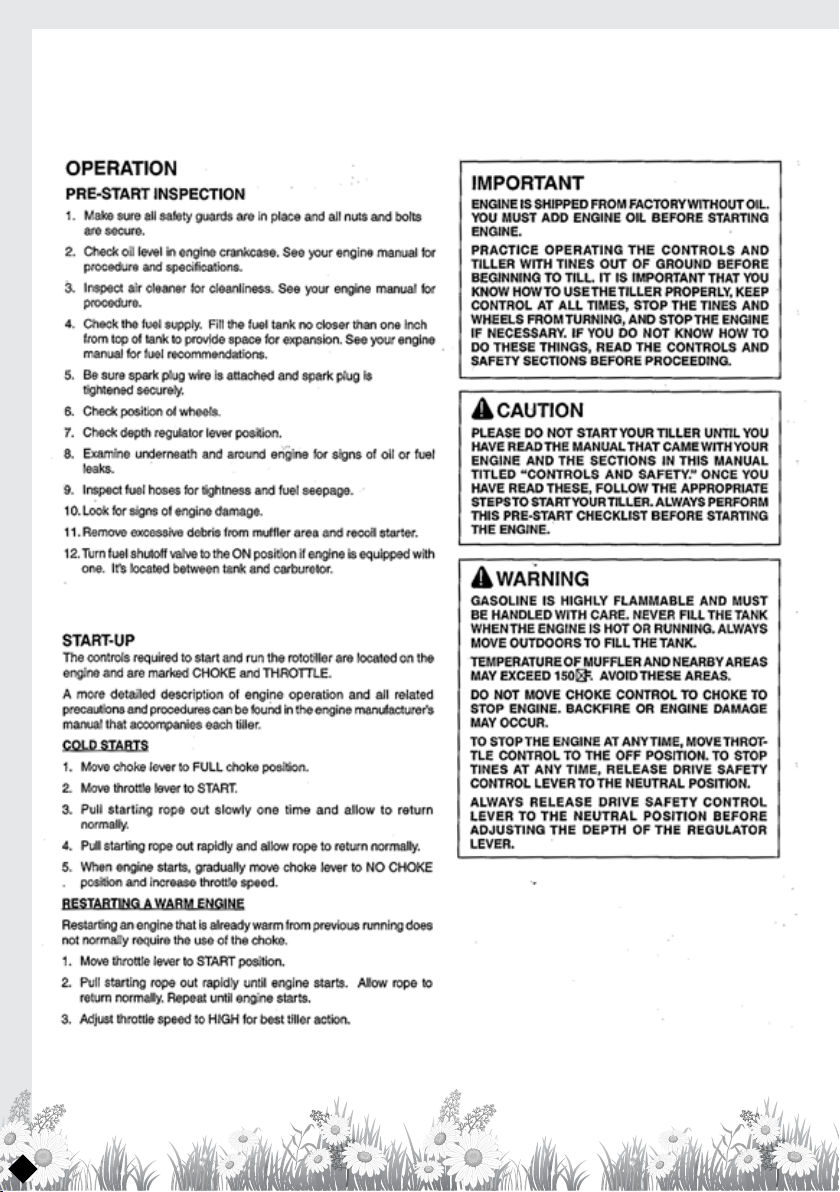

Operation

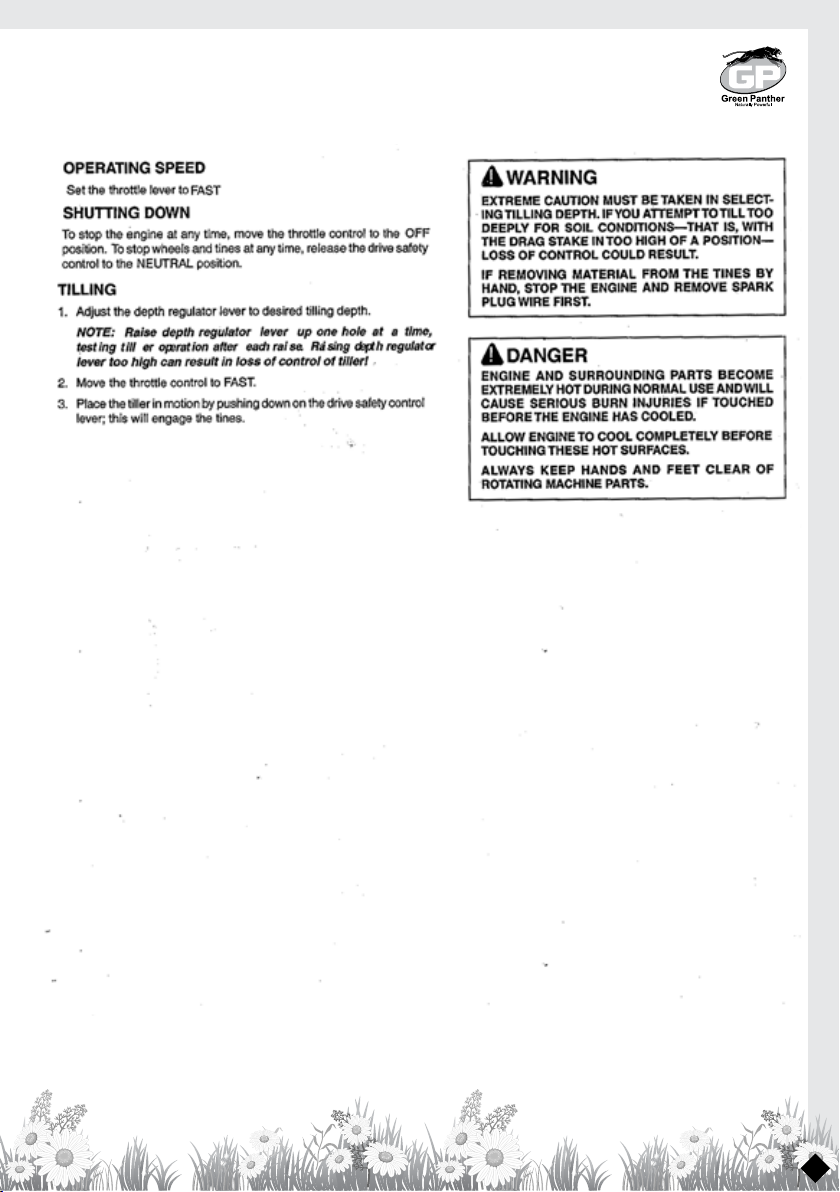

Operating speed
Maintenance and storage
Check Belt Tension

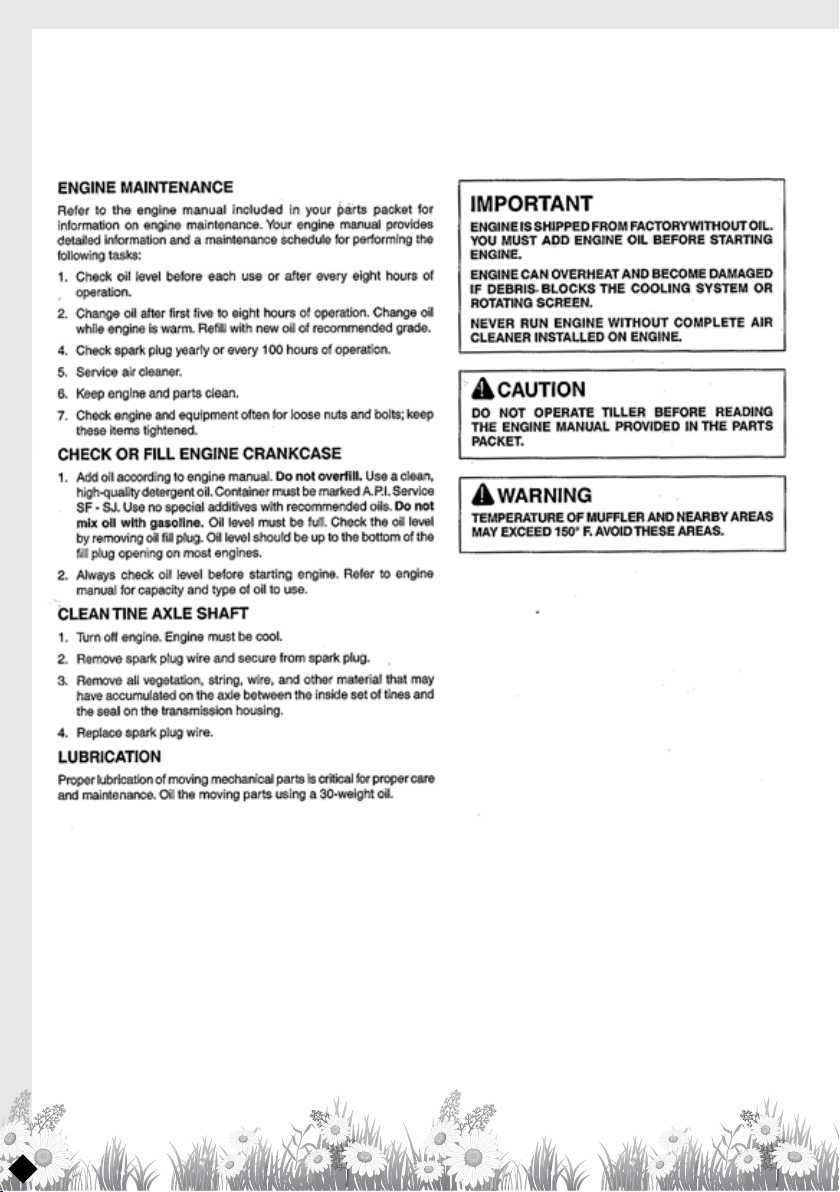

Engine Maintenance
Troubleshooting & Repair
Parts Explosions
Service Coupan
Warranty Card

3
For purchasing an forward rotating front time rototiller. We have worked to ensure
that this front tine rototiller meets high standards for usability and durability.
With proper care, your rototiller will provide many years of service. Please take
the time to read this manual carefully to learn how to correctly operate and
maintain your rototiller, This manual should be considered a permanent part of
your rototiller. Due to continuous efforts to perfect our product, certain procedures
and specifications are subject to change without notice. Congratulations on your
investment in quality.
INTRODUCTION
THANKYOU . . .

4

5

6

7

8

9

10

11

12

13

14

15

16
PART No. DESCRIPTION
GP 173 H 01 BLOT,SOC FLG HEX HD 5/16-18X3/4"GR5
GP 173 H 02 NUT, BI-WAY HEX LOCK 3/8-16
GP 173 H 03 CABLE ASSEMBLY W/FERREL
GP 173 H 04 MOUNT, HANDLEBAR
GP 173 H 05 HANDLEBAR WELDMENT
GP 173 H 06 BOLT,HH5/16-18X1-1/2"
GP 173 H 07 LOCKWASHER, SPRING 5/16"
GP 173 H 08 NUT,HEX NYLOC 10-24
GP 173 H 09 NUT,HEX JAM5/16-24
PART No. DESCRIPTION
GP 173 H 10 LINK 11-5/8"LONG
GP 173 H 11 PIN,CLEVIS 1/4X1-1/2"
GP 173 H 12 SPRING, COMPRESSION
GP 173 H 13 BRACKET, CABLE MOUNT
GP 173 H 14 GRIP, HANDLEBAR 1"ID FLANGELESS
GP 173 H 15 NUT, PUSH 1/4"
GP 173 H 16 LEVER CONTROL
GP 173 H 17 NUT, BI-WAYLOCK 5/16-18
GP 173 H 18 BOLT,SFHH 3/8-16X3/4"
GP 173 H 19 WASHER,FLAT 5/16"

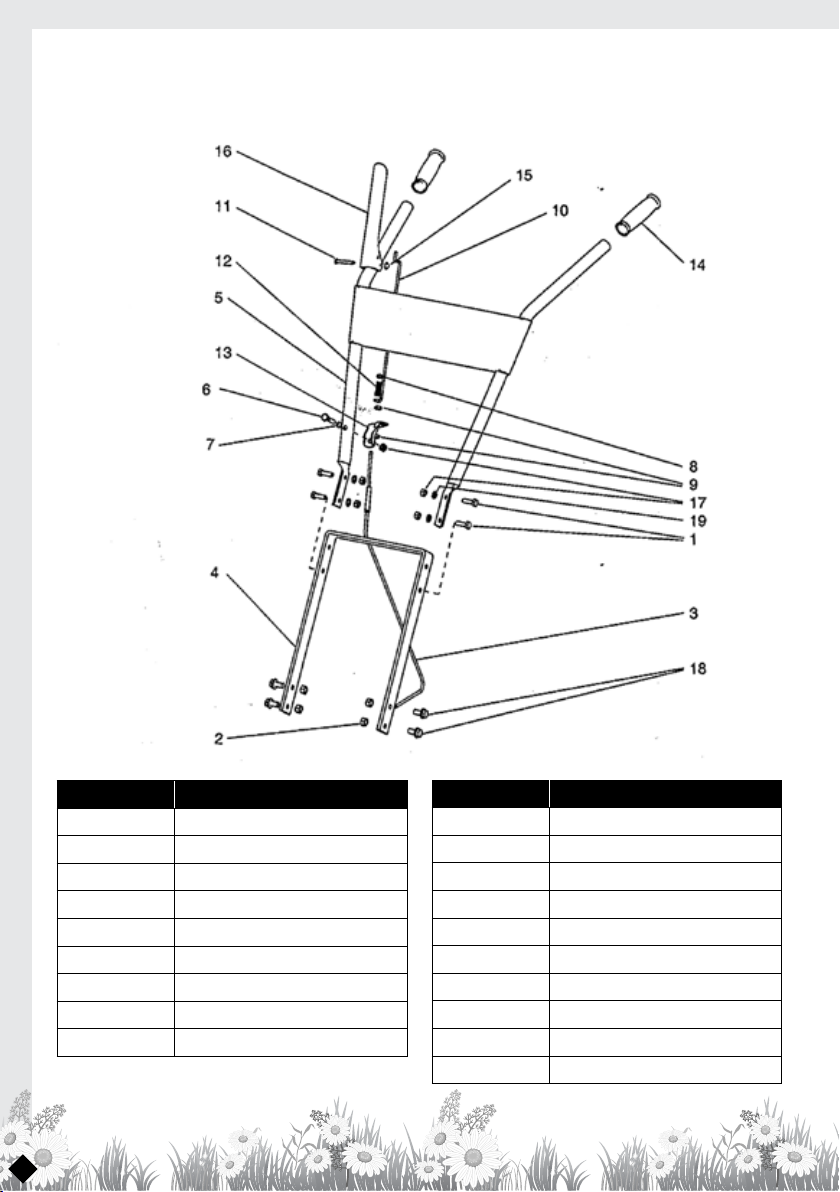

GP Front Tine Tiller - 173- Handle Diagram & Part No.

17
PART No. DESCRIPTION
GP 173 M 01 BOLT,HHCS 5/16-18X1-1/4"GR5
GP 173 M 02 SPRING, FORWARD ARM
GP 173 M 03 PULLEY, FORWARD IDLER
GP 173 M 04 PIN,LINK
GP 173 M 05 PIN,COTTER
GP 173 M 06 WHEEL & TIRE ASSY 11.0X1.75
GP 173 M 07 PUSH NUT 1/2" DIA
GP 173 M 08 NUT,NON-LOCKING HEX 3/8-16
GP 173 M 09 SHIELD, TINE
GP 173 M 10 FRAME, ENGINE MOUNT
GP 173 M 11 LEVER, DEPTH REGULATOR
GP 173 M 12 PULLEY, ENGINE, SINGLE GROOVE 3/4"ID
GP 173 M 13 BELT GUIDE & MOUNT
GP 173 M 14 BOLT, HHCS 1/4-20X7-1/2"GR5
GP 173 M 15 WASHER,FLAT 1/4"
GP 173 M 16 COVER, FRONT 4-HOLE
GP 173 M 17 SHIELD,DIRT
GP 173 M 18 ENGINE
GP 173 M 19 SHAFT, WHEEL 1/2"
GP 173 M 20 TAIL MOUNT, LOWER
GP 173 M 21 TAIL MOUNT, UPPER
GP 173 M 22 SHAFT, TAIL MOUNT HINGE 1/2"
GP 173 M 23 IDLER ARM, FORWARD
GP 173 M 24 KEY, SQUARE 3/16"X5/8"
GP 173 M 25 BELT, FORWARD
GP 173 M 26 BOLT, HHCS 5/16-18x2-1/14"GR5
GP 173 M 27 YOKE, CABLE
GP 173 M 28 NUT, BI-WAY LOCK 5/16-18
GP 173 M 29 BOLT, HHCS 1/4-20X1/2"
GP 173 M 30 NUT, HEX NYLOC 1/4-20
GP 173 M 31 PIN,DETENT5/16"X2"
GP 173 M 32 SET SCREW 1/4-20X1/4"
GP 173 M 33 WASHER, SPRING LOCK 3/8"
GP 173 M 34 SPACER, BELT GUIDE
GP 173 M 35 BOLT, HEX HD 5/16-18X3-1/4"
GP 173 M 36 WASHER, FLAT5/16"
GP 173 M 37 WASHER, SPRING LOCK 1/4"
GP 173 M 38 BOLT, SOC FLANGE HEX HD, 1/4-20X3/4"
GP 173 M 39 ARM LOWER HANDLEBAR
GP 173 M 40 NUT 1/4-20
GP Front Tine Tiller - 173- Motor Mount & Hood Parts Diagram & Part No

18
PART No. DESCRIPTION
GP 173 T 01 BOLT, SFHH 1/4-20x7/8"
GP 173 T 02 BEARING, TAPERED(includes Cone
& race)
GP 173 T 03 KEY, HALF MOON 1/4X1"
GP 173 T 04 SNAP RING, EXTERNAL
GP 173 T 05 GEAR, BRASS 1" ID
GP 173 T 06 SHAFT, DRIVE
GP 173 T 07 PULLEY, SINGLE GROOVE
GP 173 T 08 BEARING, SEALED 1" 1D
GP 173 T 09 SHAFT,TINE1"
GP 173 T 10 TINE SET, OUTSIDE RIGHT
GP 173 T 11 TINE SET, INSIDE
PART No. DESCRIPTION
GP 173 T 12 TINE SET, OUTSIDE LEFT
GP 173 T 13 KEY3/16X1/2"
GP 173 T 14 LOCKWASHER, SPRING 5/16"
GP 173 T 15 CASTING, RIGHT SIDE
GP 173 T 16 CASTING, LEFT SIDE
GP 173 T 17 NUT, BI WAYLOCK 5/16-18
GP 173 T 18 NUT, NYLOC 1/4"
GP 173 T 19 SCREW, HEX HD 5/16-24 x 3/4"
GP 173 T 20 WASHER 5/16" ID X 1-5/8" OD
GP 173 T 21 BOLT, HEX HD 5/16-18X1-3/4"
GP 173 T 22 BEARING, BALL R12
GP 173 T 23 SNAP RING, EXTERNAL 3/4"
GP 173 T 24 TRANSMISSION, COMPLETE
GP Front Tine Tiller - 173- Tines & Transmission Diagram & Part No

19
Small Maintenance. Big Savings.
Small Maintenance. Big Savings.
Small Maintenance. Big Savings.

20
1st Free Service Coupon ISO 9001-2008
CERTIFIED COMPANY
FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier)
Model
PDI Date
Dealer’s Office Seal & Signature
Service No.
Purchase bill no. Date
Serial Number
Operations:
• Check and Test the Fuel Mixture.
• Check and Clean the Air Filter
• Check, Clean and Adjust the Spark plug
• Check and Adjust the Carburetor Tuning
• Check and Sharpen the cutting Tools
• Start and Check the Noise, Vibration, Loosen / Fasteners etc.
• Product familiarization on Usage
• Routine maintenance and Storage
Customer Signature.........................................
Conditions: Operations listed have been performed to my entire satisfaction without any labour charges. Only consumables were charged.
WARRANTY AND FREE SERVICE COUPON
Front Tine Tiller 173
2nd Free Service Coupon ISO 9001-2008
CERTIFIED COMPANY
FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier)
Model
PDI Date
Dealer’s Office Seal & Signature
Service No.
Purchase bill no. Date
Serial Number
Operations:
• Check and Test the Fuel Mixture.
• Check and Clean the Air Filter
• Check, Clean and Adjust the Spark plug
• Check and Adjust the Carburetor Tuning
• Check and Sharpen the cutting Tools
• Start and Check the Noise, Vibration, Loosen / Fasteners etc.
• Product familiarization on Usage
• Routine maintenance and Storage
Customer Signature.........................................
Conditions: Operations listed have been performed to my entire satisfaction without any labour charges. Only consumables were charged.
WARRANTY AND FREE SERVICE COUPON
Front Tine Tiller 173
3rd Free Service Coupon ISO 9001-2008
CERTIFIED COMPANY
FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier)
Model
PDI Date
Dealer’s Office Seal & Signature
Service No.
Purchase bill no. Date
Serial Number
Operations:
• Check and Test the Fuel Mixture.
• Check and Clean the Air Filter
• Check, Clean and Adjust the Spark plug
• Check and Adjust the Carburetor Tuning
• Check and Sharpen the cutting Tools
• Start and Check the Noise, Vibration, Loosen / Fasteners etc.
• Product familiarization on Usage
• Routine maintenance and Storage
Customer Signature.........................................
Conditions: Operations listed have been performed to my entire satisfaction without any labour charges. Only consumables were charged.
WARRANTY AND FREE SERVICE COUPON
Front Tine Tiller 173
